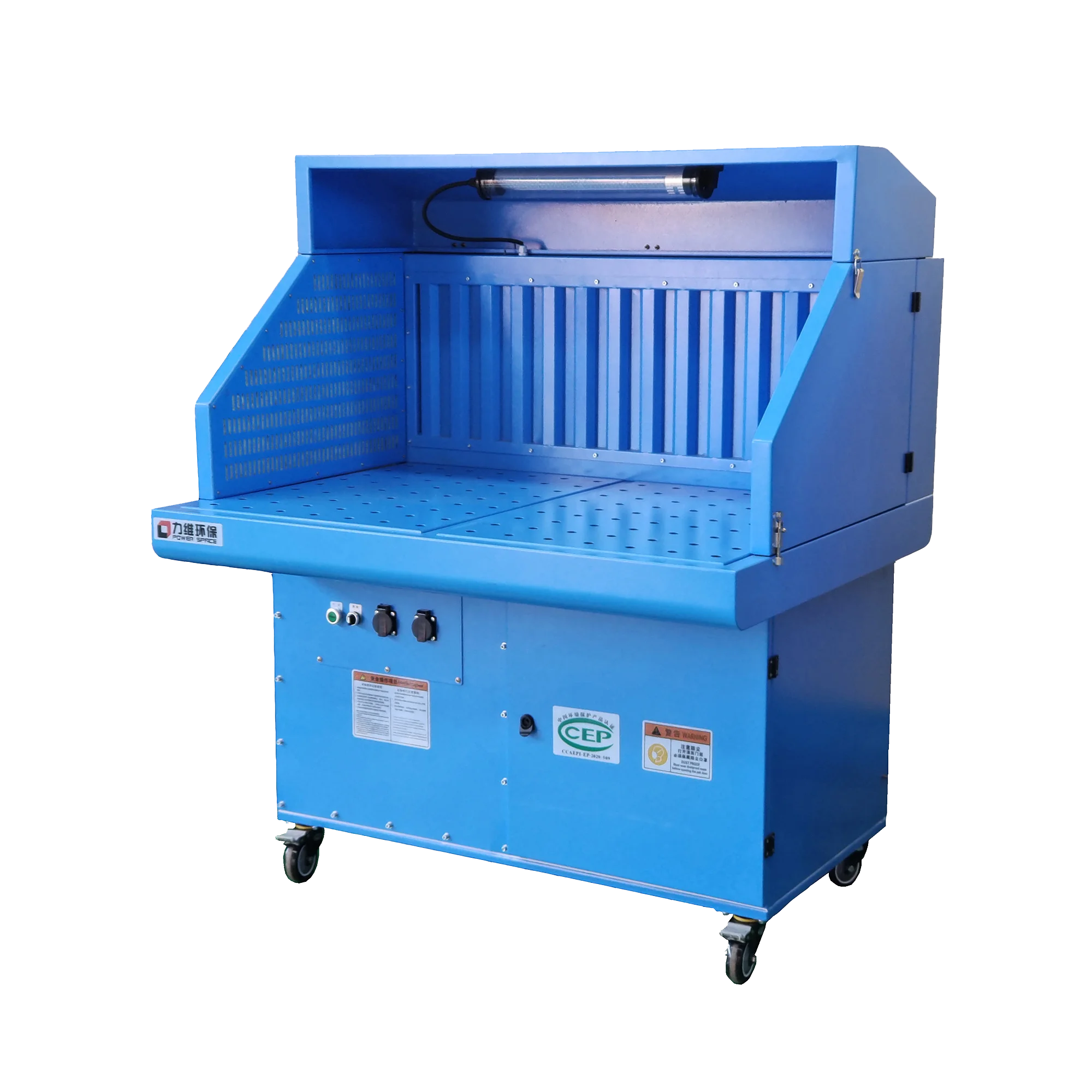

Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system
Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system

Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system

Share on (1601106703494):


Price:$1,500.00-1,900.00

Quantity:


Product Overview

Description



Products Description






Details Images


Built-in high-efficiency flame-retardant noise-absorbing fiber,which has good sound absorption. The box-type side baffle can be opened according to the shape and length of the workpiece, and the maximum opening angle can be 180°.

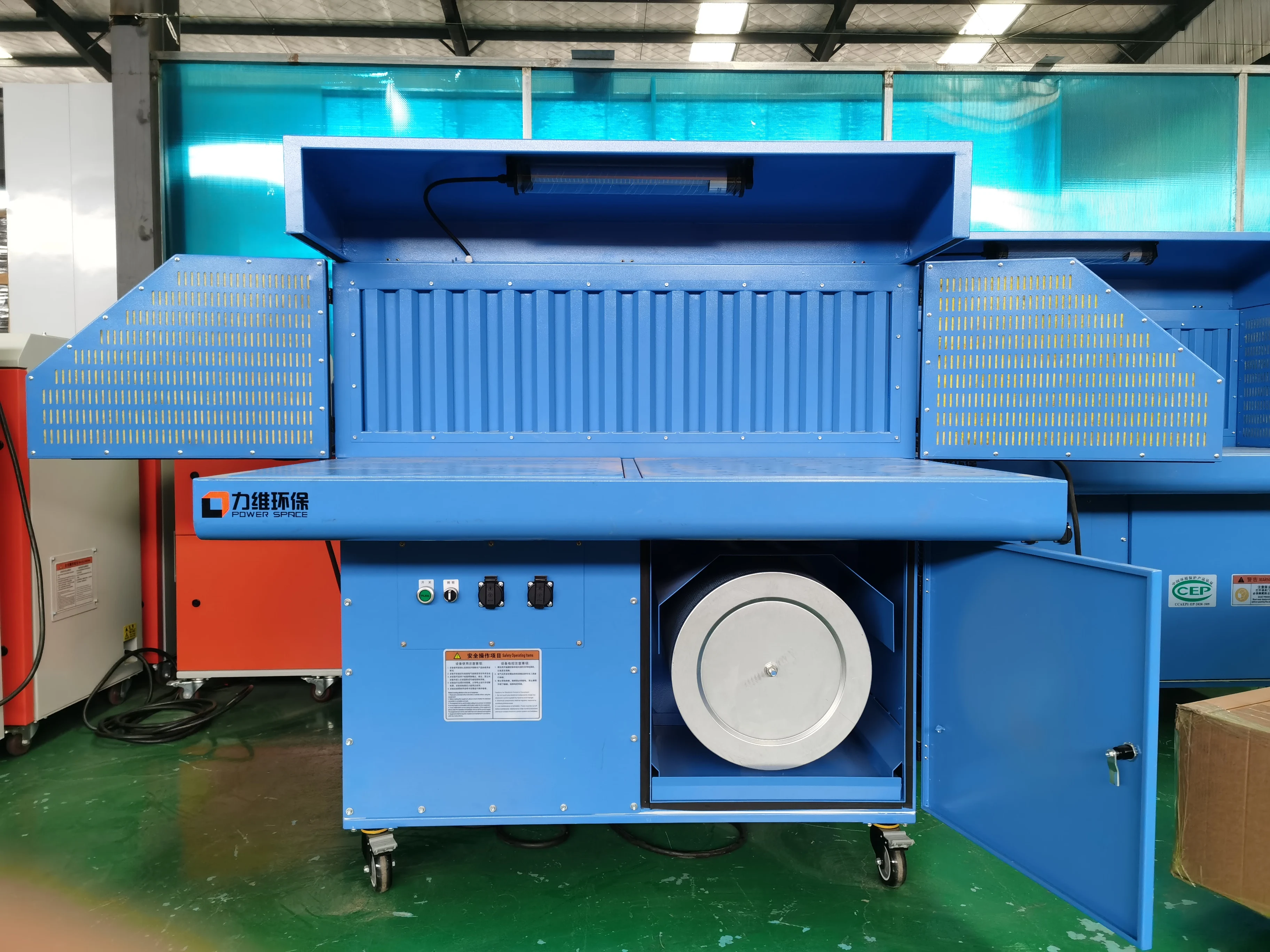

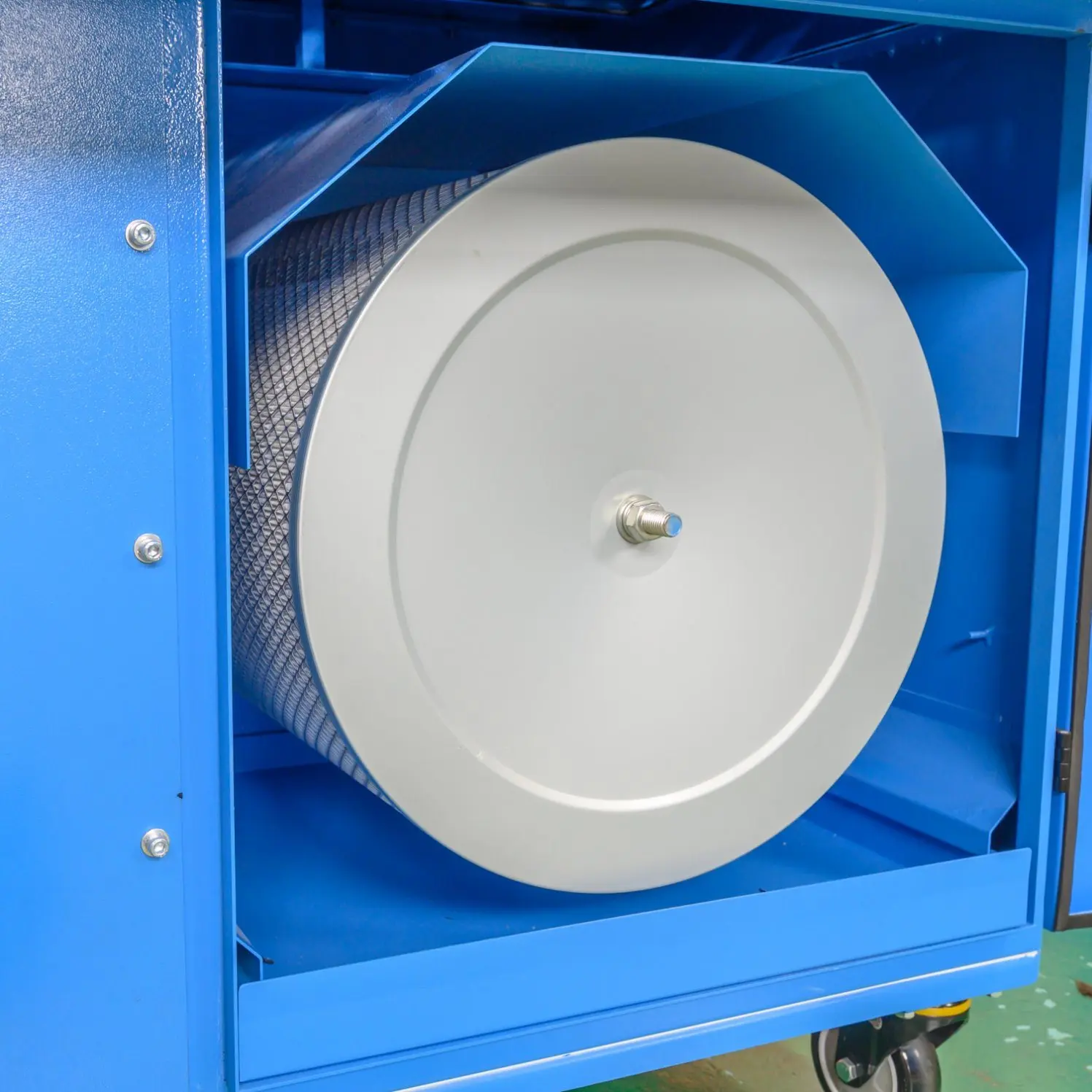

The dust purification room is equipped with filter cartridge flame retardant diversion cover, which spark-proof and separates the dust, also reduces the direct impact of the dust on the filter element, thereby prolonging the service life of the filter element

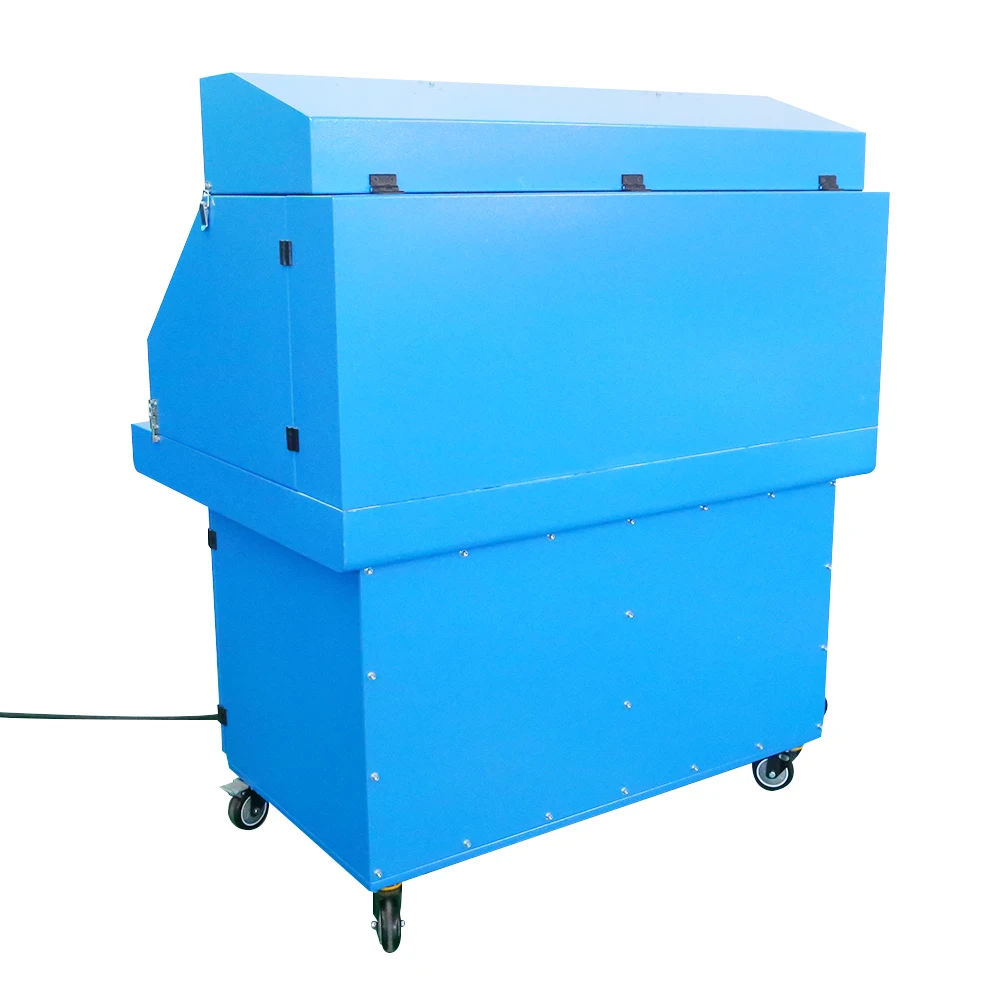

The cabinet's sheet metal adopts high-quality high-strength galvanized sheet with a multi-layer anti-corrosion and anti-rust process with electrostatic spraying on the surface. The thickness of the sheet is strong and durable.

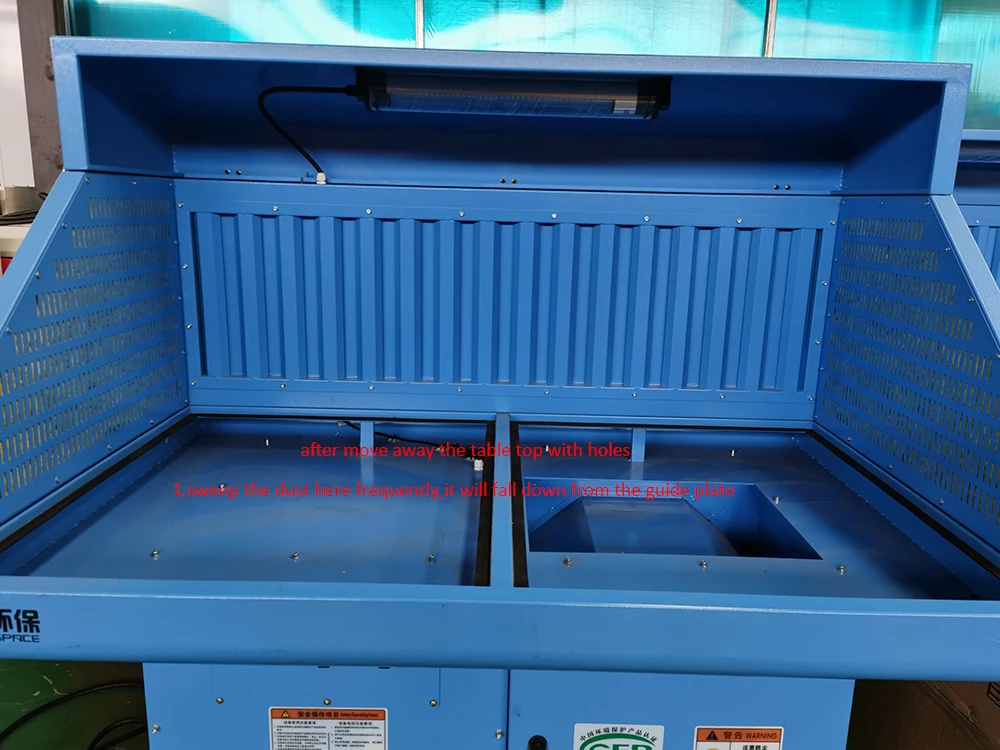

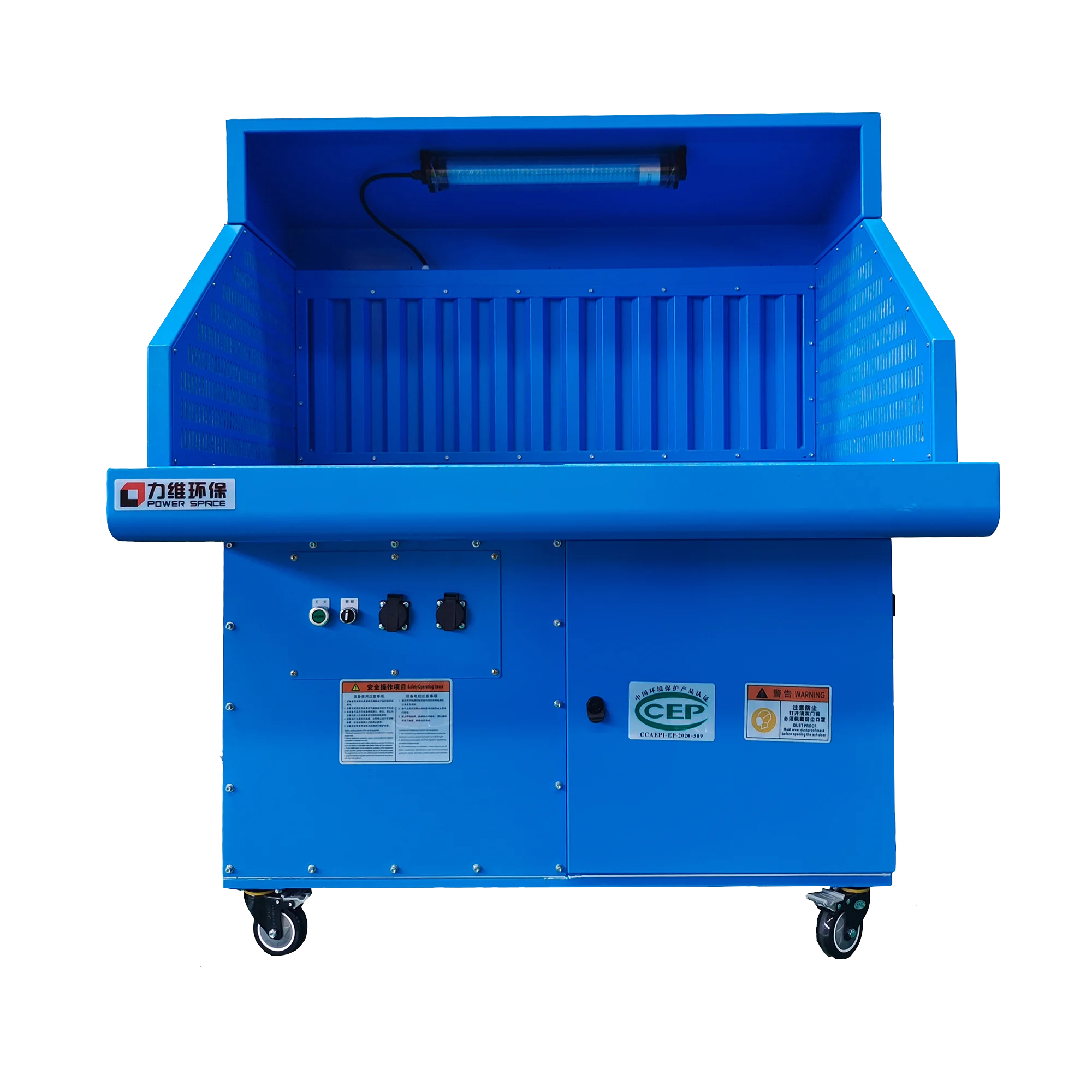

There are suction mouths on the bottom and front of the workbench, which can effectively control the scattering of dust.


Product Paramenters




Pulse jet self cleaning welding table fume extraction downdraft table downdraft air filtration system


Item
Parameter
Model
LW14-022W130E
LW14-030W130E
LW14-030W150E
LW14-030W180E
Process capacity
2000m³/h
2400m³/h
2400m³/h
2400m³/h
Motor power
2.2Kw
3Kw
3Kw
3Kw
QTY of filter cartridge
1
1
1
1
Filter area
16.5m²
16.5m²
16.5m²
16.5m²
Filter efficiency
0.3μm; >99.9%
0.3μm; >99.9%
0.3μm; >99.9%
0.3μm; >99.9%
Noise
≤70dB
≤70dB
≤70dB
≤70dB
Filter element
Ahlstrom nano flame-retardant
Ahlstrom nano flame-retardant
Ahlstrom nano flame-retardant
Ahlstrom nano flame-retardant
Size(L*W*H)
1300*1015*
1515mm
1300*1015* 1530mm
1500*1015* 1530mm
1800*1015* 1530mm
Dust cleaning method
Pulse automatic
blowing-back dust removal system by
compressed air
Pulse automatic
blowing-back dust
removal system by
compressed air
Pulse automatic
blowing-back dust
removal system by
compressed air
Pulse automatic
blowing-back dust
removal system by
compressed air
