Hot sale Full Plastic True Union Ball Valve PVDF/PPH Plastic High Quality China OEM manual pneumatic drive for chemical industry
- Category: >>>
- Supplier: Luoyang Pioneer Anticorrosion Equipment Co. Ltd.
Share on (1601106731330):
Product Overview
Description
Product Description

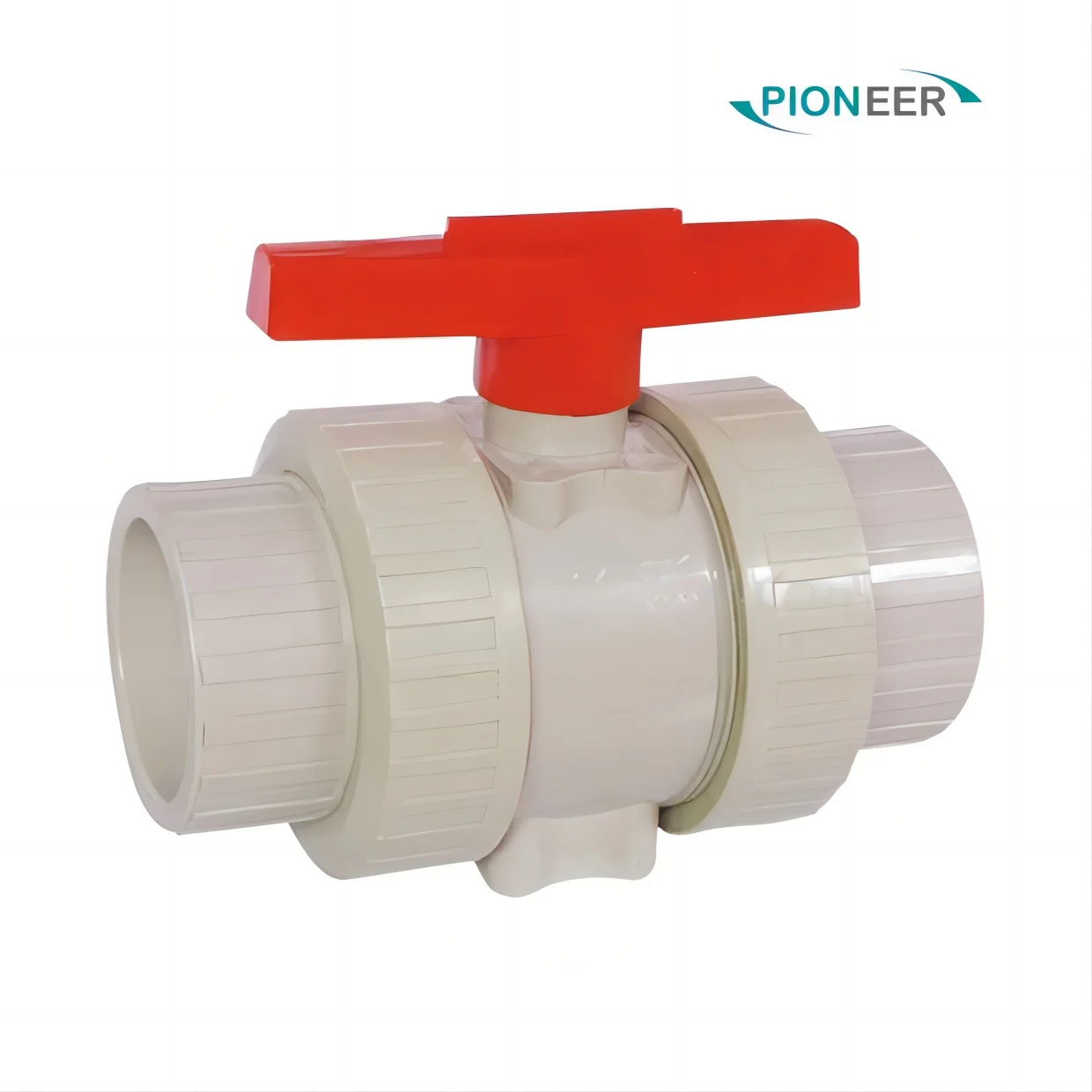

PVDF/PPH Ball Valve
PIONEER Two Way PVDF/PPH Ball Valve has Three Piece Design. It has Full Bore corrosion resistant Body in Isotactic Polypropylene PP, PPH, PVDF and HDPE with end connection as flanged and screwed or threaded.PIONEER PVDF/PPH Ball Valve is commonly used by very demanding industries such as pharmaceutical, chemical and food industry.
These PVDF/PPH ball valve performs an on/off or modulating function. A hole through the center of the ball along one axis connects the inlet and outlet ports of the body. In the open position, the flow is straight-through, and there is minimal pressure drop when the porting through the ball is the same size as the inside diameter of the pipe.
Technical Specifications of PVDF/PPH Ball Valve
1) Construction : 3 Piece Design, Single Piece Stem (Spindle) Reinforced Ball, PTFE Seated, Full Bore.
2) Design & Manufacturing Standard : As per Manufacturer’s Standard
3) Size Range : 20 mm to 160 mm (Flanged Ends)
4) End Connections : Flanged as per ANSI B 16.5 (150#)& DIN STD
5) Material Options : PP (Polypropylene), HDPE (High Density Polyethylene), PPH, PVDF
(Poly-Vinyli-dene-Fluoride)
6) Hydrostatic Test : At 10 kg/sq.cm.g for Body and Seat.
7) Engineering Options : PVDF Ball / PIONEER PVDF Coated stem on request, SS 304 / SS 316 Parts / Fasteners can be supplied
Features
Valves are of three piece design, fitted with six metallic studs and nuts which contributes to their sturdy construction.
Valves have full bore; thereby, allowing full 100% flow.
Body and Stem seals offered in EPDM, Neoprene, Hyplon, Butyl, Viton. And also in PTFE for chemical resistance against most chemicals.
PTFE seals with steel ring inserts which gives better sealing and safety features.
Steel inserts in stem and handle give more strength, sturdiness, longer life and better performance.
Carbon black resists ultraviolet rays and prevents degradation of polypropylene in sunlight exposure.
Available in screwed end connections also.
Specification
item | value |
Type | BALL VALVES |
Customized support | OEM, ODM, OBM |
Place of Origin | Zhengjiang |
Brand Name | PIONEER |
Model Number | Q41F |
Application | General |
Temperature of Media | Medium Temperature, Normal Temperature |
Power | Manual |
Media | Acid |
Port Size | 20-160mm |
Structure | BALL |
Body material | PVDF/PPH |
Connection | Flange Ends |
Certificate | ISO |
Color | White/Grey |
Standard or Nonstandard | Standanrd |
Working pressure | PN10 PN16 |
Seal Material | FPM/EPDM Rubber |
Packing | Plywood Case |

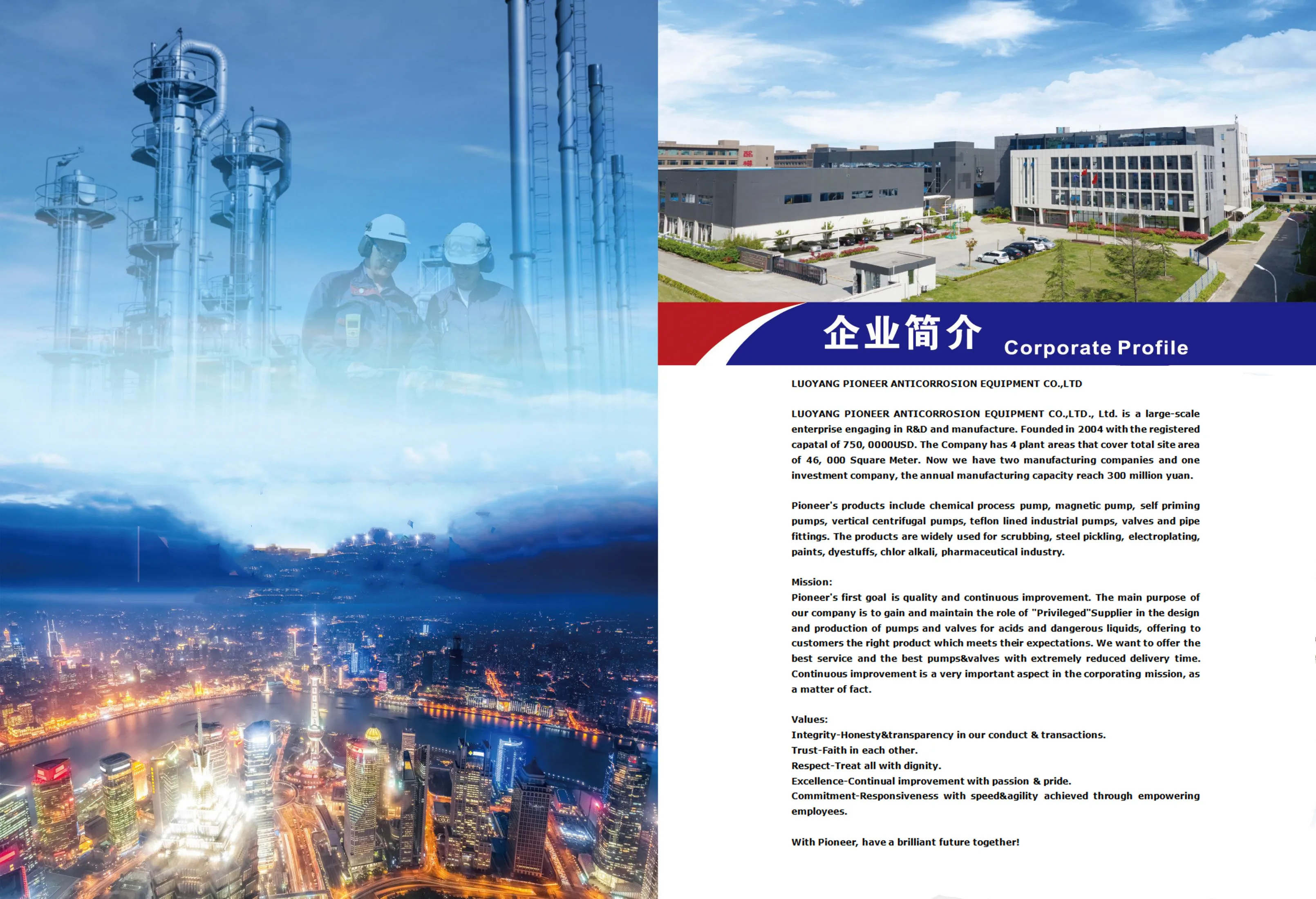

Company Profile
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali, pharmaceutical industry and Mineral.

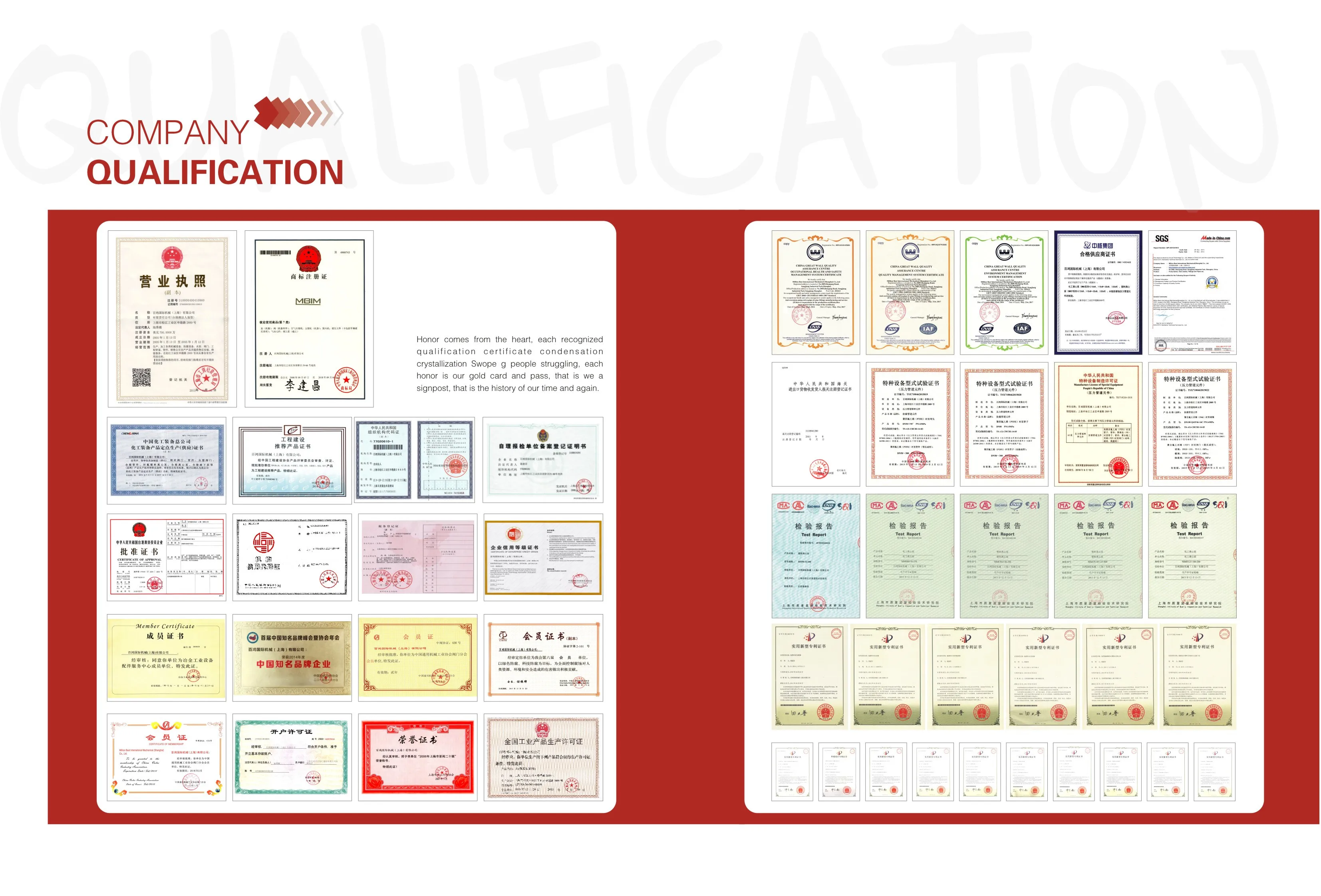

Certifications
Packing & Delivery
Plywood case for safety sea shipping
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
