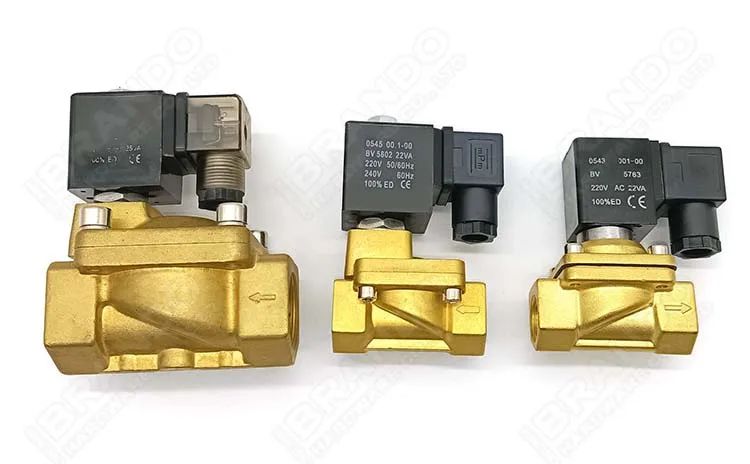

1/2' PU220A 04 2/2 Way Normally Closed Brass Solenoid Valve For Compressed air 12VDC 24VDC 24VAC 110VAC 220VAC
- Category: >>>
- Supplier: Ningbo Brando Hardware Co. Ltd.
Share on (1601106753011):
Product Overview
Description
Product Description
Model: PU220 series Normally open solenoid valve
1. Medium Temperature: NBR: -15~80℃; FKM: -10~180℃; EPDM: -5~130℃
1. Medium Temperature: NBR: -15~80℃; FKM: -10~180℃; EPDM: -5~130℃
2. Flowing direction should consistent with sign on valve.
3. Working pressure:0~1MPa
4. Body Material: Brass, Stainless Steel, Plastic, Aluminum Alloy, etc
4. Body Material: Brass, Stainless Steel, Plastic, Aluminum Alloy, etc
5. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
Options for you:
1. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
2. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
3. Diaphragm Material: NBR, EPDM, FKM
4. Function: Normally Close (NC), Normally Open (NO)
PU220A-01 | PU220A-02 | PU220A-03 | PU220A-03 | PU220A-04 | PU220A-06 | PU220A-08 | |
Port Size | 1/8 '' | 1/4 '' | 3/8 '' | 3/8 '' | 1/2 '' | 3/4 '' | 1 '' |
Orifice Size (mm) | 1.5 | 2.3 | 8.0 | 13.0 | 13.0 | 20.0 | 25.0 |
1.8 | 3.3 | 20.64 | 76 | 76 | 162 | 220 | |
Operation | Direct Acting | ||||||
Fluid | Compressed air (light oil, water) | ||||||
Medium Temperature | NBR: -15~80℃; FKM: -10~180℃; EPDM: -5~130℃ | ||||||
Body Material | |||||||
Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||||||

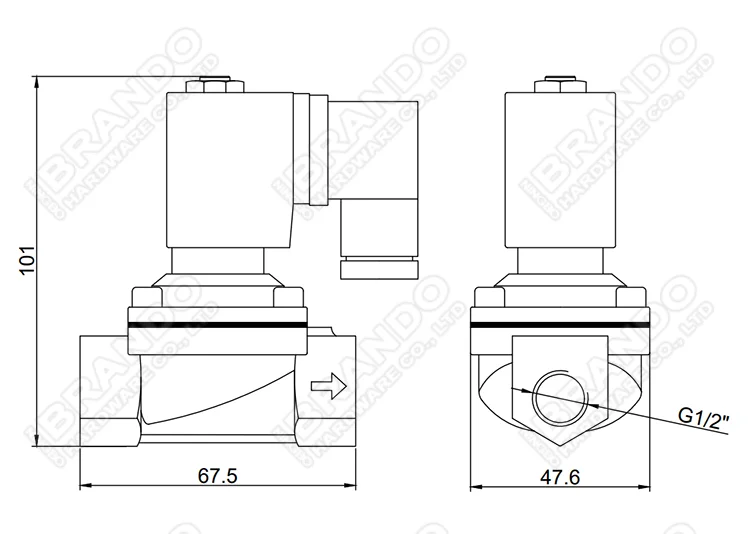

Main Dimension
More Details
Packing & Shipping
