Product Overview
Description

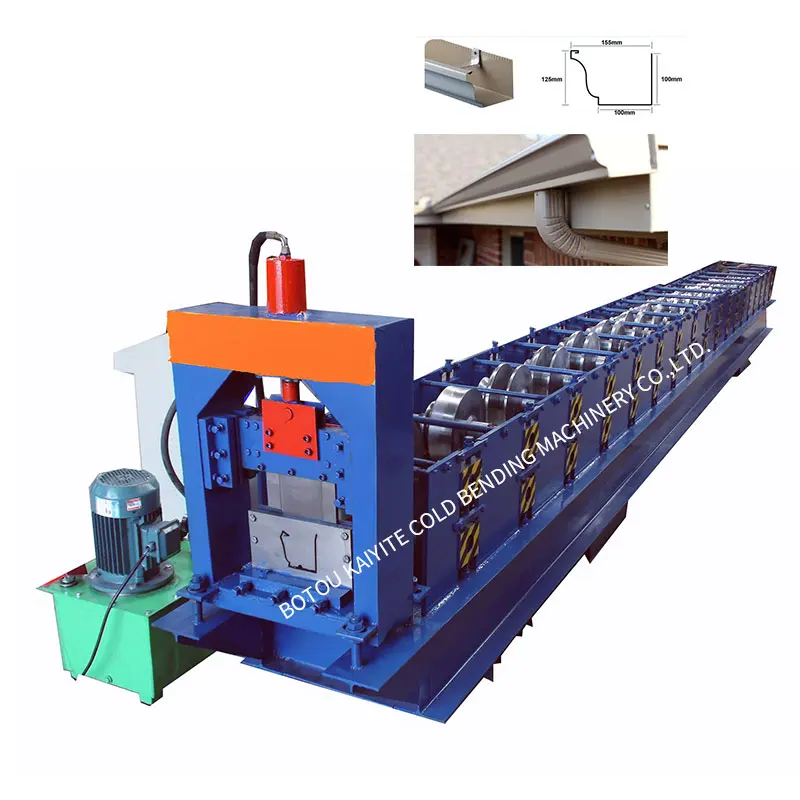

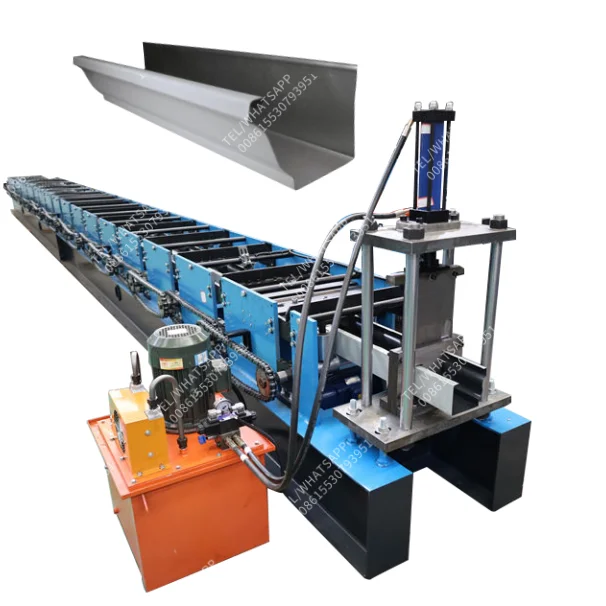

European standard Rain Gutter roll forming machine ISO CE certification
European standard Rain Gutter roll forming machine ISO CE certification | ||||||||
1.Formed Material | PPGI,GI,AI,GL | Thickness:0.4-0.8mm | ||||||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||||||
3.Main body | Roller station | 18 rows with a series of vertical rollers | ||||||
Diameter of shaft | 70mm solid shaft | |||||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||||
Machine body frame | 350 H steel | |||||||
Drive | Chain transmission | |||||||
Dimension(L*W*H) | 9200*1000*1200(customize) | |||||||
Weight | 4.5T | |||||||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Motor Power | 5.5 KW | ||||||
Hydraulic system power | 5.5 KW | |||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 15-20m/min | The speed is adjustable | ||||||

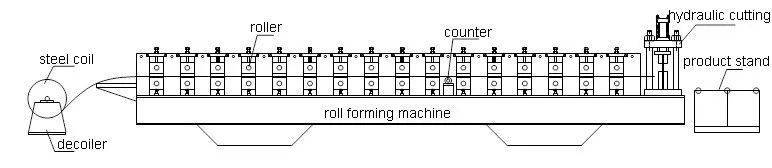

Decoiler------Feeding table ------Rolling device------hydraulic cutting------receive table------Plc control box-------oil pump

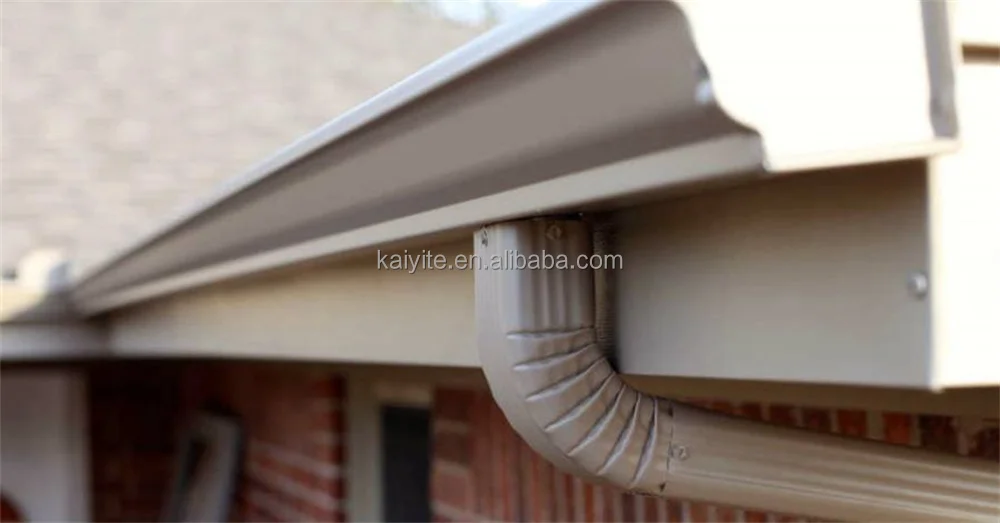

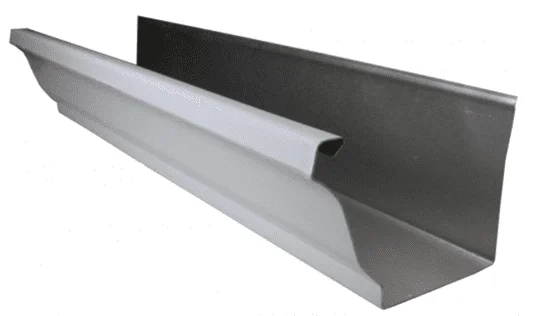

The application of the gutter:
Kaiyite roll forming machine

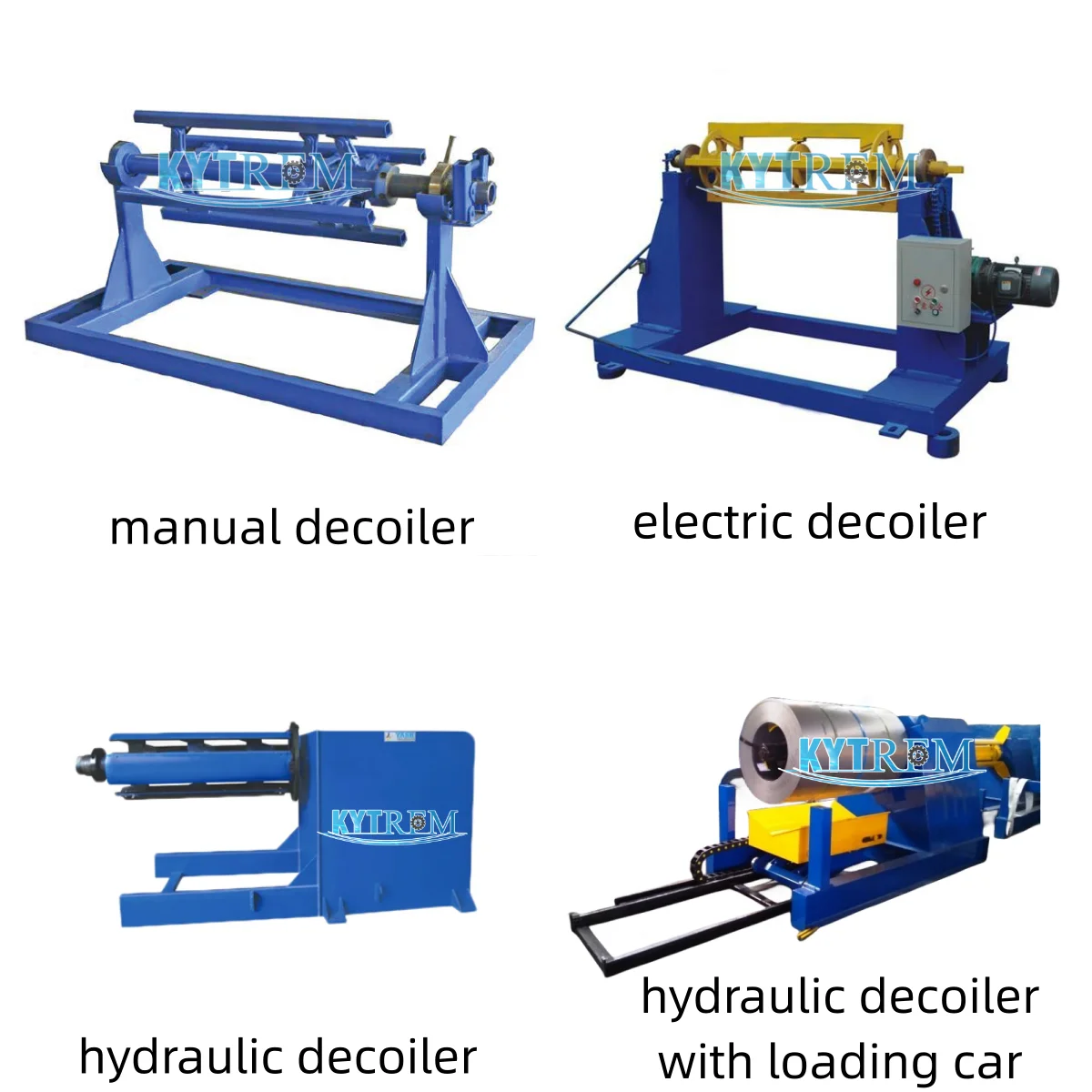

Decoiler
1.The Manual decoiler is free.
2.The electric decoiler can save manpower and improve efficiency.
3.The hydraulic uncoiler is more stable and more efficient
4.The hydraulic decoiler with loading car is mainly suitable for large roof panel machines
(Can be selected according to customer needs)
Kaiyite roll forming machine
Feeding table
The feeding width can be manually adjusted according to the width of the raw material. The upper and lower circular rollers are designed to make the feeding process more stable. The raw material (steel plate) is processed and manufactured by this machine to ensure that the product is neat, parallel and uniform.
Kaiyite roll forming machine

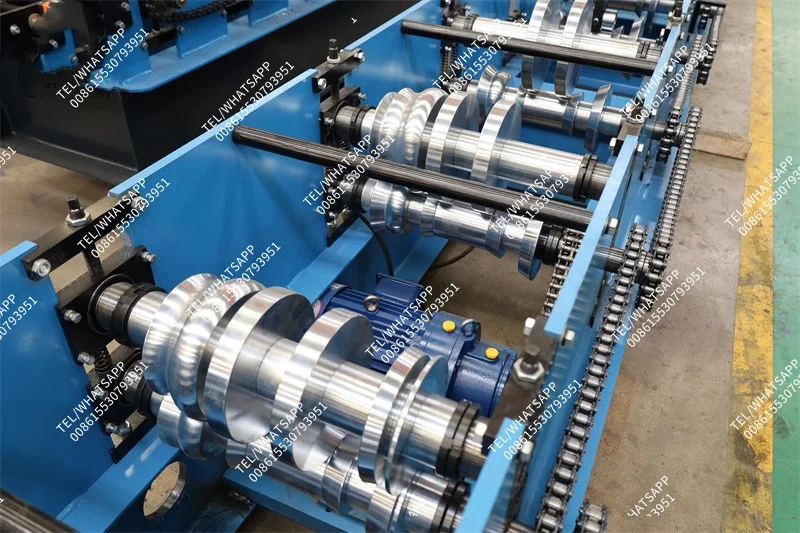

Rolling device
Number of forming steps: 18 stations

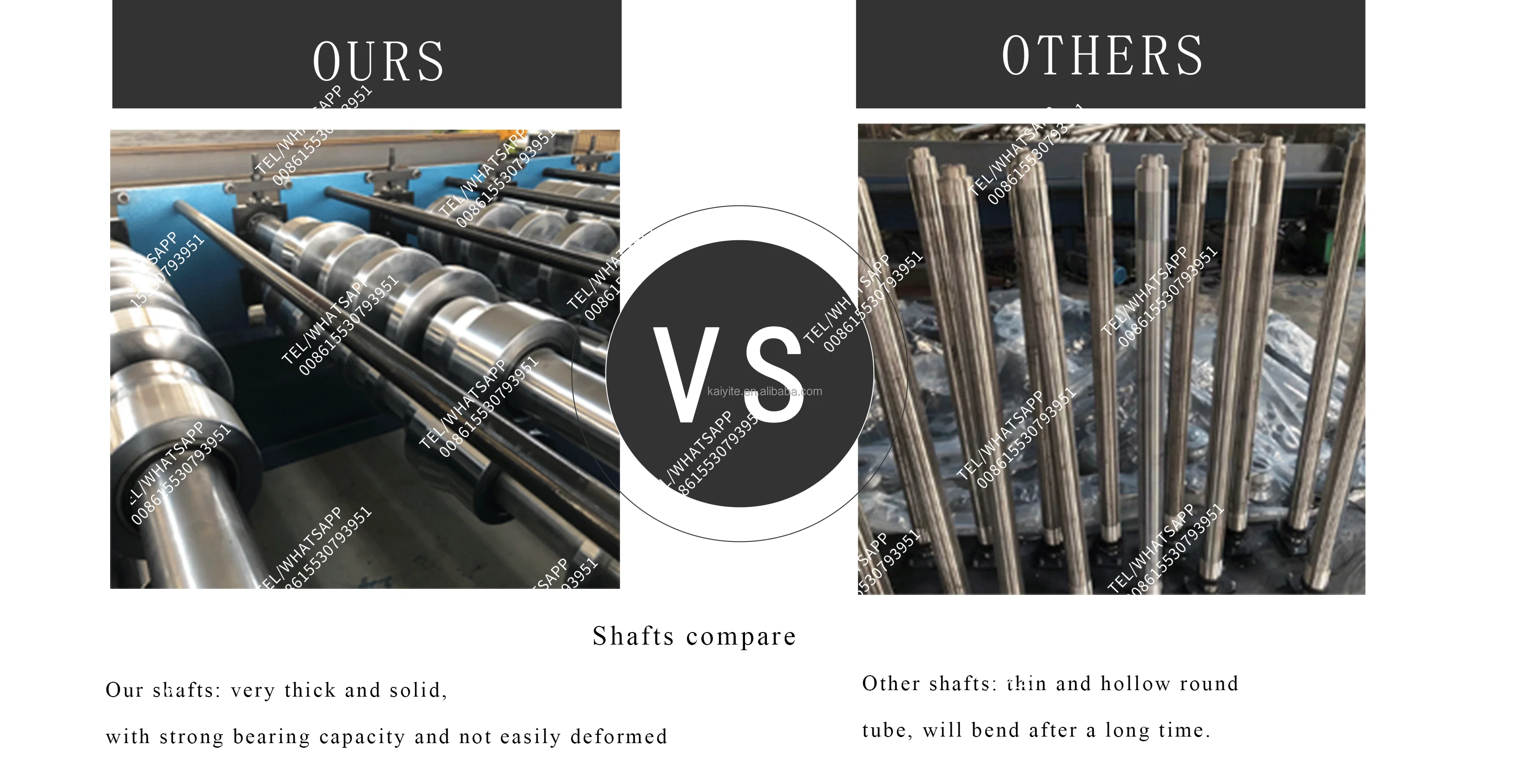

Shaft material: 45# steel with quenched treatment precision machined outer diameter: 70 mm
Roller material: Cr 12 with quenched treatment Transmission type: By chains
Drive motor power: 11 kw
Structure: Independent stand (cast steel)
main body:350H steel
Kaiyite roll forming machine

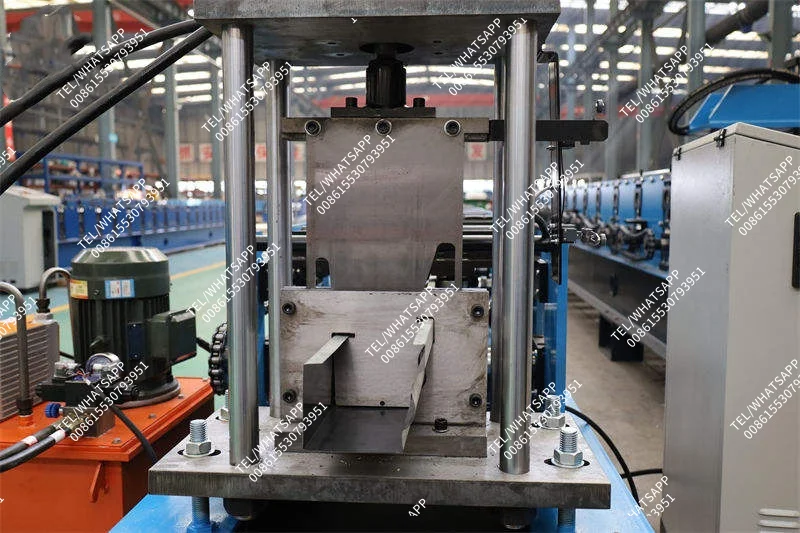

hydraulic cutting
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Cutting type: Fully automatic non-stop shearing
Power supply: 5.5 kw hydraulic power
Material of blades: Gcr12 mov quenched
Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.
Components: It contains one set of cutting tools with one hydraulic tank and one cutter machine.
Kaiyite roll forming machine

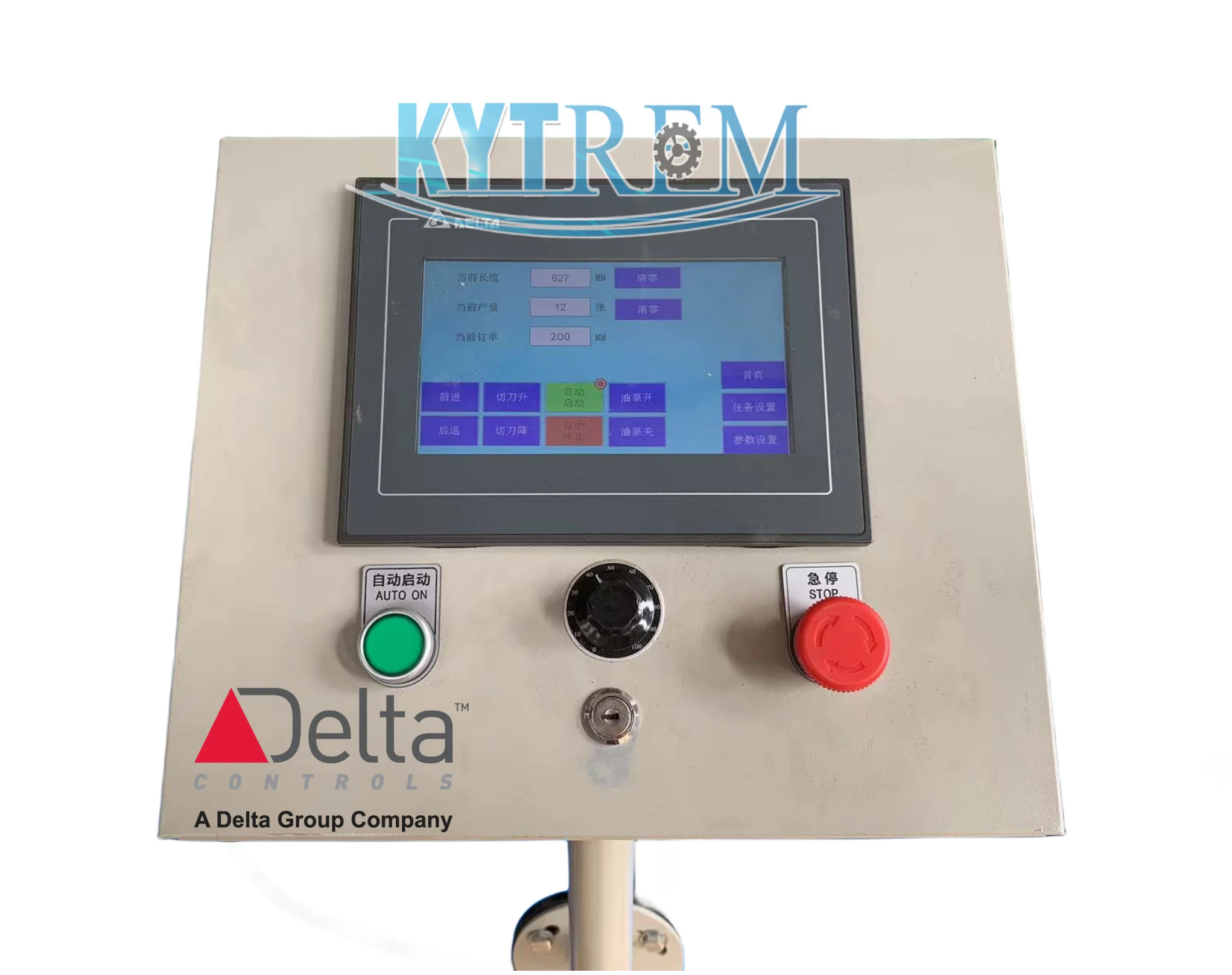

PlC control box
Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.
Language: Chinese or English (based on customer's needs)
Automatic length and quantity measurement
operating panel: touching screen and button together
operating panel: touching screen and button together
Botou Kaiyite Cold Bending Machinery is a manufacturer dedicated to the design and manufacture of different types of cold roll forming machines. We have been engaged in the machine export industry for 10 years and have reached cooperation with customers from more than 70 countries around the world. . We are committed to establishing long-term and stable cooperative relationships with our customers.
FAQ
1. A machine doesn't just provide a few photos to prove what they can produce 2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important. 2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
