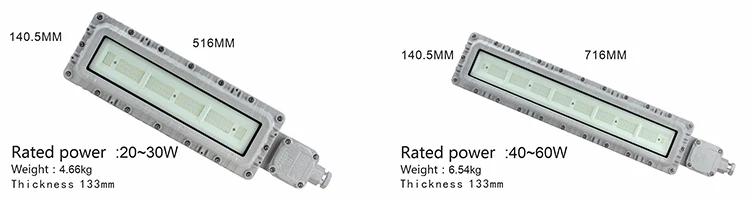

Led Lighting IP66 Waterproof Long Lifespan High Efficiency Linear Light Explosion Proof Paint Booth Led Light Fixture
- Category: >>>
- Supplier: Shenhai Explosion-Proof Technology Co. Ltd.Shenhai Ltd.
Share on (1601106814518):
Product Overview
Description
Product Parameters
Rated voltage/frequency | Inlet thread | Cable outer diameter | Emergency charging time | Emergency starting time | Emergency lighting time | Degree of protection | Anti corrosion grade |
220V/50Hz | G3/4 | Φ10~Φ14mm | 24h | ≤0.3s | ≥90min | IP66 | WF2 |
Product Description
1. The shell of this product is made of aluminum alloy die-casting, and the surface is shot blasted and then sprayed with high voltage static electricity, which is corrosion resistant and anti-aging; Transparent parts are made of physically toughened glass with high light transmittance And UV resistance; Exposed stainless steel fasteners with high corrosion resistance; The joint surface is made of high temperature resistant silicone rubber seal ring, with protection performance of IP66, which can be used indoors and outdoors; Built in Special terminal blocks, reliable wire connection, convenient maintenance;
2. The natural ventilation convection heat dissipation technology is adopted, and the air flow is used to effectively dissipate the heat to the space outside the lamp through the heat dissipation channel and heat flow channel to ensure the long service life of the lamp;
3. Independent anti surge device of power module can effectively filter the damage to lamps caused by voltage fluctuation caused by large equipment; Special constant current waterproof power supply, wide voltage input, constant power Rate output, with short circuit, high temperature and other protection functions; Power factor cos Φ= zero point nine five;
2. The natural ventilation convection heat dissipation technology is adopted, and the air flow is used to effectively dissipate the heat to the space outside the lamp through the heat dissipation channel and heat flow channel to ensure the long service life of the lamp;
3. Independent anti surge device of power module can effectively filter the damage to lamps caused by voltage fluctuation caused by large equipment; Special constant current waterproof power supply, wide voltage input, constant power Rate output, with short circuit, high temperature and other protection functions; Power factor cos Φ= zero point nine five;
4. The light source module adopts chips of international famous brands, which are reasonably arranged, unidirectional lighting, uniform and soft light, light efficiency ≥ 120lm/W, and high color rendering Ra>70;
5. This series of products can be equipped with a combined emergency device, which can automatically switch to the emergency lighting state when the power supply is cut off; Emergency parameters:
a) Emergency starting time (s): ≤0.3s;
b) Charging time (h): 24;
c) Emergency power (W): ≤ 50;
d) Emergency lighting time (min): ≥ 60, ≥ 90.
5. This series of products can be equipped with a combined emergency device, which can automatically switch to the emergency lighting state when the power supply is cut off; Emergency parameters:
a) Emergency starting time (s): ≤0.3s;
b) Charging time (h): 24;
c) Emergency power (W): ≤ 50;
d) Emergency lighting time (min): ≥ 60, ≥ 90.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to work and scene lighting in dangerous environments such as petroleum exploitation, oil refining, chemical industry and gas station.
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to work and scene lighting in dangerous environments such as petroleum exploitation, oil refining, chemical industry and gas station.
