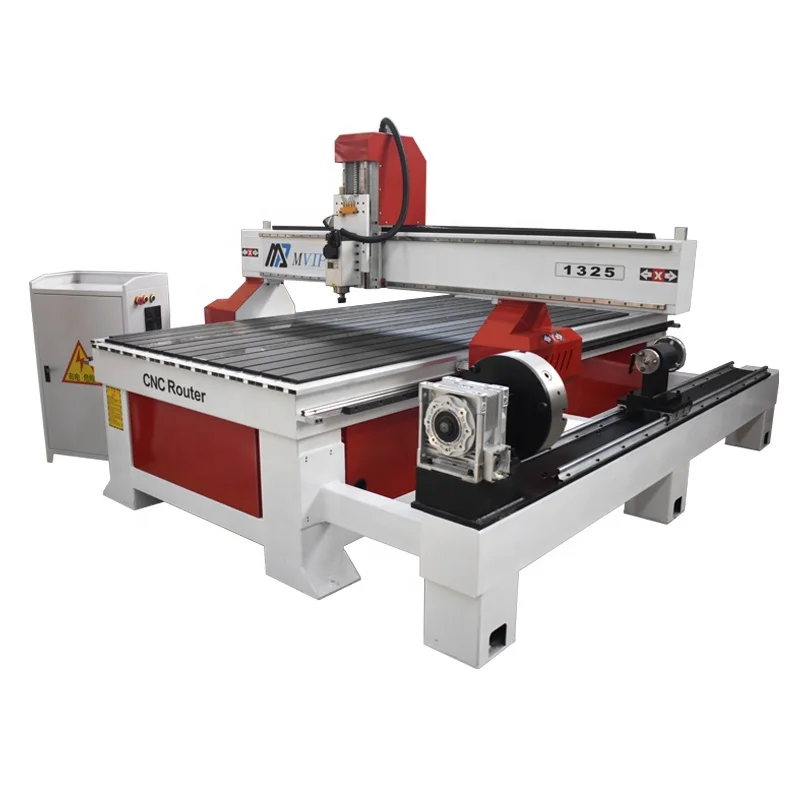

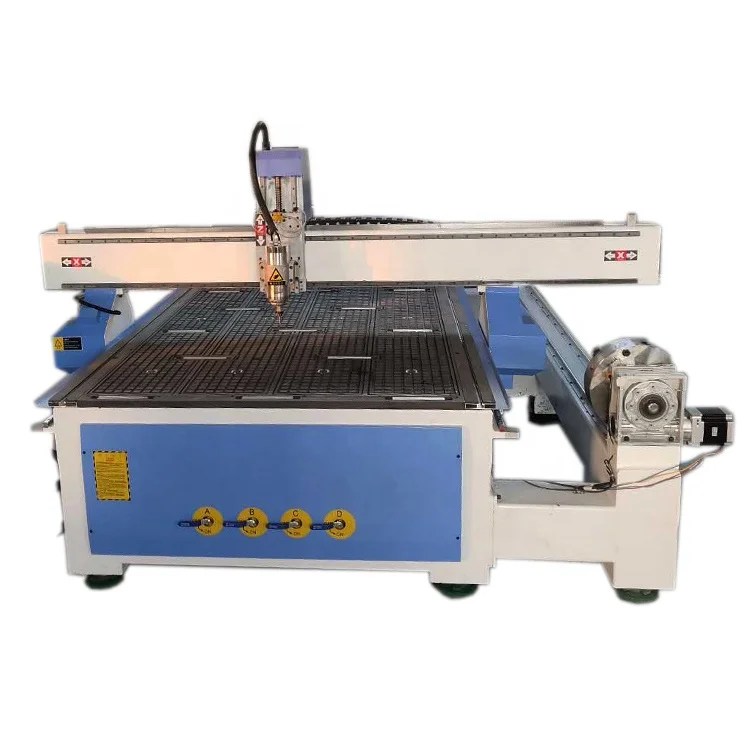

Rotary device 4 axis cnc router machine Applicable for 3D Wood PVC Acrylic Soft Metal processing multifunctional machinery
- Category: >>>
- Supplier: Jinan Mingpu CNC Equipment Co. Ltd.
Share on (1601106889798):
Product Overview
Description
Product Description
Rotary device 4 axis cnc router machine. Applicable for 3D Wood PVC Acrylic Soft-Metal processing multifunctional machinery. Hot sale, High efficiency, Manufacturer direct sale price. Highly cost performance, Long service life and customization supported multifunctional cnc router machine. Strong machine structure and aluminum working table ensure the rigidity during your work. We provide more different models for sale. Contract us for more details.
Machine Detail
Working table.
Aluminum T-slot + PVC with vacuum adsorption ensure the stability during your work.
Motor.
High cost performance stepper motors provide power to your spindle and transmission.
Transmission.
Helical rack and pinion for X, Y axis, rolling ball screw for Z, HIWIN square linear guide rail with high precision.

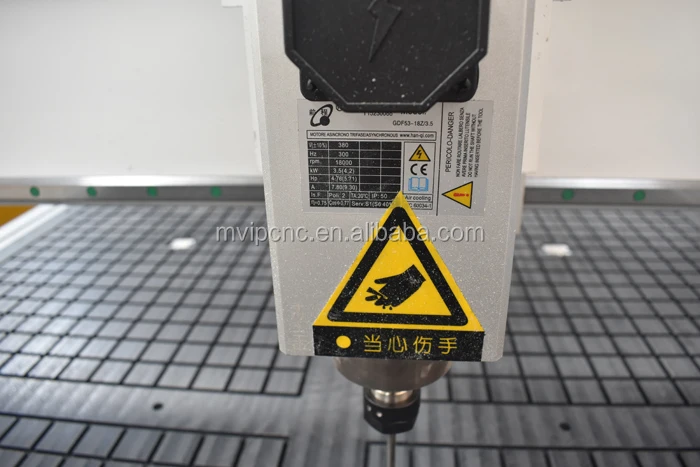

Spindle.
Air-cooling system provide stability to the spindle. Different power type according to customer needing.

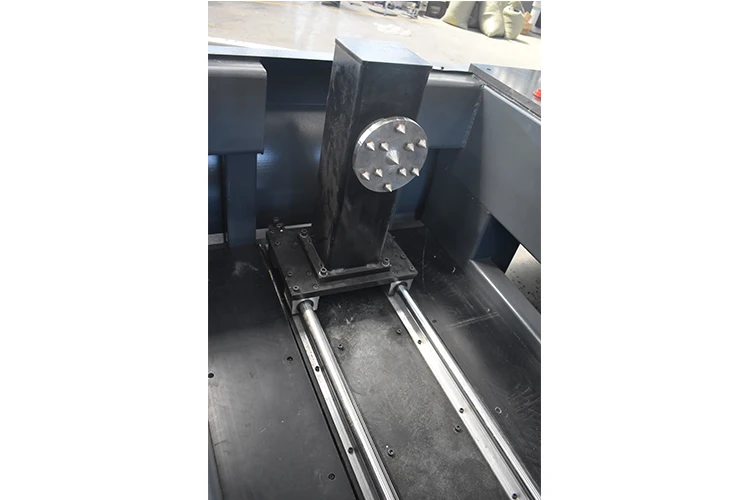

Rotary device.
Model and position of rotary device support customization. The device could also be controlled by hand.

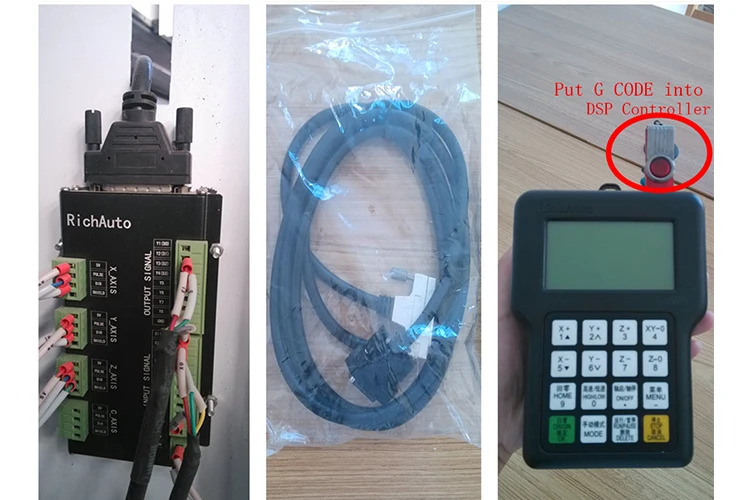

Controller.
High accuracy DSP control system in. Different price controller according to your needing.
Samples of the machine
Specification
item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | 6000rpm - 24000rpm |
Positioning Accuracy (mm) | 0.02mm |
Number of Axes | 4 |
No. of Spindles | Single |
Working Table Size(mm) | 1300*2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1300 mm |
Travel (Y Axis)(mm) | 2500 mm |
Repeatability (X/Y/Z) (mm) | 0.02mm |
Spindle Motor Power(kW) | Customer needing |
CNC or Not | CNC |
NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto | |
Place of Origin | China |
Shandong | |
Brand Name | MVIP |
Voltage | 220 V/380 V |
Dimension(L*W*H) | 1800*3000*1500 mm |
Weight (KG) | 1700 |
Warranty | 1 Year |
Key Selling Points | High-accuracy |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Gear, PLC, Engine, Gearbox |
Application | Wood Foam PVC Acrylic 3D engraving processing |
Table | Steel tube welded |
Guide rail | HIWIN Square Guide Rail |
X, Y Transmission | Helical rack and pinion |
Z Transmission | TBI Rolling ball screw |
Motor | Servo motors |
Driver | Matched with the servo motors |
Inverter | Best/ Fuling/ Delta Inverter |
Control system | DSP Handle |
Color or Logo | Customer needing |
Packing & Delivery
The machine will be brushed with anti-rust oil and carried with water proof cloth, installed into a plywood case and container, ready for ship.
