Product Overview
Description
Product Description
Vanadium redox flow battery
All vanadium flow battery energy storage power station is a comprehensive energy storage system that integrates stack,
electrolyte, pumping system, battery management system, energy management system, temperature control system, and other auxiliary systems, with complete functions. The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power, and the discharge duration can be achieved by adjusting the amount of electrolyte in the energy storage power station. The energy storage power station can charge and discharge more than the rated power, achieving high-power operation.
electrolyte, pumping system, battery management system, energy management system, temperature control system, and other auxiliary systems, with complete functions. The energy storage power station can discharge for up to 4 to 10 hours or even longer at rated power, and the discharge duration can be achieved by adjusting the amount of electrolyte in the energy storage power station. The energy storage power station can charge and discharge more than the rated power, achieving high-power operation.

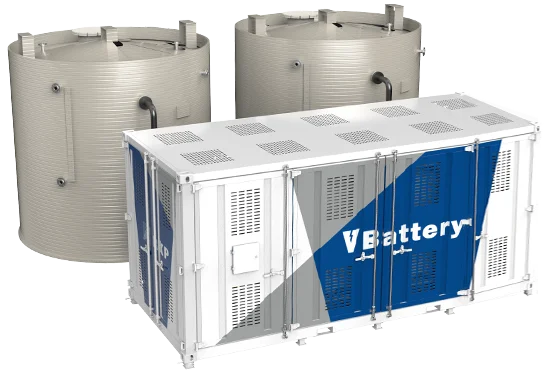

V Power series
Standard unit:
500kW/customizable capacity (20 foot container x 2+external storage tank x 4+PCS)
Grouping method:
Two sets of containers and positive and negative storage tanks can be connected in series to a 500kW energy storage inverter, forming a 500kW/2000kWh energy storage system unit, which can further flexibly construct energy storage systems of different scales based on this
Product features:
·Power and capacity are designed separately, and energy storage duration is customized according to needs
·Suitable for building high-power (megawatt level or above) and large capacity (energy storage time of more than 4 hours)
·Applicable for the construction of large-scale centralized ESS stations
·Stereoscopic installation, saving space
500kW/customizable capacity (20 foot container x 2+external storage tank x 4+PCS)
Grouping method:
Two sets of containers and positive and negative storage tanks can be connected in series to a 500kW energy storage inverter, forming a 500kW/2000kWh energy storage system unit, which can further flexibly construct energy storage systems of different scales based on this
Product features:
·Power and capacity are designed separately, and energy storage duration is customized according to needs
·Suitable for building high-power (megawatt level or above) and large capacity (energy storage time of more than 4 hours)
·Applicable for the construction of large-scale centralized ESS stations
·Stereoscopic installation, saving space
T Power series
Standard unit:
500kW/2000kWh (20 foot box x 4+PCS)
Grouping method:
Four, five, or six can be connected in series to one energy storage inverter. Taking 4 units as an example, connecting a 500kW energy storage inverter forms a 500kW/2000kWh unit energy storage system, which can further flexibly construct energy storage systems of different scales based on this
Product features:
·Integrated container design
·Plug and play, simple and fast
·No need for spacing between containers, effectively saving floor space
·Standardization, modularity, and ease of system expansion
500kW/2000kWh (20 foot box x 4+PCS)
Grouping method:
Four, five, or six can be connected in series to one energy storage inverter. Taking 4 units as an example, connecting a 500kW energy storage inverter forms a 500kW/2000kWh unit energy storage system, which can further flexibly construct energy storage systems of different scales based on this
Product features:
·Integrated container design
·Plug and play, simple and fast
·No need for spacing between containers, effectively saving floor space
·Standardization, modularity, and ease of system expansion
U Power series
Standard unit:
10kW/40kWh x n+PCS (n=12-24)
Grouping method:
You can choose the number of units according to your needs and use PCS to flexibly build systems of different scales
Product features:
·High integration, small size, and in room design
·Technological appearance
·High reliability, high efficiency, and maintenance free
10kW/40kWh x n+PCS (n=12-24)
Grouping method:
You can choose the number of units according to your needs and use PCS to flexibly build systems of different scales
Product features:
·High integration, small size, and in room design
·Technological appearance
·High reliability, high efficiency, and maintenance free
Specification
Electrical performance parameters | ||||||
Rated power | 500 kW | 125 kW | 10 kW | |||
Rated capacity | 2000 kWh or customizable according to user needs | 500 kWh | 40 kWh | |||
Maximum capacity | customizable according to user needs | 550 kWh | 45 kWh | |||
Output voltage | 416 V - 645 V（DC） | 156~249.6V | 36 ～ 57.6 V | |||
Output current | 1200 A | 810 A | 390 A | |||
Energy conversion efficiency | DC:76%(Including pump consumption)，AC:71% | DC:77%(Including pump consumption)，AC:72% | DC:77%(Including pump consumption)，AC:72% | |||
Discharge depth | 0~100% DOD | 0~100% DOD | 0~100% DOD | |||
cycle life | Calendar lifespan of 20 years, with over 16000 charging and discharging cycles | |||||
Physical parameters | ||||||
Size and footprint | 16,100mm x 7,700mm (2 sets of 20 foot containers and positive and negative storage tanks) | 6100 x 11300 x 2900 mm | 875 x 1775 x 2060 mm | |||
Load bearing requirements | 3.5t/㎡ | 152 t | 2800 kg | |||
Protection level | IP 20 | IP 54 | IP20 | |||
Operating ambient temperature | 5 ~ 35 °C | -35 ~ 40 °C（Configure an intelligent thermal management system to ensure the working temperature range） | 5 ~ 45 ℃ | |||
Operating environment humidity | 5 ~ 95% | 5 ~ 95% | 5 ~ 95% | |||
Maximum working altitude | No altitude requirement | 1,000 m（when>1,000 m can be used with reduced capacity） | 1000 m | |||
Communication interface and protocol | Modbus TCP | Modbus TCP | Ethernet, Modbus TCP | |||
Execution standards | IEC 62932 International standard for flow batteries | IEC 62932 International standard for flow batteries | UL1973, CE | |||
Customer Photos
10MW/40MWh
China
Functional value: smooth output, tracking planned power generation, improving wind farm fault crossing ability, black start, participating in safe and stable control of power systems

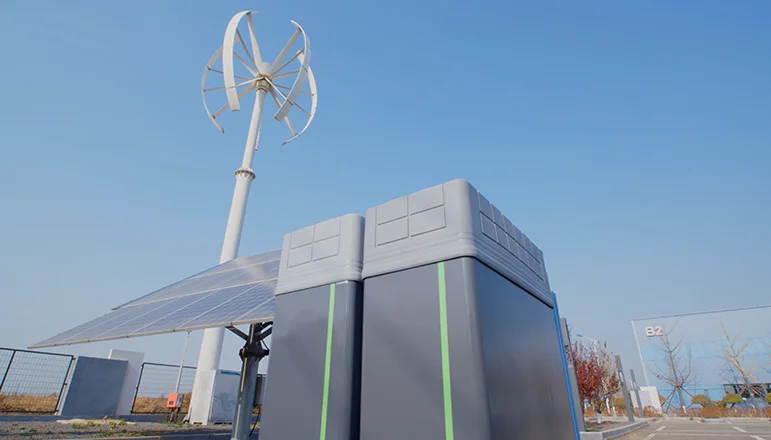

160kW/640kWh
Australia
Island microgrid energy storage
Island microgrid energy storage
60kW/240kWh
Djibouti
Port microgrid energy storage
Port microgrid energy storage
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
