Product Overview

Description

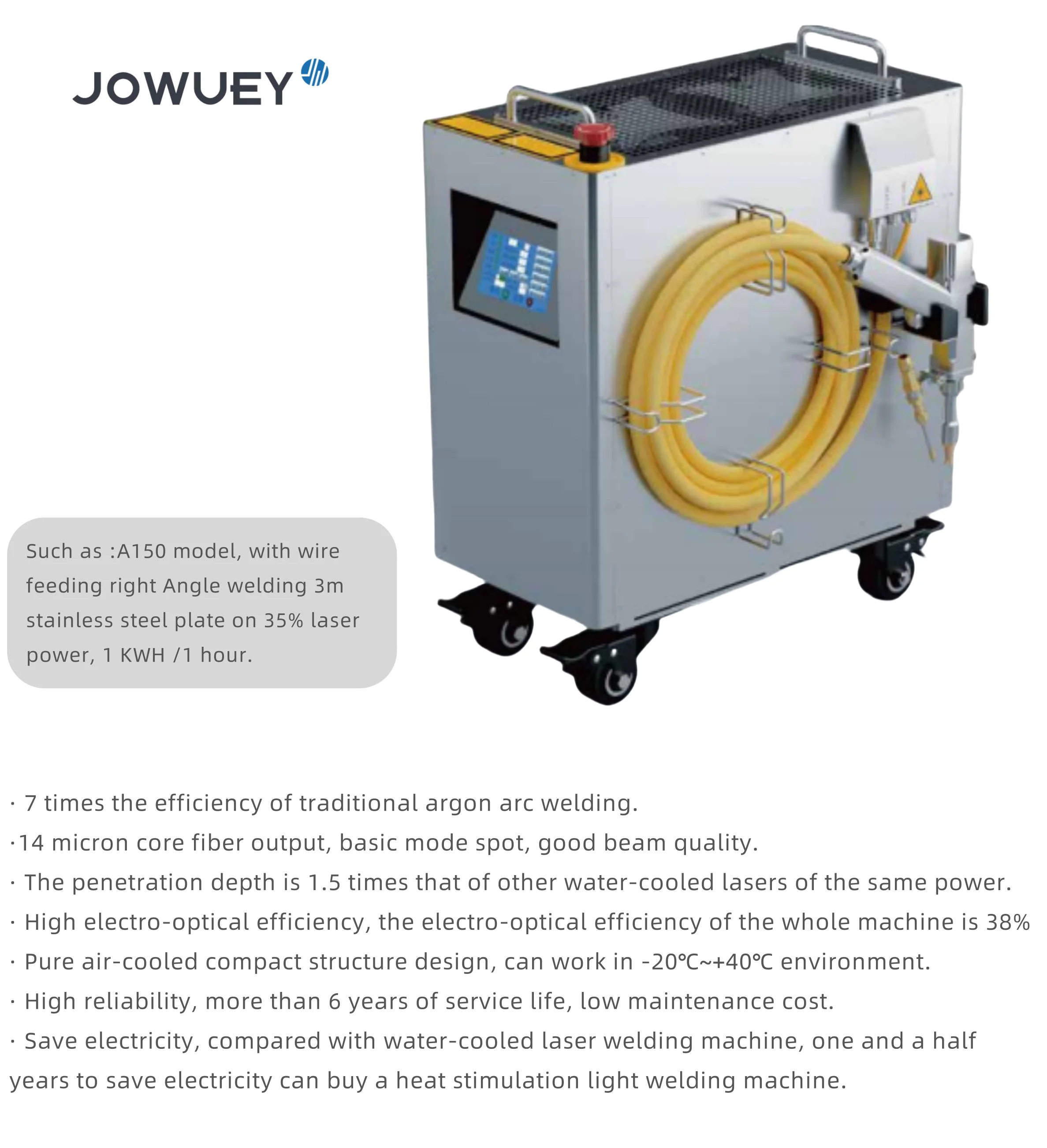

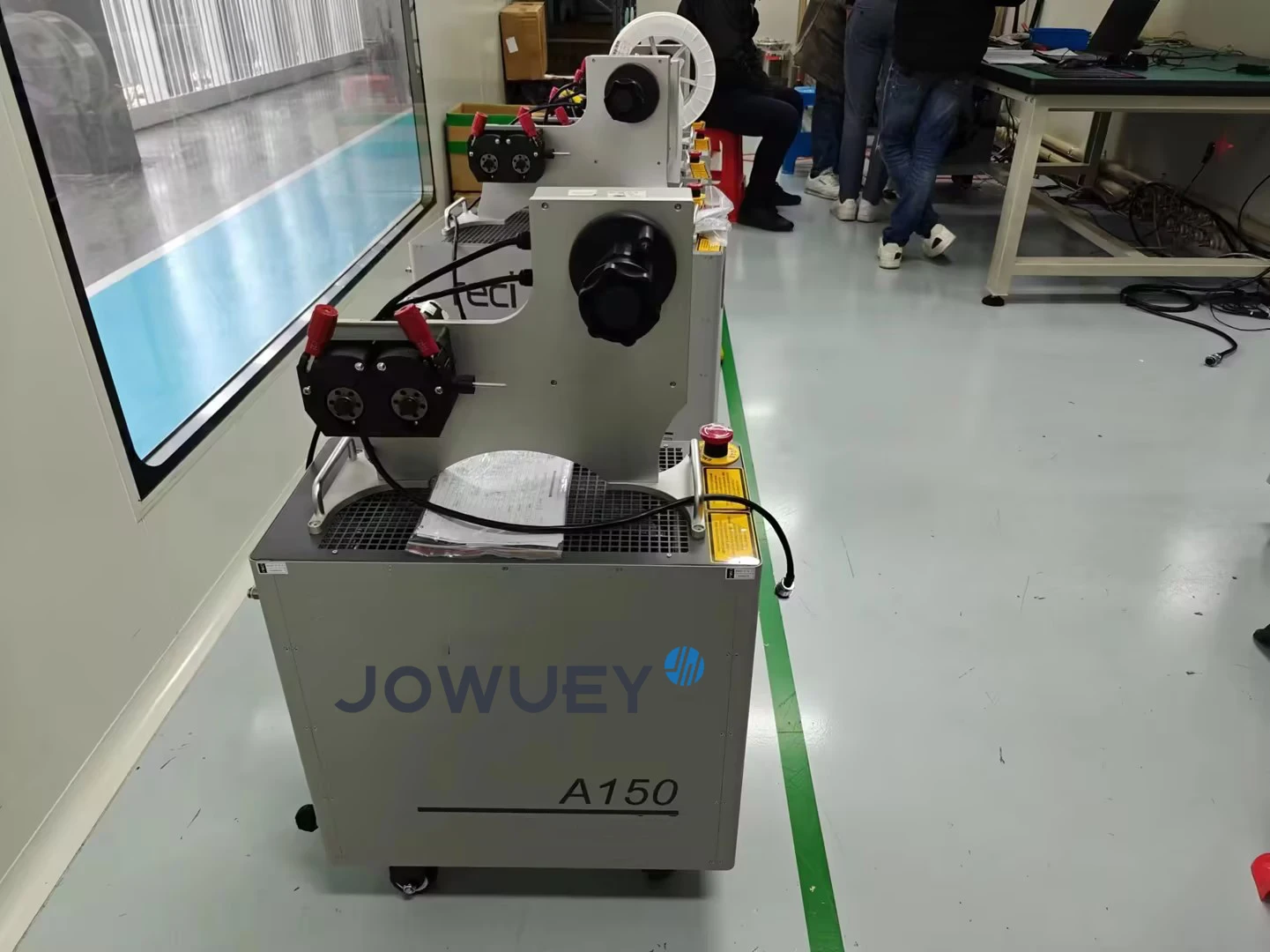

Air-cooled handheld welding machines
Our air-cooled continuous fiber lasers are independently developed and produced by RECI. Compared with traditional gas and solid lasers, the products have the characteristics of electro-optical conversion efficiency and superior beam quality. At the same time, due to the coilability of optical fibers, the structure of fiber lasers is more compact. This series of products combines the advantages of high photoelectric conversion efficiency, high output power, excellent beam quality, compact structure, maintenance-free, and low cost. It can be widely used in industrial processing such as metal welding, military and national defense, scientific research and other scenarios.




TECHNICAL PARAMETERS


MODEL
A80
A120
A150
A200
Optical Specification
Rated Power
700W
1000W
1300W
1850W
Operating Mode
CW/Spot Welding



Polarization
Random



Power Range
10~100%
Central Wavelength
1080±3nm



Continuous
operating power
attenuation

<2%




Max. Modulation
Frequency
5KHz



Red Laser power
≥0.2mW



Output Fiber
Diameter
20μm



Delivery Fiber
Length
Standard 5m



Electric Specification




Operating Voltage
AC 220V 50/60Hz



Power Consumption
＜3000W
<3600W
<4800W
<7000W
Control Mode
Touch screen



Other Specification

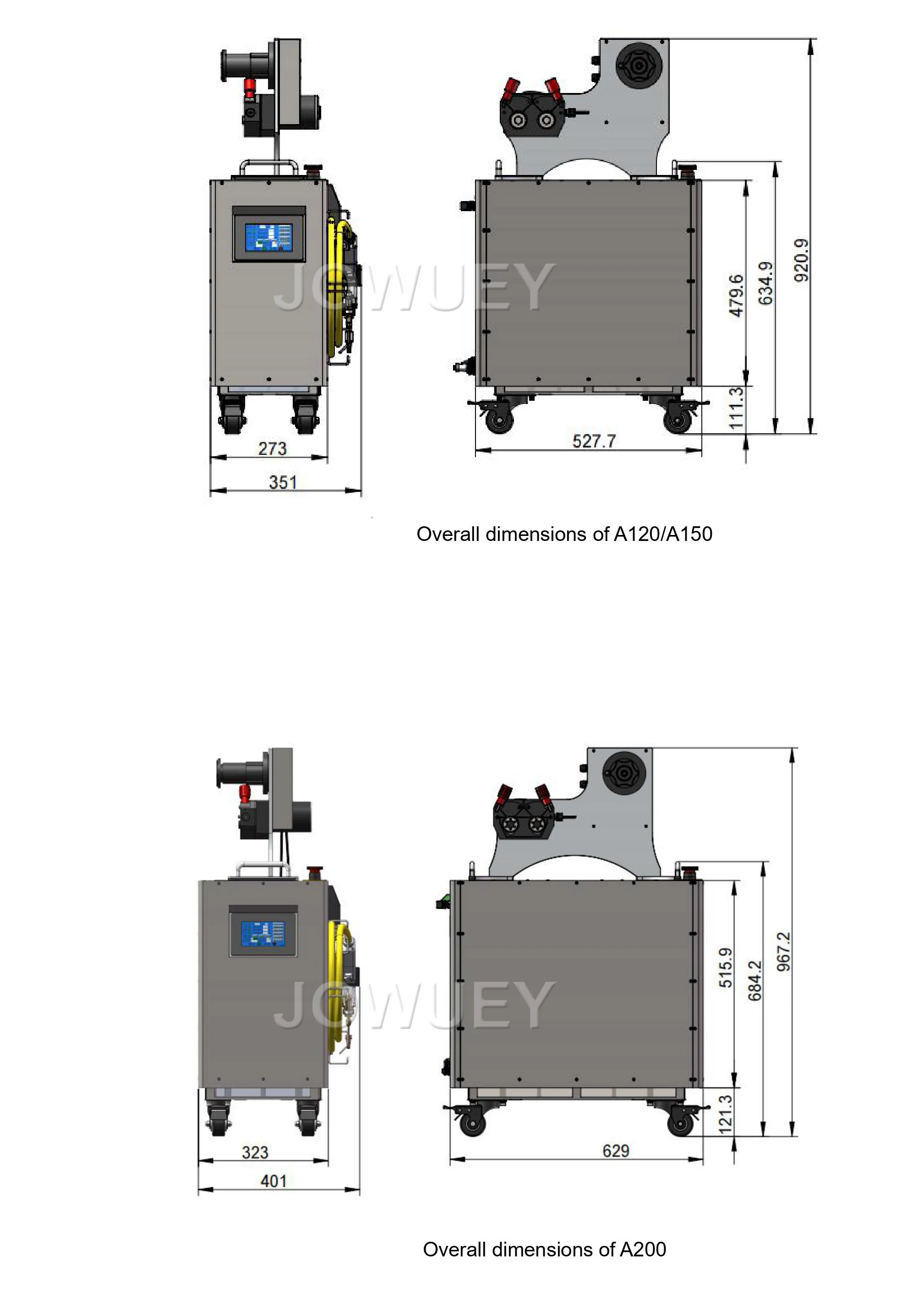

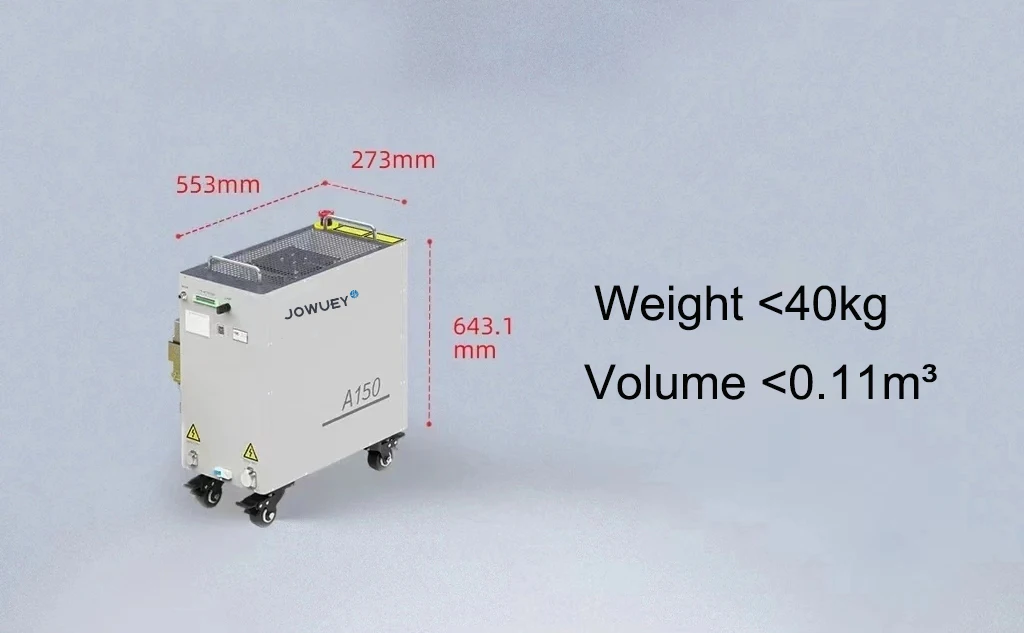

Dimensions
W×H×D
273×614.9×396.3
(mm3)
273×634.9×527.7
(mm3)
273×634.1×527.7
(mm3)
323×684.2×629
（mm3）
Weight (Wire feeder
included)
38kg
46kg
48kg
58kg
Ambient
Temperature
-5~40℃



Ambient Humidity
<90%
Cooling Method
Air cooling



Storage temperature
-10~60℃



Input gas pressure
≤0.7MPa



* There are some differences between actual power and rated power, whichever is actual.
*The size and weight of each version are different. If you need accurate values, please contact our
salesman.


PRODUCT CONFIGURATION


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

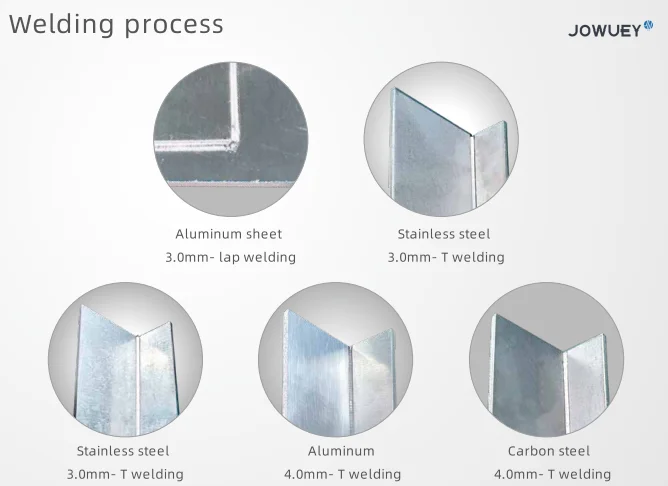

APPLICATION


Main application industries:
Industrial processing, such as metal cutting, welding, cleaning and rust removal, etc.
Military defense, scientific research, etc.






FLOOR PLAN








COMPANY INFORMATION








FAQ


1. How many commonly used protective gases are there?
There are two types of nitrogen or argon:
--It is recommended to use nitrogen for stainless steel, carbon steel, galvanized sheets and cold-rolled sheets for better welding effect;
--It is recommended to use argon gas for aluminum, copper and titanium alloys for better welding effect. For titanium alloys, argon gas can effectively reduce the cracks caused by the embrittlement of the weld after welding.

2. When welding aluminum plates, do I need to re-find the laser focus?
Yes, because aluminum is a highly reflective material, the focus is different from stainless steel, carbon steel, etc.

3. Do I need to clean the lens in time to protect it from stains?
Yes, it needs to be cleaned and replaced in time, otherwise it will cause damage to the welding gun and even the welding machine.
