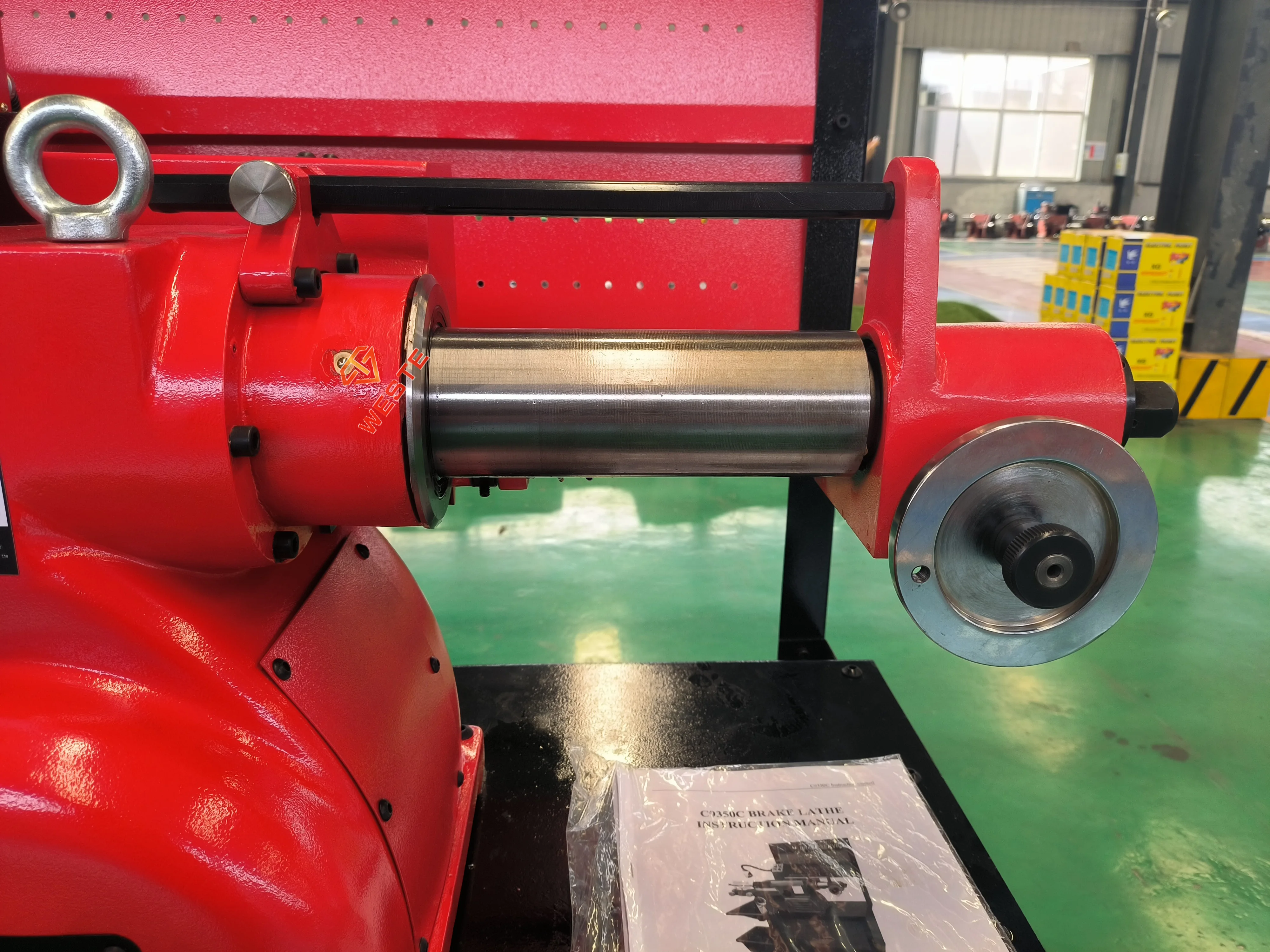

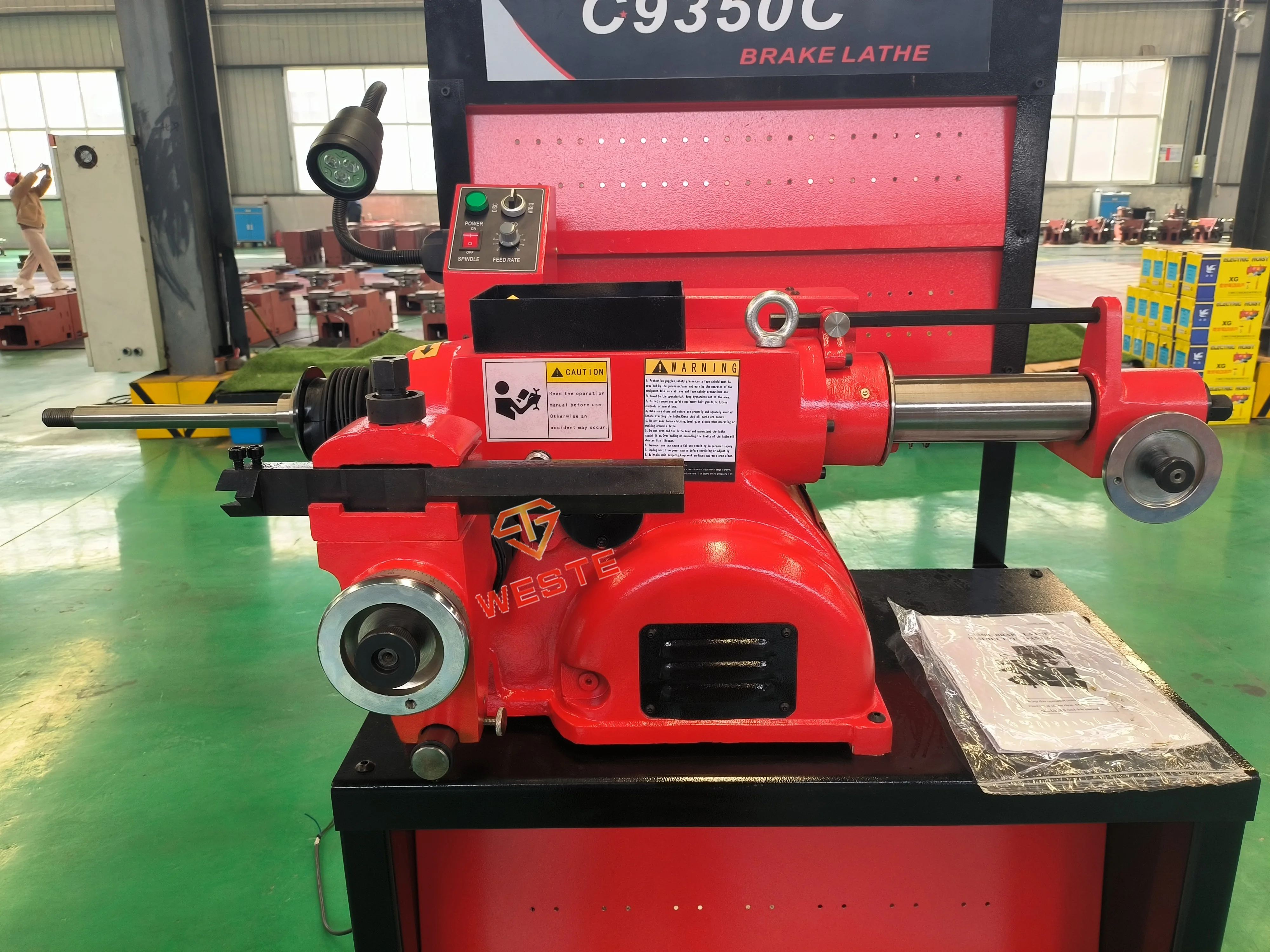

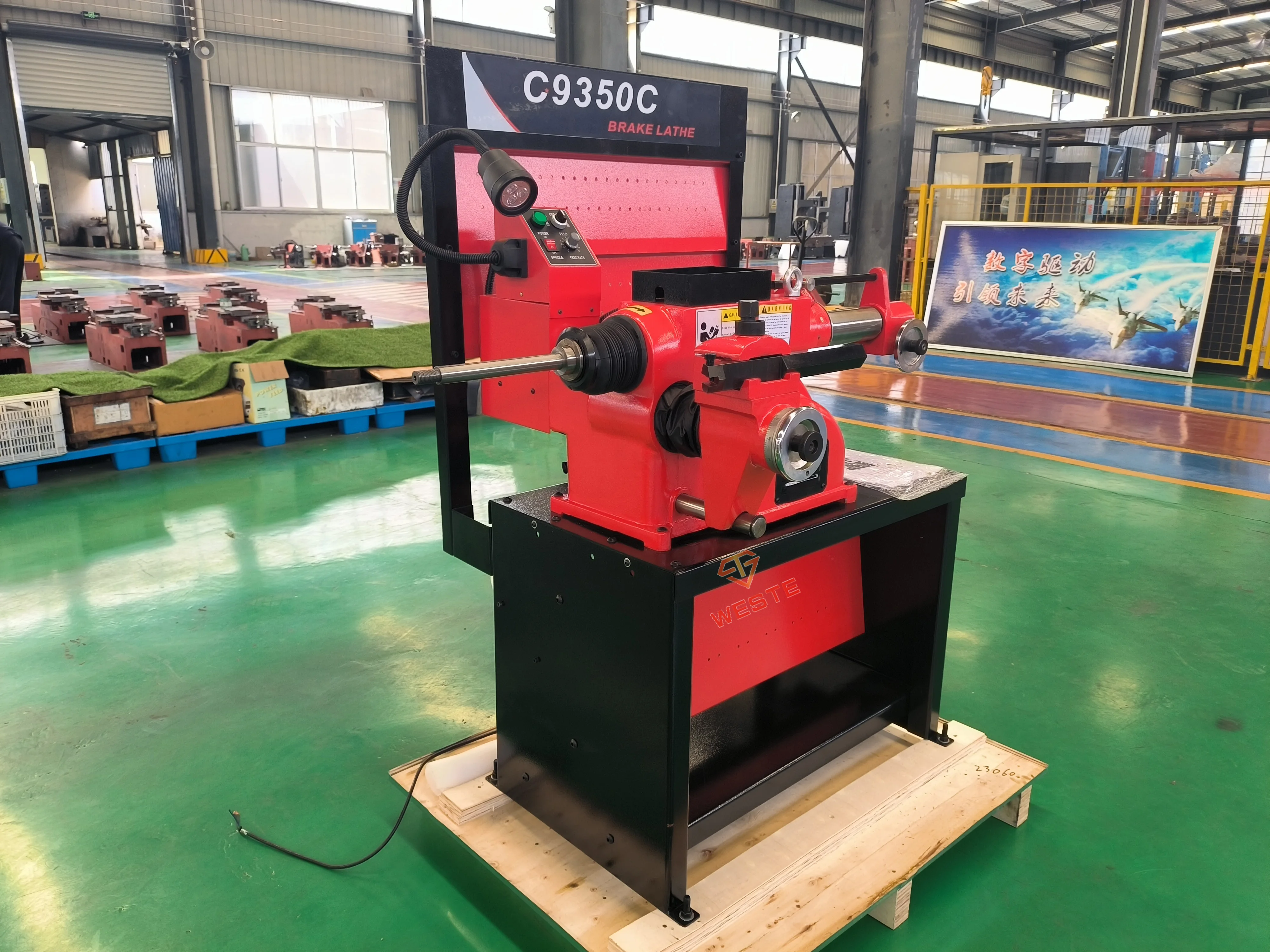

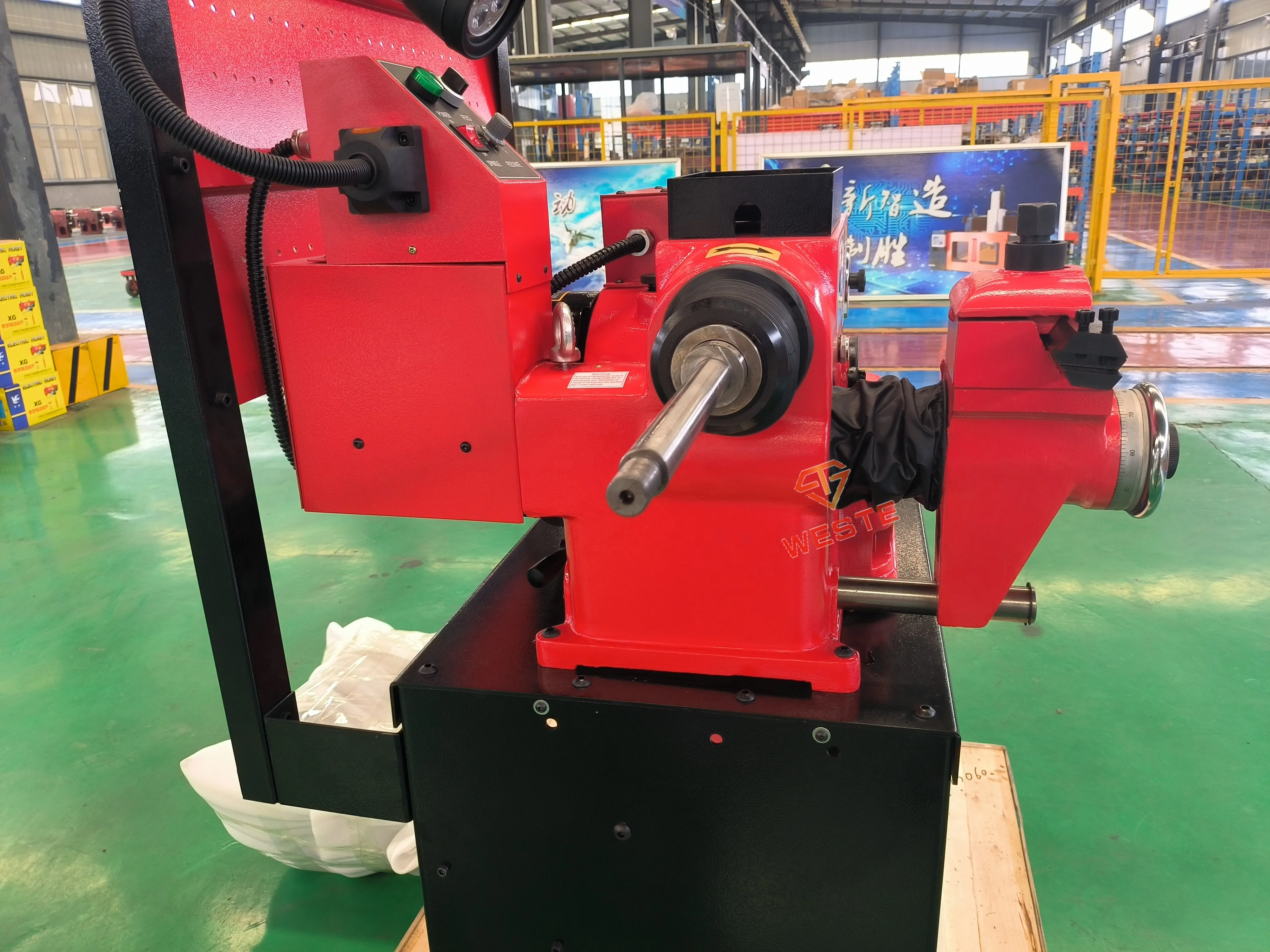

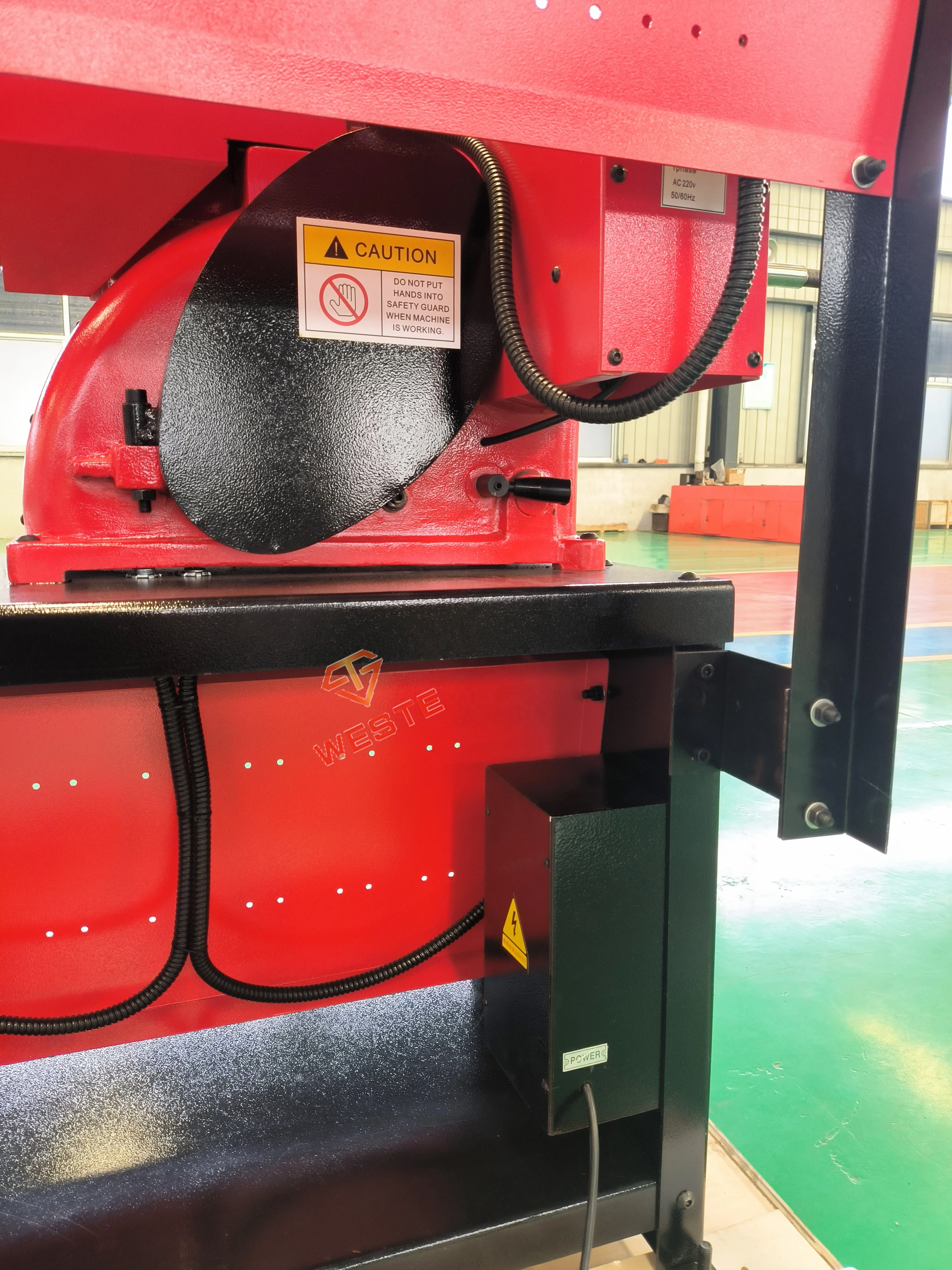

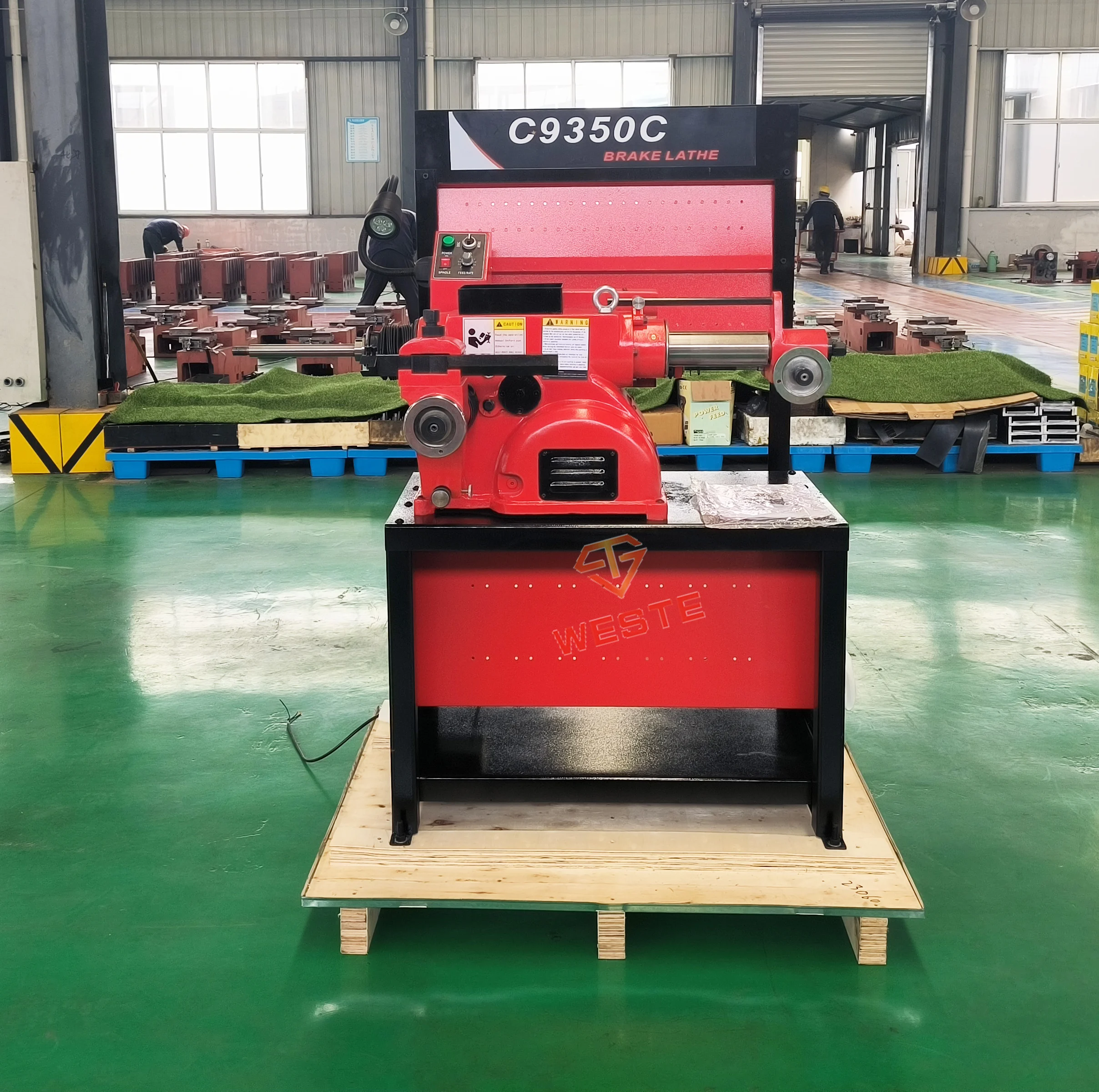

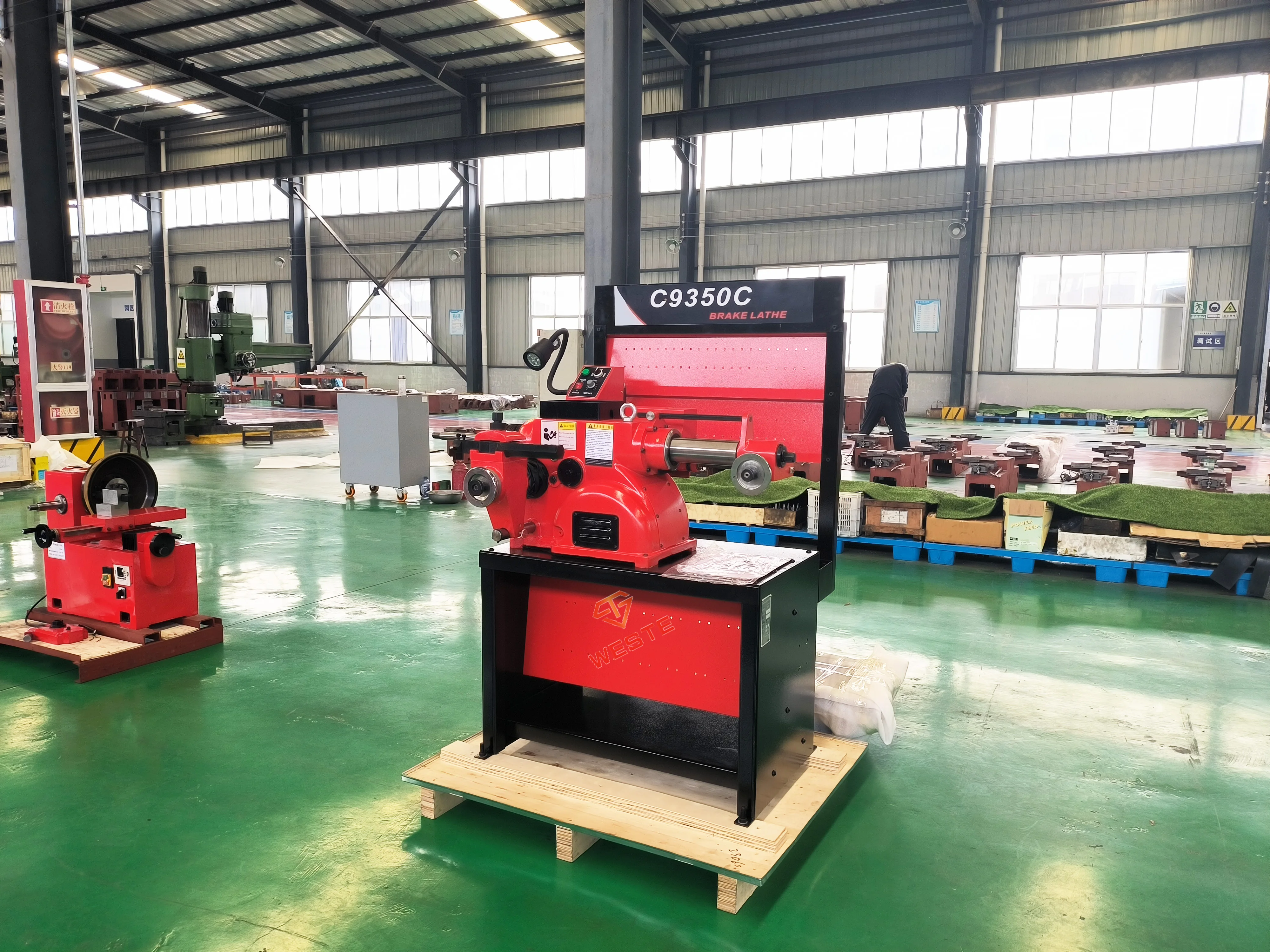

Brake Disc Lathe Machine for Metal (C9350C)
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.
Share on (1601106929371):
Product Overview
Description
Main applications and perfomance
1.C9350C brake disc and drum lathe is a muiti-functional machine tool used in automobile maintenance industry, and applicable for repairing large, medium & smallbrake disc'drum;

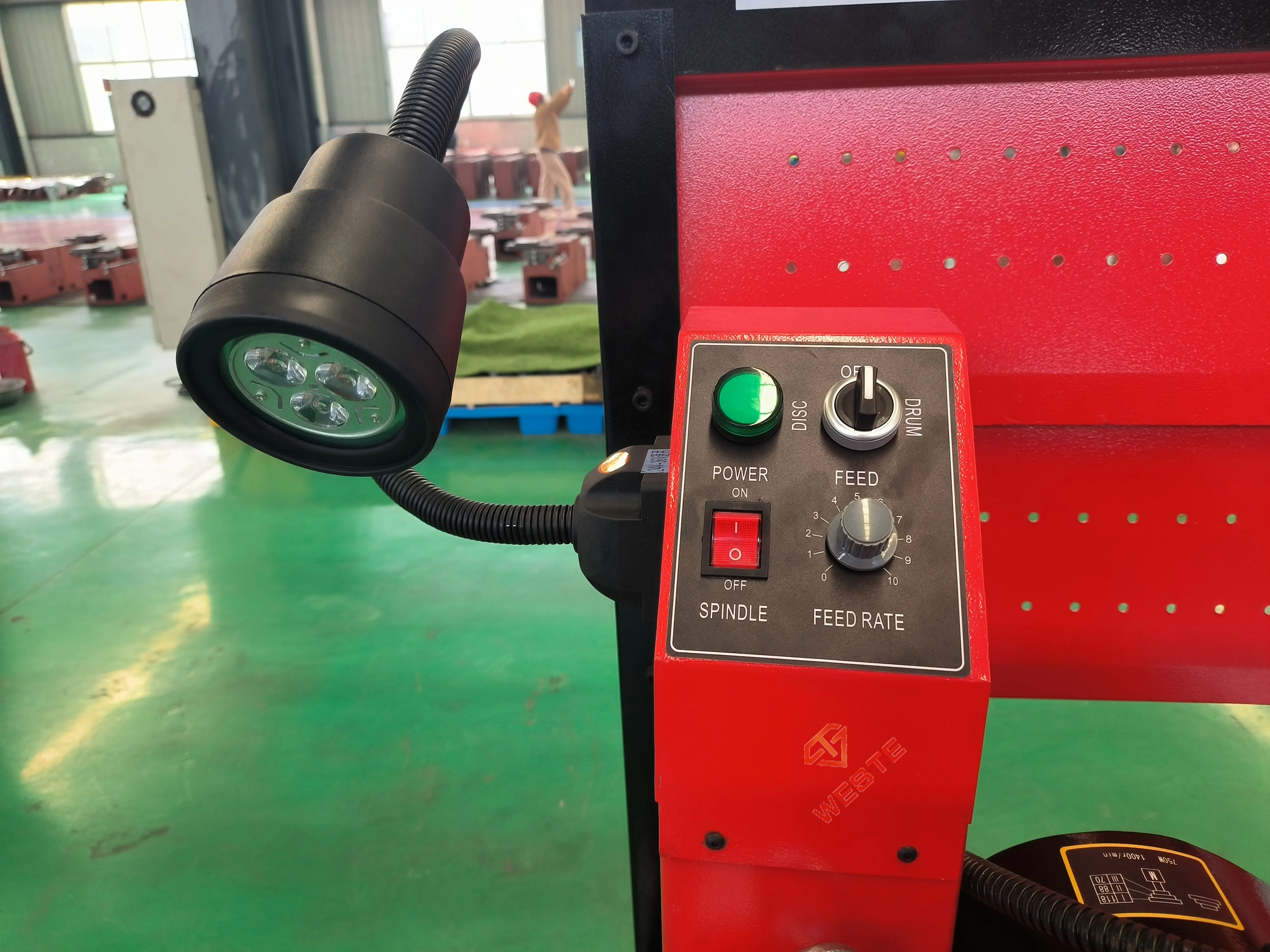

2. Spindle speed can be adjusted by changing belt posi-tion. DC drive enables variable feeding speed;
3. Motors separately for tuming disc/drum.
2. Spindle speed can be adjusted by changing belt posi-tion. DC drive enables variable feeding speed;
3. Motors separately for tuming disc/drum.
4.Applicable for repairing medium & small brake disc/drum.
5.3 spindle speed can be adjusted by changing belt position.
6.DC drive enables variable feeding speed.
7.2 motors separately for turning disc/drum.
5.3 spindle speed can be adjusted by changing belt position.
6.DC drive enables variable feeding speed.
7.2 motors separately for turning disc/drum.
Factory direct brake disc drum grinding lathe machine C9350C
1. C9350C brake disc and drum skimming lathe is a kind of multi-functional machine used in automobile maintenance industry, and applicable for repairing large, medium & small brake disc/drum;
2. DC drive enables variable feeding speed;
3. 2 Motors separately for turning brake disc and drum;
4. Warranty 24 months without man-made damages.
4. Warranty 24 months without man-made damages.
1 | Name | Factory direct brake disc drum grinding lathe machine C9350C |
2 | Model | C9350C |
3 | Range for cutting diameter | Brake disc: 178mm (Min diameter)-368mm (Max diameter); Brake drum: 153mm (Min diameter)-450mm (Max diameter) |
4 | Processing accuracy | ≤ 0.02mm |
5 | Rotational speed | 70, 88, 118r/minute |
6 | Processing disc thickness | 48mm |
7 | Processing drum depth | 160mm |
8 | Motor power | 750W |
9 | Package size (L*W*H) | 1110*890*1450mm |
10 | Net / Gross weight | 290kg / 330kg |
11 | Standard machine voltage | 380v ± 10% / 3ph, 50hz/60hz |
12 | Producting time | 3-20 days |
13 | Warranty | 2 years (no man-made reasons) |
14 | Spare part | Cutters (recommend to order some cutters with machines) |

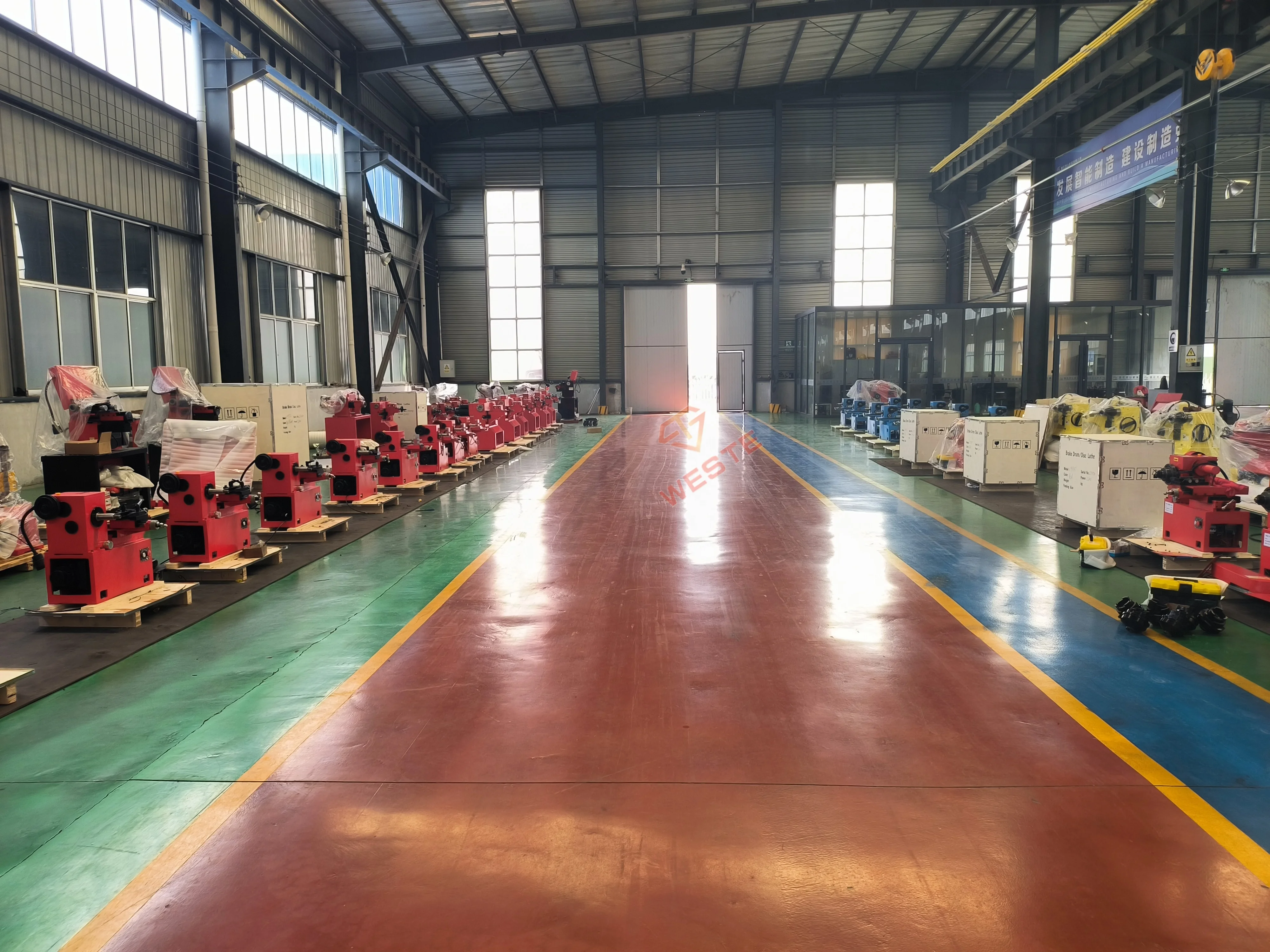

Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design,manufacturing, sales,and service, covering an area of more than 5000 square meters. The company has been developing for five years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers,CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment.
After more than five years of development, the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service.
Adhering to the "Best Machine by WESTE" purposes, We provides better quality machines.more efficient and thoughtful after -sales services to customers. Sincerely hope to communi-cate with friends from various countries, and get win-win cooperation.
Transportation

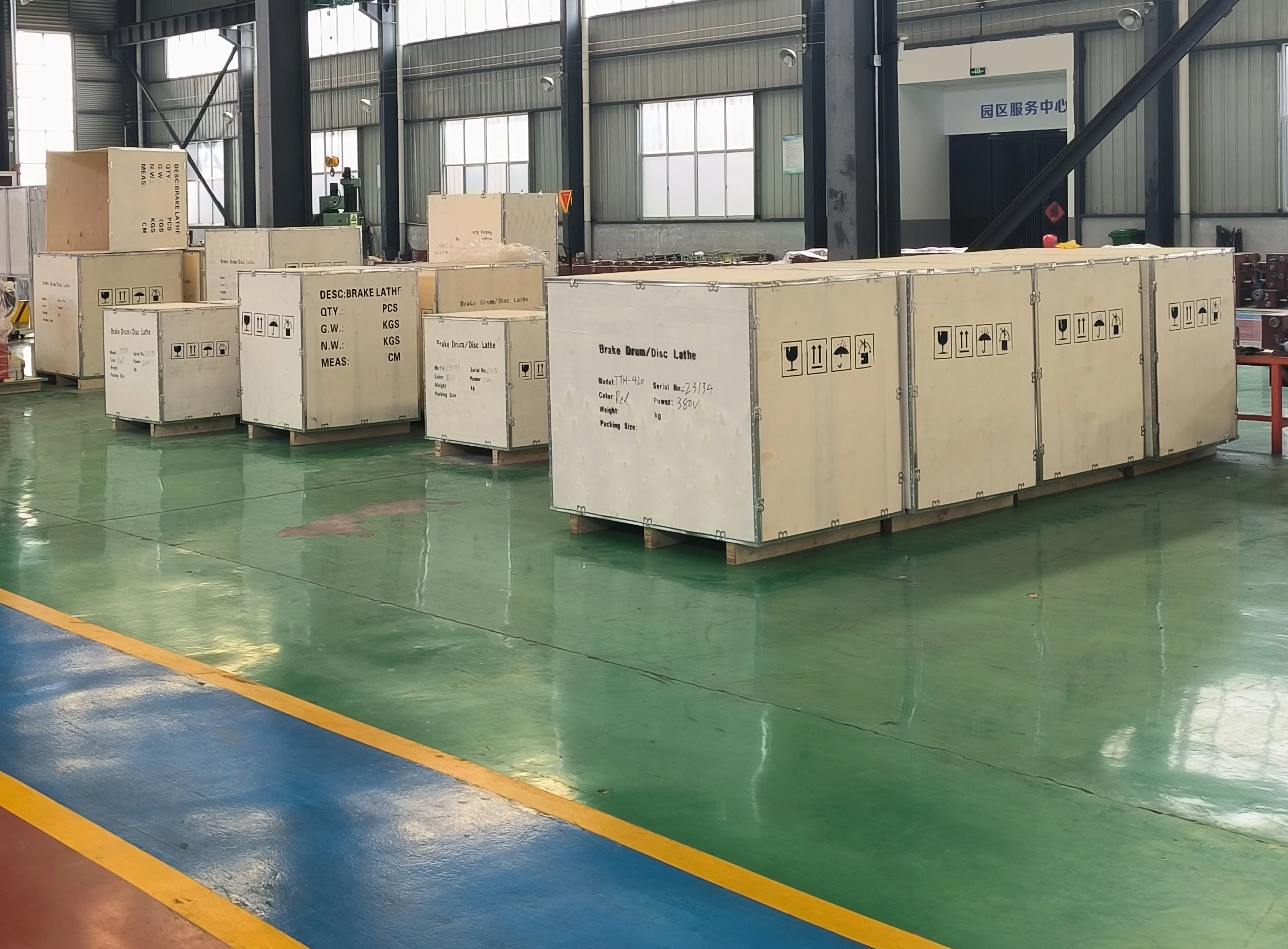

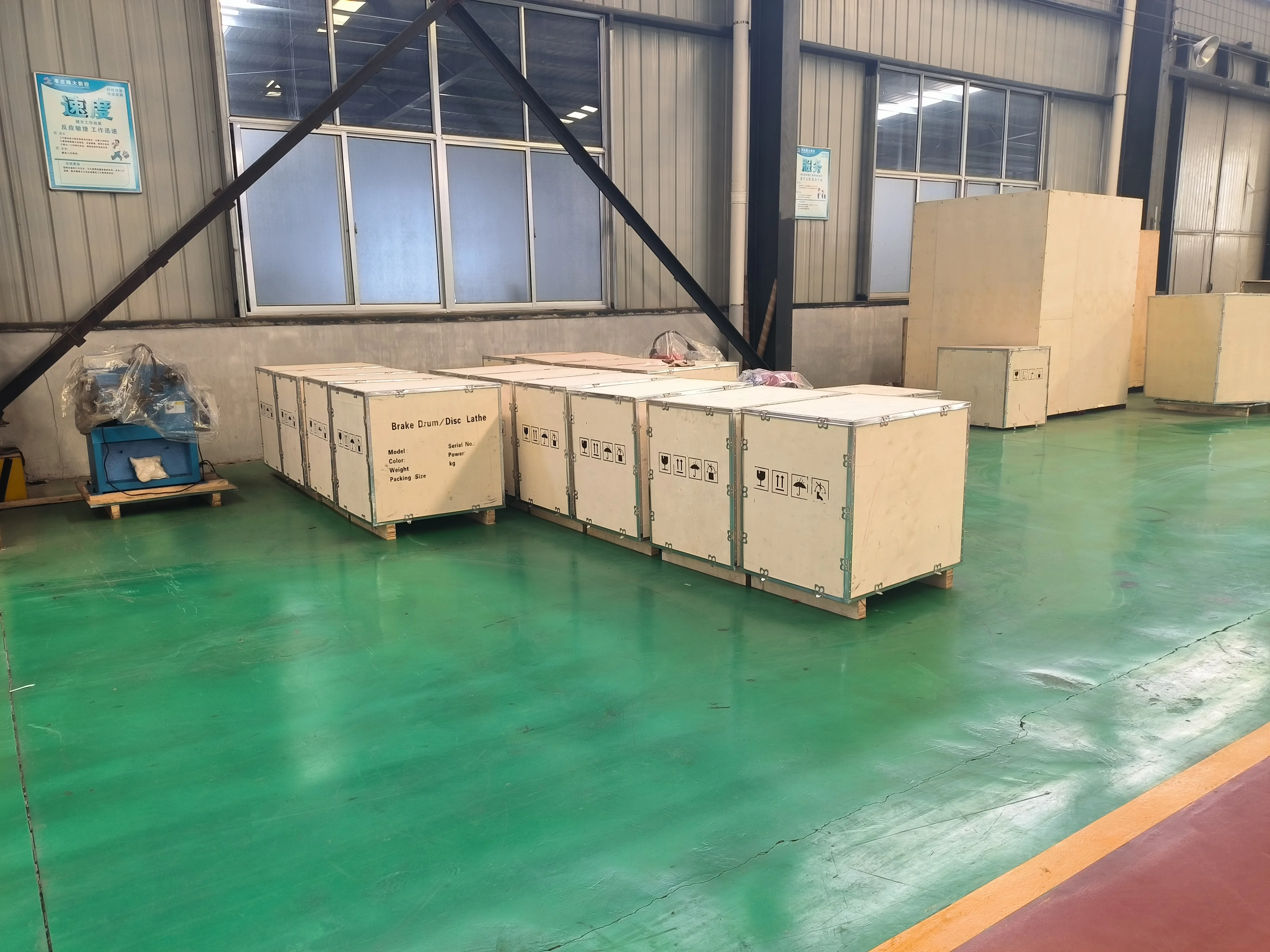

Packing: standard export packing, or customizedpacking as your request.
Professional goods shipping forwarder.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
