Product Overview
Description
Product Description
Advantage of COVNA Pneumatic Control Valve:
●It is cost-effective and safe to be used,which can help you save cost of the whole system COVNA Single Seat Pneumatic Globe Control Valve maintenance.
● It has a simple structure and a big torque, explosion-proof with short actuating times,optimized actuating forces and reliable tight sealing.
● It can perfectly avoid problems of friction, corrosion, and emissions.
● It is of low center of gravity, high vibration resistance and easy to install.
● Simple to control, rapid response, and intrinsic safety, no need to take additional explosion-proof measures.
● Fluid channels in a s- shaped streamline, small pressure drop loss large flow, wide adjustment range, high precision flow
● It has a simple structure and a big torque, explosion-proof with short actuating times,optimized actuating forces and reliable tight sealing.
● It can perfectly avoid problems of friction, corrosion, and emissions.
● It is of low center of gravity, high vibration resistance and easy to install.
● Simple to control, rapid response, and intrinsic safety, no need to take additional explosion-proof measures.
● Fluid channels in a s- shaped streamline, small pressure drop loss large flow, wide adjustment range, high precision flow
● COVNA pneumatic control valve has good adjustment stability. For the working conditions with large pressure difference, the cavity of the valve body is enlarged, which improves the buffer capacity of the valve body
Item | Modulating Control Valve WCB Pneumatic Diaphragm Control Valve Cast Steel Flange Pneumatic globe Valve with Positioner | ||||
Acting Mode | Multi-Spring diaphragm type | ||||
Working Pressure | 1.6, 4.0, 6.4MPa | ||||
Air Supply Pressure | 0.14, 0.16, 0.28, 0.4MPa | ||||
Lifespan | 1,000,000 (1 Million) Times | ||||
Temperature | -30°C~70°C | ||||
Body Material | SS304, SS316, SS316L, WCB | ||||
End Connection | Flanged | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam, etc | ||||
Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||

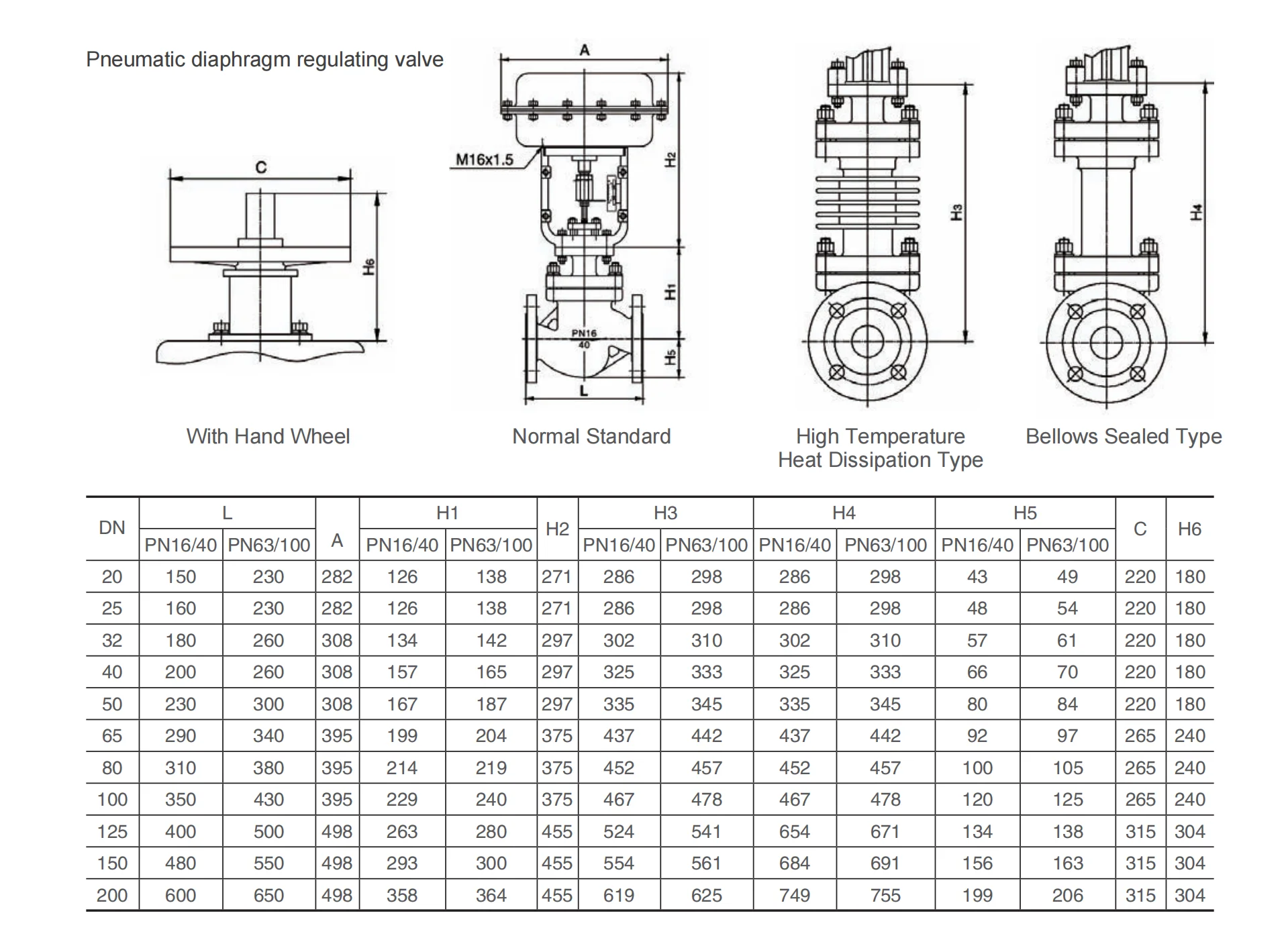

Dimension:

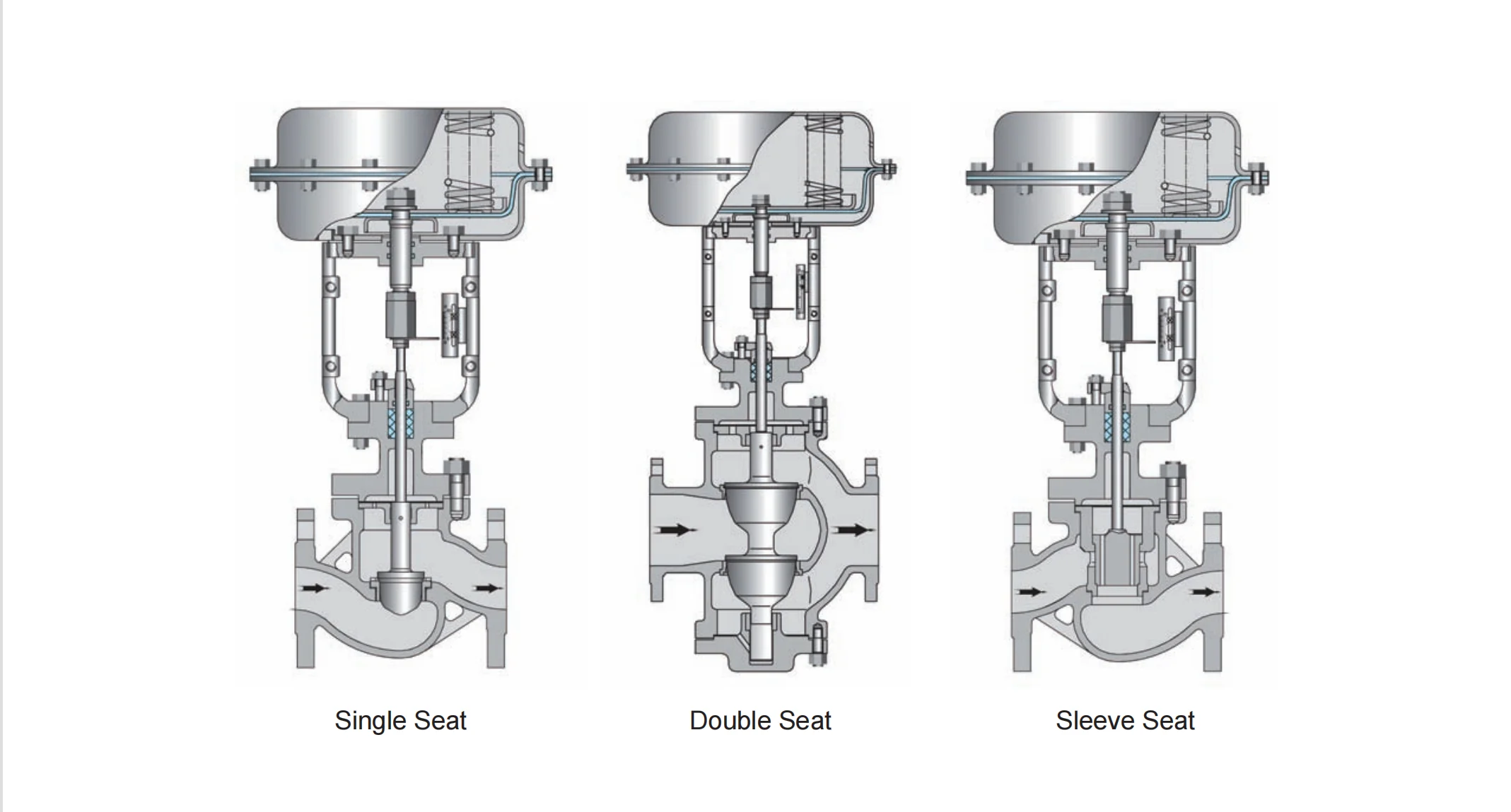

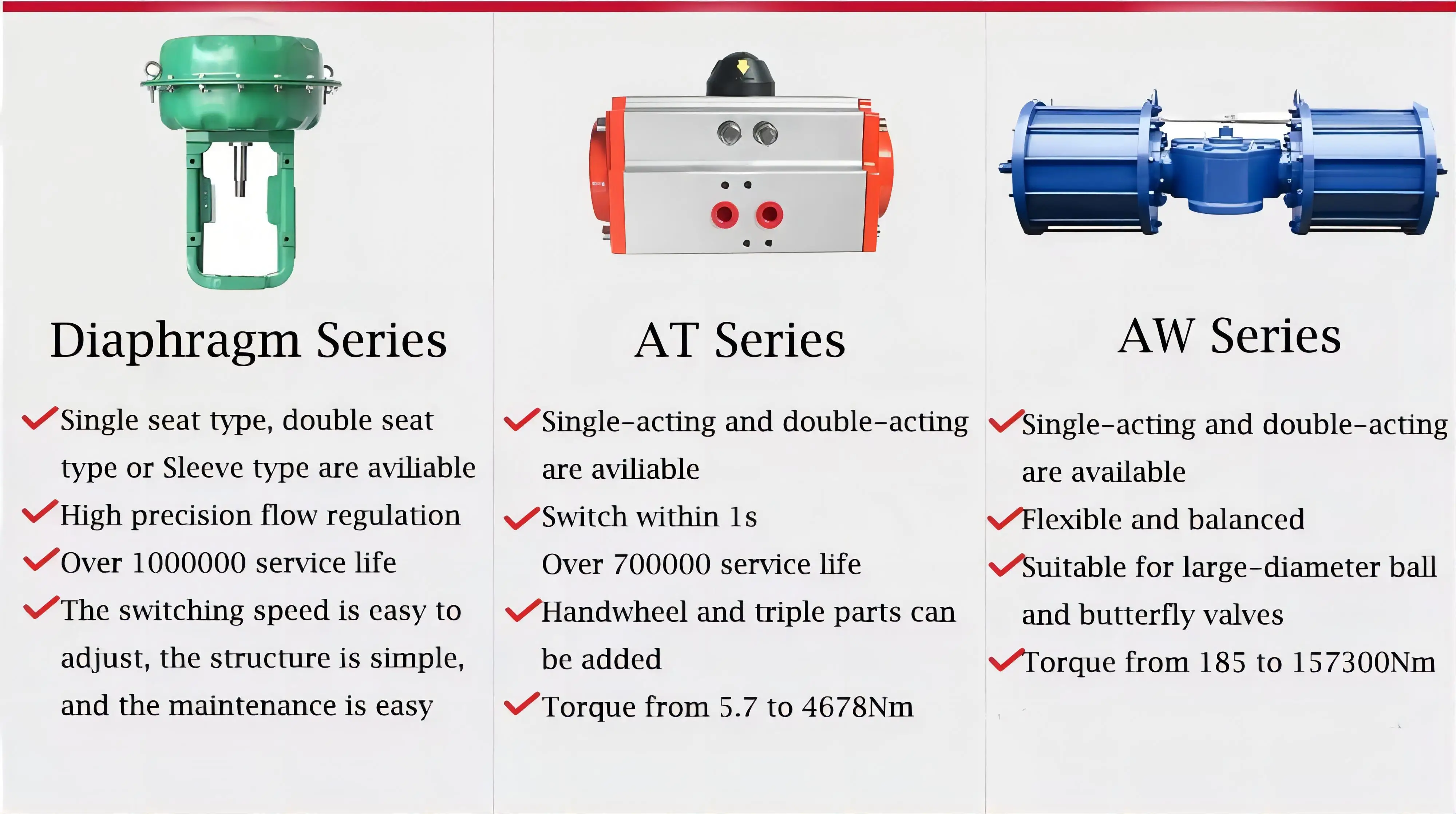

Type of Pneumatic Control Valve:

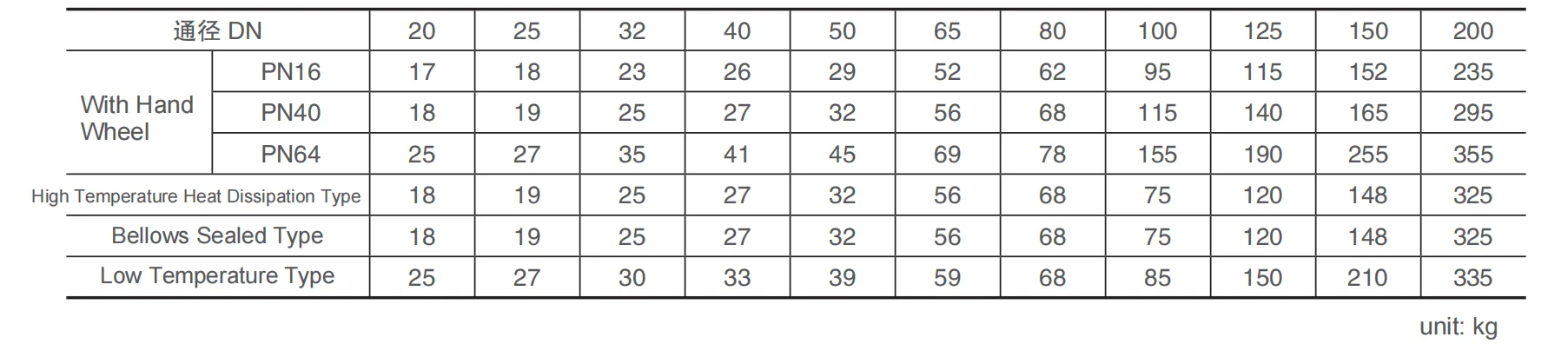

Weight table of Pneumatic diaphragm regulating valve:
Electric Actuator
Multi-spring diaphragm actuator in direct action & reverse action. NBR rubber reinforcing polyester fabric diaphragm material. Spring range 20~100KPa, 40~200KPa, 80~240KPa. Supply pressure from 0.4MPa to 0.5MPa.
Control Valve Type\\ Method | Pneumatic diaphragm actuator | ||||
ZJHP～ZJHM | |||||
Multi-spring type | |||||
Usage | Regulating type, ON-OFF type | ||||
Air supply pressure or Power supply voltage | Air supply pressure (Spring range) 140（20～100）Kpa G 240 (40～200) Kpa G 280 (80～240) Kpa G | ||||
Connector | Air pipe connector: RC1/4 | ||||
Direct action | Pressure increase, stem descend, valve close. | ||||
Reaction | Pressure increase, stem ascend, valve open. | ||||
Input signal | 40～20mA.DC（with positioner） | ||||
Lag | ≤1%FS（with positioner） | ||||
Linear type | 2%FS（with positioner） | ||||
Environmental temperature | -10℃～+70℃ | ||||
Pneumatic control valve Accessories | E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch Non-standard accessories, need special customized notes. | ||||

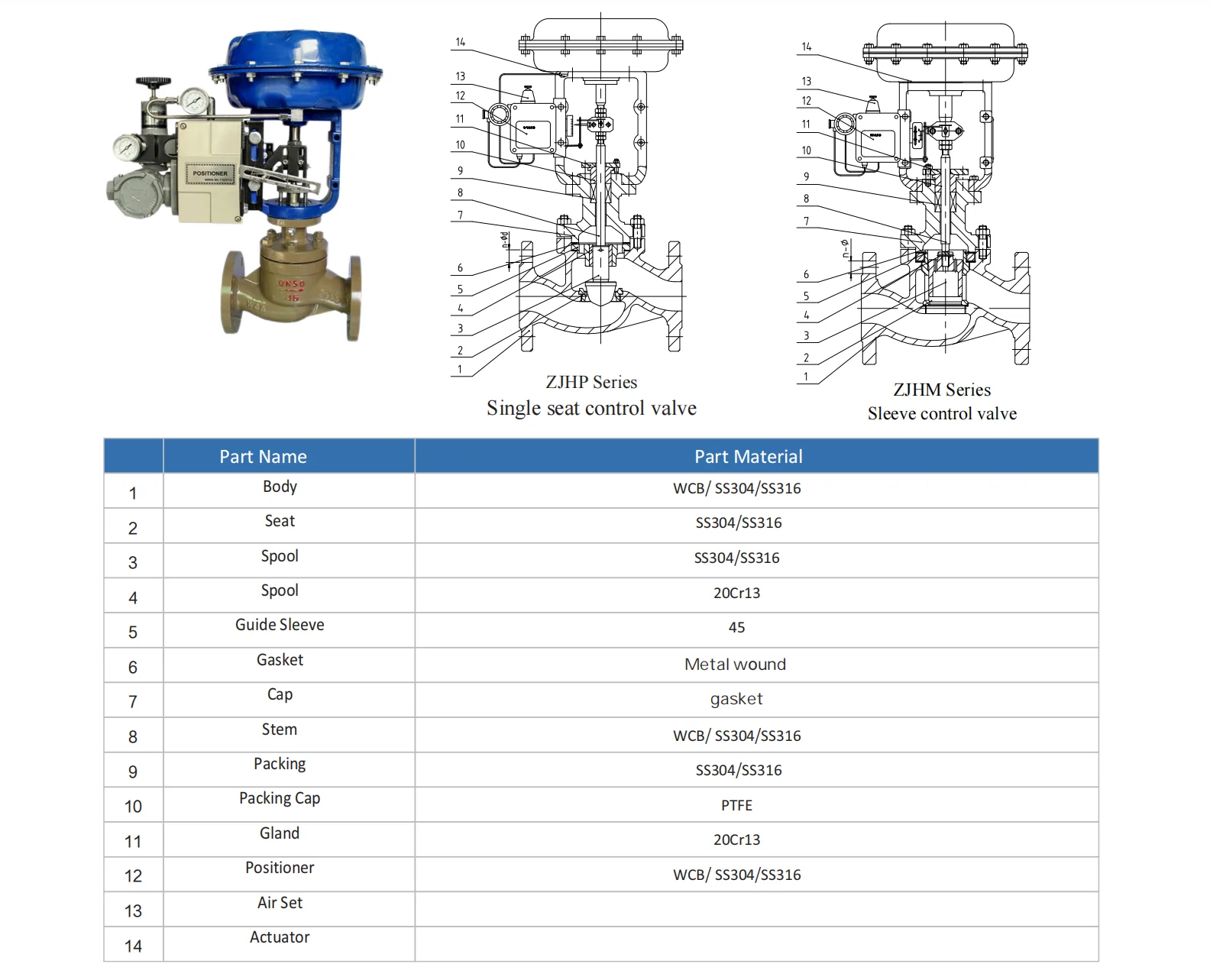

Technical Parameter of Valve Body
1. Major performance indexes shall be as shown in below table
2. Testing shall be conducted according to the specification of GB/T4213-92
2. Testing shall be conducted according to the specification of GB/T4213-92
Serial No. | Technical Performance | Without Positioner | With Positioner | |
1 | Basic Error | ≤±5% | ≤±1% | |
2 | Return Difference | ≤3% | ≤1% | |
3 | Dead Zone | ≤3% | ≤0.4% | |
4 | Leakage | ZJHP Type:≤1X10-4Rated FlowZJHM Type:≤1X10-3 Rated Flow | ||
5 | Rated Flow Coefficient | ≤±10% | ||
6 | Inherent Flow Characteristic | Slope±30% | ||
Available in Stainless Steel 304, Stainless Steel 316, Carbon Steel, Cr-Mo Steel
Also available in Cast Iron for your choice
Buyer Feedback
Company Profile
Company strengths:
1.COVNA-Specialized Manufacturer of High Quality Actuated Valve for 22＋ Years.
2.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
3.Extensive flow control project experience and various product solutions can be offered.
4.OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard（Offer various international standard, ANSI, JIS, DIN, etc.）.
5.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
6.Inquiry will be replied within 8 hours.
7.Custom complaints handed by one stop professional service.
8.ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
9.Industrial standard 1 year (12 months) warranty.
10.On time delivery, comprehensive warranty service, consultation to after-sales service in place.
2.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
3.Extensive flow control project experience and various product solutions can be offered.
4.OEM / ODM service available. Can do JIS 5K / 10K, ANSI 150lb / 300lb / 600lb / 900lb standard（Offer various international standard, ANSI, JIS, DIN, etc.）.
5.German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured.
6.Inquiry will be replied within 8 hours.
7.Custom complaints handed by one stop professional service.
8.ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.
9.Industrial standard 1 year (12 months) warranty.
10.On time delivery, comprehensive warranty service, consultation to after-sales service in place.
Factory Strength:
Exhibition&Finished Project
Project of Motorized Valve
Project of Pneumatic Actuated Valve
Project of Solenoid Valve
Packaging & Delivery
FAQ
Q: What is the difference between Normally Open and Normally Closed valves?
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.
Q: What is the life span of your pneumatic actuators?
A: We have passed 1 million times of product quality test, and obtained the certificate
Q: Does the air actuated valve have a manual override?
A: The air actuator does not have a manual override, but a manual override is provided with optional direct mount solenoid valves.
Q:How fast does an air actuated valve operate?
A: See product specifications. Generally, smaller valves less than 2 inch pipe size, cycle in about one second. Larger valves up to 6 inch pipe, cycle in about 1.5 seconds. A cycle is per 90° rotation
Q:Can I add a High Temperature kit to an existing Valworx air actuated?
A:Yes, you would need to select a kit matching both the actuator and valve mounting patterns. See actuator accessories
Q:Can I mechanically adjust the flow rate of an air actuated ball valve?
A: No, but we do offer pneumatic positioners with 4-20mA or 3-15PSI inputs. Positioners allow user to adjust flow 0-100%.
Q:Can I use the air actuated ball valve outside?
A: Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature specifications.
Q:Do you have a way to confirm the air actuated valve is in the closed position? Open position?
A: Yes, we offer an optional valve monitor/limit switch box. Monitor contains (2) dry contact limit switches used to confirm openand closed position. There is also a highly visual valve position indicator.
Q:What is the maximum allowable fluid velocity?
A:Metal valves: 5 to 10 feet/second, closer to 5ft/sec is better PVC valves: < 5 feet/second
Q:Can you customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.
Q: What is the life span of your pneumatic actuators?
A: We have passed 1 million times of product quality test, and obtained the certificate
Q: Does the air actuated valve have a manual override?
A: The air actuator does not have a manual override, but a manual override is provided with optional direct mount solenoid valves.
Q:How fast does an air actuated valve operate?
A: See product specifications. Generally, smaller valves less than 2 inch pipe size, cycle in about one second. Larger valves up to 6 inch pipe, cycle in about 1.5 seconds. A cycle is per 90° rotation
Q:Can I add a High Temperature kit to an existing Valworx air actuated?
A:Yes, you would need to select a kit matching both the actuator and valve mounting patterns. See actuator accessories
Q:Can I mechanically adjust the flow rate of an air actuated ball valve?
A: No, but we do offer pneumatic positioners with 4-20mA or 3-15PSI inputs. Positioners allow user to adjust flow 0-100%.
Q:Can I use the air actuated ball valve outside?
A: Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature specifications.
Q:Do you have a way to confirm the air actuated valve is in the closed position? Open position?
A: Yes, we offer an optional valve monitor/limit switch box. Monitor contains (2) dry contact limit switches used to confirm openand closed position. There is also a highly visual valve position indicator.
Q:What is the maximum allowable fluid velocity?
A:Metal valves: 5 to 10 feet/second, closer to 5ft/sec is better PVC valves: < 5 feet/second
Q:Can you customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
