150W 220W 24V glass solar panel BIPV more power high efficiency 23.5% Bifacial Solar Panel
- Category: >>>
- Supplier: Shenzhen Shine Solar Co. Ltd.Shenzhen Ltd.
Share on (1601107163672):
Product Overview
Description
BIPV Solar Panel Double Glass 100W 120W 150W 220W Monocrystalline Solar Panel 12V 18V 24V 36V Bifacial Solar Panel
We are OEM solar panel manufacturer more than 16 years The size, wattage,voltage, connectors can be customized. | ||||||||

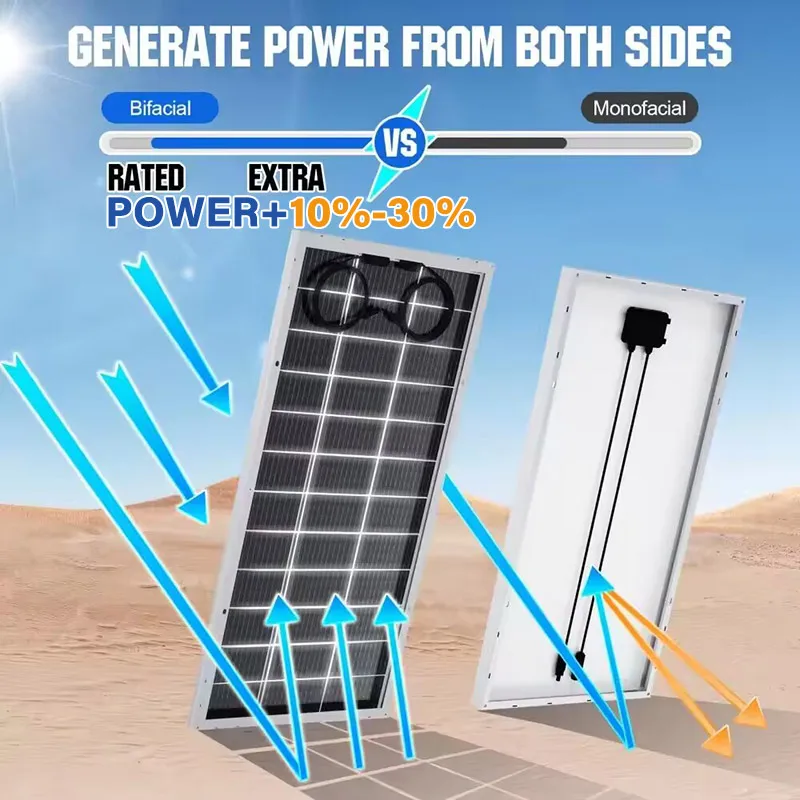

Advantage of bifacial solar panel:
* Double explosion-proof tempered glass, well withstand extreme weather.
* Generate power from both sides, extra get 10-30% power

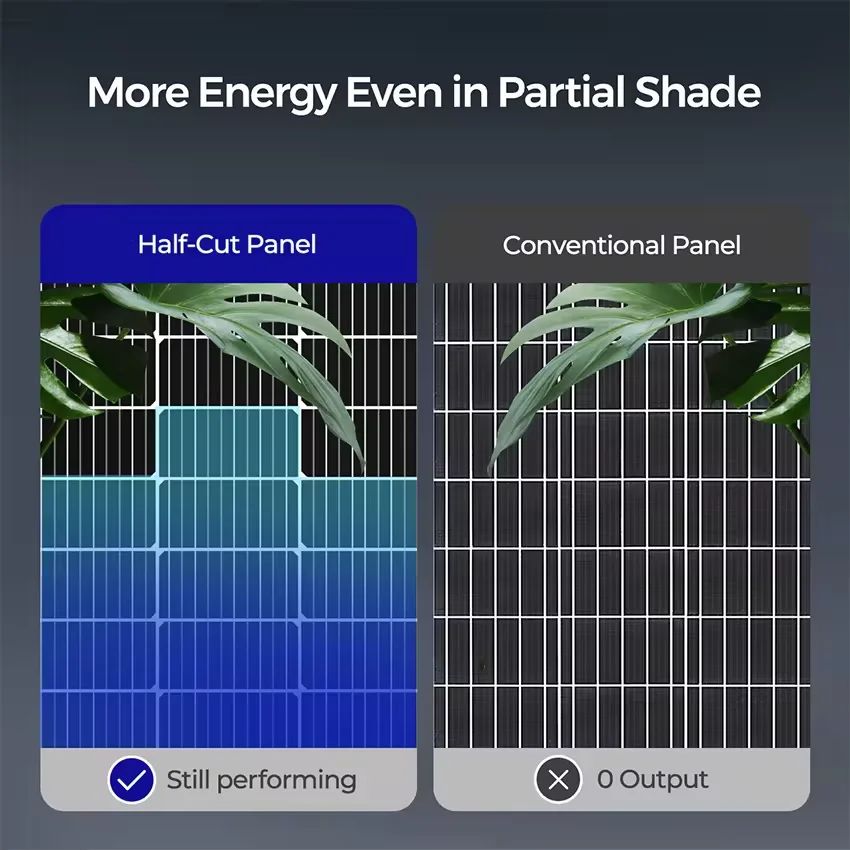

* More enengy even in partial shade.
* More power in sunny day, and more power in cloudy day.
Below some standard BIPV solar panel, OEM size , color, voltage availble!
Model | Pmax(watt) | Vmp(V) | Imp(A) | Dimension(mm) |
SN-BM120 | 120W | 18.2V | 6.59A | 820*770*30MM or customize |
SN-BM165 | 165W | 19.8V | 8.33A | 1255*680*30mm or customize |
SN-BM200 | 200W | 18.2V | 10.99A | 1225*880*30mm or customize |
SN-BM240 | 240W | 35.8V | 6.71A | 1565*770*30mm or customize |

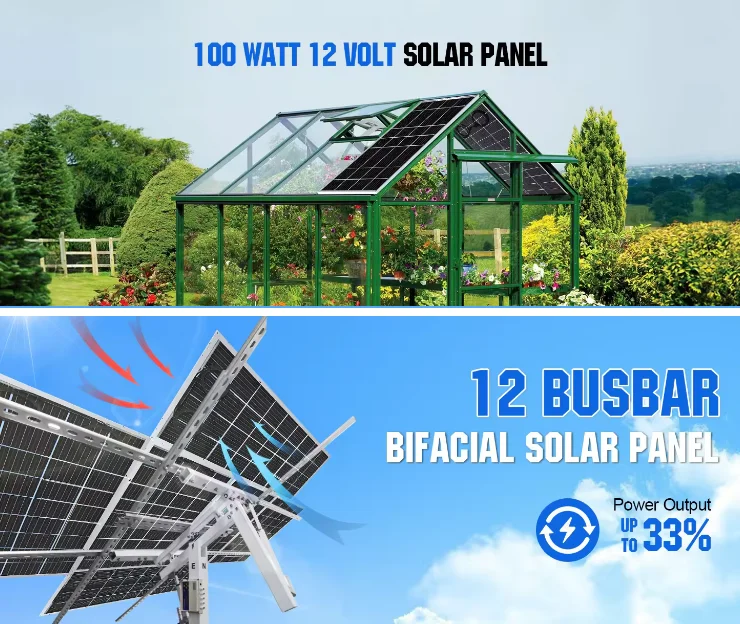

Bifacial 100 Watt 12 Volt Solar Panel
* Model No.: SN-D100
* Dimension: 38.58*20.87*1.18 inches
* Weight: 5.9KG
* Max Power Output(W): 100W
* Voltage MPP Vmp(V): 19.06V
* Current MPP Imp(A): 5.26A
* Voltage Open Circuit Voc(V): 21.82V
* Short Circuit Current Isc(A): 5.55A
* Dimension: 38.58*20.87*1.18 inches
* Weight: 5.9KG
* Max Power Output(W): 100W
* Voltage MPP Vmp(V): 19.06V
* Current MPP Imp(A): 5.26A
* Voltage Open Circuit Voc(V): 21.82V
* Short Circuit Current Isc(A): 5.55A

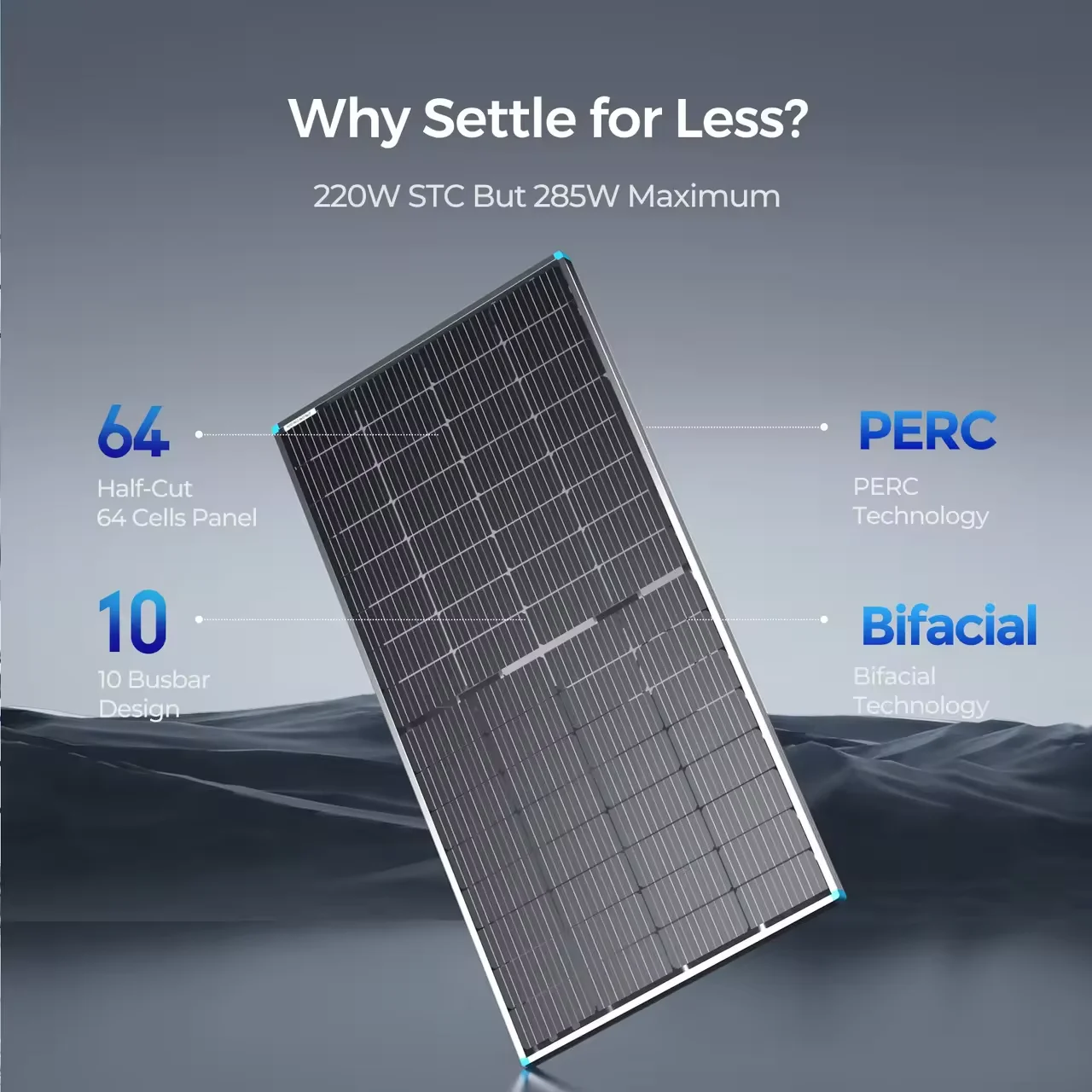

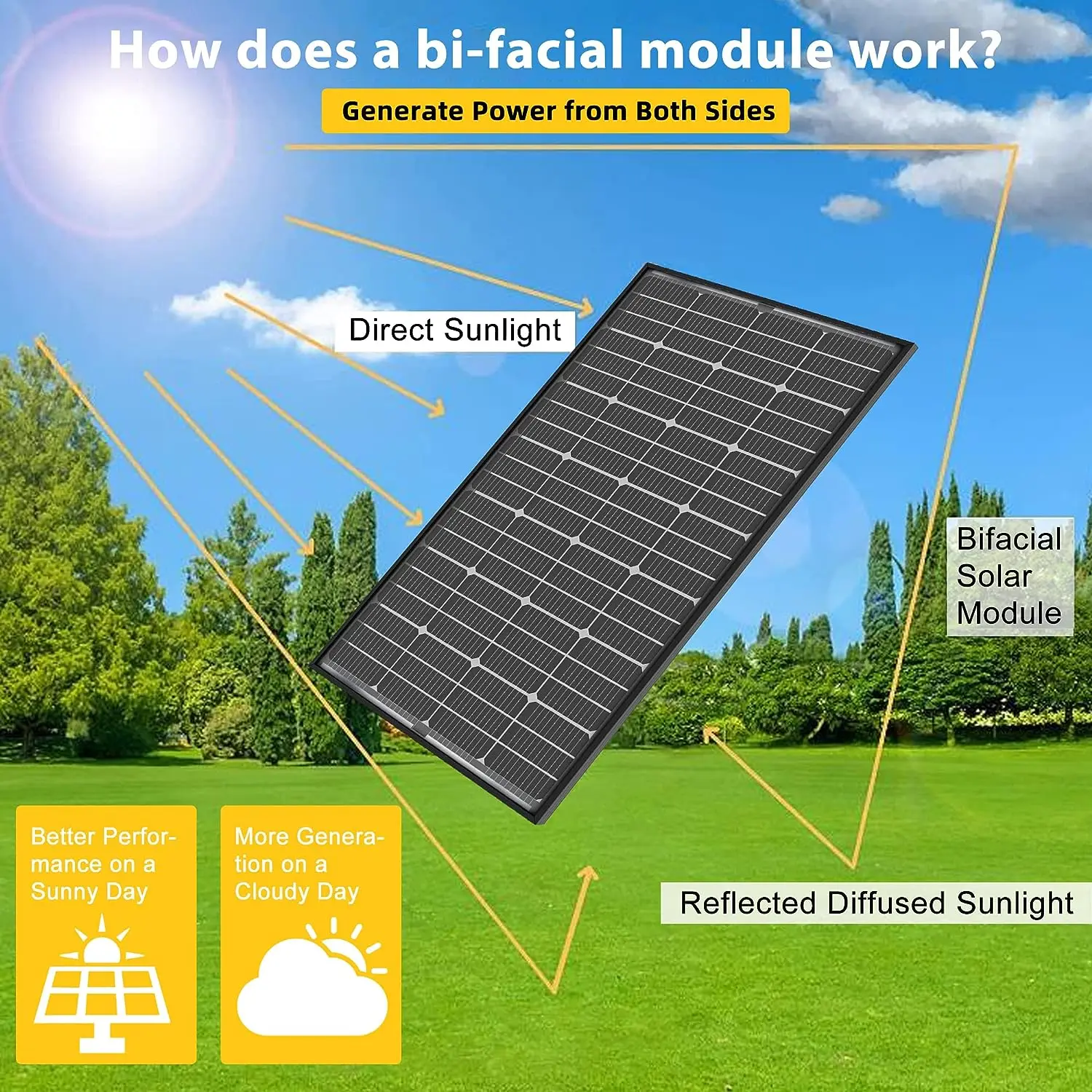

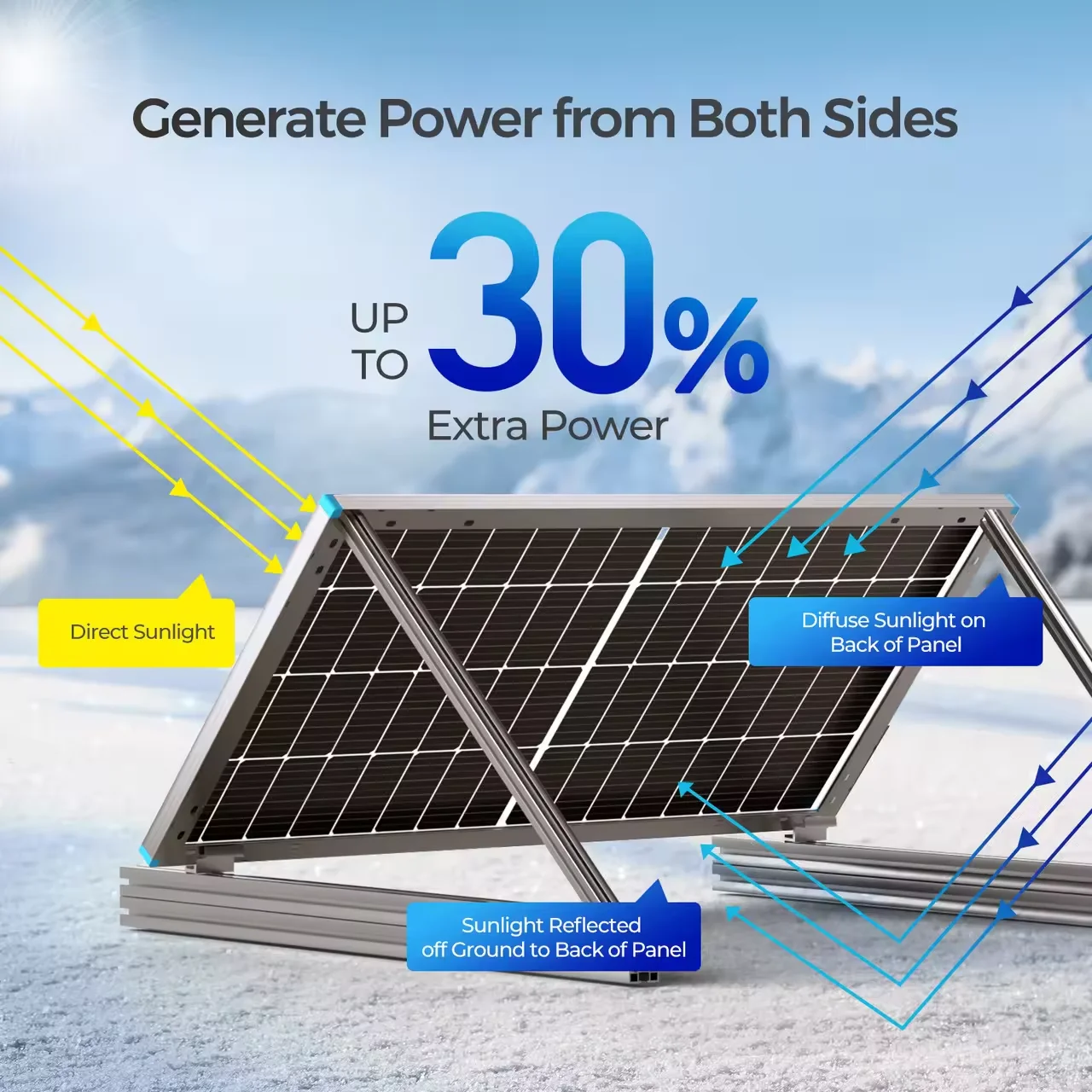

Bifacial Solar Panel
Shine solar bifacial solar panels can generate electricity from the back! The bifacial solar panel's back can generate electricity from reflected light coming from the ground, etc. The more reflective the ground is, the more light can absorbed by the back of the solar panel. The electricity generation will also be better. more power 30%.
Easy Installation
The panel comes with four easy mounting holes with a diameter of 7 x 12mm, and two grounding holes with a diameter of 5mm. (holes size and position can be customzied made)
High-efficiency
Uses high-efficiency 9BB 12BB Mono cells encapsulated in EVA (ethylene-vinyl-acetate).
Pre-installed bypass diodes inside junction box that minimize power drops caused by shading.
Pre-installed bypass diodes inside junction box that minimize power drops caused by shading.
Accelerating Melting Snow Covered on Solar Panels in Winter
When traditional solar panels are covered with snow in winter if the snow on the surface cannot be cleaned up in time, the solar panels will easily freeze in the continuously low- temperature environment.
A More Dazzling Appearance
The advanced technology of Bifacial solar panels not only brings an increase in power but also enhances the visual aesthetics by replacing the traditional backsheet with a transparent one.
Why Choose Us
Questions from our clients:

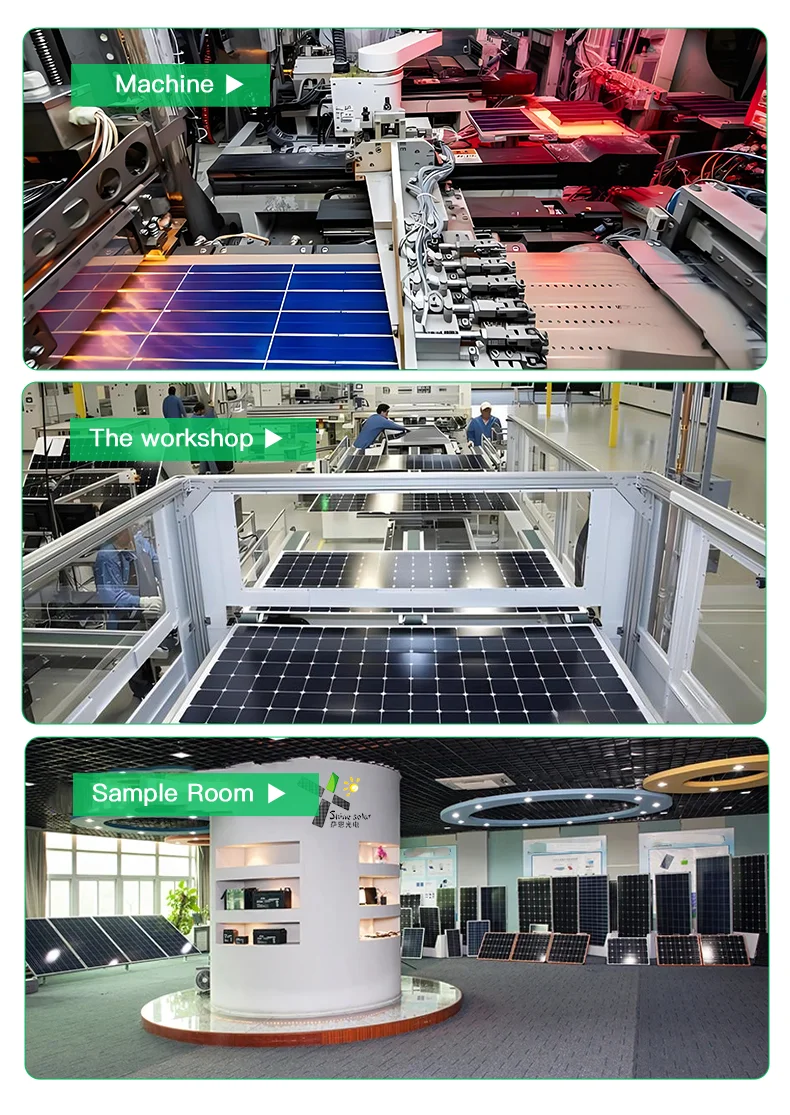

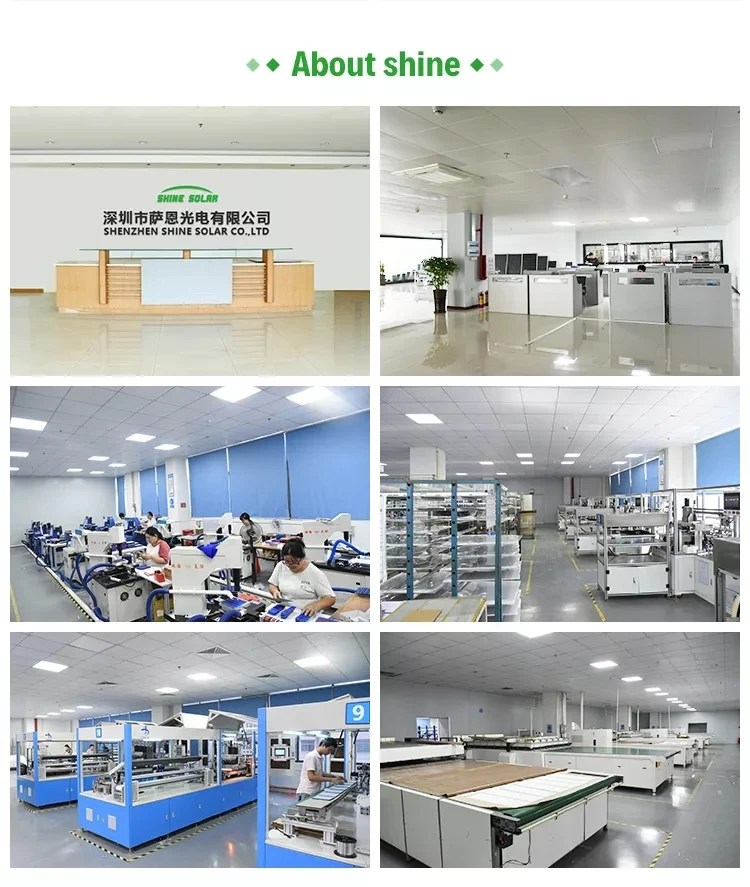

1.Tell more about Shine Solar? A: We are a 13-year professional solar panel manufacturer which mainly supply OEM service to NA,
EU...solar brands, every year we will service 1000+ solar brands and supply 500MW+ green energy to the world.

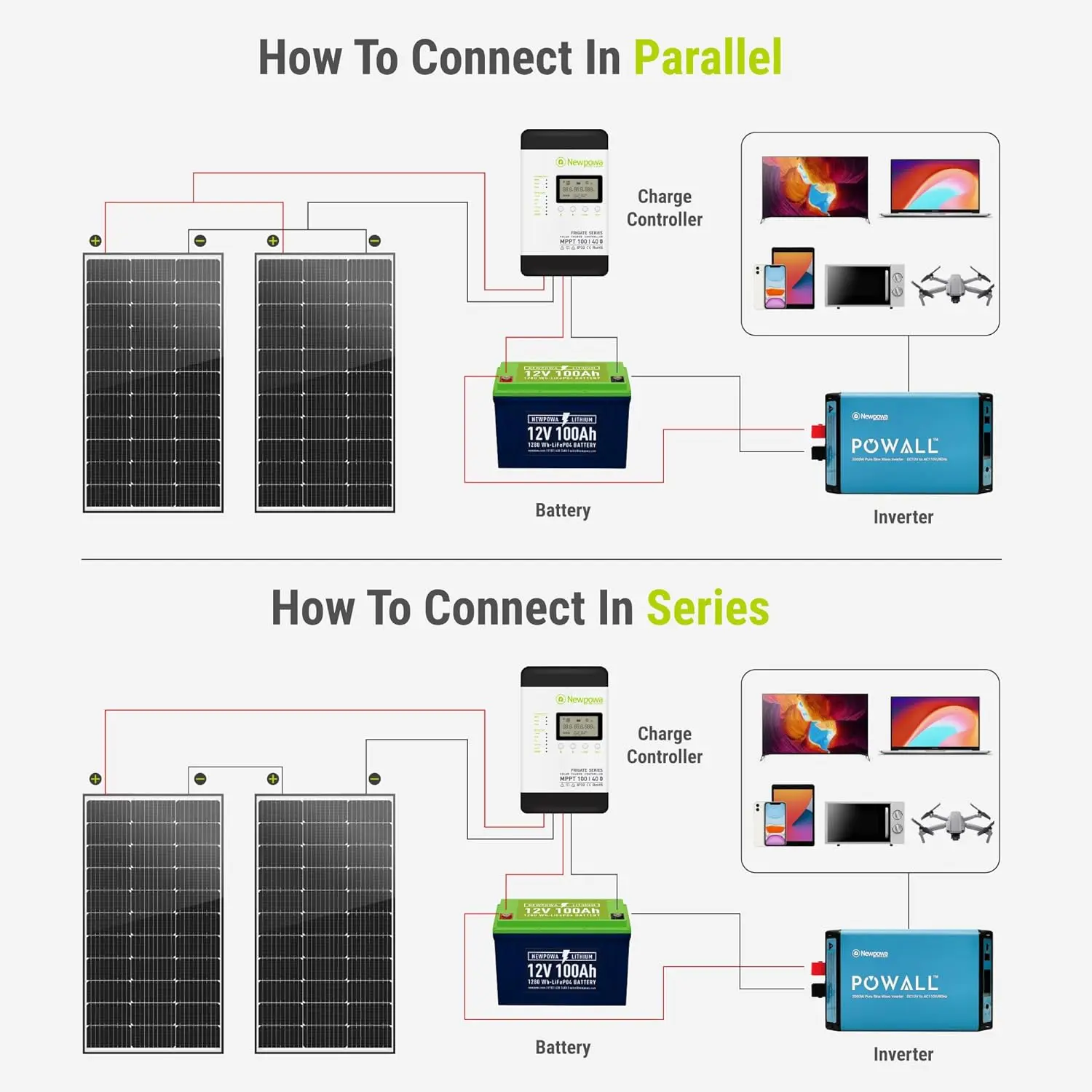

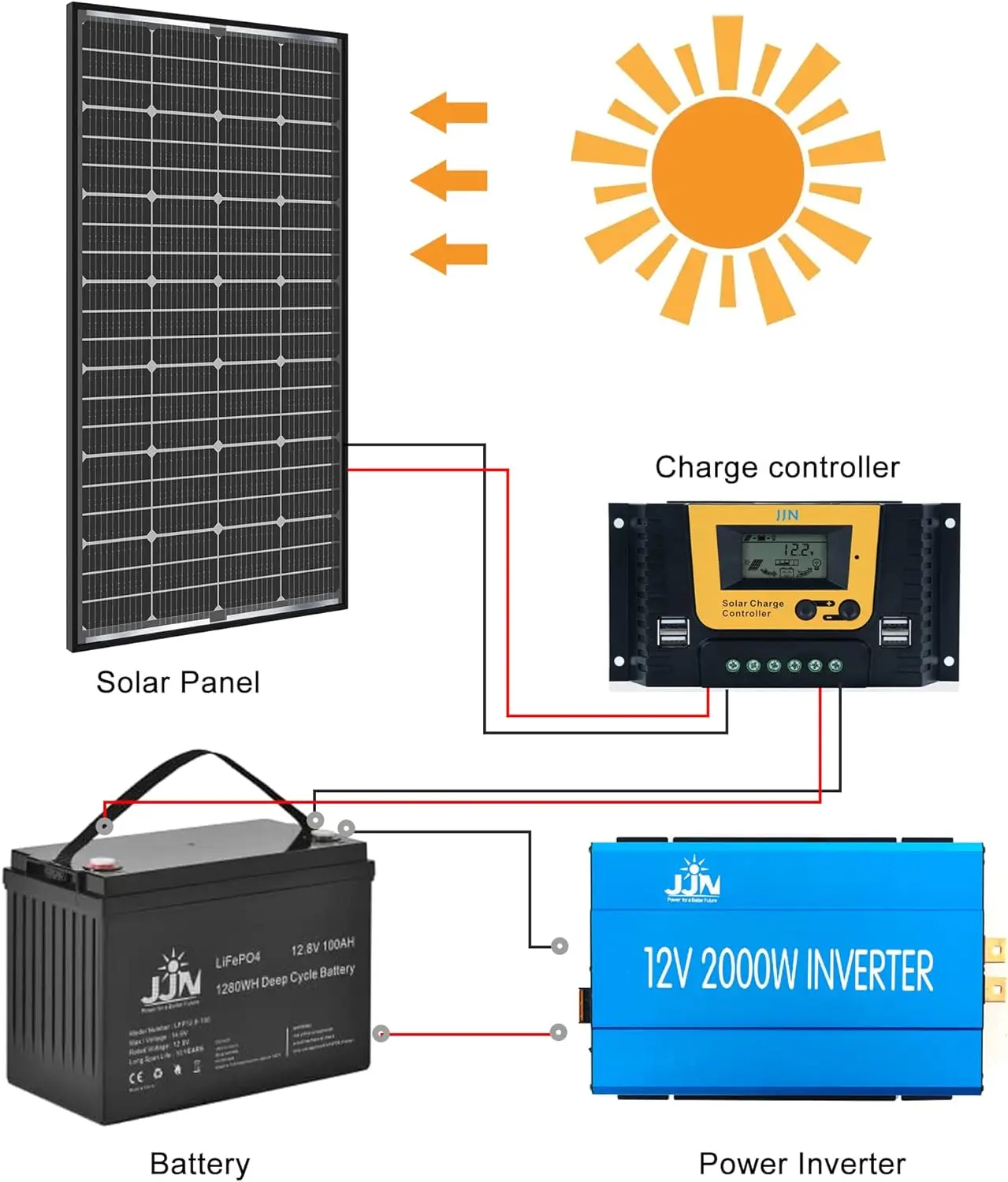

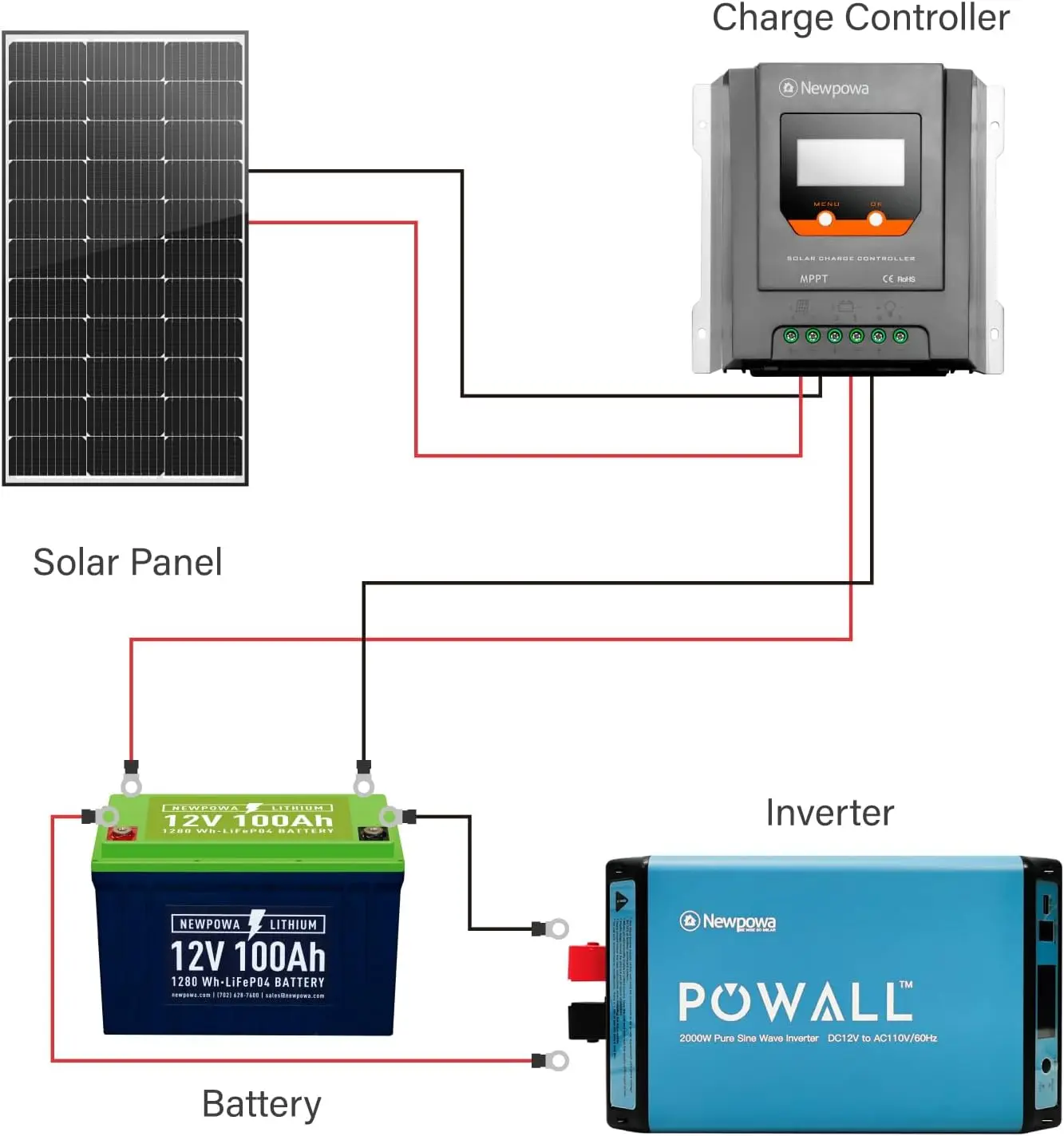

2.What do I need to complete my off-grid solar power system ?
A: A solar charge controller to connect solar panel for charging battery, a off-grid inverter to power the AC devices use the
power on battery.
3. Why is my solar panel under rated power?
A: Performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect
sunlight,temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How to clean solar panels?
A: You can clean the panels with a non-abrasive sponge and water. We suggest regular maintenance to wipe the dust, sand, and other
dirts away.Built-up dirt and stain will reduce the power output of the panel.
5. Can I custom solar panel? like size, shape, power and voltage.
A: Yes, please contact us directly for more details.
6.What if my quantity plan can't reach your MOQ?
A: Also can produce for you, just click "Contact Supplier" to contact us.
EU...solar brands, every year we will service 1000+ solar brands and supply 500MW+ green energy to the world.
2.What do I need to complete my off-grid solar power system ?
A: A solar charge controller to connect solar panel for charging battery, a off-grid inverter to power the AC devices use the
power on battery.
3. Why is my solar panel under rated power?
A: Performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect
sunlight,temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How to clean solar panels?
A: You can clean the panels with a non-abrasive sponge and water. We suggest regular maintenance to wipe the dust, sand, and other
dirts away.Built-up dirt and stain will reduce the power output of the panel.
5. Can I custom solar panel? like size, shape, power and voltage.
A: Yes, please contact us directly for more details.
6.What if my quantity plan can't reach your MOQ?
A: Also can produce for you, just click "Contact Supplier" to contact us.
