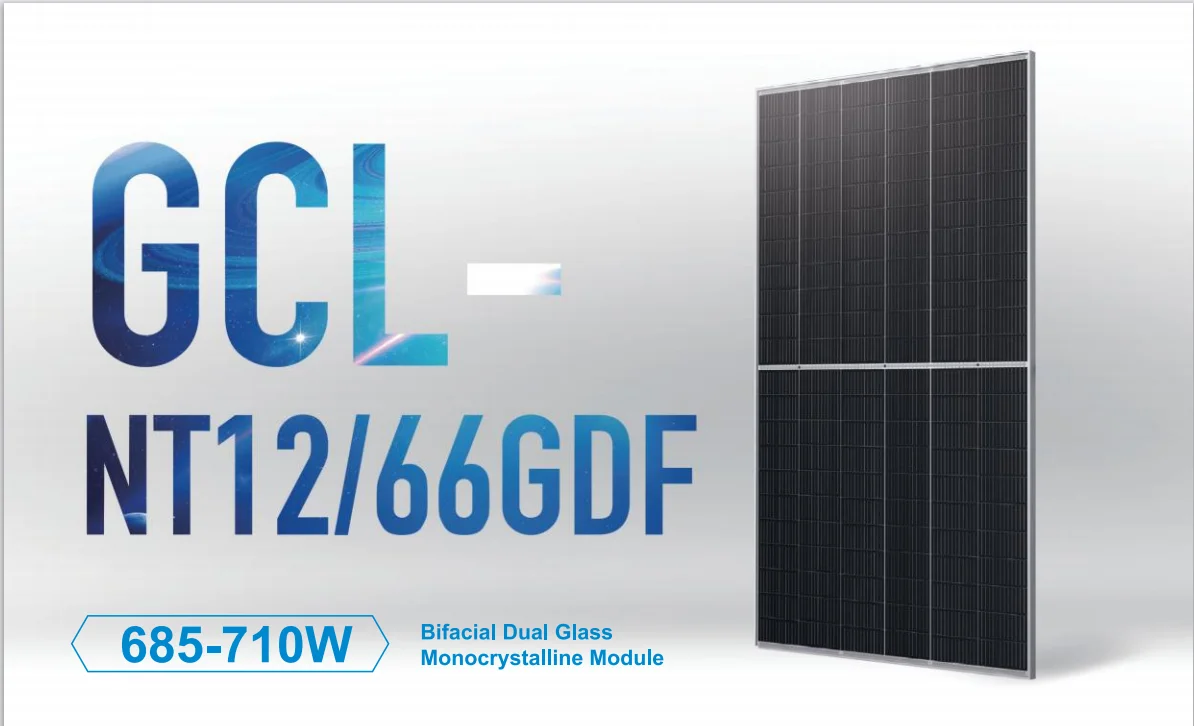

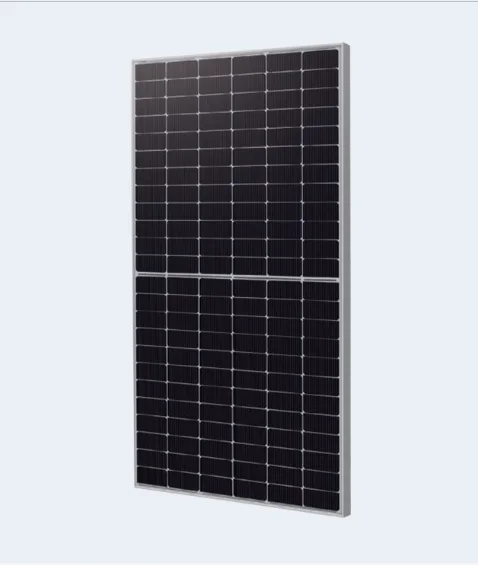

GCL NT12/66GDF Bifacial 665 670 680 700W Solar Photovoltaic Pv Module N Type Topcon Half Cell Bifacial Solar Panel
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.Beijing Ltd.
Share on (1601107213038):
Product Overview
Description
Technical Specification

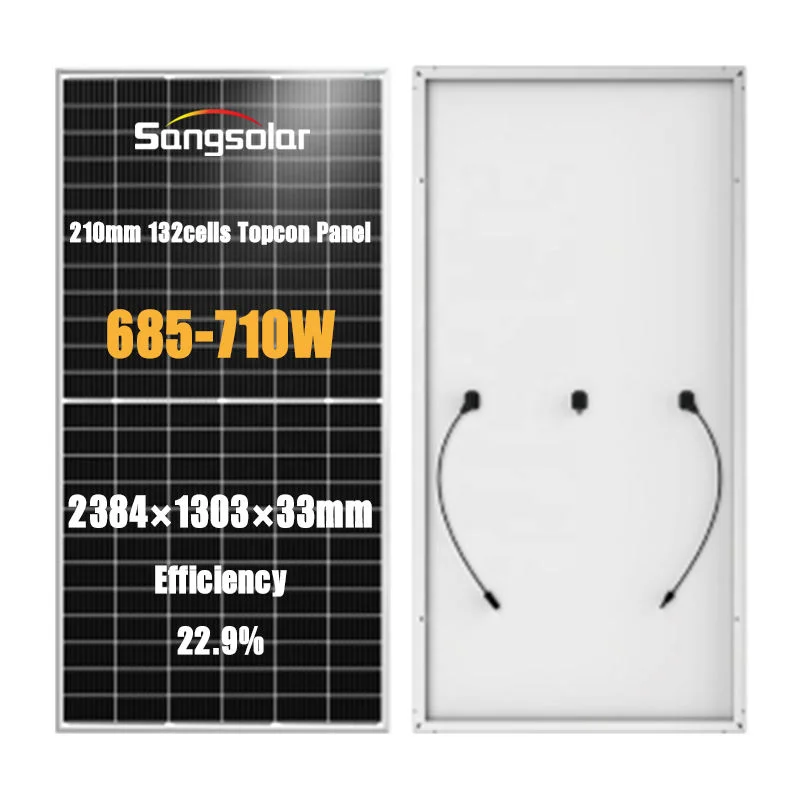

210mm 132cells
Bifacial Dual Glass
685-710 W
ELECTRICAL CHARACTERISTICS | ||||||||||
Maximum Power Pamx(W) | 685 | 690 | 695 | 700 | 710 | |||||
Maximum Power Voltage | 39.45 | 39.65 | 39.86 | 40.06 | 40.46 | |||||
Maximum Power Current | 17.36 | 17.40 | 17.44 | 17.47 | 17.55 | |||||
Open Circuit Voltage | 47.17 | 47.36 | 47.55 | 47.74 | 48.12 | |||||
Short Circuit Current | 18.27 | 18.31 | 18.35 | 18.38 | 18.46 | |||||
Module Efficiency | 22.1 | 22.2 | 22.4 | 22.5 | 22.9 | |||||
Power Output Tolerance | 0-+5 | |||||||||
Mechanical Data | ||||||||||
Numher pf Cells | 132Cells(6x22) | |||||||||
Dimensions of Module L*W*H [mm] | 2384x1303x33mm(93.86x51.30x1.30 inches) | |||||||||
Weight [kg | 38.5kg | |||||||||
Front Side Glass | 2.0mm(0.08 inches|,Anti-Reflection Coating | |||||||||
Back Side Glass | 2.0mm (0,08 inches),Heat Strengthened Glass | |||||||||
Frame | Silver,anodized aluminium alloy | |||||||||
J-Box | IP68 Rated | |||||||||
Cable | 4.0mm²,Portrait:+400/-200mm | |||||||||
Wind/Snow Loac | 2400Pa/5400Pa* | |||||||||
Connector | MC Compatible | |||||||||
Bifaciality | 80±5% | |||||||||
