8 Inch Touch Screen Zigbee Gateway Smart Home Zigbee System With Bulit in 2 Gang Light Switch
- Category: >>>
- Supplier: Shenzhen Home Warning Security Technology Co. Ltd.
Share on (1601107765062):
Product Overview
Description
Product Paramenters

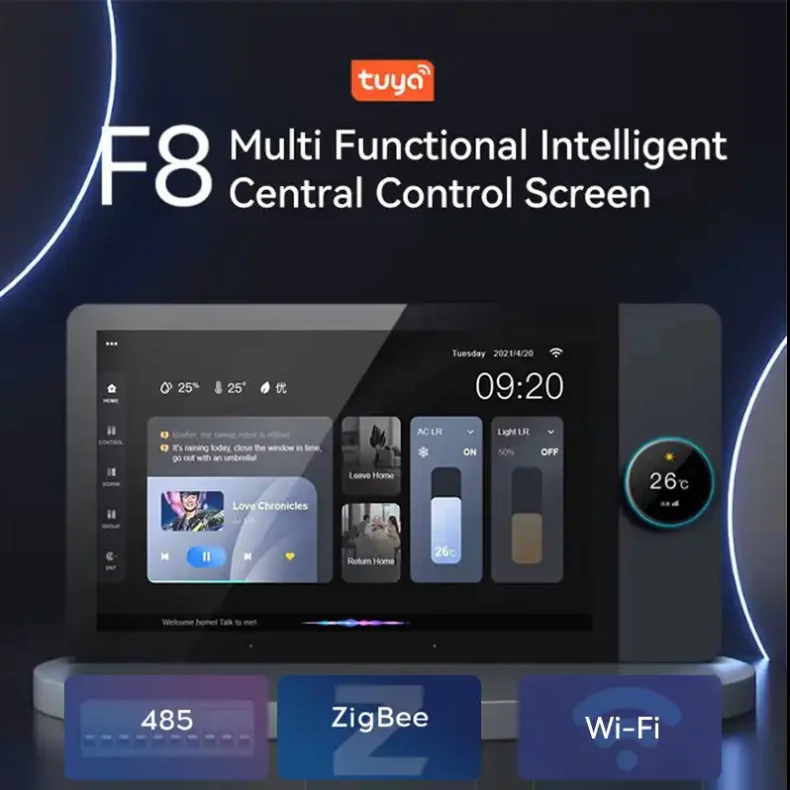

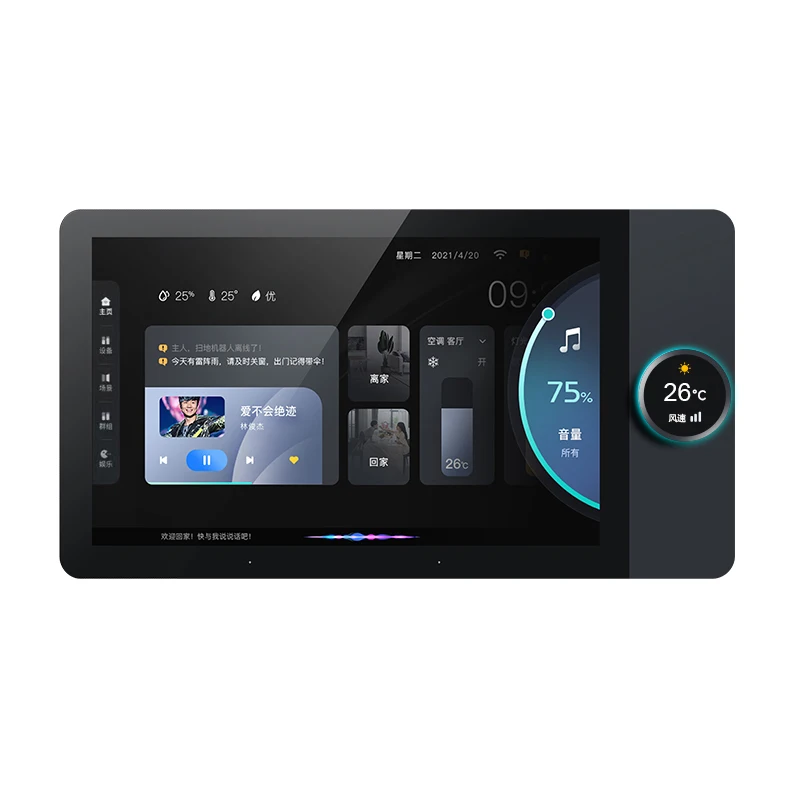

Smart Home System 8-inch WiFi Multi-function Music Host Touch Screen Zigbee Gateway Wall Central Control Panel
The smart control panel adopts a 8-inch touch full screen, developed based on the Linux platform, supports the installation of a standard Europe bottom box, can seamlessly replace the switch panel, and integrates Zigbee gateway service at the same time.conveniently manage smart devices and scenes at home.
1.Zigbee Gateway
Integrate the Zigbee gateway function, which can replace the Zigbee gateway at home, and has the edge capability of local control,100+ Zigbee sub-devices can be added in.
2.Supports playing music
Can support wired and bluetooth audio speakers, play music on with one-touch screen
3. Multimedia interconnection function.
Add smart doorbell and smart camera, which will show the screen outside the door when someone rings the bell, contributing a higher level of security to the family.
Add smart doorbell and smart camera, which will show the screen outside the door when someone rings the bell, contributing a higher level of security to the family.
4.Device Control
Multi ways of device control like: touch screen, app control, compatible with most Tuya ecological devices.

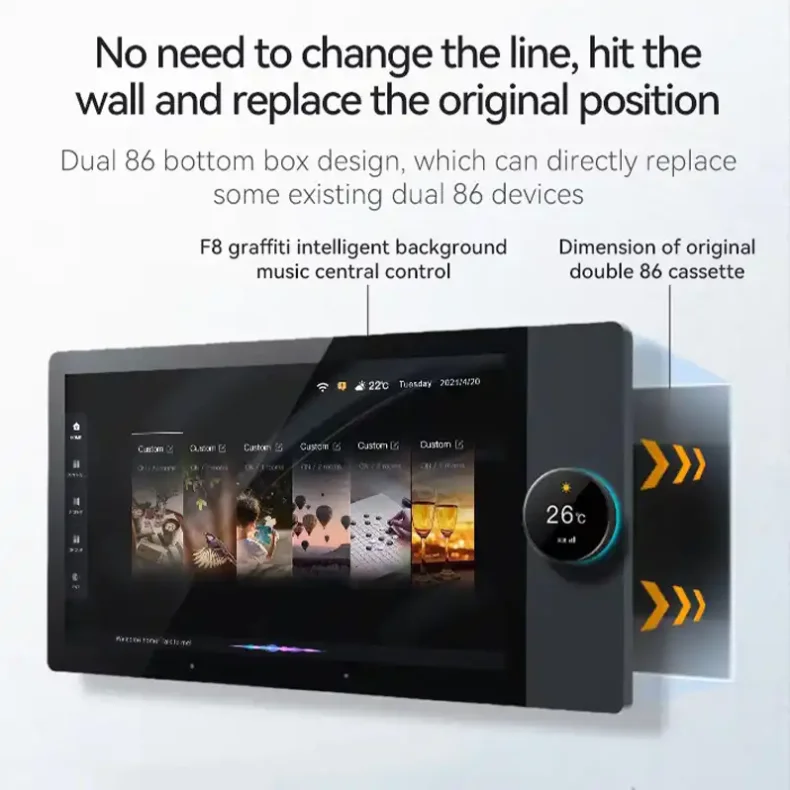

5.Easy Installation

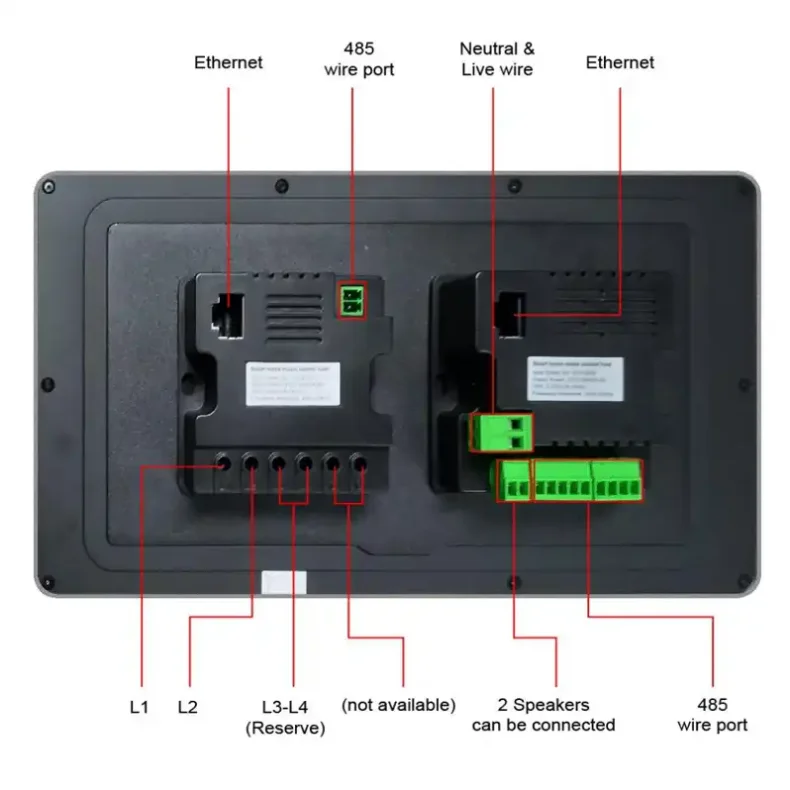

Wire installation, using the standard European standard base to complete the home automation upgrade
6.Easy Setup
Scan the code to log in, interact with the app, one-time configuration
IOT | TUYA Docking. Support TUYA application addition | ||||||
Support the contro;l of TUYA all devices. as well as the scene | |||||||
Wallpaper | Custom replacement | ||||||

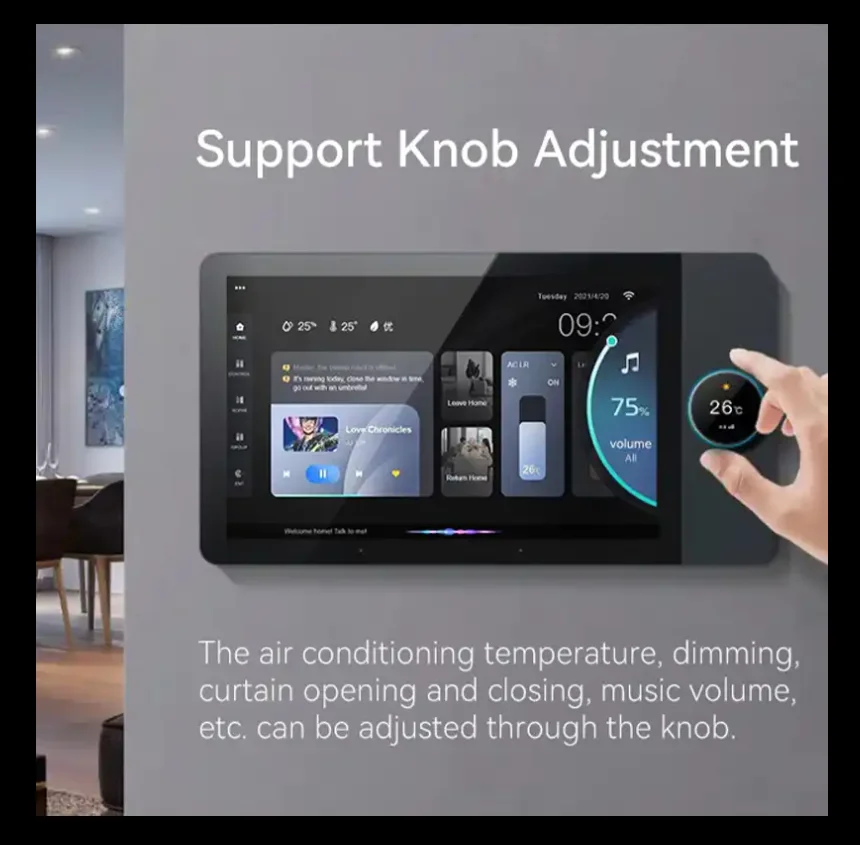

knob | Support adjustment: air conditioning temperature, curtain opening and closing, light color, light brightness and volume | ||||||
Syestem | operating system | Android 8.1 | |||||
Syestem | CPU | Quad core Cortex -A35architecture.1.5GHZ | |||||
RAM | 2GB | ||||||
ROM | 8G | ||||||
Screen | size | 8 inches | |||||
resolving power | 1280*800, IPS | ||||||
Small circular screen | 1.28 inch 240*240 | ||||||
Touch sereen | Multi point capacitive touch | ||||||
Interface | TF | Support,MAX 32G | |||||
USB | Support,MAX32G | ||||||
network | WIFI | 2.4GWIFI | |||||
BT | 4.0 | Connect your phone | |||||
ZIGBEE | support tuya 3.0 | ||||||
Ethernet | support | ||||||
output power | 2*（10-25W）/4*（10-25W) | ||||||
Output impedance | 4-8 Ω | ||||||
Frequent response | 0.03%（1W.1KHZ） | ||||||
Audio signal to noise ratio 98Ddb | 20Hz-20KHz | ||||||
Special functions | The bottom shell can be freely combined into double 86 or single 86, which supports playing music and intelligent switch control | ||||||
Audio format | MP3，WAV,WMA,FLAC,APE,,ACC,AC3，OGG | ||||||
Video format | MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264 | ||||||
Poewer input | AC110-250V | ||||||
Audio input | AUX | ||||||
Audio out | Output analog signal | ||||||
Subwoofer | Analog subwoofer output | ||||||
485 | Support | ||||||
Packing & Delivery
Packing Details for Zigbee Gateway Center Control Panel | ||
PACKING | Neutral color box or customer's packing | |
PCS/CARTON | 10PCS | |
GW/CARTON | 15KG | |
CARTON SIZE | 56*36*45 cm | |
