Shampoo Conditioner Homogenizing Shampoo Detergent Production Line Small Lotion Dish Washing Liquid Soap Making Machine
- Category: >>>
- Supplier: Yangzhou Zhitong Machinery Co. Ltd.
Share on (1601110061166):
Product Overview
Description
Product Description
ZHITONG MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

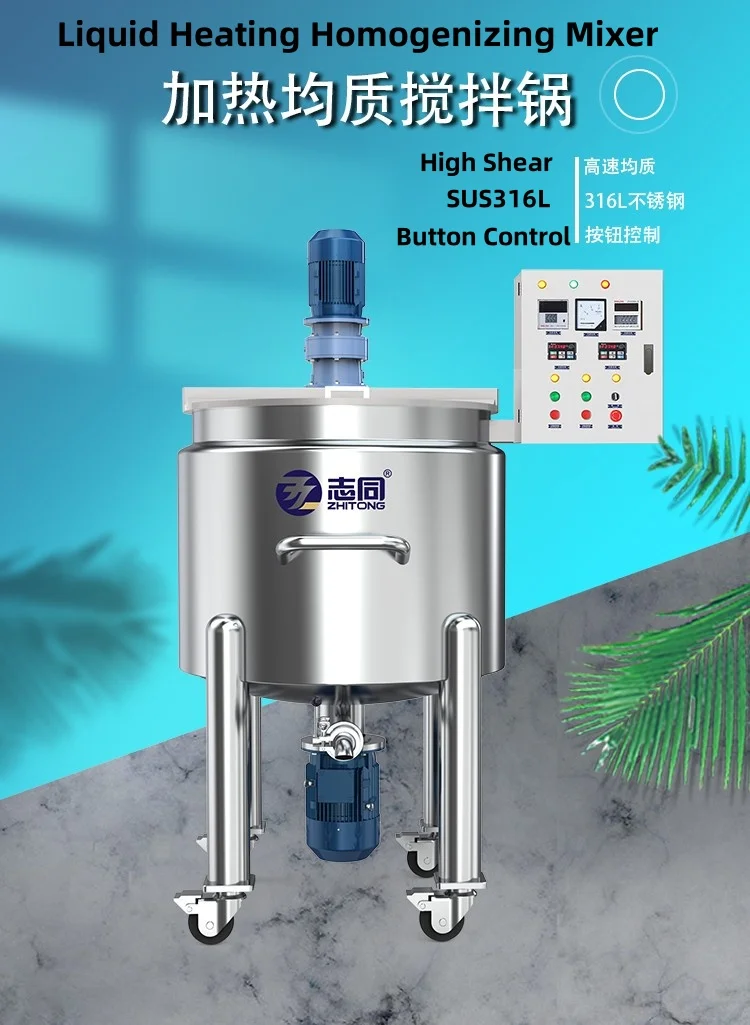

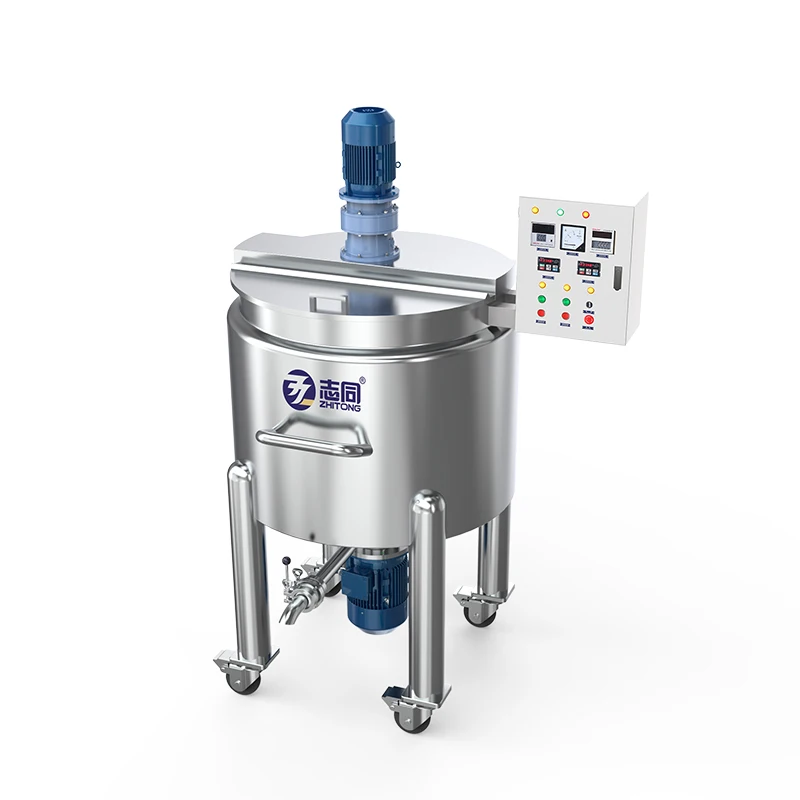

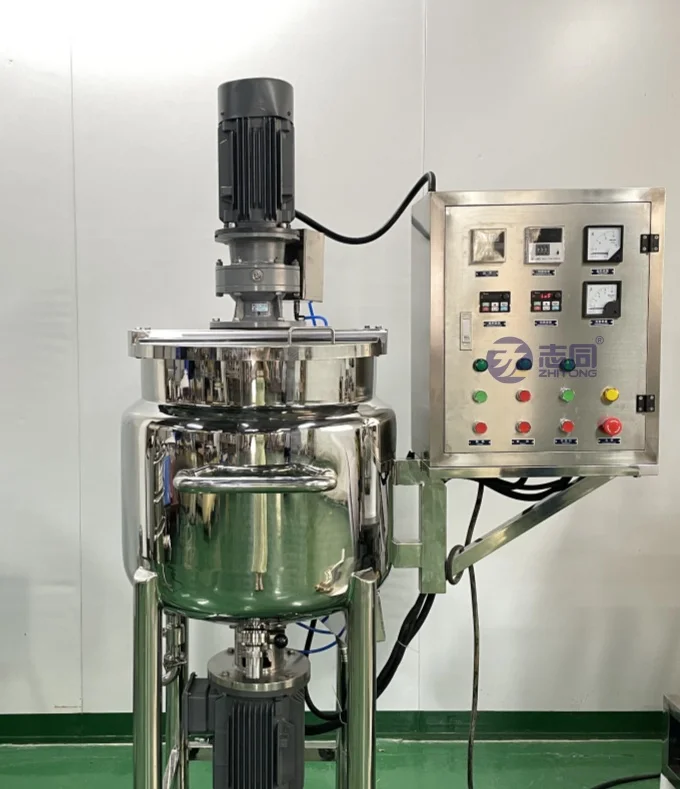

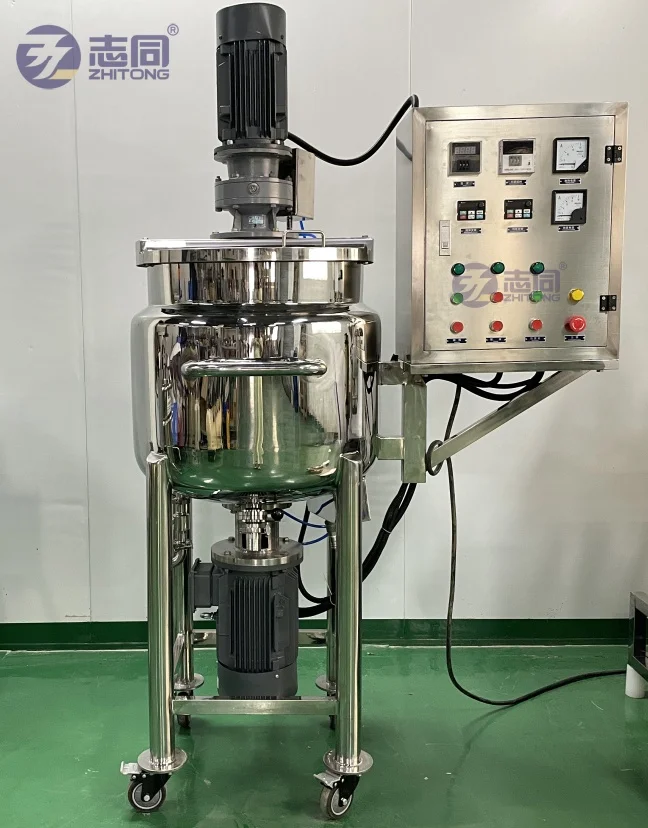

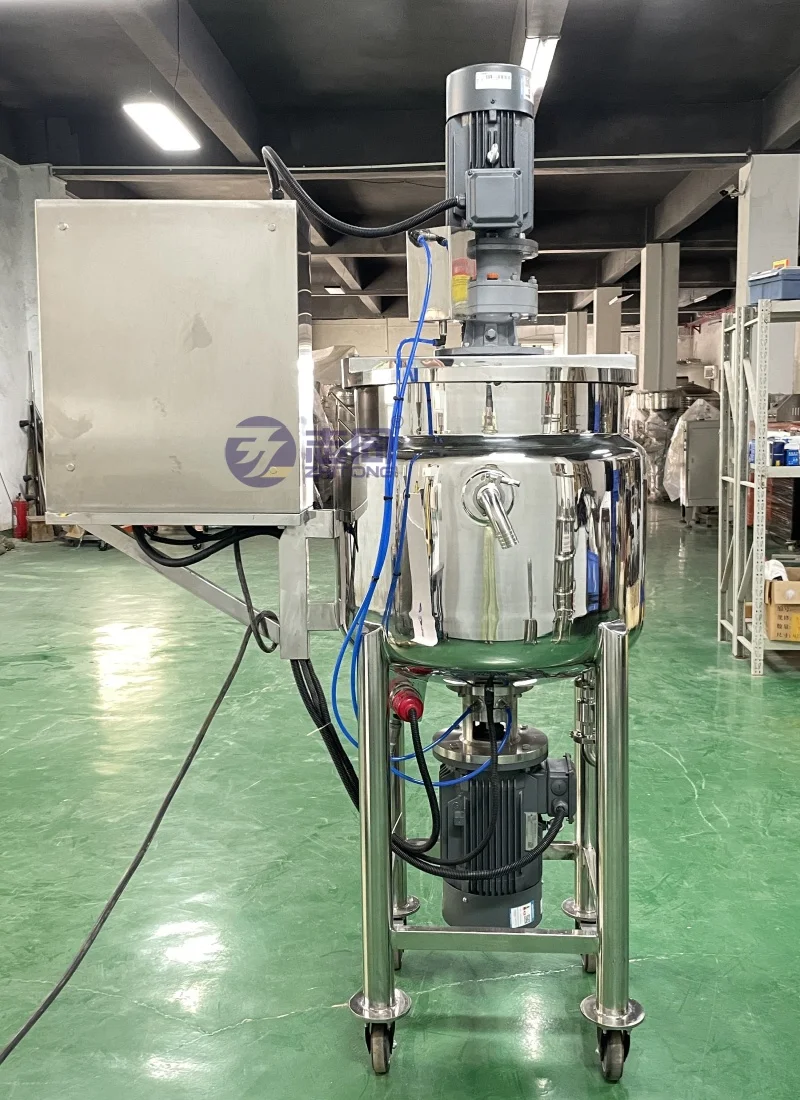

Cosmetic industrial liquid detergent homogenizing mixer machine
Product Detail
Three layers stainless steel structure
lower head. Internal and external sanitation polishing ≥300mesh
Fully meet the requirement of GMP hygiene standards, Material contact part is made of SUS316L

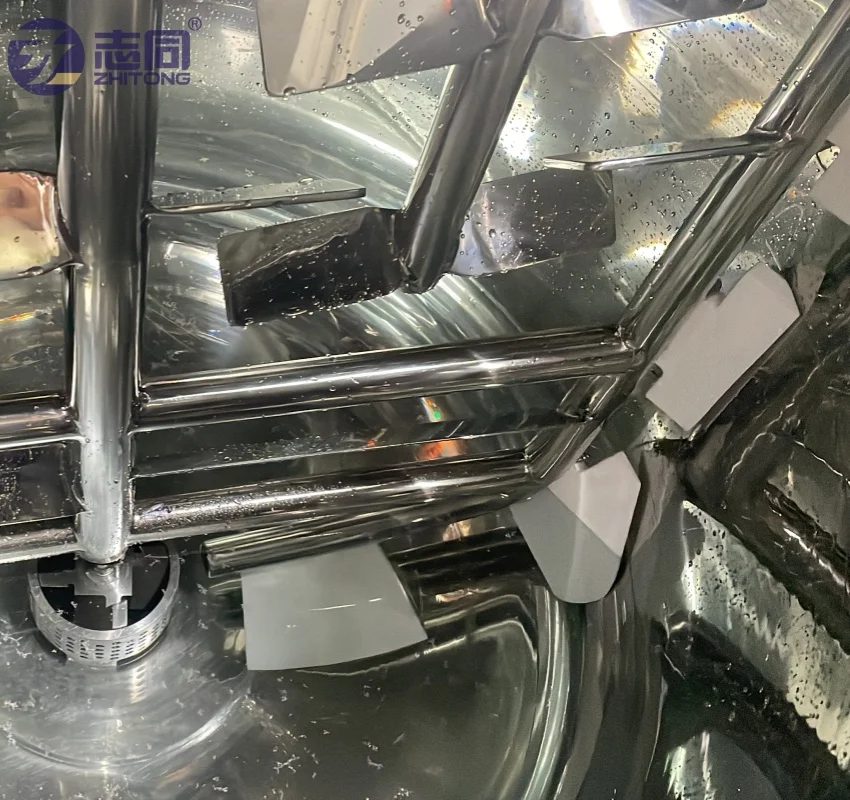

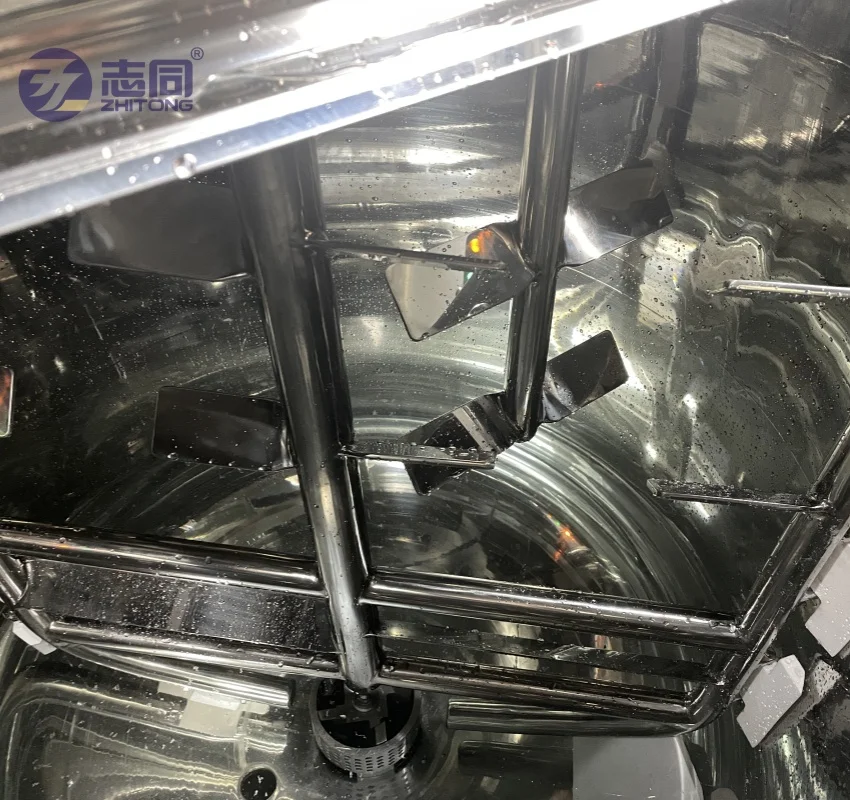

Name: Frame oar scraping blender with 1 fixed oar
Material: SUS316L
Speed: 0-75rpm, frequency inverter
Frequency inverter, PTFE material scrape blade, Flange shaft coupling.
Material: SUS316L
Speed: 0-75rpm, frequency inverter
Frequency inverter, PTFE material scrape blade, Flange shaft coupling.

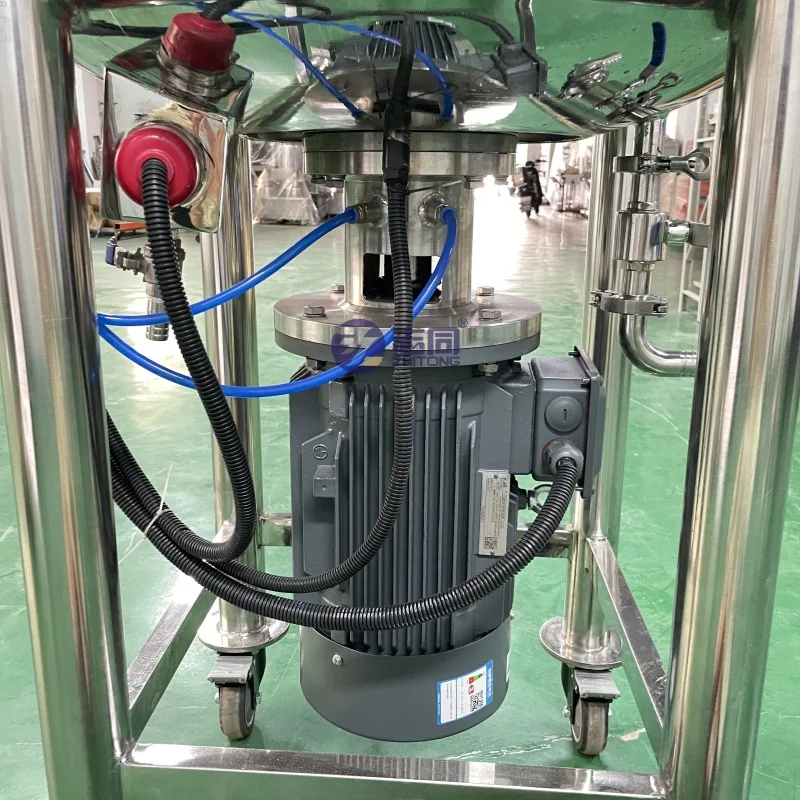

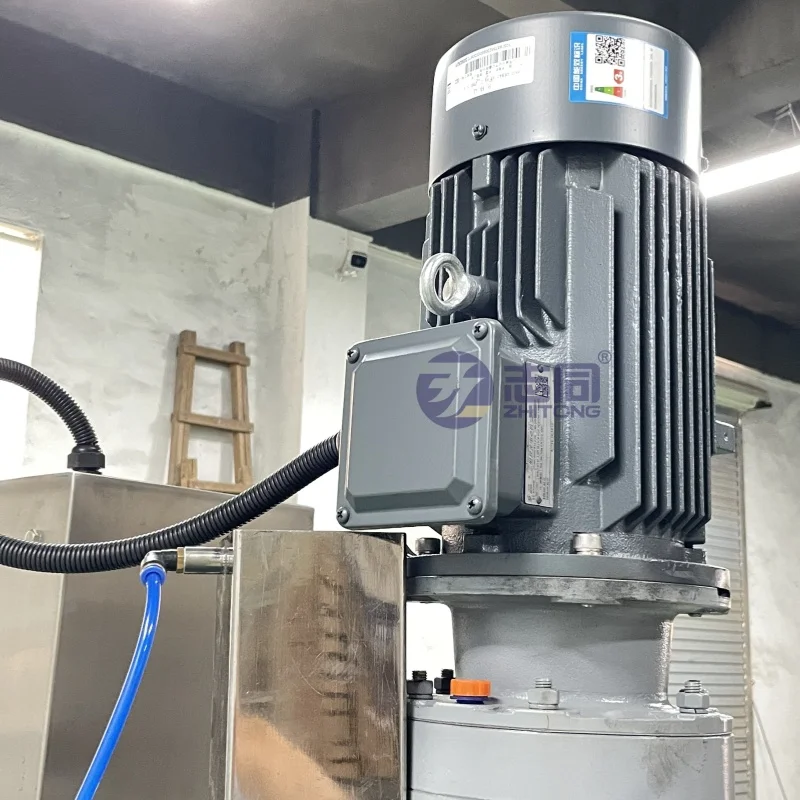

Name: High shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped two sides tungsten seal. water circulation cooling
homogenizer.
Material: SUS316L
Speed: 0-3600rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped two sides tungsten seal. water circulation cooling
homogenizer.
Discharge Part
Name: Flat valve outlet
Size: DN50/63
Material: SUS316L
New designed flat valve for bottom discharge. Non residual, Angle of outlet suitable for products dischage easily. fast connection
with pipes and pumps.
Size: DN50/63
Material: SUS316L
New designed flat valve for bottom discharge. Non residual, Angle of outlet suitable for products dischage easily. fast connection
with pipes and pumps.

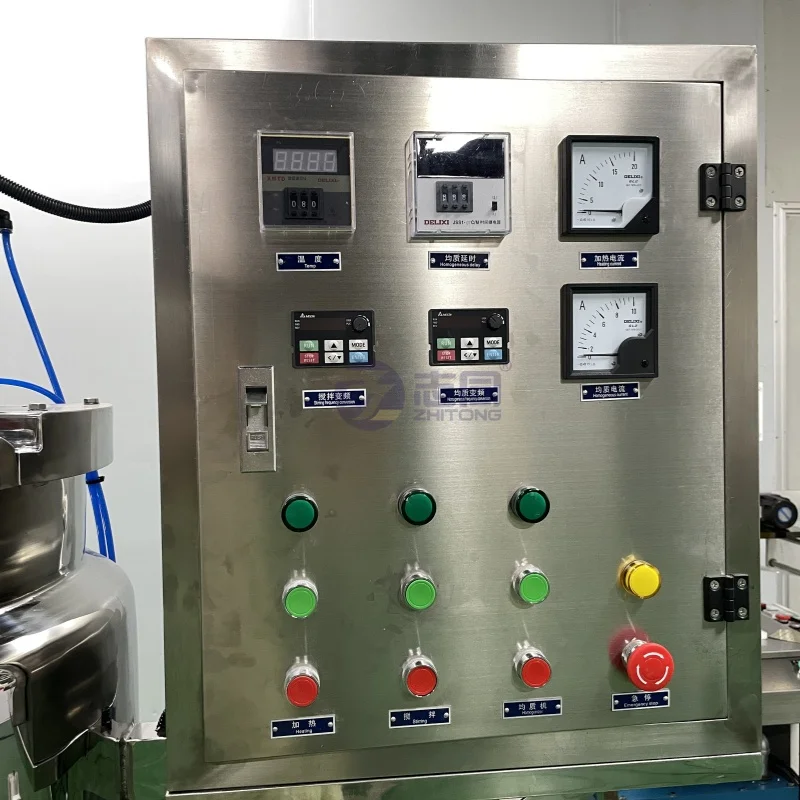

Stainless steel control panel, Visual digital display control temperature regulation,Variable frequency speed regulation, Quick start emergency stop switch,Homogenizing stirring functions can be set to stop automatically

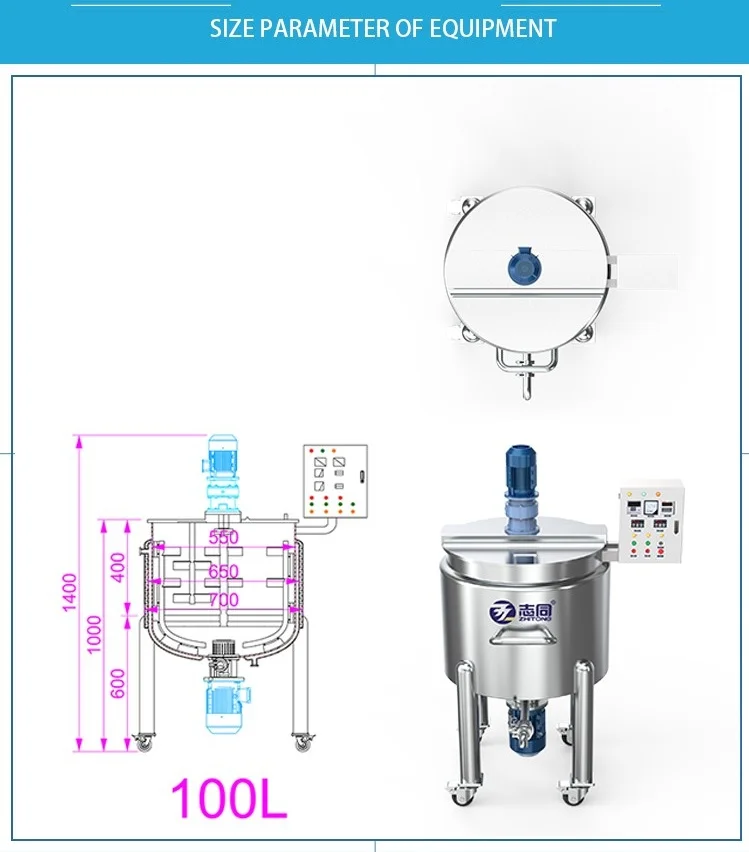

Specification
Model | ZT-100 |
Working Capacity | 100L |
Material | SUS304, material contact part is made of SUS316L |
Jacket | Double jacket,3 layers |
Heating Method | Electric Heating |
Heating Power | 2pcs*3KW=6KW |
Mixing Type | Upper frame oar scrape mixer |
Mixing Motor Power | 0.75KW |
Mixing Speed | 0-63RPM |
Homogenizer | Bottom homogenizer with frequency inverter |
Bottom Homogenizer power | 4KW |
Homogenizing Speed | 0-3600RPM |
Control method | Button control |
Frequency converter | Delta/Panasonic/Mitsubishi |
Schneider/Delixi | Schneider/Delixi |
Company Profile

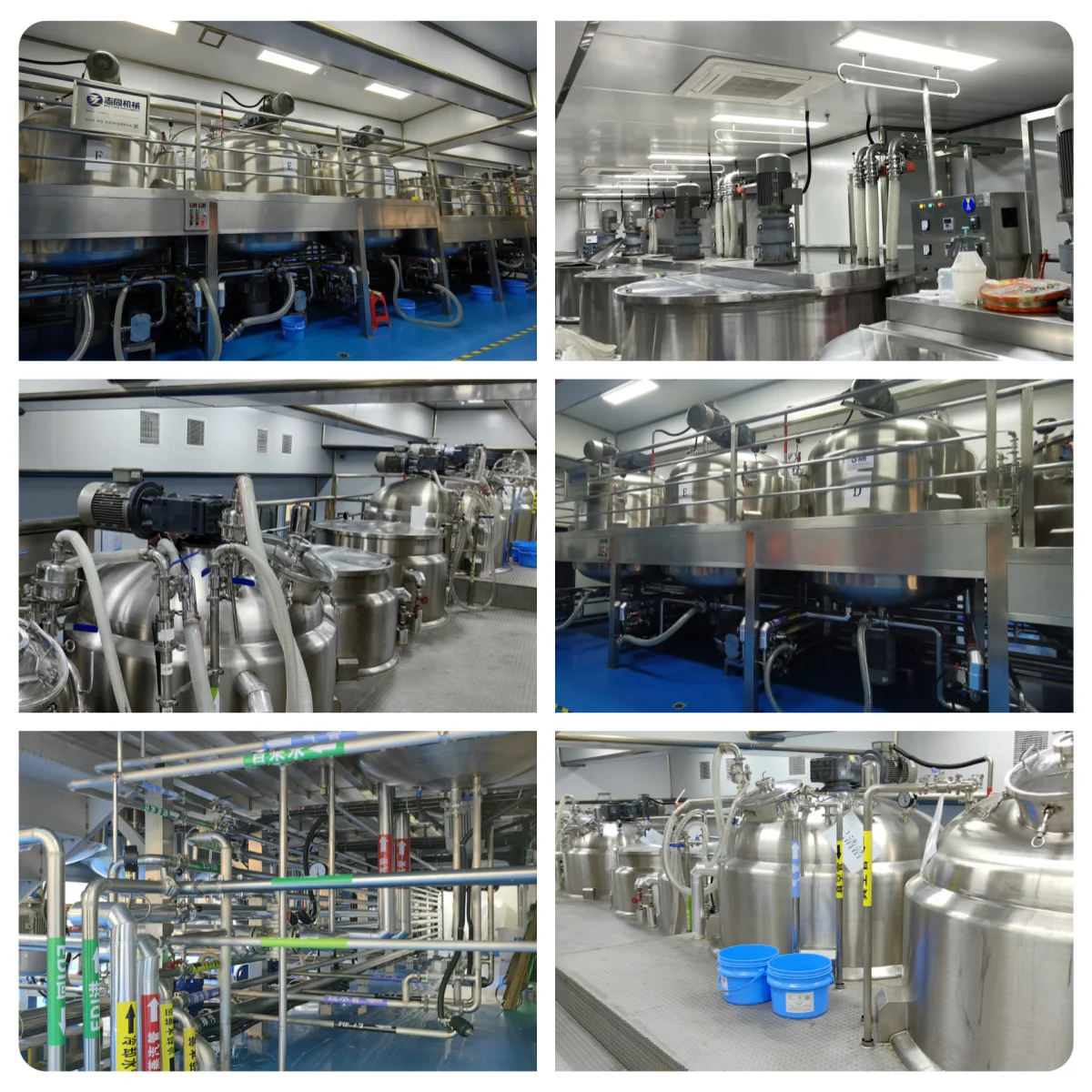

Project Cases
Packing and Delivery
Packing Details | ||
Size | 800*800*1500mm | |
Weight | 150KG | |
Before packing, machines will be packed with PE film or packed according to customers special request. Then packed with wooden case. | ||
Delivery | Normal by sea. | |
