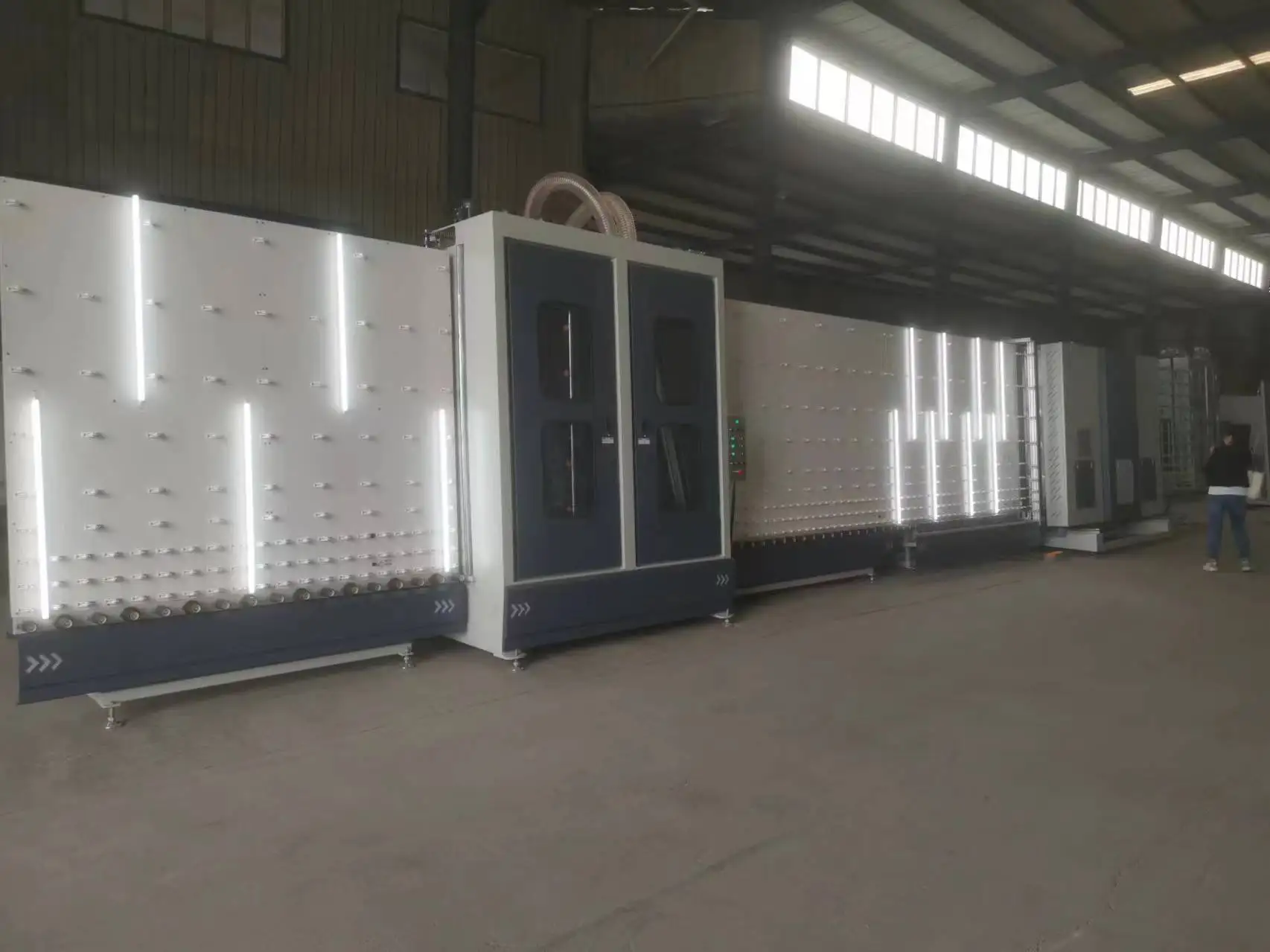

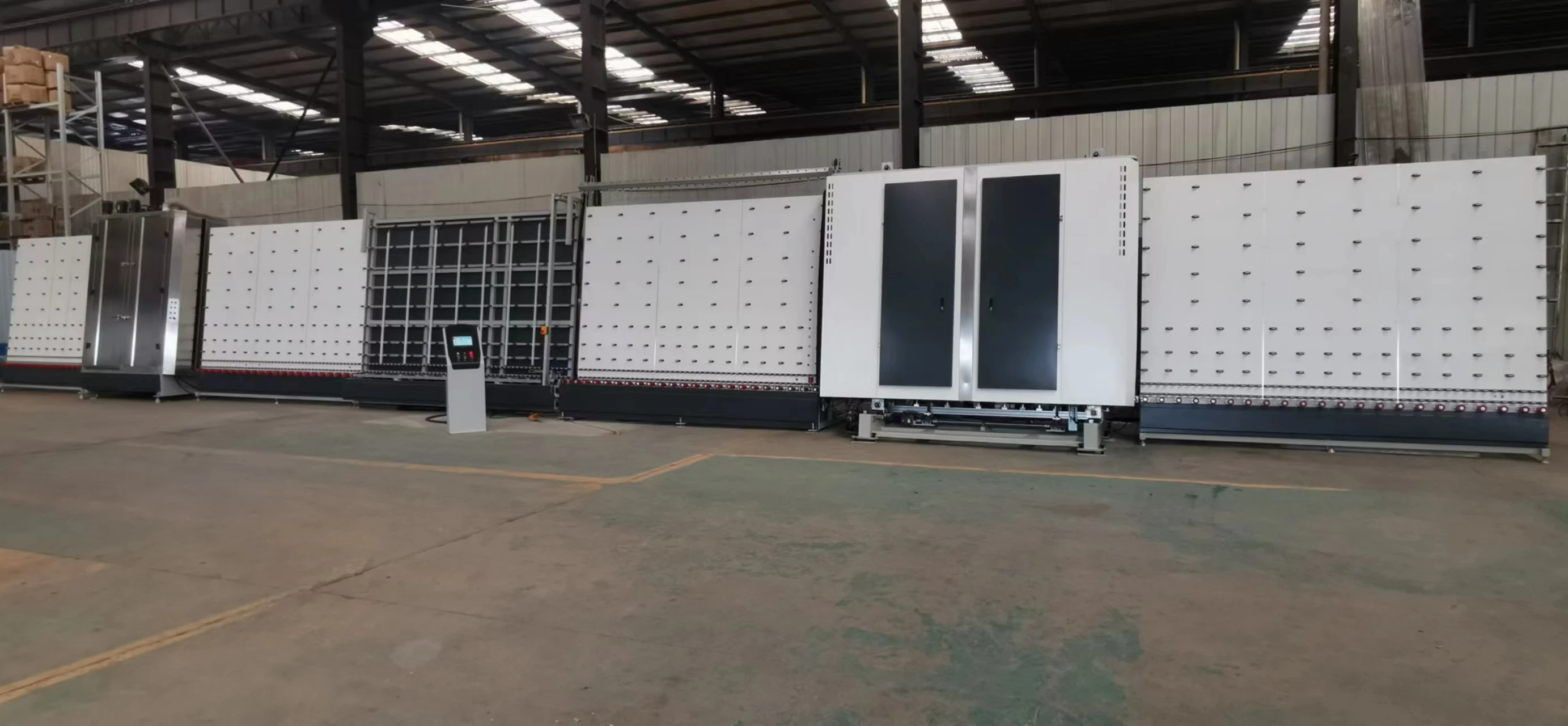

2.5 M X 3.5 M Automatic CNC Double glazing glass machine vertical production line

Product Overview

Description

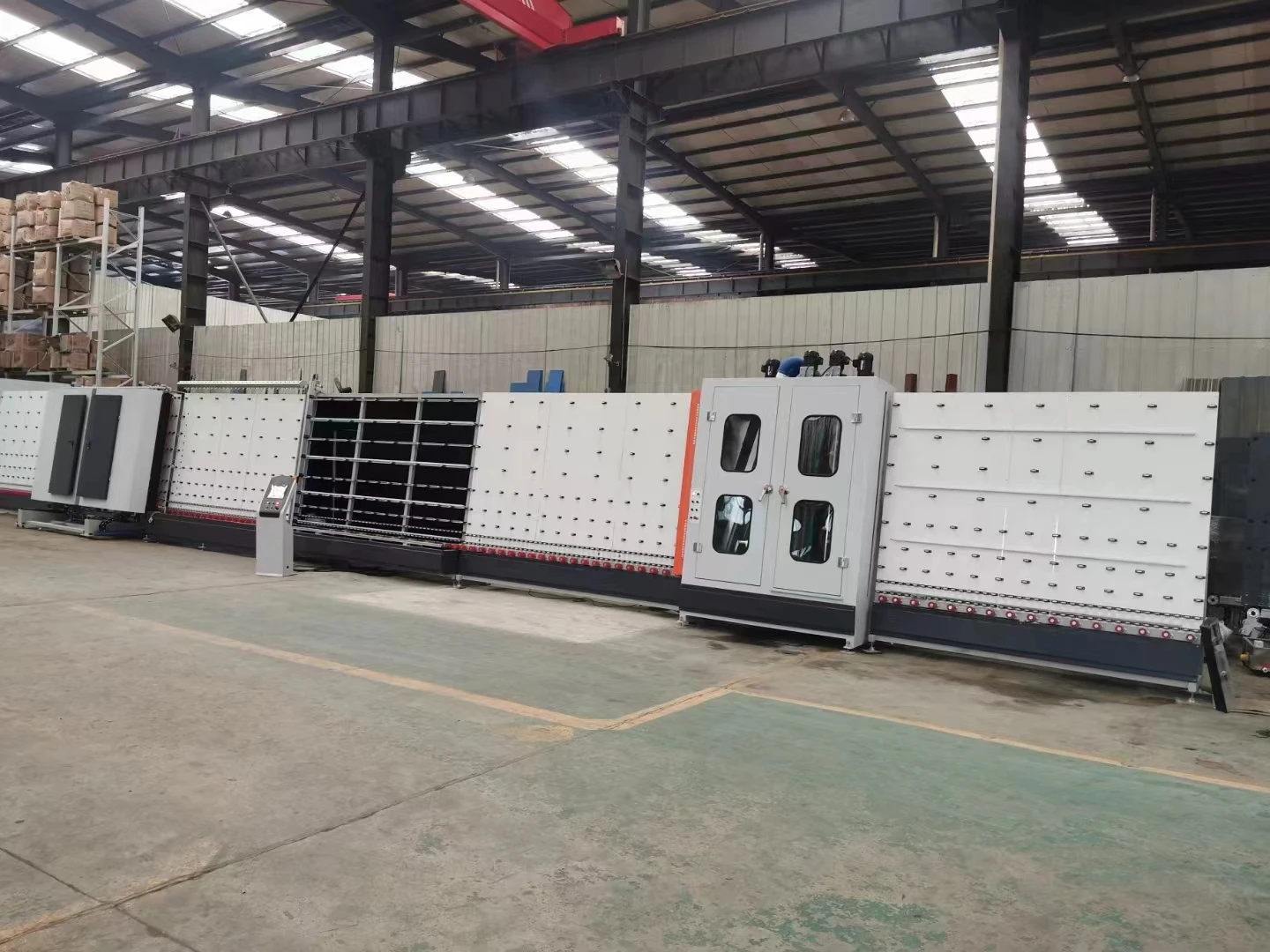

2.5MX3M CE Insulating Glass Making Machine/ Double Glazing Glass Production Line with gas filling system



1. Features:

a. The whole line is composed of feeding part, glass washing and drying part, lamp

    inspection part, glass conveyor part, aluminum frame locating part, flat (roller) press

    part, tilting part.

b. Low-E Insulating Glass Production Line, soft low-e brush installed, it can process

   low-e glass.

c. It can make triple insulating glass, that is three layers insulating glass and shaped

   insulating glass.

d. Washing and drying part with full stainless steel.

e. Heating device, auto heat the water in cold weather.

f. Man-machine interface, easy to operate



2. Technical Data

Model	Max.Glass Size	Min.Glass Size	Glass Thickness	Power	Weight	Dimension
LBZ2500 Full-automatic Insulating Glass Production line	2500*3000mm	300*500mm	3-50mm	25Kw	8000Kg	22000*2000*3380mm
LBZ2200 Full-automatic Insulating Glass Production line	2200*3000mm	300*500mm	3-50mm	25Kw	6500Kg	20000*2000*3000mm
LBZ2000 Full-automatic Insulating Glass Production line	2000*2500mm	300*500mm	3-50mm	20Kw	6000Kg	14000*1680*2800mm
LBZ1800 Full-automatic Insulating Glass Production line	1800*2500mm	300*500mm	3-50mm	20Kw	5000Kg	14000*1680*2600mm
LBZ1800G Semi-automatic Insulating Glass Production line	1800*2500mm	300*500mm	3-50mm	12.8Kw	4800Kg	13500*1680*2600mm
LBZ1600 Full-automatic Insulating Glass Production line	1600*2000mm	300*500mm	3-25mm	13.59Kw	4000Kg	12000*1250*2600mm

Above is the normallyed used size we produce, also we can make specially according to you requirements.



2. Real Photos

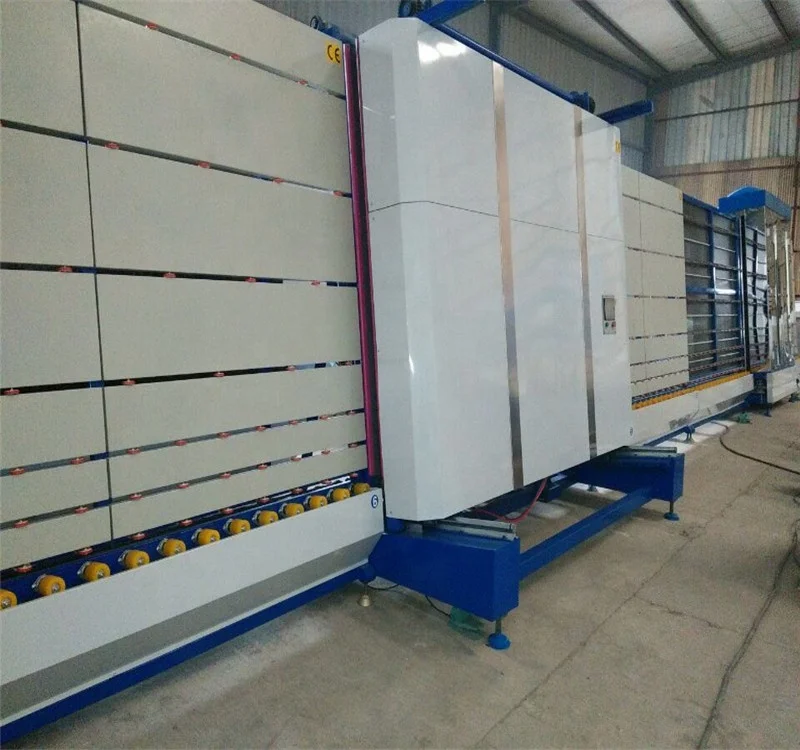

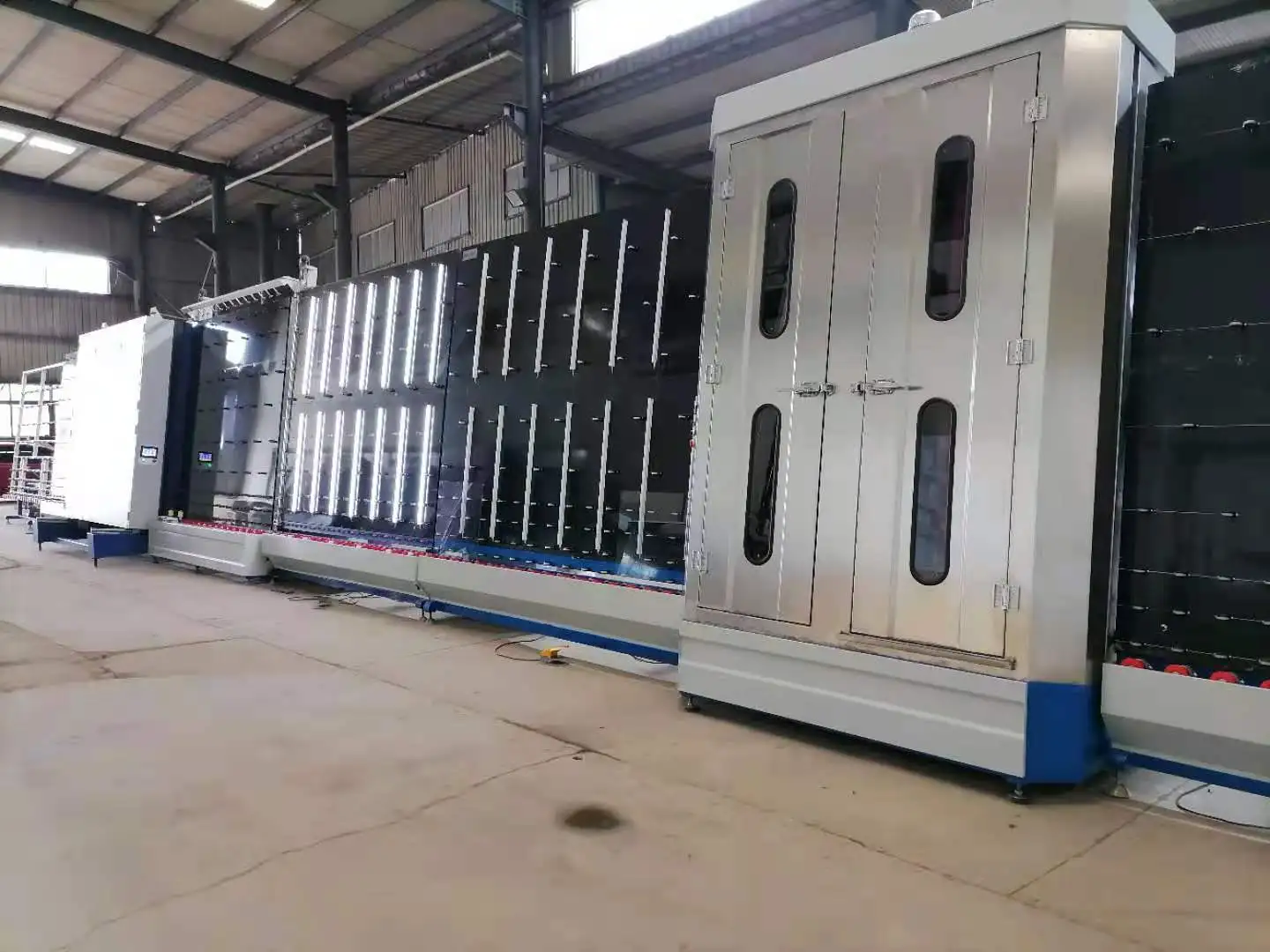

LBZ2500PA Automatic Vertical Insulating Glass Outer Press Production Line (exported to Saudi Arabia)



LBZ2000P CNC Automatic Insulating Glass Production Line with auto sealing robot (exported to South America)

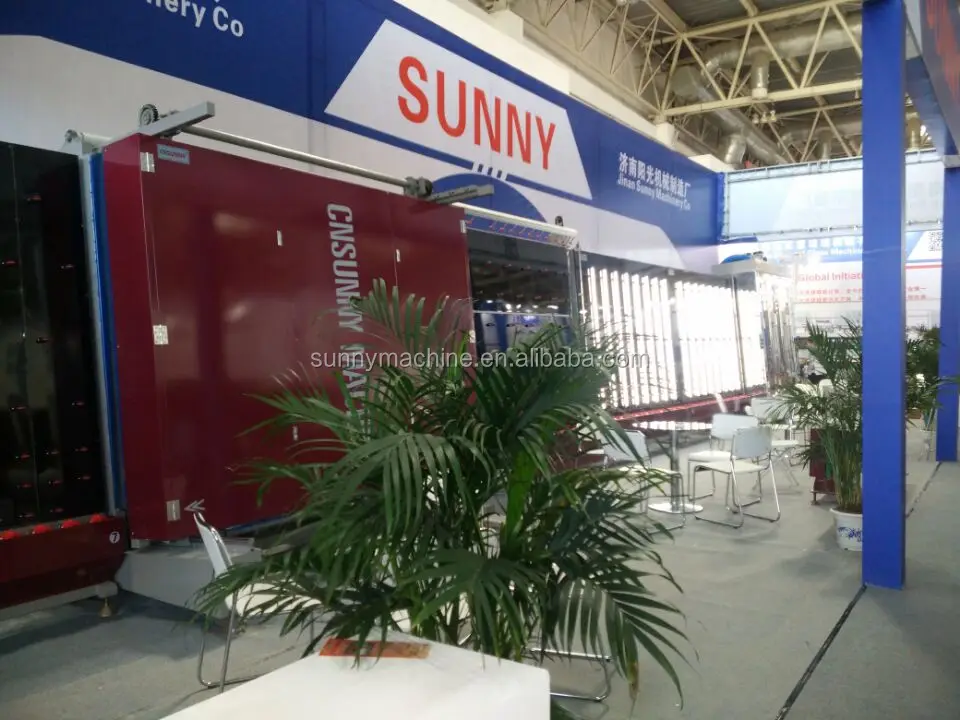

 LBZ1800P Vertical Insulating Glass Production Line (taken in China Glass Fair)

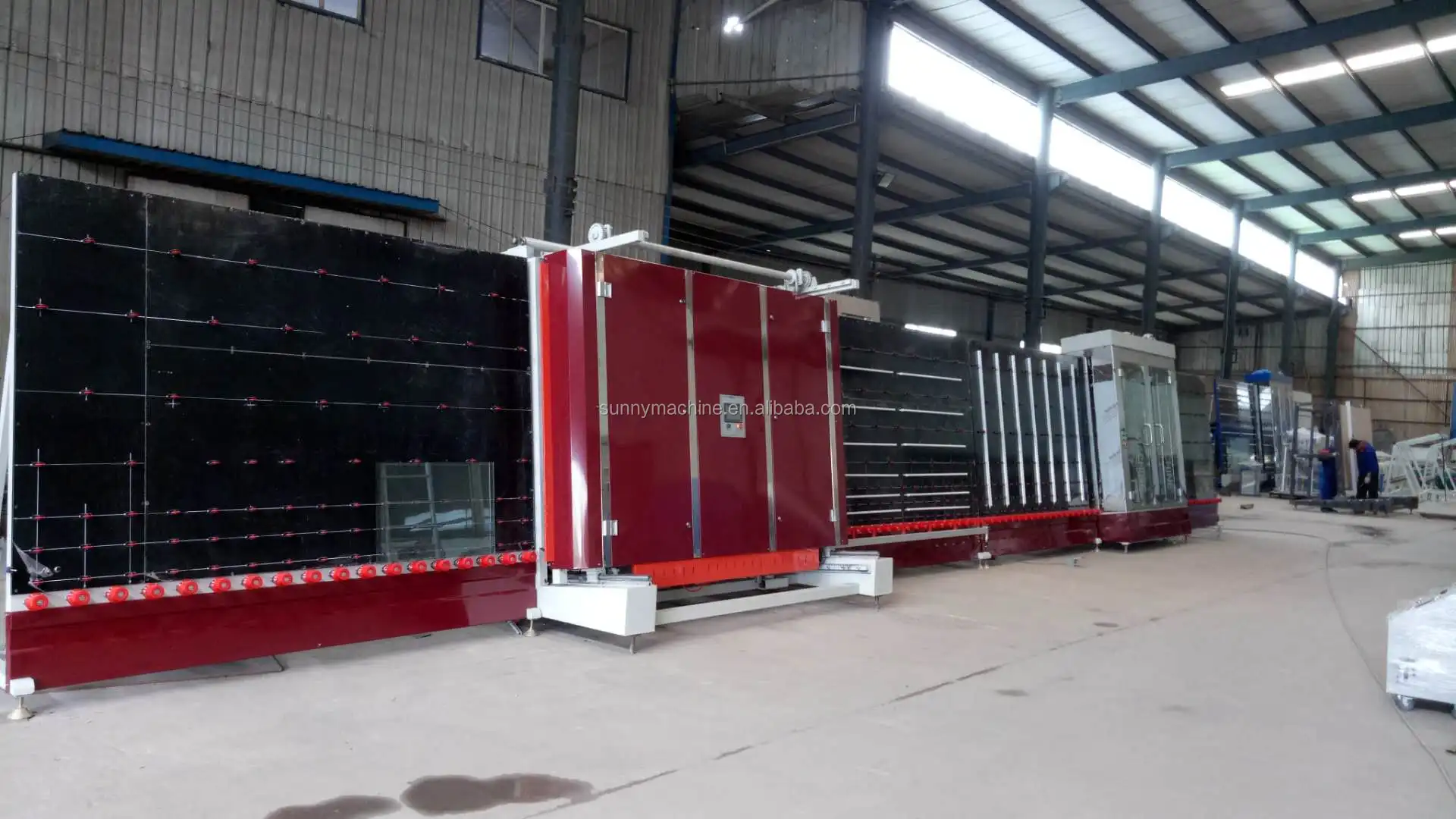

 LBZ2000P Vertical Automatic Insulating Glass Flat Press Production Line (exported to Canada)

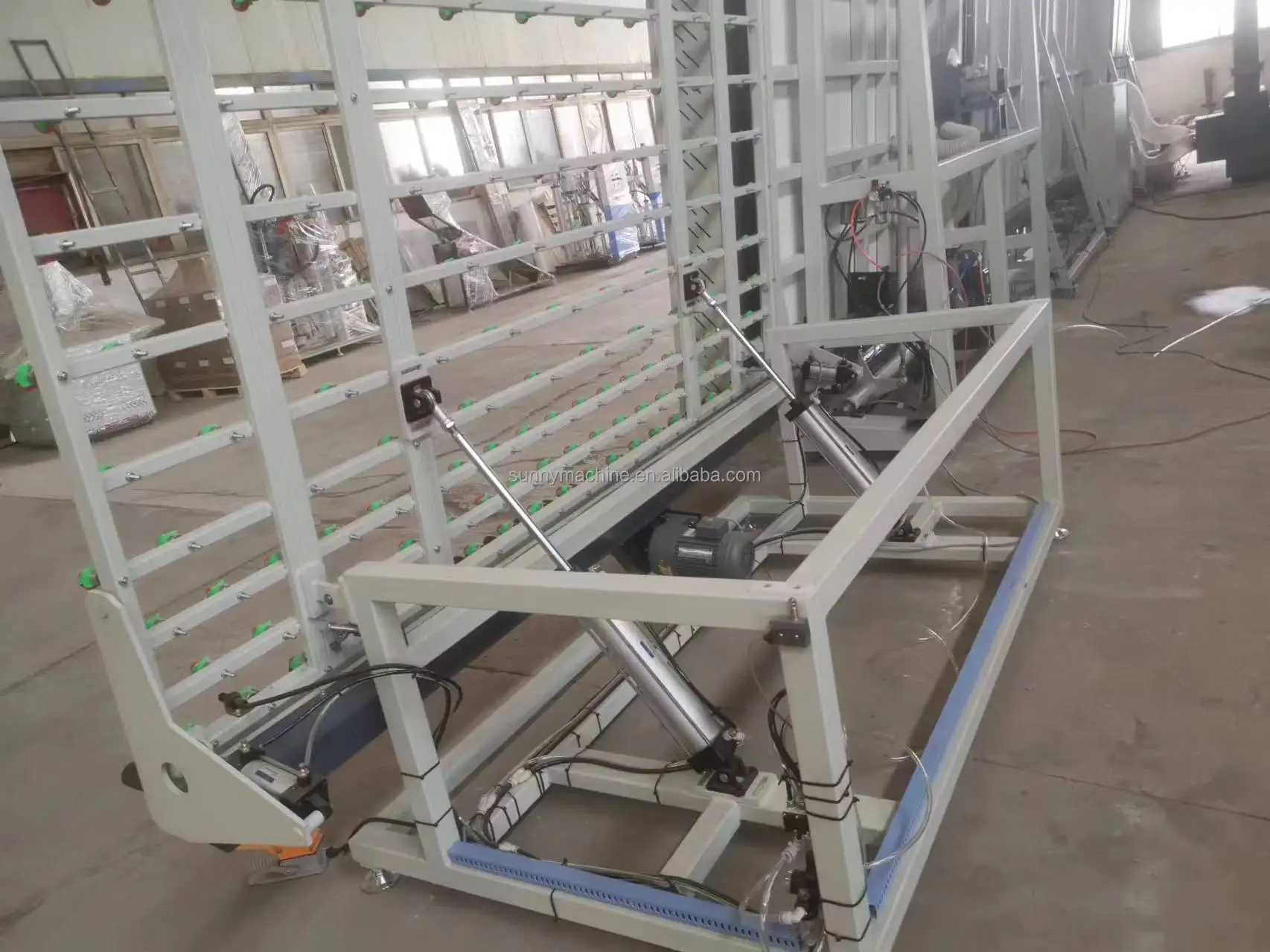

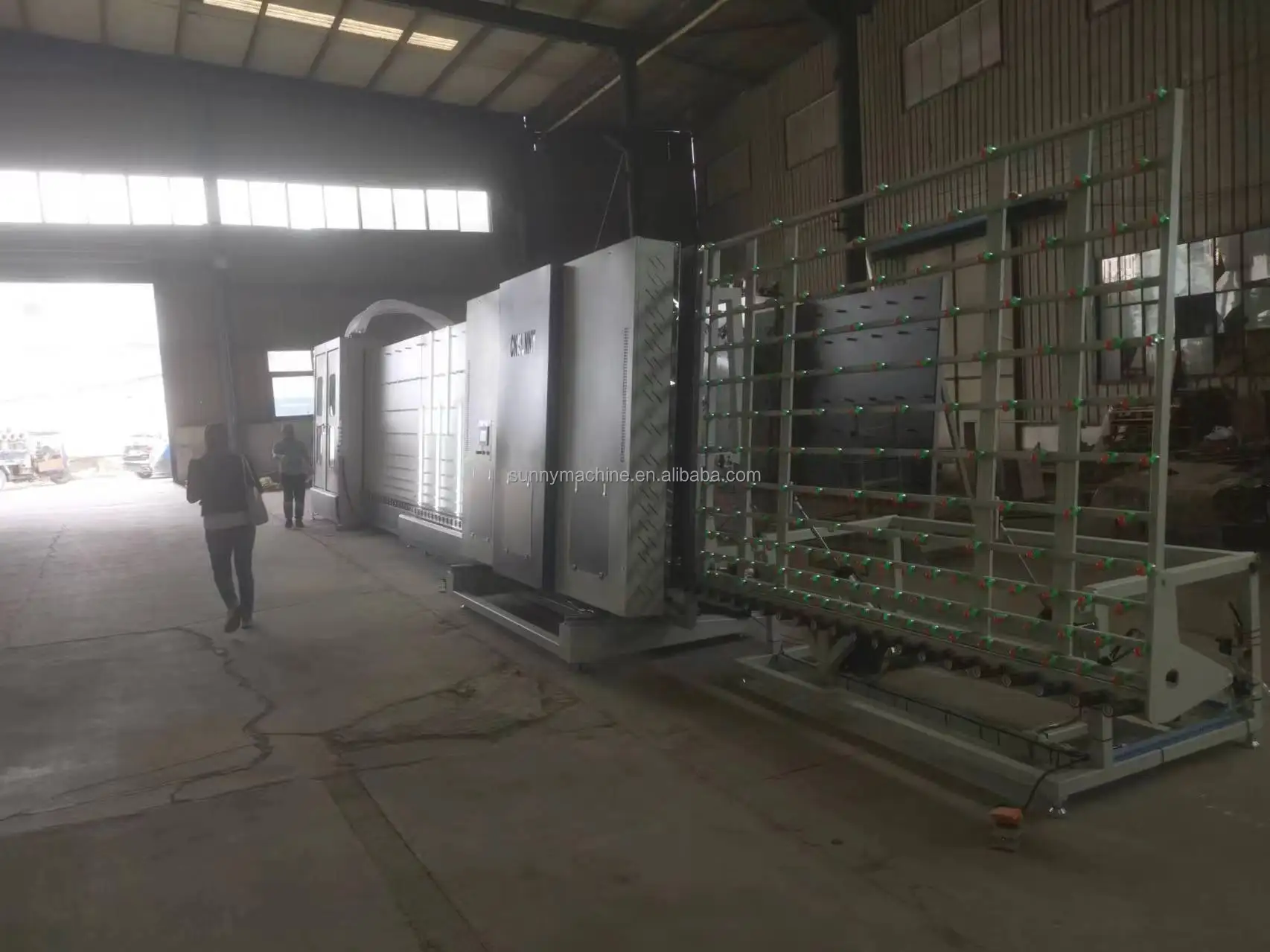

 2MX3M Vertical Insulating Glass Production Line with tilting part

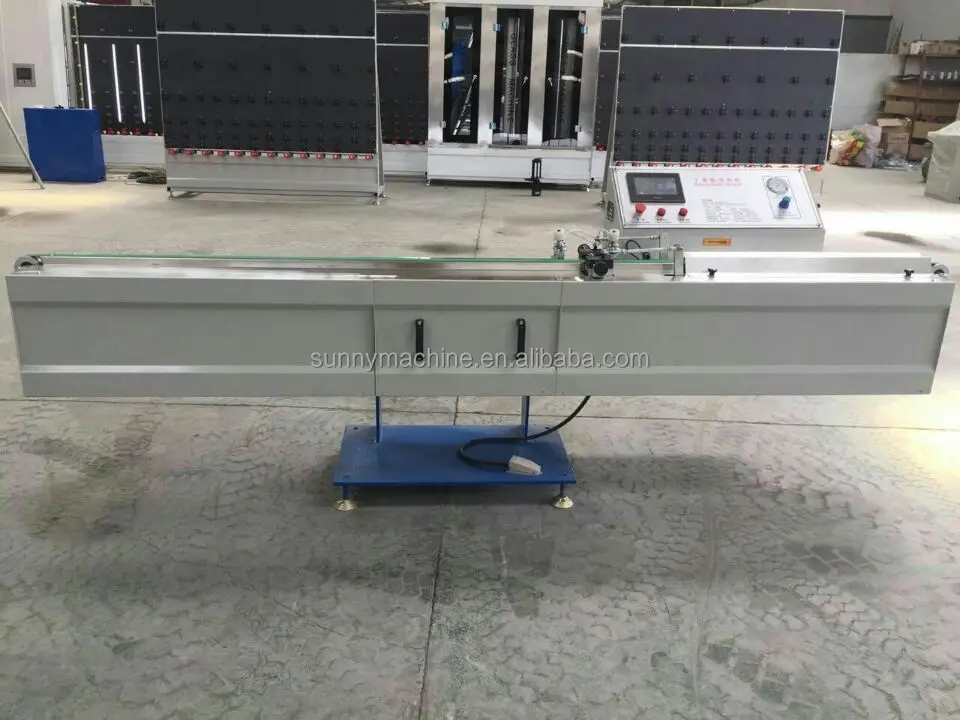

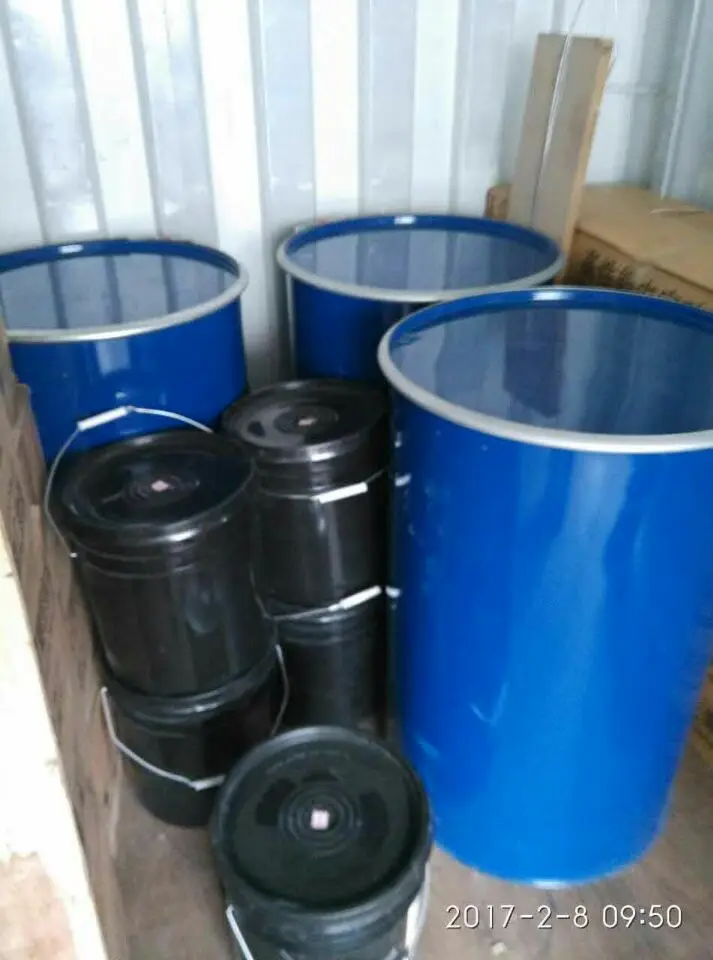

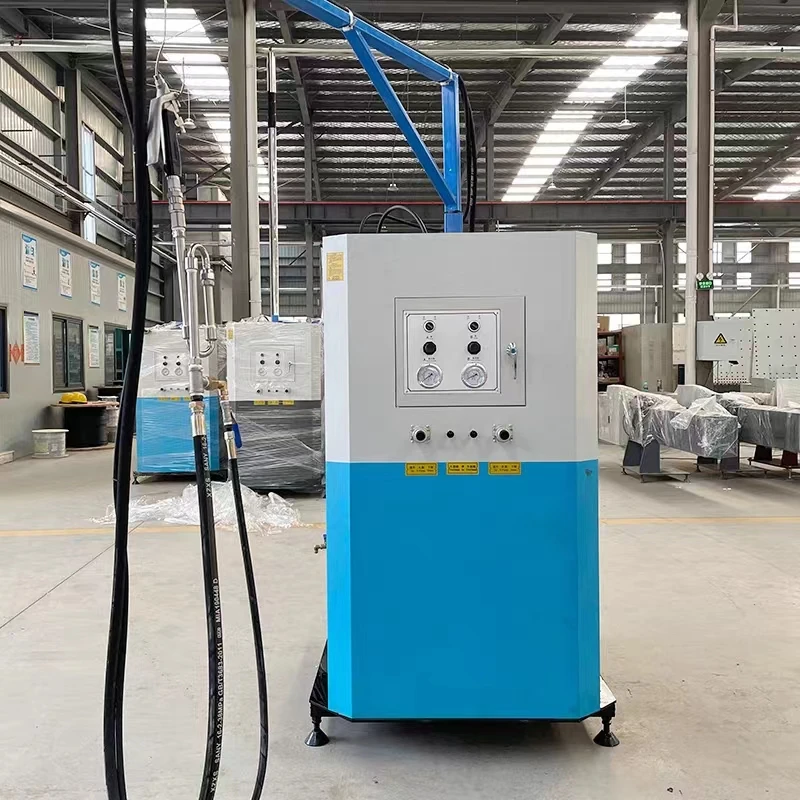

Other accessory machines:











3. Remarks

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                 The rest 70% is effected while delivering the goods

Trademark: CNSUNNY



Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
