Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
25 Ton Set Automatic Hydraulic Lifting Jack for Tank
- Category: >>>
- Supplier: Beijing Changping Hydraulic Machinery Factory Co. Ltd.
Share on (1601110214732):
Product Overview
Description
Product Overview
Advanced Three-Stage Hydraulic Jacking System
Hydraulic jacking system is mainly used for inverted construction of vertical cylindrical steel storage tank (hydraulic jacking method) and inverted construction of vertical cylindrical low-temperature storage tank in petrochemical industry.It can also be used for vertical lifting and lifting of super large objects.
FEATURES AT A GLANCE
Tank Lifting Machine
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Item/Model | YT10-1650 | YT10-1700 | YT12-2700 | YT18-1700 | YT25-3200 |
Maximum service pressure | 28 MPa | 28 MPa | 13Mpa | 30Mpa | 20Mpa |
Maximum output force | 10 t | 10 t | 12 t | 18 t | 25 t |
Maximum stroke | 1700 mm | 1700 mm | 2700 mm | 1650 mm | 3200 mm |
Lifting speed | 90mm/min | 90mm/min | 160mm/min | 95mm/min | 180mm/min |
Oil pump flow | 2×14.4L/min | 2×14.4L/min | 50L/min | 7.2L/min | 14.4L/min |
Motor speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
Motor voltage | ~380 V | ~380 V | ~380 V | ~380 V | ~380 V |
Motor power | 2×5.5kw | 2×5.5kw | 15kw | 4kw | 5.5kw |
Working environment temperature | -15~50 ℃ | -15~50 ℃ | 10~50 ℃ | 10~50 ℃ | -10~60 ℃ |
Suitable width | 1500mm | 1500mm | 1500mm | 1500mm | 3000mm |
Item/Model | YT25-2700 | YT30-2700 | YT30-3200 | YT40-3400 | YT50-2700 |
Maximum service pressure | 25Mpa | 24Mpa | 30Mpa | 20Mpa | 10Mpa |
Maximum output force | 25 t | 30 t | 30 t | 40 t | 51 t |
Maximum stroke | 2700 mm | 2700 mm | 3200 mm | 3400 mm | 2620 mm |
Lifting speed | 180mm/min | 110mm/min | 50mm/min | 80mm/min | 140mm/min |
Oil pump flow | 14.4L/min | 7.2L/min | 7.2L/min | 7.2L/min | 14.6L/min |
Motor speed | 1440 r/min | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
Motor voltage | ~380 V | ~415V | ~380 V | ~380 V | ~380 V |
Motor power | 5.5kw | 4kw | 4kw | 4kw | 5.5kw |
Working environment temperature | 10~50 ℃ | -10~50 ℃ | 0~50 ℃ | 0~50 ℃ | 0~50 ℃ |
Suitable width | 2500mm | 2500mm | 2500mm | 3050mm | 2500mm |
PRODUCT CONFIGURATION
Control Box
Hydraulic Pump Station
Hydraulic Jakcs

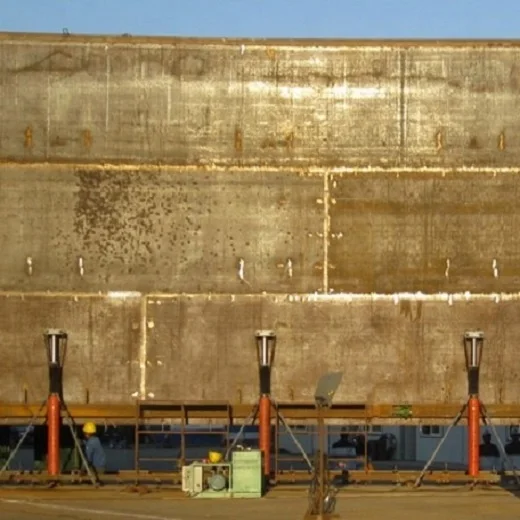

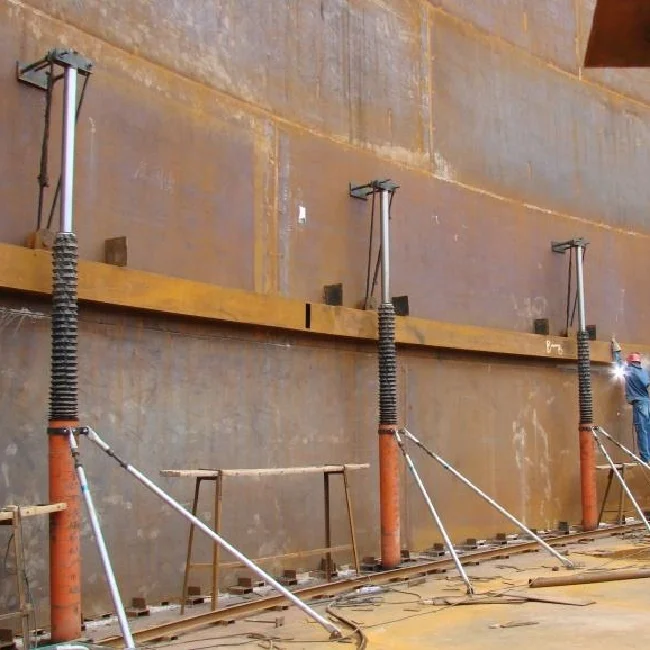

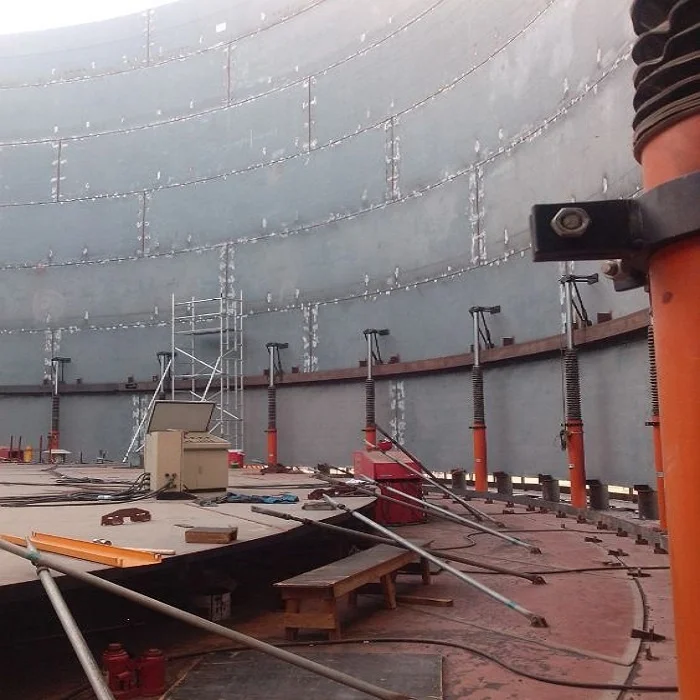

Successful Project
Project in the UAE
Project in China
Project in Indonesia
SIMILAR PRODUCTS
FAQ
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor
