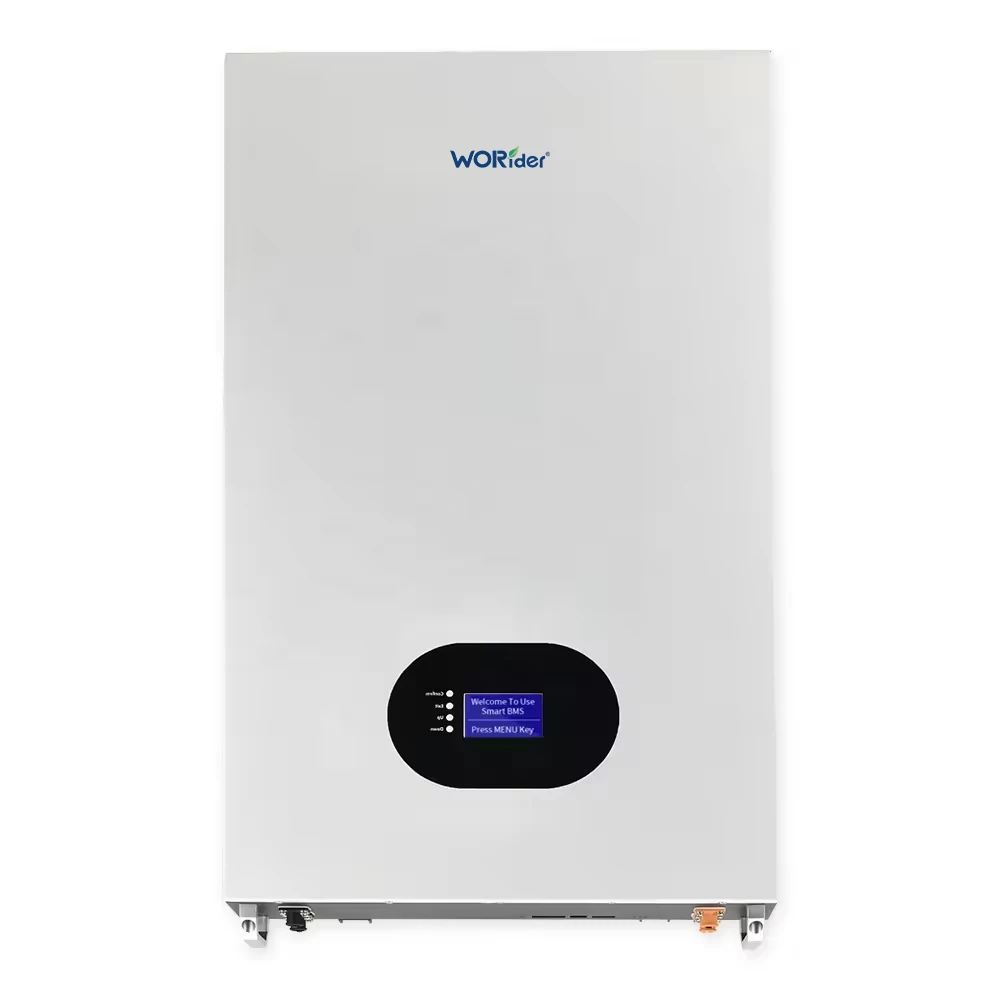

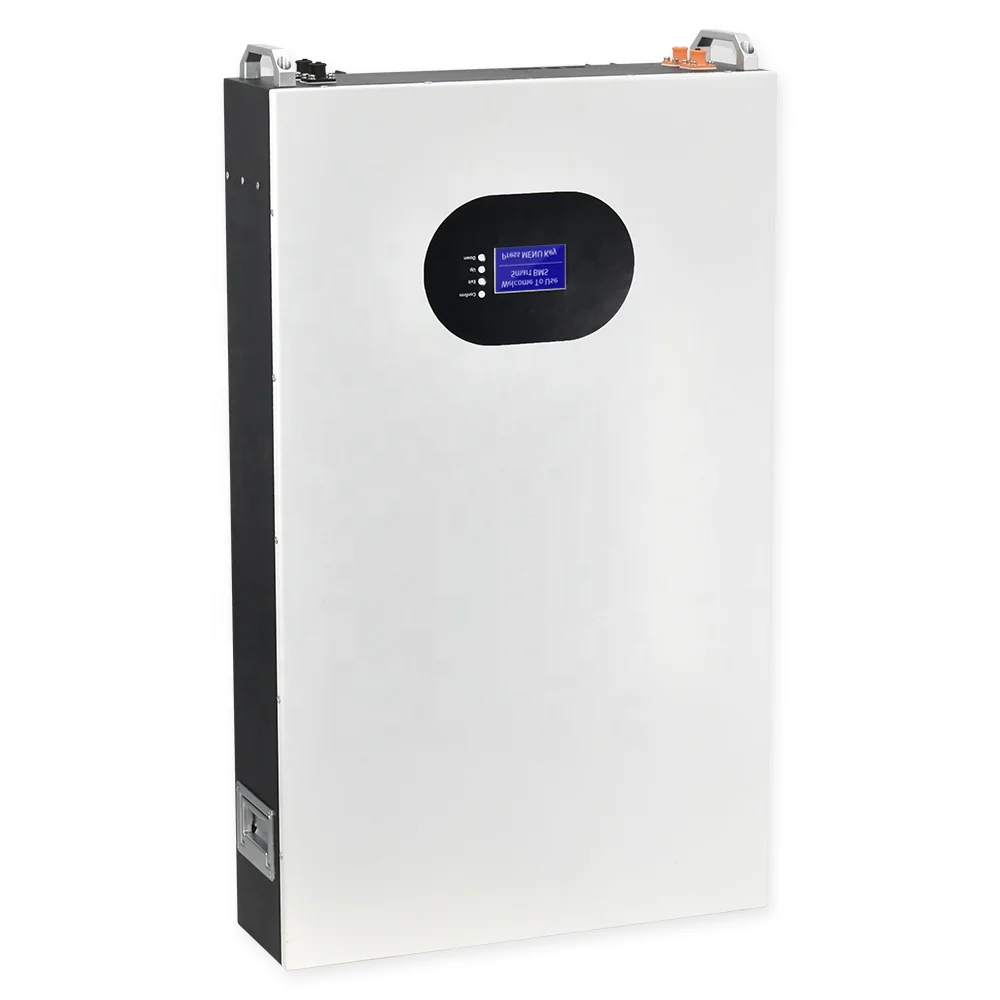

Super Thin Power Wall mounted Battery 48V 100AH 200AH Power Wall 5Kwh 10Kwh Home Energy Storage Battery
- Category: >>>
- Supplier: Zhuhai Worider Technology Co. Ltd.
Share on (1601110222376):
Product Overview
Description
Product Paramenters
Electrical Characteristic | ||
Model | WORIDER-DY | |
Norminal voltage | 48V/51.2 | |
Norminal capacity | 200AH | |
Norminal energy | 9.6KWH/10.24KWH | |
Internal resistance | <50mΩ | |
Output power(Max) | 4.8KW as default (7.2KW/9.6KW optional） 5.12KW as default (7.68KW/10.24KW optional) | |
Self discharge rate | <3% per month@25C° | |
Max connection | 16pcs in parallel | |
Cycle life | ">6000 cycles @0.5C@80%DOD@25°c" | |
Working temperature | —L2420°C~60C / -4°F~140°F | |
Storage temperature | —20°C~45°C/-4°F~113°F | |
Mechanical Characteristic | ||
Battery cell type | Prismatic battery cell | |
Battery cell material | Lithium iron phosphate | |
Battery cell capacity | 200Ah | |
Battery cell layout | 15S1P/16s1p | |
Shell material | lron | |

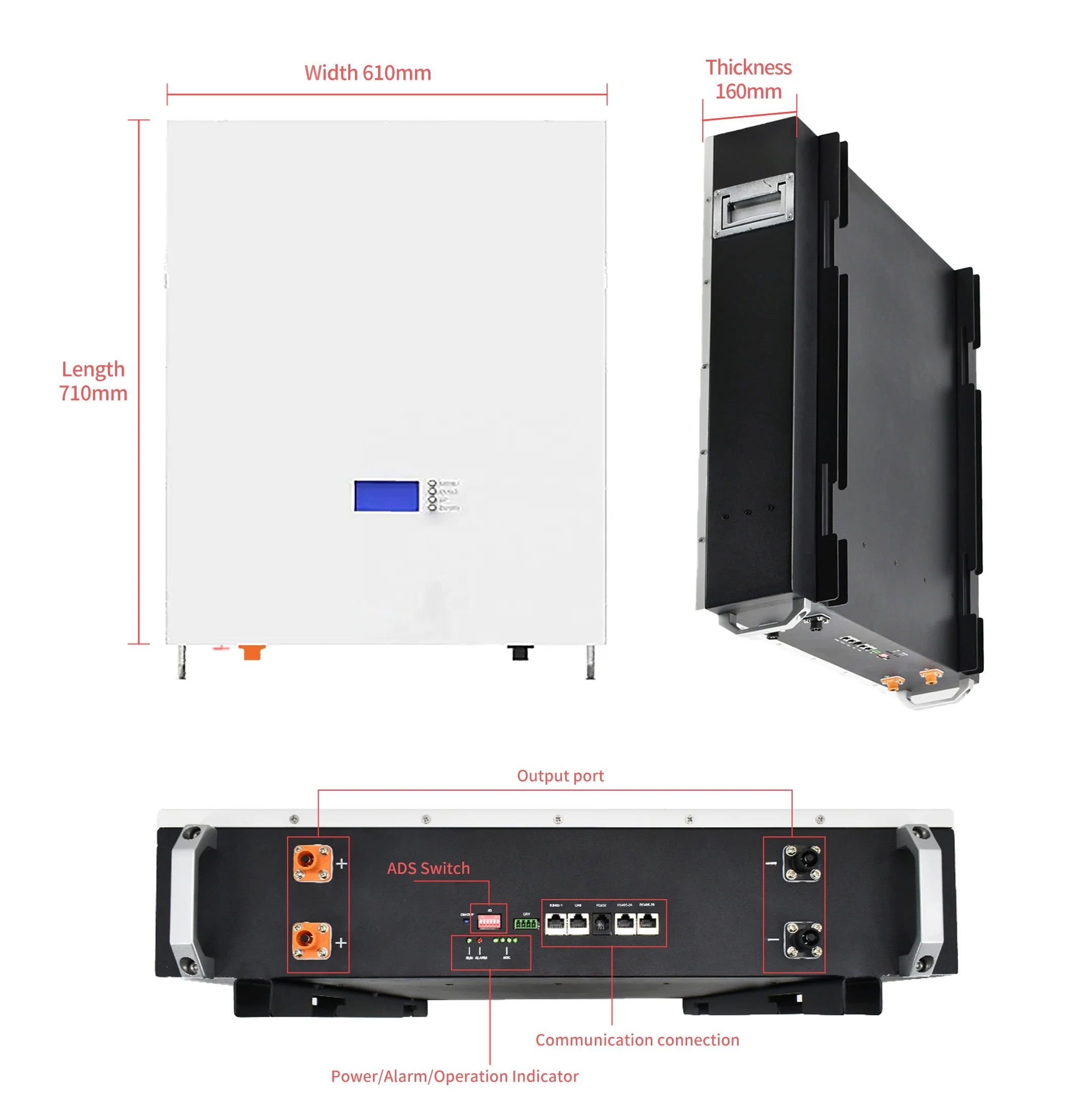

Dimension | 710*610*160mm | |
Net weight | 69KG/72kg | |
Protection level | IP54 | |
Warranty | 5 years | |
Accessory | "1.2m 4AWG positive&negative wire *2pcsUser manual*1pcs, 1m RJ45 wire *1pcs" | |
Interface | Quick connect terminal*4(positive"2/Negative*2)RS485 terminal*2/CANBUS terminal"1Address dial*1/SOC indicator*1LCD display dashboard*1 | |
