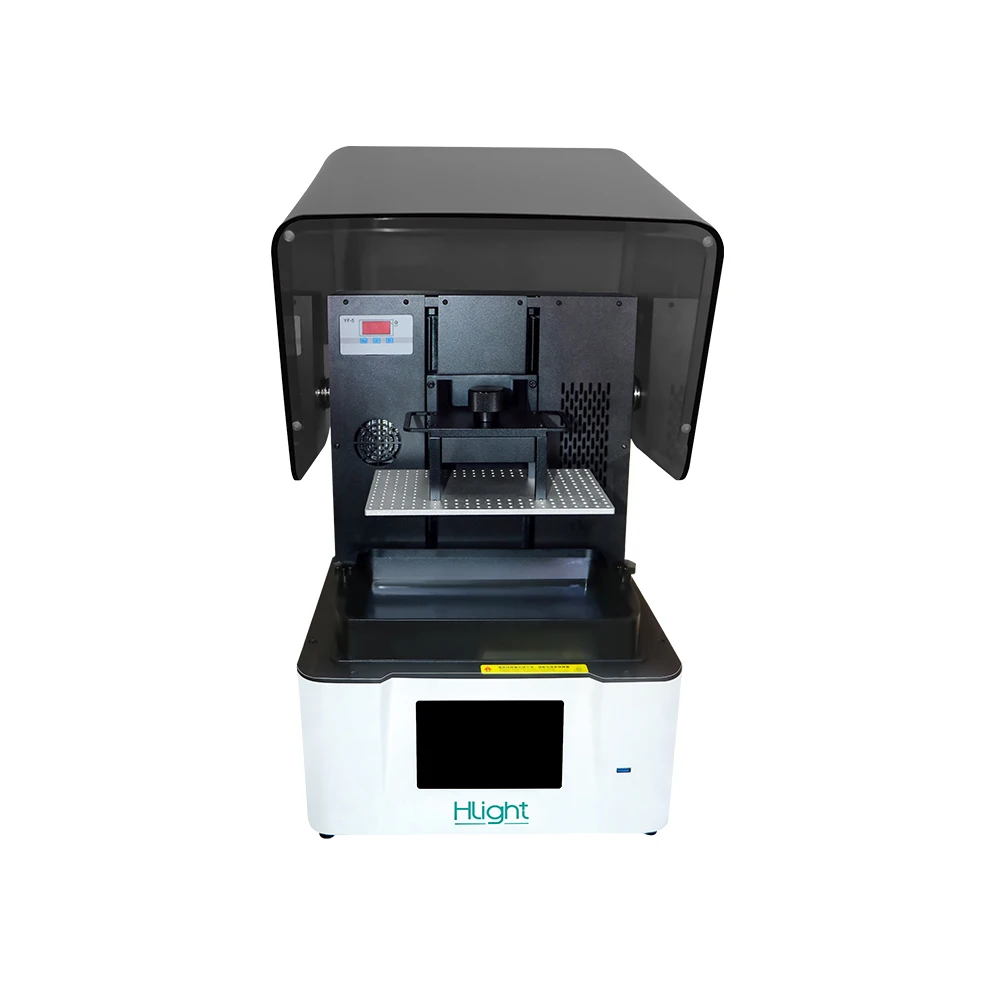

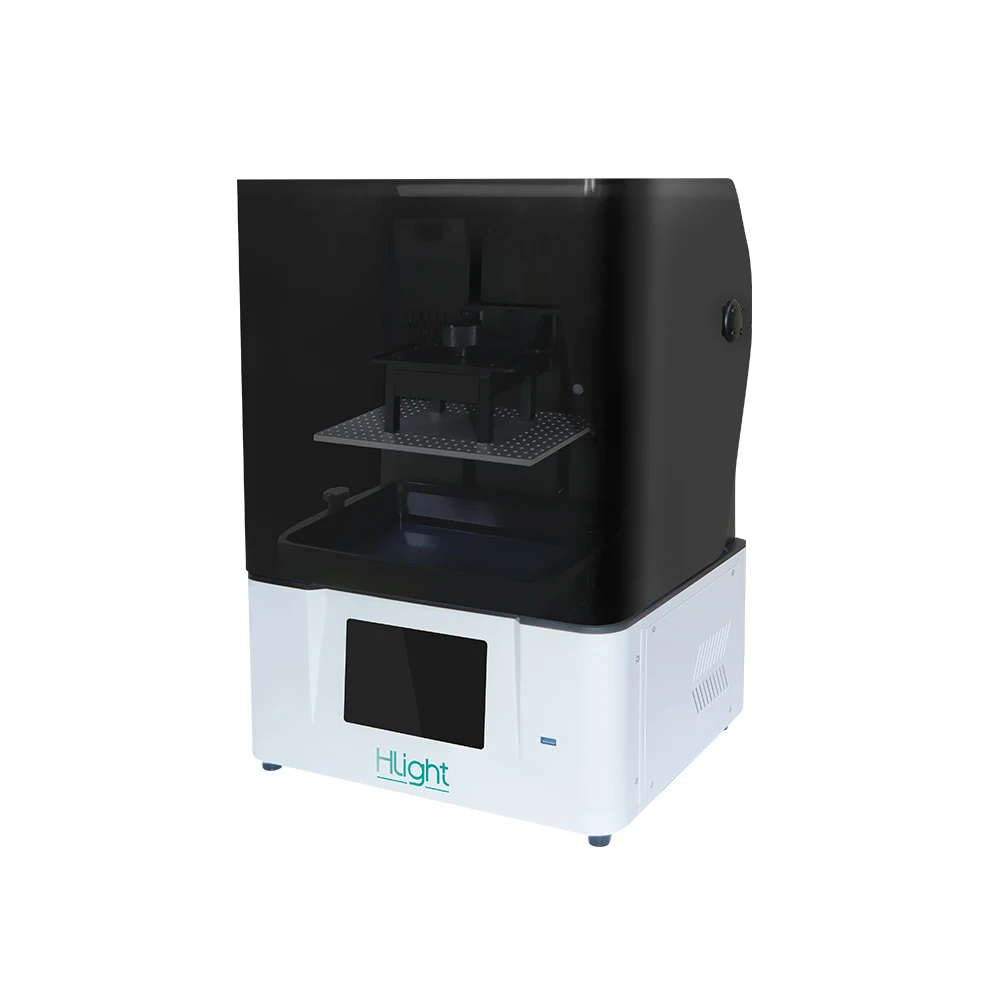

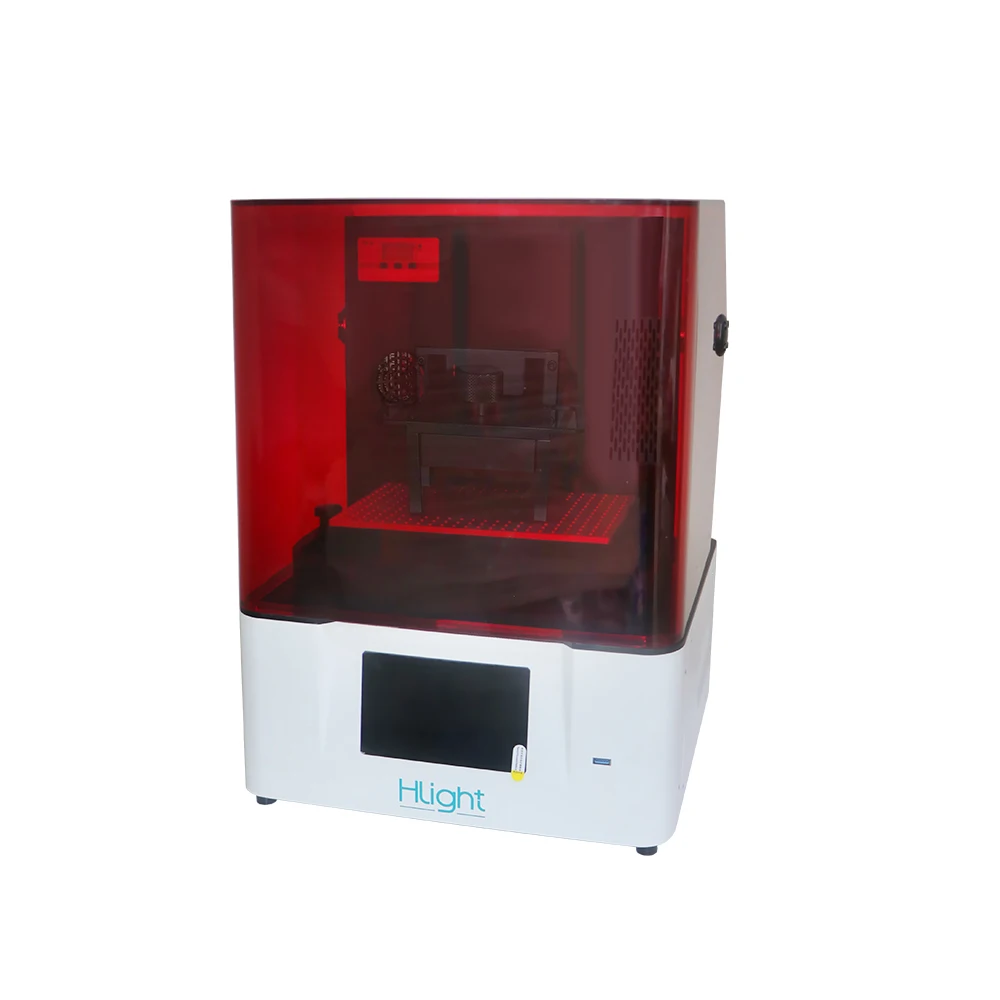

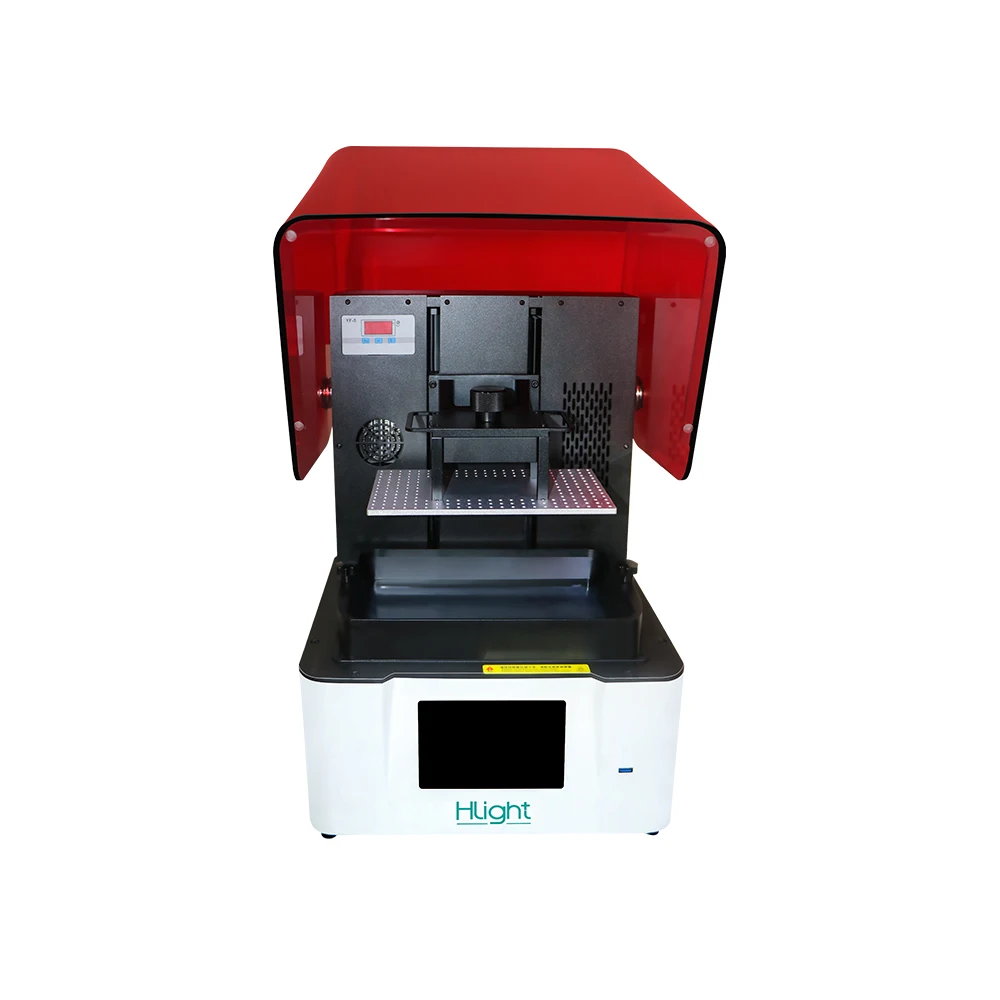

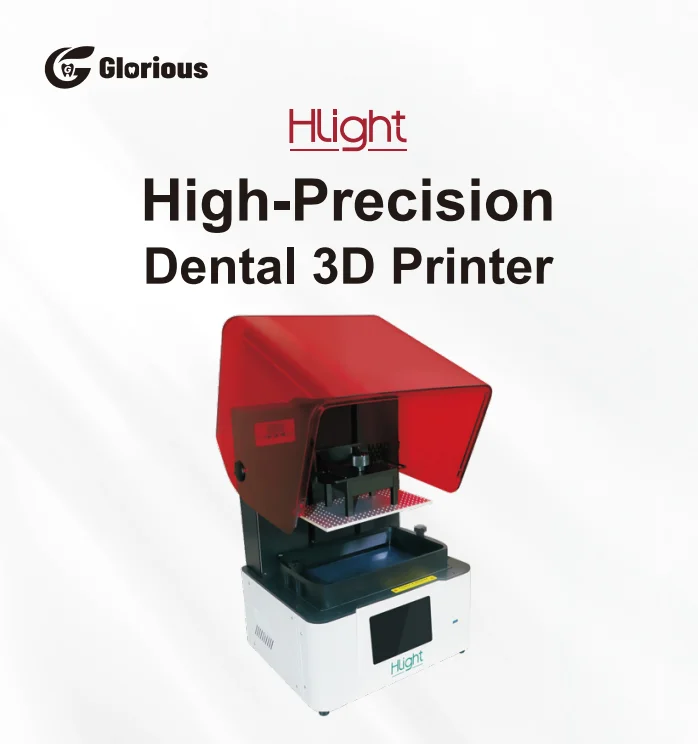

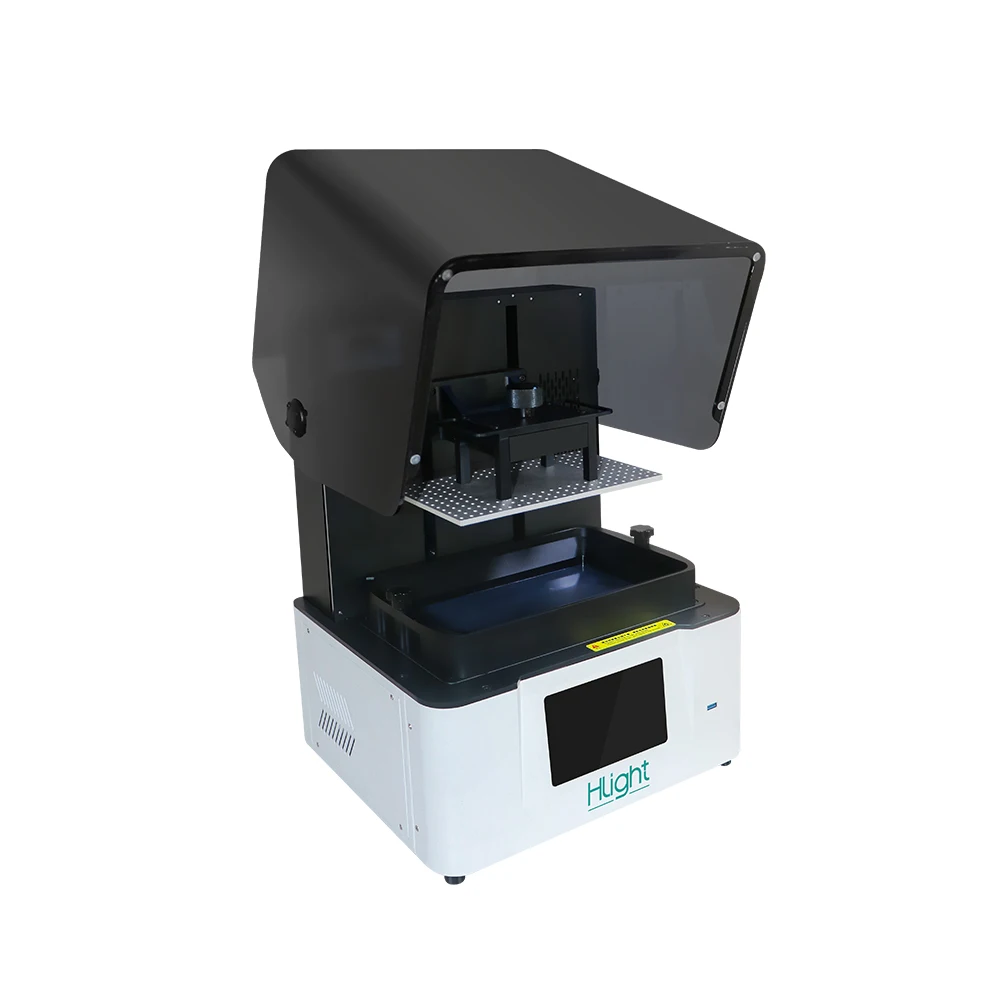

Glorious Dental Printer Equipment with Cad Cam 3d Printer large printing platform improve efficiency fast sample stable
- Category: >>>
- Supplier: Jinan Glorious Dental Materials Co. Ltd.
Share on (1601110299007):
Product Overview
Description
Product
High precision and high efficiency
10.1-inch 8K printing screen with 218X123mm printing format, printing accuracy of 0.028mm,and 75mm/h high-speed printing, which
can provide efficient digital solutions next to the chair
can provide efficient digital solutions next to the chair
Intelligent Control
Print directly after turning on the machine, no need for manual leveling. Intelligent constant tempera-ture system maintains
optimal printing temperature at all times.
optimal printing temperature at all times.
Application Solution
Can be widely used in foxed restoration models, implant models,orthodontic models, implant guides, positioning guides, temporary
crowns, orthodontics Tooth base and many other applications.
crowns, orthodontics Tooth base and many other applications.
Product paramenters
Molding size | 218*123*160mm |
Pixel size | 7680*4320 |
Printing precision | 0.028mm |
Z-axis precision | 0.01mm |
Technology type | LCD light curing technology |
Layer thickness settings | 0.015-0.15mm |
Max. printing speed | 75mm/h |
Hardware | ||
LCD exposure screen | 10.1-inch 8K black and white screen | |
Light source | 405nm COB LED light source | |
Screen | 5-inch color touch screen | |
Transfer method | USB wireless network Ethernet | |
Power requirements | 220~240VAC 50/60Hz | |
Power | 400W | |
software | ||
Controller system | Customized controller | |
Slicing software | Chitubox | |
Operating system | Embedded | |
File input format | .stl, .obj. | |
Network transmission | Supports one-click sending of print tasks via LAN | |
Size And Weight | ||
Oversize | 360*300*510mm | |
Net weight | 21Kg | |
Package size | 476*416*626mm | |
Gross weight | 26Kg | |

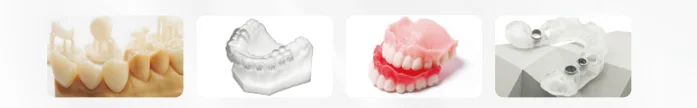

Product Application
Fixed Restorative Orthodontics Activity Repair Implant
Advantage

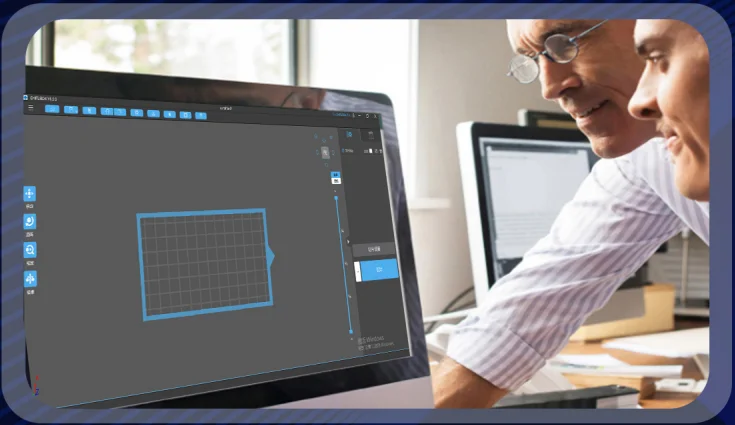

No experience is required, and the intelligent model analysis engine greatly simplifies the use process. lt can quickly and easily set up printing, seamlessly connect with the device, and send printing tasks with one click.
Printing Accuracy
The HLight 10.1 light engine delivers high-intensity light evenly across the entire build surface for flawless, accurate prints
every time.
every time.

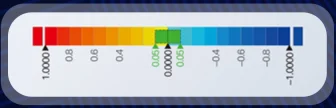

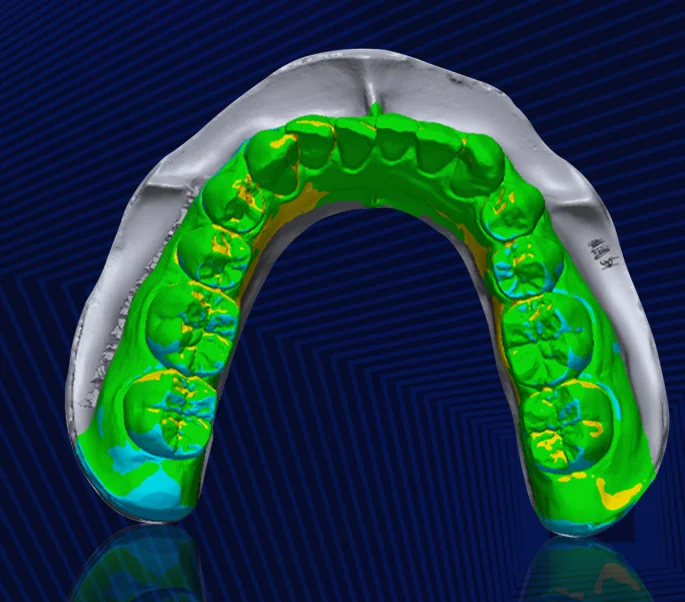

It meets the hard indexrequirements of dentalrestoration prototyping, the dimensional accuracy is 3filaments. And the coincidence rate between the printed model and the 3D scan data is higher than 95%; the entire page and the entire printing batch meet the dimensional accuracy +0.01mm. (rule model)
Printing Speed

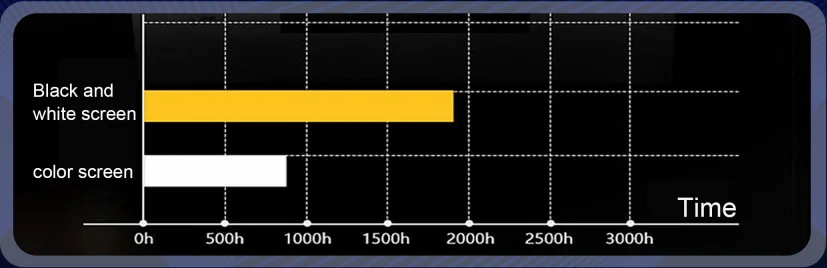

With an 10.1-inch industrial-grade 8K black-and-white screen, HLight 10.1, with its special separation technology, can print five times faster than traditional 3D printers, while improving accuracy.
Technical Parameter
Product Description
large size High precision Submicron Intelligent
Delivery

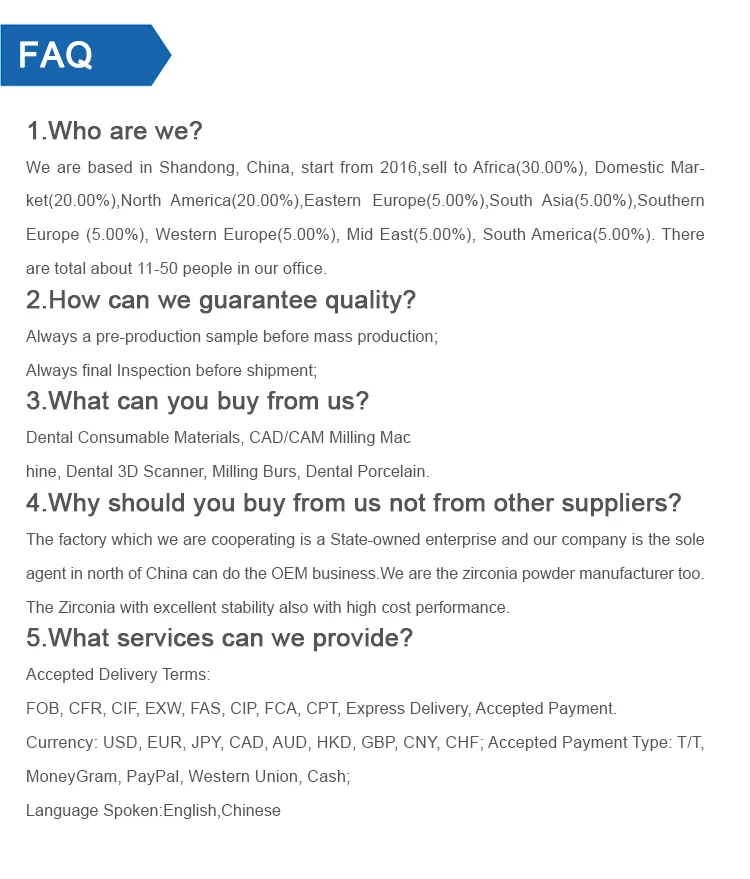

FAQ
