Price:$9,999.00 - $10,450.00

Quantity:


Product Overview

Description







Products Description

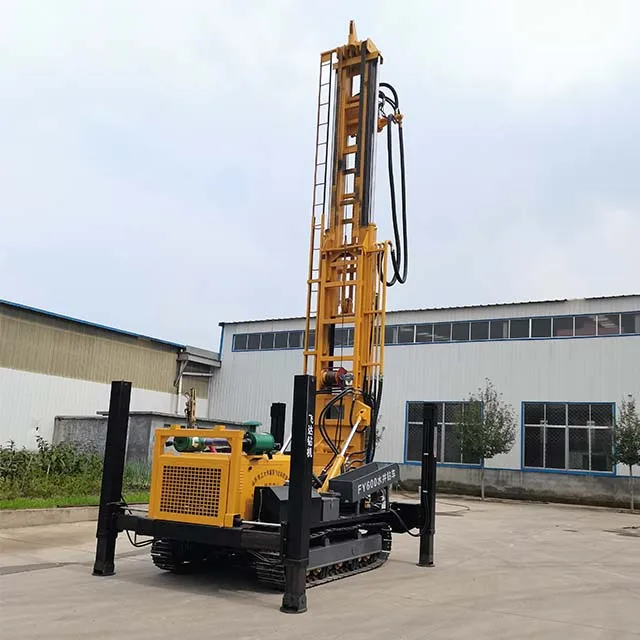

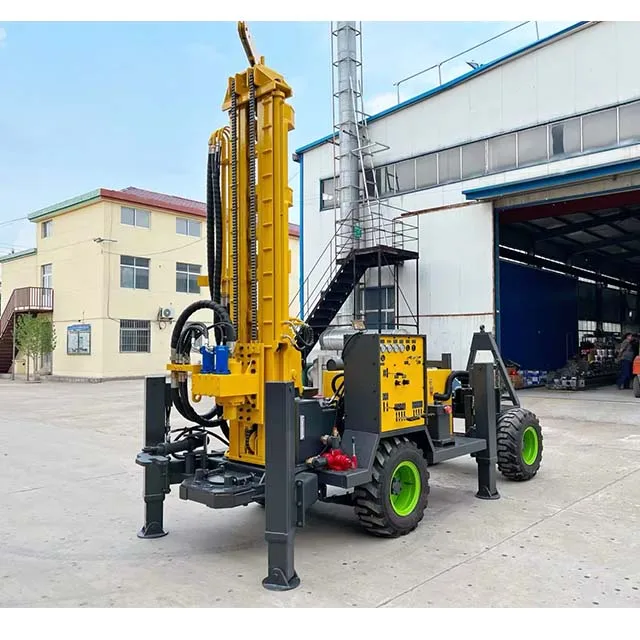

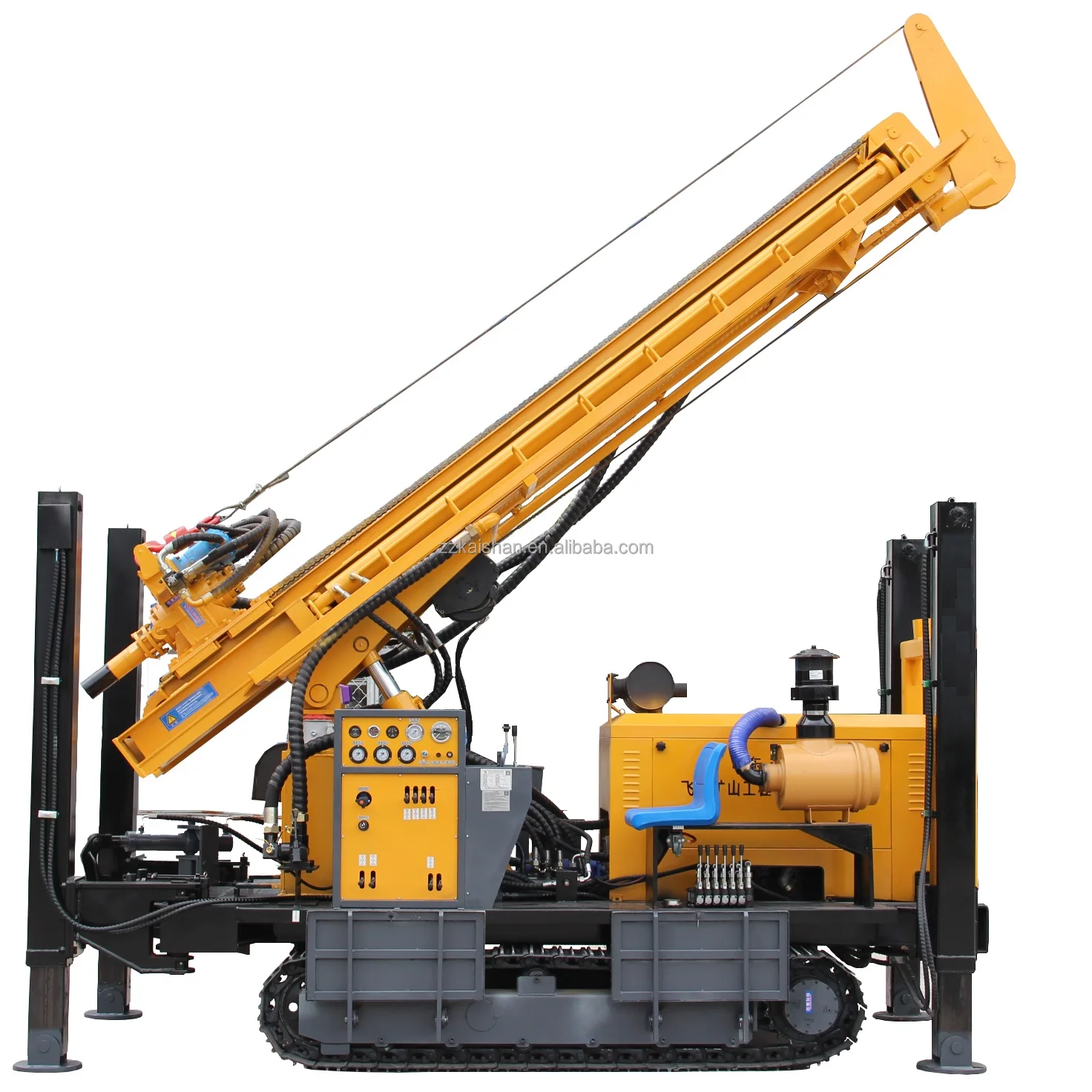

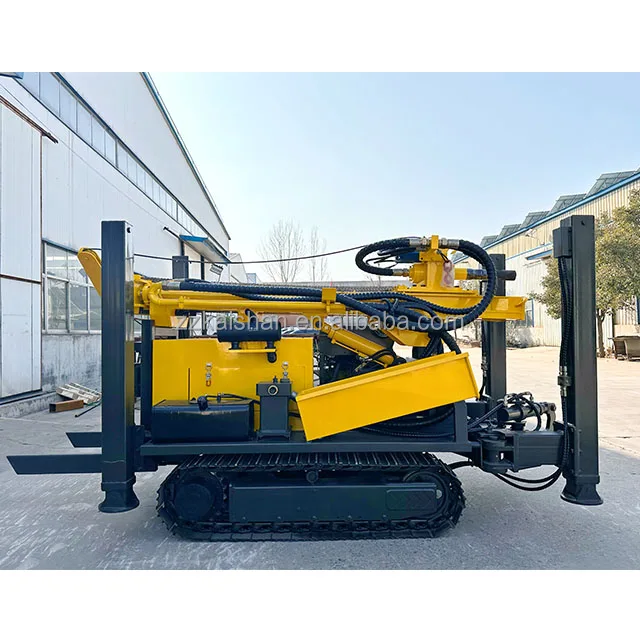

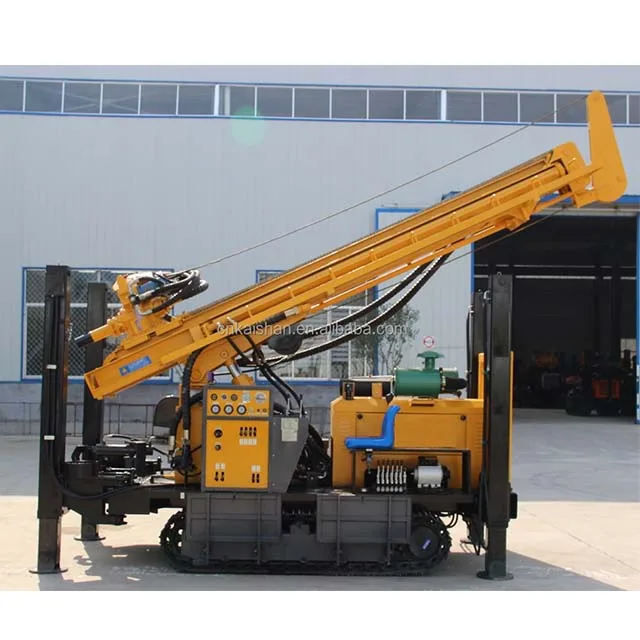

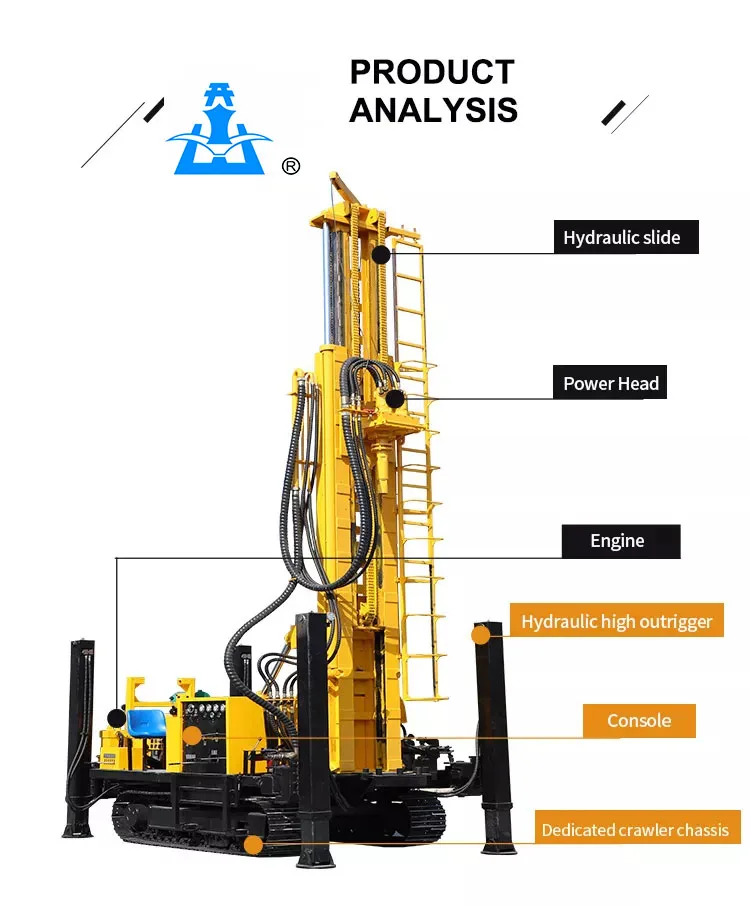

KW Series multi-function type geothermal well drilling machine is a lightweight, high efficiency, multifunctional drilling rig. KW drilling machines have the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling wells, agricultural irrigation, air hole and other use of geothermal well hole, is particularly applicable to mountain area and rock formation water engineering. The drill rig adopts the new type of hydraulic technology, supporting the rotary hydraulic motor with high torque and big diameter hydraulic cylinder propulsion, greatly reduce the labor intensity, shorten the auxiliary time, improve the efficiency of construction and engineering quality.


Product Paramenters




Model
KW180
KW200
KW280
KW300
Drilling depth
180m
200m
280m
300m
Diameter of hole
φ140-254mm
φ140-204 mm
φ140-305mm
φ140-325mm
Advance Length
3m
3.3m
6.6m
3.3 m
Working pressure
1.7-2.5MPa
1.7-3.0MPa
1.7-3.0MPa
1.7-3.3MPa
Air consumption
15-27m³/min
17-30m³/min
17-30m³/min
17-35mm³/min
Length of rod
1.5m,2m,3m
1.5m,2m,3m
1.5m,2m,3m, 6m
1.5m,2m,3m
Dia. Of rod
φ76, φ89,φ102
φ76, φ89,φ102
φ76, φ89
φ76, φ89,φ102
Lifting power
12 T
13T
17T
18T
Rotation torque
3200-4600N.m
3300-4700N.m
3700-5000N.m
5700-75000N.m
Rotation Speed
45-65r/min
45-70r/min
55-70-130r/min
40-70 rpm
Diesel Engine
Quanchai
Quanchai
Yuchai
Yuchai
Engine Power
55Kw/2200rpm
65Kw/2200rpm
70Kw / 2200 rpm
85Kw/2200rpm
Travelling speed
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
Climb capacity
30°
30°
30°
30°
Weight
4500kgs
5000kgs
7500kgs
7000kgs
Dimension
3800x1500x2200mm
3950x1700x2300mm
5900x1750x2450mm
4100x1950x2600mm
Application
Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer
4",5",6",8" Drill hammer or CIR110, 130, 150,170


Model
KW350
KW400
KW600
Drilling depth
350m
400m
600m
Diameter of hole
φ140-325mm
φ140-350mm
φ140-350mm
Advance Length
6.6m
6.6m
6.6m
Working pressure
1.7-3.3MPa
1.7-3.5MPa
1.7-3.5MPa
Air consumption
17-35m³/min
17-35m³/min
17-42m³/min
Length of rod
1.5m,2m,3m, 6m
1.5m,2m,3m, (6m can be choosed)
1.5m,2m,3m,6m
Dia. Of rod
φ89,φ102,φ114
φ89,φ102,φ114
φ76, φ89,φ102,φ114
Lifting power
24T
25T
30T
Rotation torque
6200-85000N.m
6500-9000N.m
8500-11000N.m
Rotation Speed
55-115r/min
45-115r/min
45-115r/min
Diesel Engine
Yuchai
Yuchai
Cummins Brand
Engine Power
92Kw/2200rpm
92Kw/2200rpm
132Kw/2200rpm
Travelling speed
0-2.5 Km/h
0-2.5 Km/h
0-2.5 Km/h
Climb capacity
30°
30°
30°
Weight
9000kgs
10000kgs
12000kgs
Dimension
5900x2000x2850mm
5900x2100x2850mm
6000x2200x2950mm
Application
Complicated geological conditions: Rock, Mud, Sand etc.
Drilling Way
Top drive hydraulic rotary and propulsion, Dth Drilling or Mud Pump Drilling
Dth Hammer
4",5",6",8" Drill hammer or CIR110, 130, 150,170

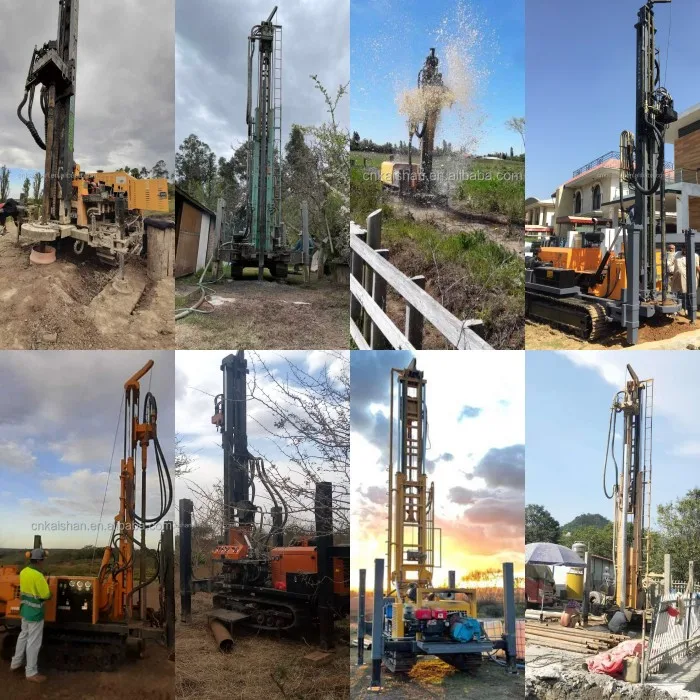

Application






Works with air compressor
Works with mud pump


Drill bit
DTH hammer
Drill rod


Customer praise




Company Profile


Zhengzhou Kaishan has complete vertical integration of production .Kaishan headquarters is located in Quzhou, Zhejiang Province,China, approximately 356 kilometers southwest of Shanghai, with its second largest manufacturing facility located in Shanghai, China. Kaishan Compressor currently has 3000 employees.Specialized in Drilling rig and air compressor for many years.Sales Water well drill rig,Blasthole drill rig quarry rock blasting Drilling equipment.Screw air comressor Piston air comprssor,air tank for air compressor.jack hammers,hand rock drill.etc.Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 certificate. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching clients all over the continents.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.We are in good relationship with several famous shipping companies and airline companies, and can provide considerate shipping service and take care of related procedures in terms of customs, tax, insurance, and so on.








Exhibition






FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
