Hydraulic screen changer for extrusion machine water strand pelletizing line

Product Overview

Description

Hydraulic screen changer for extrusion machine

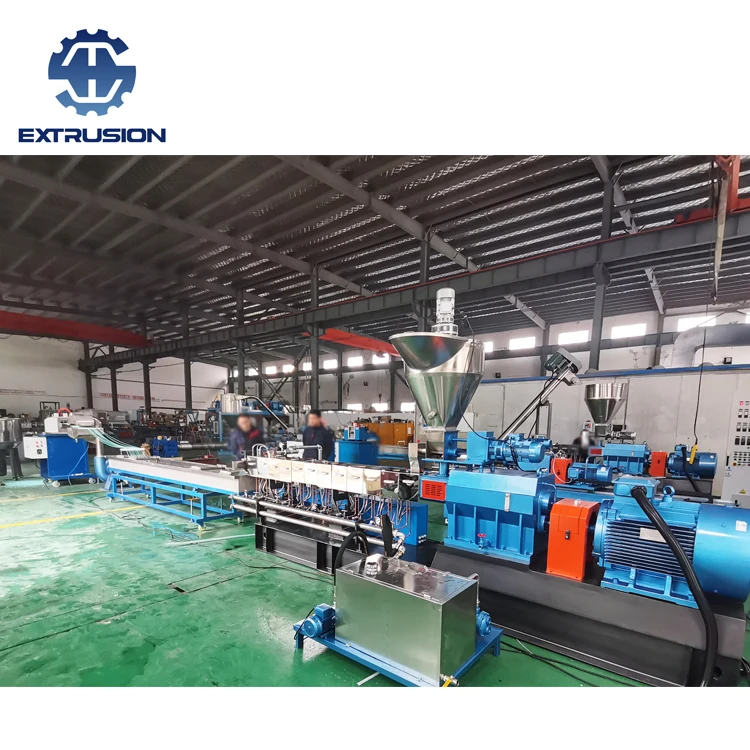

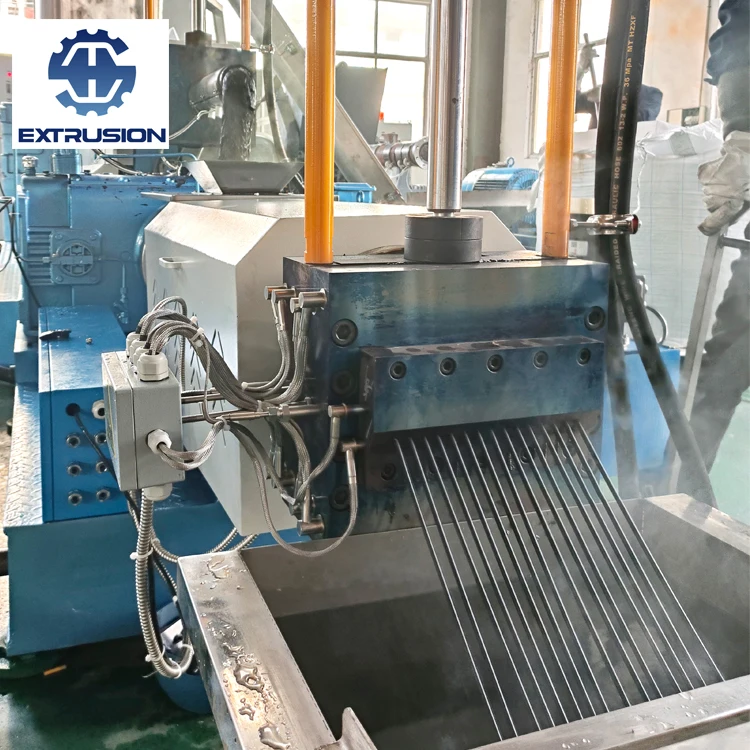

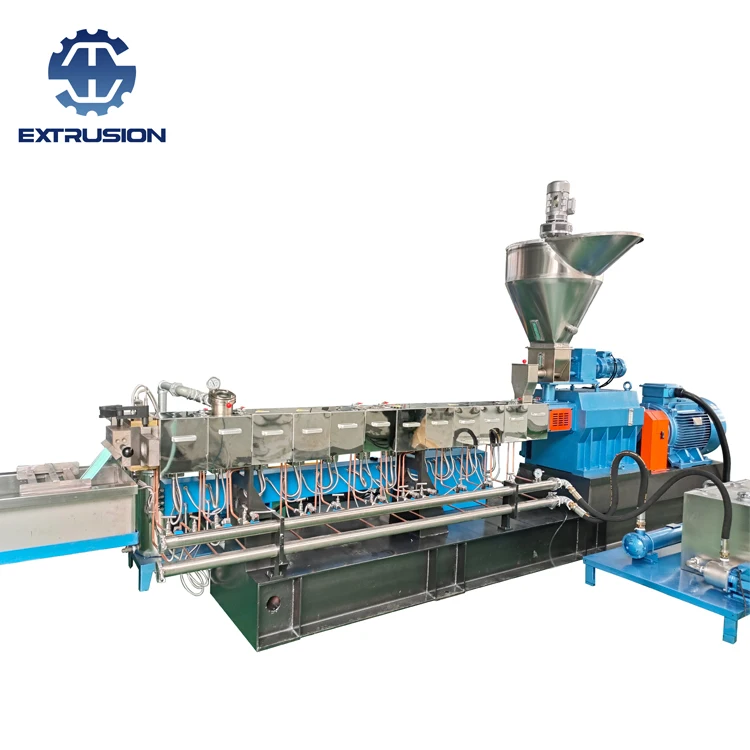

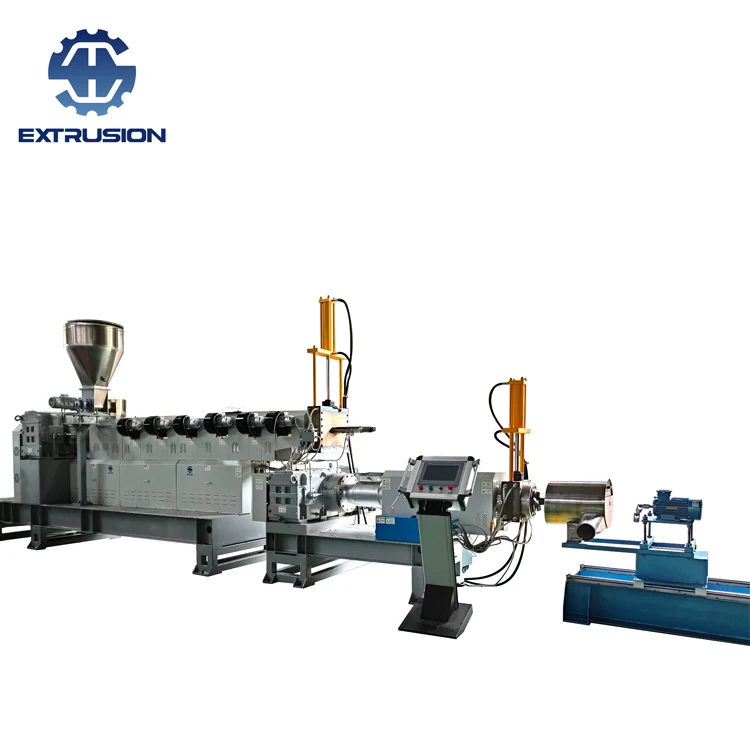

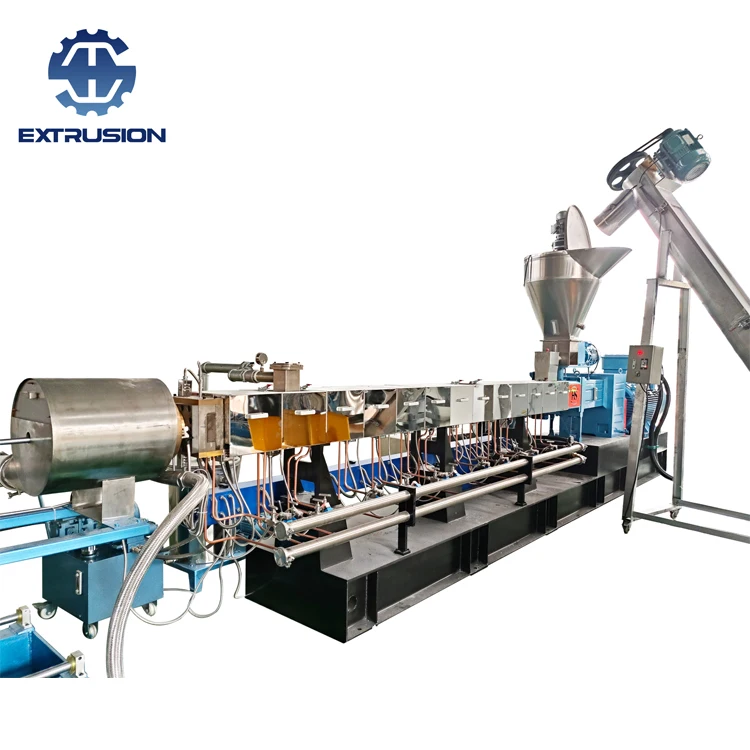

Water cooling strand pelletizing system could be applied to most polymer materials processing and application,  the entire system is simple and practical, more conenient operation and maintenance. Main components typically

include: extrusion template, cooling water tank, drying machine, cooling granulator, vibrating screen and follow-up silo packing system.

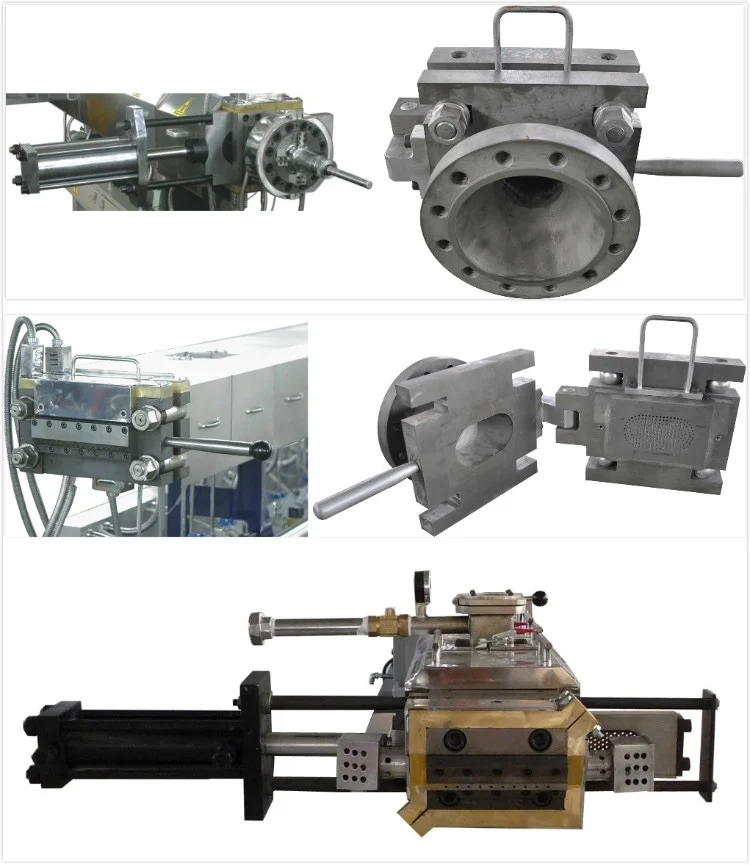

The new-style hydraulic screen changer

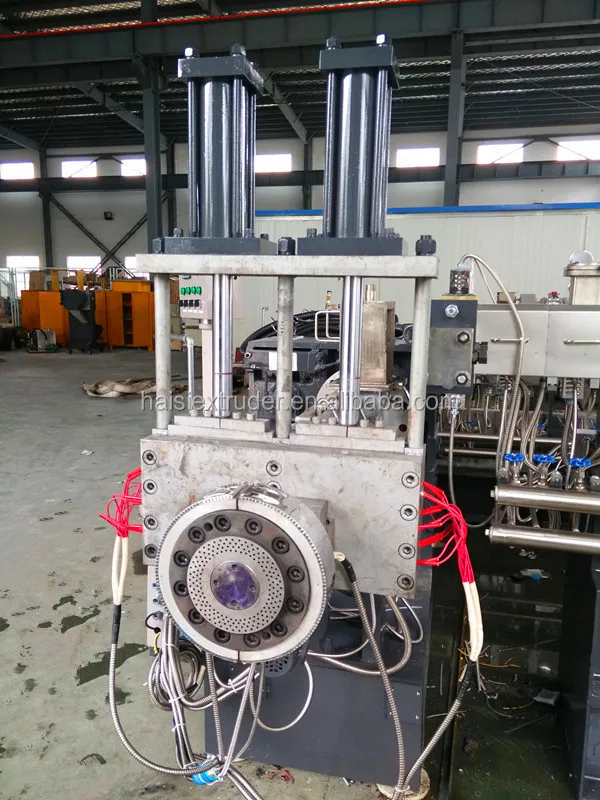

Non-stop screen changer can not only filter the impurities, but also significantly improve the plasticizing



and homogenization effect of the raw materials. It can make the product structure more homogeneousand product surface more smooth, thus improve the quality of extruded products.



Batte screen changer has excellent performance and reasonable price. It can quickly change filter



within 0.4 second. Since the screen changing process is fast, the material flow changes little, and the material will not leak out. It is widely applied in the filed of plastic sheet, plate, film, pipe, pelletizing extrusion etc.







the technical data

Mode	Screw Diameter D(mm)	Screw Length(mm)	L/D	Screw Rater N(r/min)	Motor Power P(kw)	Torque T(N.m)	Capacity Q(kg/h)
SHJ-20	22	150	32-44	600	5.5	43	0.5-10
TSE-30A	31		32-48	500	11	105	5-30
TSE-30B				600	15	119	5-40
SHJ-35A	35.6		32-48	600	15	119	20-60
TSE-40A	41	160	32-64	400	22	263	65-110
TSE-40B	41	160	32-52	600	30	239	90-150
SHJ-50A	50.5		32-52	500	45	430	135-225
TSE-52B	51.5	210	32-64	600	55	438	225-250
TSE-52C	51.5	210	32-64	600	75	597	200-300
SHJ-65A	62.4	240	32-52	400	75	895	180-250
				500	75	716	180-250
TSE-65B	62.4	240	32-64	600	90	716	200-300
SHJ-75A	71	290	32-56	400	90	1074	225-350
				500	110	1050	250-450
TSE-75B	71	290	32-64	600	132	1050	350-550
TSE-75D	71	290	32-64	60O	220-250	1990	500-1000
TSE-95A	93	360	32-64	500	250	2387	600-1000
TSE-95B	93	360	32-64	600	315	2506	800-1200
TSE-135A	133		32-64	500	750	7162	1500-2250
