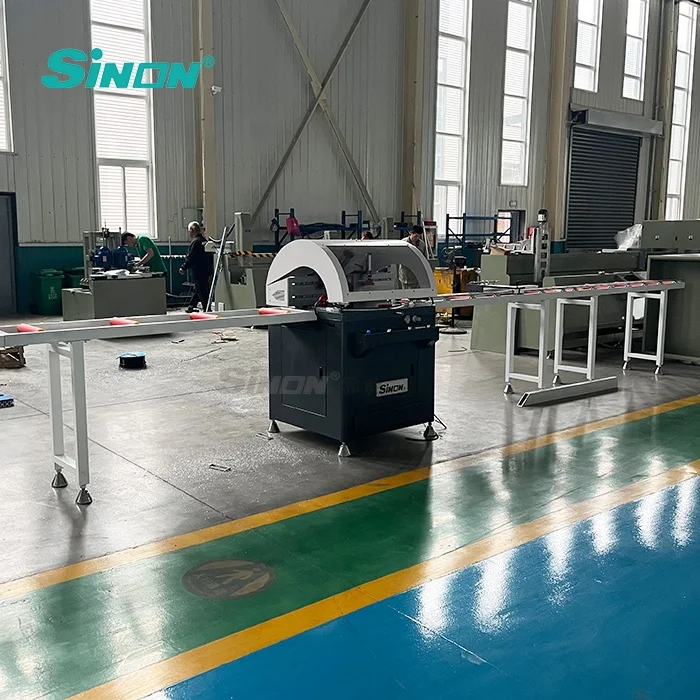

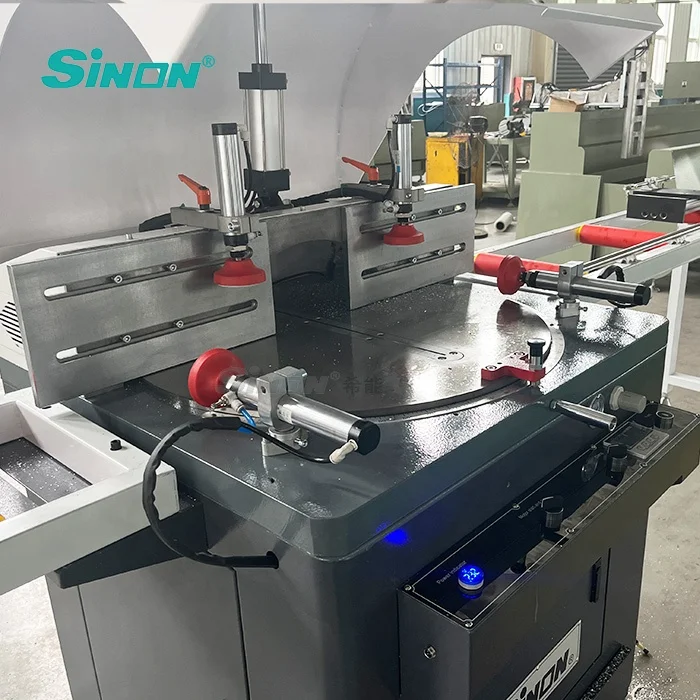

u PVC window machine u PVC Cutting Machine Circular Cutting Saw
- Category: >>>
- Supplier: Jinan Sinon Cnc Machine Co. Ltd.
Share on (1601110485166):
Product Overview
Description
Products Description
LJZ2F 500
Various Angle Aluminum & PVC Cutting Machine
Various Cutting Angle

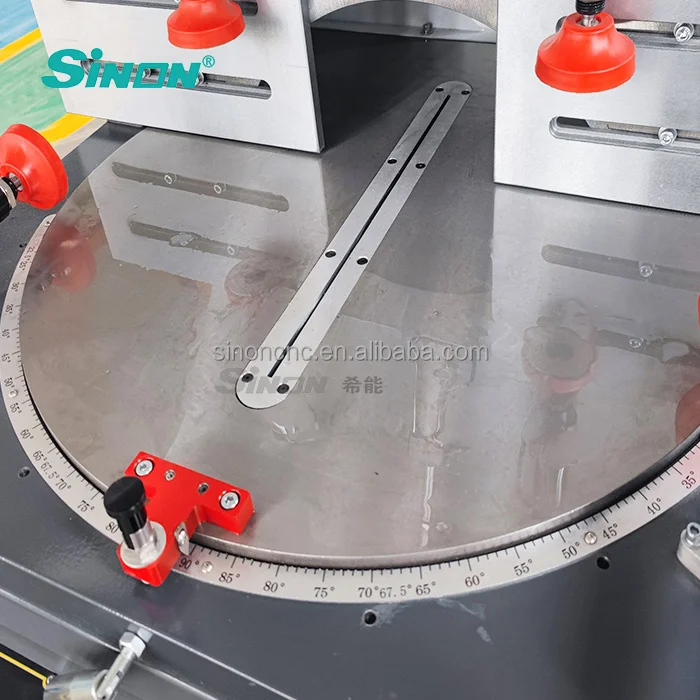

The cutting angle is from 25 to 155 degrees with fixed angle hole for 45, 67.5, 90, 135 degrees . Changing angle by rotating the worktable.
Clamping

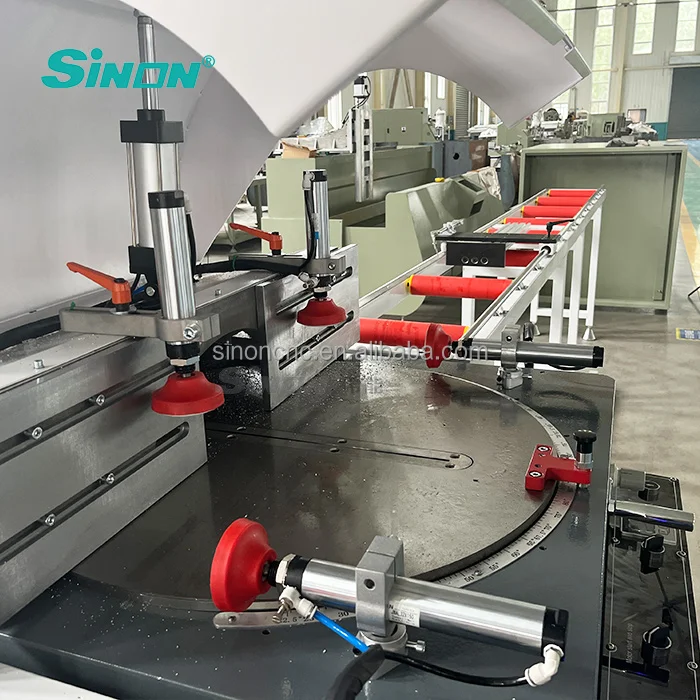

Vertical and horizontal clamping
Positioning

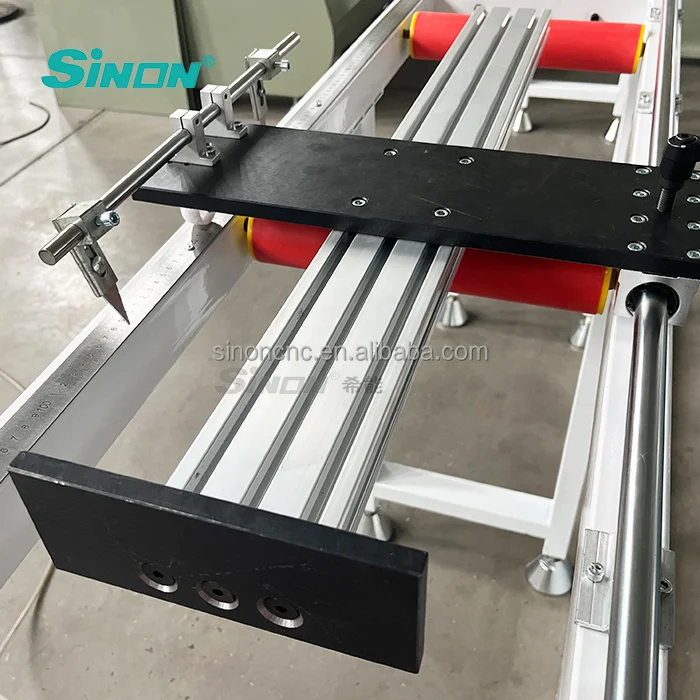

Standard ruler positioning rack. CNC measuring conveyor is optional.
1. Application: It is suitable for door and window profiles, LED lamp frame profiles, curtain wall profiles, etc. aluminum and PVC profile cutting.
2. Cutting angle: 25°-155°
3. Accessories: It has a 500mm saw blade(600mm saw blade is optional), two standard racks, one 4m profile support rack, one 3.5m ruler positioning rack.
4. Protection shield: It is equipped with with cutting protection shield, automatically falling when cutting, to prevent the splash of metal chips.
5. Clamping: Horizontal and vertical clamping devices, stable cutting.
6. Solid structure: Extremely robust body ensures long-term reliable operation and stable cutting, extending the life of the machine.
4. Protection shield: It is equipped with with cutting protection shield, automatically falling when cutting, to prevent the splash of metal chips.
5. Clamping: Horizontal and vertical clamping devices, stable cutting.
6. Solid structure: Extremely robust body ensures long-term reliable operation and stable cutting, extending the life of the machine.
7. Options: Single head mitre saw(500/550/600mm saw blade), double head cutting machine, CNC cutting machine, auto-feeding cutting machine, servo motor cutting machine, cutting center. We can also customize machines according to your needs.
Item | Value |
Power Supply | 380V 50HZ 3P or Customization |
Total Power for Motor | 2.5KW |
Motor’s Rotation Speed | 2800r/min |
Air Working Pressure | 0.5－0.8MPa |
Cutter Feeding Speed | 0-3m/min |
Cutting Width | At 90° Max 200mm；At 45° Max. 180mm |
Cutting Height | 100mm |
Cutting Angle | Any angle from 25°～ 90°～155° |
Weight | 416kg |
Dimension | 1100*1100*1600（L*W*H） |

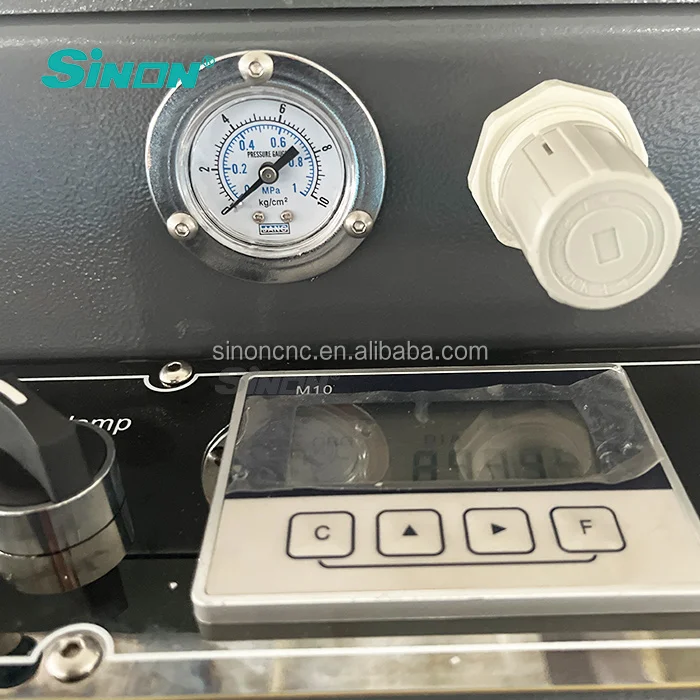

Details Images
Packing & Delivery
Wrapping
Fixing
Packing
LCL
FCL

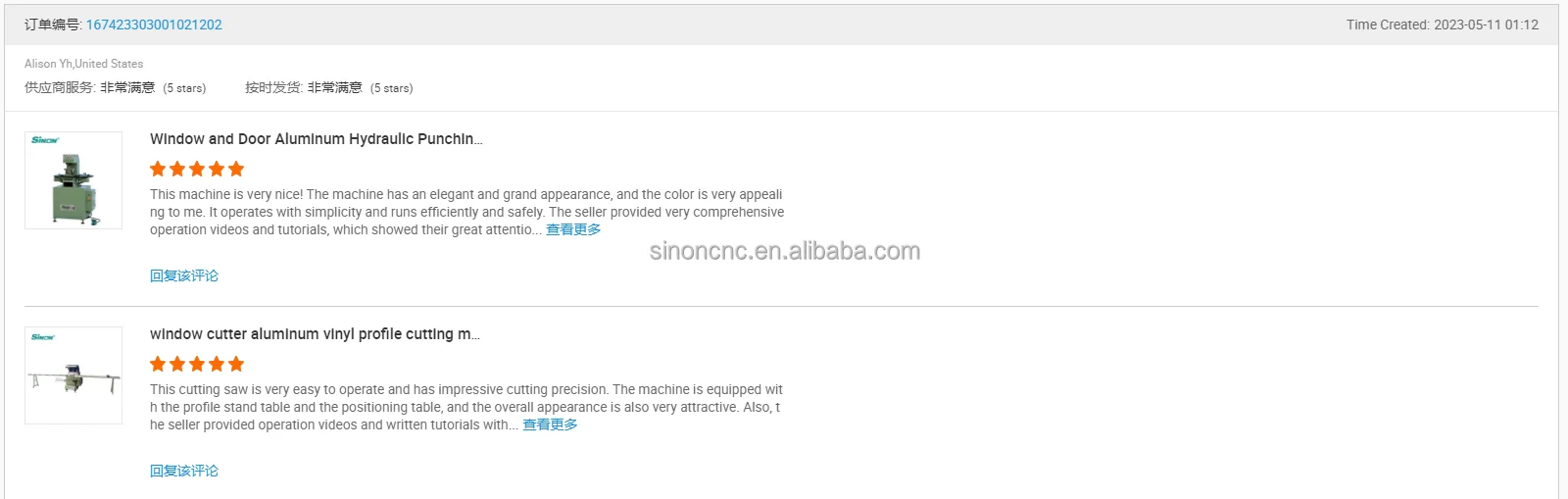

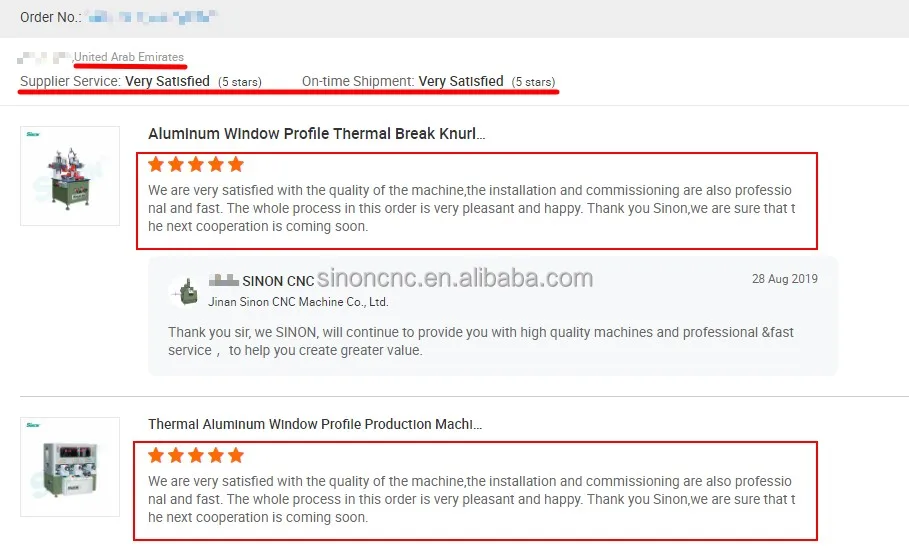

Feedback
Customer Photos
Customer satisfaction is our top priority. We are committed to providing exceptional service and ensuring that our customers'
needs are met. We welcome customers from all over the world to visit our facilities. This allows us to establish direct contact
and build strong relationships with our valued customers.
needs are met. We welcome customers from all over the world to visit our facilities. This allows us to establish direct contact
and build strong relationships with our valued customers.
We also visit our customers' plants to provide comprehensive training on
machine operation, maintenance and troubleshooting. By doing so, we enable our customers to maximize the potential of our machines and increase their productivity.
machine operation, maintenance and troubleshooting. By doing so, we enable our customers to maximize the potential of our machines and increase their productivity.
The feedback from our customers can improve the quality of our services. We have received many positive comments and feedback. Their trust and confidence in our products and services inspire us to continually raise the bar.
By prioritizing our customers' needs and continuously improving our services, we strive to foster long-term partnerships with our
customers.
By prioritizing our customers' needs and continuously improving our services, we strive to foster long-term partnerships with our
customers.
Company Profile
Jinan Sinon CNC Machine Co.,Ltd
We are a reputable company with over 17 years of experience in the window and door making machine industry, including 8+ years in international trade. Our expertise, advanced technology, and well-established management and service systems set us apart.
Our unwavering commitment to customer satisfaction drives us to deliver outstanding products and services. With a strong industry standing and a global reach, we are poised to meet your needs with utmost excellence.
Our unwavering commitment to customer satisfaction drives us to deliver outstanding products and services. With a strong industry standing and a global reach, we are poised to meet your needs with utmost excellence.

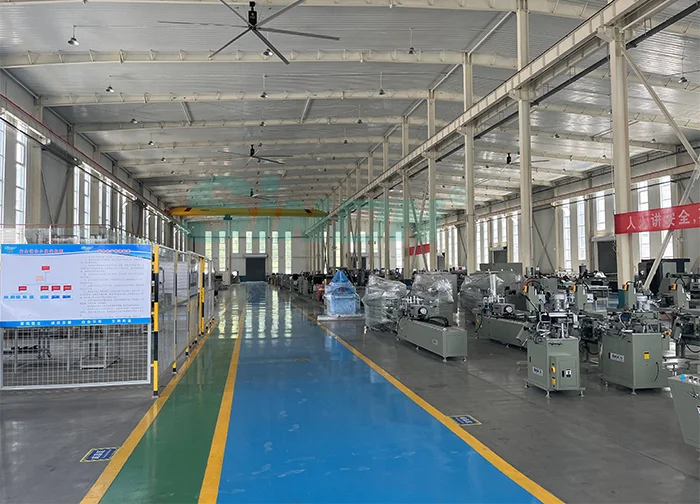

In 2022, we further expanded our factory facilities, affirming our leadership in driving industry development. Now, our factory occupies over 10,000 square meters, providing ample space for efficient operations. Comprehensive and well-thought-out space planning allows us to meet high production requirements while maintaining the highest quality standards.
Professional
Team
With a wealth of experience, professional technical personnel, to ensure that the machine high quality
Technical Guidance
Free consultation to provide the most optimal solution for your needs
Comprehensive Service
Solution consultation, machine inquiry, factory follow-up, shipping follow-up, after-sales service
Nowadays, we have customers from all over the world. Our machines are sold to more than 80+countries and regions.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to South Asia(13.00%),Southeast Asia(13.00%),Africa(12.00%),Northern Europe(8.00%),Southern Europe(7.00%),Domestic Market(7.00%),South America(7.00%),Eastern Europe(7.00%),Mid East(6.00%),North America(5.00%),Central America(5.00%),Eastern Asia(4.00%),Western Europe(3.00%),Oceania(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPVC window making machine,aluminum window machine,aluminum cutting machine,aluminium profile cutting machine,cnc milling machine
4. why should you buy from us not from other suppliers?
Jinan Sinon is one of most professional upvc aluminum window door equipment manufacturer in china, and has more than 15 years' experience in window door equipment manufacturing. Main product pvc window machine,aluminum window machine,upvc welding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2005,sell to South Asia(13.00%),Southeast Asia(13.00%),Africa(12.00%),Northern Europe(8.00%),Southern Europe(7.00%),Domestic Market(7.00%),South America(7.00%),Eastern Europe(7.00%),Mid East(6.00%),North America(5.00%),Central America(5.00%),Eastern Asia(4.00%),Western Europe(3.00%),Oceania(3.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPVC window making machine,aluminum window machine,aluminum cutting machine,aluminium profile cutting machine,cnc milling machine
4. why should you buy from us not from other suppliers?
Jinan Sinon is one of most professional upvc aluminum window door equipment manufacturer in china, and has more than 15 years' experience in window door equipment manufacturing. Main product pvc window machine,aluminum window machine,upvc welding machine
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
