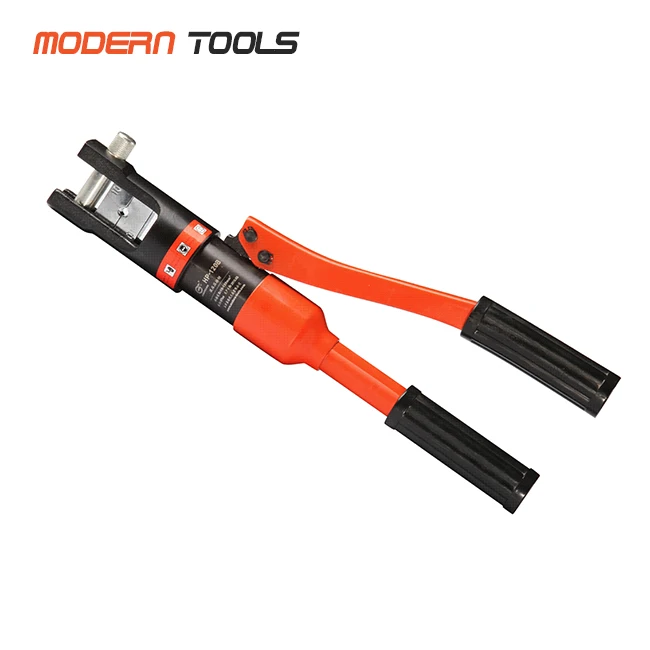

HP 120B hydraulic crimping tool wire crimp lug pliers wire clamp cable lug press tool 415*126*65 mm

Product Overview

Description

Power Source	Electricity
Application	Wood

SPECIFICATIONS

Output:   8 T

Ram Stroke:   14 mm

Crimping Capacity:   10-120 mm2

Crimping Profile: Hexagon

Standard Dies:   8 Sets



Bolt Locked H Type Head

Package:   Plastic Carrying Case

Size:           415*126*65 mm

Weight:             3.0 kgs





STANDARD DIES SIZE

8 SETS (mm2)

10     16     25     35
50     70     95     120



DESCRIPTIONS

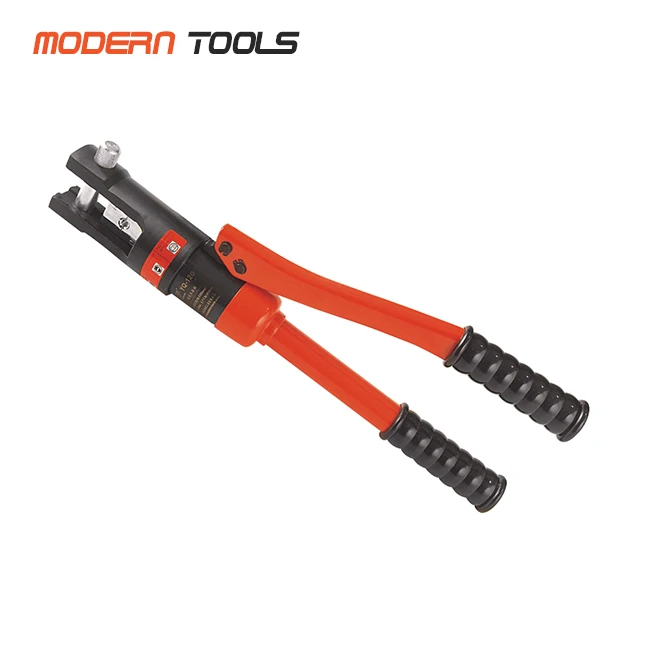

YQ-120 HP-120 and HP-120B are hand-operated hydraulic crimping tools. They are Designed with H type Rotatable Crimping Head.



These series tools are capable of crimping Cu/Al cable connectors and lugs. With the help of hydraulic power, cable connection and termination job become fast and effortless.



There are total 8 sets standard crimping dies in each tool. All dies are designed wtih hexagon profile, locked by an sliding bolt. Dies customization is also available when drawings, samples and other necessary information can be provided.



FEATURES

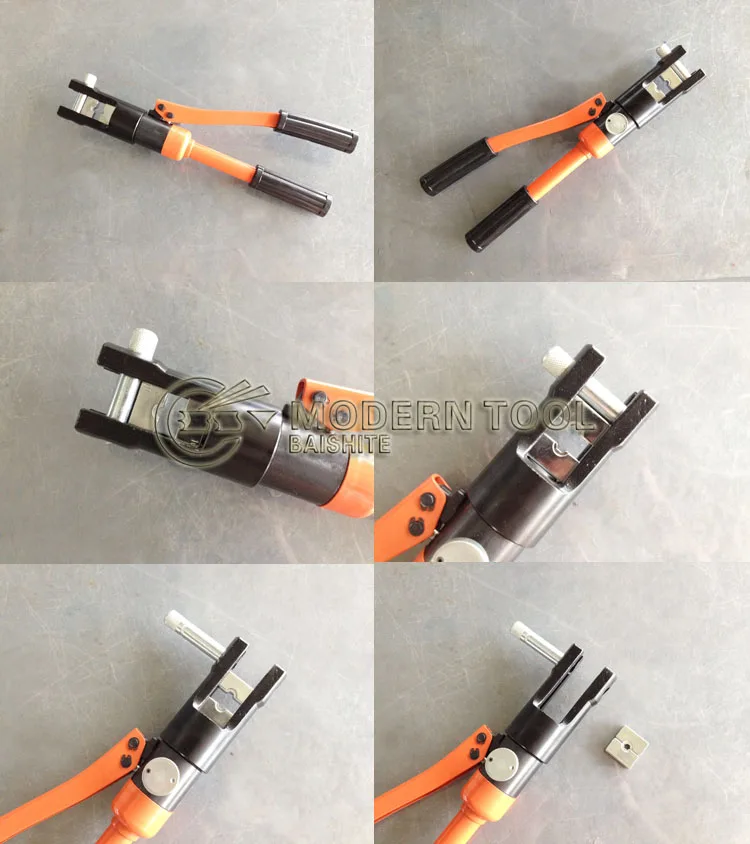

Dies locking bolt:    Install dies by  removing bolt and sliding dies



Rotatable head for flexible operation in confined place



8 sets standard dies for precise crimping select and install proper dies according to application



Double speed pumping for quick crimp (HP-120 and HP-120B)



Safety valve (HP-120B) Automatically relief working pressure when complete crimping

Release pressure by turning pressure
