Zotion Dental cad cam system 5 axis milling machine for zirconia blocks crown and bridge
- Category: >>>
- Supplier: Chongqing Zotion Dentistry Technology Co. Ltd.
Share on (1601110528028):
Product Overview
Description
Product usage scenarios & Finished products
Products Description

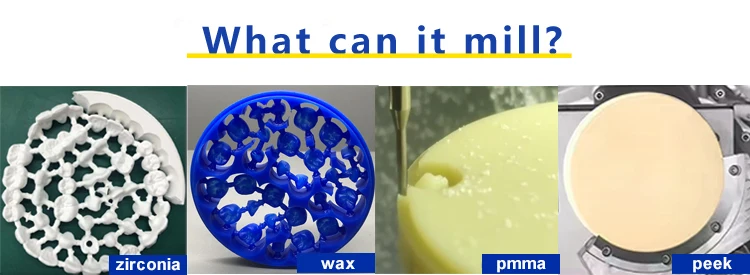

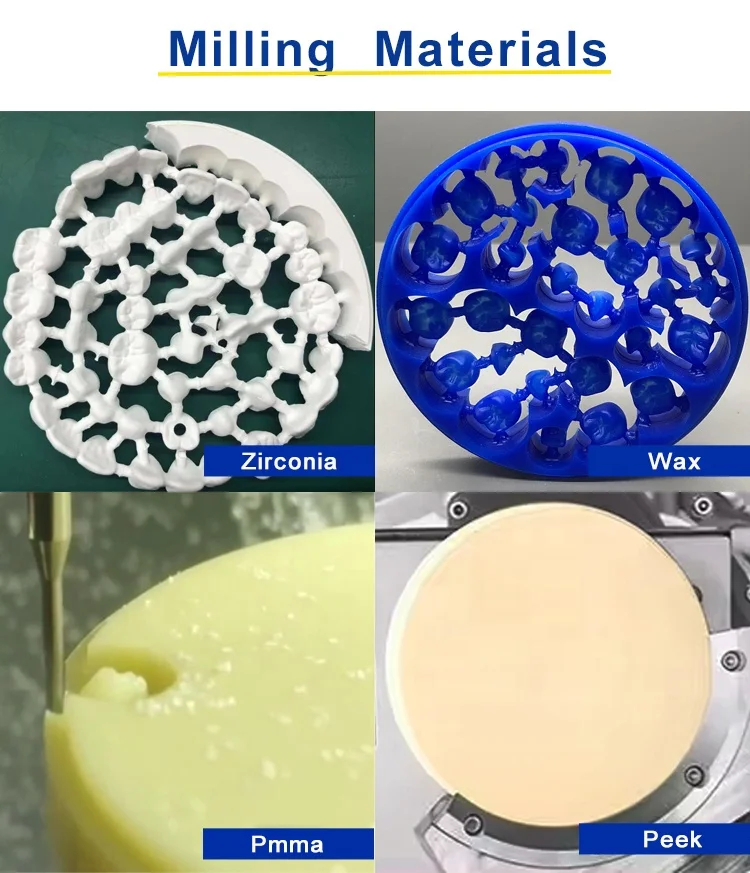

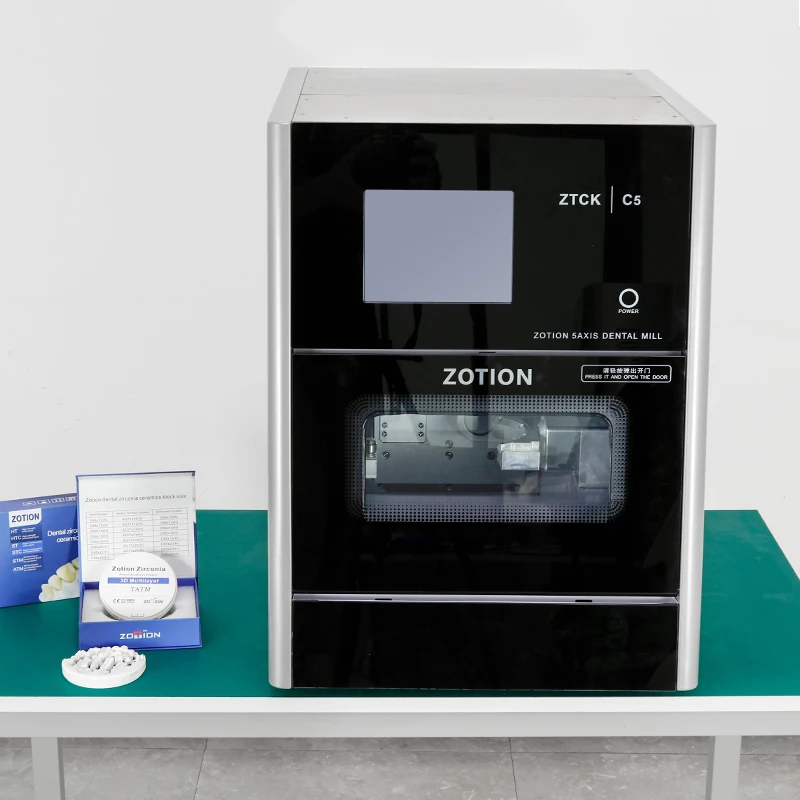

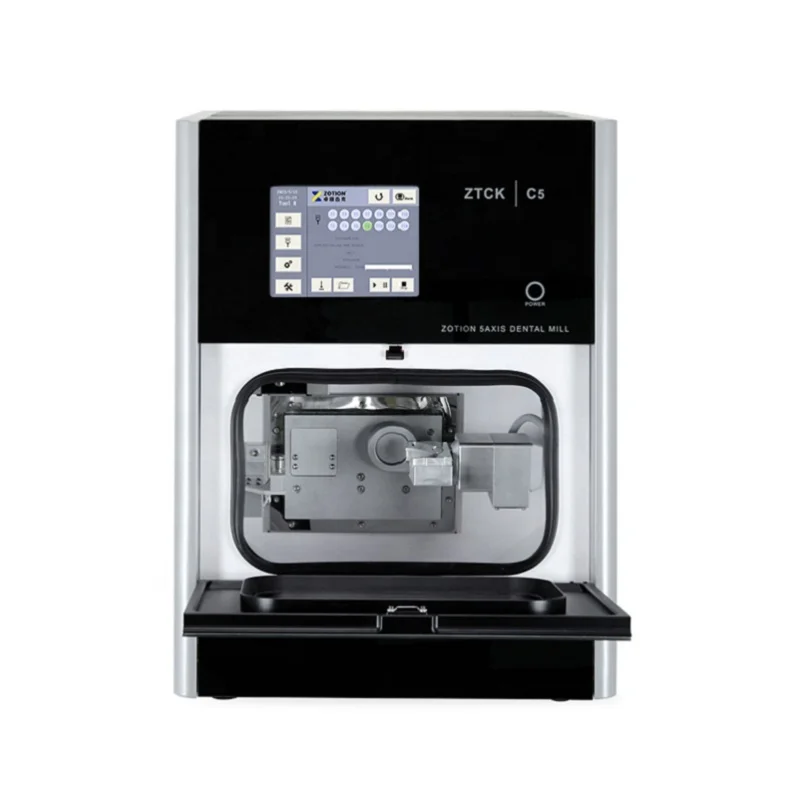

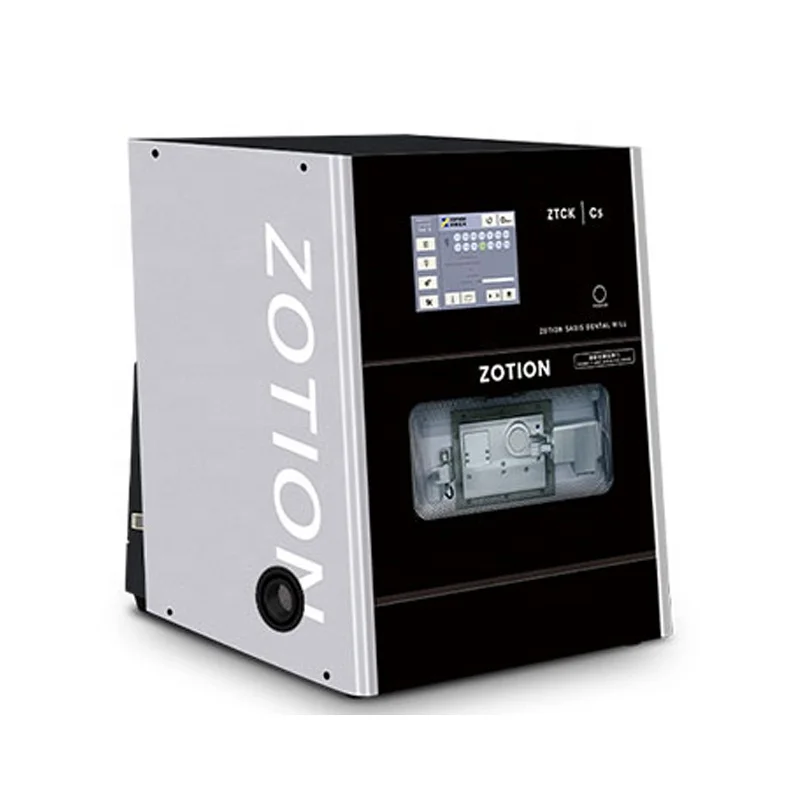

Zotion C5 cad cam 5 axis milling machine ,which is a dry and high precision milling machine for dental lab and milling center. It can mill zirconia,wax,pmma,peek.
C5 uses high quality spindle and servo motor,which ensures the stability of the milling machine.
The size of the milling material | 98mm,98.5mm and the max thickness is 80mm |
The max speed of XYZ axis | Z axis 4000mm/min XY axis 6000mm/min |
The max speed of the spindle | 6000-60000 rotation/min |
The angle of the axis | Aaxis +-360°B axis :25-115° |
The type of milling burs | Auto milling burs installation |
The amount of milling burs | DiameterΦ 4*56mm |
Controlling instruction set | NC code |
Interface | USB 2.0.100M Internet access |
Voltage | 220V +-10%,50/60 Hertz |
Power Consumption | Noise-pollution level |
Noise-Pollution level | Standby model : under 45 decibel milling model: under 70 decibel The data was tested by UT353, the level of the noise varies when different material is used. |
Install conditions | Indoor installation altitude below 2000m,temperature :5-40 degree Celsius |
The size of the machine | 470*560*650mm |
Weight | 90kg |
Advantages

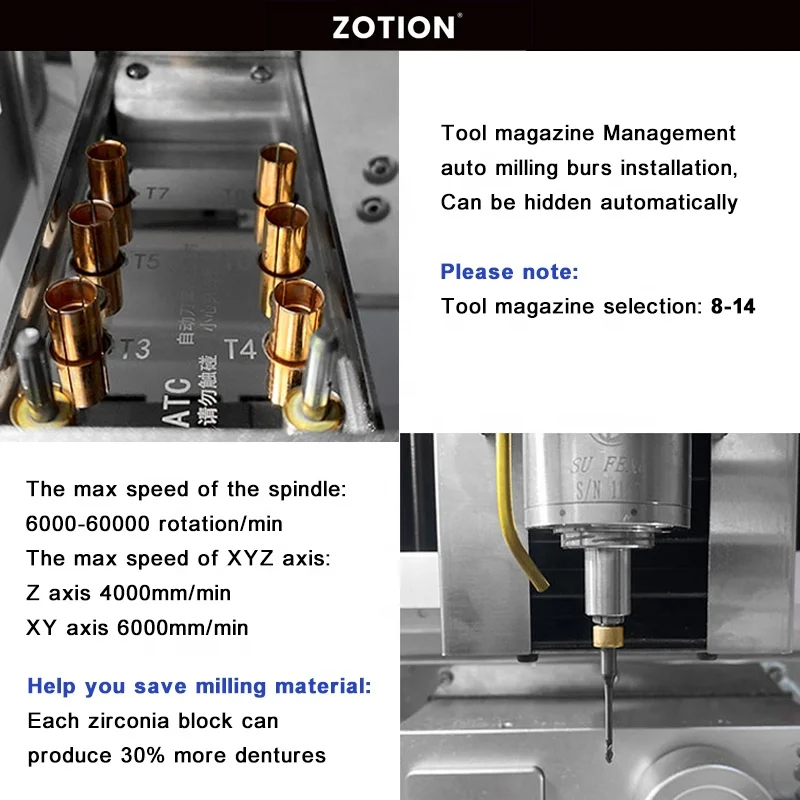

1.Tool magazine selection：8-14
The tool magazine will automatically hide when you don't use it to avoid falling into powder2.It requires no calibration
3.The A axis =土360°，B axis is +25 to -115° The big rotation range ensures a wide angle of milling
Product display
Company Profile
Chongqing Zotion Dentistry Technology Co., Ltd. is a professional manufacturer integrating R&D, production and sales of dental products. We specialize in this field for more than 15 years.
We were established in Chongqing, China in 2009 and obtained the medical device quality management system certification in 2009. It is also the first manufacturer in China to produce CADCAM 5 axis milling machines!
Our company covers an area of 2,000 square meters and has hundreds of employees, including dozens of professional and technical personnel. The company has long been committed to product research, development and technological innovation, and has obtained a number of national patents.
Our company has independent import and export qualifications and has obtained international certificates such as CE, SGS, and ISO13485.Currently, our products have been exported to more than 100 countries and regions around the world, including America, Europe, the Middle East, and Asia. Chongqing Zotion Dentistry Technology Co., Ltd. has a complete and scientific quality management system, standardized production and manufacturing workshops, and its production scale ranks at the forefront of the industry.
We are an influential manufacturer of dental laboratory equipment, dental consumables and laboratory heating equipment at home and abroad, covering overall solutions for dental CAD/CAM systems. We have sold tens of thousands of sets, with reliable quality, reasonable prices and good The service enjoys a good reputation.
Main products:
1.Zirconia block
2.Dry dental milling machine
3.Wet dental milling machine
4.Dental sintering furnace
5.Dental vacuum cleaner
6.Dental pmma block
7.Dental wax blank
8.Dental peek block
We were established in Chongqing, China in 2009 and obtained the medical device quality management system certification in 2009. It is also the first manufacturer in China to produce CADCAM 5 axis milling machines!
Our company covers an area of 2,000 square meters and has hundreds of employees, including dozens of professional and technical personnel. The company has long been committed to product research, development and technological innovation, and has obtained a number of national patents.
Our company has independent import and export qualifications and has obtained international certificates such as CE, SGS, and ISO13485.Currently, our products have been exported to more than 100 countries and regions around the world, including America, Europe, the Middle East, and Asia. Chongqing Zotion Dentistry Technology Co., Ltd. has a complete and scientific quality management system, standardized production and manufacturing workshops, and its production scale ranks at the forefront of the industry.
We are an influential manufacturer of dental laboratory equipment, dental consumables and laboratory heating equipment at home and abroad, covering overall solutions for dental CAD/CAM systems. We have sold tens of thousands of sets, with reliable quality, reasonable prices and good The service enjoys a good reputation.
Main products:
1.Zirconia block
2.Dry dental milling machine
3.Wet dental milling machine
4.Dental sintering furnace
5.Dental vacuum cleaner
6.Dental pmma block
7.Dental wax blank
8.Dental peek block
Certificates
Exhibition
Customer Feedback
Package and Shipping
Plastic paper inside, Poly foam filled, Wooden box outside.
Shipping：1 Express companies：Fedex， UPS，DHL
2 Sea shipping
3 Airline shipping
Shipping and Delivery: by air/ship , in 5 days after receiving the payment
Why choose us？？？
Quality Control
1. Before the order can be confirmed finally, We would strictly check the Machine Many aspectstep by step.
2. Our salesman, also as a order follower, would trace every phase of production from the beginning.
3. We have a QC team, every product would be checked by them before packed.
After Selling Good Service
1. Technicial staff 24 hours online service.
2. Any problems you meet,Just call us ,We can online videos call ,hand by hand teach you solved it. Technicial staff will working until problems solved.
3. If some problems by remote control cannot be solved,we will send Technicial staff coming your area solved.
4. Selling products is just the beginning, long Cooperate it is our goal.
Our Services
1. Experienced sales products supplier .
2. Professional Designer and sales department for your service .
3. Alibaba Golden supplier ,factory recognized by CE and ISO .
4. OEM/ODM service is Avaliable
1. Before the order can be confirmed finally, We would strictly check the Machine Many aspectstep by step.
2. Our salesman, also as a order follower, would trace every phase of production from the beginning.
3. We have a QC team, every product would be checked by them before packed.
After Selling Good Service
1. Technicial staff 24 hours online service.
2. Any problems you meet,Just call us ,We can online videos call ,hand by hand teach you solved it. Technicial staff will working until problems solved.
3. If some problems by remote control cannot be solved,we will send Technicial staff coming your area solved.
4. Selling products is just the beginning, long Cooperate it is our goal.
Our Services
1. Experienced sales products supplier .
2. Professional Designer and sales department for your service .
3. Alibaba Golden supplier ,factory recognized by CE and ISO .
4. OEM/ODM service is Avaliable
Our capabilities
The company has a strong innovation ability and can manufacture machines that others do not have. You will never worry that you will not be able to keep up with the changes in the market.
We can always bring your customers suprise.
The company has a strong innovation ability and can manufacture machines that others do not have. You will never worry that you will not be able to keep up with the changes in the market.
We can always bring your customers suprise.
FAQ
Q1. Are you a manufacturer company?
A: We are a OEM/ODM Professional manufacturing company in dentistry since 2009 with more than 15 years experience
Q2. How long is your delivery time? If I want to customize the prodcuts, how long does it take?
A.1. If the products are in stock, it is 5-7 working days.
2. We can provide customized services for our customers. It usually takes 15-30 days.
Q3.How can I order?
A: We will make quotation after you send us your purchase plan(including product name, model and quantity). If you agree with the quotation, please send us your company name, address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly.
Q4. How is your company's product after-sales service?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have
professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
If you have problem in using, you can describe the problem details, we will ask technician to give your solution. Free spare partscan be provided if necessary.
Q5. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q6. How to pay?
A.T / T, Westerin Union ,RMB ,Paypal etc, it is recommended to use Alibaba Trade Guarantee.
Q7. How is the package of goods? Delivery methods?
A. Standard export fumigation sign wooden box packaging 2. Express, air, sea freight according to customer requirements, find the most suitable way.
