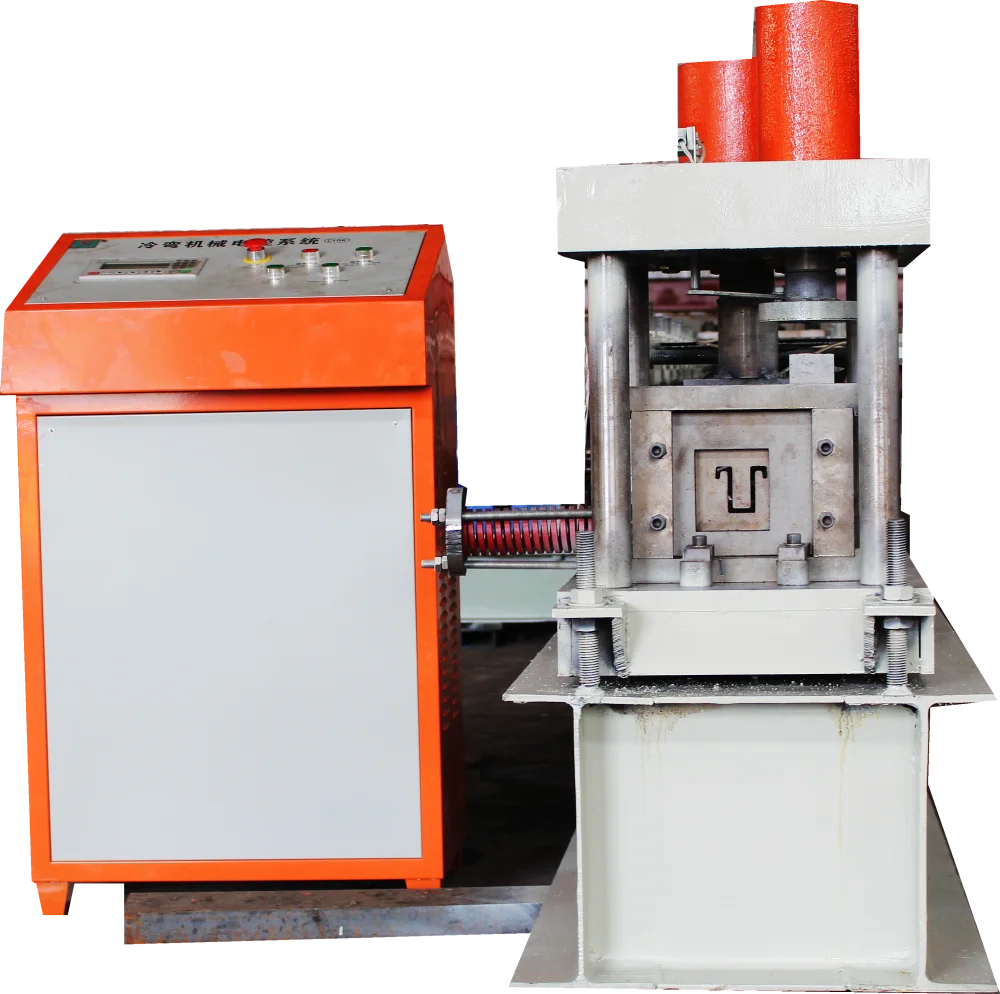

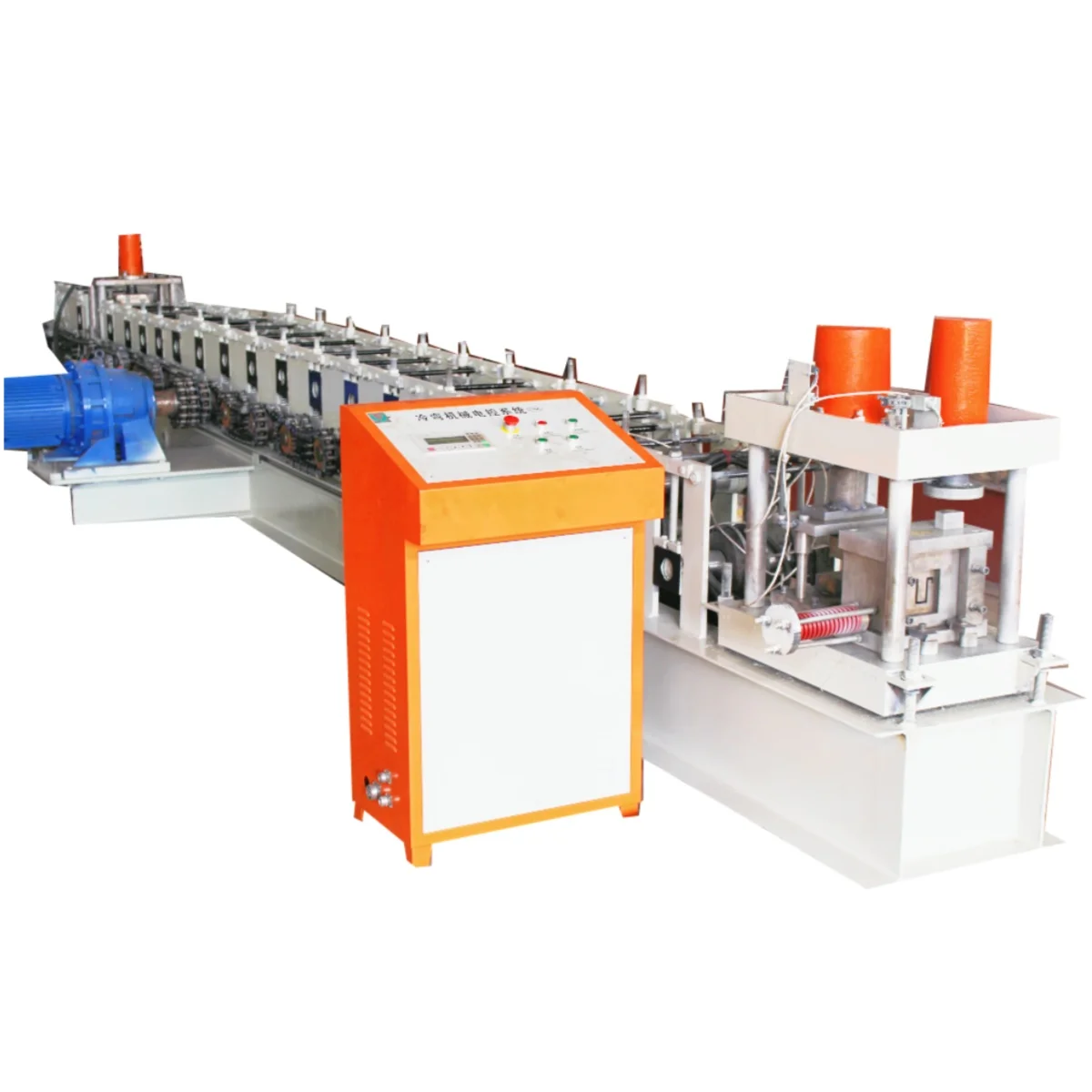

Steel Frame Roll Forming Machine Fully Automatic Steel Structure Making Machine
- Category: >>>
- Supplier: Cangzhou Guangchi Machinery Co. Ltd.
Share on (1601110562020):
Product Overview
Description
Product Description

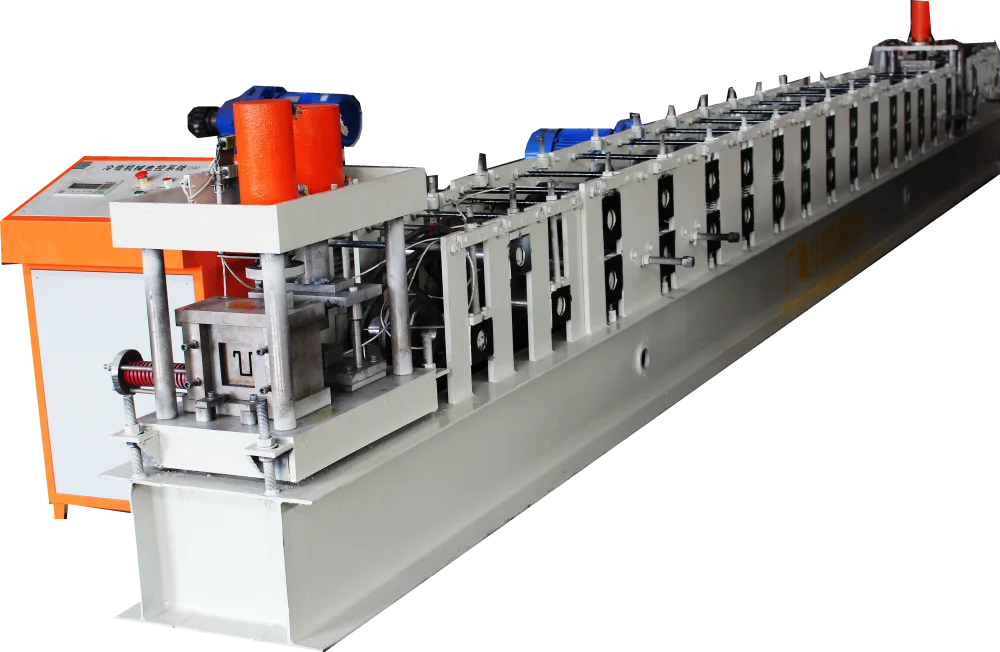

Decoiler (feeding materials)---Levelling---Punching---Roll Forming---Cutting--Output Table

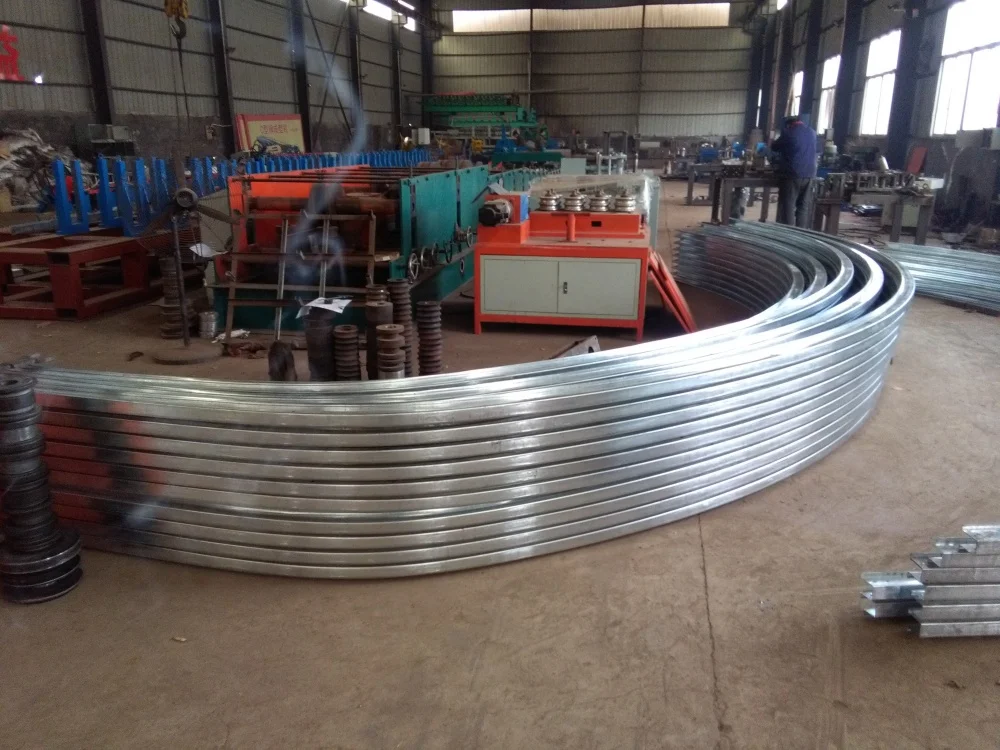

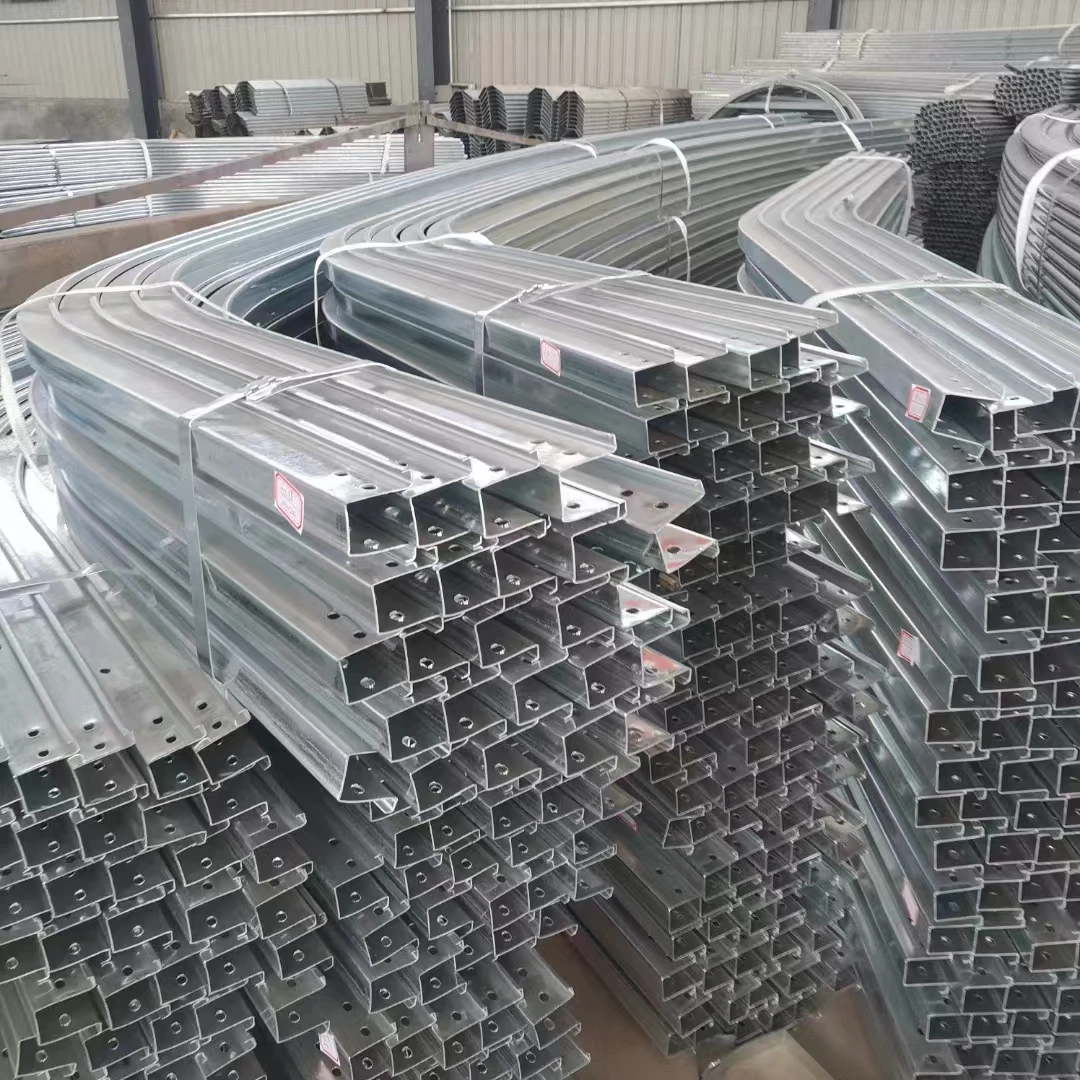

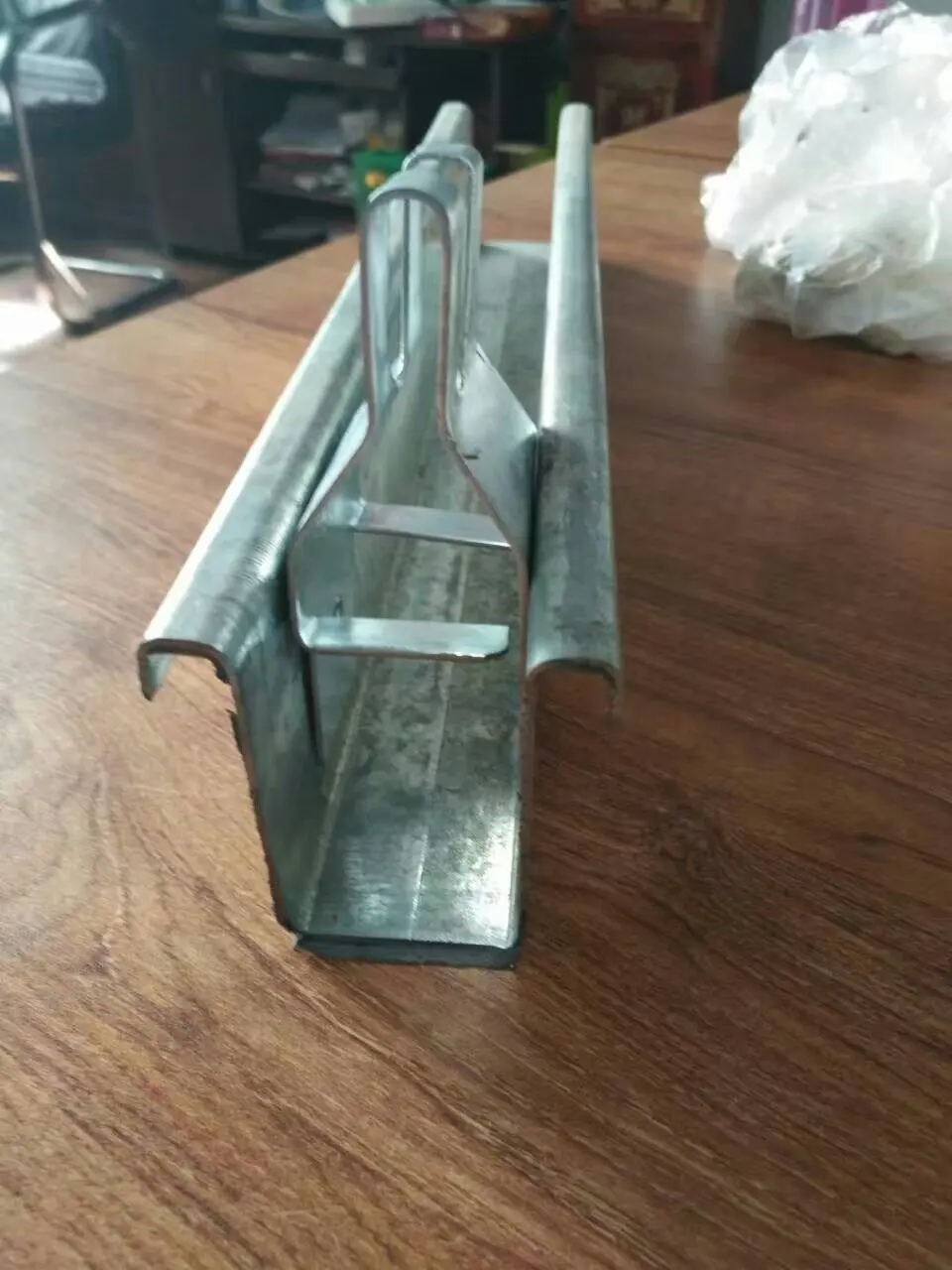

Finished product display
Dear customers:
Thanks for giving us the chance to introduce our machines. We have manufacturing factory , if you want greenhouse steel frame forming machine ,welcome to contact us , just need to tell us the parameters and which system you need ,we will give you a professional plan and quotation as soon as possible.
Thanks for giving us the chance to introduce our machines. We have manufacturing factory , if you want greenhouse steel frame forming machine ,welcome to contact us , just need to tell us the parameters and which system you need ,we will give you a professional plan and quotation as soon as possible.
Our boss is the designer who graduated from university about machinery and she has more than 20 years experiences in this field. Lots of export roll forming machines are made in our factory and got great praised from our customers. By now, we have already established our import and export department, and hope to contact with foreign friends directly.

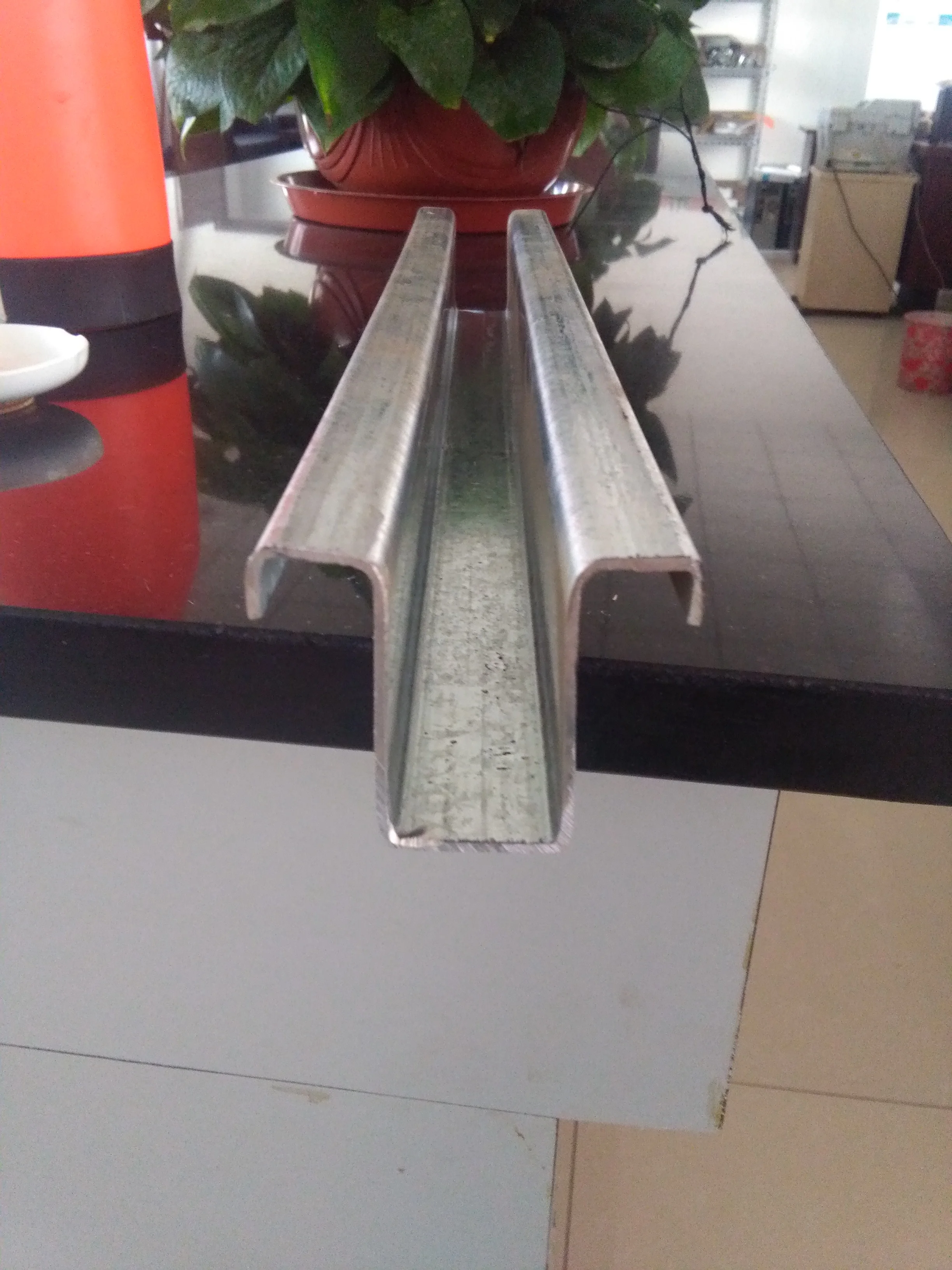

The roll forming machine listed is a new type for making "几-type（in Chinese, sorry i don't know how to express in English）" steel frame used in building greenhouses. What's the features about this type?
The roll forming machine listed is a new type for making "几-type（in Chinese, sorry i don't know how to express in English）" steel frame used in building greenhouses. What's the features about this type?
1. The beam has a large section moment of inertia, resulting in high force performance.
2. Flanging on both sides of the upper flange of the beam enhances its mechanical performance and increases the contact surface between the film and the panel,effectively reducing the frequency of greenhouse skeleton usage.
3.This design greatly improves the load-bearing capacity of the greenhouse, especially in areas with large snow and wind.The unique arch structure effectively reduces the dew phenomenon and avoids the impact of water droplets on crops when the temperature difference is large.
4. Easy installation and simple maintenance. The skeleton is produced by forming equipment, making the installation process quick and convenient, without welding points, and not easy to rust for a long time.This reduces the cost of greenhouse construction and maintenance.

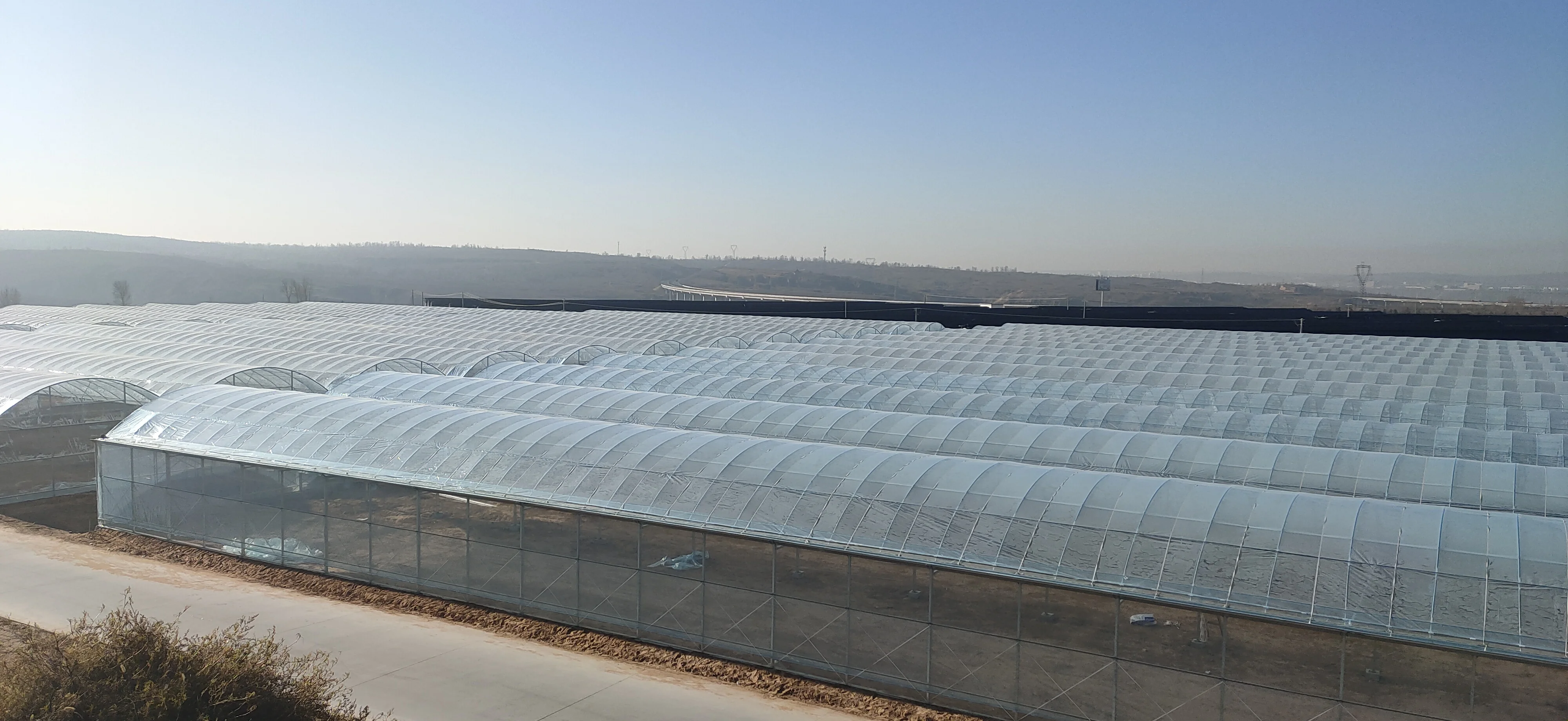

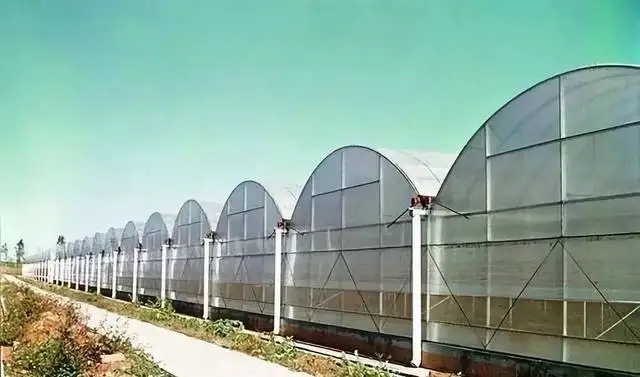

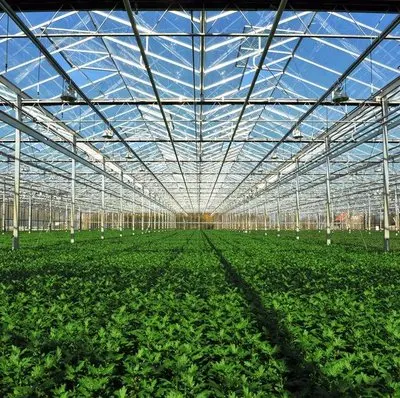

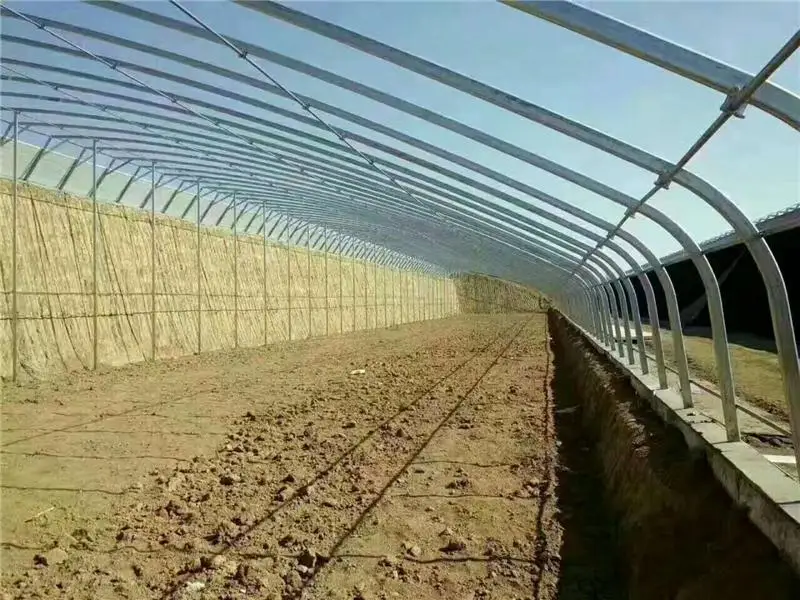

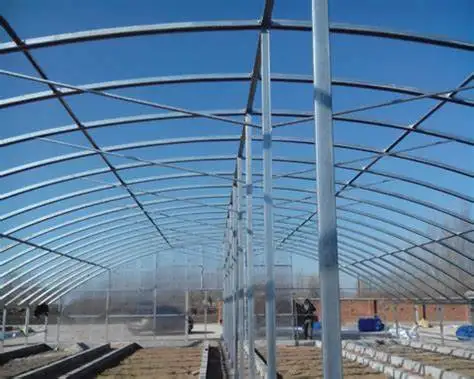

Usage
Specification
No. | Item | Data |
1 | Product Name | Greenhouse Steel Frame Forming Machine |
2 | Frame | 350H steel |
3 | Hydraulic motor | 22KW |
4 | Cutting Way | Hydraulic Automatic |
5 | Material of Shafts | 45# finishing |
6 | Punching | Before hydraulic forming |
7 | Transmission Way | by 2-inch chain |
8 | Wall Panel Thickness | 18mm |
9 | Capacity of Decoiler | 3000KG |
10 | Control System | PLC |
11 | Forming Thickness | 2mm |
12 | Row number | 16 |
13 | Diameter of Shafts | 80mm |
14 | Material of Rolls | Cr15 |
Company Profile
Why choose us?
1. We have separate workshop to produce each part of the machine, especially for shafts and rolls, Which got highly praised from our customers.
2. We have import and export qualifications which can cooperate with foreign country customers directly. Not only convenient but
also save money.
3. We have more than 10 years experiences in this field, which can provide you professional suggestions about your products, and help you get top sales.
CERTIFICATE
