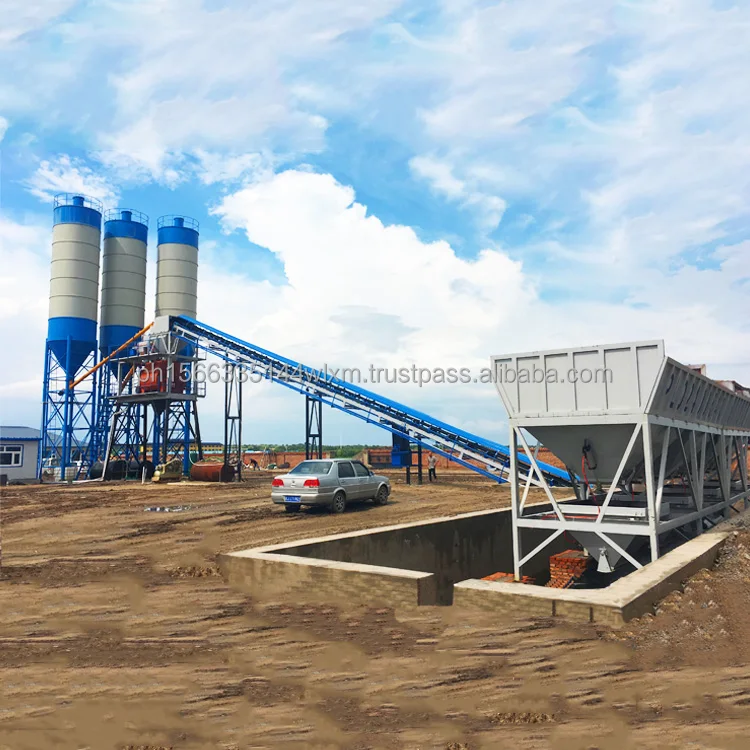

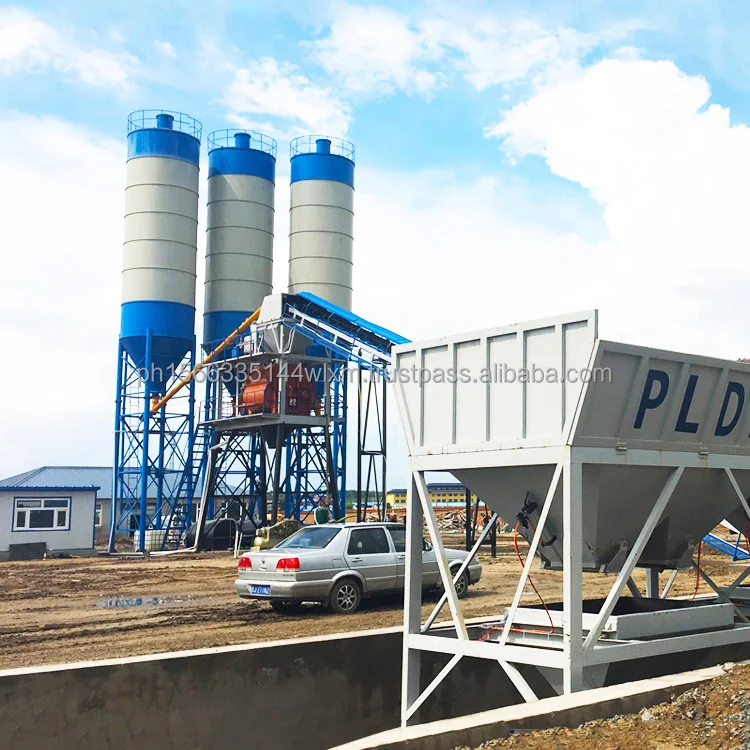

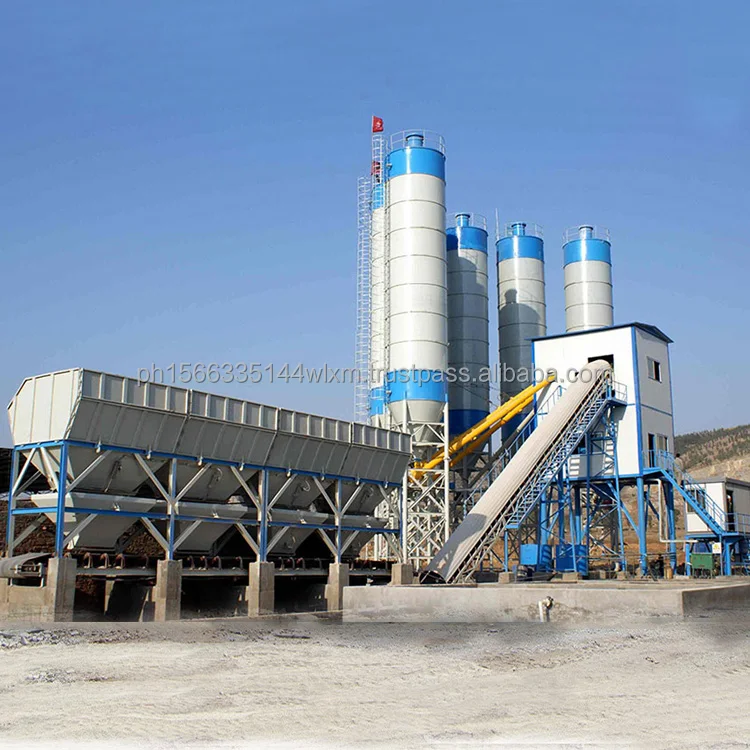

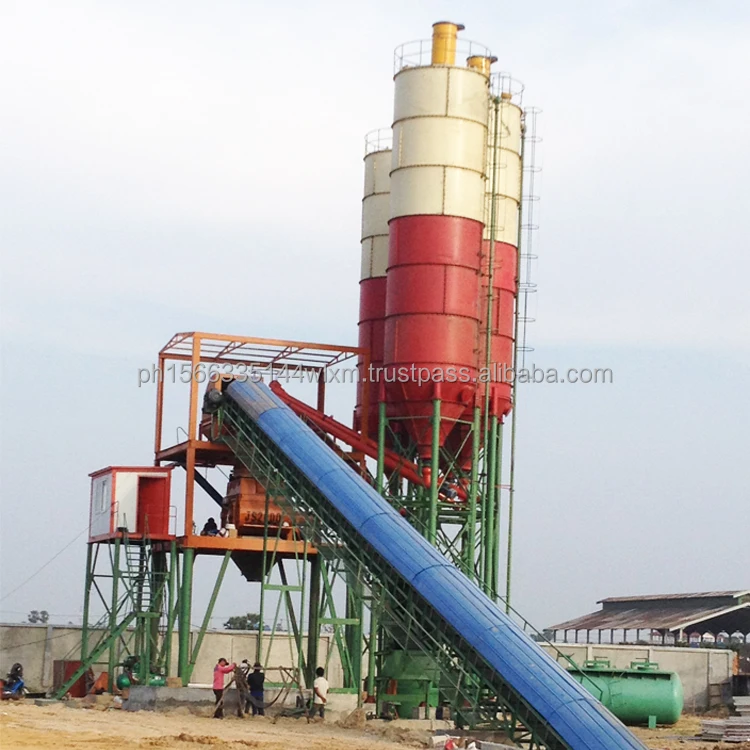

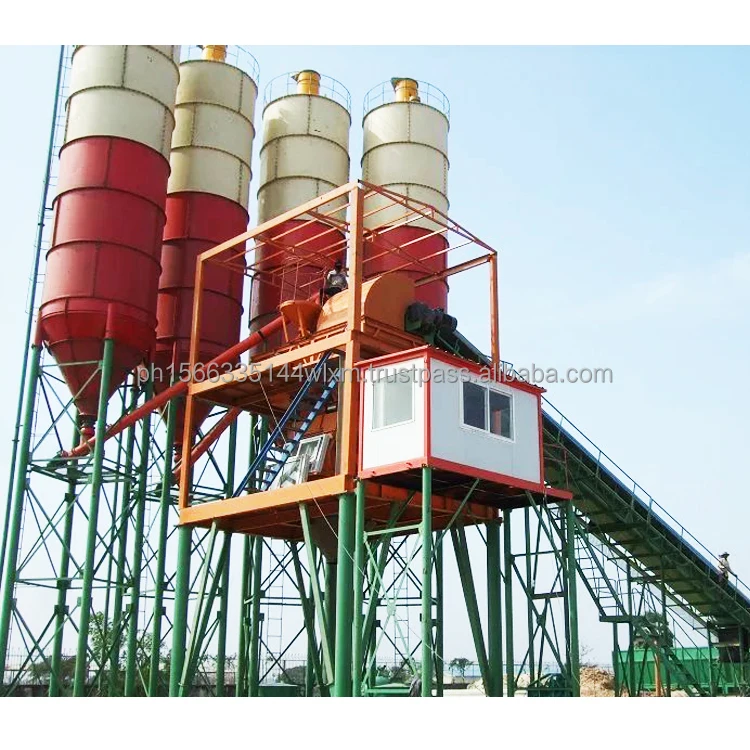

Full automatic Control System Concrete Plant 120 m3/h Twin Shafts Mixer Concrete Batching Plant for Sale
- Category: >>>
- Supplier: JJEM TRADINGJJEM TRADING
Share on (1601110629238):
Product Overview
Description
Product Description
Stationary small 60m3 concrete batching plant for sale
HZS series is a new kind of compulsory volumetric concrete mixing equipment. It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.And also has the efficiency mixing well, high productivity can get 50m3/h ,60m3/h,75m3/h,90m3/h ,120m3/h and more high capacity as you needed.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc.
It's have unique control room ,make all operation highly automate, flexibility, convenient , and stability.
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc.
They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Specification
Model | HZS60 | HZS90 | HZS120 | HZS180 | |||||
Capacity | 60m3/h | 90m3/h | 120m3/h | 180m3/h | |||||
Mixing system | Twin-shaft concrete mixer | ||||||||
Concrete mixer | JS1000 | JS1500 | JS2000 | JS3000 | |||||
Aggregate batching machine | PLD1600 | PLD1600 | PLD2400 | PLD3200 | |||||
Aggregate feeder | Belt conveyor | ||||||||
Discharging height | 4100mm or custom | ||||||||
After-sale service | Erection & commissioning, operator training | ||||||||
Warranty | 18 months | ||||||||
Weighing system | Water, Cement, Additive | ||||||||
Air system | Air compressor, etc | ||||||||
Control system Type | Computer auto-control module ( PLC can be optional item) | ||||||||
Control room | With Air conditioner | ||||||||
Screw conveyor diameter & length | Ø219mm/273mm, L=8000mm/9000mm | ||||||||
Cement silo capacity | 50t/100t/150t/200t | ||||||||
Details Images
Main Features
1.Horizontal twin shaft compulsory mixer has the strong mixing ability with uniform mixing and big production output. The admixtures are widely mixed by the shafts.
2.The mixing shafts adopt anti-binding technology to prevent the cement from binding on the shafts.
3.Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace. at the same time,improves the machines durability and reliability.
4.The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity; 5.Decelerating system uses high-speed, synchronized, and closed planetary decelerators.
6.The opening of discharge gate can be adjusted by hydraulic system as per specific requirements. 7.Power,water and additive all adopt in electronic scale measuring,it has high accuracy of batching.
6.The opening of discharge gate can be adjusted by hydraulic system as per specific requirements. 7.Power,water and additive all adopt in electronic scale measuring,it has high accuracy of batching.
Concrete Mixer
Batching Machine
PLD6400 is available
Control System
manual control in one;reliable performance
Cement Silo
Certifications
Packing & Delivery
Company Profile
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
For 40 years, UNIQUE Group relied on scientific and technological innovation, optimize the structure of products. Concrete machinery products are currently JZC series, JS series concrete mixer, PLD concrete batching machine, HZS series concrete mixing plant, mobile concrete mixing plant, WBZ-series stabilized soil mixing plant, planetary concrete mixers and so on concrete mixing machinery.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
Exhibition
FAQ
Q1:Are you original manufacture?
Q3:What about the delivery time?
Q4:Do you supply after-sale service?
Q5:Can I visit your factory?
A:Yes, We are factory and a professional manufacture of concrete batching plant and concrete mixer and we have the whole series products you need.
Q2:What about the warranty time?
A:18 months.
Q3:What about the delivery time?
A:10-15 days after receiving the deposit.
Q4:Do you supply after-sale service?
A: Yes,we have a professional service team that can solve problems ASAP on site or on line.
Q5:Can I visit your factory?
A:Yes. welcome to your visiting or on line any time when you are convenient.
