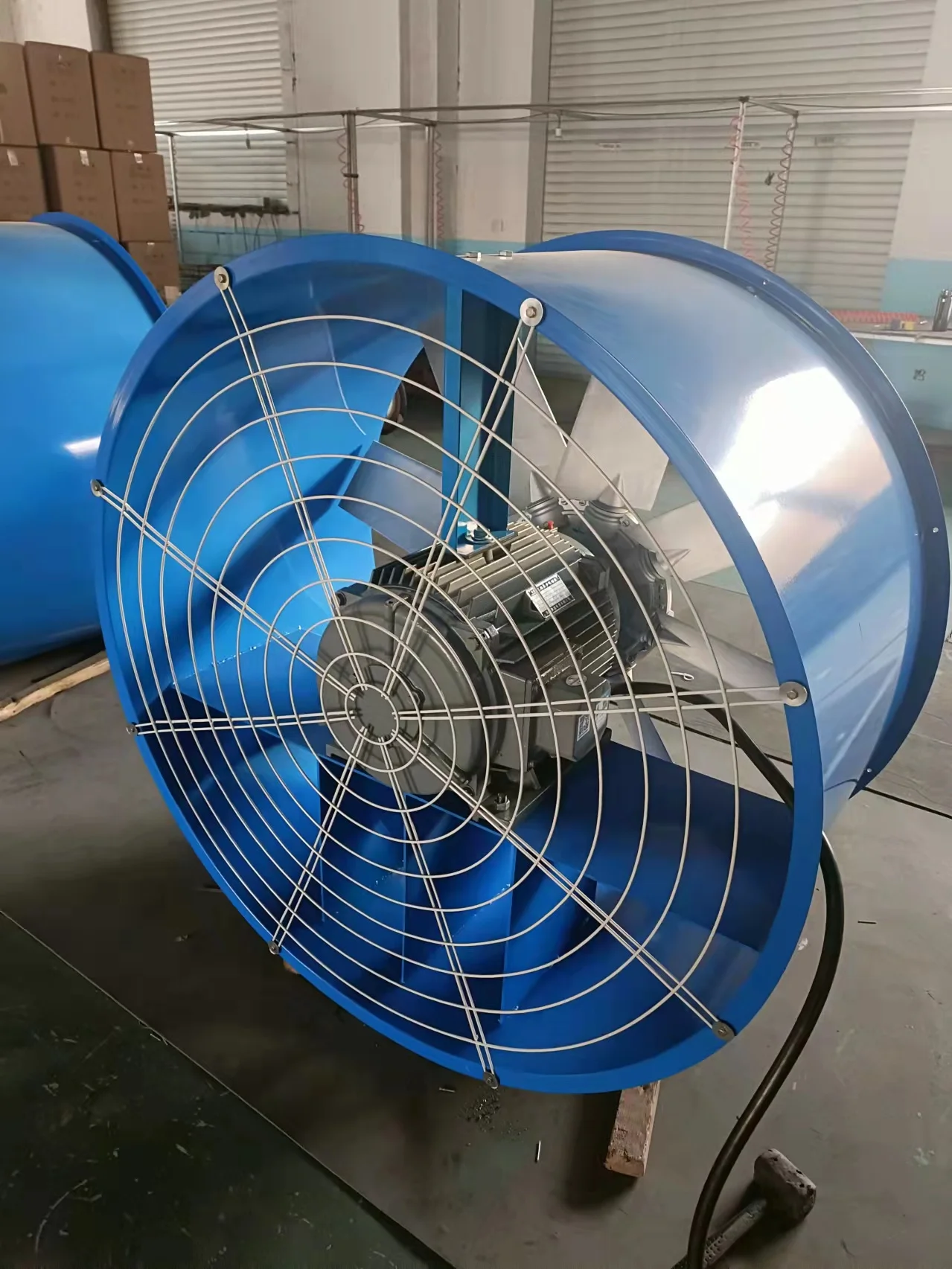

Custom OCM 220V/380V/50hz/60hz Industrial Axial Flow Fan Ventilation
- Category: >>>
- Supplier: Qingdao Damuyuan Machinery Manufacturing Co. Ltd.
Share on (1601110656742):
Product Overview
Description
Product Description

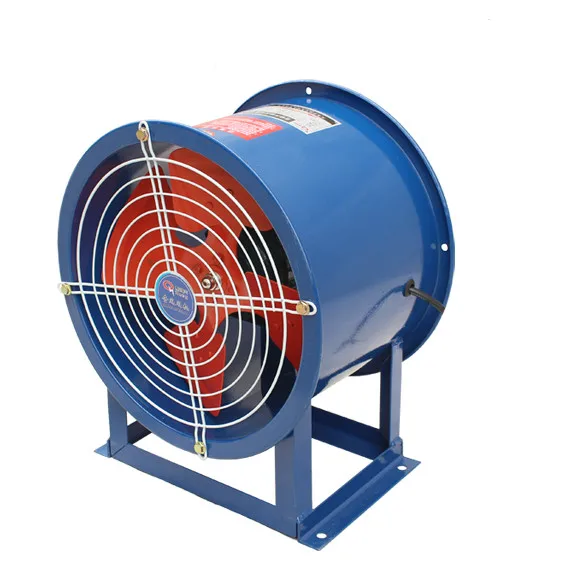

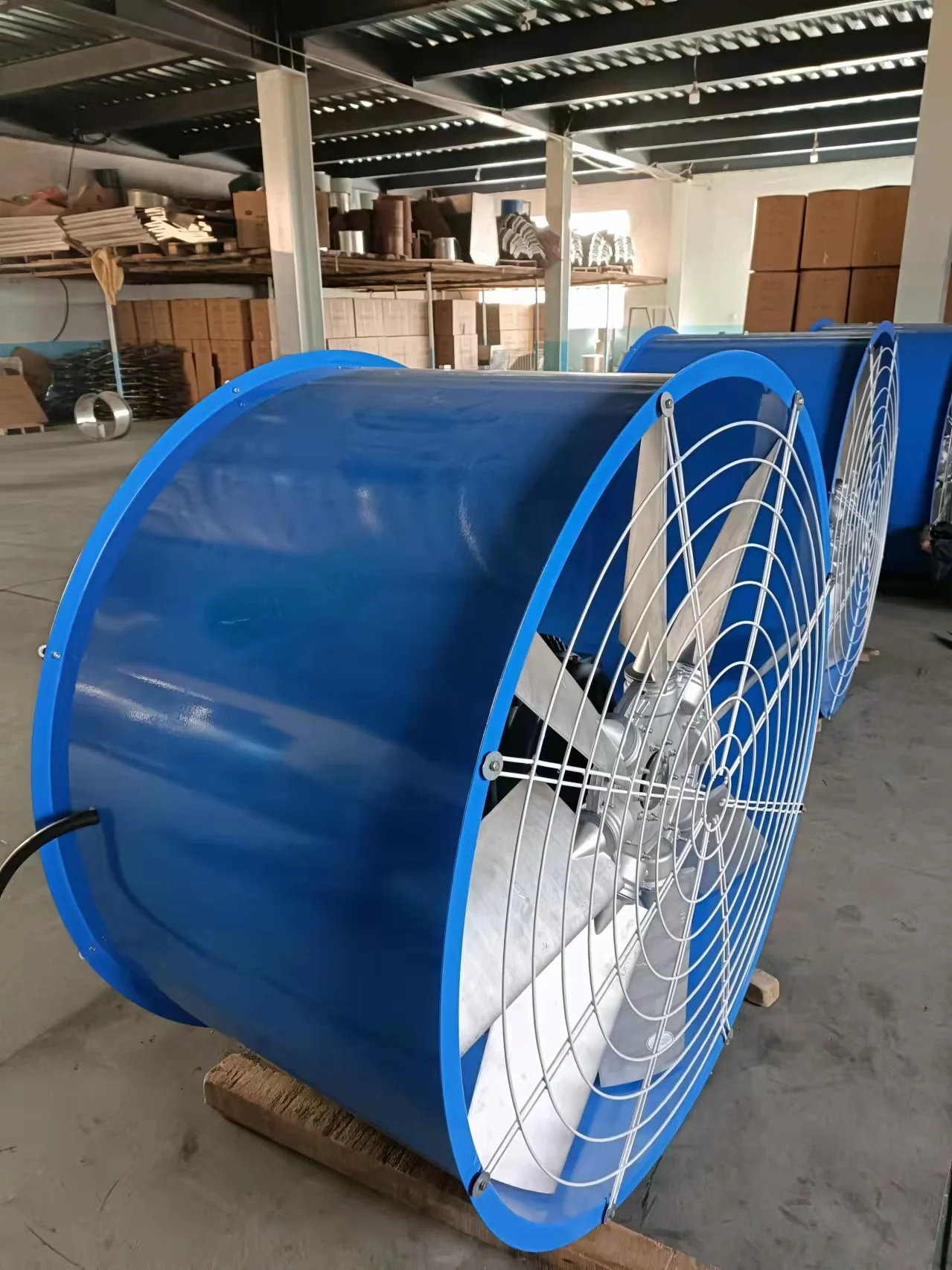

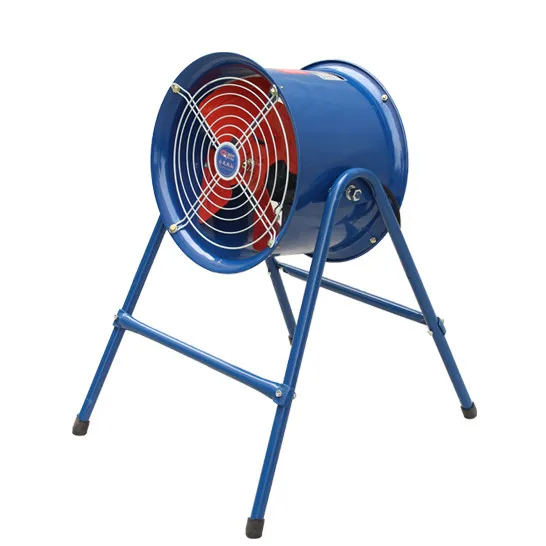

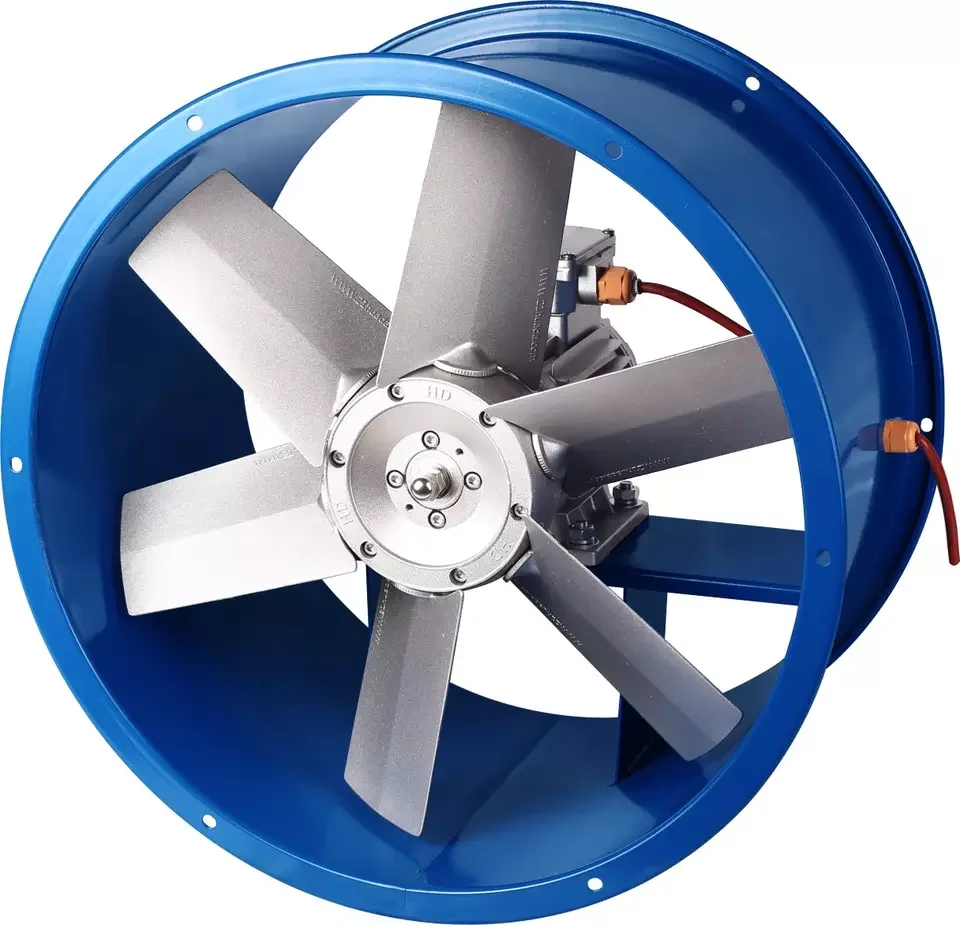

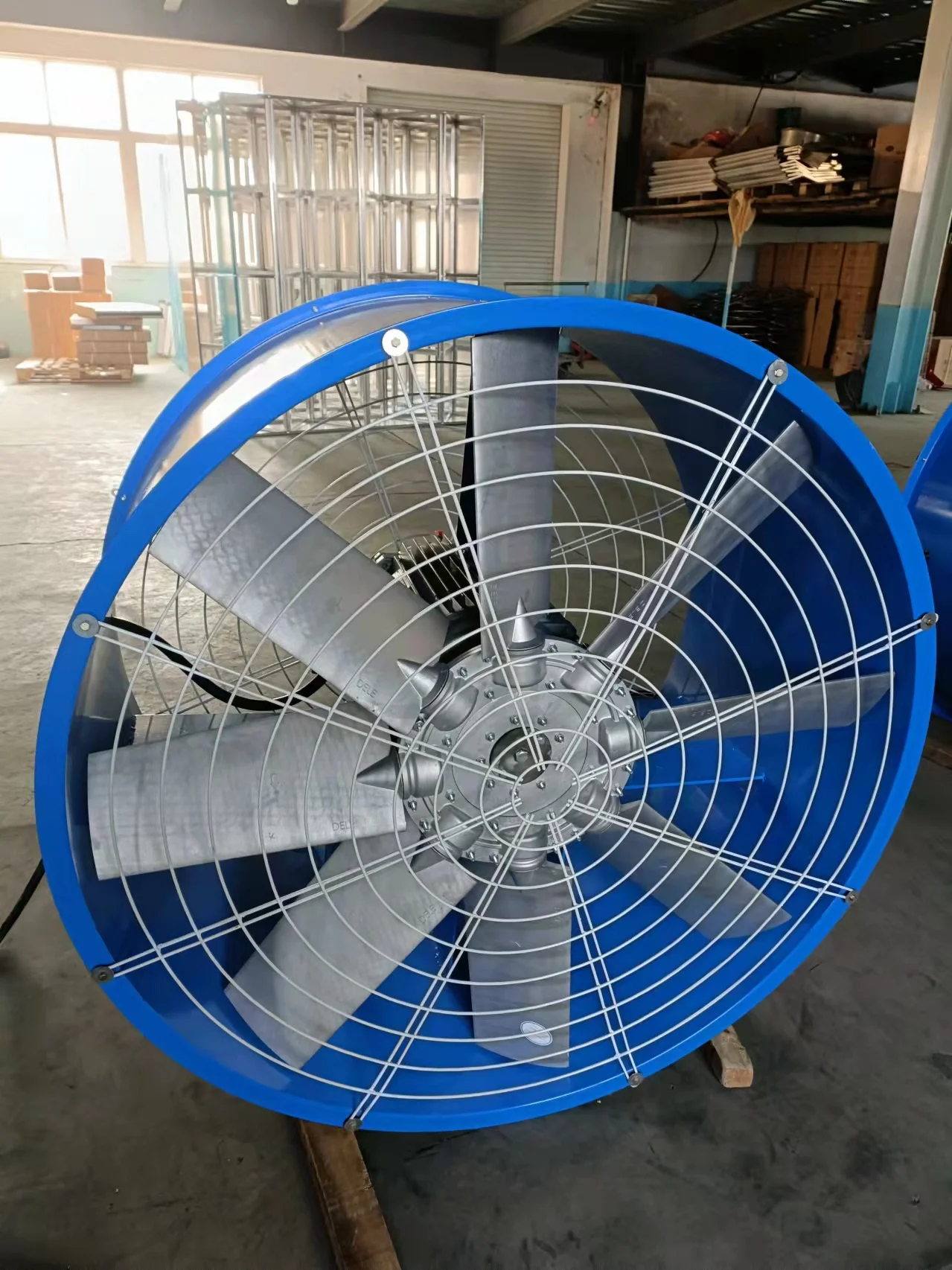

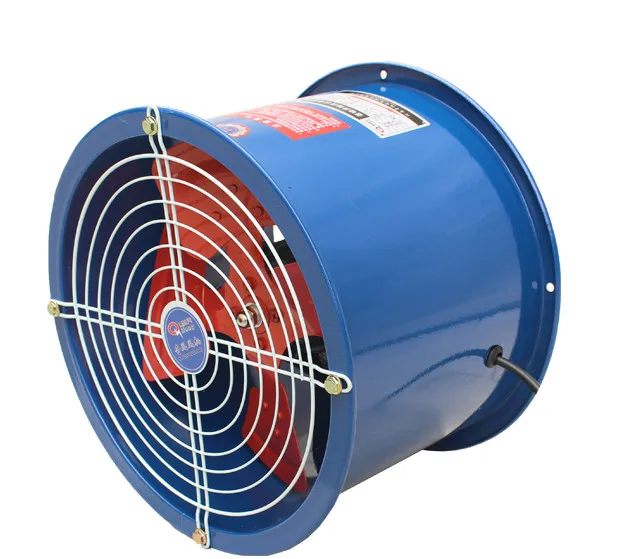

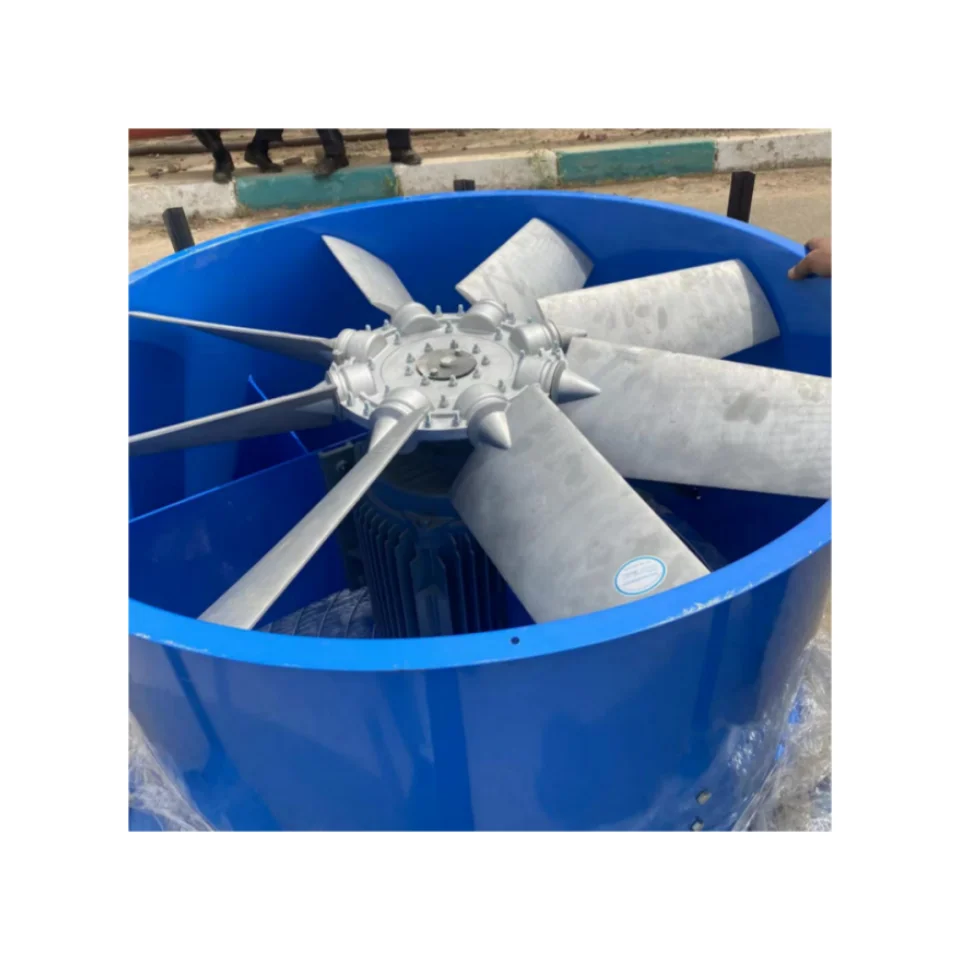

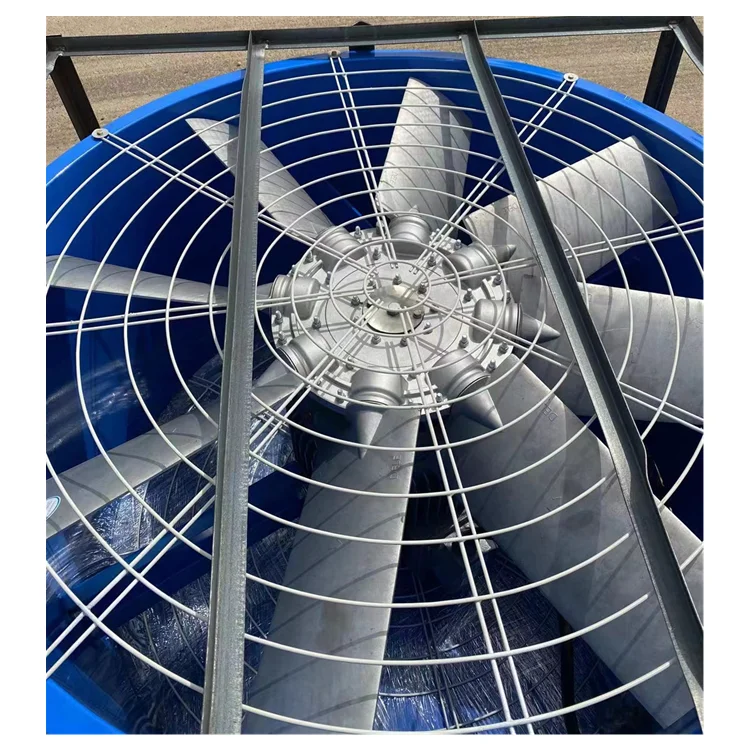

Big size big volume exhaust fan axial fan
Product Introduction:
Axis flow fans are mainly composed by electric machinery, blades and ram. fans are suitable for explosive environment with temperature class T1 to T4. They are applicable to explosive dangerous places like oil refining, storage, chemistry, medicine and military industry for air exchanging and refreshing.With width and tilting shades, fans could achieve the needed blast capacity and pressure under low drive. Blades are adjustable and symmetrical, they are capable of ventilation from the front and the back side.With low noise, low energy consuming and high explosion-proof quality, have man installation ways like wall mounted type, dusted type, post type and fixed type.
Specification
The Technical data | ||||||||||
Model | Rrotation speed (rpm) | Air volume (m³/h) | Total pressure (pa) | Static pressure (pa) | Power (kw) | |||||
250mm | 2900 | 2100-1400 | 90-126 | 50-81 | 0.18 | |||||
1450 | 1100-700 | 23-33 | 13-25 | 0.12 | ||||||
300mm | 2900 | 3000-2000 | 120-150 | 60-120 | 0.37 | |||||
1450 | 1900-1200 | 40-50 | 20-30 | 0.18 | ||||||
350mm | 2900 | 4600-3000 | 140-210 | 60-160 | 0.37 | |||||
5500-3500 | 160-220 | 60-170 | 0.55 | |||||||
1450 | 2900-1800 | 50-65 | 20-40 | 0.25 | ||||||
400mm | 2900 | 5000-3000 | 110-200 | 60-180 | 0.55 | |||||
6500-4000 | 160-250 | 70-200 | 0.75 | |||||||
7000-4500 | 200-280 | 80-210 | 1.1 | |||||||
1450 | 3500-2000 | 60-70 | 30-60 | 0.25 | ||||||
4000-2500 | 70-78 | 35-52 | 0.37 | |||||||
4300-2800 | 72-80 | 26-47 | 0.55 | |||||||
500mm | 1450 | 6500-5300 | 125-135 | 60-90 | 0.37 | |||||
7000-5500 | 130-145 | 70-105 | 0.55 | |||||||
8500-6000 | 138-150 | 80-100 | 0.75 | |||||||
960 | 4600-3600 | 57-61 | 40-50 | 0.18 | ||||||
5600-4000 | 60-66 | 40-48 | 0.25 | |||||||
550mm | 1450 | 9000-6000 | 138-150 | 80-116 | 0.75 | |||||
960 | 6500-4600 | 61-75 | 42-50 | 0.37 | ||||||
600mm | 1450 | 11500-7500 | 140-160 | 80-130 | 1.1 | |||||
13500-8000 | 160-180 | 80-130 | 1.5 | |||||||
14500-8500 | 165-200 | 80-135 | 2.2 | |||||||
960 | 8500-5000 | 57-85 | 45-55 | 0.37 | ||||||
9600-5600 | 72-100 | 45-58 | 0.55 | |||||||
700mm | 1450 | 17500-10000 | 180-220 | 140-175 | 1.5 | |||||
20000-12000 | 200-250 | 145-180 | 2.2 | |||||||
21000-13000 | 220-300 | 150-185 | 3 | |||||||
960 | 13000-8000 | 88-110 | 63-80 | 0.75 | ||||||
14000-8600 | 96-130 | 65-82 | 1.1 | |||||||
800mm | 1450 | 25000-15000 | 180-270 | 100-260 | 2.2 | |||||
27000-17000 | 210-300 | 120-260 | 3 | |||||||
30000-20000 | 240-330 | 125-265 | 4 | |||||||
33000-23000 | 270-350 | 125-270 | 5.5 | |||||||
960 | 20000-13000 | 110-145 | 53-105 | 1.5 | ||||||
22000-15000 | 120-155 | 50-100 | 2.2 | |||||||
900mm | 1450 | 34000-20000 | 240-340 | 160-320 | 4 | |||||
36000-22000 | 250-350 | 150-310 | 5.5 | |||||||
40000-24000 | 320-380 | 155-320 | 7.5 | |||||||
960 | 22000-13000 | 100-140 | 70-120 | 2.2 | ||||||
24000-15000 | 120-160 | 70-136 | 3 | |||||||
28000-18000 | 140-180 | 75-140 | 4 | |||||||
1000mm | 1450 | 36000-23000 | 250-400 | 160-370 | 5.5 | |||||
40000-28000 | 270-420 | 165-380 | 7.5 | |||||||
960 | 31500-20000 | 150-220 | 90-170 | 4 | ||||||
33000-21000 | 160-230 | 90-176 | 5.5 | |||||||
Packing & Delivery
We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.
Company Profile
Qingdao Damuyuan Machinery Manufacturing Co., LTD is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan, Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans. We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technical parameters are truth & reliable.
