Product Overview
Description
Product Usage
The system employs the TCP/IP protocol and compete digital transmission. It Can Realize The Tw-Way Communication For Nurse And
Patient Call Pagers.
A PC software management for Nurse station, and the Nurse master station to answer the calling from sickbed substations.
Patient Call Pagers.
A PC software management for Nurse station, and the Nurse master station to answer the calling from sickbed substations.
There is a corridor display hand up to show the calling room alert. • Corridor lamps to alarm the disable call buttons pressed.
Sickbed substations are built to be two way communication with Nurse station.
Waterproof call buttons for emergency call.
Emergency Panic Button Patient Nurse Calling Alarm Bed Call Bell IP Intercom Communication System
UMP VOIP hospital intercom system is with more functions and easy operation. It employs the TCP/IP protocol and compete digital
transmission. Except for the two-way intercom, it also can achieve powerful data sharing. It is the true meaning of the
intelligence and information intercommunication system.
transmission. Except for the two-way intercom, it also can achieve powerful data sharing. It is the true meaning of the
intelligence and information intercommunication system.
FOR NURSE STATION
PC Software Management/Main Receiver : UMP-DS011
▲ Screen Size: 10 inch
▲ Color: Silver + Black
▲ Installation Method: Place Desktop
▲ Working Mode: Network
▲ Device Dimension: 360×210×35mm
▲Main Functions
1. Hand/Hands-free duplex conversation, can call or be called.
2. One way broadcasting (point to point, zone or all zones)
3. Call transfer, busy transfer, missed call reminder.
4. Monitoring and surveilling junior paging microphones and intercom terminals.
5. Has 2 short-out interfaces, can control devices, e.g. alarm light.
6. Works everywhere as long as Enthenet available, support
7. Support span net segment and routing. Support SIP (Audio function)
3. Call transfer, busy transfer, missed call reminder.
4. Monitoring and surveilling junior paging microphones and intercom terminals.
5. Has 2 short-out interfaces, can control devices, e.g. alarm light.
6. Works everywhere as long as Enthenet available, support
7. Support span net segment and routing. Support SIP (Audio function)
FOR CORRIDOR
Corridor Display :UMP-XS032
▲ LED dot matrix Display
▲ Power Supply: AC 100~240V 50/60Hz
▲ Transmission Protocol: TCP, UDP
▲ Installation Method: Wall Mount
▲ Dimension: 762（W）x155（H）x38（D）mm
▲ Main Functions:
1. Single side, 8 characters per line, LED monochrome display
2. Show time and custom slogan when no call
3. Show the content of the call when calling
▲ Power Supply: AC 100~240V 50/60Hz
▲ Transmission Protocol: TCP, UDP
▲ Installation Method: Wall Mount
▲ Dimension: 762（W）x155（H）x38（D）mm
▲ Main Functions:
1. Single side, 8 characters per line, LED monochrome display
2. Show time and custom slogan when no call
3. Show the content of the call when calling

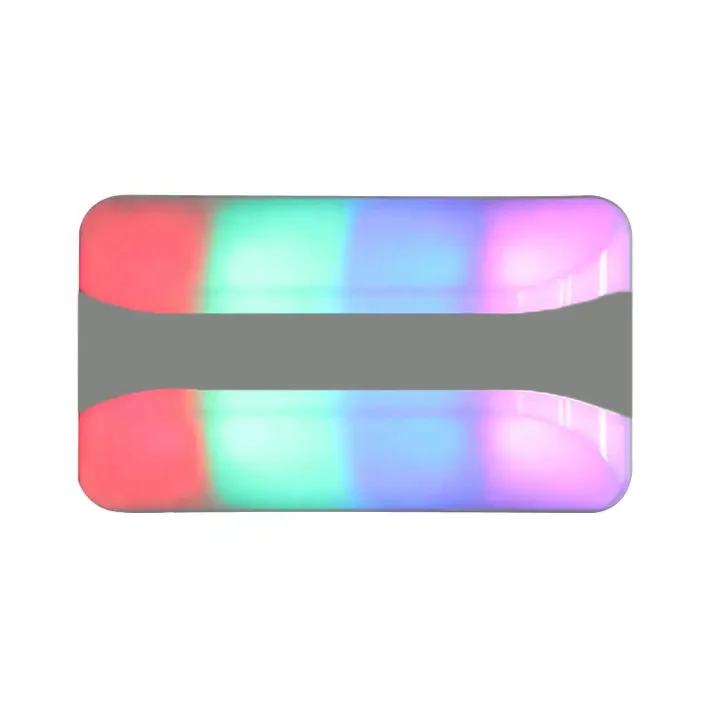

Corridor lamp :UMP-TC013
▲ Total 8 colors (Red、green、blue、dark blue、yellow、purple、light blue、White)
▲ Transmission Protocol: IO
▲ Power Supply: IO
▲ External interface: 5-core cable
▲ Dimension: 62（W）x92（H）x50（D）mm
▲ Main Functions:
1. Access to the doorway machine or bed extension for communication through IO bus
2. Different color indicates different service area
▲ Transmission Protocol: IO
▲ Power Supply: IO
▲ External interface: 5-core cable
▲ Dimension: 62（W）x92（H）x50（D）mm
▲ Main Functions:
1. Access to the doorway machine or bed extension for communication through IO bus
2. Different color indicates different service area
FOR BEDSIDE

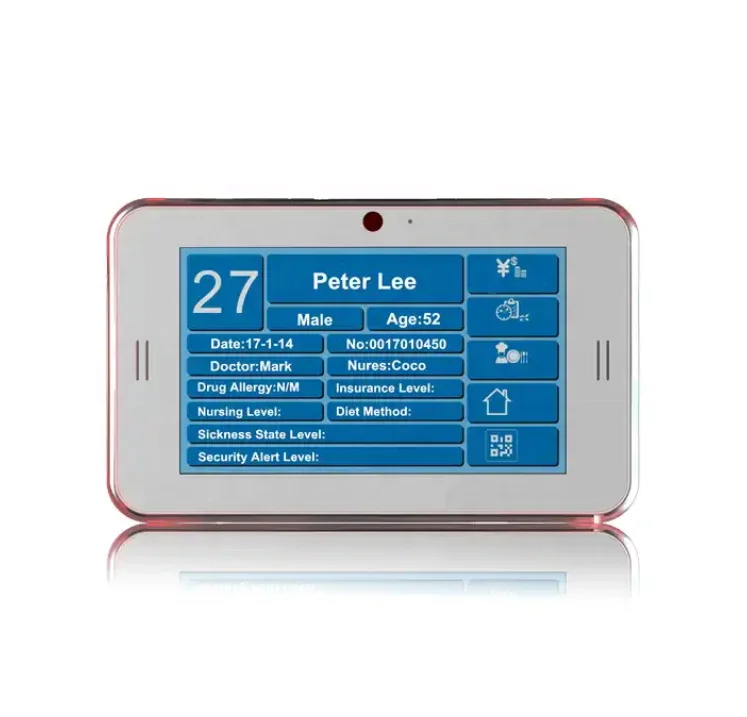

Call Push Substations : UMP-XT020
▲ LINUX System
▲ Power Supply: DC 12V/300mA
▲ Two Keys: Call, Reset
▲ Power Consumption: ≤4W
▲ Transmission Protocol: TCP, UDP
▲ Installation Method: Pre-embedded Standard 86 bottom box
▲ Material: ABS Plastic
▲ Power Supply: DC 12V/300mA
▲ Two Keys: Call, Reset
▲ Power Consumption: ≤4W
▲ Transmission Protocol: TCP, UDP
▲ Installation Method: Pre-embedded Standard 86 bottom box
▲ Material: ABS Plastic
FOR WASHROOM

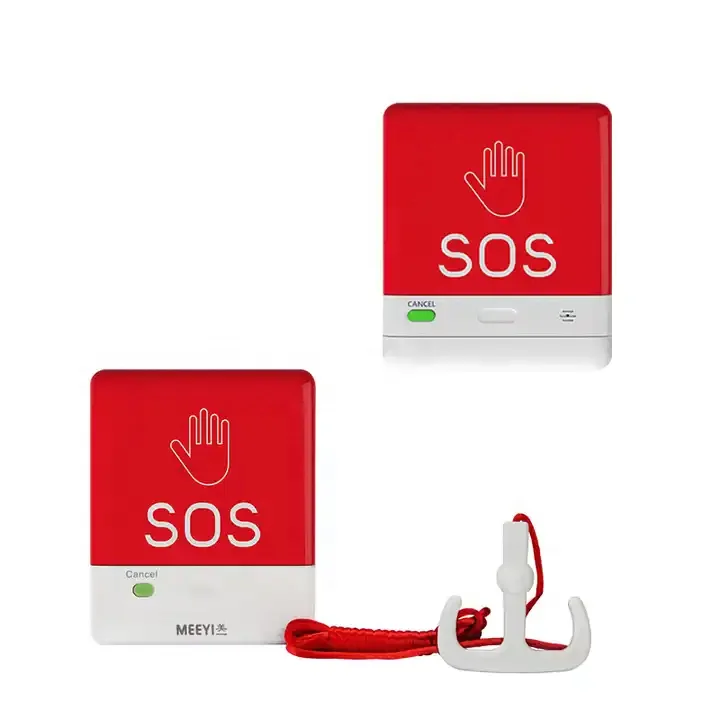

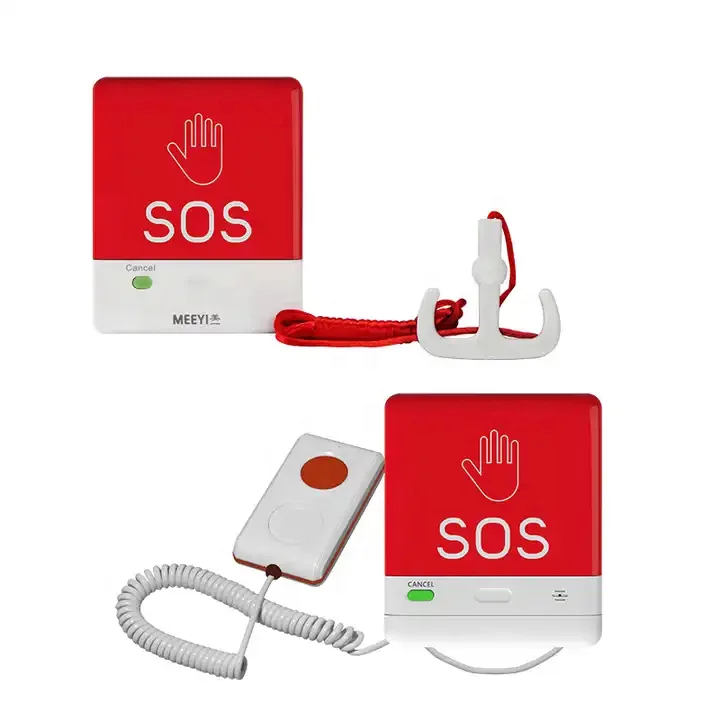

Pullcord Call Button :UMP-TP305
▲ IP56 Waterproof
▲ Transmission Protocol: IO
▲ Power Supply: IO
▲ Two Keys: Call, Reset
▲ External interface: 4-core cable
▲ Installation Method: Surface Mounted
▲ Dimension: 86（W）x106（H）x21（D）mm
▲ Customized LOGO
▲ Transmission Protocol: IO
▲ Power Supply: IO
▲ Two Keys: Call, Reset
▲ External interface: 4-core cable
▲ Installation Method: Surface Mounted
▲ Dimension: 86（W）x106（H）x21（D）mm
▲ Customized LOGO
FOR NURSE STATION
PC Software Management:UP-5232
▲ Customizable call content.
▲ Built-in 6 chord tone reminder function.
▲ With multiple service status processing methods.
▲ Basic intelligent statistical analysis management function.
▲ With flexible configuration of service software application scenarios.
▲ Realizing third-party application platform docking through HTTP.
▲ With 11 countries voice broadcast, support "report what you write". With custom call timeout, warning and alarm timeout time.
▲ With 11 languages text message display, support "show what you write".
▲ With precise conditions of historical message access and message export.
▲ Built-in 6 chord tone reminder function.
▲ With multiple service status processing methods.
▲ Basic intelligent statistical analysis management function.
▲ With flexible configuration of service software application scenarios.
▲ Realizing third-party application platform docking through HTTP.
▲ With 11 countries voice broadcast, support "report what you write". With custom call timeout, warning and alarm timeout time.
▲ With 11 languages text message display, support "show what you write".
▲ With precise conditions of historical message access and message export.
Main Receiver :UP-CC33
▲ Screen Size: 10.1 inch
▲ Capacitive Touch Screen
▲ Power Supply: DC 12V 1A
▲ Installation Method: Place Desktop, Wall Mount
▲ Dimension: 320（W）x211（H）x26.5（D）mm
▲ Main Functions:
1. Host display: menu type, can operate the host location name, date, time, calling device, etc.
2. Voice report number: When the pager calls the host, the host displays the content of the call, and the voice reports "call
content"
3. Historical message access: host can query and export messages based on call time, processing status, call area, call location,
and service status for precise conditions
4. Statistics management: Statistics can be used to query the service processing status, and perform simple statistical scoring
▲ Installation Method: Place Desktop, Wall Mount
▲ Dimension: 320（W）x211（H）x26.5（D）mm
▲ Main Functions:
1. Host display: menu type, can operate the host location name, date, time, calling device, etc.
2. Voice report number: When the pager calls the host, the host displays the content of the call, and the voice reports "call
content"
3. Historical message access: host can query and export messages based on call time, processing status, call area, call location,
and service status for precise conditions
4. Statistics management: Statistics can be used to query the service processing status, and perform simple statistical scoring
After-sales service
Aftersale service: warranty time : 12 months since the date of bill of lading. During the warranty period, we provide free spare parts under the condition that the parts are damaged due to quality issue. The transport fee is paid by the buyer.
Certificate
Packing&Shipping
Company Introduction
Xipu Medical Device Technology Co., Ltd. is located in Foshan City, is a factory specializing in medical device formulation
one-stop procurement services, and after-sales improvement The service has won unanimous praise from many customers at home and
abroad, and we will be a century-old enterprise and contribute to medical treatment Construction.
one-stop procurement services, and after-sales improvement The service has won unanimous praise from many customers at home and
abroad, and we will be a century-old enterprise and contribute to medical treatment Construction.
FAQ
A: Are you a factory or a distributor ？
Q: We are a manufacturer specializing in the production of medical devices
A: Can you do sample orders？
Q: Yes, we welcome sample orders to test and check the quality.
A: How long is the delivery time?
Q: It takes 3-5 days for samples and 1-2 weeks for mass production
A: Is there any MOQ limit for my order?
Q: The low MOQ is 1 piece for sample inspection
