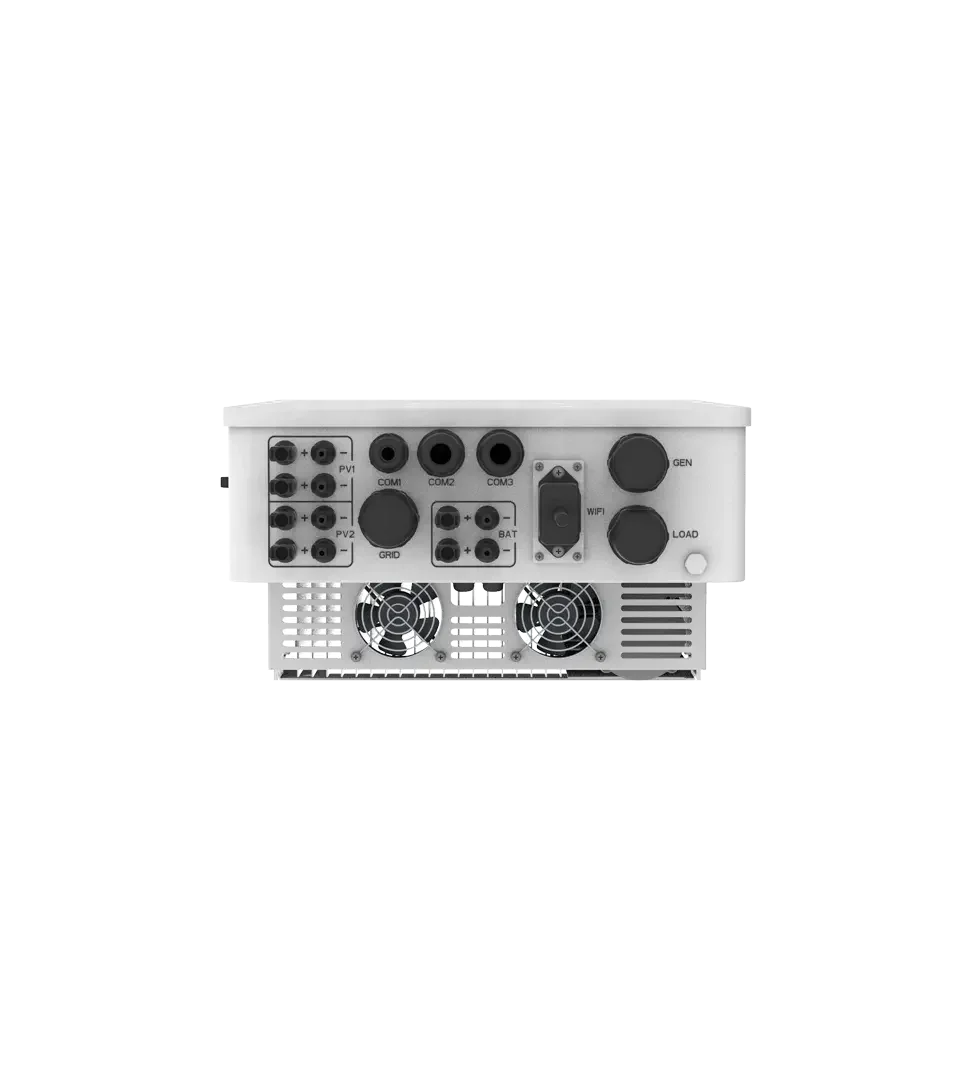

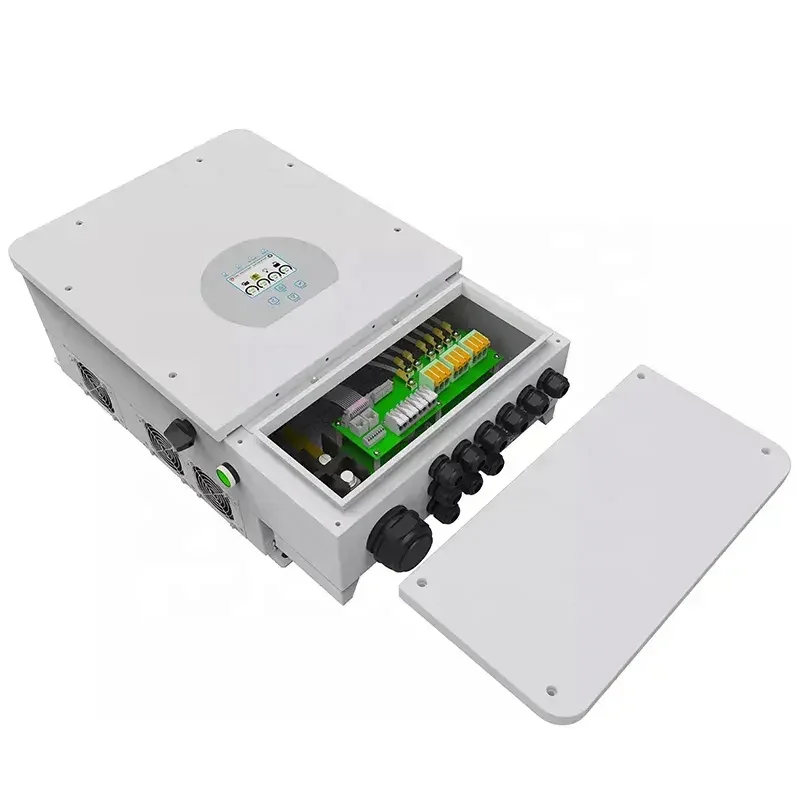

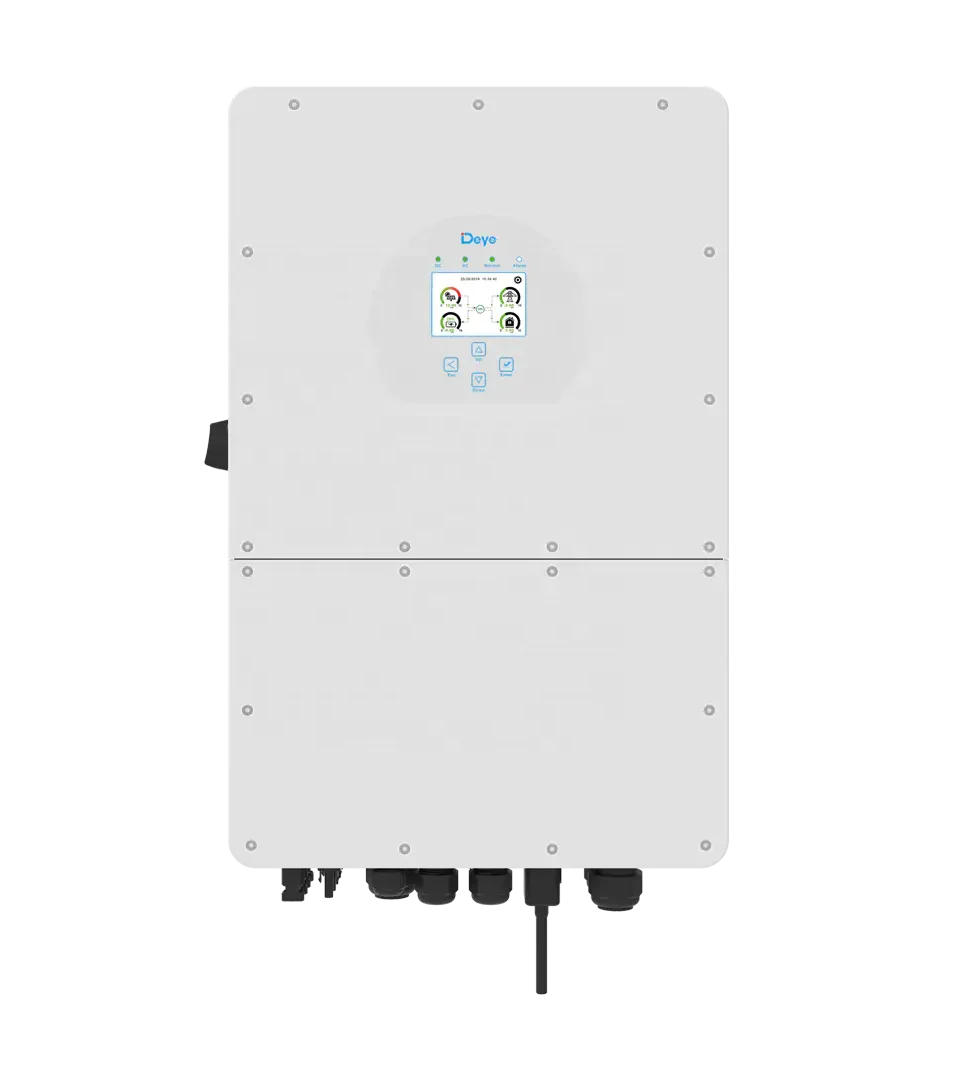

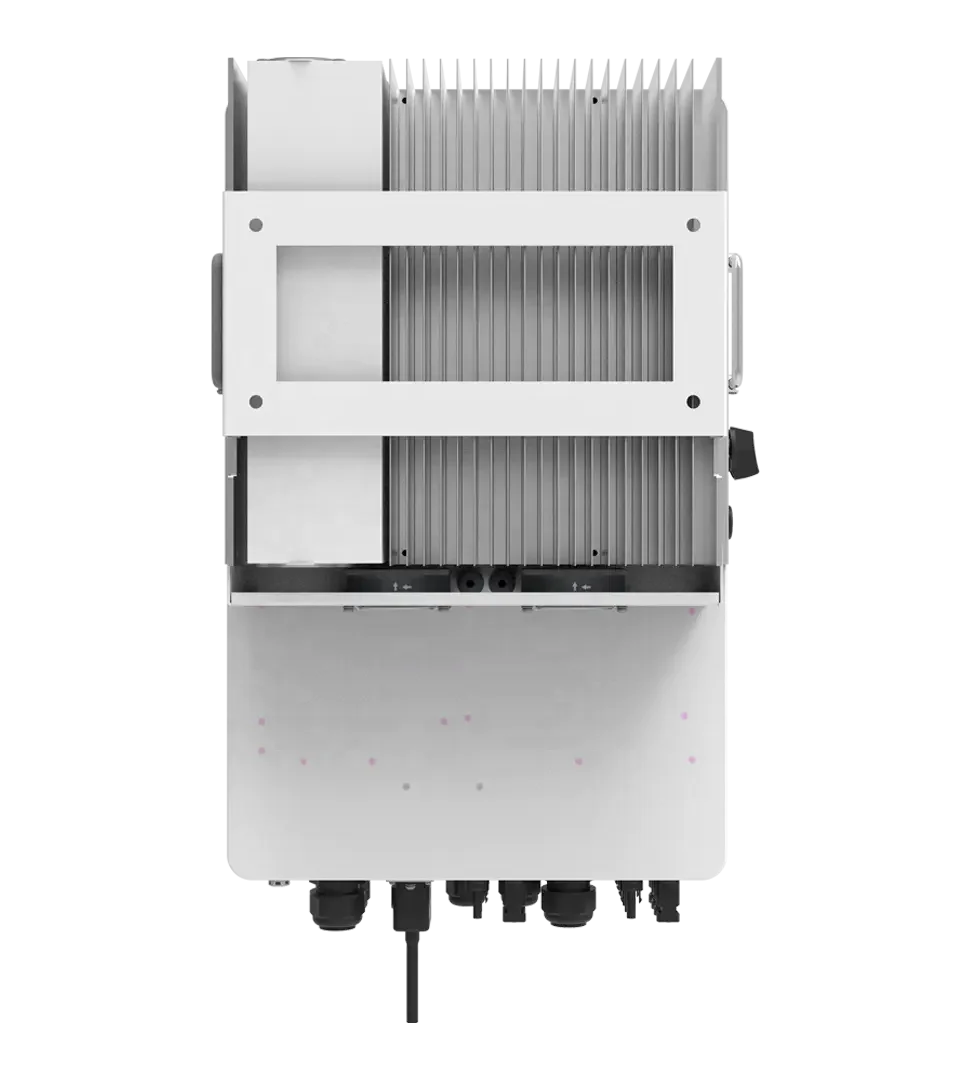

SUN 12K SG01HP3 EU AM2 Deye Inverter Hybrid 12KW Home Energy Storage 3 Phase Charged by LiFePO4 Battery with WiFi Stick
- Category: >>>
- Supplier: Sunwe Power Co. Ltd.
Share on (1601110723933):
Product Overview
Description
Model | SUN-12K-SG01HP3-EU-AM2 | |
Battery Input Data | ||
Battery Type | Lithium-ion | |
Battery Voltage Range (V) | 160~700 | |
Max. Charging Current (A) | 37 | |
Max. Discharging Current (A) | 37 | |
Number of Battery Input | 1 | |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
PV String Input Data | ||
Max. DC Input Power (W) | 15600 | |
Max. DC Input Voltage (V) | 1000 | |
Start-up Voltage (V) | 180 | |
MPPT Range (V) | 150-850 | |
Full Load DC Voltage Range (V) | 340-850 | |
Rated DC Input Voltage (V) | 600 | |
PV Input Current (A) | 26+20 | |
Max. PV ISC (A) | 39+30 | |
No.of MPP Trackers | 2 | |
No.of Strings per MPP Tracker | 2+1 | |
AC Output Data | ||
Rated AC Output and UPS Power (W) | 12000 | |
Max. AC Output Power (W) | 13200 | |
AC Output Rated Current (A) | 18.2/17.4 | |
Max. AC Output Rated Current (A) | 20/19.2 | |
Max. AC Current (A) | 25 | |
Generator Input/Smart Load/ AC Couple Current (A) | 18.2/80/18.2 | |
Max. Continuous AC Passthrough (A) | 80 | |
Peak Power (off grid) | 1.5 time of rated power, 10 S | |
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac | |
Power Factor | 0.8 leading to 0.8 lagging | |
Grid Type | Three Phase | |
Total Harmonic Distortion (THD) | <3% (of nominal power) | |
DC current injection | <0.5% In | |
Efficiency | ||
Max. Efficiency | 97.60% | |
Euro Efficiency | 97.00% | |
MPPT Efficiency | 99.90% | |
General Data | ||
Operating Temperature Range (℃) | -40~60℃, >45℃ Derating | |
Cooling | Smart cooling | |
Noise (dB) | ≤55 dB | |
Communication with BMS | RS485; CAN | |
Weight (kg) | 30.5 | |
Cabinet Size (WxHxD mm) | 408×638×237 (Excluding Connectors and Brackets) | |
Protection Degree | IP65 | |
Installation Style | Wall-mounted | |
Warranty | 5 Years (10 Years Optional) | |
