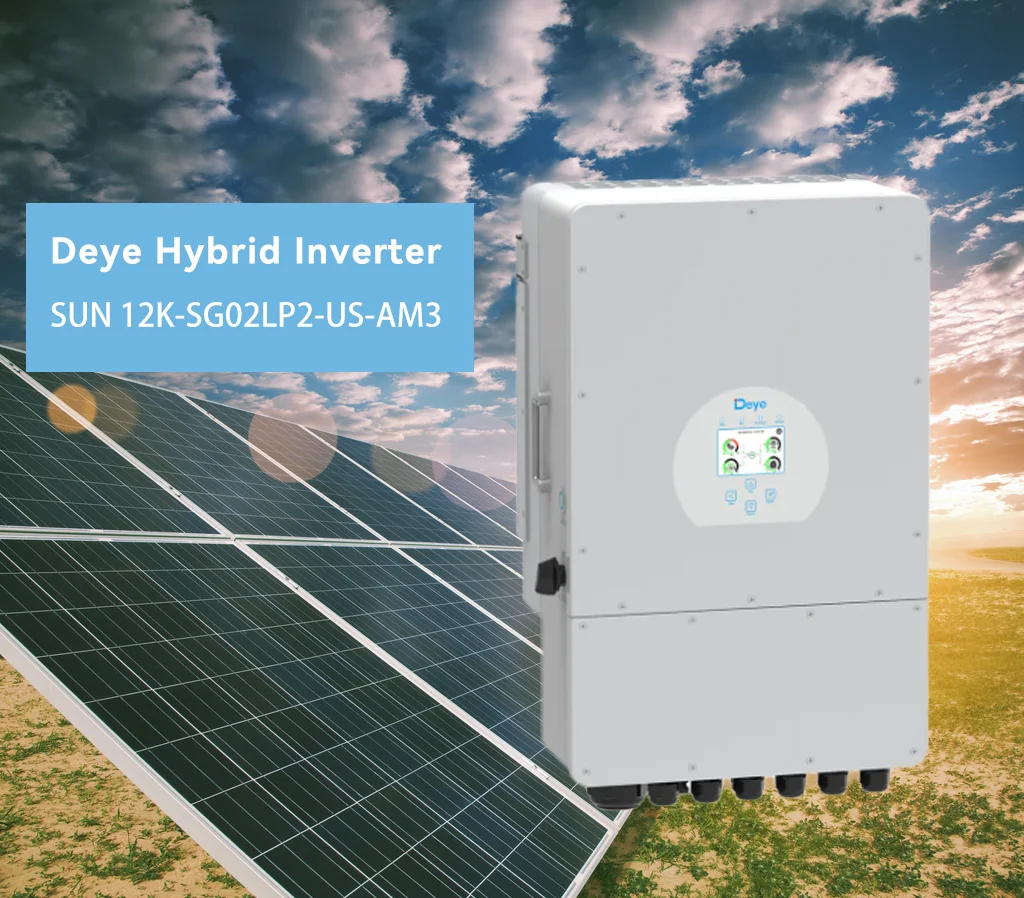

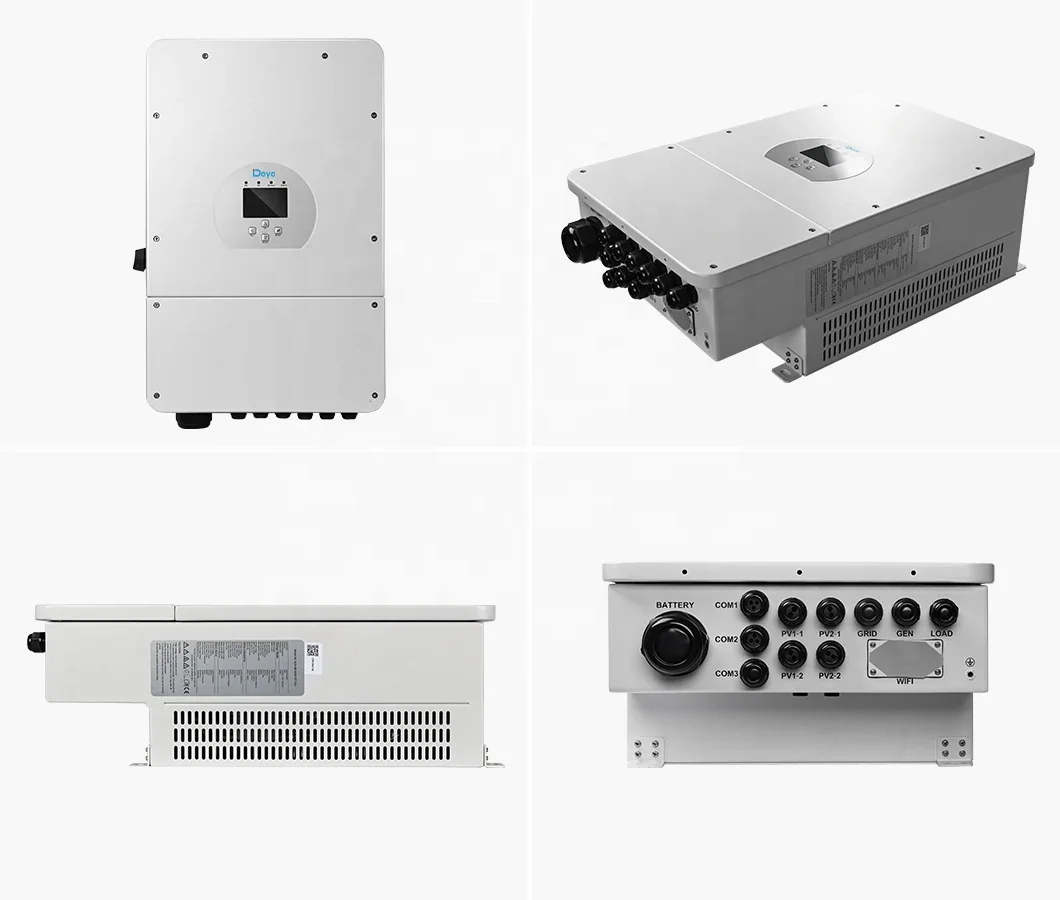

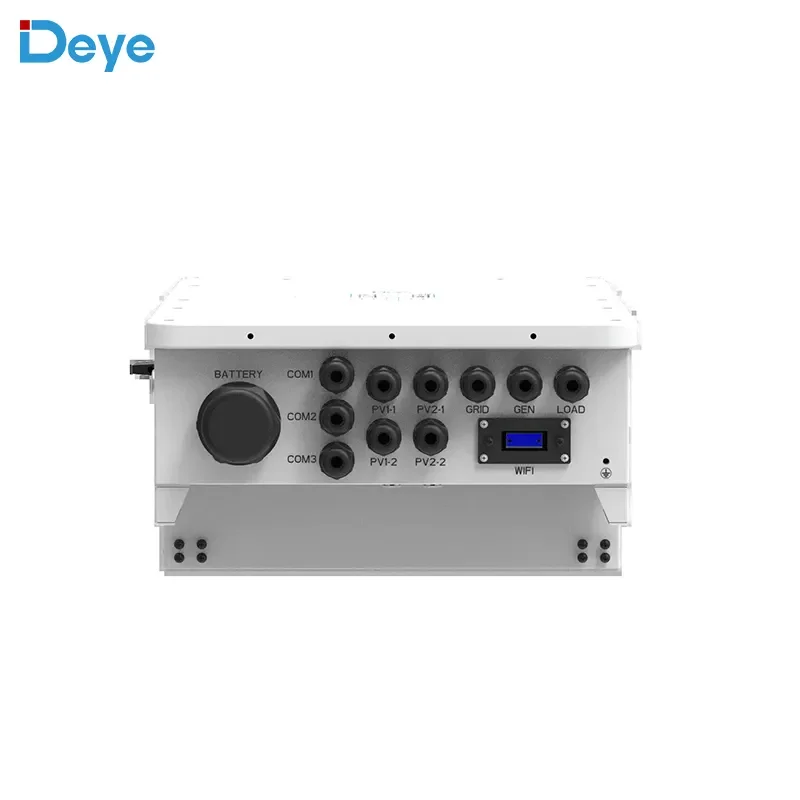

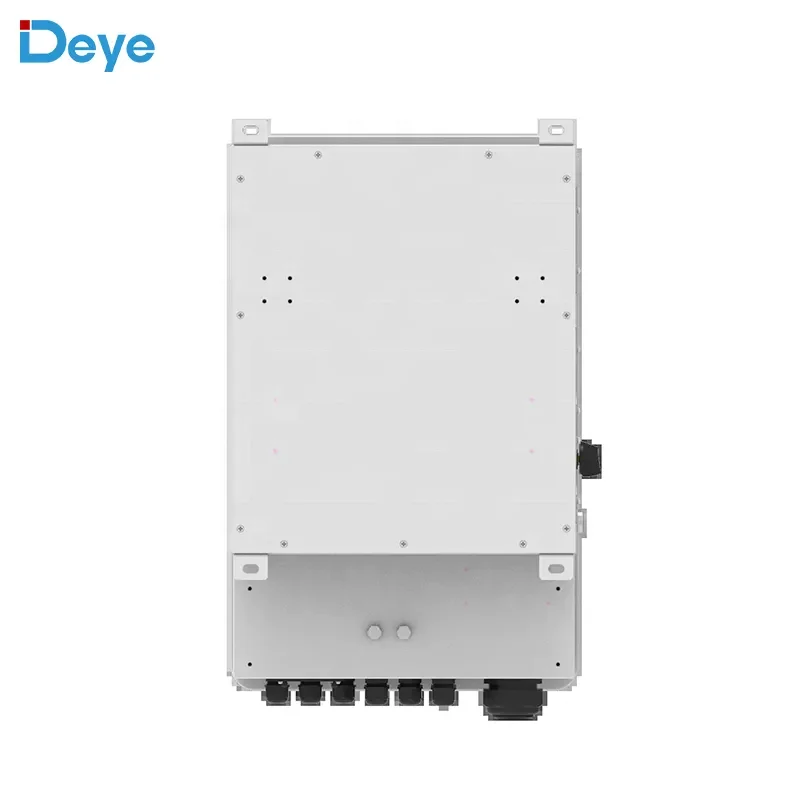

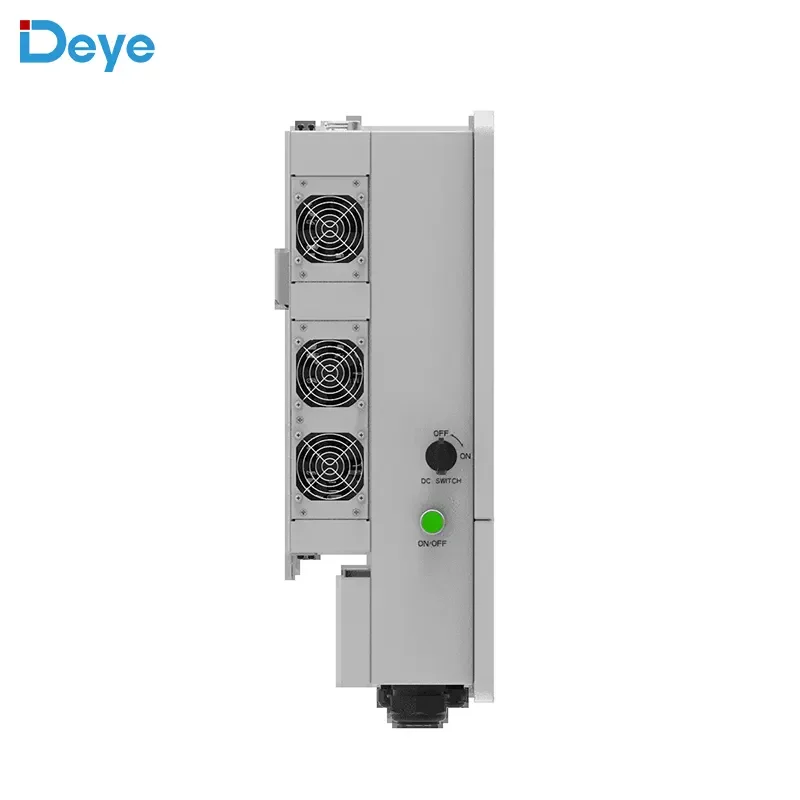

Deye Split Phase 120V 240V SUN 12K SG02LP2 US AM3 Inverter 50Hz 60Hz 12KW Hybrid Inverter For Solar System
- Category: >>>
- Supplier: Shenzhen Lavie Technology Co. Ltd.
Share on (1601110817375):
Product Overview
Description
Product Description
Hybrid Inverter
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
Specifications
Model | SUN-5K-SG02 LP2-US-AM2 | SUN-6K-SG02LP2-US-AM2 | SUN-7.6K-SG02LP2-US-AM2 | SUN-8K-SG02LP2-US-AM2 | SUN-10K-SG02LP2-US-AM3 | SUN-12K-SG02LP2-US-AM3 | |||||||||||
Battery Input Data | |||||||||||||||||
Battery Type | Lead-acid or Lithium-ion | ||||||||||||||||
Battery Voltage Range (V) | 40-60 | ||||||||||||||||
Max. Charging Current (A) | 120 | 135 | 190 | 190 | 220 | 250 | |||||||||||
Max. Discharging Current (A) | 120 | 135 | 190 | 190 | 220 | 250 | |||||||||||
External Temperature Sensor | Yes | ||||||||||||||||
Charging Curve | 3 Stages / Equalization | ||||||||||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||||||||||||||
PV String Input Data | |||||||||||||||||
Max. DC Input Power (W) | 6500 | 7800 | 9880 | 10400 | 13000 | 15600 | |||||||||||
Rated PV Input Voltage (V) | 500 | ||||||||||||||||
Start-up Voltage (V) | 125 | ||||||||||||||||
MPPT Voltage Range (V) | 150-425 | ||||||||||||||||
Full Load DC Voltage Range (V) | 300-425 | 200-425 | |||||||||||||||
PV Input Current (A) | 13+13 | 26+13 | 26+26 | 26+26 | 26+26+26 | 26+26+26 | |||||||||||
Max. PV ISC(A) | 22+22 | 44+22 | 44+44 | 44+44 | 44+44+44 | 44+44+44 | |||||||||||
No.of MPP Trackers | 2 | 3 | |||||||||||||||
No.of Strings per MPP Tracker | 1+1 | 2+1 | 2+2 | 2+2 | 2+2+2 | 2+2+2 | |||||||||||
AC Output Data | |||||||||||||||||
Rated AC Output Active Power (W) | 5000 | 6000 | 7600 | 8000 | 10000 | 12000 | |||||||||||
Max AC Output Active Power (W) | 5000 | 6000 | 7600 | 8000 | 10000 | 12000 | |||||||||||
AC Output Rated Current (A) | 20.9 | 25 | 31.7 | 33.4 | 41.7 | 50 | |||||||||||
Max. AC Output Current (A) | 20.9 | 25 | 31.7 | 33.4 | 41.7 | 50 | |||||||||||
Max. Continuous AC Passthrough (A) | 35 | 40 | 50 | 50 | 60 | 60 | |||||||||||
Peak Power (off grid) | 2 time of rated power, 10 S | ||||||||||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||||||||||||
Power Factor | 1 | ||||||||||||||||
Output Frequency and Voltage | 50 / 60Hz; L/N/PE 220/230Vac | ||||||||||||||||
Grid Type | Split Phase; 2/3 phase; Single Phase | ||||||||||||||||
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | ||||||||||||||||
DC Current Injection | <0.5% In | ||||||||||||||||
EThciency | |||||||||||||||||
Max. Efficiency | 97.60% | ||||||||||||||||
Euro Efficiency | 97.00% | ||||||||||||||||
MPPT Efficiency | 99.90% | ||||||||||||||||
Protection | |||||||||||||||||
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | ||||||||||||||||
Over Voltage Category | DC Type II/AC Type III | ||||||||||||||||
Certifications and Standards | |||||||||||||||||
Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | ||||||||||||||||
Deye full series inverter
Hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and
increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads
initially. Then, the excess energy will charge the battery via solar inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and
increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads
initially. Then, the excess energy will charge the battery via solar inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Features:
* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* Max.16pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* 48V low voltage battery, safe and reliable
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
* Colorful touch LCD, IP65 protection degree
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 190A
* Max.16pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* 48V low voltage battery, safe and reliable
* Unique Smart Load application and Grid peak shaving function
* 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
Packing & Delivery
Shipping
1.Samples policy
Sample order is available and the costs & shipping and taxes paid by the buyer.
2. Packaging
Standard gift box, OEM packaging available at MOQ 1K.
3.Shipping
1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2) Large order: By sea or By air.
1.Samples policy
Sample order is available and the costs & shipping and taxes paid by the buyer.
2. Packaging
Standard gift box, OEM packaging available at MOQ 1K.
3.Shipping
1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2) Large order: By sea or By air.
3) Contact us and choose the best and convenient way for your need.
Company Introduction
FAQ
Q: What's the minimum order qty? A: MOQ for stock product is 1PC, for OEM products is 1k.
Q:What payment terms do you accept? A:TT, Western union, and Paypal
Q: Do you offer OEM and ODM service? A: Yes, we can do OEM and ODM design, include custom design, color, logo and packaging, also label service and drop shipping for retail customers
Q: What's your delivery time?
A: Normal order for 3-5 working days, OEM for 2-3 weeks
Q: What's your warranty?
A: The warranty of the main body is 1 years from the date of purchase
Q: What's your delivery time?
A: Normal order for 3-5 working days, OEM for 2-3 weeks
Q: What's your warranty?
A: The warranty of the main body is 1 years from the date of purchase
Q:Do you have any certificates? A: Yes, CE, RoHS, FCC and all the certificates that every country requires
