Hj 25d63 Mortar Spraying Machine Cement mortar pump
- Category: >>>
- Supplier: Henan Be Focus Mechanical Equipment Co. Ltd.
Share on (1601110853496):
Product Overview
Description
Pruduct Show
Product Introduction
The grouting pump is a kind of grouting equipment used for grouting water blocking, filling gaps, strengthening broken rock layers and other projects in construction sites such as mines, tunnels, water conservancy, subways, buildings, bridges, etc.
Product Paramenters
Parameters of piston type single cylinder pump
Name | Piston type single cylinder pump | Motor power | 4kw |
Rated working pressure | 2Mpa | Conveying capacity | 3Mm³/h |
Vertical conveying distance | 30m | Conveying inner diameter of slurry inlet | 51mm |
Horizontal conveying distance | 80m | Weight | 260kg |
Inner diameter of rubber hose at slurry discharge port | 32/38mm | External dimensions: length × width *×height | 1033×474×940mm |
Parameters of piston type double cylinder pump
Name | Piston type double cylinder pump | Motor power | 5.5kw |
Discharge conveying capacity | 6m³/h | Horizontal conveying distance | 200m |
Maximum rated pressure | 4Mpa | Vertical conveying distance | 50m |
Inner diameter of rubber hose at slurry discharge port | 32mm | Conveying inner diameter of slurry inlet | 51mm |
Weight | 400kg | External dimensions: length × width *×height | 1250×550×900mm |
Product classification

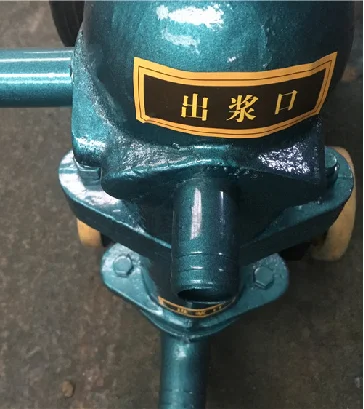

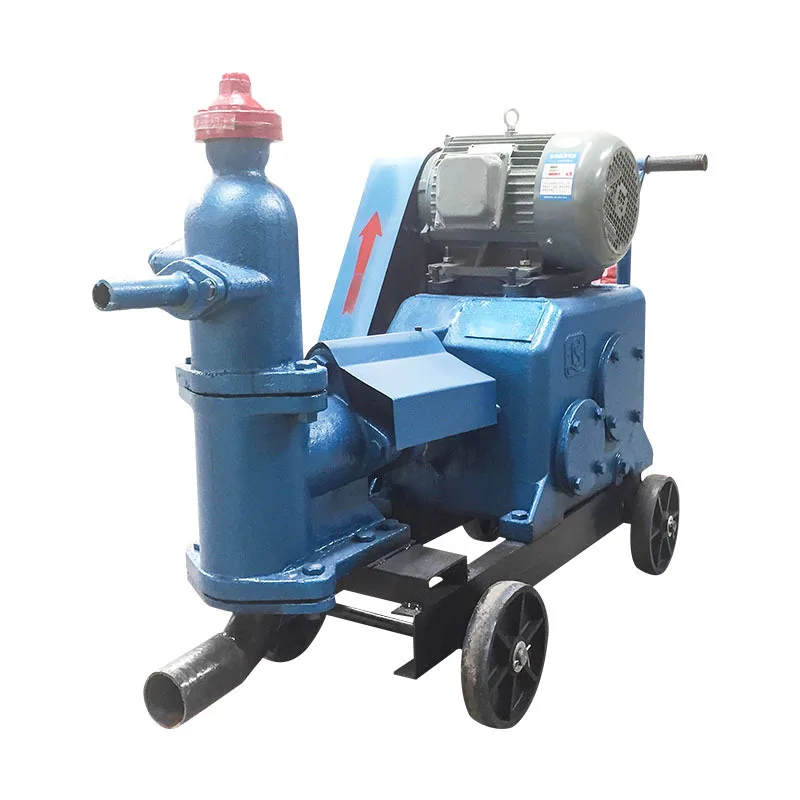

Piston type single cylinder pump
ZJB-3 single cylinder pump is a practical and efficient cement mortar pump, widely used in pressure grouting, mortar transportation, and spraying operations in highway, railway, bridge, municipal, construction, tunnel, port, water conservancy, mining, and other projects. It has small volume, light weight, small work required, and large discharge capacity.

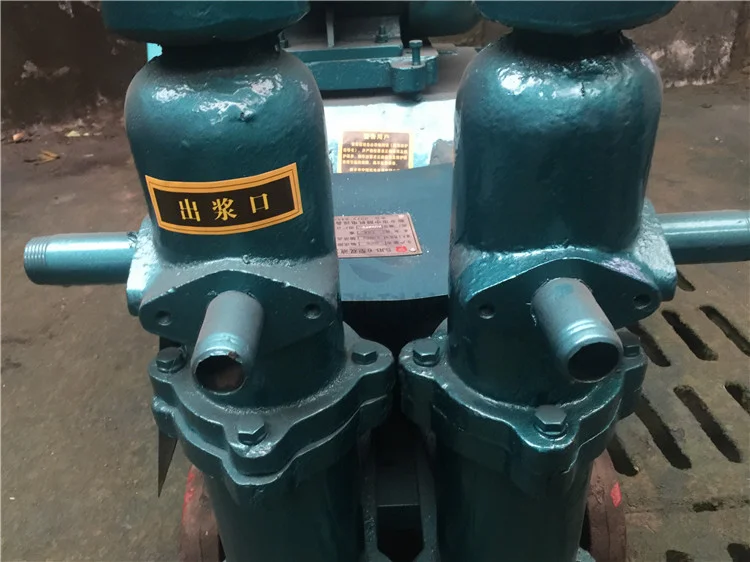

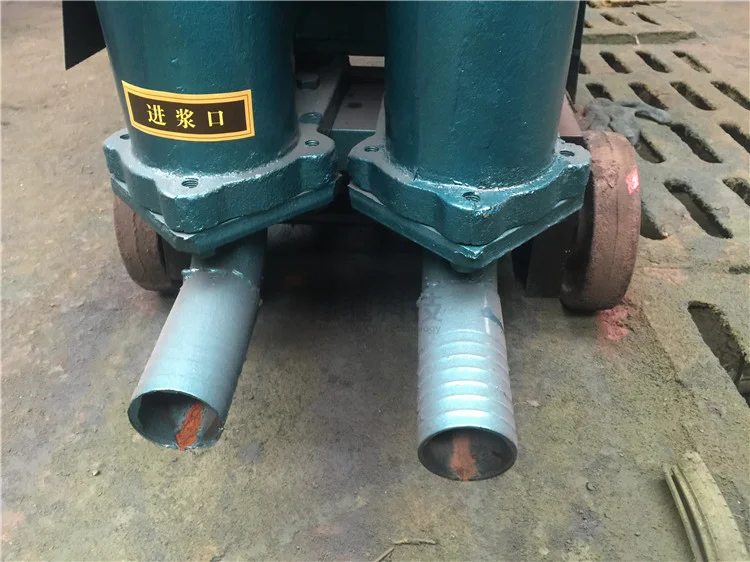

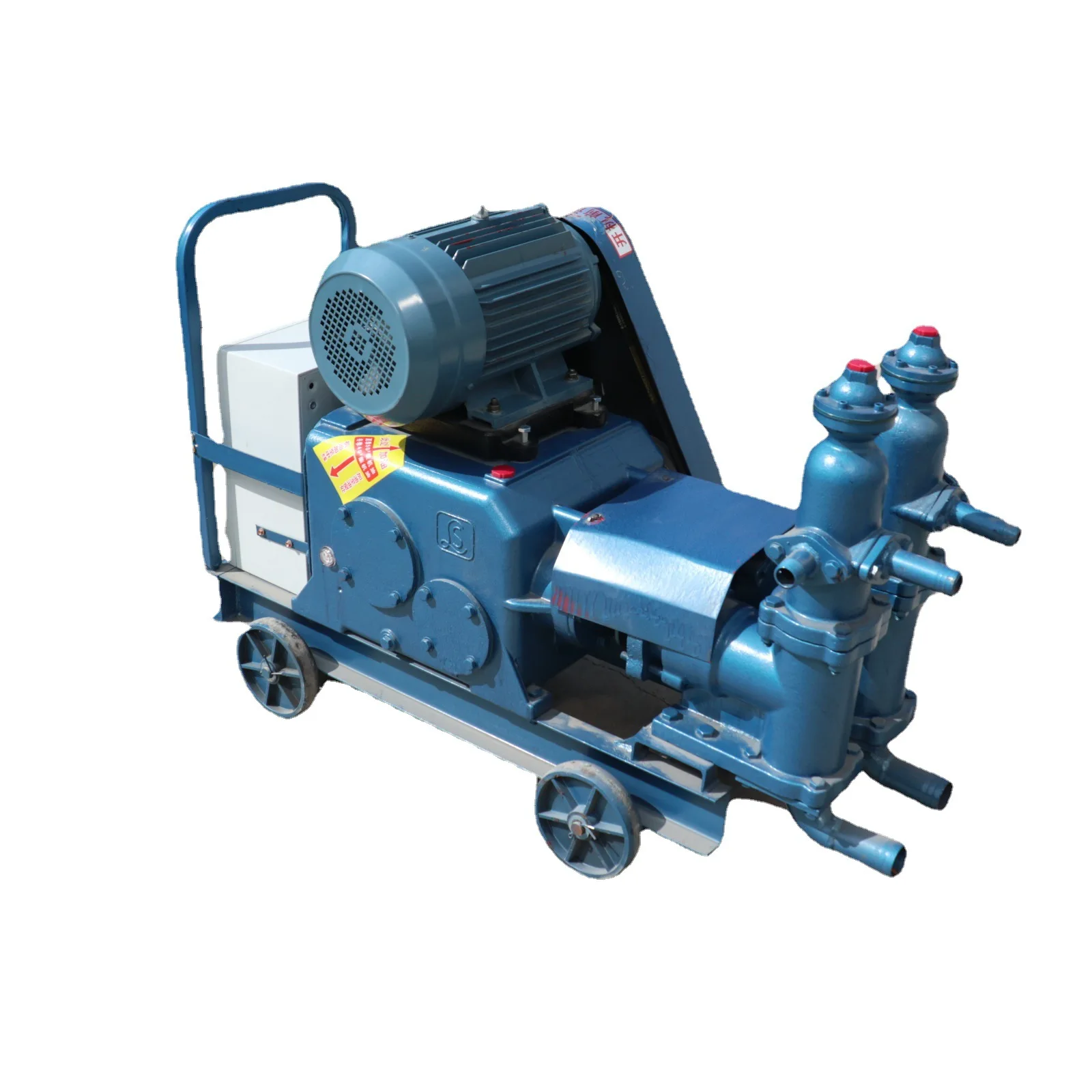

Piston type double cylinder pump
ZJB-6 double cylinder pump, compared with traditional pumps, this pump has stable pressure and small pulse, and is suitable for bridge grouting with grouting trolley. It can be used for double pipe grouting at the same time, with small volume, light weight, low power consumption, large discharge volume, and working pressure
The advantages of high strength, using dual cylinder operation, more stable operation, material saving, energy saving, and convenient handling.
The advantages of high strength, using dual cylinder operation, more stable operation, material saving, energy saving, and convenient handling.
Difference between single cylinder pump and double cylinder pump
Difference
The difference is between single in and single out and double in and double out
1.The double cylinder pump can simultaneously inject two types of grout,
1.The double cylinder pump can simultaneously inject two types of grout,
2.and can simultaneously inject mortar and accelerator,
3.which is used when there is water or rapid solidification is required

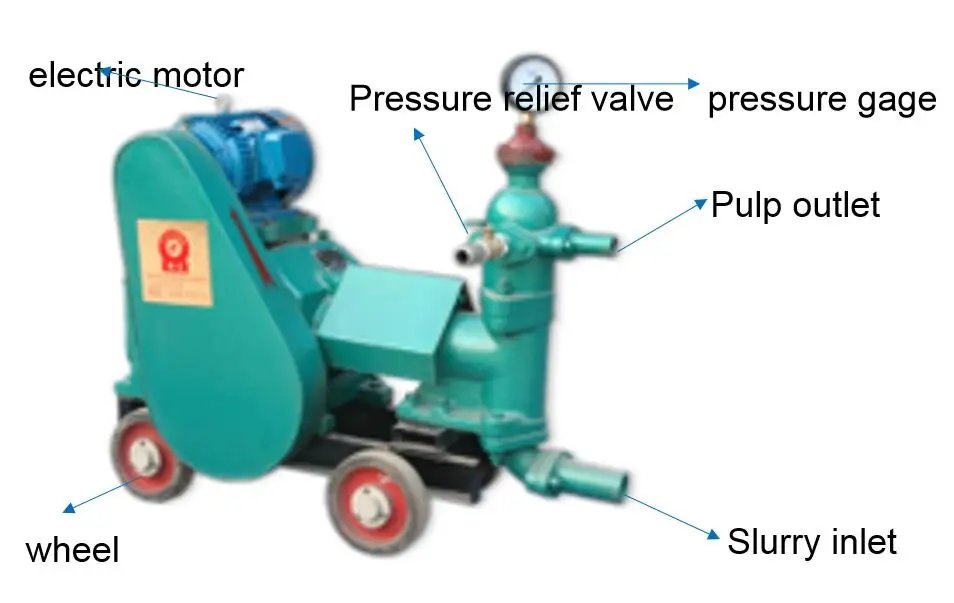

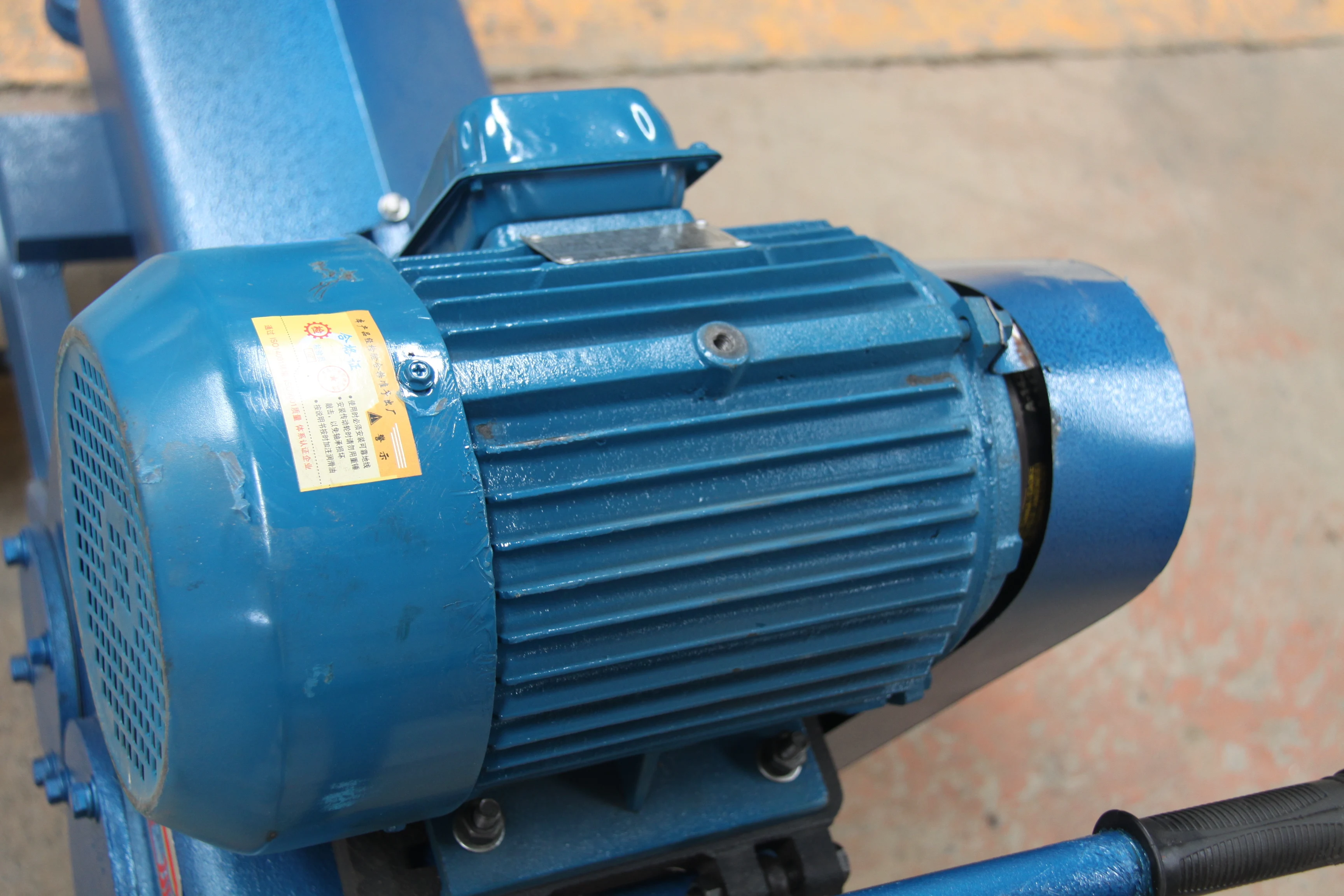

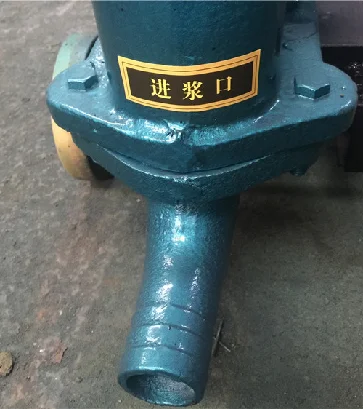

Details of the product

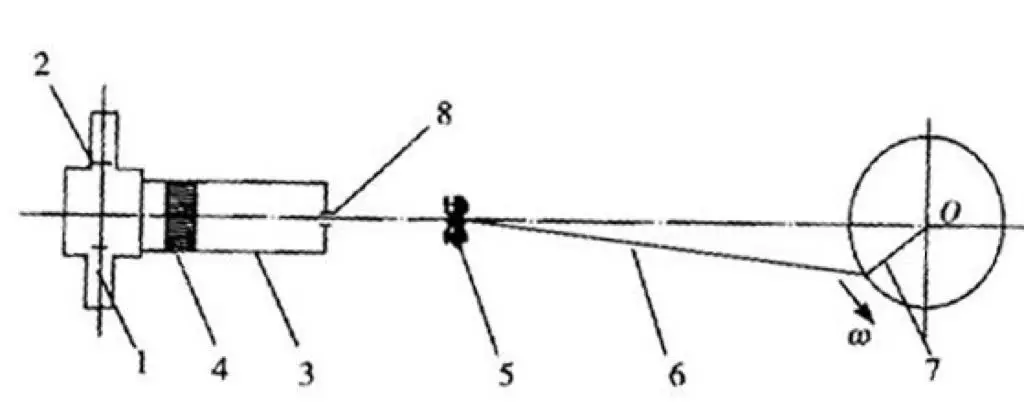

1.Suction valve 2.Discharge valve 3.cavity 4.plunger 5.crosshead 6.connecting rod 7.crank 8.stuffing box

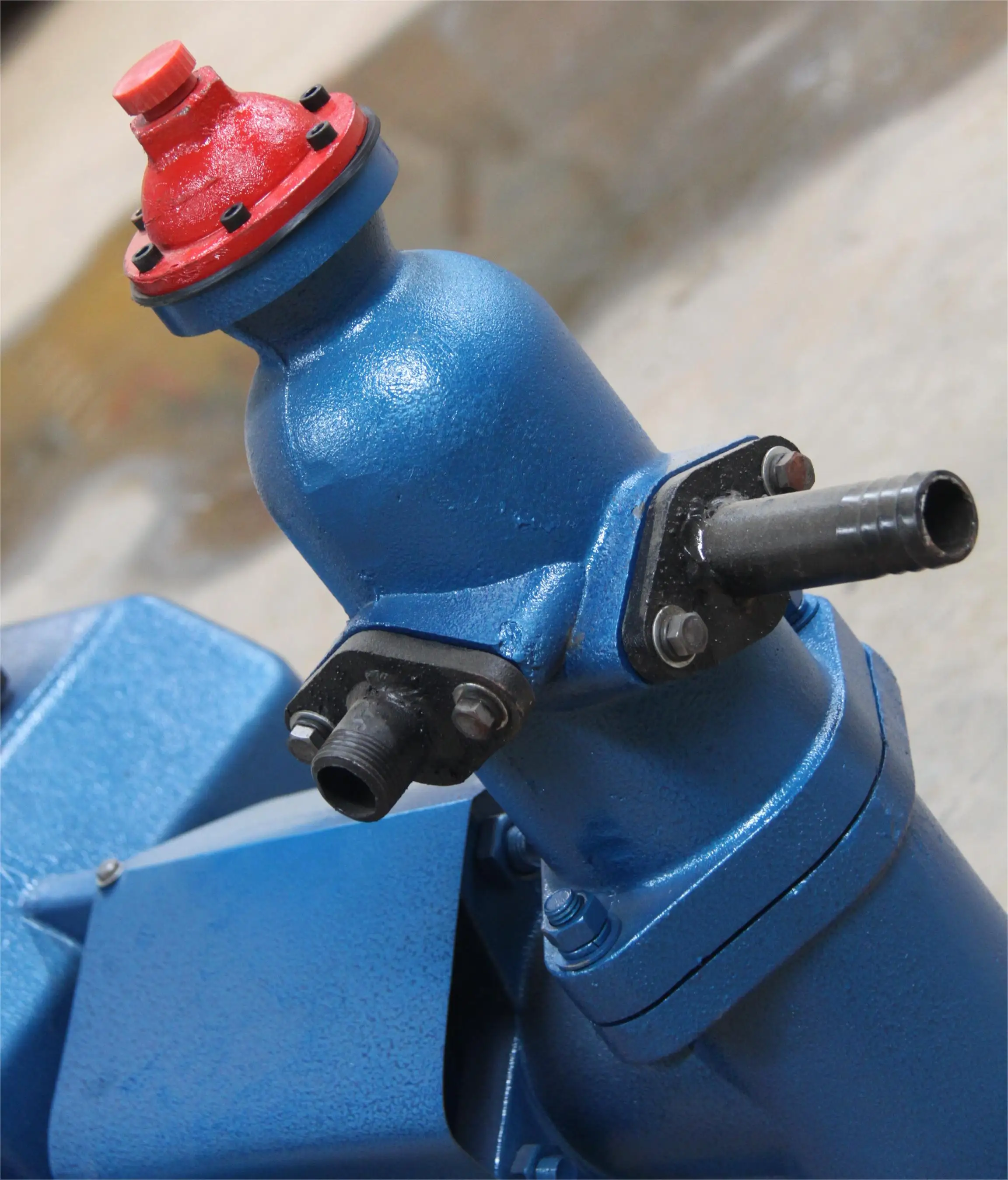

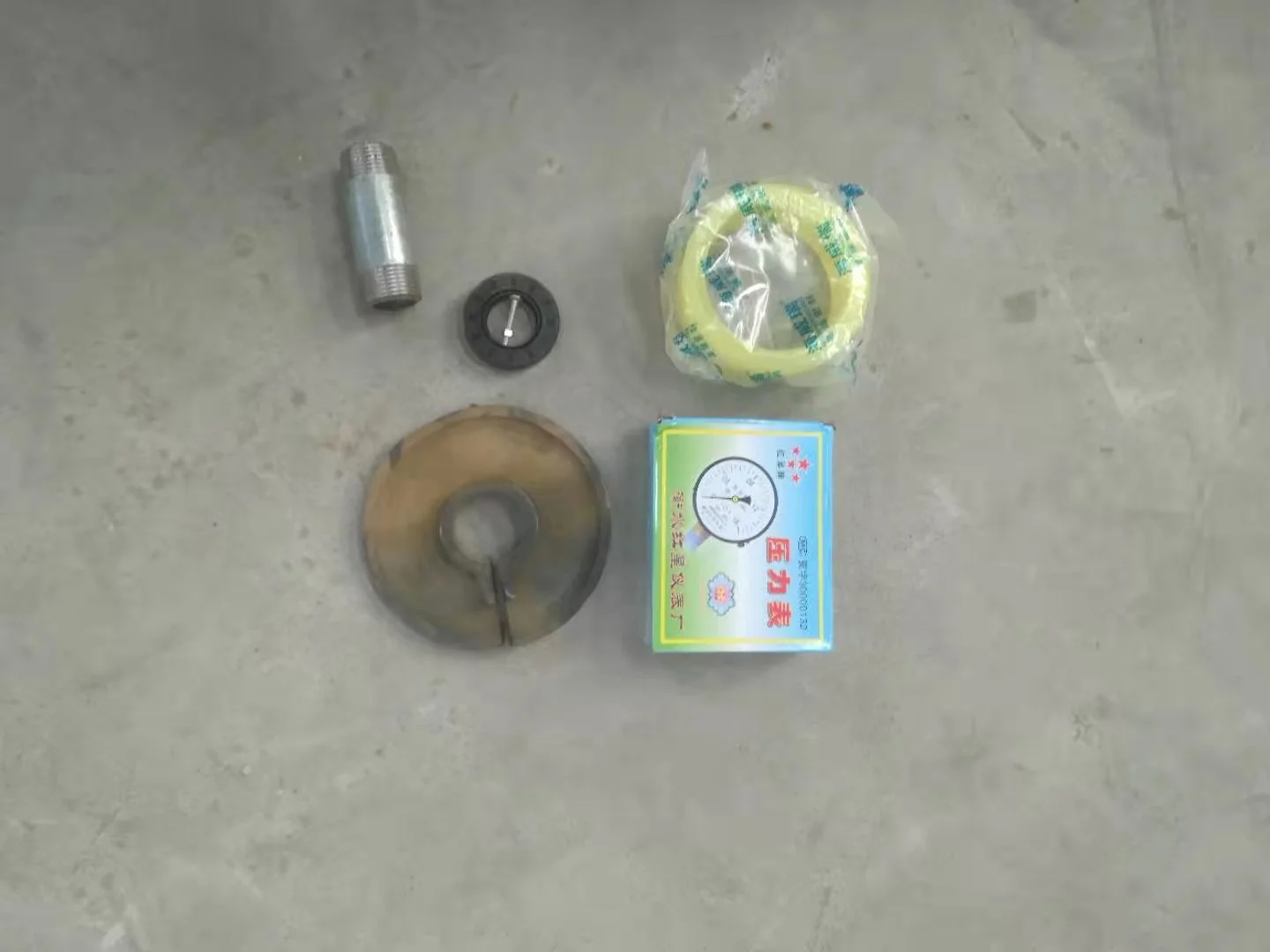

Product Vulnerable Parts
2.Piston
3.Cage

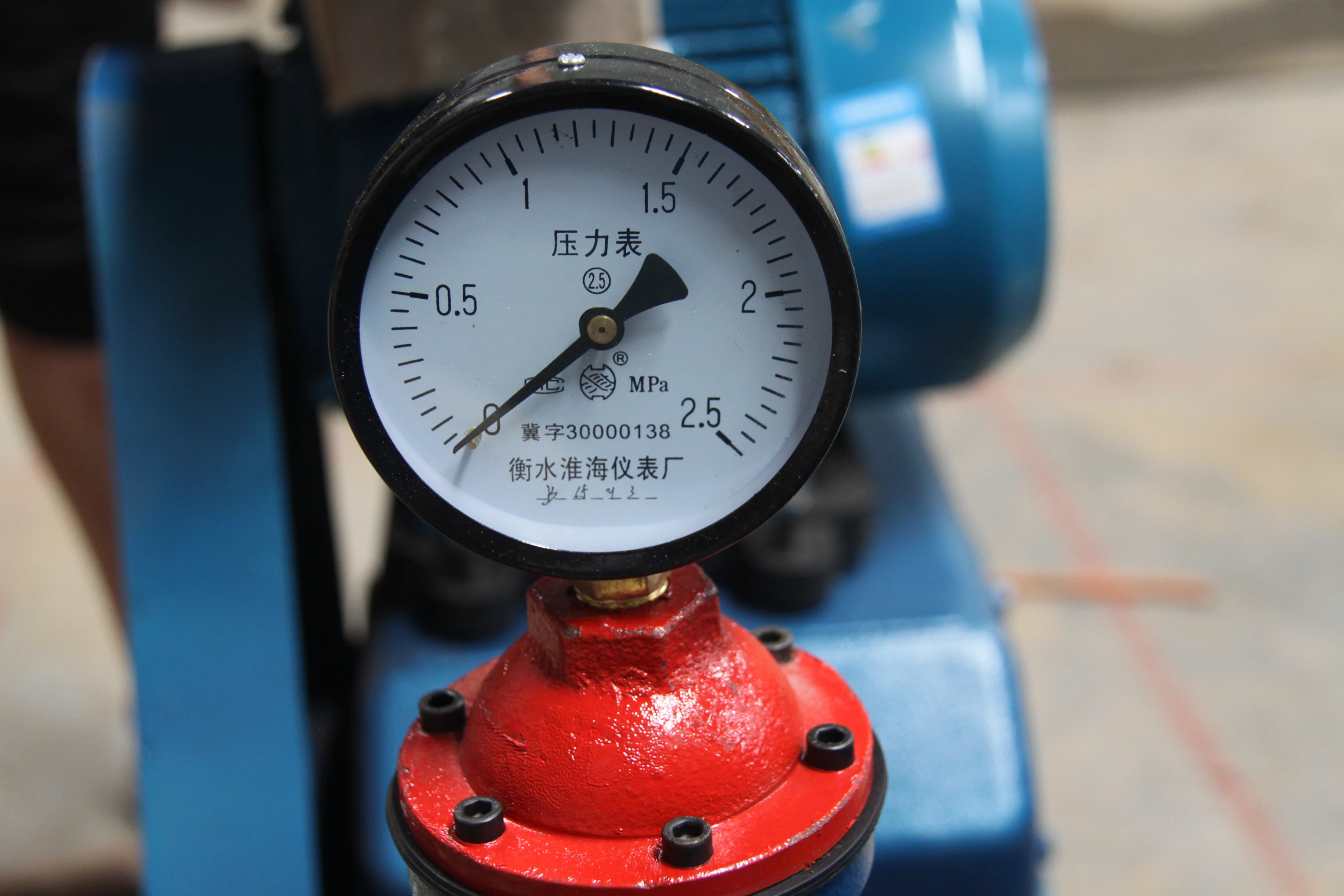

4.Pressure gauge

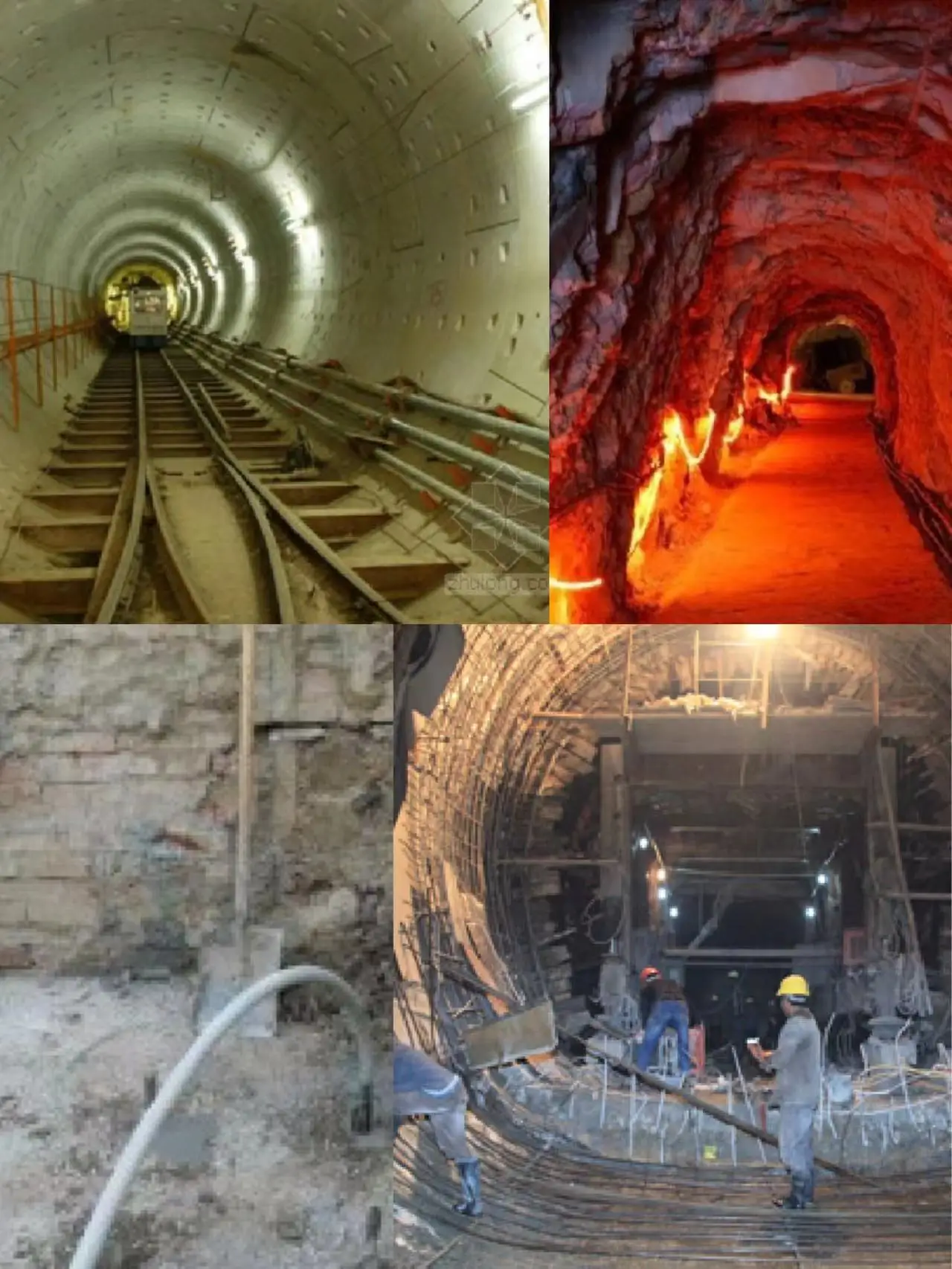

Application Scenario
Title goes here.
1. In construction engineering, it is used for vertical and horizontal conveying of mortar;
2. Used for grouting in national defense engineering, civil air defense engineering, mine and tunnel construction;
3. In farmland water conservancy projects, it is used to reinforce dams. Drilling wells in sand is used to reinforce shaft walls, etc.
4. In railway construction, it is used for grouting reinforcement of bridges and culverts.
5. Prestressed component engineering is used for mortar injection expansion, etc.
6. It is used for conveying fly ash mortar in thermal power plants.
7. In the maintenance of highway pavement, it is used for void grouting at the bottom of cement concrete pavement slabs.
2. Used for grouting in national defense engineering, civil air defense engineering, mine and tunnel construction;
3. In farmland water conservancy projects, it is used to reinforce dams. Drilling wells in sand is used to reinforce shaft walls, etc.
4. In railway construction, it is used for grouting reinforcement of bridges and culverts.
5. Prestressed component engineering is used for mortar injection expansion, etc.
6. It is used for conveying fly ash mortar in thermal power plants.
7. In the maintenance of highway pavement, it is used for void grouting at the bottom of cement concrete pavement slabs.
Why Choose Us
Company profit
Xinxiang Zhongtun Electromechanical Equipment Co., Ltd. was founded in 1938 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
Production Capacity

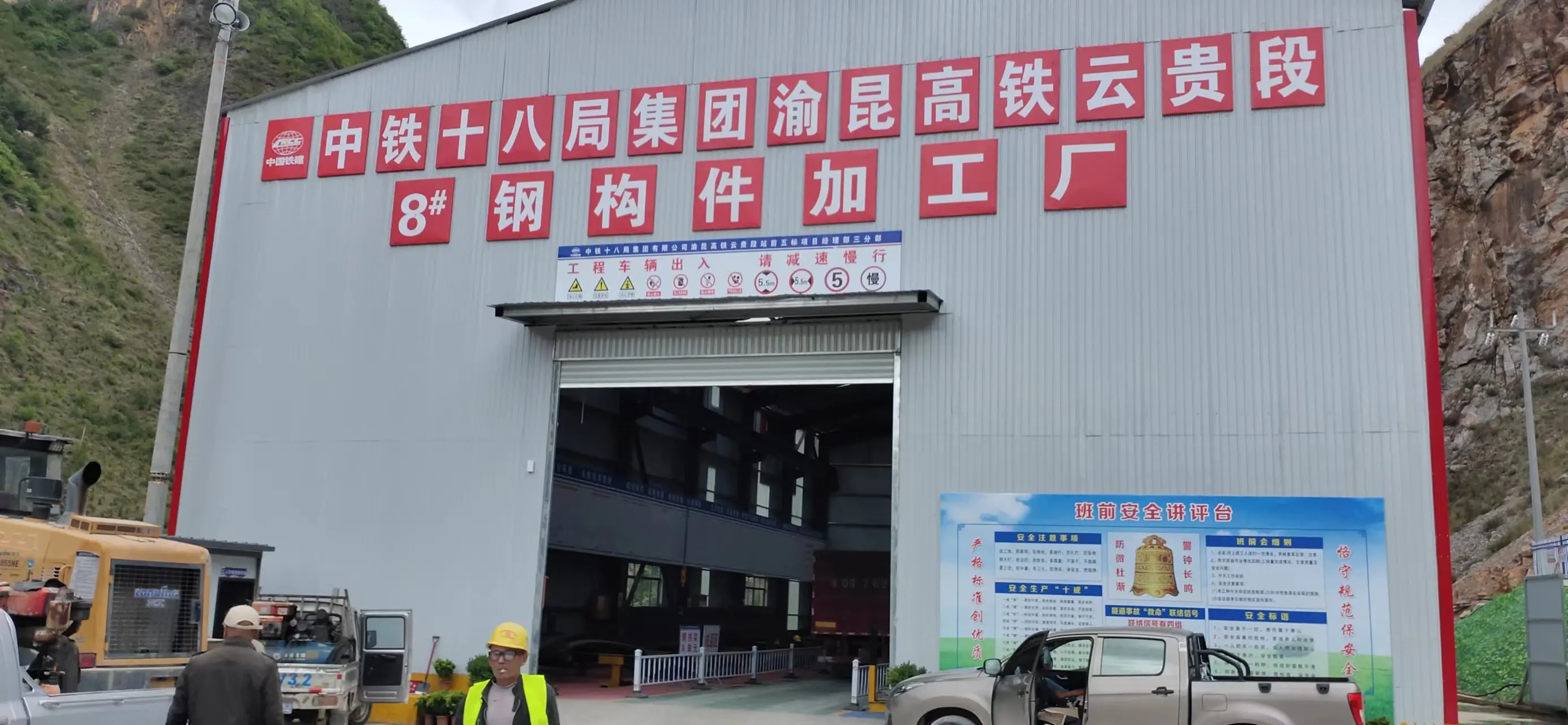

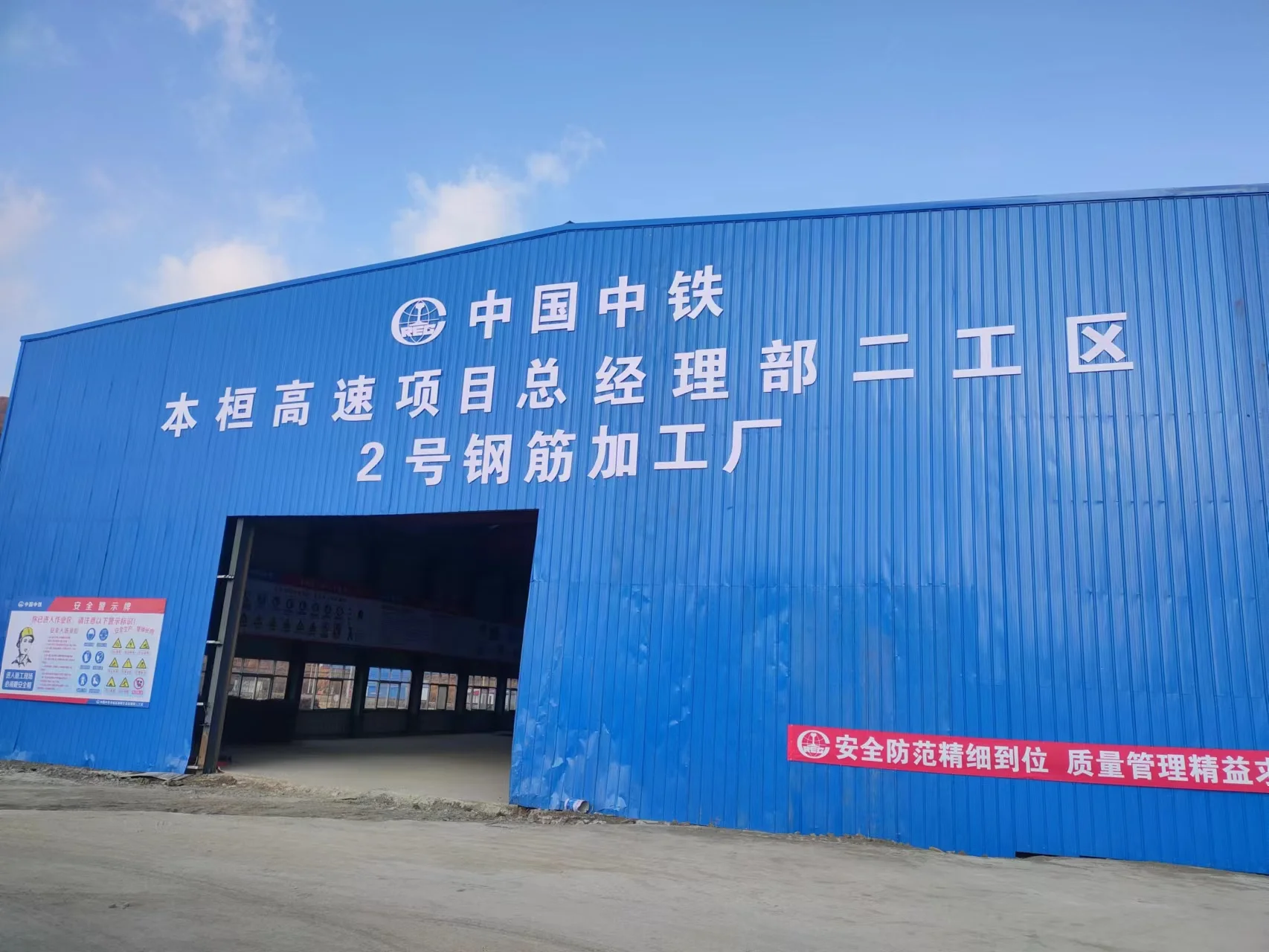

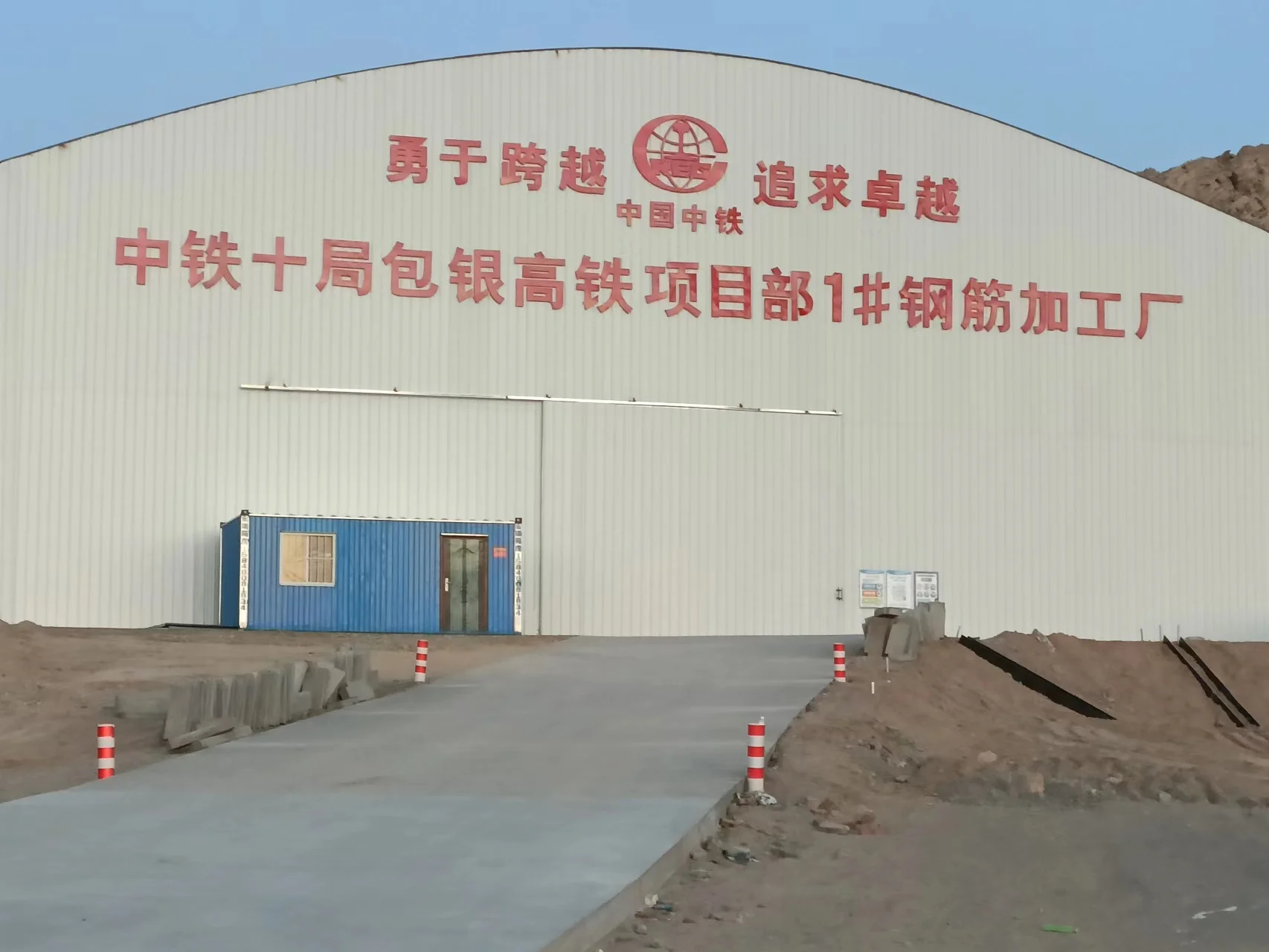

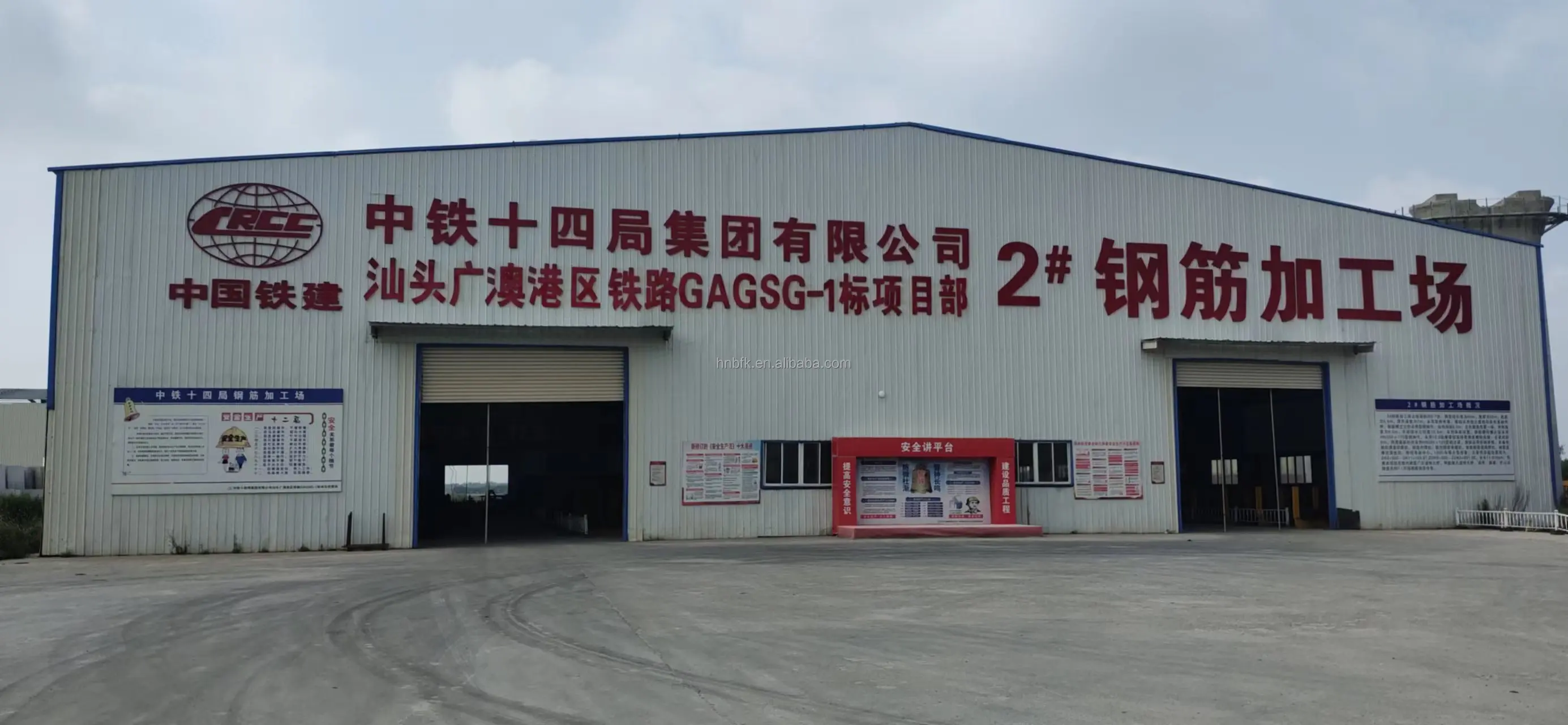

The company cooperates with all major engineering projects
R&D capability

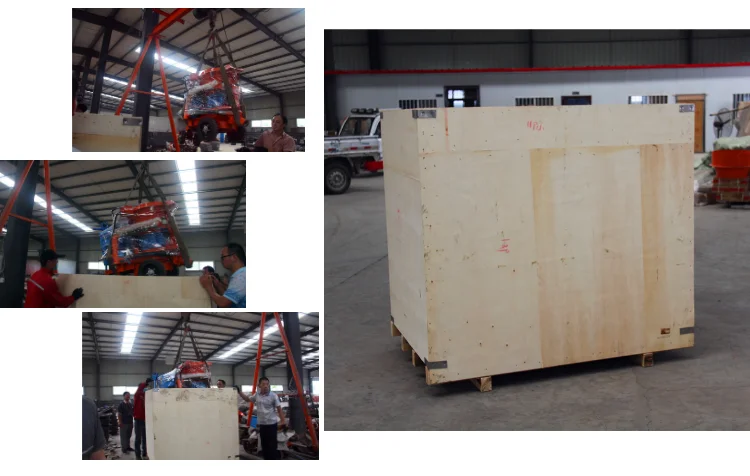

Packing
Factory inspection report
FAQ
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine?
Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed.
Q6. Do you test all goods before delivery?
Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.
Q7. Do you give priority to providing vulnerable parts to trading customers?
Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories.
Q8: How do you maintain a long-term good relationship with our business?
Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q6. Do you test all goods before delivery?
Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.
Q7. Do you give priority to providing vulnerable parts to trading customers?
Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories.
Q8: How do you maintain a long-term good relationship with our business?
Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine?
Ans.: All our products have CE and ISO9001 certificates.
Ans.: All our products have CE and ISO9001 certificates.
