Price:$6,799.00-6,999.00

Quantity:


Product Overview

Description





Special Notice：
The listed price is only a deposit for the product and does not include shipping fees. if you want to know the specific price of the product, please provide us with your specific requirements and click here to contact us. We will promptly provide you with a detailed quotation. We hope to have a pleasant cooperation!


Product Specifications


TSH-180 Rubber Crawler Water Well Drilling Rig Specification
The weight
4.5T
The hole diameter
140-254mm
Drilling depth
180m
One-time advance length
3.3m
Walking speed
2.5km/h
Climbing angles
30Max.
Equipped capacitor
55kw
Using air pressure
1.7-2.5MPA
Air consumption
17-31m³/min
Swing speed
45-70rpm
The penetration efficiency
10-35m/h
Drill pipe diameter
76mm、89mm
Drill pipe length
1.5m 、2.0m 、3.0m
Rig lifting force
12T
Rapid rise speed
20m/min
Fast feeding speed
40m/min
Width of loading
2.4m
Swing torque
3200-4600N.m
Dimension
3950×1630×2250mm
Equipped with hammer
Medium and high wind pressure series
High leg stroke
1.4m
The engine brand
Quan chai engine


Products Detail




Products Description


Custom Diesel 100m 200m Hydraulic Bore Hole Water Well Mine Drilling Rig Machine India Trade

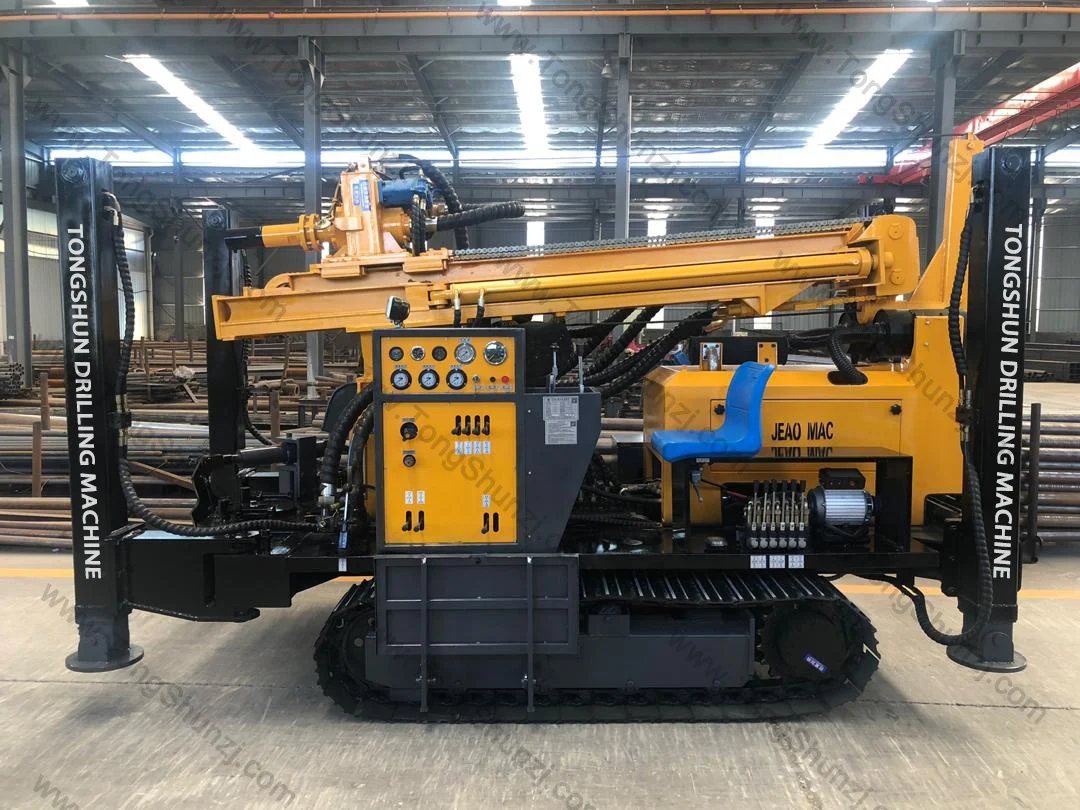

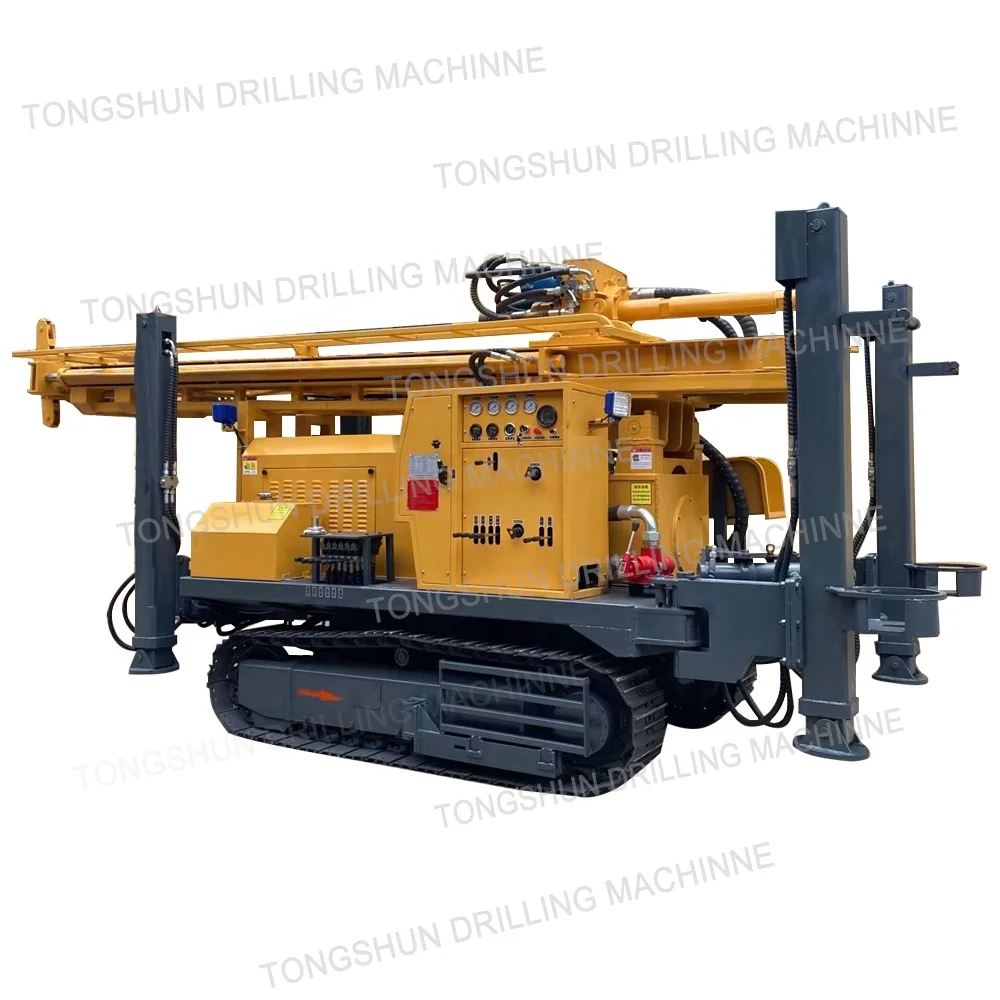

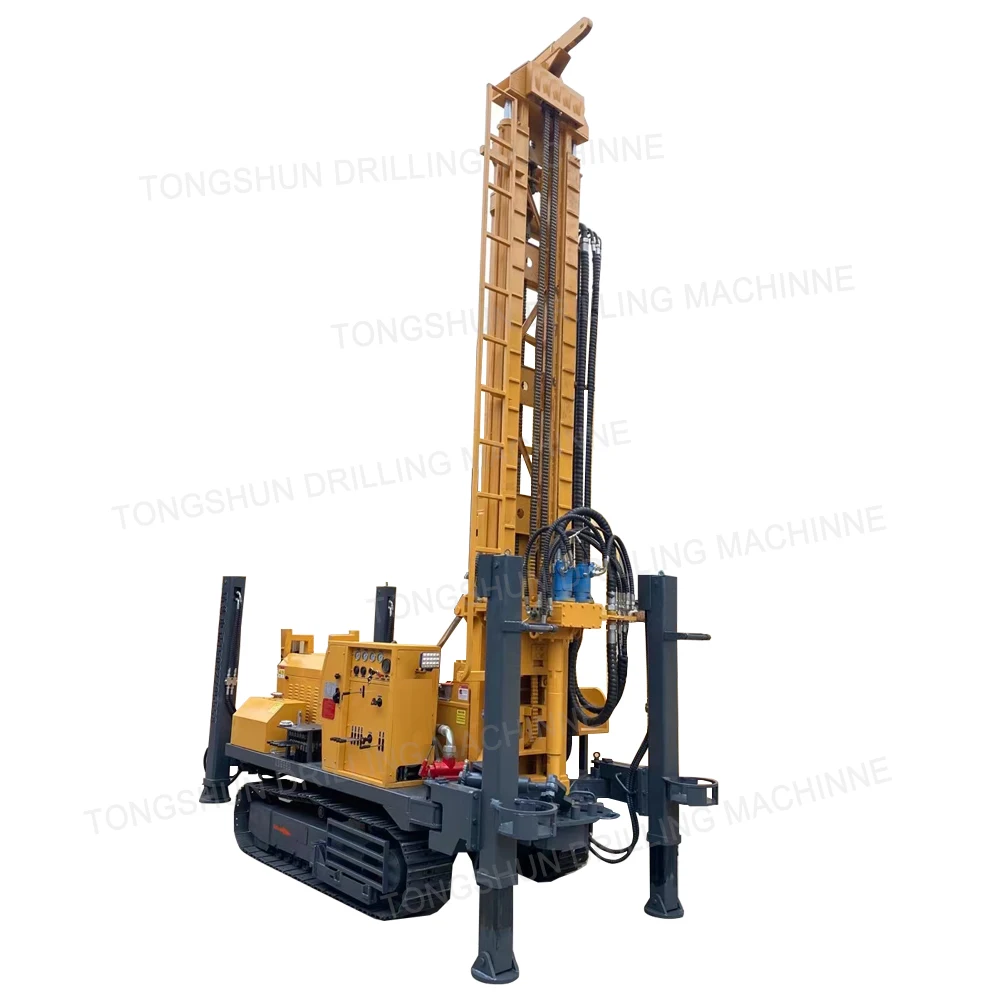

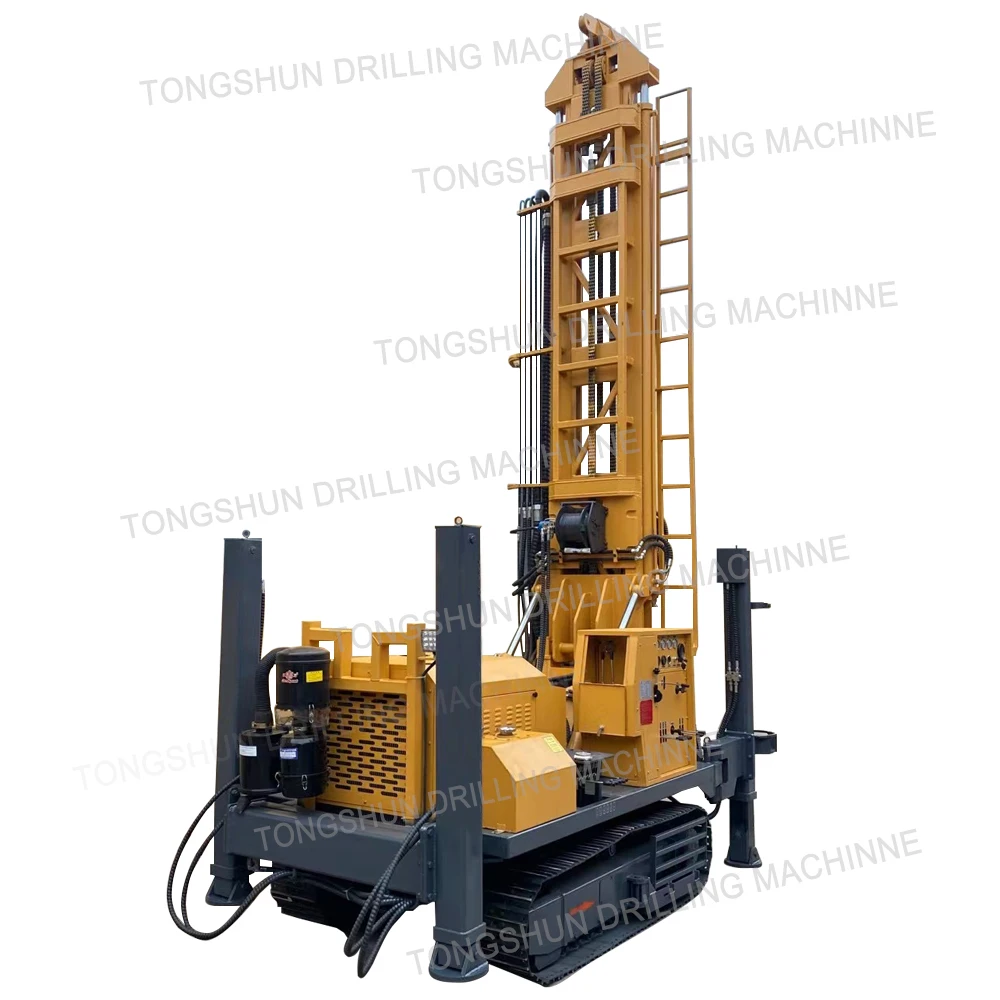

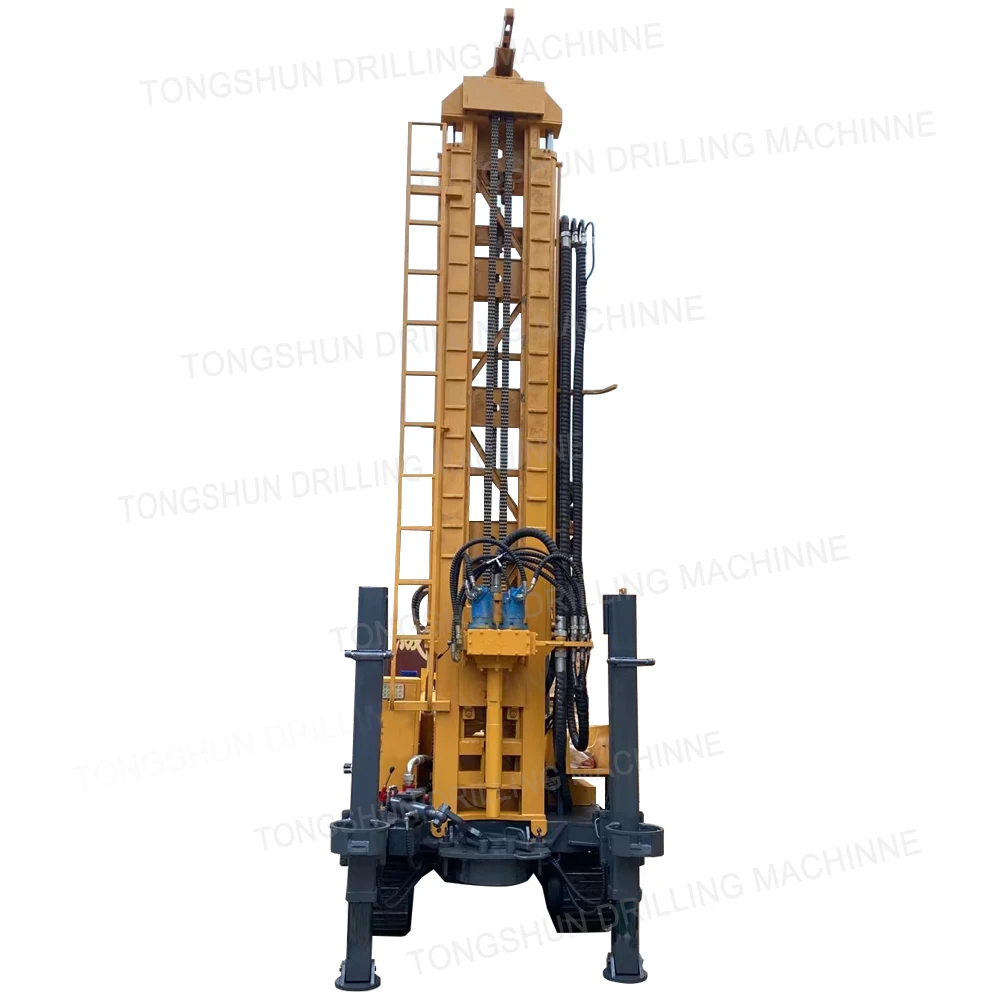

TSH180 DTH water well drilling rig, designed to work seamlessly with either an air compressor or a mud pump. With a maximum bore diameter of 254mm, this multi-functional drilling rig is ideal for drilling water wells, agricultural irrigation wells, geothermal wells, and other types of well holes in various stratum. Equipped with a powerful hydraulic motor, big diameter hydraulic cylinders, and a centralized control system, this rig is easy to maintain and operate. Its excavator crawler chassis allows for high off-road performance, and it can also be mounted on a truck for increased maneuverability. Contact us with your specific requirements and we will provide you with a detailed quote.

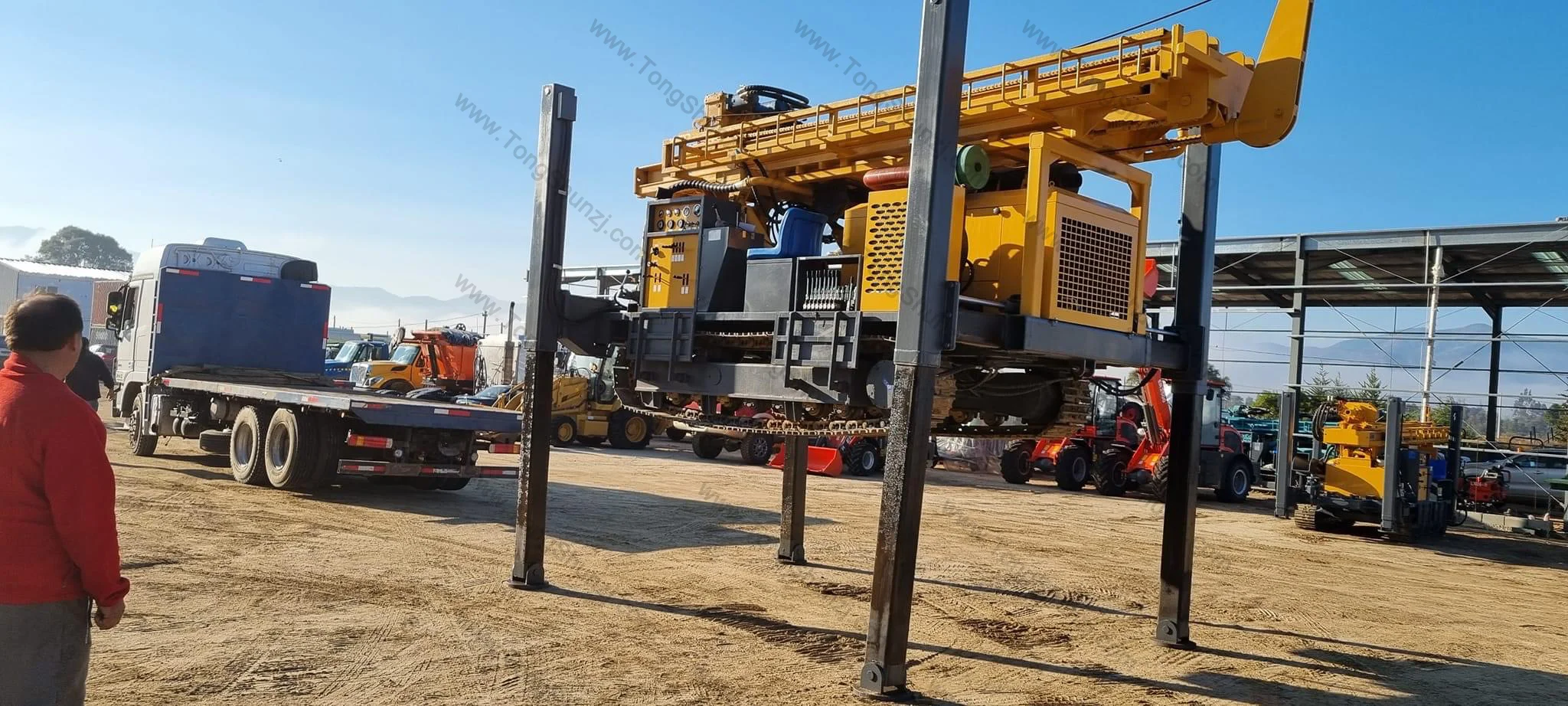

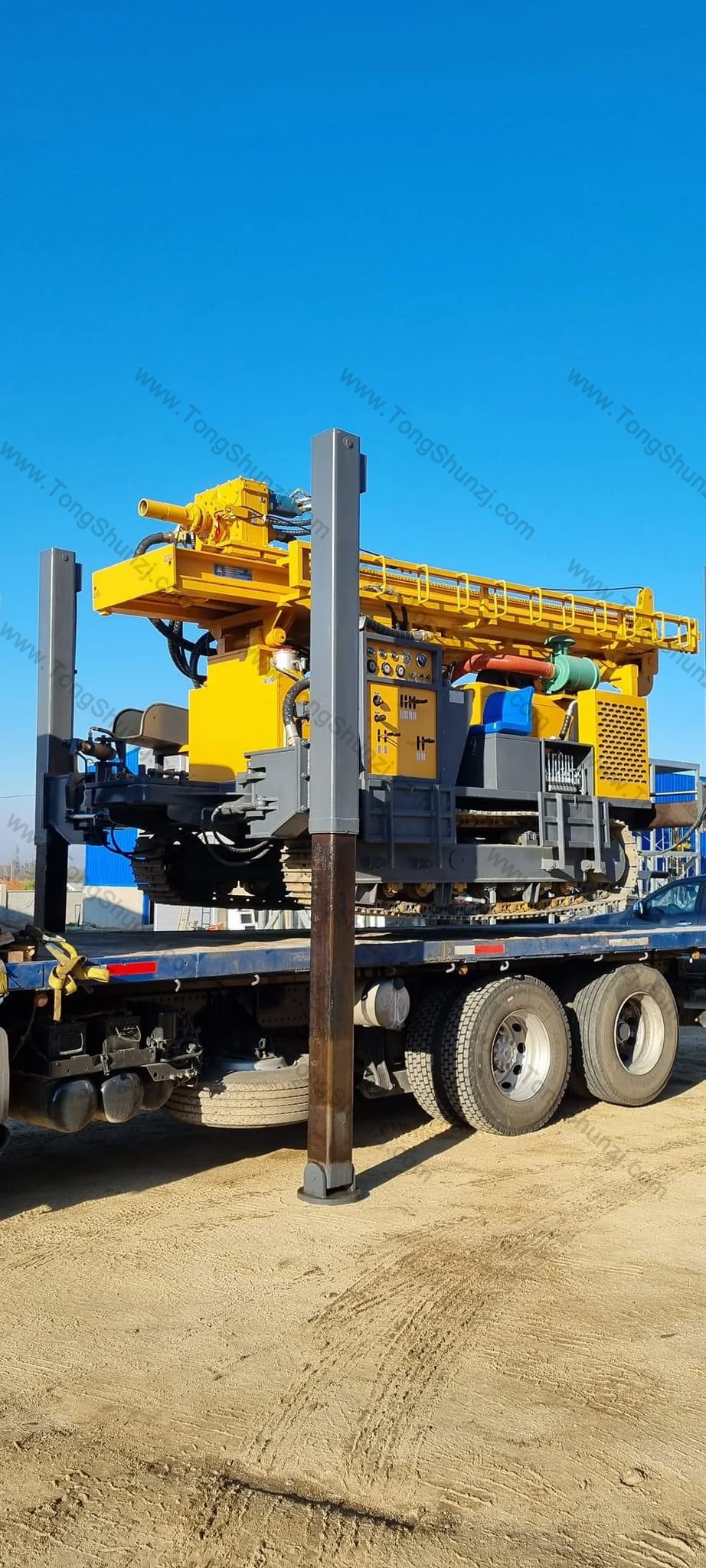

Our drilling rig is equipped with high hydraulic outriggers. If you need this function, we can provide you with this configuration extra, because it can be convenient for you to install the drilling rig on a truck for long-distance transportation.


Customers Feedback




Recommend Products




FAQ


Q1: What are your main products, and used for?

A1: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.

Q2: How about the delivery terms?
A2: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.

Q3: Do you accept sample order?
A3: Yes sure, please contact us for details.

Q4: How about your after-sales service?
A4: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we
acceptgoods return or replace for quality problem.

Q5: How does your company control the quality?
A5: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products
andraw materials in strict procedure. We have obtained certificate of ISO9001.


Company Profile




Contact Us&Our Services






Our Services:
1. Drill pipe strictly according to ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
