Cold Extrusion Machine Pet Treats Dog Chews Making Machine pet biscuit making machine Dog Food Fresh Meat Strip Extruding Line
- Category: >>>
- Supplier: Jinan Darin Machinery Co. Ltd.
Share on (1601111424331):
Product Overview
Description

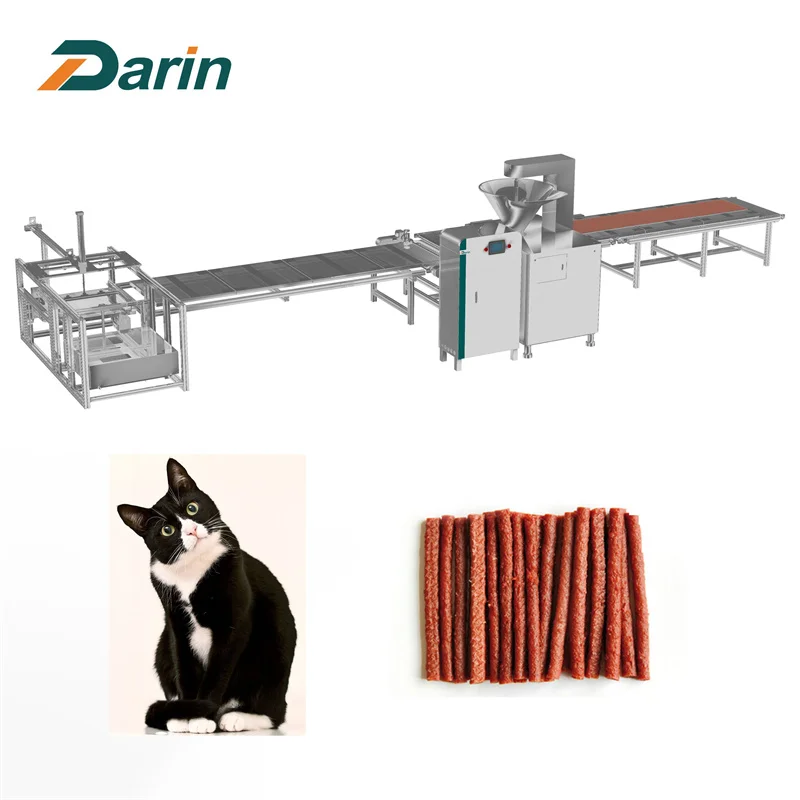

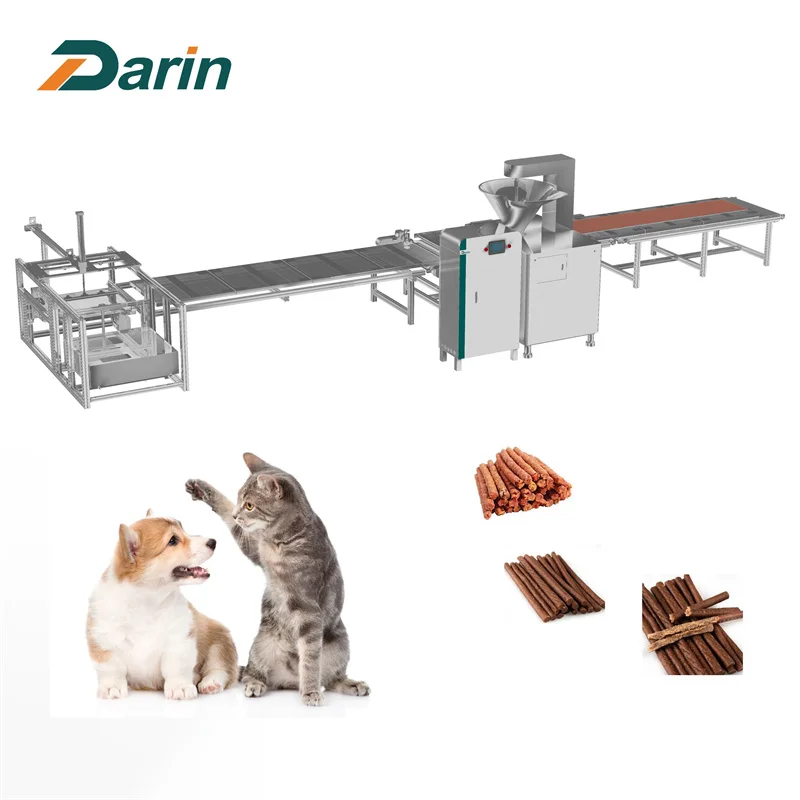

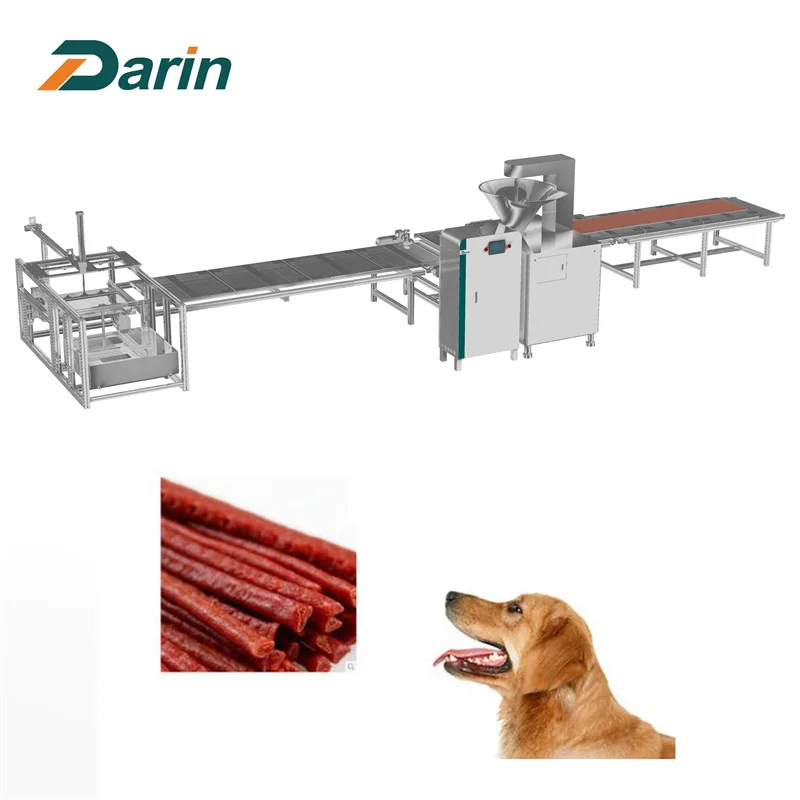

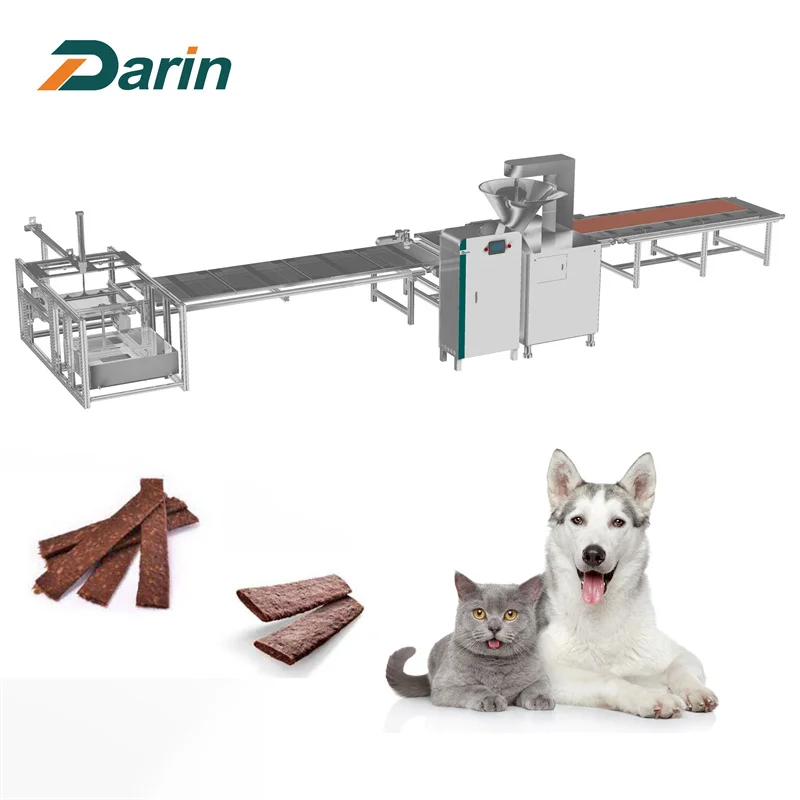

Meat Strip Extruding Machine Dog Snack Meat Stick Processing Line with Auto Traying System
Introduction

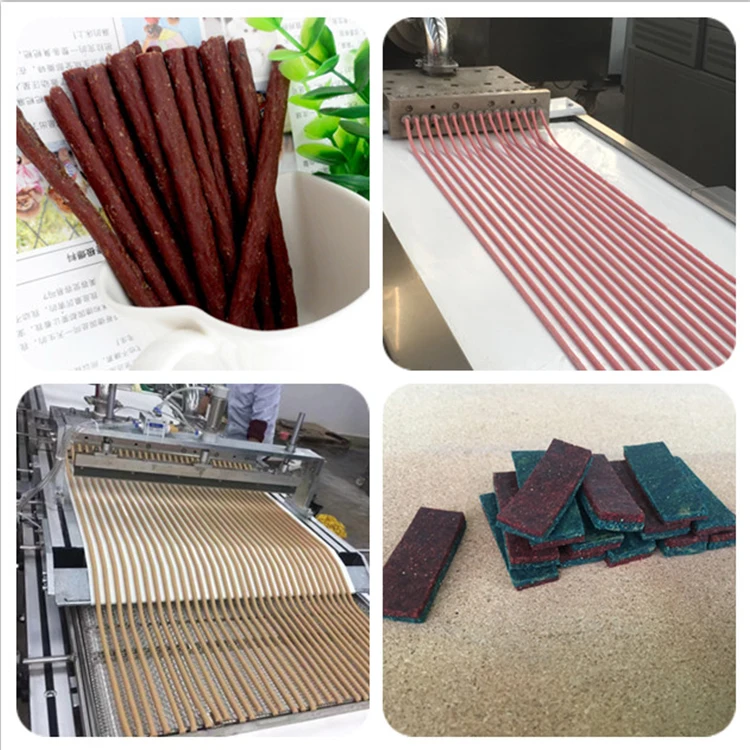

Auto meat strip machine can make pet munchy stick with different sizes and shapes. It includes the following two parts:
1. Auto traying system
Automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray’s dimension and automatically enter into tray, it is convenient for subsequent baking link . It can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity .Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.
2. Meat strip extruding machine
DR-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.Specially used to produce high content (max 100%) meat products.Patented design to produce meat strip with different shapes and sizes. Siemens motor, FATEK PLC, ABB or Schenider main electric parts.Stainless steel control cabinet, touch screen with friendly interface and fault display function.The screw adopts detachable structure, and has rust-proof treatment.The cylinder should be changed every 2-3 months. During production, cylinder pressure should be no more than 0.6Mpa.
Parameter of Auto Meat Strip Traying System
Machine | Auto meat strip machine | ||||||
Capacity | 200-300kg/hr | ||||||
Air source | 0.5-0.8Mpa | ||||||
Air Comsumption | 90L/min | ||||||
Quantity of Placing Tray One Time | 30pcs | ||||||
Weight | 3000kg | ||||||
Power | 18kw | ||||||
Dimension | 8630x3570x685mm | ||||||
Details Images
Company Profile

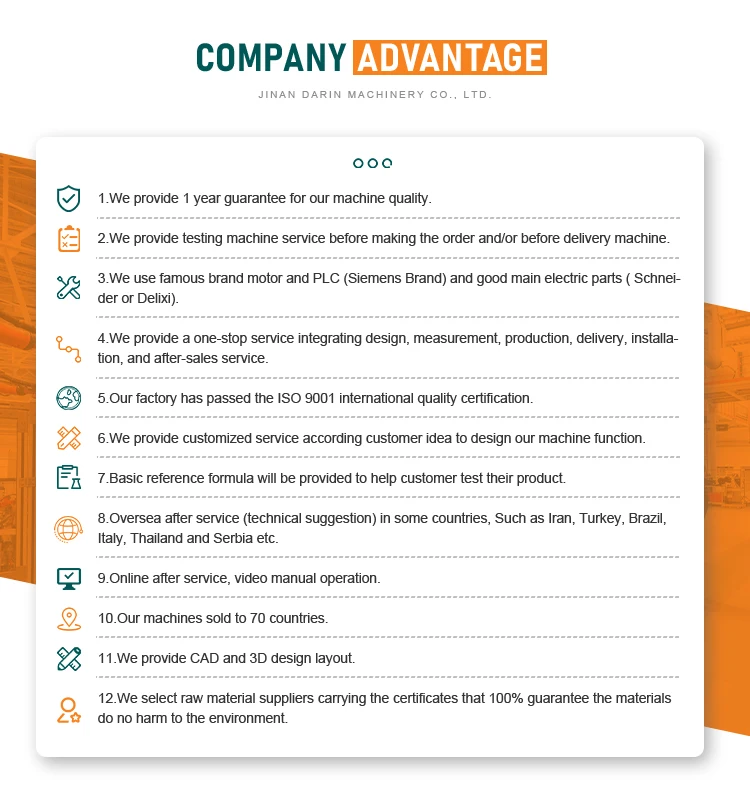

Company Advantage
1.We provide 1 year guarantee for our machine quality.
2.We provide testing machine service before making the order and/or before delivery machine.
3.We use famous brand motor and PLC (Siemens Brand) and good main electric parts ( Schneider or Delixi).
4.We provide a one-stop service integrating design, measurement, production, delivery, installation, and after-sales service.
5.Our factory has passed the ISO 9001 international quality certification.
6.We provide customized service according customer idea to design our machine function.
7.Basic reference formula will be provided to help customer test their product.
8.Oversea after service (technical suggestion) in some countries, Such as Turkey, Brazil, Italy, Thailand and Serbia etc.
9.Online after service, video manual operation.10.Our machines sold to 70 countries.11.We provide CAD and 3D design layout.12.We select raw material suppliers carrying the certificates that 100% guarantee the materials do no harm to the environment.
LAYOUT DESIGN
We make accurate factory layout design according to customer's factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker's restroom, etc.
ENGINEER VISA
After delivering machines to client's factory, we start to apply for the Visa to client's country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
SHORTEST TIME
1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time
TRAINING OPERATION
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
WARRANTY PERIOD
It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
RESPONSIBILITY OF CUSTOMER
The engineer's round-trip flight tickets accommodation and daily salary are on client's account.

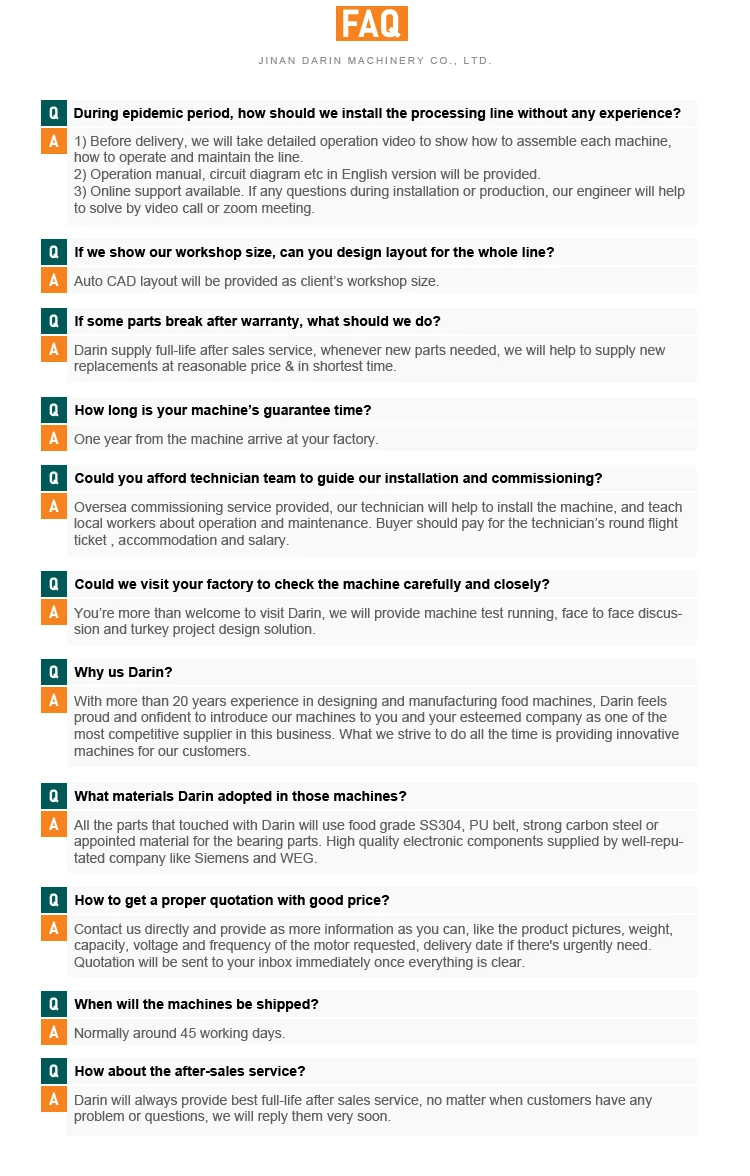

FAQ
Q During epidemic period, how should we install the processing line without any experience?
A 1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.
2) Operation manual, circuit diagram etc in English version will be provided.
3) Online support available. If any questions during installation or production, our engineer will help to solve by video call or zoom meeting.
Q If we show our workshop size, can you design layout for the whole line?
A Auto CAD layout will be provided as client's workshop size.
Q If some parts break after warranty, what should we do?
A Darin supply full-life after sales service, whenever new parts needed, we will help to supply new replacements at reasonable price & in shortest time.
Q How long is your machine's guarantee time?
A One year from the machine arrive at your factory.
Q Could you afford technician team to guide our installation and commissioning?
A Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
Q Could we visit your factory to check the machine carefully and closely?
A You're more than welcome to visit Darin, we will provide machine test running, face to face discussion and turkey project design solution.
Q Why us Darin?
A With more than 20 years experience in designing and manufacturing food machines, Darin feels proud and onfident to introduce our machines to you and your esteemed company as one of thel most competitive supplier in this business. What we strive to do all the time is providing innovative machines for our customers.
Q What materials Darin adopted in those machines?
A All the parts that touched with Darin will use food grade SS304, PU belt, strong carbon steel or appointed material for the bearing parts. High quality electronic components supplied by well-reputated company
like Siemens and WEG.
like Siemens and WEG.
Q How to get a proper quotation with good price?
A Contact us directly and provide as more information as you can, like the product pictures, weight, capacity, voltage and frequency of the motor requested, delivery date if there's urgentiy need. Quotation will be sent to your inbox immediately once everything is clear.
Q When will the machines be shipped?
A Normally around 45 working days.
Q How about the after-sales service?
A Darin will always provide best full-life after sales service, no matter when customers have any problem or questions, we will reply them very soon.
