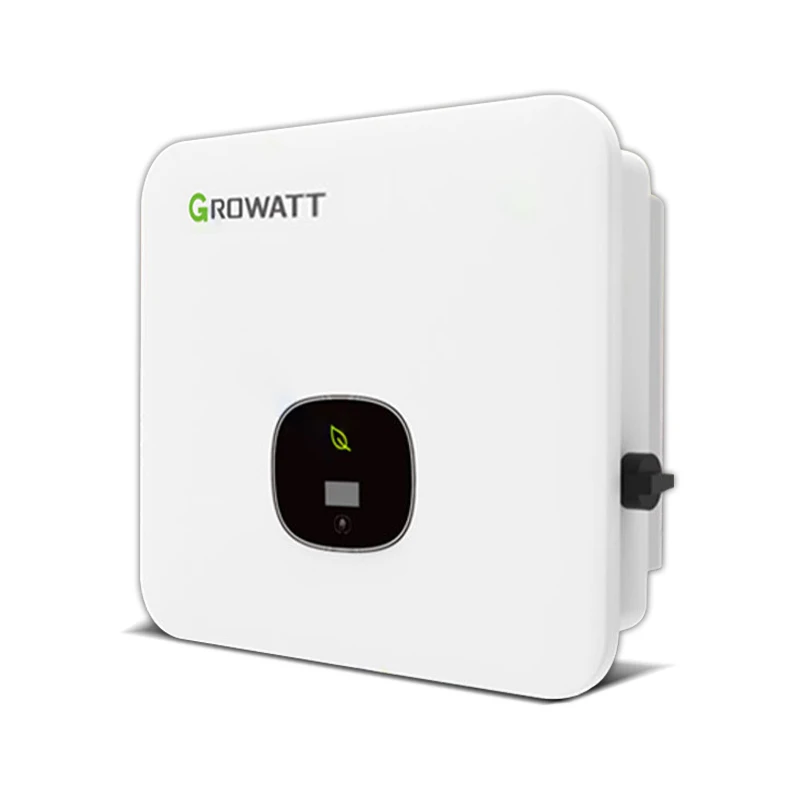

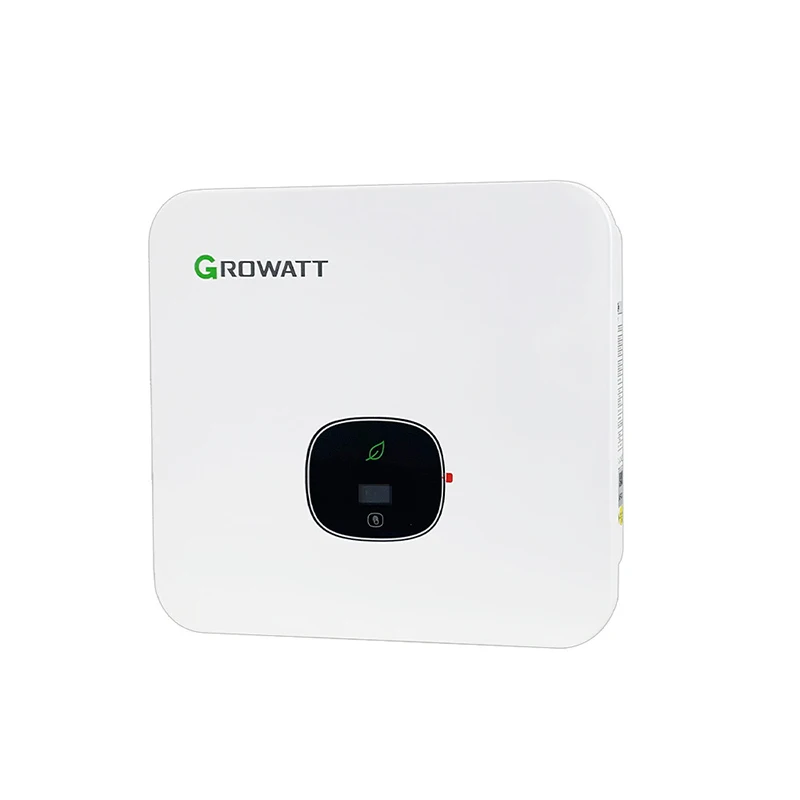

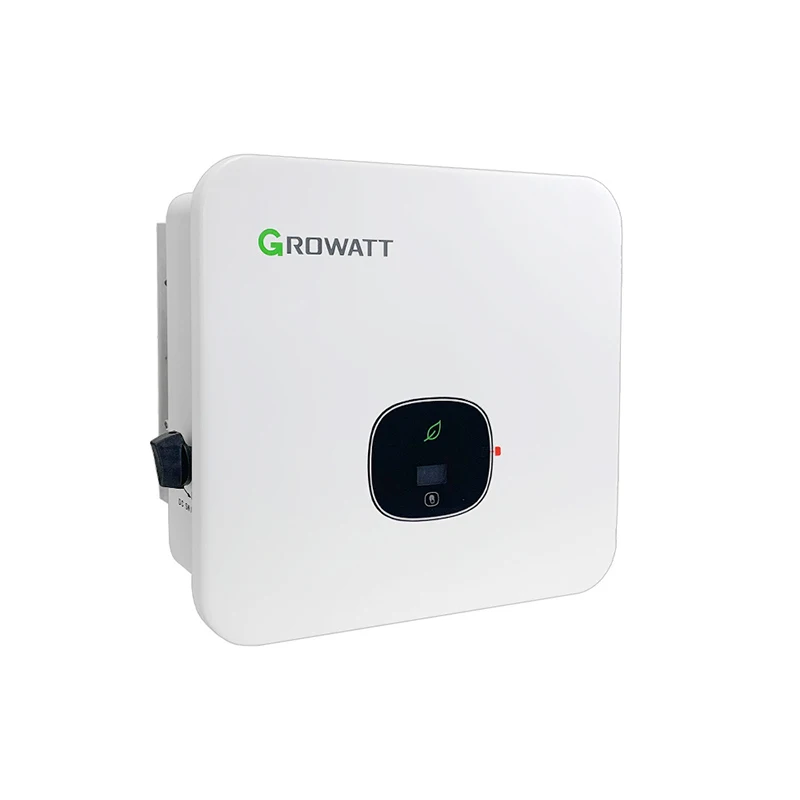

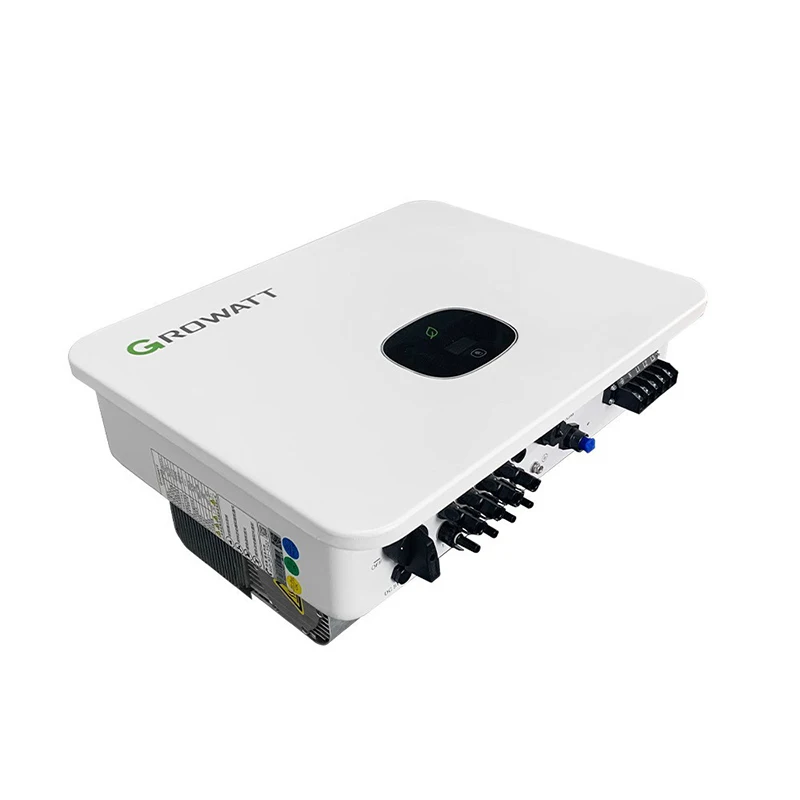

Growatt MOD15KTL3 X 15kw On grid Inverter For Solar System With String Monitoring With High Quality
- Category: >>>
- Supplier: Chuangqite Technology (shenzhen) Co. Ltd.Chuangqite Ltd.
Share on (1601111452766):
Product Overview
Description
Recommend Products
Technology Parameter
Model Name | MOD 3000TL3-X | MOD 5000TL3-X | MOD 8000TL3-X | MOD 9000TL3-X | MOD 10KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 4500W | 7500W | 12000W | 13500W | 15000W | |||||
Max. DC voltage | 1100V | |||||||||
Start voltage | 160V | |||||||||
Nominal voltage | 580V | |||||||||
MPPT voltage range | 140V-1000V | |||||||||
MPP tracker | 2 | |||||||||
Max. short-circuit current per MPP tracker | 16A | |||||||||
Output data (AC) | ||||||||||
AC nominal power | 3000W | 5000W | 8000W | 9000W | 10000W | |||||
Max. AC apparent power | 3300VA | 5500VA | 8800VA | 9900VA | 11000VA | |||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 5.0A | 8.3A | 13.3A | 15.0A | 16.7A | |||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
MAX. efficiency | 98.30% | 98.30% | 98.60% | 98.60% | 98.6% | |||||
European efficiency | 97.50% | 97.50% | 98.10% | 98.10% | 98.1% | |||||
MPPT efficiency | 99.90% | |||||||||
General data | ||||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/178mm | 425/387/178mm | |||||||
Weight | 12.5kg | 14kg | ||||||||
DC connection | H4/MC4(Optional) | |||||||||
AC connection | Connector | |||||||||
Display | OLED+LED/WIFI+APP | |||||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||||
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger ，G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2 | ||||||||||
Products Description
Model Number | Residential inverters: MOD Series |
Rated AC Output Power | 3KW,4KW,5KW,6KW,8KW,9KW,10KW,12KW,15KW |
Output Voltage | 220/230/240V, 380/400/415V |
Input Voltage | 50V-550V |
Output Type | Triple. |
Company Profile
Chuangqite Technology (shenzhen) Co., Ltd.
Shenzhen Chuang Qi Te Electronic Technology Co., Ltd is a Hi-tech enterprise specializing in research manufacturing and marketing of smart energy solutions. We are committed to create an environmental and energy saving brand and to provide customers with high quality power solutions, Our main products are switchable power supply adapters, high-power equipment power supplies, and utility-scale PV inverters ,and accessories.
We have professional factories and R&D center, both of them are ISO9001 certified, the product have been approved the CE, UL organization and pass the ROHS test. which export to EU countries, North America, South America, Japan, Korea, Australia, New Zealand, and other countries. Each of our production is strict quality control in each step of the production process, from the purchase of raw materials through each step in the manufacturing process. Our vision is to make electricity more comfortable and convenient in everyday life, welcome your inquiries.
FAQ
Q1: How to insatll and use the inverter?
A1: We have the English teaching manual and videos;All the videos about every step of inverter Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q5: Can you get the inverter customized for us ?
A5: Of course, brand name, micro inverter color, designed unique patterns available for customization.
Q6:How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
A1: We have the English teaching manual and videos;All the videos about every step of inverter Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q5: Can you get the inverter customized for us ?
A5: Of course, brand name, micro inverter color, designed unique patterns available for customization.
Q6:How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
