Product Overview
Description
CONTINUOSE TYPE PLASTIC PYROLYSIS OIL DISTILLATION EQUIPMENTS
About us
SHANGQIU SIHAI ENERGY TECHNOLOGY CO.,LTD. is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.

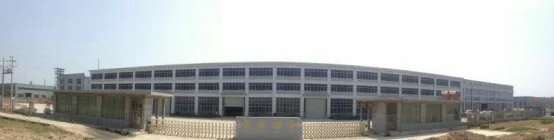

Our company covers an area of 37,000 square meters. Our company has a huge professional technical team, including 2 senior engineers, 16 senior technicians, 28 mid-class technicians, and 82 technicians.
Our main products are waste tires pyrolysis plant, waste rubber refining equipment, waste plastic recycling machine and other waste management units, and waste oil purification equipment, tire oil distillation plant, plastic oil refinery machine and crude oil distillation purification unit. Our products have been exported to China, South Korea, Thailand, the Philippines, India, Malaysia, Malaysia, Myanmar, Afghanistan and the United States and other countries and regions, which obtain a better reputation and happy feedback.
We will continue to innovate and improve to give you a nice turnkey projects.
Product Description
1. Raw material:
a. Waste oil .example: waste diesel, waste oil residue etc.
b. rubber oil
c. plastic oil
d. waste original oil
e. waste engine/motor oil/lubricating oil/car used oil
F. crude oil
2. Components of Equipment
A. Vertical reactor/Horizontal reactor
B. Vacuum system
C. Condensation system
D. Collector
E. Oil collecting tank
F. Residue tank
G. Oil-gas separator
H. Water cooling system
I. Water seal
J. Pressure & Temperature monitoring gauge
K.Smoke desulphurization and dust removal system
L. Gas heating system (waste gas process system)
3.product:
A.Diesel and Gasoline depending on the quality of raw material generally 70%~75%
B.Water depending on the quality of raw material generally little
C.Waste gas we have waste gas recycling device to recycle waste gas and it can be used as fuel to heat the reactor.that can save the energy.
D.Residual depending on the quality of raw material generally 10~20%,it can used as bitumen or waterproof material.
4.brief introduction of technology:
Reduce pressure distillation equipment with good decolor and destinke. Due to it take the reduce pressure with pipe condensation oil-gas separator collecting system ,which can remove the odor of crude oil very well ,and final oil production will be purer ,even the oil output will be higher .In a word ,this new distill technology will help us to make more profits .

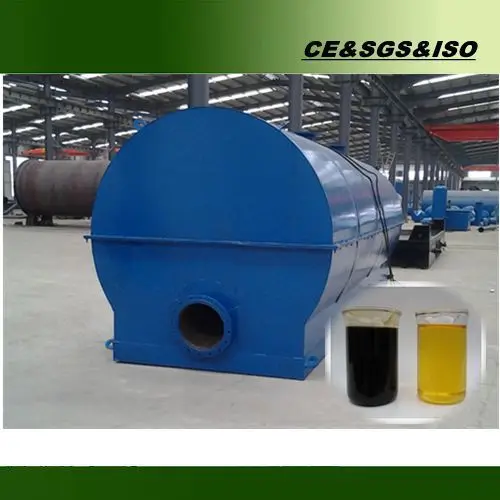

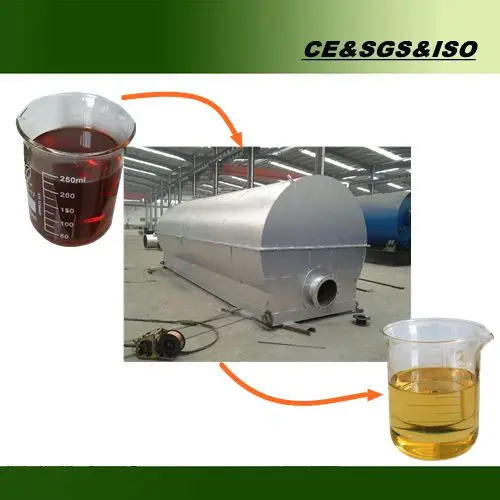

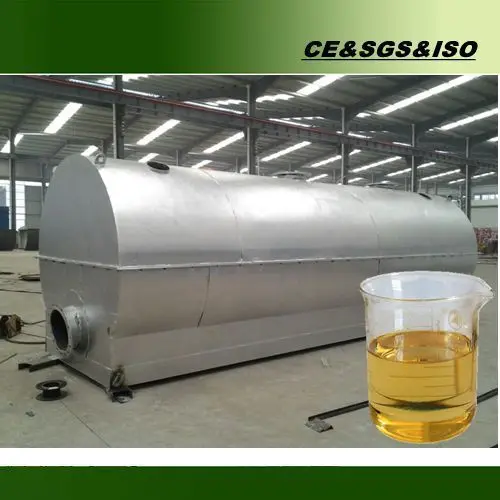

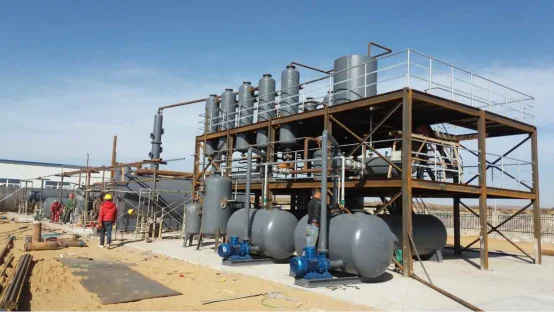

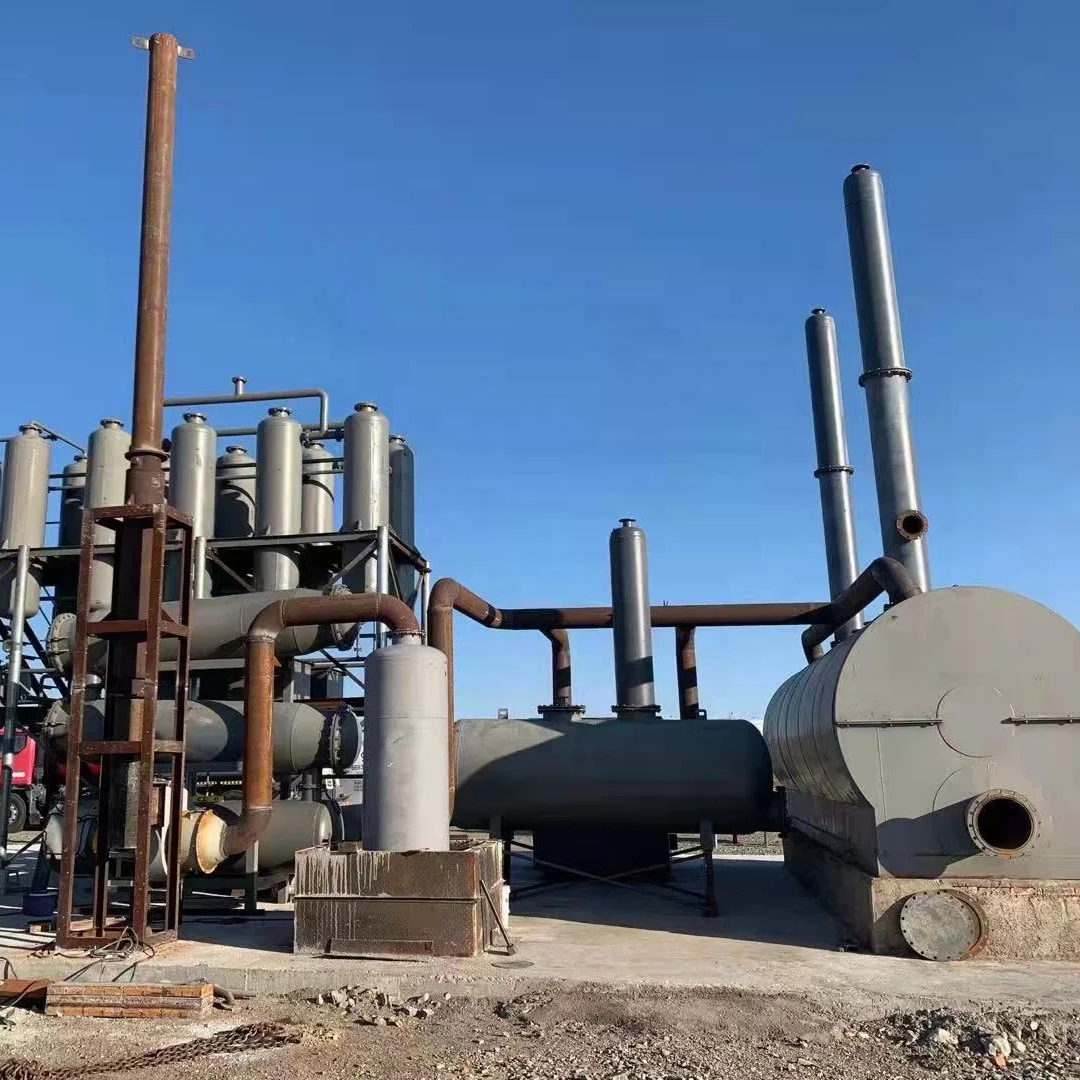

5.Picture of distillation reactor
Product Data
| Model | ZL-10 | |
| 1 | Raw material | black oil/crude oil/ueo/heavy oil |
| 2 | Structure form | Horizontal |
| 3 | Capacity | 10-15tons raw material |
| 4 | Oil yield | 80%-90% |
| 5 | Work pressure | vacuum |
| 6 | Weight | 30t |
| 7 | Power | 15.5kw |
| 8 | Cooling | Water cooling |
| 9 | Heating method | Directly |
| 10 | Noise dB(A) | ≤85 |
| 11 | Dimension | (Dia)2200*(L)5500mm |
| 12 | Working form | continuous |
| 13 | Packing | 2* 40HQ |
| 14 | Area need | 300 square meters |
Certifications
Installation & train
We can send our engineer to your side for guiding the installation and training your workers operation.
