SOL 0402X006 XX LED Components White Red Green Blue Yellow 0.06W SMD LED Chip 0402

Product Overview

Description

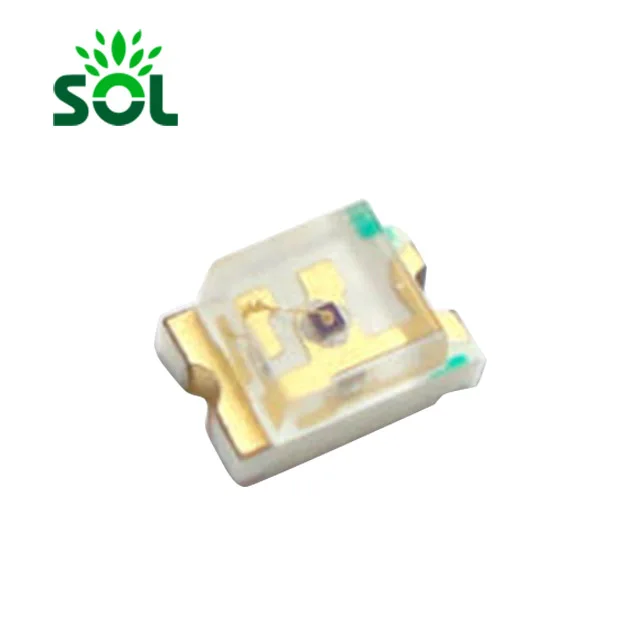

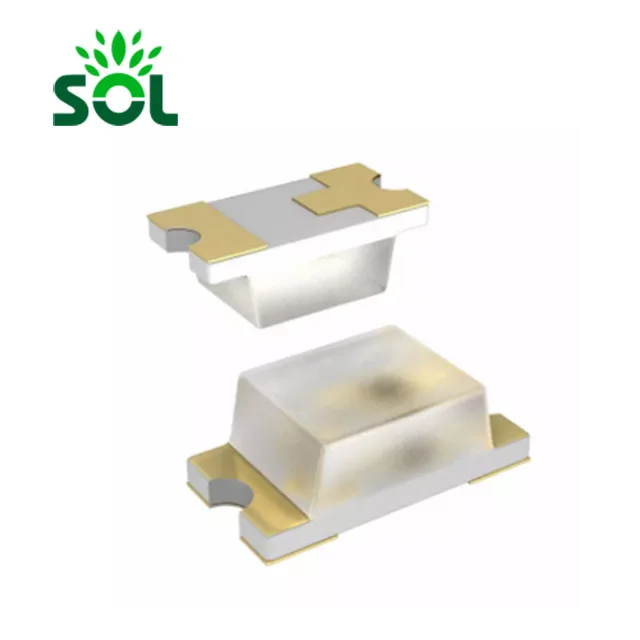

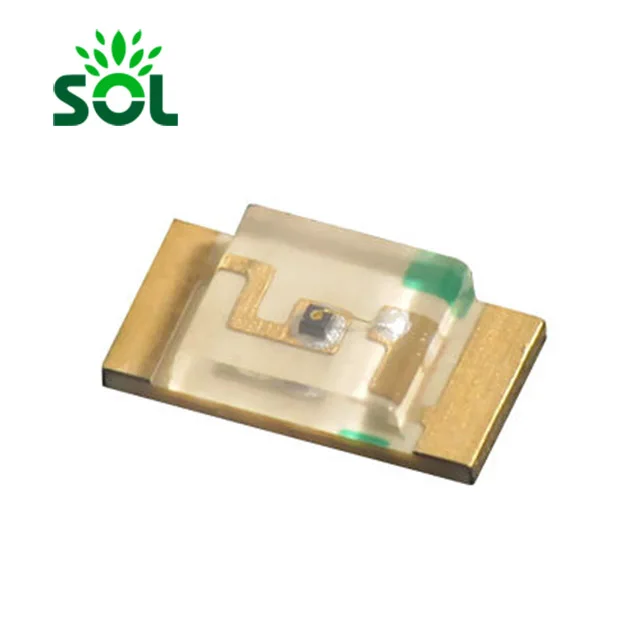

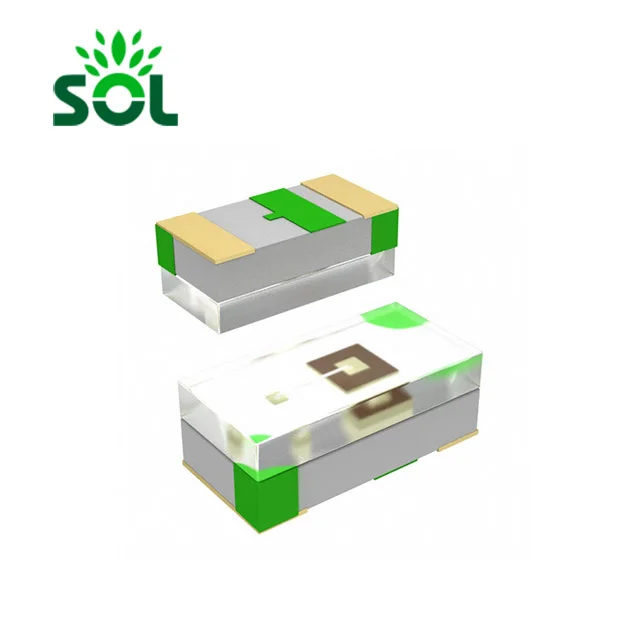

0402 SMD chip led

Products Name: 0402 chip led 0.04W/0.06W  2V/3V

Part  Number	COLOR	CRI	λD Typ(nm)	Input Voltage(V)	Typ power (w)	Forward current(mA)
SOL-0402C006-XX	9000K	>80		3V	0.06W	20
SOL-0402R004-XX	RED	>80	620	2V	0.04W	20
SOL-0402G006-XX	GREEN	>80	522	3V	0.06W	20
SOL-0402B006-XX	BLUE	>80	470	3V	0.06W	20
SOL-0402Y006XX	YELLOW	>80	588	2V	0.04W	20



A: Yes, we welcome sample order for you to test and check quality.

Q2. What about the lead time?

A: 5~10 working days for sample order and 15-20 days for bulk order

Q3. What's your MOQ?

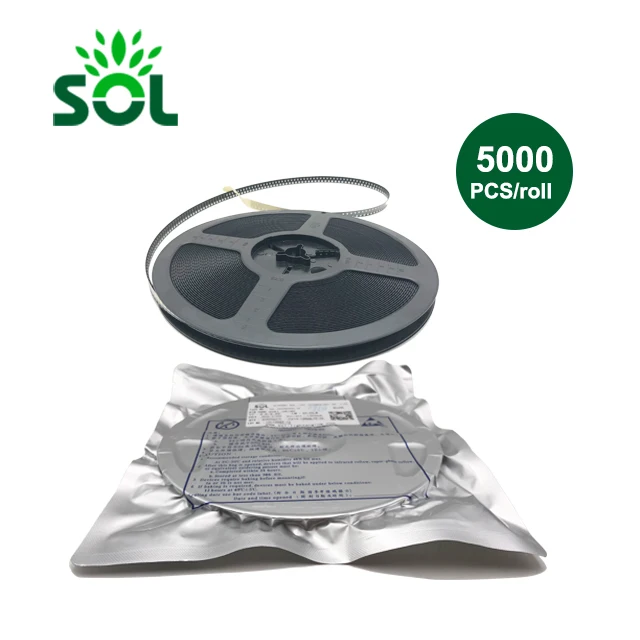

A: For samples 1roll, for order 5000pcs (per roll)

Q4. How do you ship the goods and shiping time?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air freight and sea freight are also optional.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to use my own package?

A: Yes.Normally we offer the white box without any printing.If you have the deisgn of box,we can help you produce in China and pack it.
