Automatic Metal Steel Making High Speed C U V Stud and Track Purlin Cold Roll Forming Machine
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (1601111612535):
Product Overview
Description
Products Description

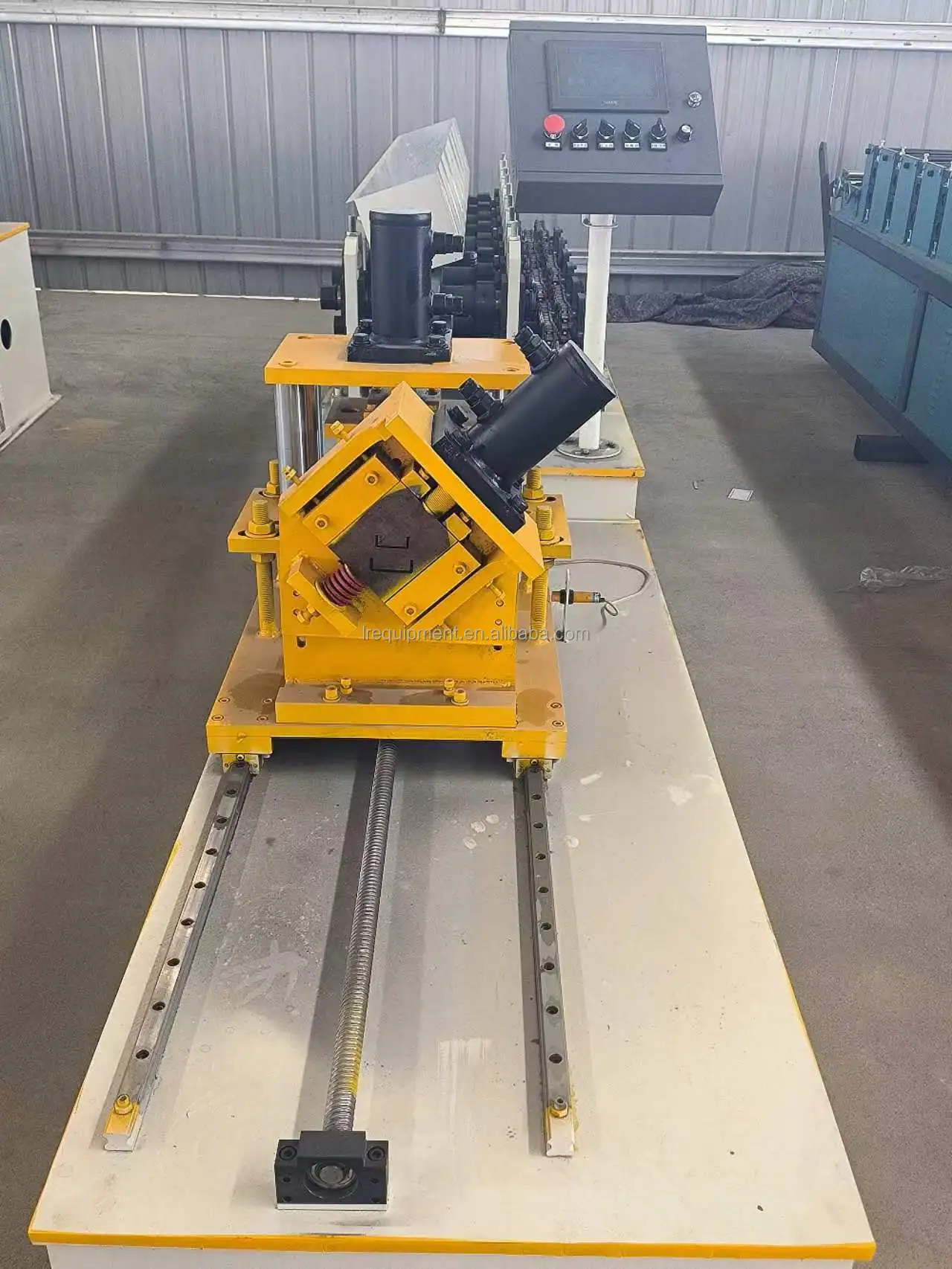

Automatic Metal Steel Making High Speed C U V Stud and Track Purlin Cold Roll Forming Machine

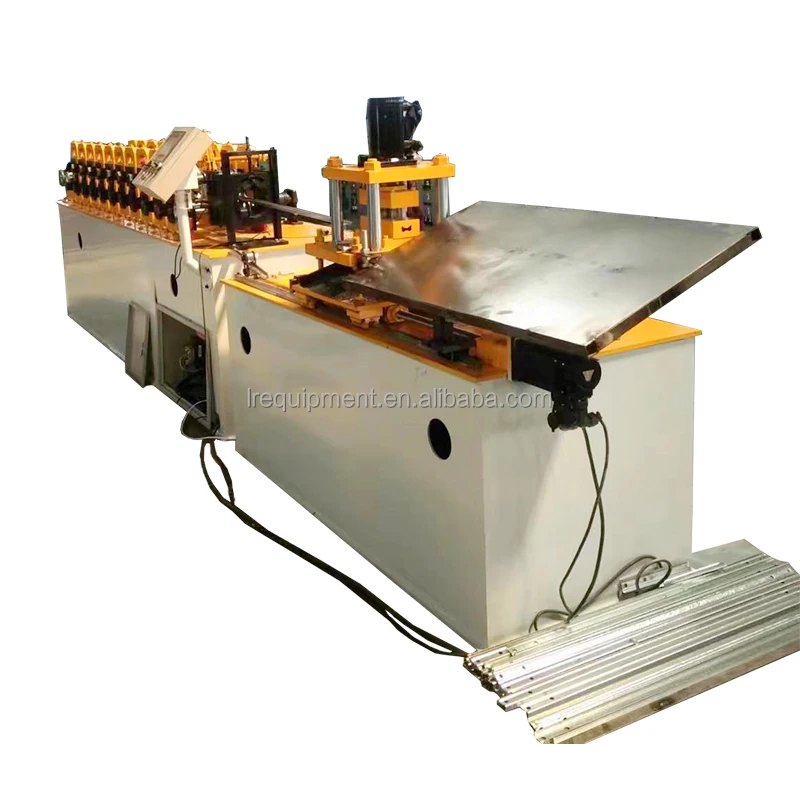

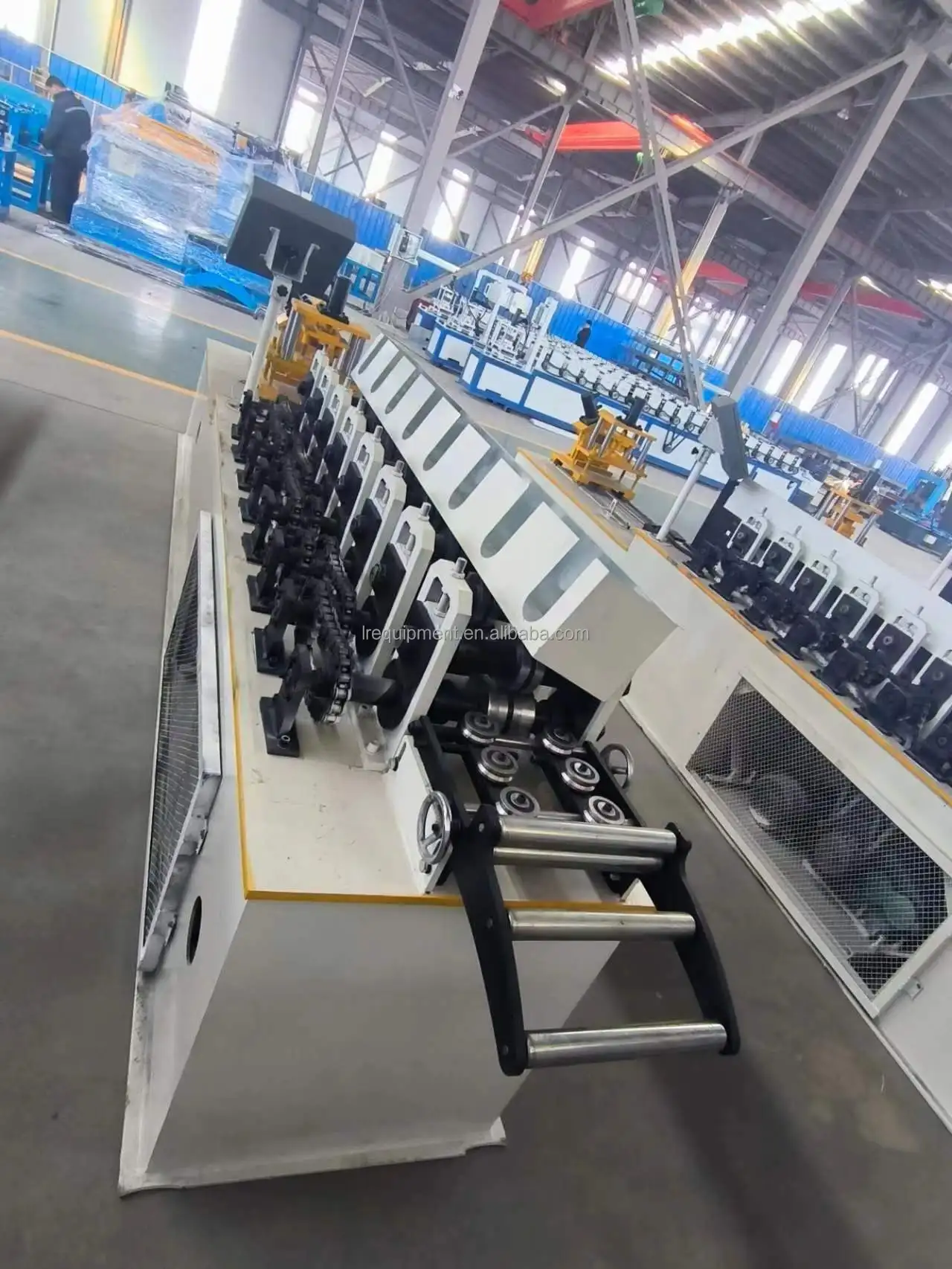

This shape profile roll forming machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by PLC,it is full automatic adjusting.
A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under PLC control system,this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel.
A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under PLC control system,this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel.

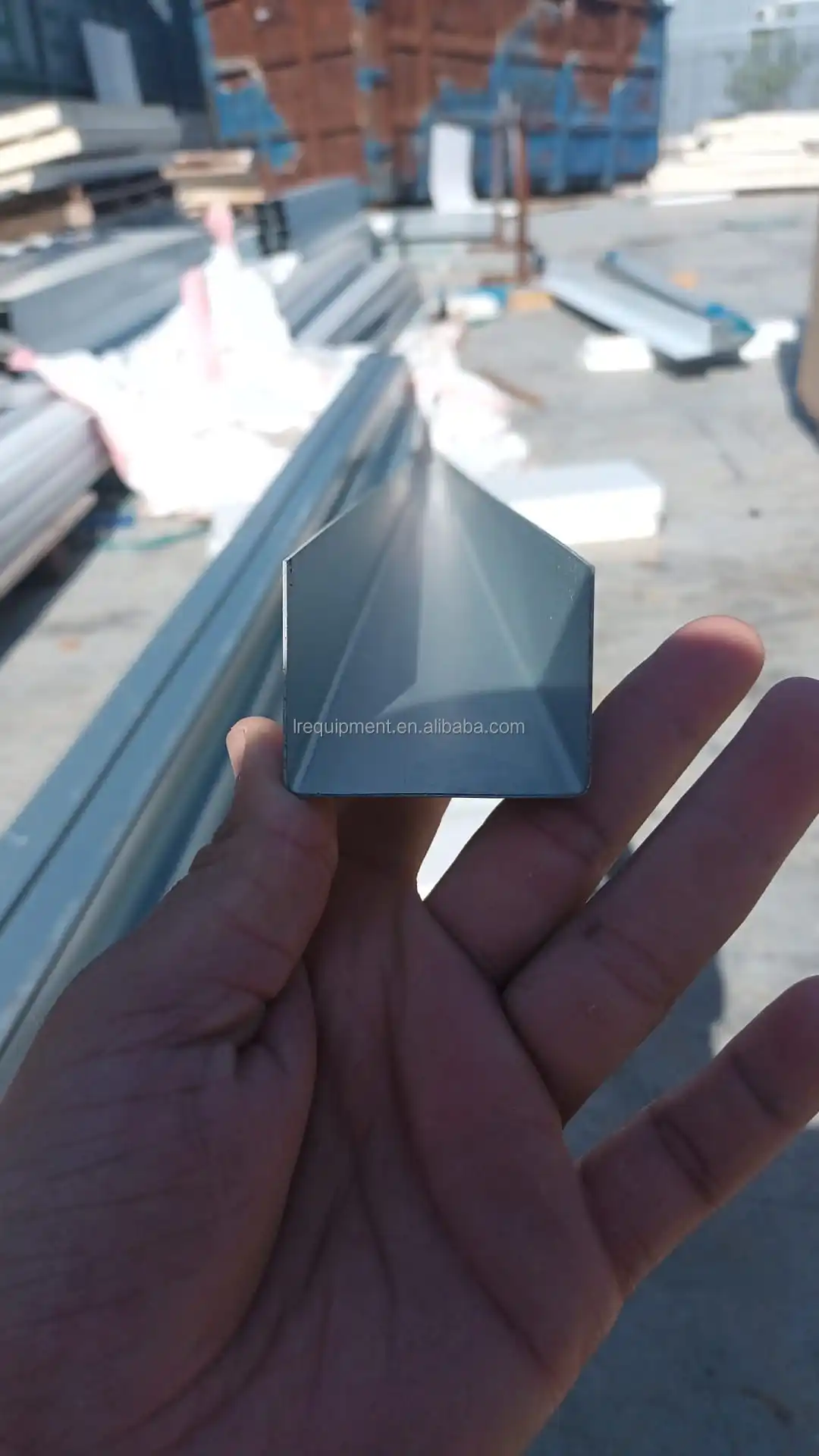

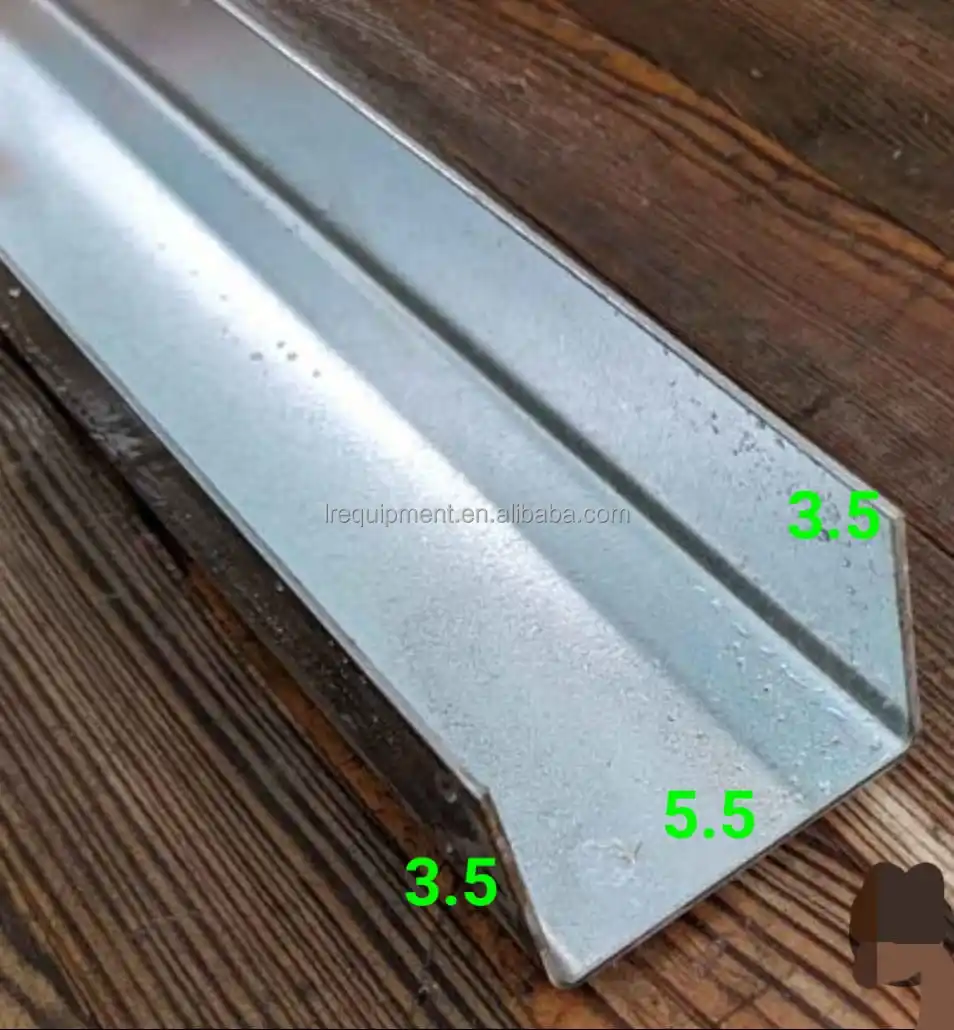

Forming profile show
Work flow
Automatic Metal Steel Making High Speed C U V Stud and Track Purlin Cold Roll Forming Machine

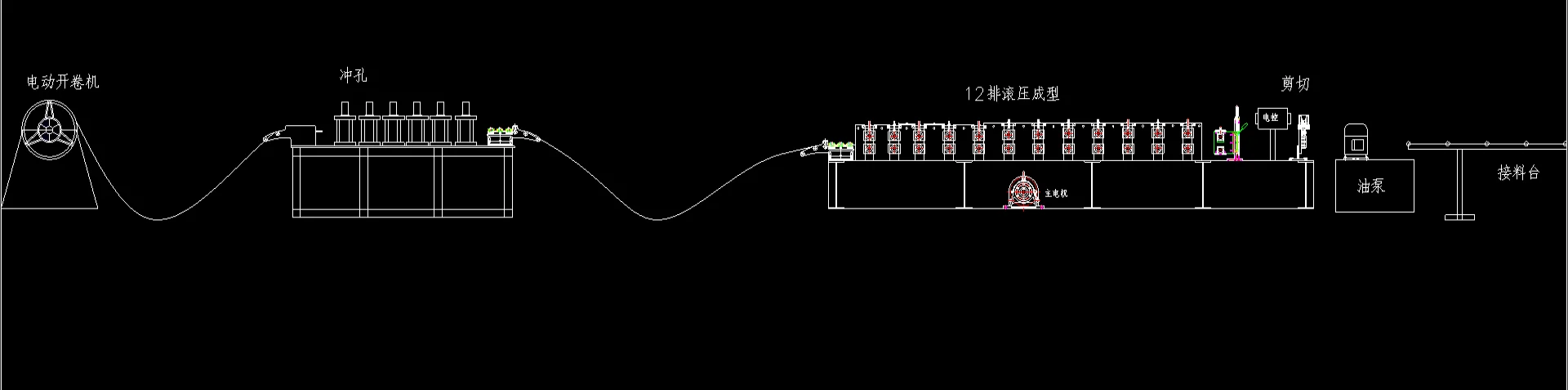

Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack
Product Paramenters
1 | Material type | PPGI, PPGL, GI, GL, PPAL | Thickness of Material | 0.3-1.0mm |
2 | Material Width | Follow with design | Production Speed | 0-15m/min |
3 | Roller Material | 45#, Cr12, GCr15, GCr12MoV | Drive Type | By Chain or Gear or Gearbox |
4 | Motor Power | 5.5-15kW | Brand of Electric Control System | Delta or Siemens |
5 | Dimension ( L* W * H ) | 10.5*1.45*1.5m | Warranty | 2 years |
Configuration

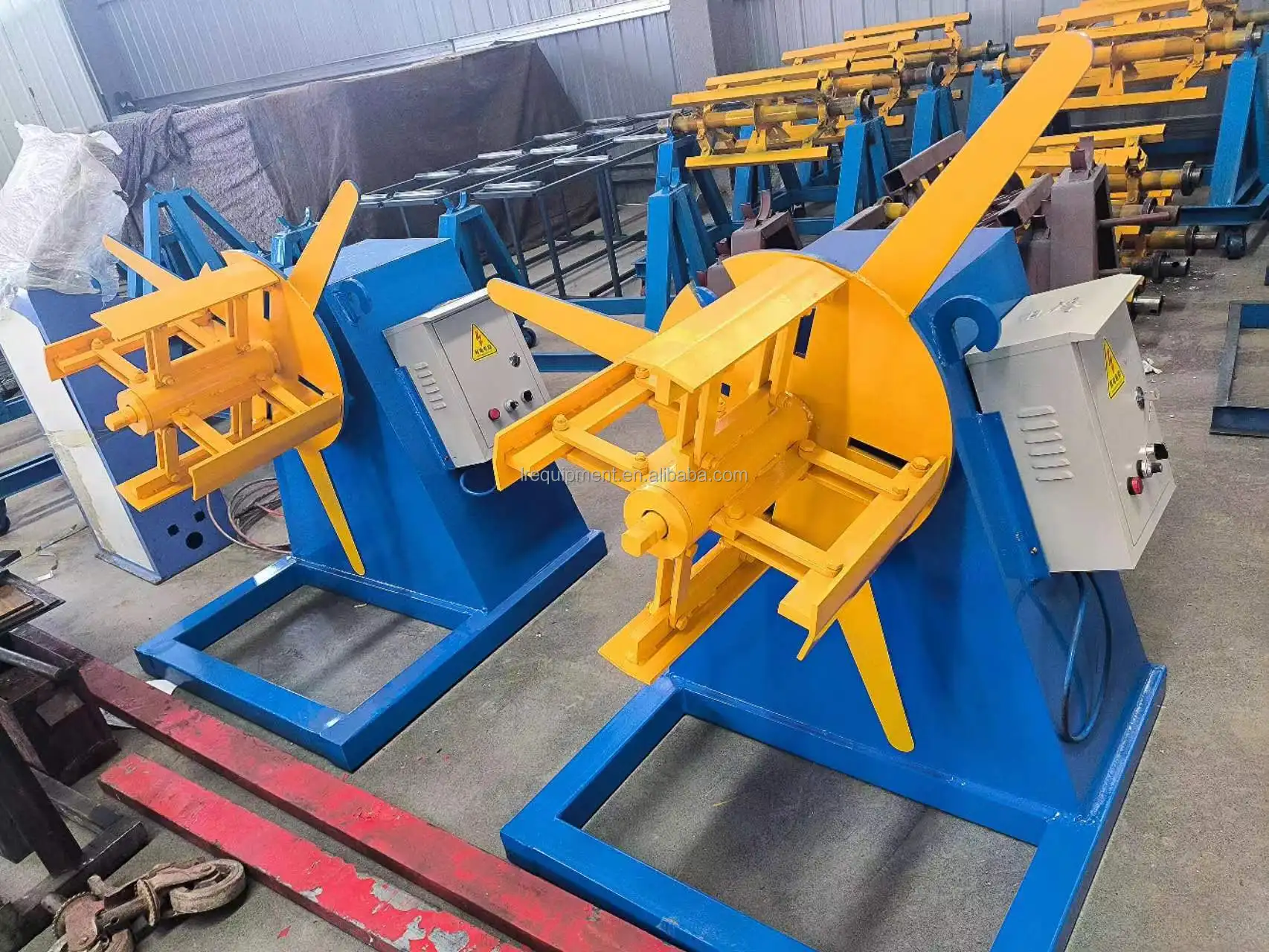

1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.

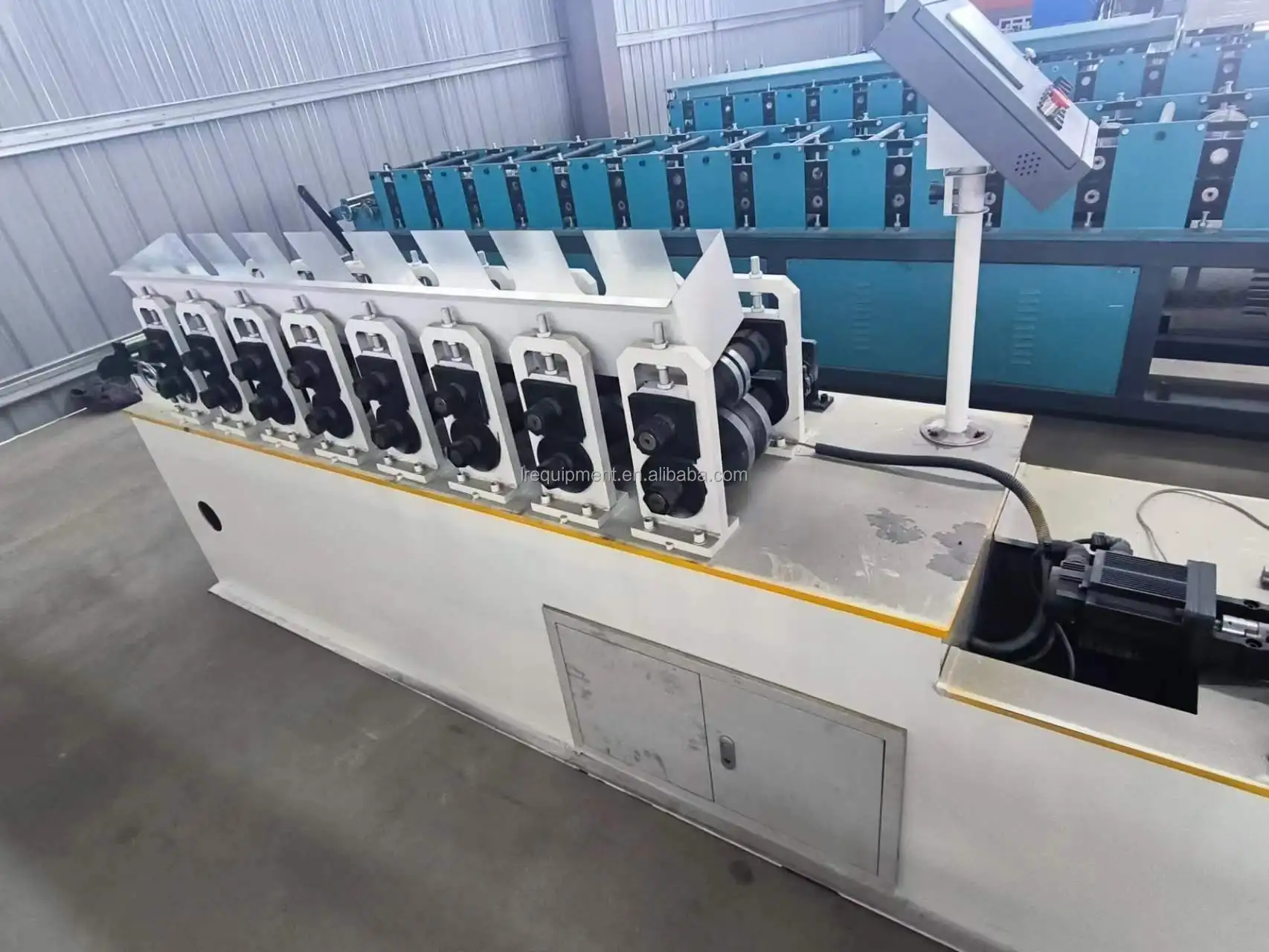

Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form
Main Motor =5.5KW,Frequency speed control
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form
Main Motor =5.5KW,Frequency speed control

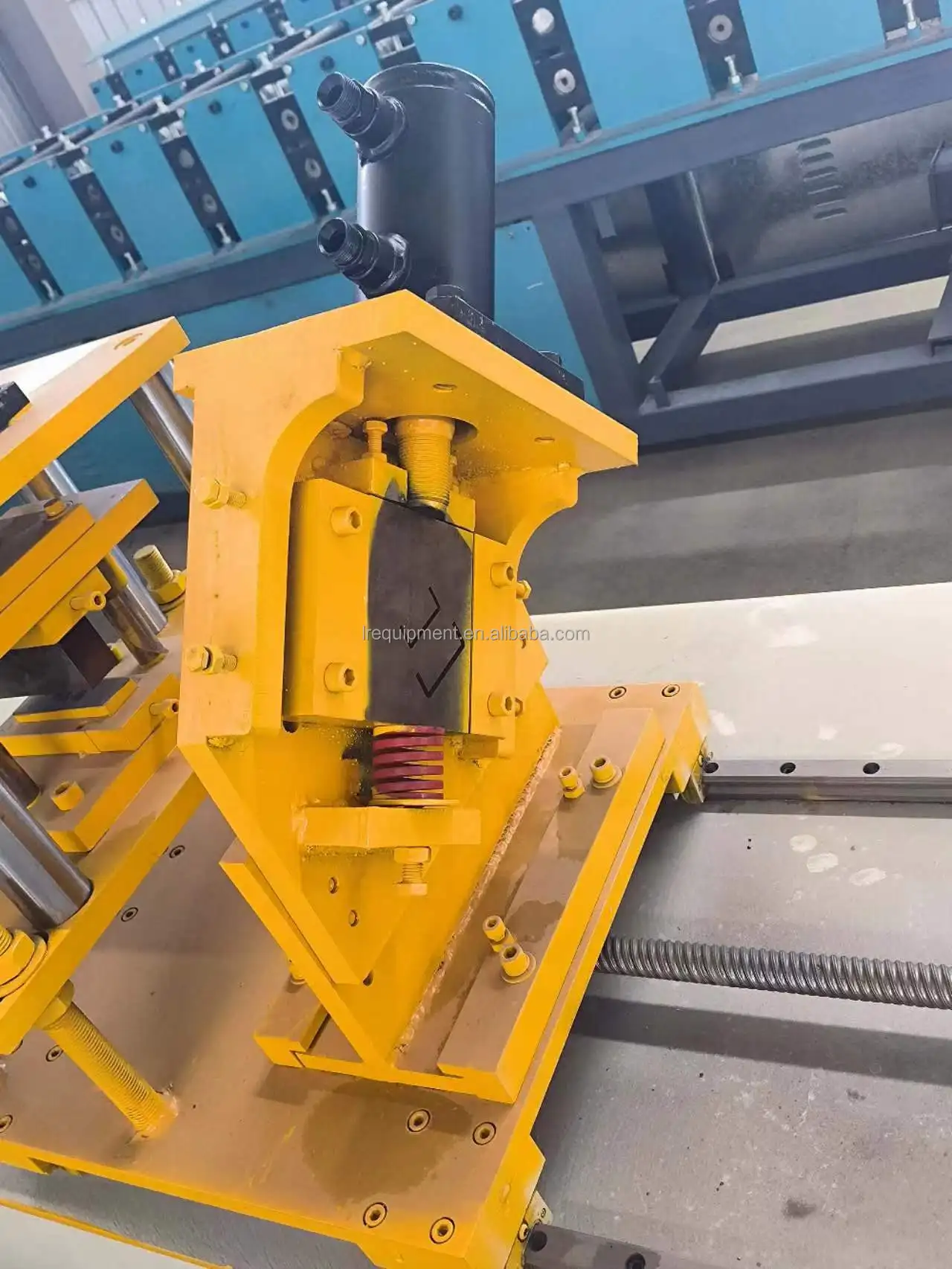

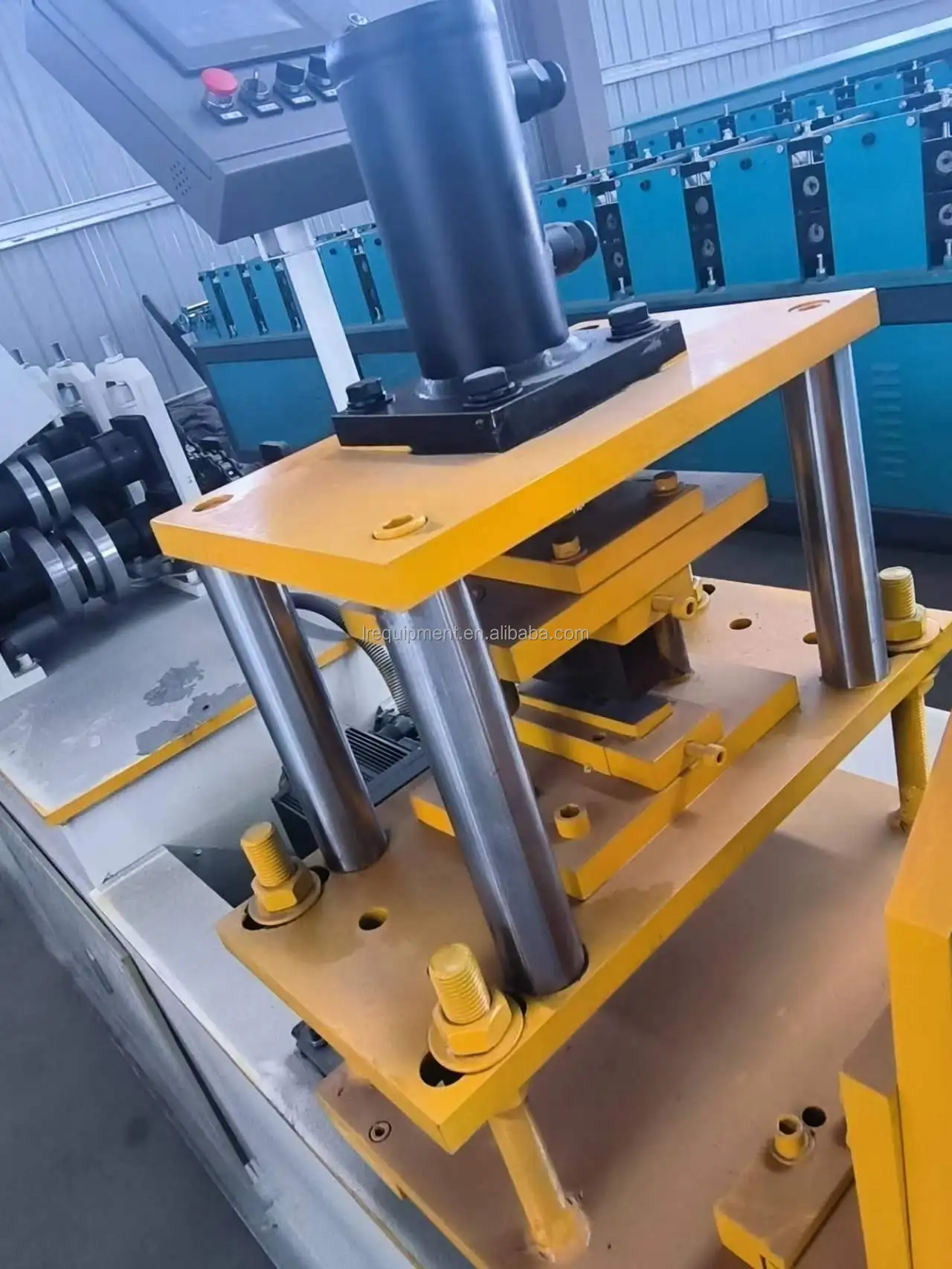

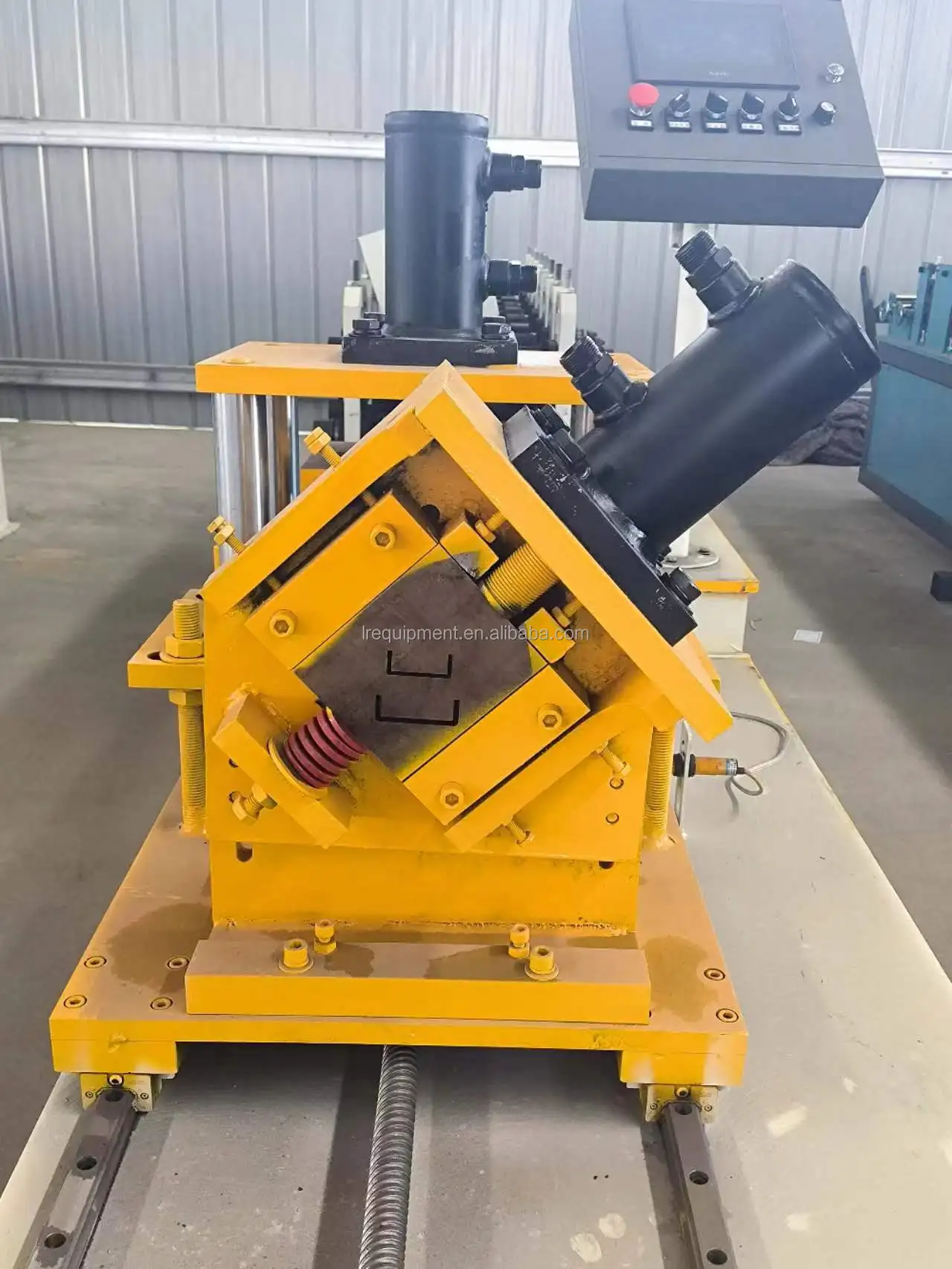

Cutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW+2.3kw
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW+2.3kw

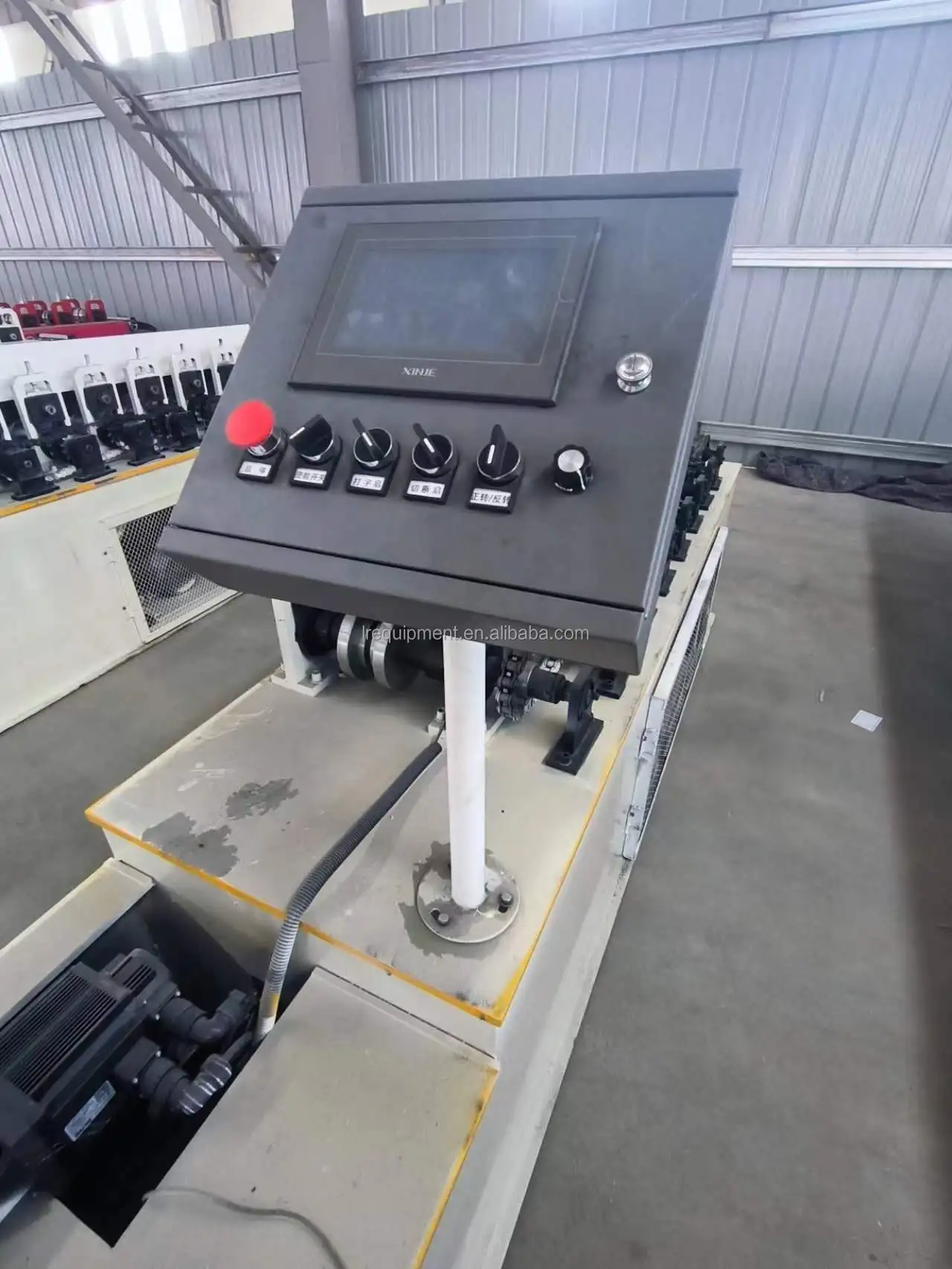

Operation Panel
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc

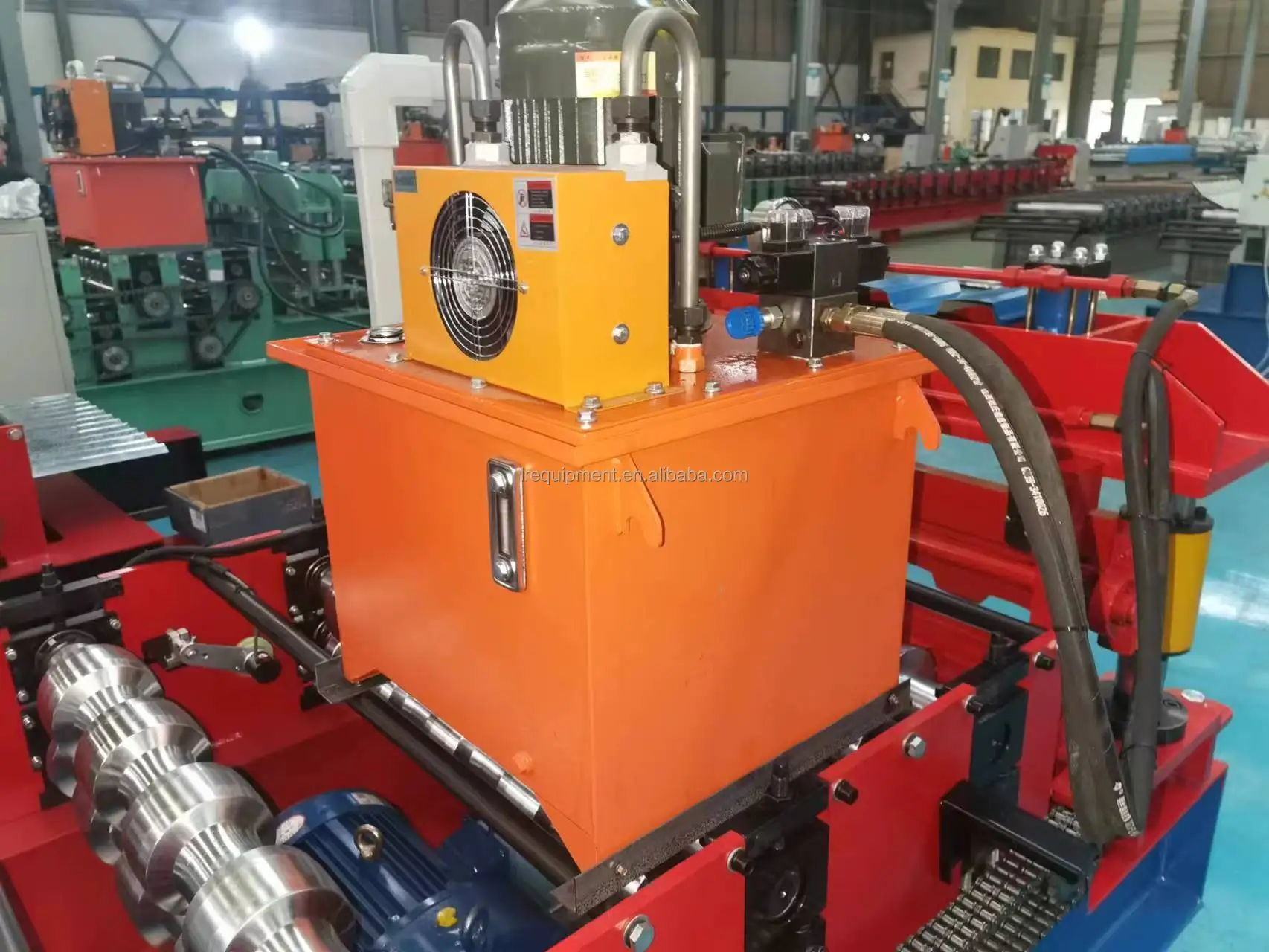

Hydraulic oil pump with fan cooling system
Power:4kw+4kw
Gear pump
Power:4kw+4kw
Gear pump
ACCESSORIES MATCHED
1)Standard matched for free with machine
✾Limit switch*2
✾Encoder*1
✾Relay*1
2)Charged for spare parts
✾ Shaft
✾Chain
✾Cutter
✾Limit switch*2
✾Encoder*1
✾Relay*1
2)Charged for spare parts
✾ Shaft
✾Chain
✾Cutter
LINRAN Recommend products https://lrequipment.en.alibaba.com/productlist.html
Product packaging
Packing & Delivery
1.Packing:

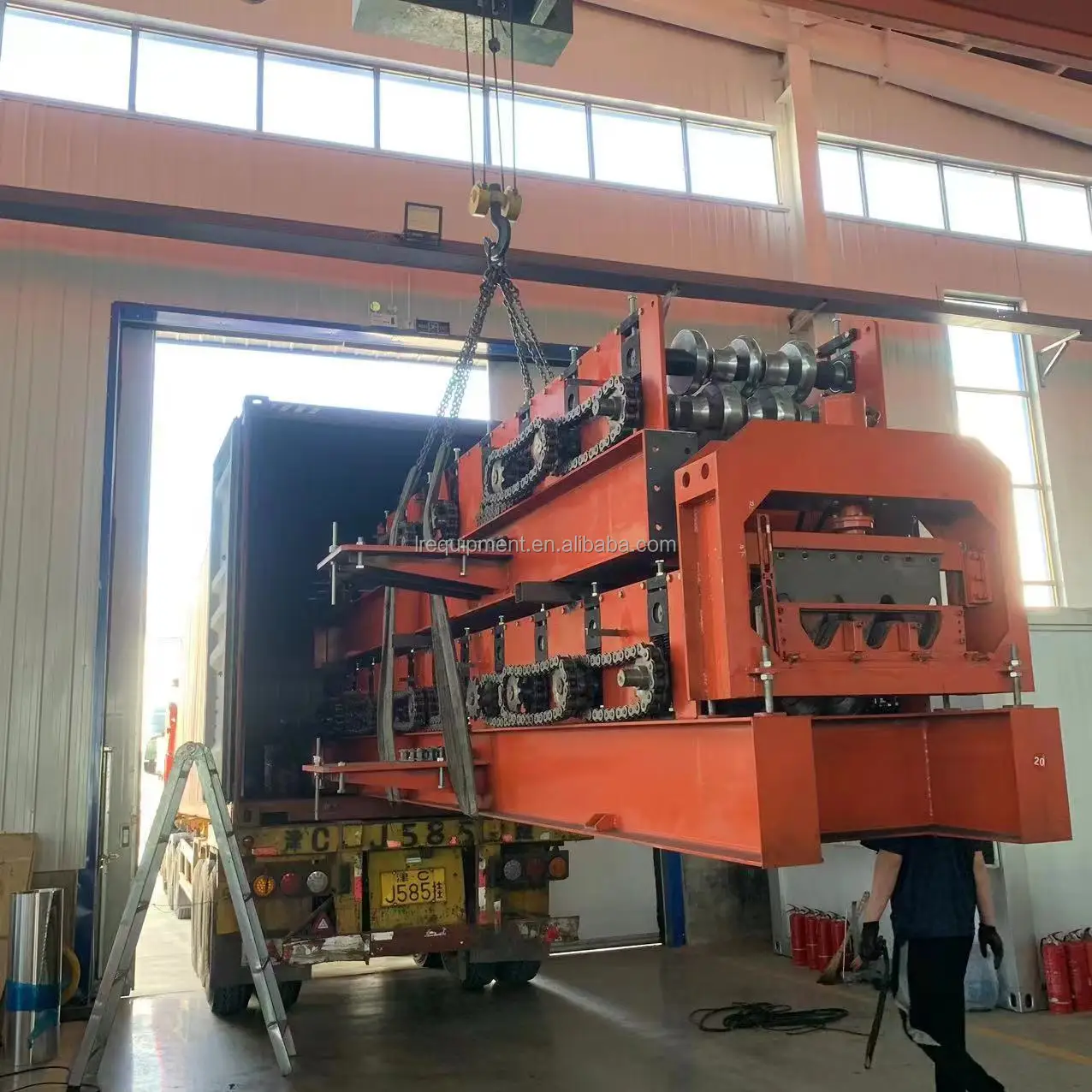

1)Machine is nude loaded in the container
