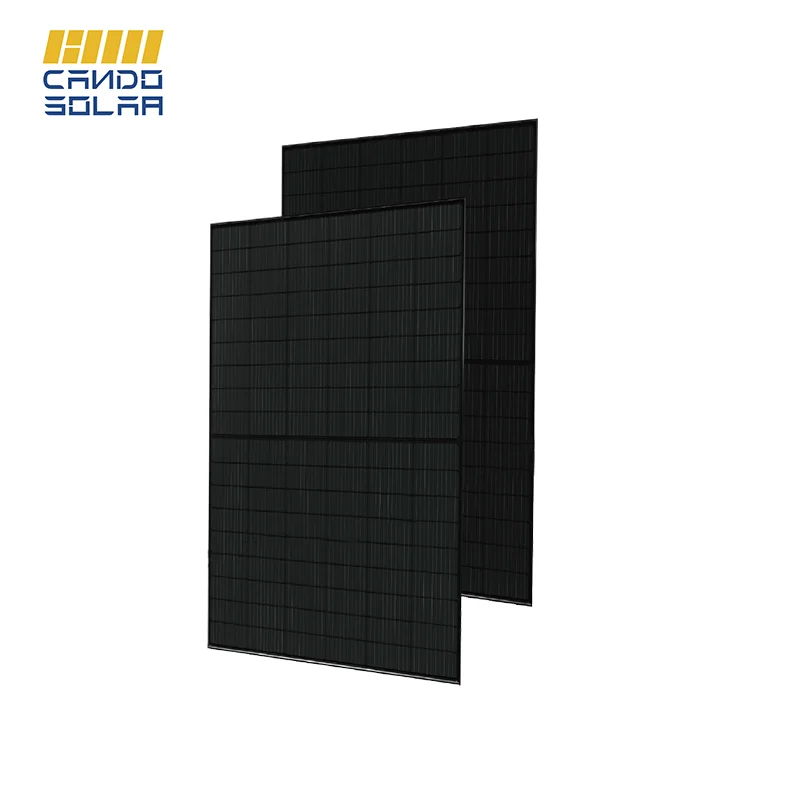

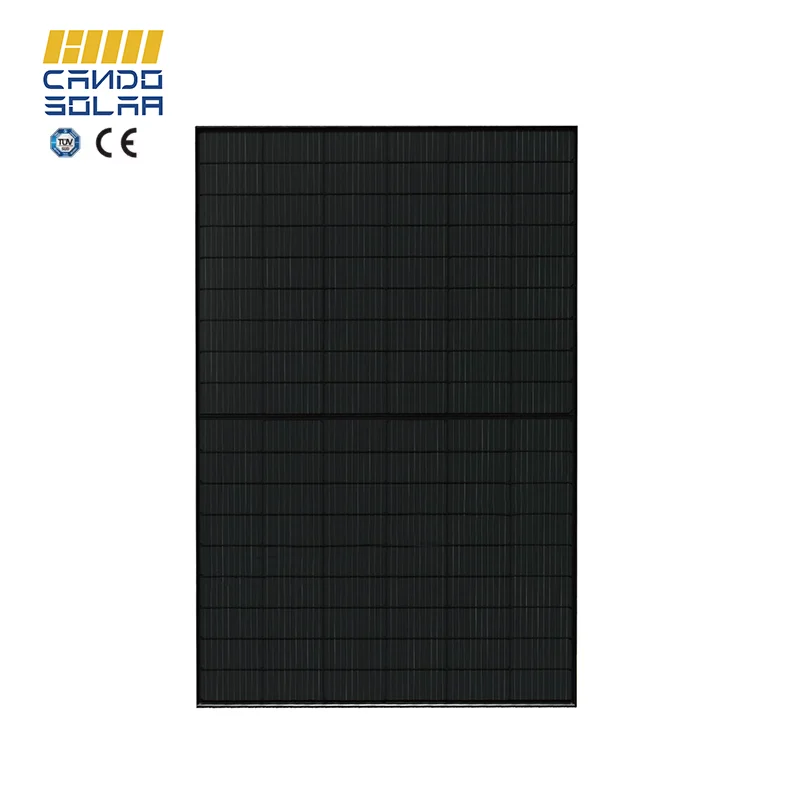

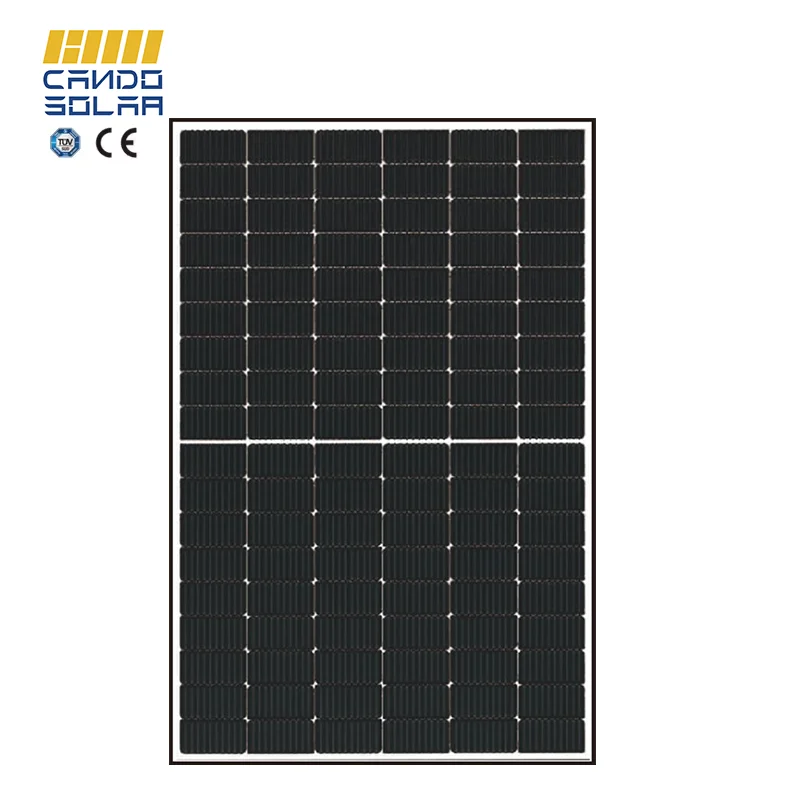

Cando Soft Flexible Lightweight Solar Panel Pv Module HJT N Type 108 cells 395 430W Half Cell 435W 440W 445W 450W
- Category: >>>
- Supplier: Cannnovation Low Carbon New Energy Technology Co. Ltd.
Share on (1601111775048):
Product Overview
Description
OVERVIEW
Cando Solar is an advanced photovoltaic company founded by world-leading engineers and solar veterans from Trina Solar, ST Micro, and TSMC. The core R&D team has extremely rich experience and innovation in the field of photovoltaic manufacturing.
In 2022, Cando Solar developed the world's first 210mm busbar-free HJT solar module, certified by TUV Rheinland.
Cando Solar has mastered and applied for more than 20 invention patents, including 2 US invention patent applications and 3 PCT international patent applications. 4 Chinese invention patents have been authorized.
Cando Solar is an enterprise specializing in the research, development, production, and sales of energy-saving and renewable technology products, mainly including solar PV modules, solar cells, and solar panel accessories.
In 2022, Cando Solar developed the world's first 210mm busbar-free HJT solar module, certified by TUV Rheinland.
Cando Solar has mastered and applied for more than 20 invention patents, including 2 US invention patent applications and 3 PCT international patent applications. 4 Chinese invention patents have been authorized.
Cando Solar is an enterprise specializing in the research, development, production, and sales of energy-saving and renewable technology products, mainly including solar PV modules, solar cells, and solar panel accessories.
We are passionate about the progress of renewable technologies and provide high-quality products that offer excellent value. Our vision is to make clean, reliable, and affordable solar energy accessible to everyone. In addition, we focus on building and maintaining customer relationships and provide the best service.
Products Description
FEATHER-LIGHT SERIES
===========================
Excellent energy efficiency● Market leading weak light effect and temperature coefficient (-0.35%/℃)；
● 182mm large size and SMBB technology provide higher efficiency (21.5%)
Aesthetic Appearance Design
● Elegant design in all-black appearance, harmounious integration with the components of the building to provide an intense aesthetic experience
Multi-busbar Technology
● Extremely high light utilization;
● Greater power collection capability;
● Effectively improve power output and reliability
Flexible Module Design
● Small panel design, light in weight, flexible in transportation and loading
● Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
----------------------------------------------------------------------------------------------------------------------------------
Certificates & Warranty
● IEC 61215:2016&IEC 61730:2016
● 15 years Product Workmanship Warranty
● 30 years Power Warranty
● IEC 61215:2016&IEC 61730:2016
● 15 years Product Workmanship Warranty
● 30 years Power Warranty
Electrical Data(STC) | ||||||||||||
Maximum Power Pmax(W) | 395 | 400 | 405 | 410 | 415 | 420 | ||||||
Maximum Power Voltage(Vmp/V) | 30.81 | 31 | 31.19 | 31.38 | 31.57 | 31.76 | ||||||
Maximum Power Current(Imp/A) | 12.83 | 12.91 | 12.99 | 13.07 | 13.15 | 13.23 | ||||||
Open Circuit Voltage Voc (V) | 36.89 | 37.07 | 37.25 | 37.43 | 37.61 | 37.79 | ||||||
Short Circuit Current Isc (A) | 13.62 | 13.7 | 13.78 | 13.86 | 13.94 | 14.02 | ||||||
Module Efficiency (%) | 20.3 | 20.5 | 20.8 | 21.0 | 21.3 | 21.5 | ||||||
Power Tolerance(W) | 0～＋5 | |||||||||||
Temperature Coefficient of αIsc (%/℃) | +0.048 | |||||||||||
Temperature Coefficient of βVoc (%/℃) | -0.28 | |||||||||||
Temperature Coefficient of γPmp(%/℃) | -0.35 | |||||||||||
Max. Over-Current (A) | 25 | |||||||||||
STC | Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5 | |||||||||||
Manufacturing Factory
Certifications
Exhibition

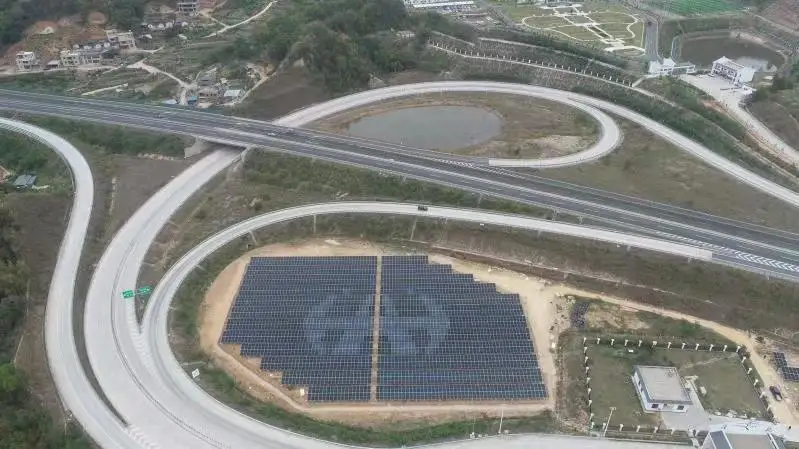

Project Cases
Product packaging
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q:Are you a factory or a trading company?
A:We are a professional solar panels manufacturer in china, factory inspection is welcome anytime.
Q:What solar panel technology are you currently adopting?
A:We currently adopt PERC, HJT, TOPCON technology, and we have developed the world first 210mm busbar-free N Type(HJT) solar module, certified by TÜV Rheinland.
Q: Can I have a sample order for solar panel?
A: Yes, we welcome sample order to check and test quality.Mixed samples are acceptable.
Q:How do you send the goods?
A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order usually shipped by sea.
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production;Always testing every product before despatching the shipments;
Q:What products can you supply?
A:Solar Panels, Balcony Solar System,Solar Inverter, Solar Charger Controller,Etc.
Q:Where is your Manufacturer located? How can I visit there?
A:Our factory located in No.186, Innovation 2 Road, Longhutang Street, Xinbei District, Changzhou City, Jiangsu Province , China.
A:We are a professional solar panels manufacturer in china, factory inspection is welcome anytime.
Q:What solar panel technology are you currently adopting?
A:We currently adopt PERC, HJT, TOPCON technology, and we have developed the world first 210mm busbar-free N Type(HJT) solar module, certified by TÜV Rheinland.
Q: Can I have a sample order for solar panel?
A: Yes, we welcome sample order to check and test quality.Mixed samples are acceptable.
Q:How do you send the goods?
A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order usually shipped by sea.
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production;Always testing every product before despatching the shipments;
Q:What products can you supply?
A:Solar Panels, Balcony Solar System,Solar Inverter, Solar Charger Controller,Etc.
Q:Where is your Manufacturer located? How can I visit there?
A:Our factory located in No.186, Innovation 2 Road, Longhutang Street, Xinbei District, Changzhou City, Jiangsu Province , China.
