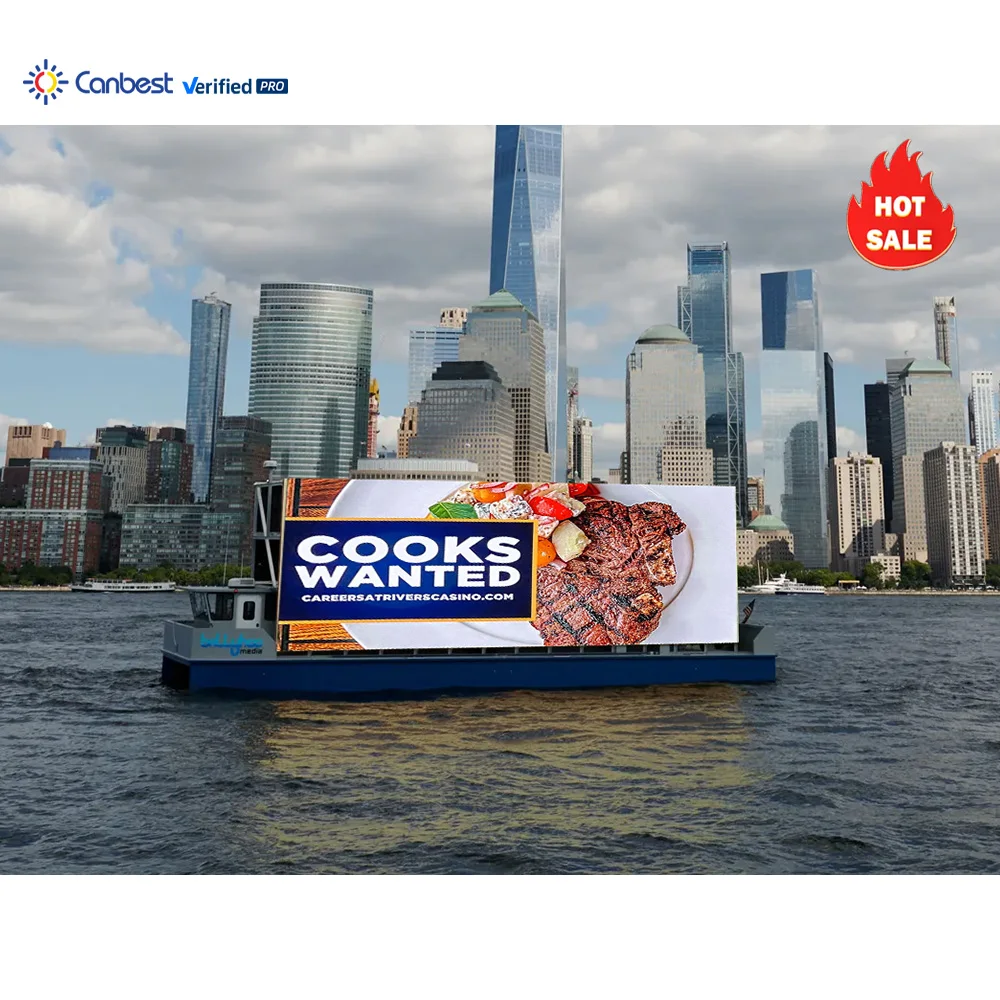

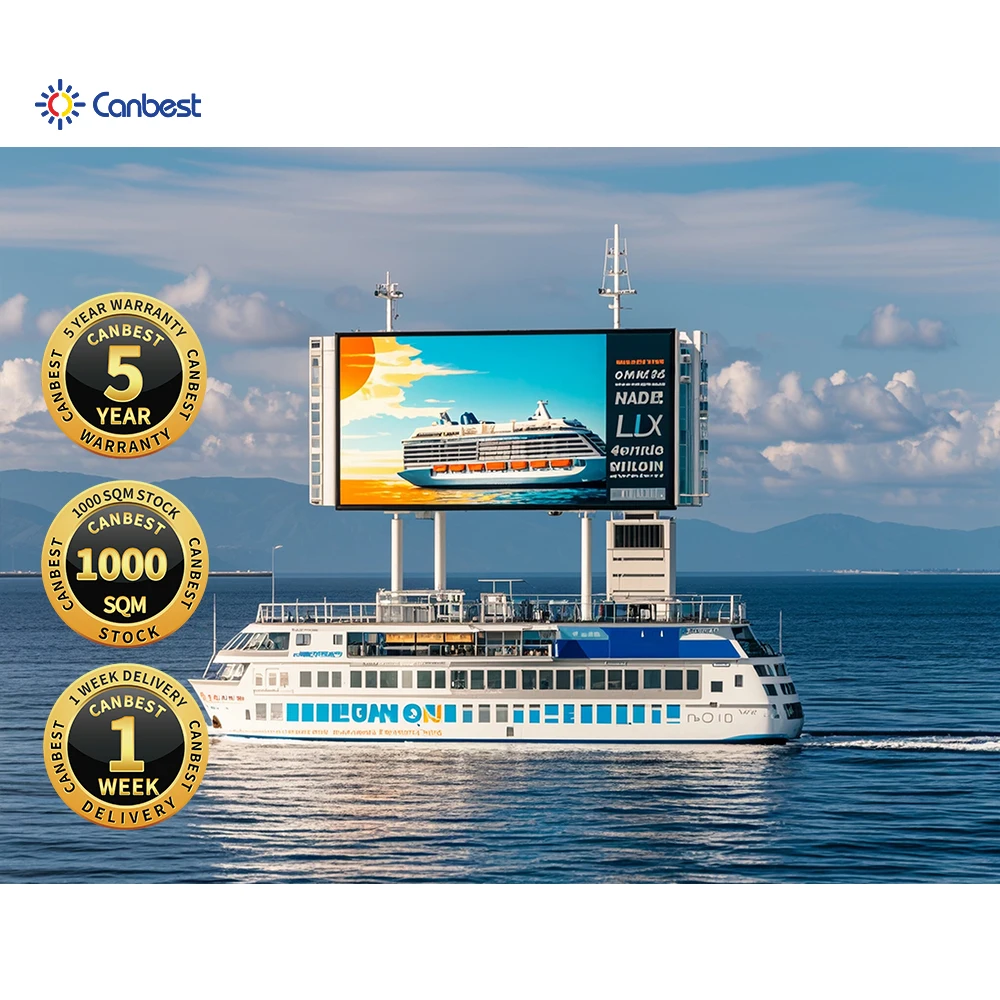

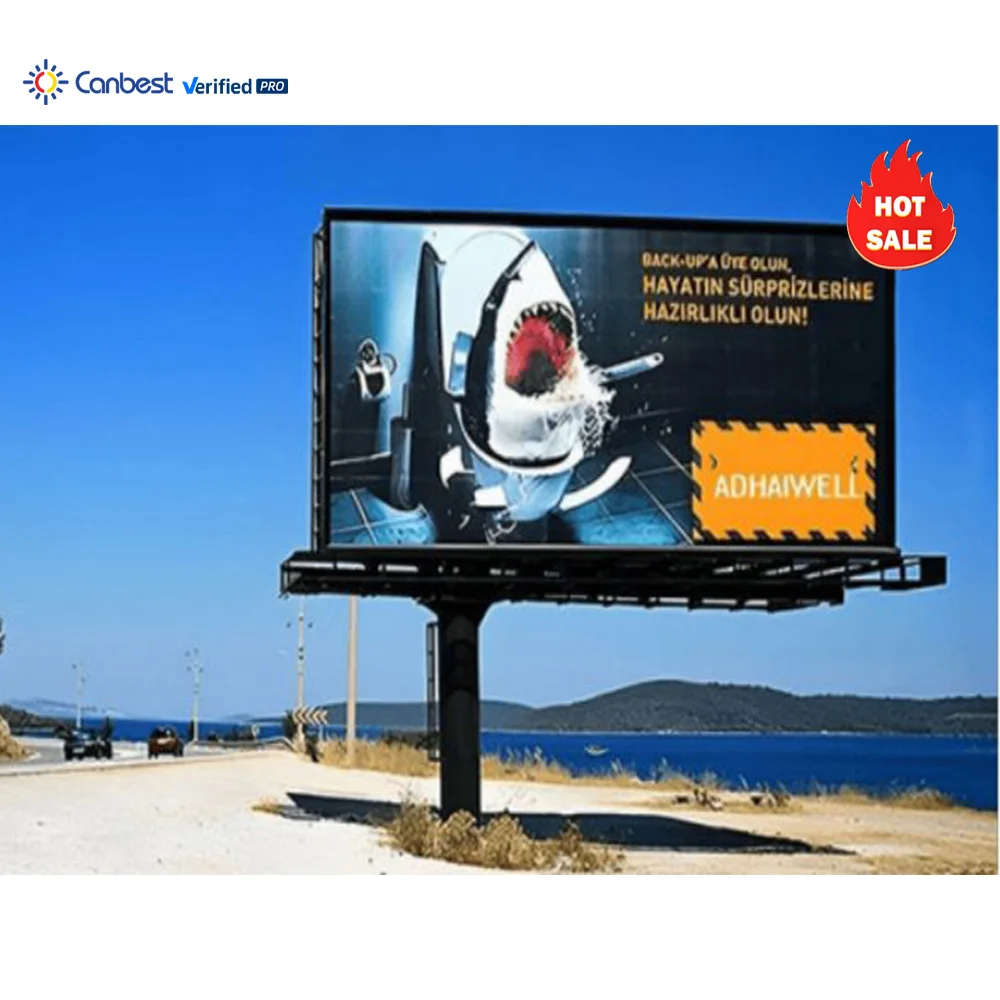

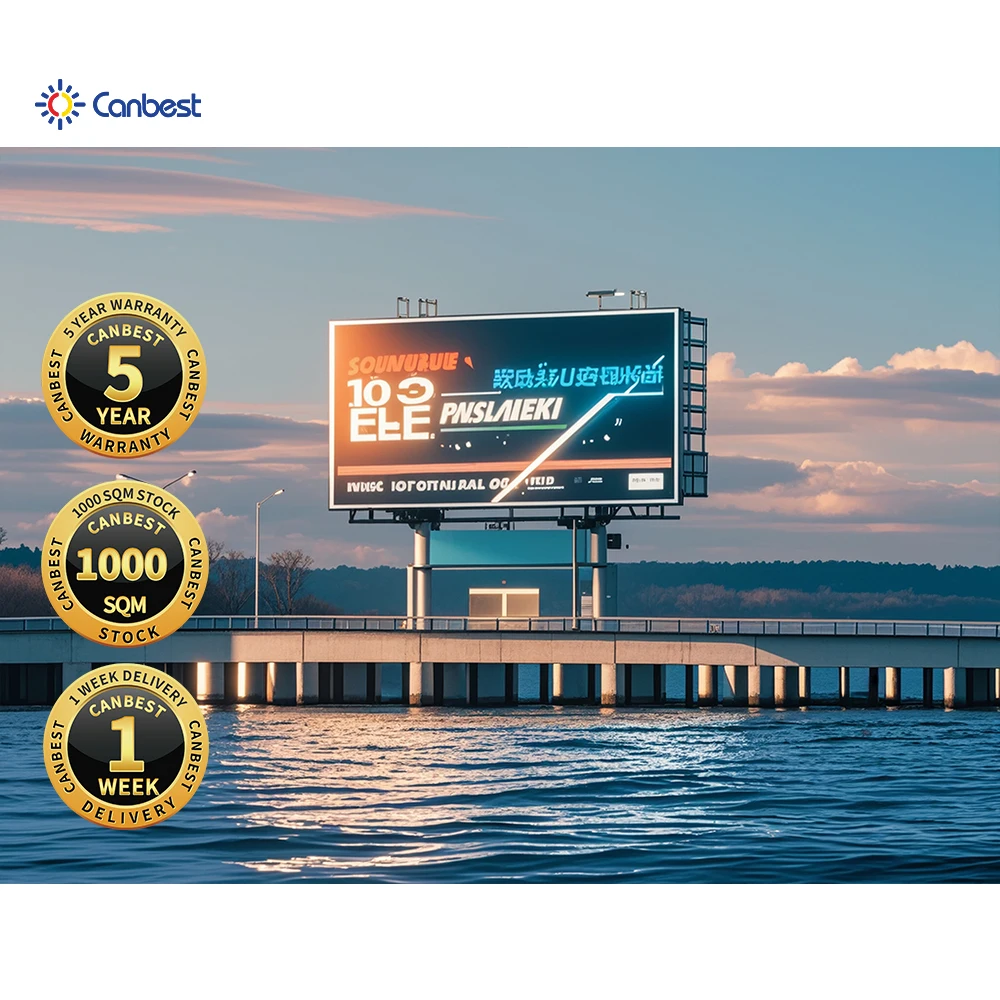

P5 P6 P8 P10 Common Energy Saving Aluminum Outdoor Fixed Advertising Building Led Display Screen Street Digital Billboard Sign
- Category: >>>
- Supplier: Canbest Opto-Electrical Science & Technology Co. Ltd.Canbest Ltd.
Share on (1601111908434):
Product Overview
Description
Warranty
Product Description
Technical Parameter
Parameters | W5 | W6 | W8 | W10 |
Pixel Configuration | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
Pixel Pitch(mm） | 5.7 | 6.67 | 8 | 10 |
Pixel Density(dots /m²) | 28224 | 22500 | 15625 | 10000 |
Module Size(L x W x H)/(mm) | 480x320 | 480x320 | 480x320 | 480x320 |
Panel Size(L x W x H)/( mm) | 960x960x75 | 960x960x75 | 960x960x75 | 960x960x75 |
Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
Panel Weight(kg/m2) | 28 | 28 | 28 | 28 |
Color Depth(Bit) | 16 | 16 | 16 | 16 |
Gray Level | 65536 | 65536 | 65536 | 65536 |
Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 |
Driver Method | 1/7 | 1/5 | 1/3 | 1/2 |
Brightness | 5500-7500 | 6000-10,000 | 6000-10,000 | 6000-10,000 |
Viewing Angle(H/V°) | 140/140 | 140/140 | 140/140 | 140/140 |
AC Power Input(V) | AC100--240V±10%/50~60Hz | AC100--240V±10%/50~60Hz | AC100--240V±10%/50~60Hz | AC100--240V±10%/50~60Hz |
AC Power Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
Max. AC Power Input (W/m²) | 550 | 550 | 550 | 550 |
Avg. AC Power Input (W/m²) | 170 | 170 | 170 | 170 |
Storage Temperature | -40~60 | -40~60 | -40~60 | -40~60 |
Working Temperature | -20~50 | -20~50 | -20~50 | -20~50 |
IP Rating | IP66 | IP66 | IP66 | IP66 |
Life Span(hours) | 100000 | 100000 | 100000 | 100000 |
Installation & Maintenance | Front&Rear | Front&Rear | Front&Rear | Front & Rear |
Packing&Shipping
