Laizhou Tuoxing TU-20 Mine Cart Large Capacity Underground Mining Truck
$214,200.00-245,700.00
The preferred choice for mill operators Automation control system easy to operate ,efficient and safe Mill relining machine
- Category: >>>
- Supplier: Prominer (shanghai) Mining Technology Co. Ltd.
Share on (1601112006152):
Product Overview
Description
Products Description

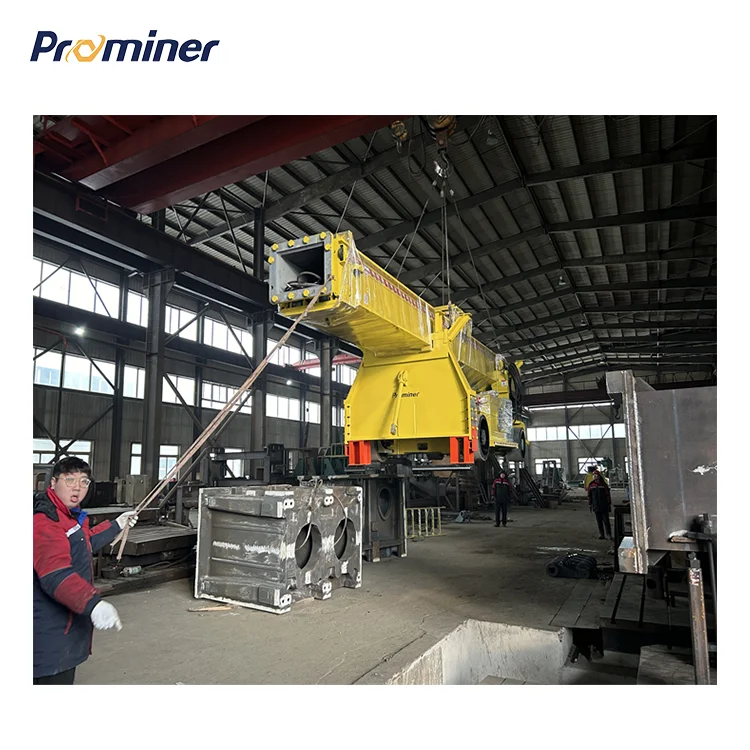

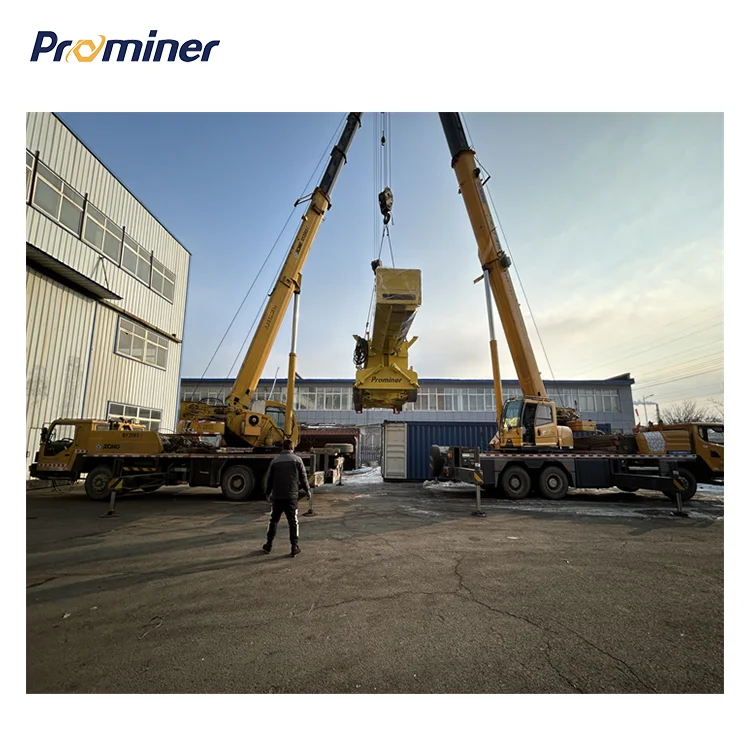

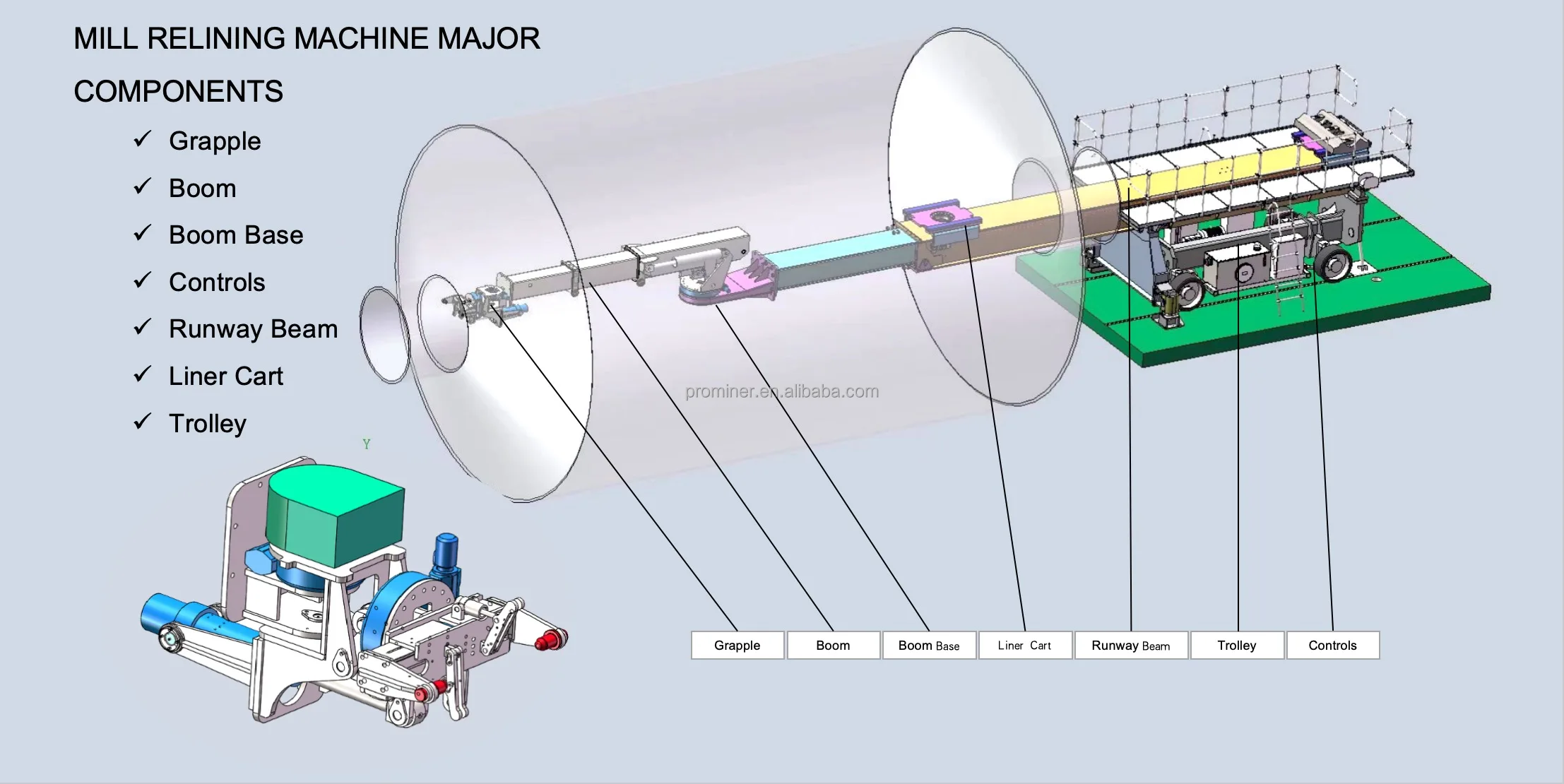

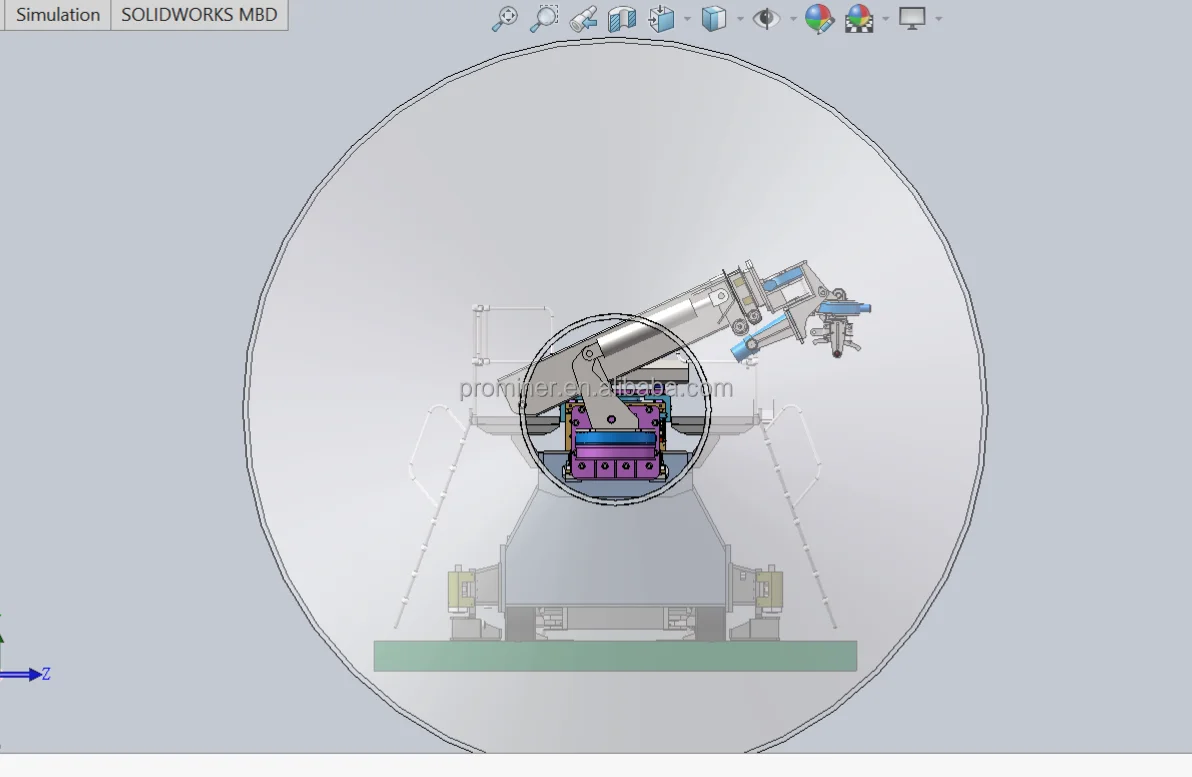

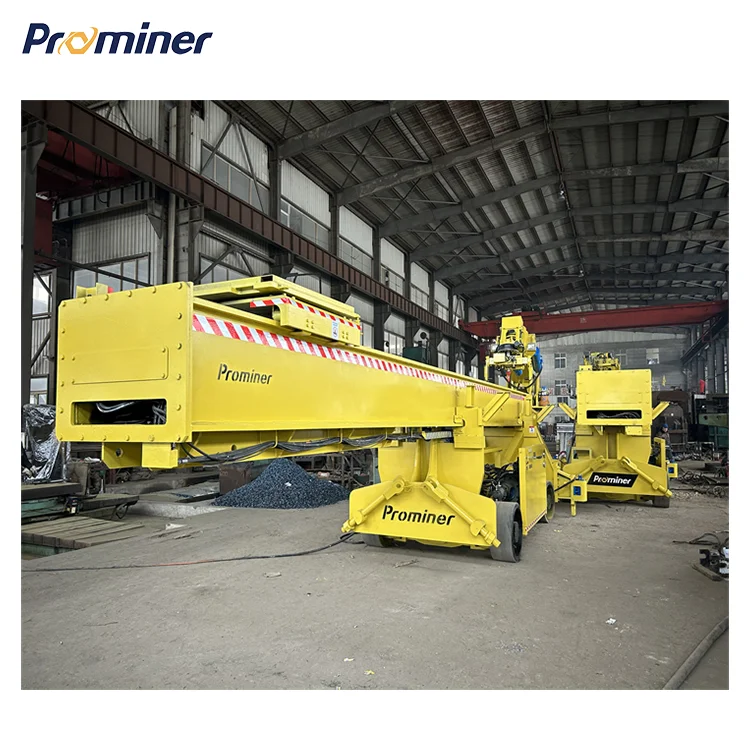

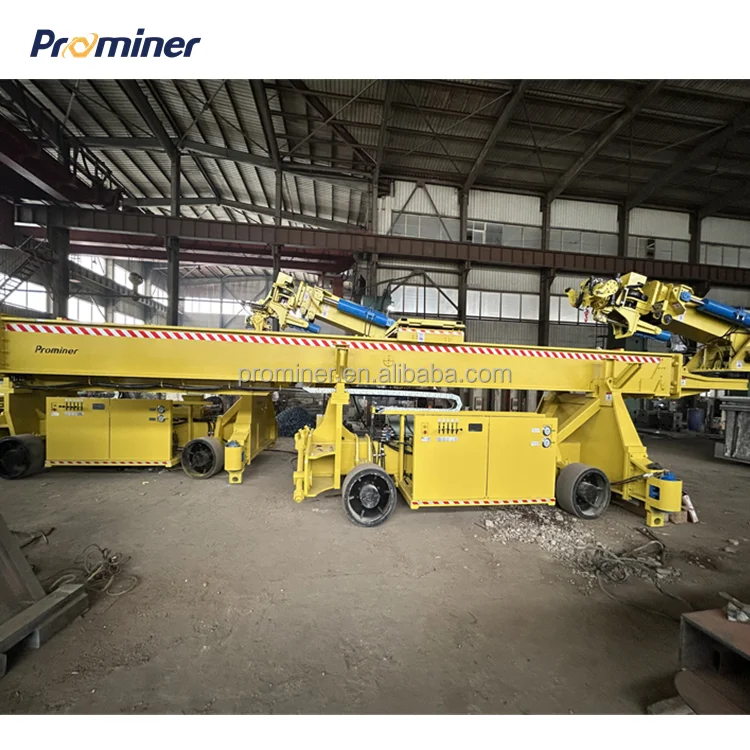

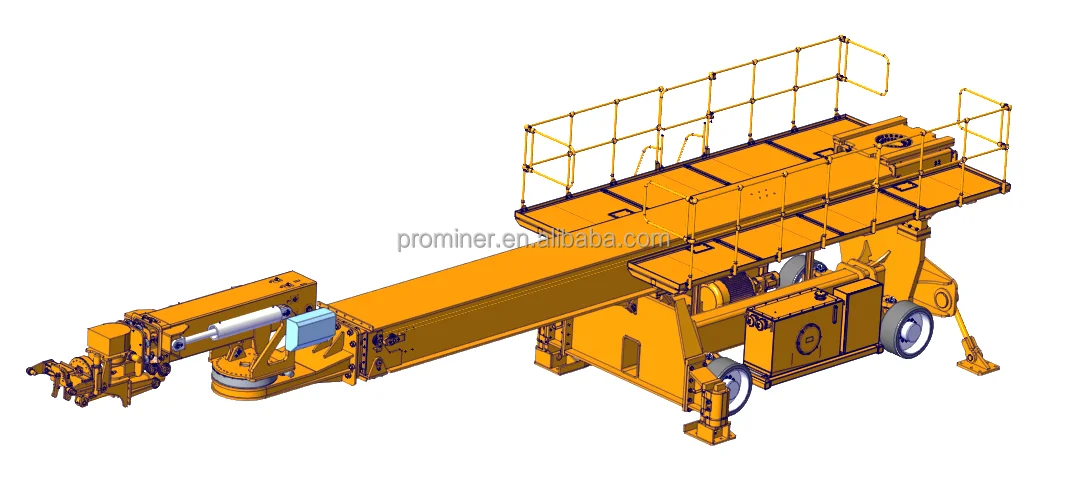

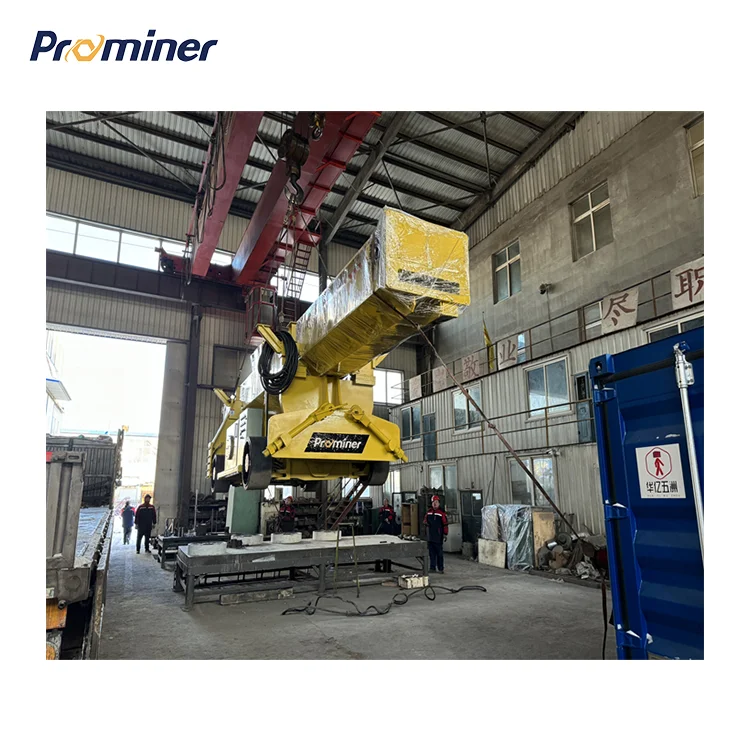

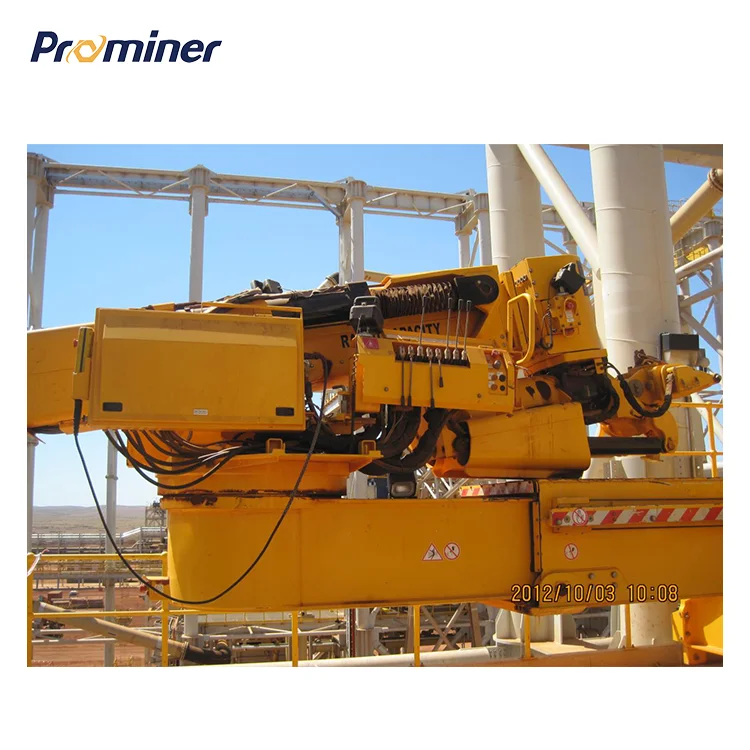

Mill Relining Machines

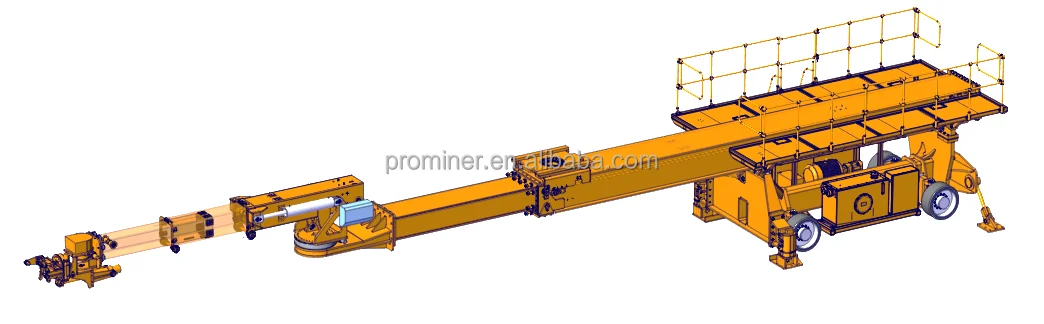

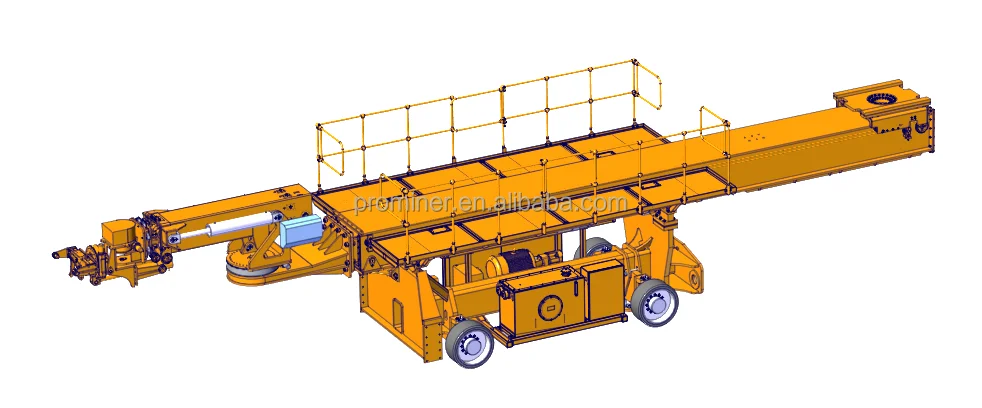

Prominer’s JXS-V-7 Mill Relining Machines
are the fifth-generation products and
feature liner lifting capacities from 1500kg

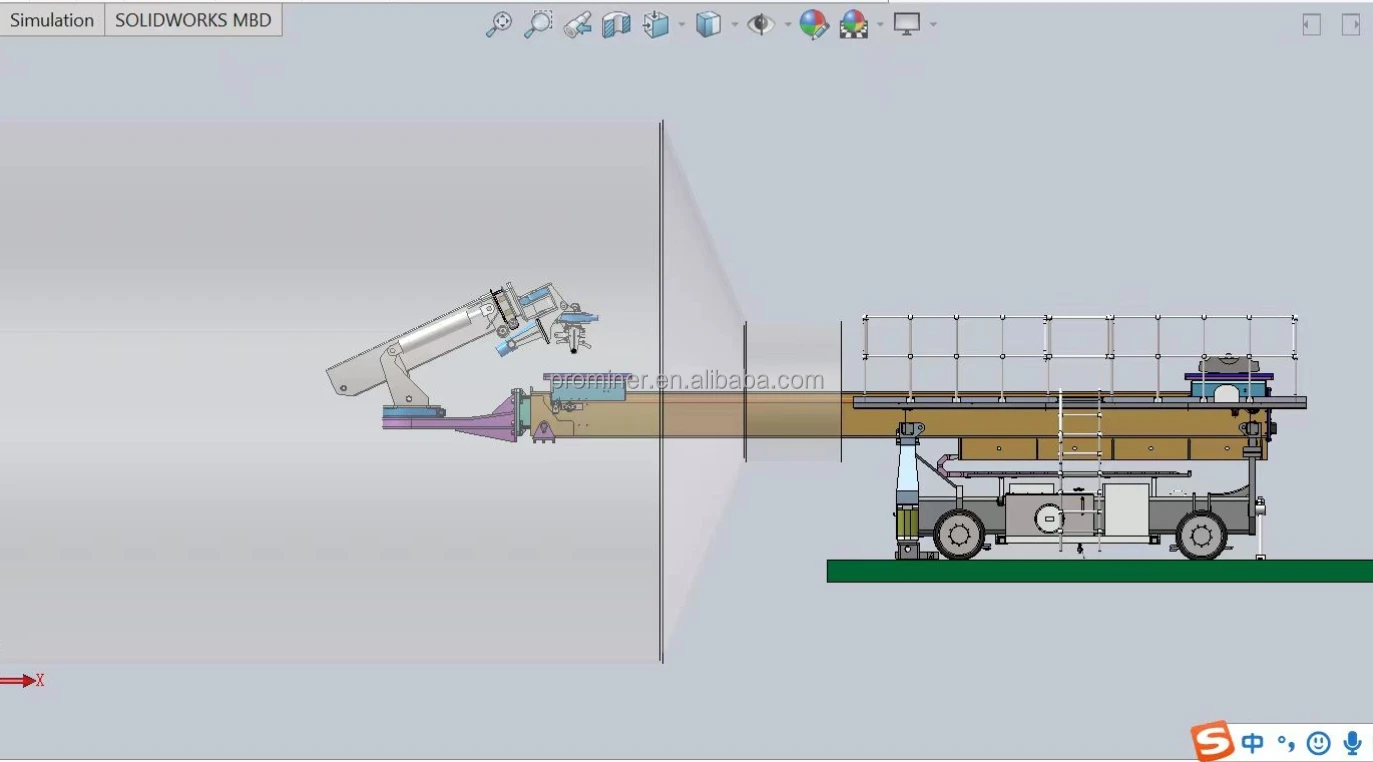

to 4500kg and typically access the mill
cavity from the mill feed end. These Mill
Relining Machines are suitable for medium
to large SAG, AG and Ball Mills.

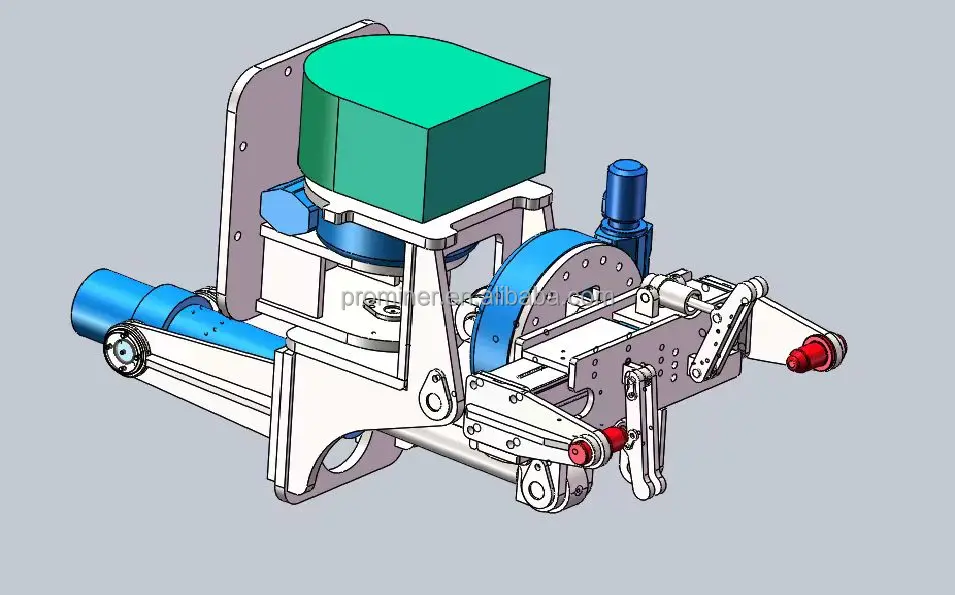

The seventh axis, known as the ‘grapple roll
axis’, allows correction for deflection, which
is necessary for precise bolt hole alignment,
especially when fitting heavy liners.
are the fifth-generation products and
feature liner lifting capacities from 1500kg
to 4500kg and typically access the mill
cavity from the mill feed end. These Mill
Relining Machines are suitable for medium
to large SAG, AG and Ball Mills.
The seventh axis, known as the ‘grapple roll
axis’, allows correction for deflection, which
is necessary for precise bolt hole alignment,
especially when fitting heavy liners.
Product Paramenters
JXS-V-7 MILL RELINING MACHINE TECHNICAL SPECIFICATIONS | ||||||||||||
Model | Mill Diameter | Trunnion Diameter | lifting Capacity | Hydraulic Pressure | Hydraulic Flowrate | Motor Power | ||||||
m | kg | kg | MPa | Lpm | kw | |||||||
JXS-V/V1-7-1500 | 6-8 | 1600 | 1500 | 14 | 60 | 30 | ||||||
JXS-V/V1-7-2000 | 6-8 | 1850 | 2000 | 14 | 72 | 30 | ||||||
JXS-V/V1-7-2500 | 6-10 | 1900 | 2500 | 14 | 84 | 37 | ||||||
JXS-V/V1-7-3500 | 8-11 | 2000 | 3000 | 14 | 108 | 45 | ||||||
JXS-V/V1-7-4500 | 10-12 | 2050 | 3500 | 14 | 120 | 45 | ||||||
Packaging & Transport
Bulk Item Shipment
Bulk Item Package
Bulk Item Package
Palletizing Package
Iron Box Package
Export Wooden Packing
Vehicle Transport
Truck Transport
Truck Transport
Our Service
Civil Work Construction Supervision
Prominer can provide the civil work construction supervision service for mineral processing project.
Foundation Building Guidance
According to the project's demand, we can send civil engineer to guide our client's team to build the foundation.
Workshop Building Construction
We can also dispatch our team to undertake the civil work construction for mineral processing project.
Site Survey Service
Before starting the engineering design work, Prominer will send our engineer to do the site survey work for every mineral processing project.
Sampling Guidance Service
For getting the representative sample for lab test work, we can send our engineer to assist our client to do the sampling drilling work.
Equipment Erection Guidance Service
During the equipment installation stage, Prominer will send our engineer to the site for providing equipment erection guidance service.
Ball Mill Erection Guidance
We send our engineer to provide the ball mill erection service at site for our South Africa Client's project for processing gold, cooper ore.
Equipment Erection Service
We send our team to undertake the project erection and commissioning service for our Colombia client for lead and zinc flotation plant.
Erection Supervision Service
Some client also appoint our team to provide the project supervision service to ensure the correct erection and good performance.
Installation Team for EPC Project
We have sent our team to Sudan to do the installation and commissioning work for gold CIL plant. Our team enjoy our new year holiday at site.
On Site Training Service
During the commissioning stage of gold and copper flotation plant in Tanzania, the client's team joint together with our team to lear how to operate the equipment.
Operation & Maintenance Service
According to our client's demand, we can also leave our team to provide the operation service after project acceptance for our mineral processing project.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
