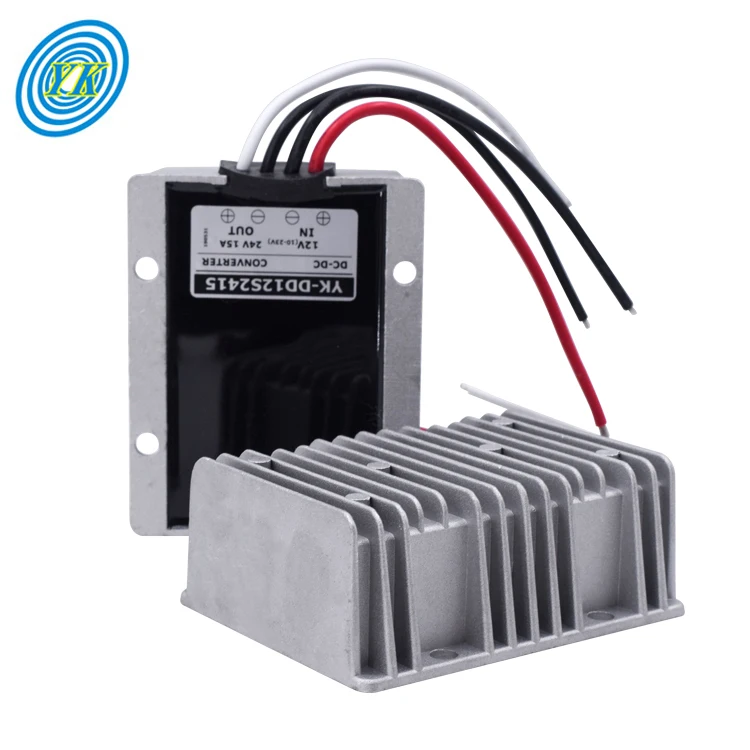

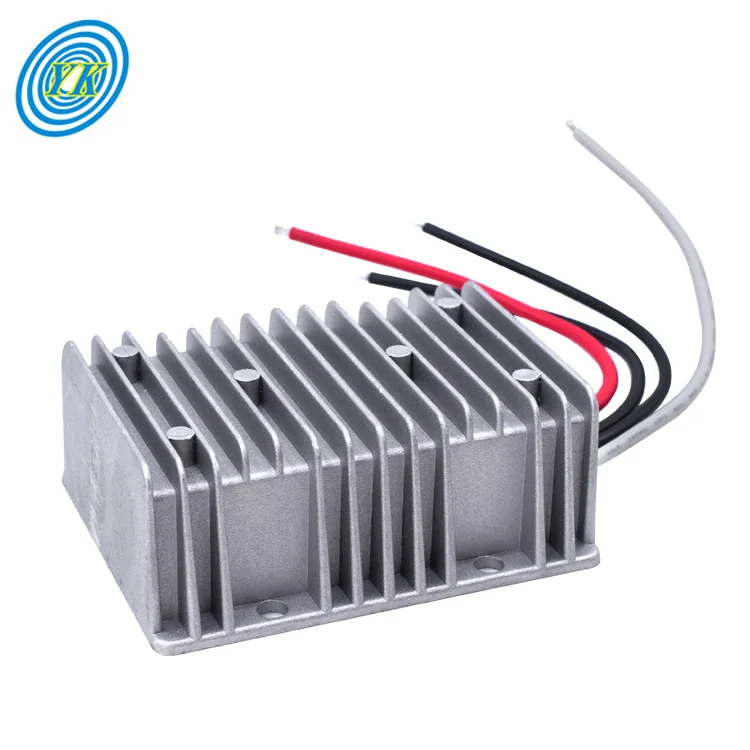

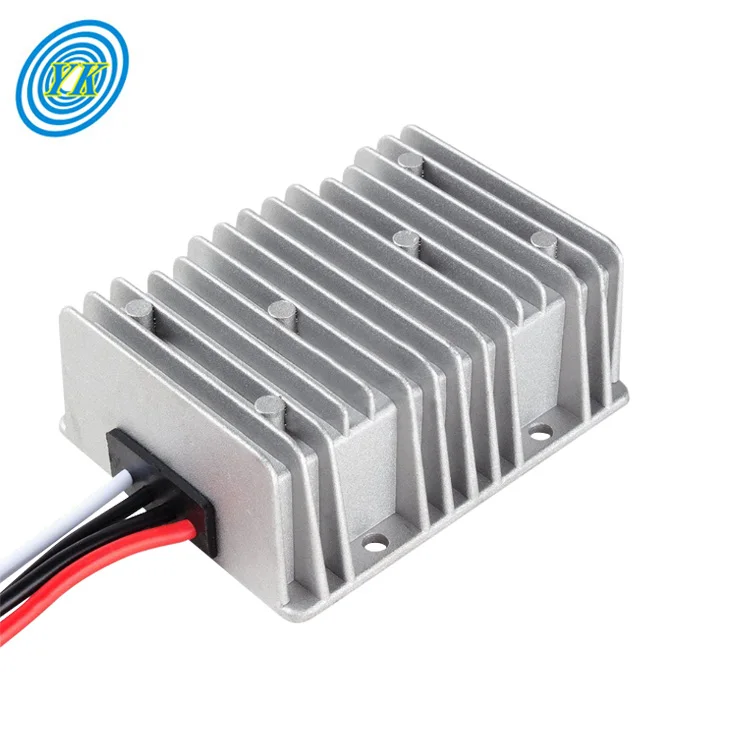

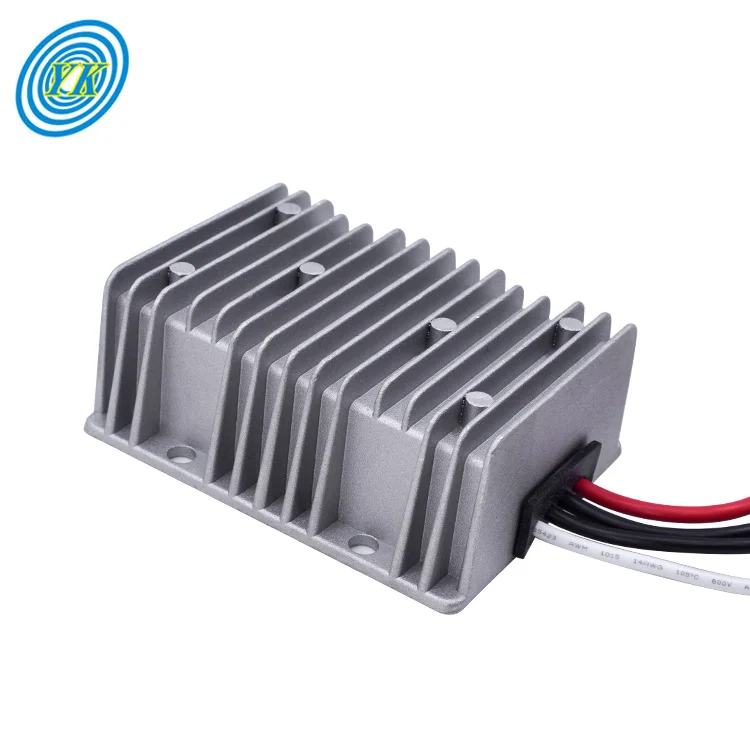

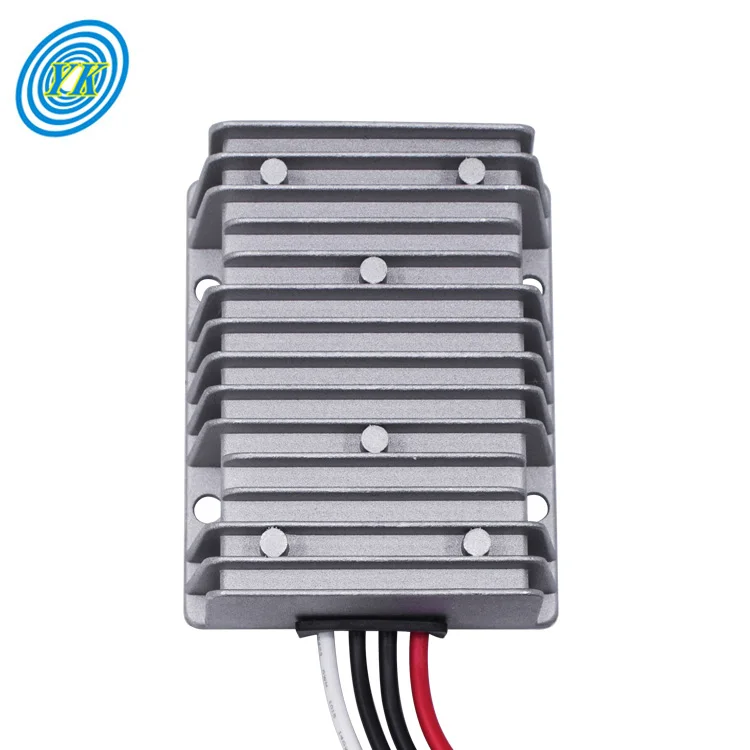

DC DC 24v to 48v 10a step up Power Converter 18 45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor
DC DC 24v to 48v 10a step up Power Converter 18-45 Volt to 48 Volt Boost Voltage convertor

DC DC 24v to 48v 10a step up Power Converter 18 45 Volt to 48 Volt Boost Voltage convertor

Share on (1601112095080):


Price:$17.00 - $20.00

Quantity:


Product Overview

Description



Product Description


1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. Wide input range
5. Built-in EMI filter, low ripple noise
6.100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP68
9. Protections: Short circuit/Over load /voltage /Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours


Product Parameters


Product Name
DC DC Converter
Model
YK-DD24S4810
Input voltage
24VDC
Voltage range
18-45VDC
Output voltage
48VDC
Output current
10A
Power
480W
Efficiency
94%
Working temperature
-40℃~+80℃
Waterproof rating
IP68
Weight
470G
Size
100*80*38MM
Installation length
13-15cm

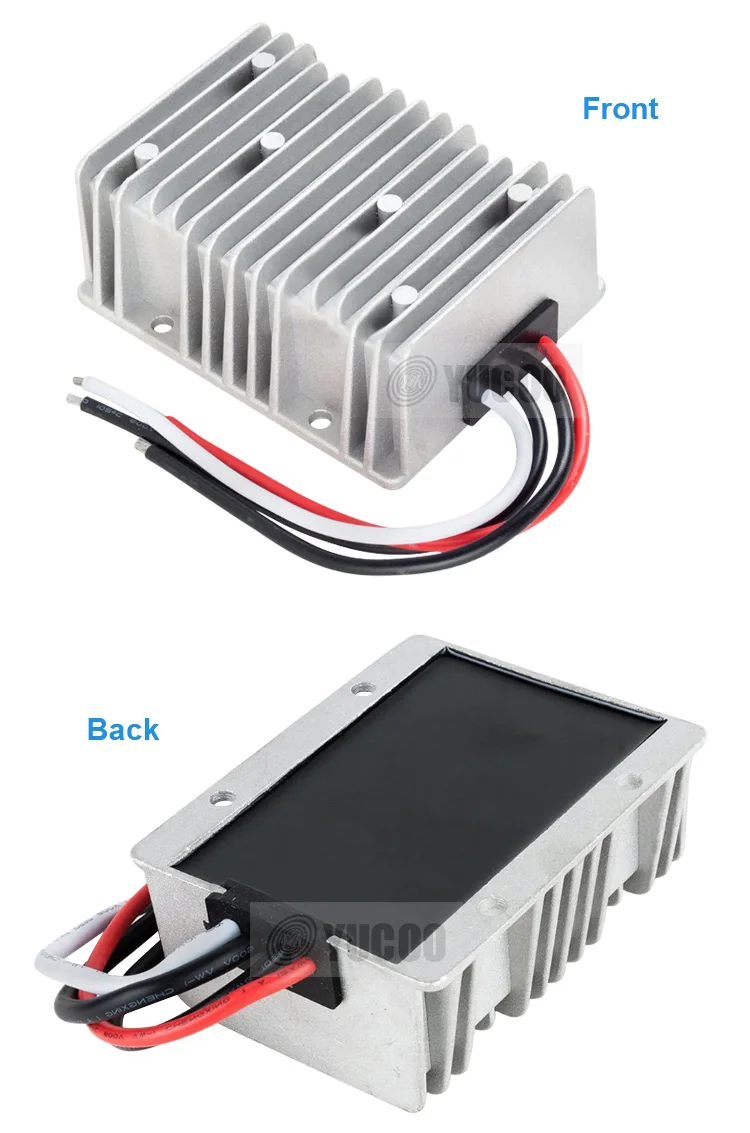

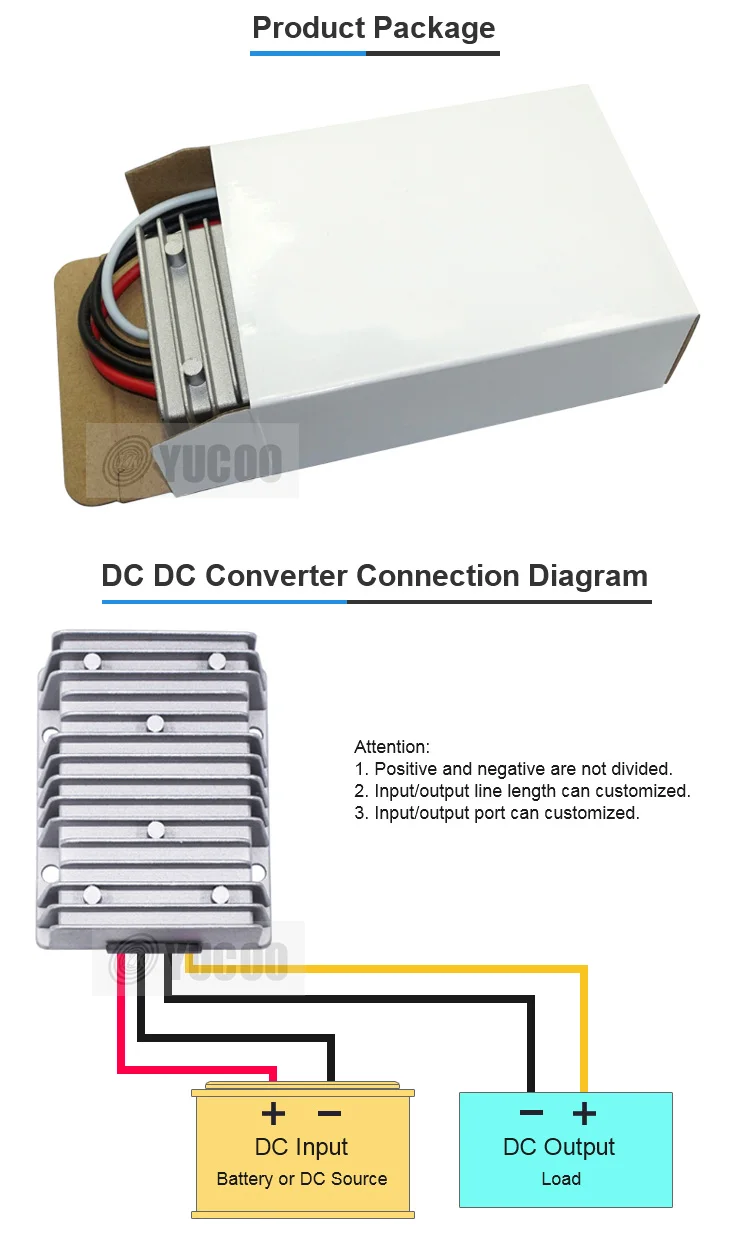

Details Images












Recommend Products Range


BUCK DC-DC CONVERTER MODEL LIST
Model Series
Input-V
Output-V
Output Current
YK-DD1224S5**
12V/24V
5v
3A|5A|10A|15A|20A|30A|40A|50A|60A
YK-DD24S12**
24v
12v
1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A
YK-DD24S13.8**
24v
13.8v
5A|10A|15A|20A|30A|40A|50A|60A
YK-DD24S19**
24v
19v
5A|10A|15A
YK-DD36S12**
36v
12v
5A|10A|15A|20A|30A|50A|60A
YK-DD48S5**
48v
5v
5A|10A|15A|20A
YK-DD48S12**
48v
12v
5A|10A|15A|20A|30A|50A|60A
YK-DD48S13.8**
48v
13.8v
5A|10A|15A|20A|30A|40A|50A|60A
YK-DD48S19**
48v
19v
5A|8A|10A
YK-DD48S24**
48v
24v
3A|5A|10A|15A|20A|30A|40A|50A
YK-DD60S12**
60v
12v
5A|10A|15A
YK-DD60S24**
60v
24v
5A|10A
BOOST DC-DC CONVERTER MODEL LIST
Model Series
Input-V
Output-V
Output Current
YK-DD12S24**
12v
24v
1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A
YK-DD12S19**
12v
19v
5A|8A|10A|15A|20A
YK-DD12S28**
12v
28v
3A|5A|8A|10A|15A|20A|25A|30A|40A
YK-DD12S48**
12v
48v
1A|2A|3A|4A|8A|10A|15A|20A
YK-DD24S48**
24v
48v
3A|5A|10A|20A|30A|40A
YK-DD24S36**
24v
36v
5A
BUCK& BOOST DC-DC CONVERTER MODEL LIST
Model Series
Input-V
Output-V
Output Current
YK-DD12S12**
8-40V
12V
1A|2A|3A|5A|6A|10A|15A|20A|25A
YK-DD12S13.8**
8-40V
13.8v
3A|5A|10A|15A|20A|25A
YK-DD24S24**
9-40V
24v
2A|3A|4A|6A|10A|15A
