TC15 Mobile Color Doppler Digital Ultrasound 3d 4d Mult Probe Trolly Ultrasound Scanner Echo Ultrasound Machine For Pregnancy
- Category: >>>
- Supplier: Guangzhou Onetech Medical Equipment Co. Ltd.
Share on (1601112166151):
Product Overview
Description

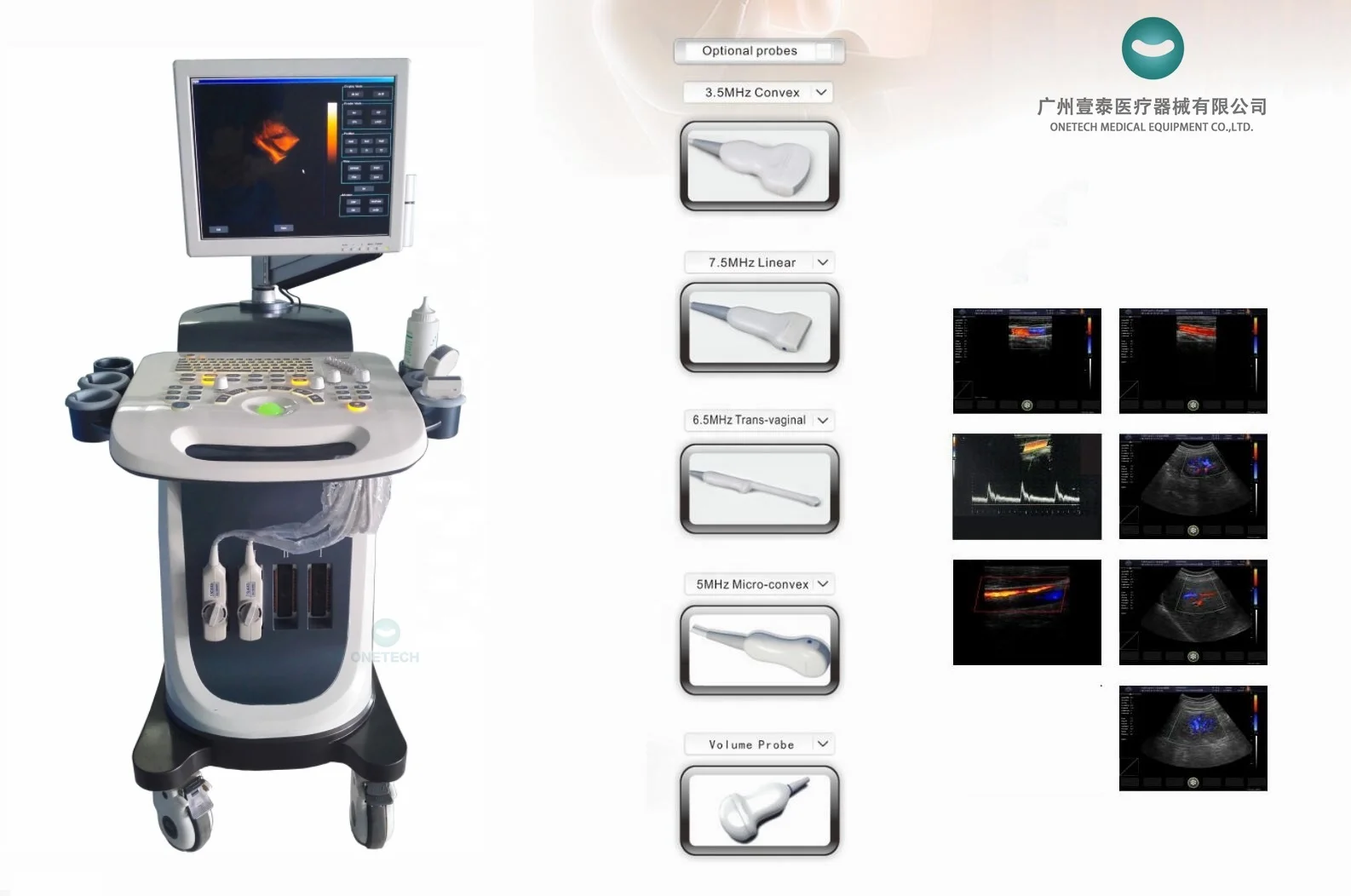

3D4D color doppler Trolley ultrasound machine,real time pregnancy baby checking medical diagnosis equipment TC15:
Brand | Onetech |
Model | TC15 (3D 4D trolley ultrasound machine) |
Feature | 4 probe ports |
Head Rotation Angle | 120 up/down, 280 left/right |
Probe frequency | 2 to 12Mhz (depends on different probe) |
Product Features
TC15 Features of 4D/3D Trolley Type Color Doppler Ultrasound Machine

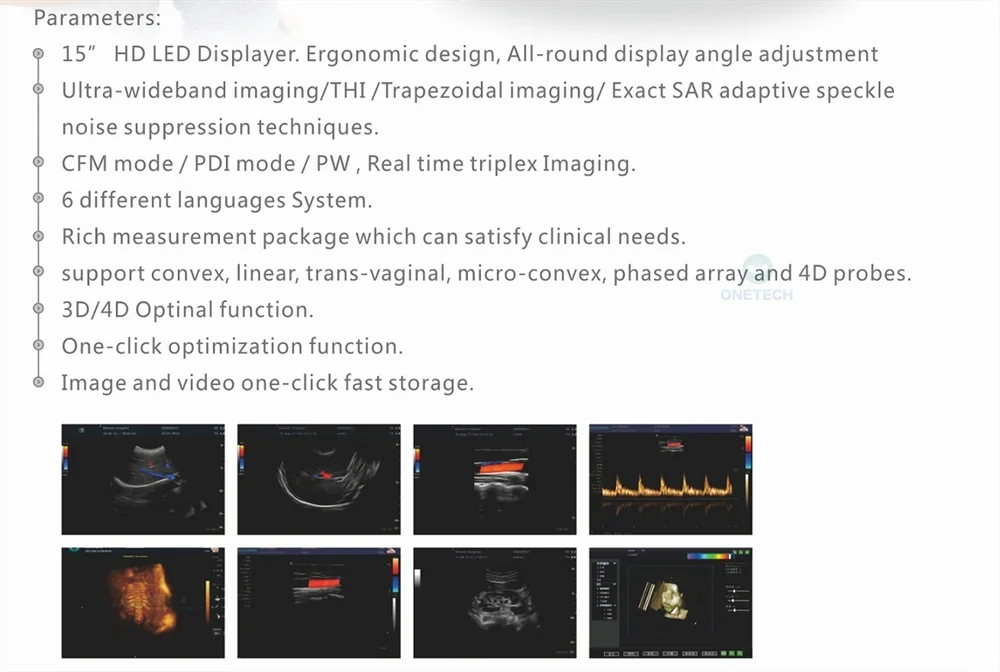

Product Specification
* Main Functions
Having a full digital beam forming technology
Scanning mode:
Convex array, lumen, high-frequency linear array, phased array,
3D software(Optional accessories);
Can be equipped with 4D software and probe volume(Optional accessories).
Dynamic range: 0~120dB adjustable;
Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
Image mode: digital beam forming, tissue harmonic imaging;
Acoustic output: Mechanical index and thermal index real-time display;
Acoustic power:Step is adjustable, real-time display;
Gray scale: 256 scales;
Depth display: ≥250mm;
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Pseudo color processing:16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
One-click optimization function: preset several parameters adjusting focus on a button, one key fast optimization;
Having a full digital beam forming technology
Scanning mode:
Convex array, lumen, high-frequency linear array, phased array,
3D software(Optional accessories);
Can be equipped with 4D software and probe volume(Optional accessories).
Dynamic range: 0~120dB adjustable;
Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
Image mode: digital beam forming, tissue harmonic imaging;
Acoustic output: Mechanical index and thermal index real-time display;
Acoustic power:Step is adjustable, real-time display;
Gray scale: 256 scales;
Depth display: ≥250mm;
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Pseudo color processing:16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
One-click optimization function: preset several parameters adjusting focus on a button, one key fast optimization;
*Measurement and calculation:
B mode routine measurement:
Distance, circumference, area, volume, angle, ratio, and stenos rate.
M mode routine measurement: Heart rate, time, distance, speed, ratio, etc..
Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
Obstetrics measurement:
EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement:
Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint angle measurement.
Image storage: Image storage, video storage, cine loop, disk storage capacity≥320G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD , USB),built-in ultrasound
workstation;
Report: automatic report generation system, and can be full screen characters in both Chinese and English editor;
Output interface: SR323,USB,DICOM interface;PAL,VGA video output(Optional accessories)
Displayer: 15 inch LED color display
Running hours: ≥8h;
Input power: ≤320V;
Host weight: about 75 kg;
Host appearance size:1090 ×700× 1130(length × width × height) (mm3).
B mode routine measurement:
Distance, circumference, area, volume, angle, ratio, and stenos rate.
M mode routine measurement: Heart rate, time, distance, speed, ratio, etc..
Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
Obstetrics measurement:
EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement:
Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint angle measurement.
Image storage: Image storage, video storage, cine loop, disk storage capacity≥320G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD , USB),built-in ultrasound
workstation;
Report: automatic report generation system, and can be full screen characters in both Chinese and English editor;
Output interface: SR323,USB,DICOM interface;PAL,VGA video output(Optional accessories)
Displayer: 15 inch LED color display
Running hours: ≥8h;
Input power: ≤320V;
Host weight: about 75 kg;
Host appearance size:1090 ×700× 1130(length × width × height) (mm3).

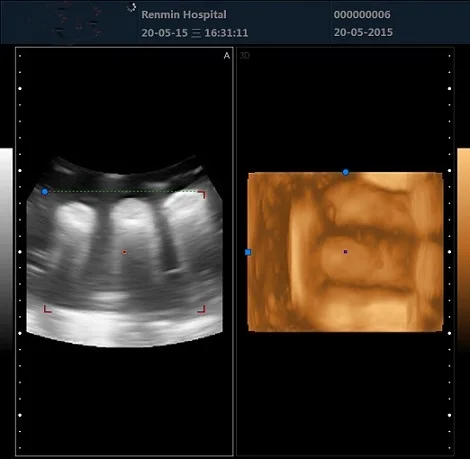

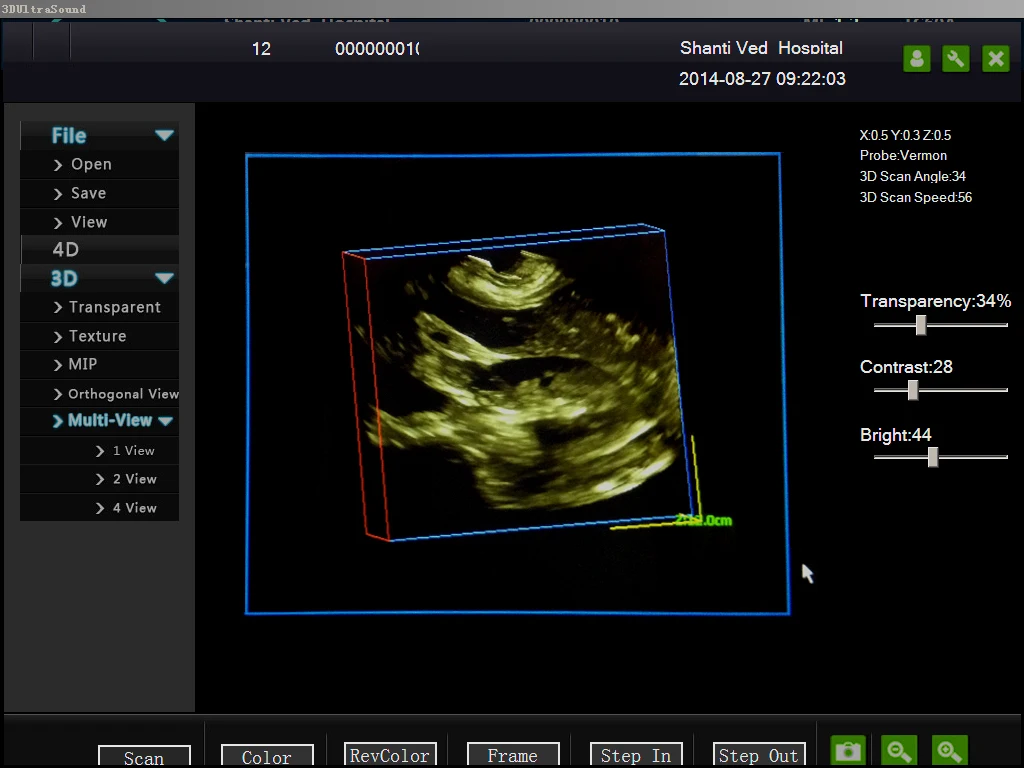

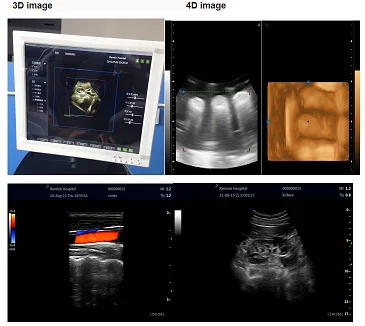

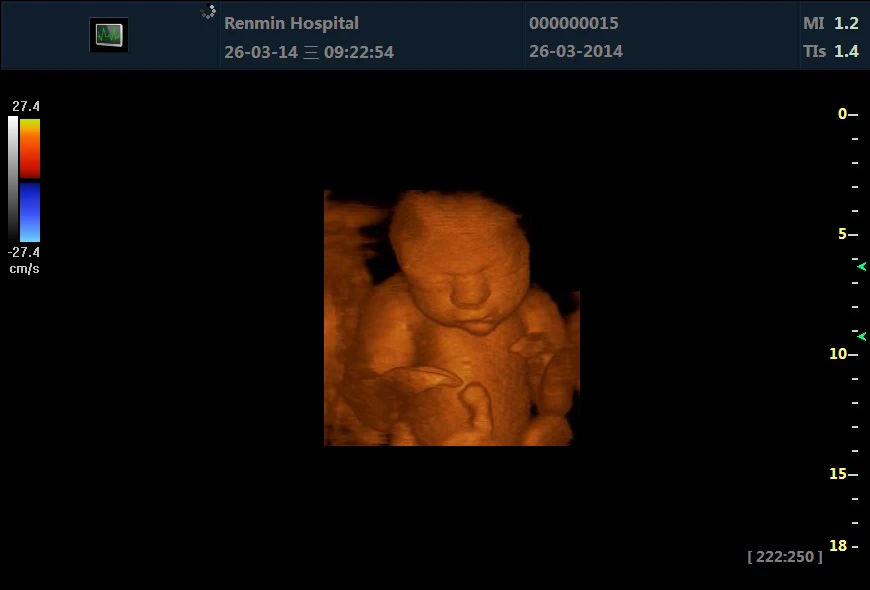

Diagnose Image
TC15 4D/3D color doppler trolley ultrasound machine' outstanding Diagnose Images:

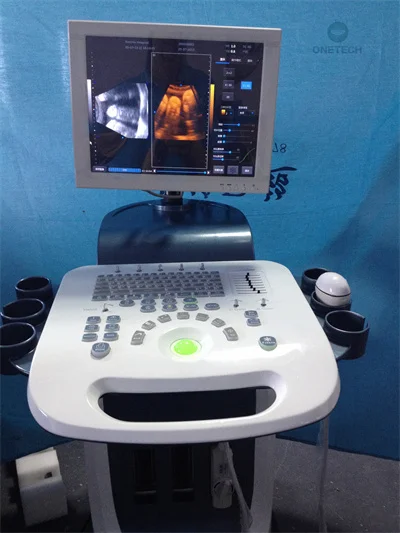

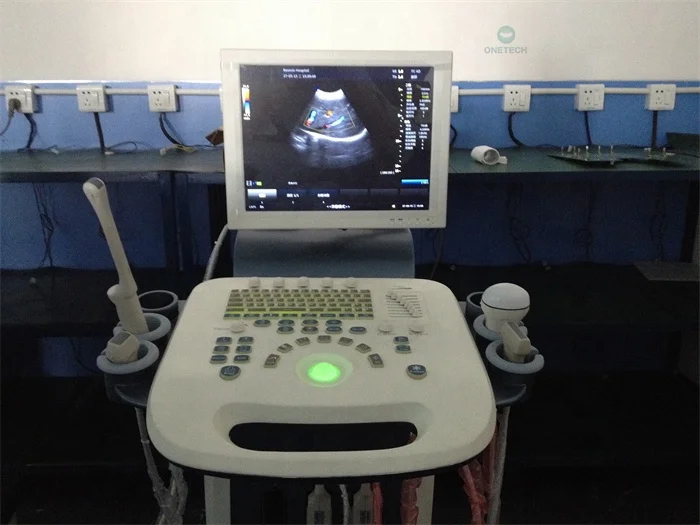

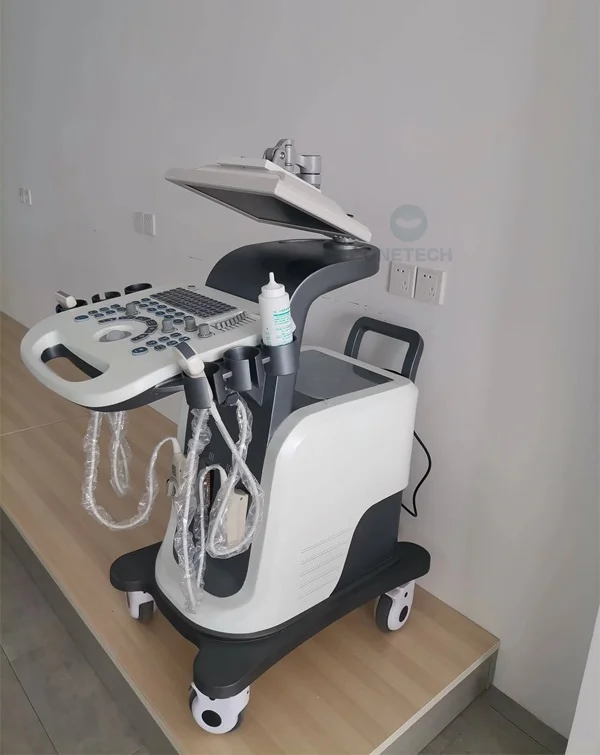

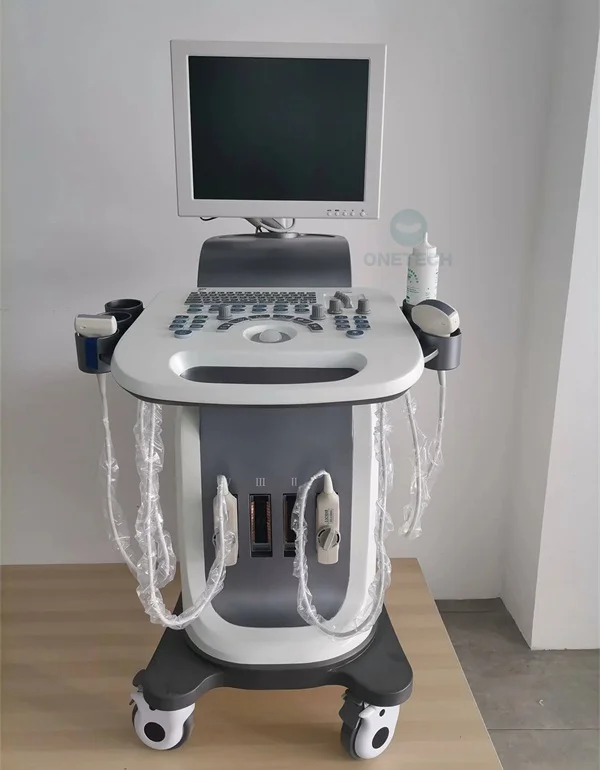

Real goods display

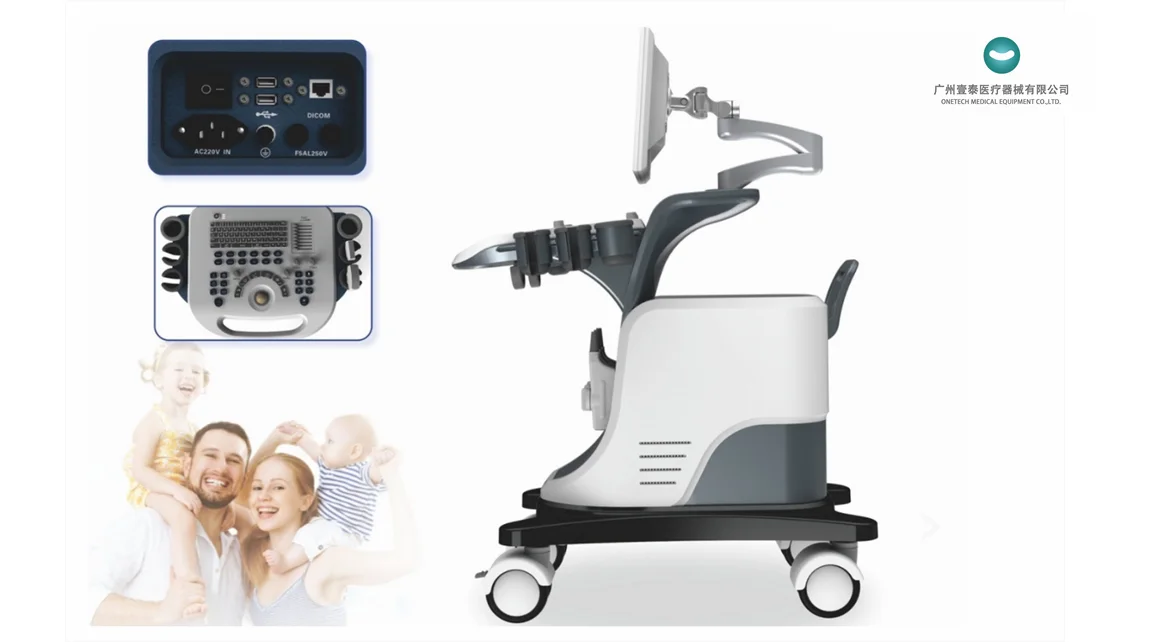

Great design and real appearances of this 4D/3D color doppler ultrasound TC15

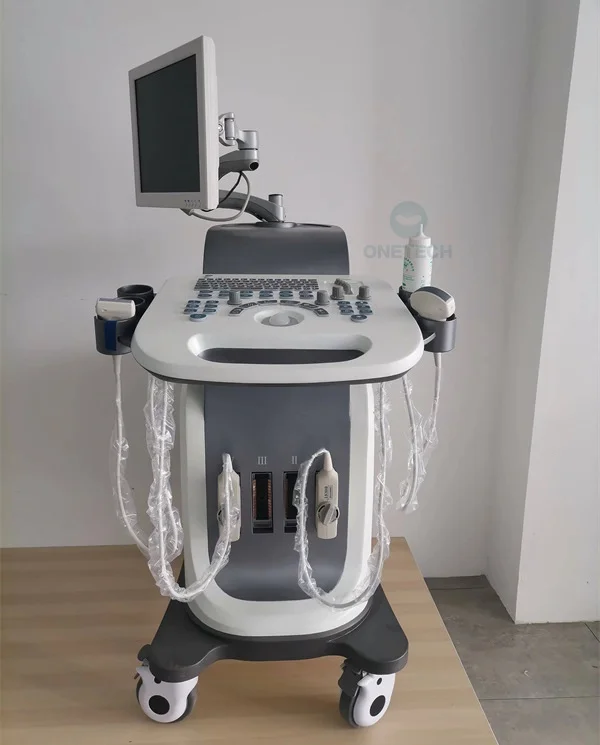

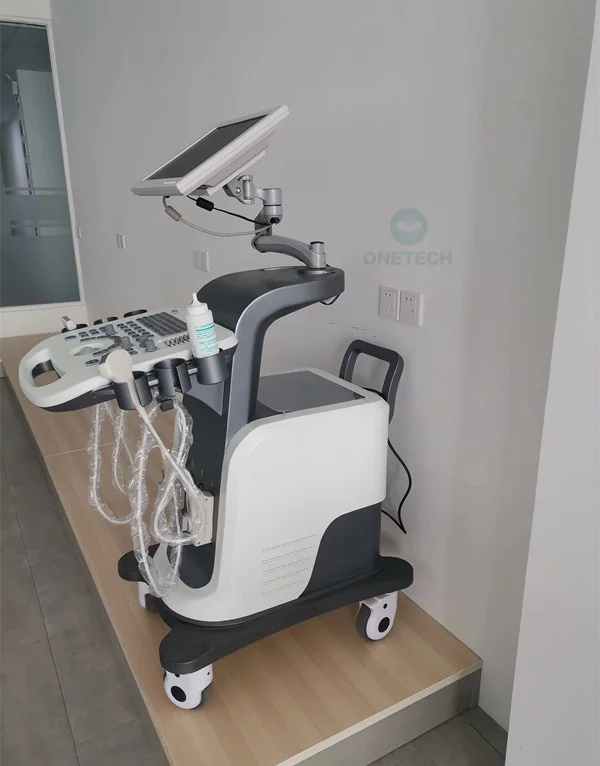

Rotation: 120 degrees up and down, 280 degrees left and right
Packing and Delivery

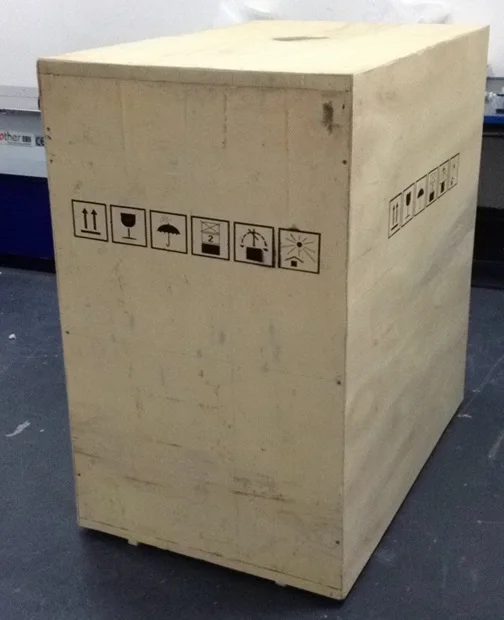

Packing: Pallet package to well protect the ultrasound machine.
Delivery: By DHL, UPS, TNT, FeDex, Air
Delivery: By DHL, UPS, TNT, FeDex, Air
