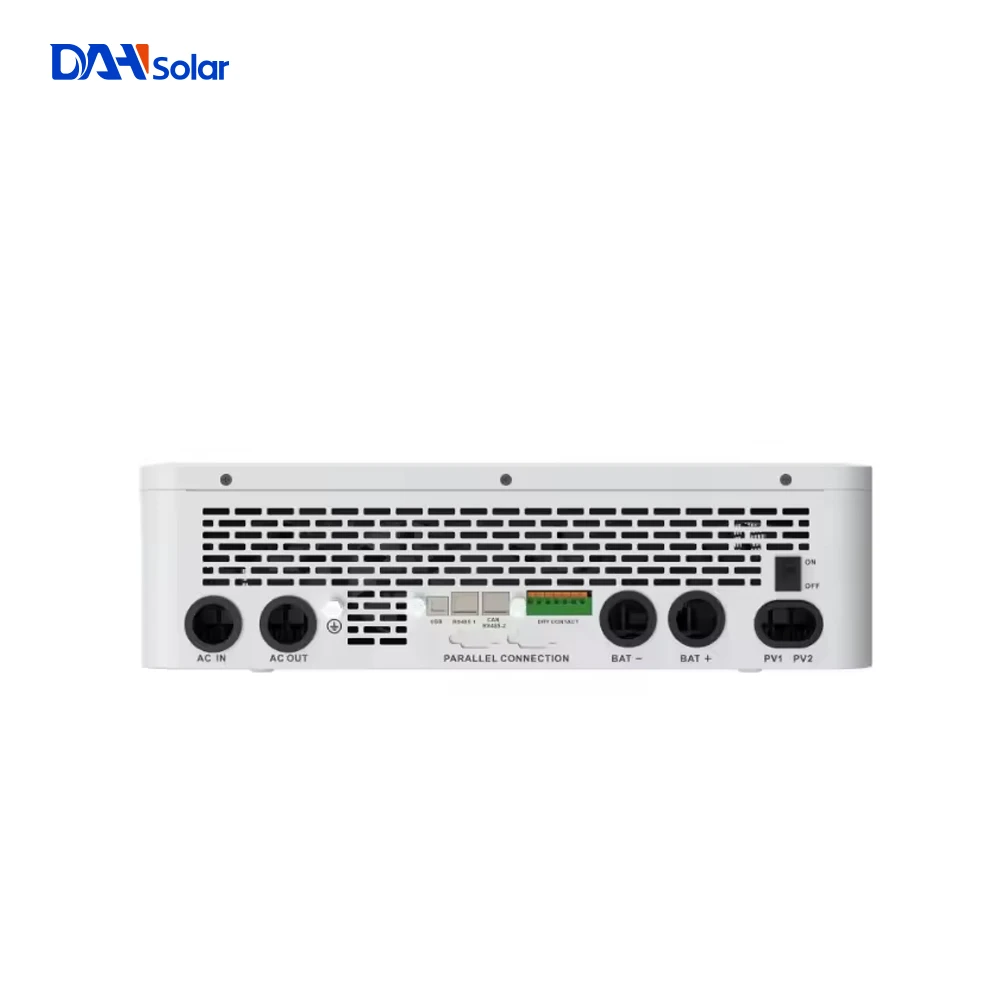

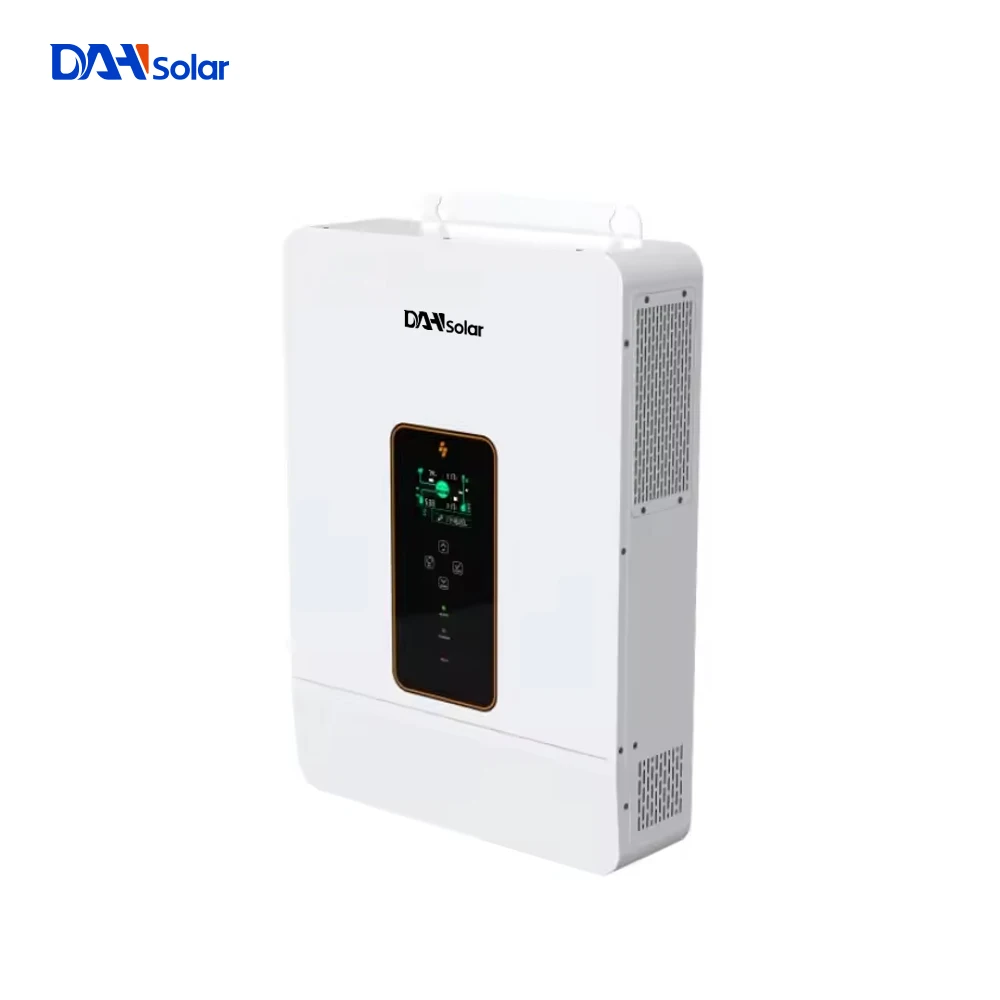

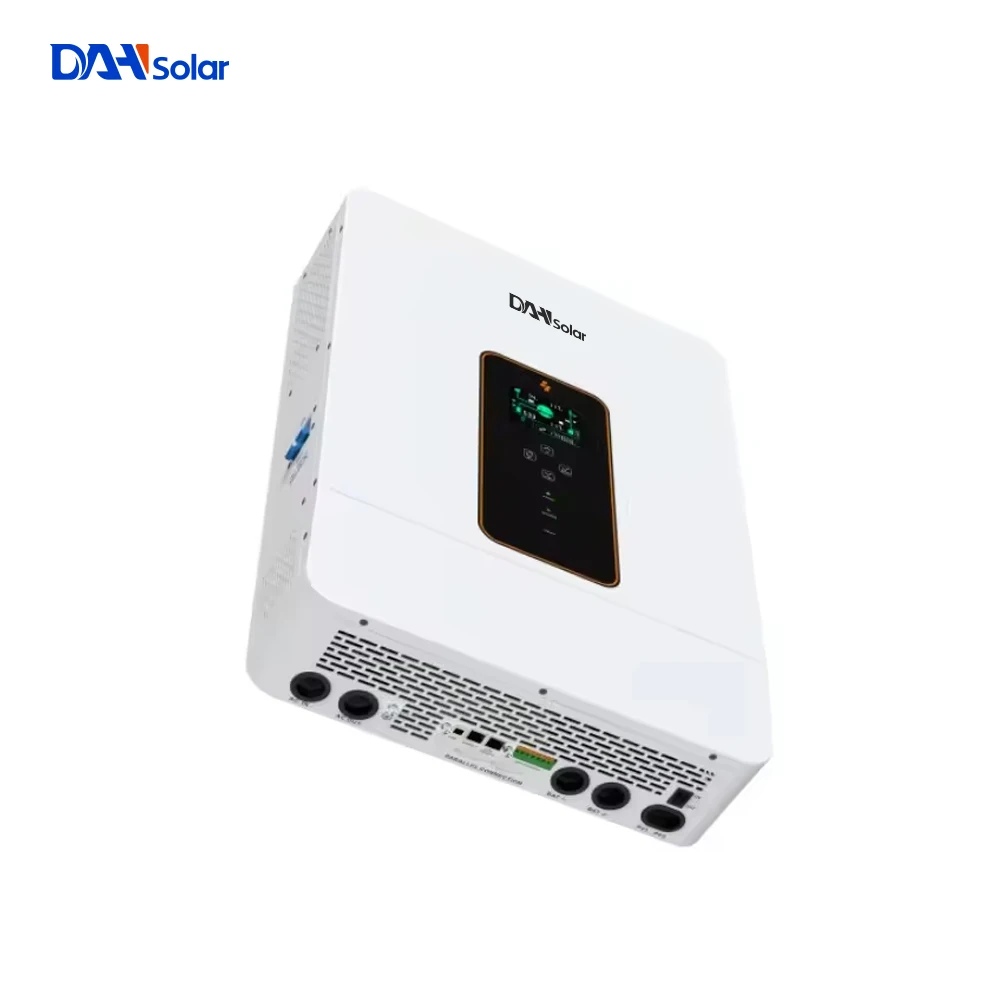

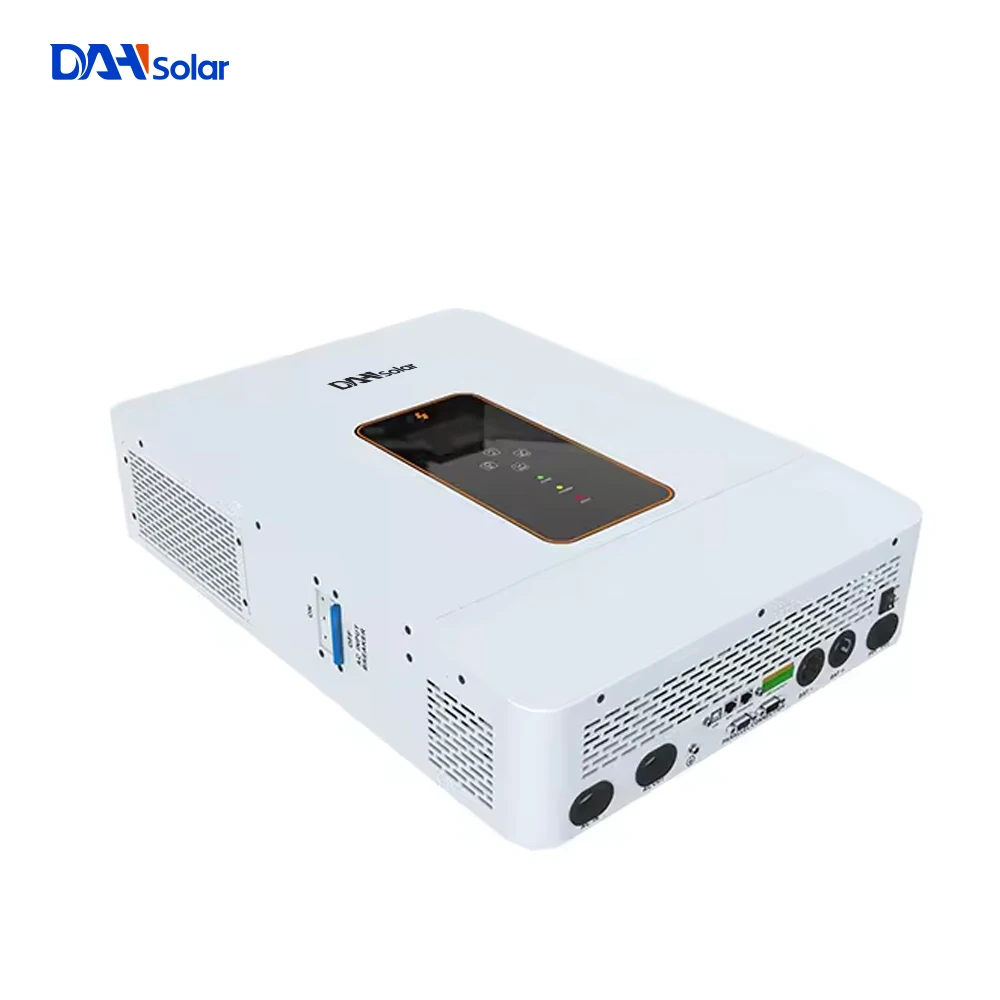

DAH Solar ASF H3 Series 8kw 10kw 12kw three phase off grid solar inverter price list with battery
- Category: >>>
- Supplier: DAH Solar Co. Ltd.
Share on (1601112172997):
Product Overview
Description
Efficient
Dual MPPT with up to 99.9% efficiency.Up to 800V PV input voltage, ideal for high power.
Dual MPPT with up to 99.9% efficiency.Up to 800V PV input voltage, ideal for high power.
Reliable
Outputs high quality pure sine wave AC power. 8-12kW load power to meet the needs of most households
Outputs high quality pure sine wave AC power. 8-12kW load power to meet the needs of most households
Convenient installation
Industrial design with a modern aesthetic look.Easy to install and simple to use.
Industrial design with a modern aesthetic look.Easy to install and simple to use.
MODEL | ASF4880SH3 | ASF48100SH3 | ASF48120SH3 | |||
INVERTER OUTPUT | ||||||
Rated Output Power | 8,000W | 10,000W | 12,000W | |||
Max. Peak Power | 16,000W | 20,000W | 24,000W | |||
Rated Output Voltage | 230/400Vac(three-phase) | |||||
Capacity of Motor Load | 5HP | 6HP | 6HP | |||
Rated Frequency | 50/60Hz | |||||
Output Waveform | pure sine wave | |||||
Switching Time | 10ms（typical） | |||||
BATTERY | ||||||
Battery Types | Li-ion / Lead-Acid / User Defined | |||||
Rated Battery Voltage | 48Vdc | |||||
Voltage Range | 40～60Vdc | |||||
Max. PV Charging Current | 180A | 220A | 260A | |||
Max. Utility / Generator Charging Current | 100A | 120A | 120A | |||
Max. Hybrid Charging Current | 180A | 220A | 260A | |||
PV INPUT | ||||||
No. of MPPT | 2 | |||||
Max. Input Power | 6,000W/6,000W | 7,500W/7,500W | 9,000W/9,000W | |||
Max. Input Current | 22A/22A | |||||
Max. Open-circuit Voltage | 800Vdc/800Vdc | |||||
MPPT Operating Voltage Range | 200～650Vdc/200～650Vdc | |||||
UTILITY / GENERATOR INPUT | ||||||
Input Voltage Range | phase voltage 170~280V, line voltage 305~485V | |||||
Input Frequency Range | 50/60Hz | |||||
Bypass Overload Current | 63A | |||||
EFFICIENCY | ||||||
MPPT Tracking Efficiency | 99.9% | |||||
Max. Battery Inverter Efficiency | ≥92% | |||||
European Efficiency | 97.2% | 97.5% | 97.5% | |||
GENERAL | ||||||
Dimensions | 620*445*130mm（2.03*1.46*0.43ft） | |||||
Weight | 27kg（59.52lb） | |||||
Protection Degree | IP20，indoor only | |||||
Ambient Temp | -10~55℃, >45℃ derated | |||||
Noise | <60dB | |||||
Cooling Method | air cooling | |||||
Warranty | 2 years | |||||
COMMUNICATION | ||||||
Internal Interface | RS485 / CAN / USB / Dry contact | |||||
External Module (optional) | Wi-Fi / GPRS | |||||
CERTIFICATION | ||||||
Safety | IEC62109-1, IEC62109-2,UL1741 | |||||
EMC | EN61000-6-1,EN61000-6-3,FCC15 classB | |||||
RoHS | Yes | |||||
Certificate
DAH solar panel have full line of international authoritative certificates such as CE, TUV, SGS, IEC, MCS, INMETRO, etc.Full
Screen PV Module is developed by DAH Solar own R&D team, has got global patents in more than 18 countries.
Screen PV Module is developed by DAH Solar own R&D team, has got global patents in more than 18 countries.
Our Factory
After years cultivation, DAH Solar has established the silicon wafer, solar cell, PV module, integrated PV system manufacturing bases. DAH Solar has accomplished the industrial integration, which would drive the high-speed development of the enterprise.
Quality Control
During more than 20 production process, each solar panel will be quality tested & inspected and 2 times EL tests by professional and precise instruments, so that each delivery to vour hands is perfect.

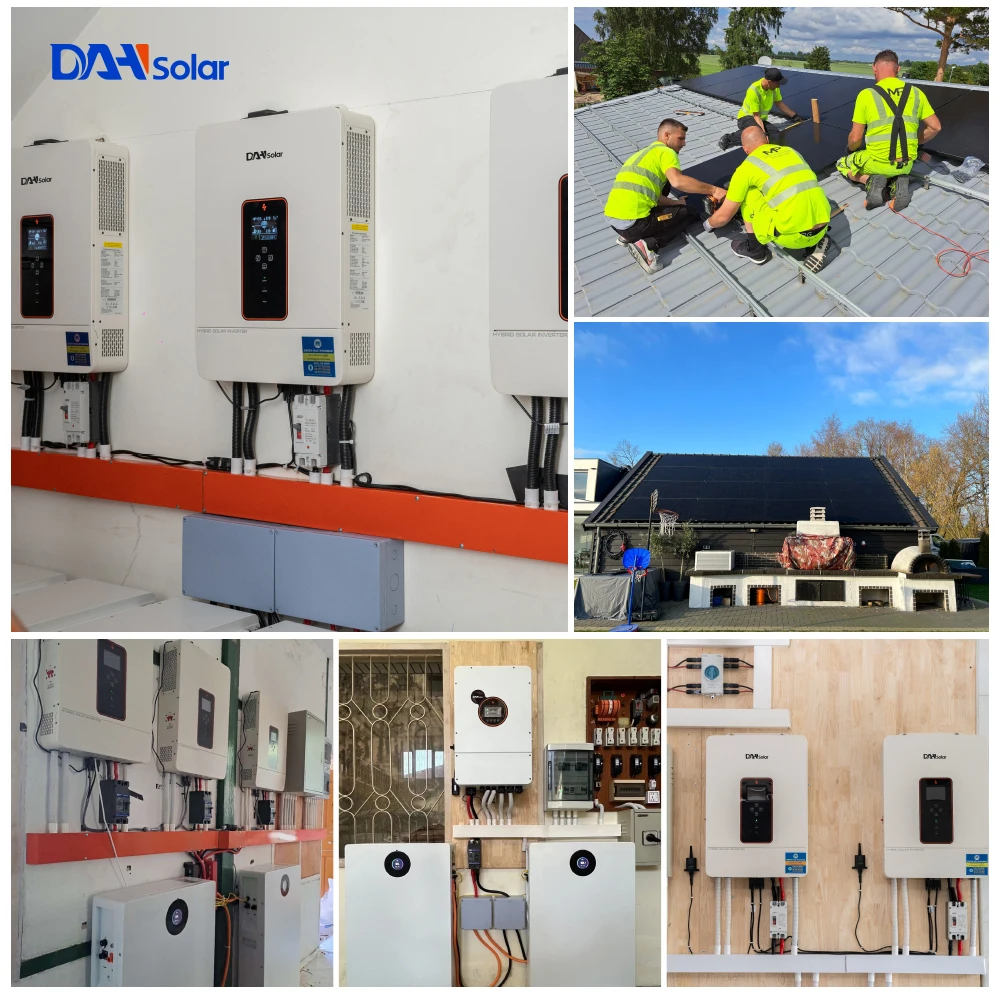

Projects & Exhibition

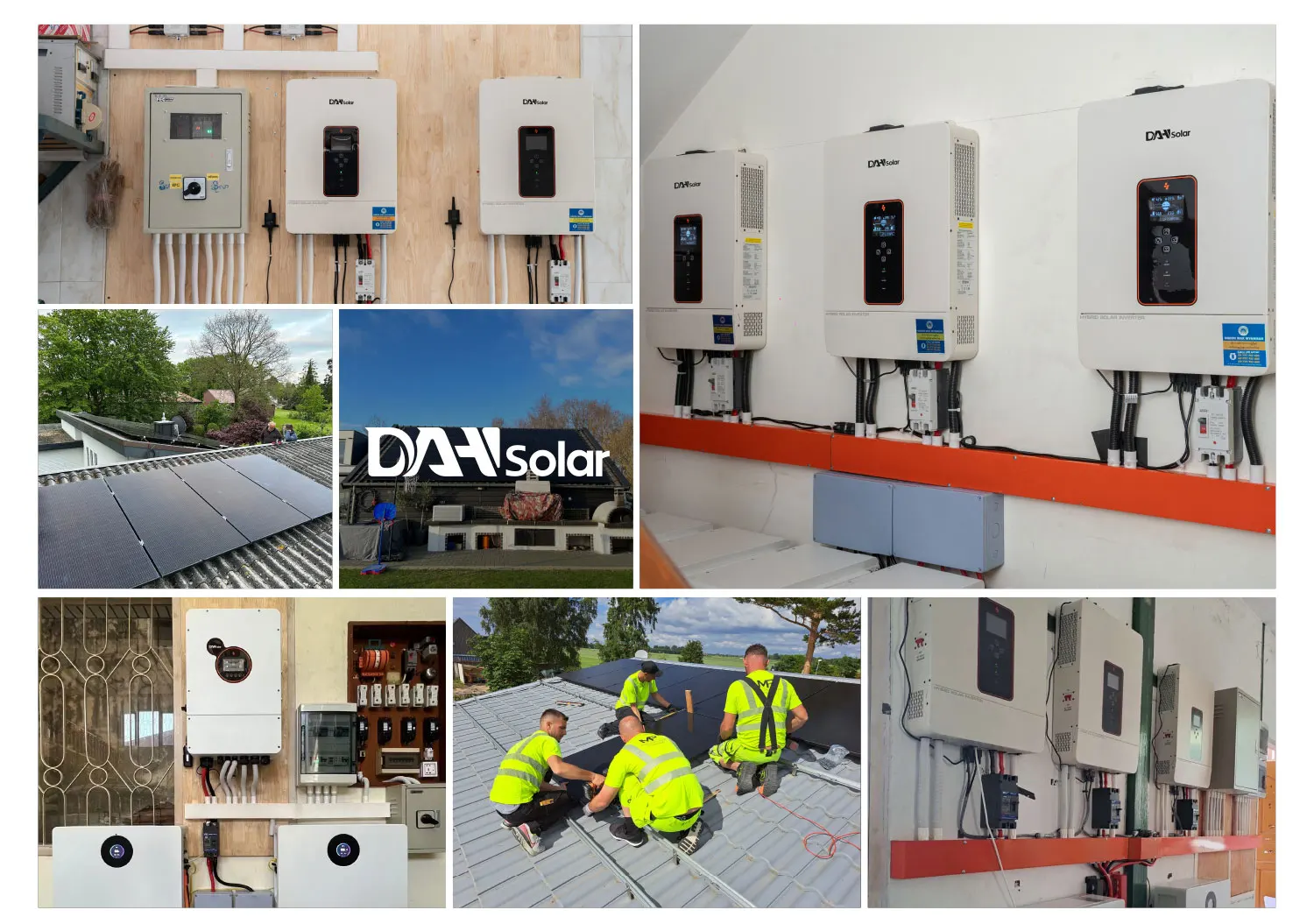

DAH Solar has exported solar system to more than 100 countries, with rich experience in designing,exporting, installation. Our local engineers team can provide timely after-sales service. Also overseas local projects visiting is available to help you know more about our products quality before order.
