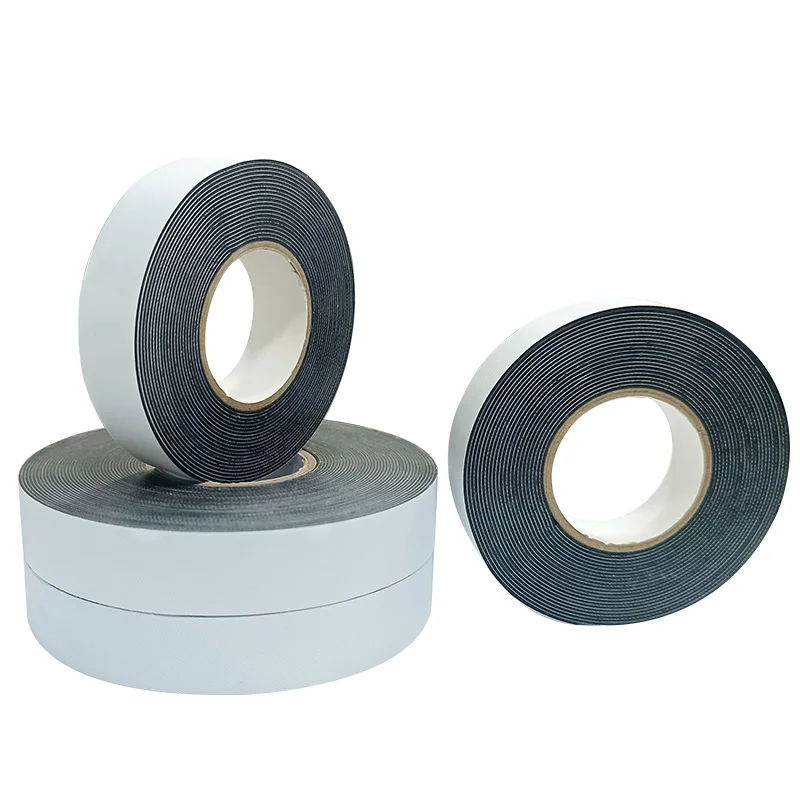

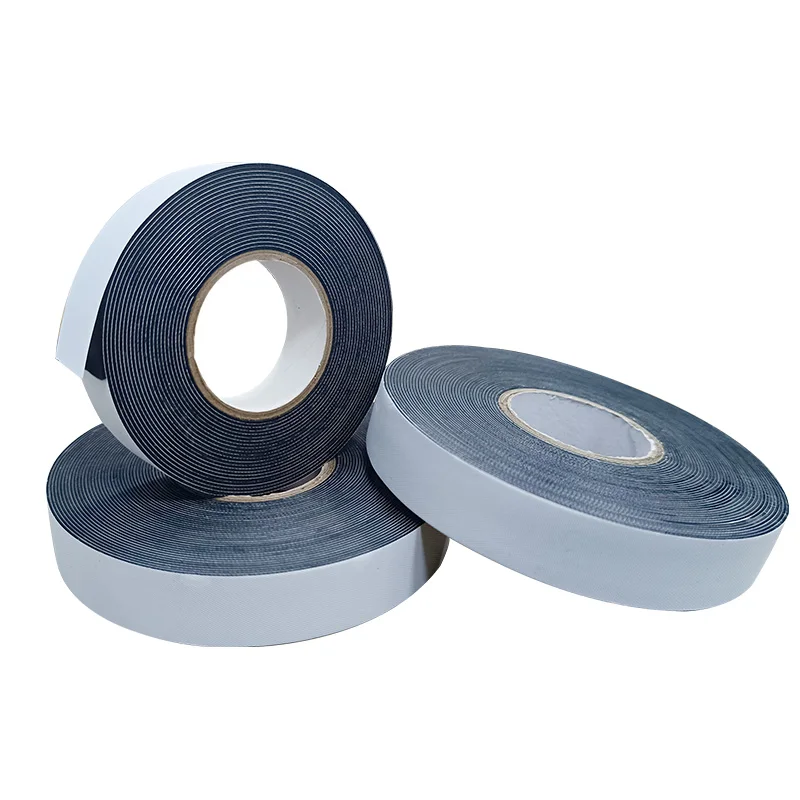

ethylene propylene rubber based high voltage insulation tape High Voltage Insulated Self adhesive Tape
- Category: >>>
- Supplier: Beijing Huaxia Yongle Adhesive Tape Co. Ltd.
Share on (1601112176258):
Product Overview
Description
Product Description
HX-W963 High voltage conducting shielding rubber sheet material tape
HX-W963 is an ethylene propylene rubber base.high voltage tape possessing excellent electricachemical, and physical properties. HX-W963 is aself-amalgamating tape that maintains a tight insulatiorbuild-up for void free electrical stability and permanentresistance to moisture penetration. The excellenstretch of HX-W963 permits fast taping speeds anduniform build-up with normal taping techniquesHX-W963 is compatible with all extruded dielectriocable insulations.
INSULATING AND JACKETING TAPEFOR USE THRU 69KV
1.Self-amalgamating
1.Self-amalgamating
2.Outstanding corona and ozone resistance
3.UV Resistant
RECOMMENDED USES:
RECOMMENDED USES:
Primary electrical insulation for splicing cable from600V to 69kV on all solid dielectric cables; Primaryinsulation for building stress cones on cables up to35kV on all solid dielectric cables: Jacketing onhigh-voltage splices and terminations: Moisturesealing electrical connections; Bus bar insulationsEnd sealing high-voltage cables.
Specifictions
Carrier | Rubber Sheet |
Total Thickness | 0.76mm |
Width | 19/25/38/51mm |
9 Length | 4.6m |
Elongation at break | 850 % |
Tensile Strength | 250 psi |
Temperature | 90℃ |
UV resistance | PASS |
Dielectric Strength | 32kv/mm |
HX-122 Low voltage Rubber Tape
For insulating of splices on solid dielectric cable thru 600v in conjunction with a jacketing tape.
1.Self-amalgamating
2.Good electrical properties
3.Effective moisture seal
4.Good conformability
2.Good electrical properties
3.Effective moisture seal
4.Good conformability
HX-B500 Medium voltage rubber tape
For insulating and jacketing of splices on power cable from 600V through 46kV and for building stress cones and jacketing of terminations on powe cable from 600V thru 35kV.
1.Self-amalgamating
2.Outstanding Corona and ozone resistance
3.UV resistant
4.Excellent moisture
5.Corrosion and chemical resistance
1.Self-amalgamating
2.Outstanding Corona and ozone resistance
3.UV resistant
4.Excellent moisture
5.Corrosion and chemical resistance
HX-F17 High voltage shielding tape
For electrostatic shielding on high voltage splices and terminations. Filling indents in compression connectors and rebuilding strand shielding on high voltage splices.Shielding bus and overhead connections.
1.Self-amalgamating
2.Good conducting properties
3.Easy to apply
4.UV resistant
2.Good conducting properties
3.Easy to apply
4.UV resistant
HX-W963 High voltage Rubber Tape
Primary electrical insulation for splicing cable from 600V to 69kV on all solid dielectric cables: Primary insulation for building stress cones on cables up to 35kV on all solid dielectric cables;
1.Self-amalgamating
2.Outstanding corona and ozone resistance
3.UV Resistant
2.Outstanding corona and ozone resistance
3.UV Resistant

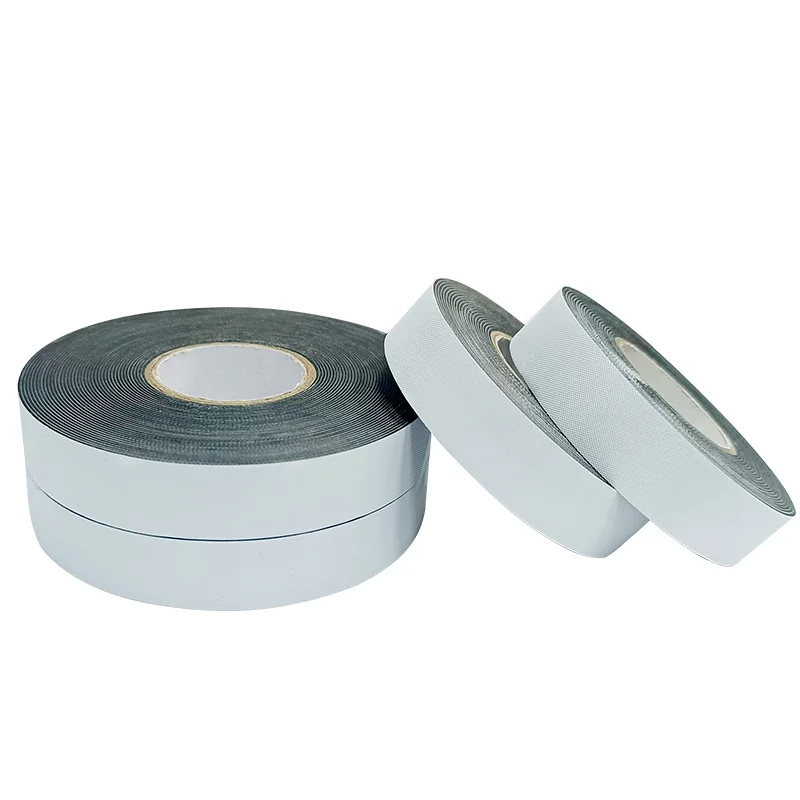

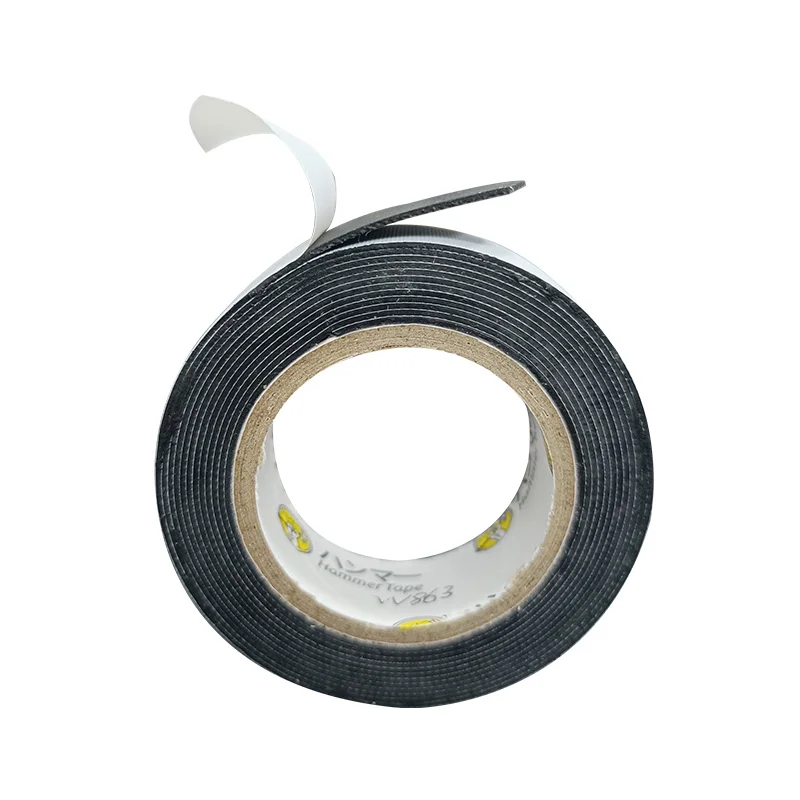

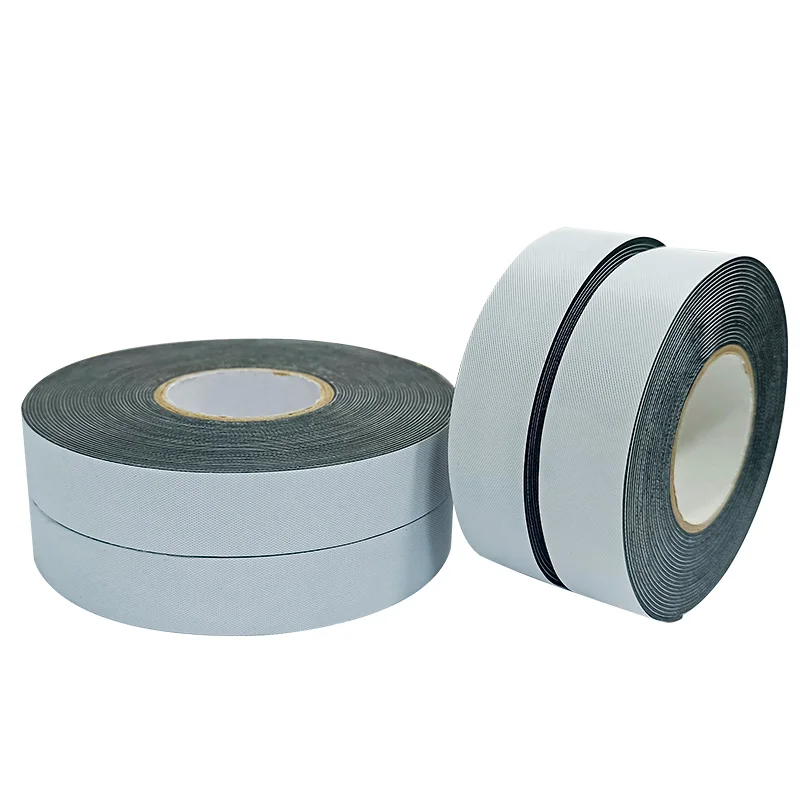

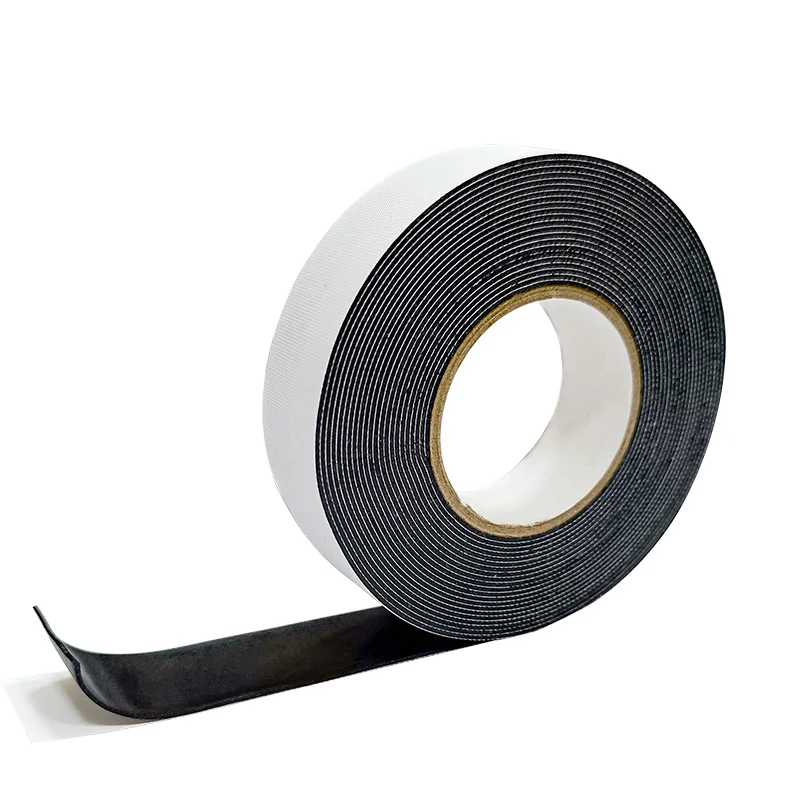

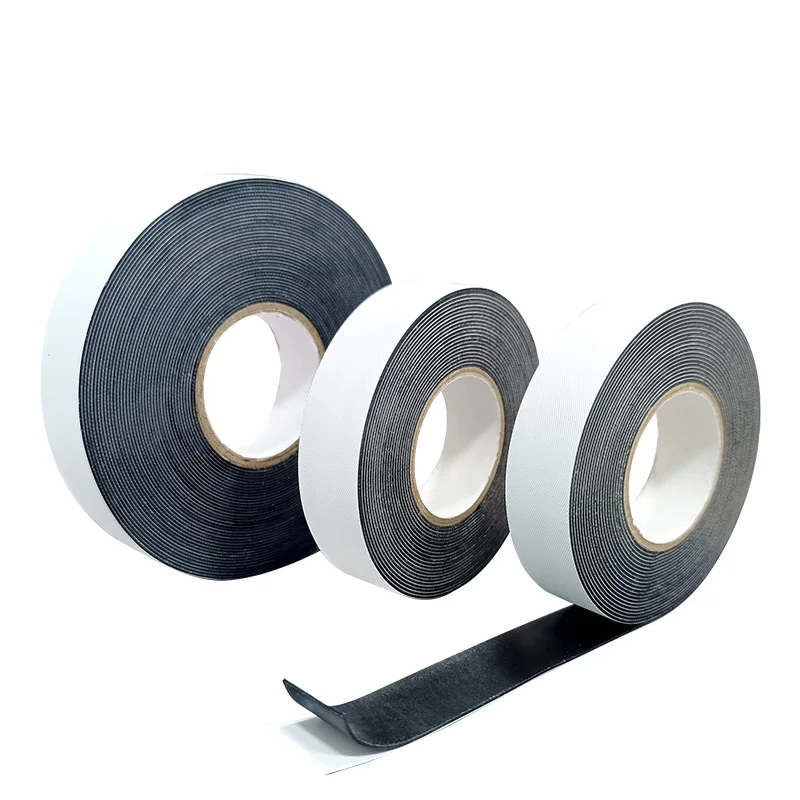

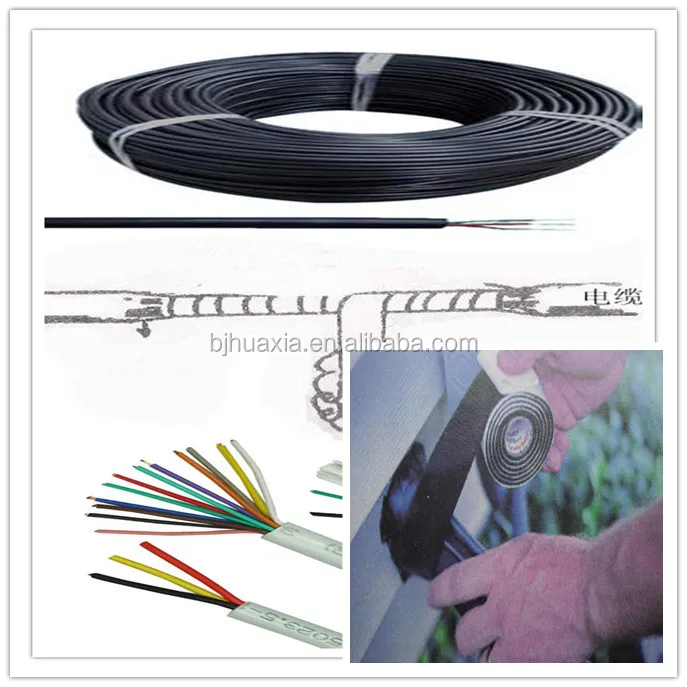

Detailed Images
INSTALLATION TECHNIQUES:
Tapes should be stretched during half-wrapping sothat the tape width is reduced to 3/4 of its originawidth. Overlap at least two layers of PVC tapeoutside of the rubber tape to provide mechanicaprotection.
