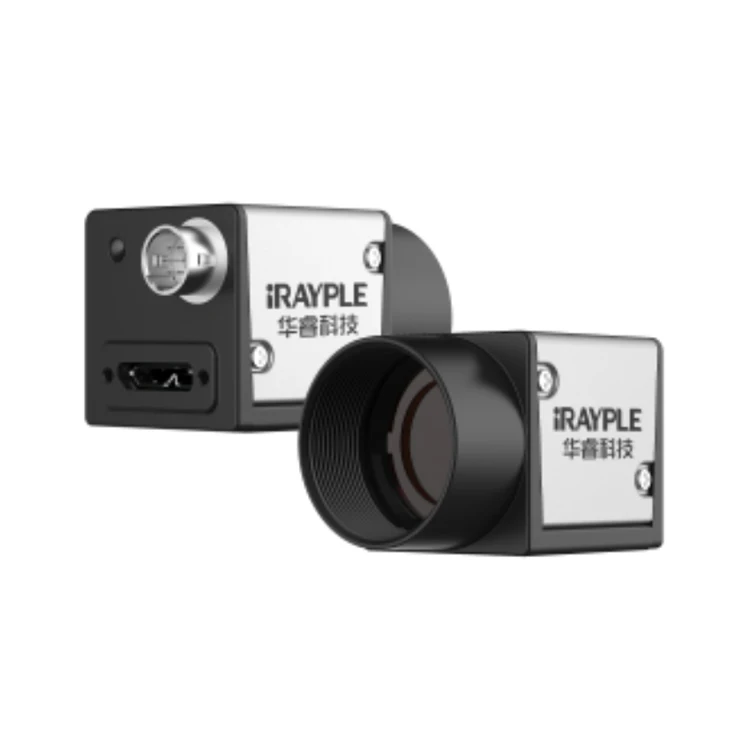

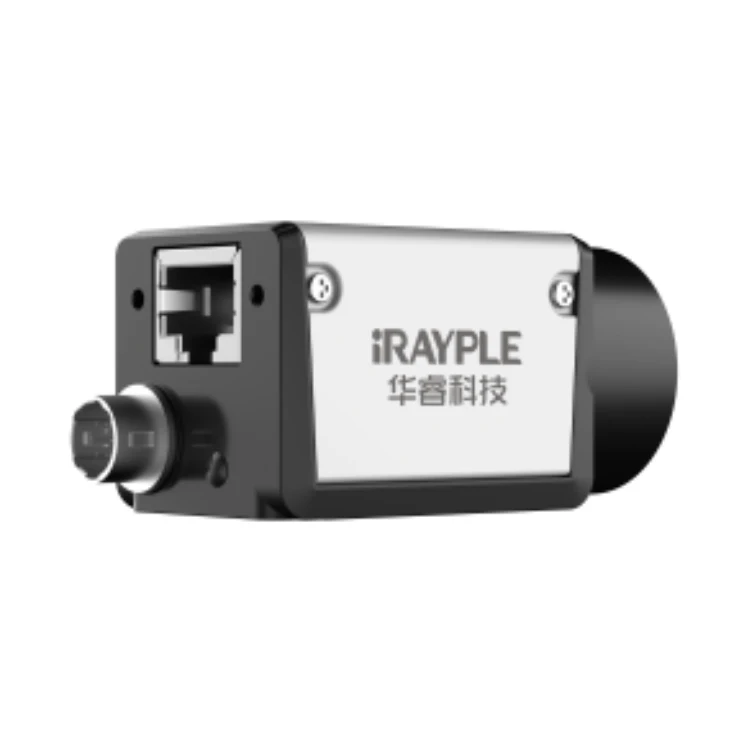

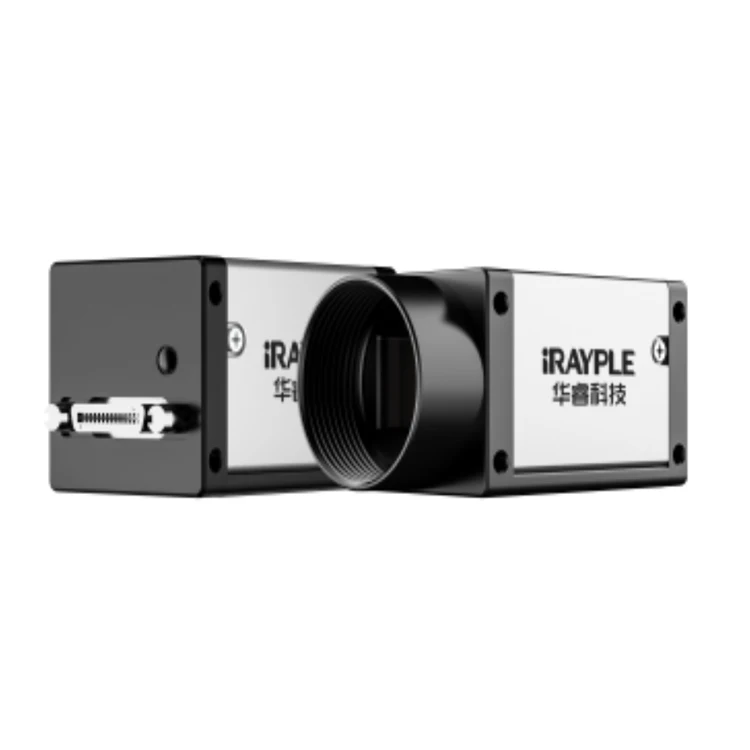

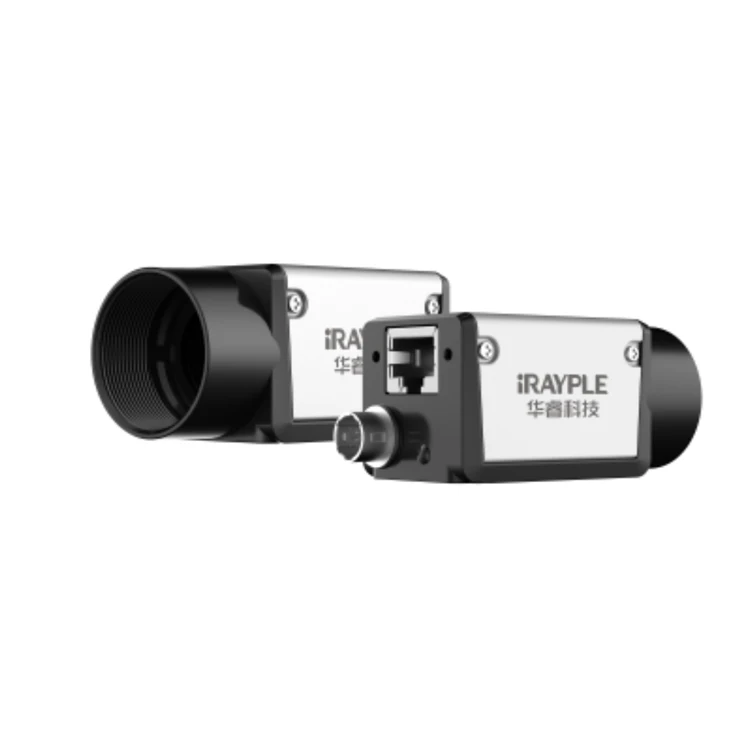

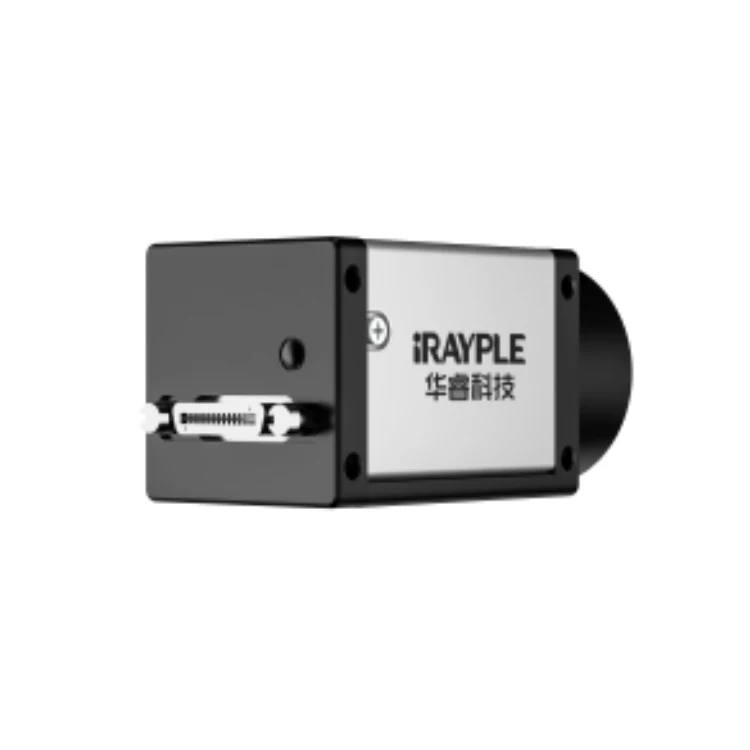

A5B57MG200 A5B57MU200 A5B57MK200 iRAYPLE Color Defect Detection Image Sensor Machine Vision Industry Camera
- Category: >>>
- Supplier: Shandong Botu Photoelectric Technology Co. Ltd.
Share on (1601112199997):
Product Overview
Description

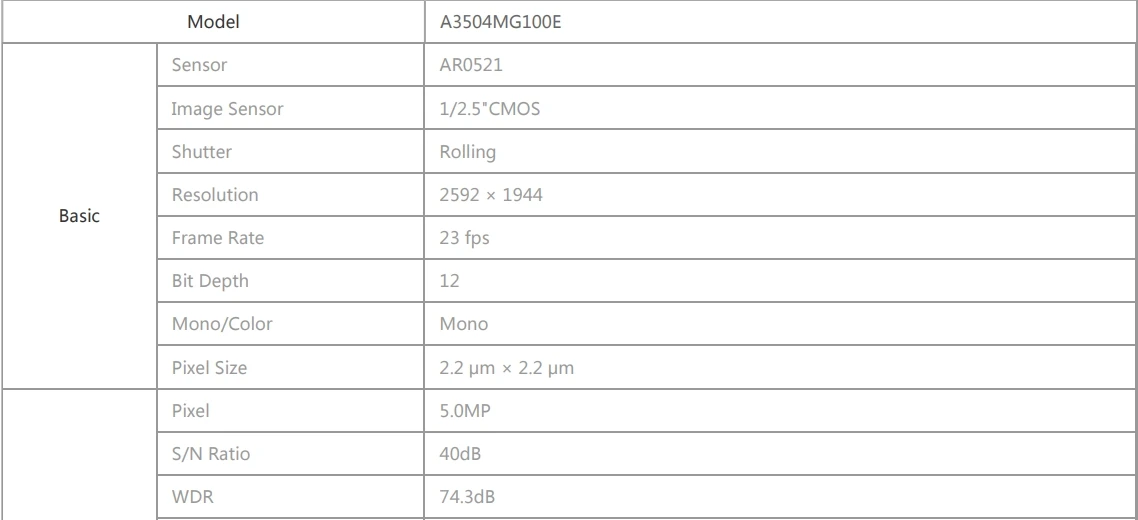

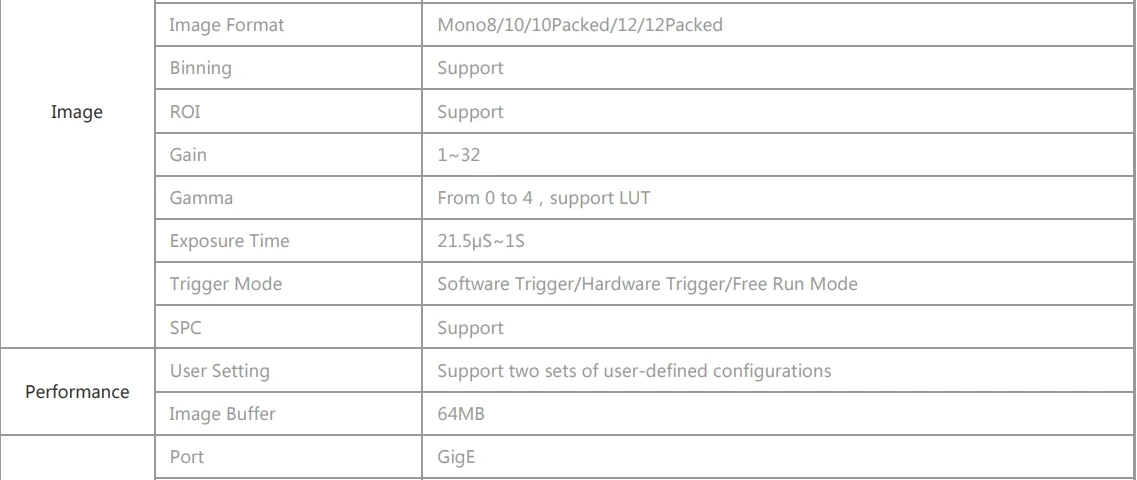

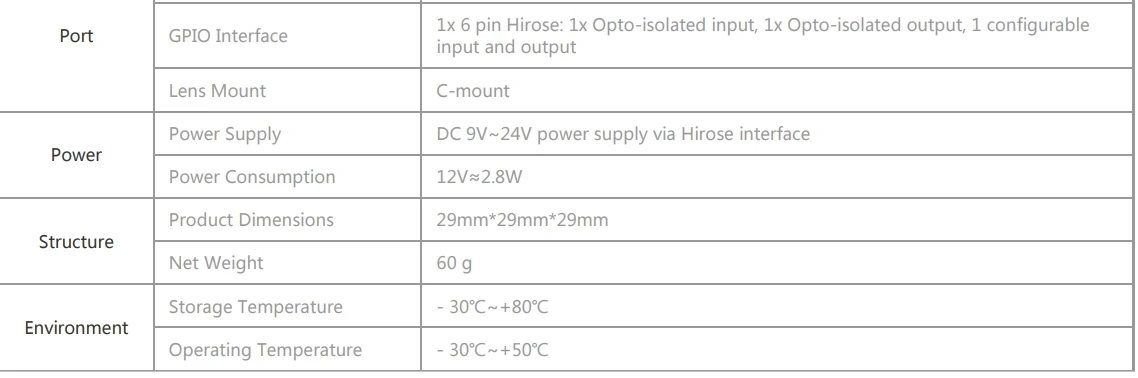

Specification
Model | A3504MG100E/A3504MG100 | ||||
Sensor Size | 1/2.5"CMOS | ||||
Pixel Size | 2.2 μm × 2.2 μm | ||||
Resolution | 2592 × 1944 | ||||
Frame Rates | 23fps | ||||
Features
●Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Support multiple image data formats output/ROI/Binning/Mirror, etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● DC 9V~24V wide voltage power supply; Conform to CE, FCC, RoHS;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.;
● Support multiple image data formats output/ROI/Binning/Mirror, etc.;
● Conform to GigE Vision V2.0 protocol and GenICam standard;
● DC 9V~24V wide voltage power supply; Conform to CE, FCC, RoHS;
Applications
Suitable for electronic semiconductors, factory automation, food and beverage, pharmaceutical packaging
Image measurement
Image measurement
More Products
Company Profile
Product packaging
FAQ
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM/ODM available:Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1).All the products will have been strictly Quality Checked in the house before packing.
2)All the products will be well packed before shipping.
3)All our products have 1 year warranty.
4).Technology support at any time.
5. Faster delivery:
One week delivery for small orders, and 2~4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T.
7. Shipping
We work with many freight forwarders, such as DHLYou also can choose your own shipping forwarder.
