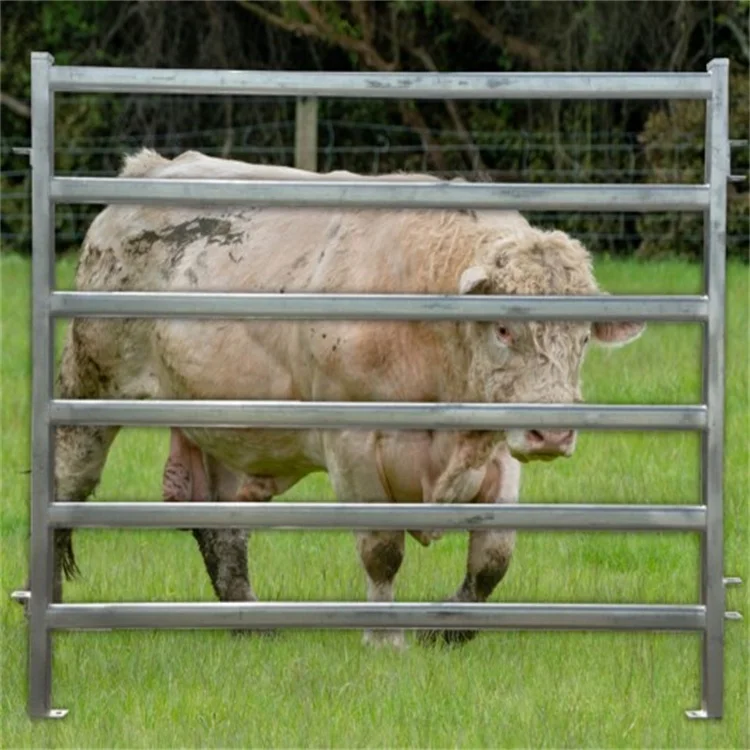

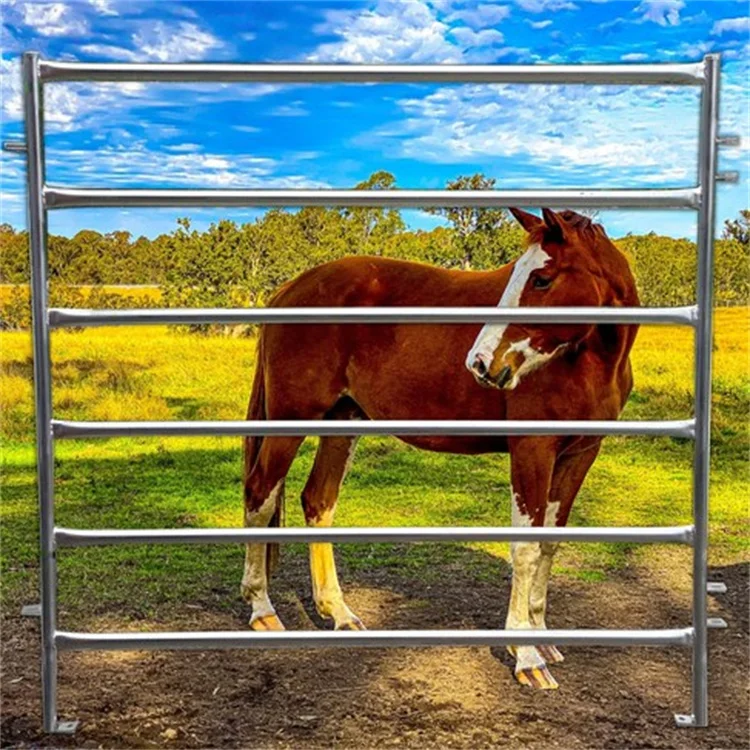

Heavy Duty Galvanized Cattle Yard Panel/ Livestock Panel/Corral Pen
- Category: >>>
- Supplier: Hebei Baxin Wire Mesh Products Co. Limited
Share on (1601112213596):
Product Overview
Description
Product Details

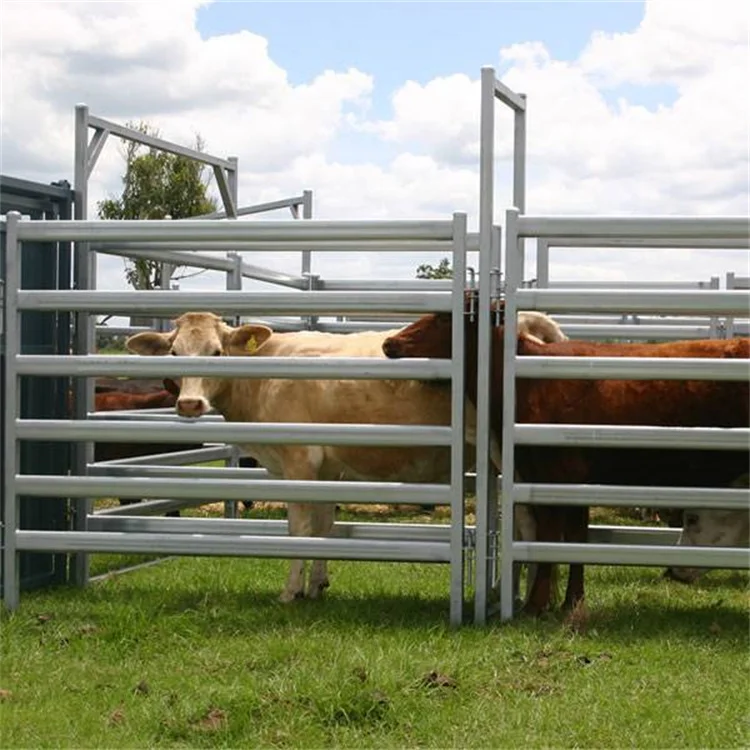

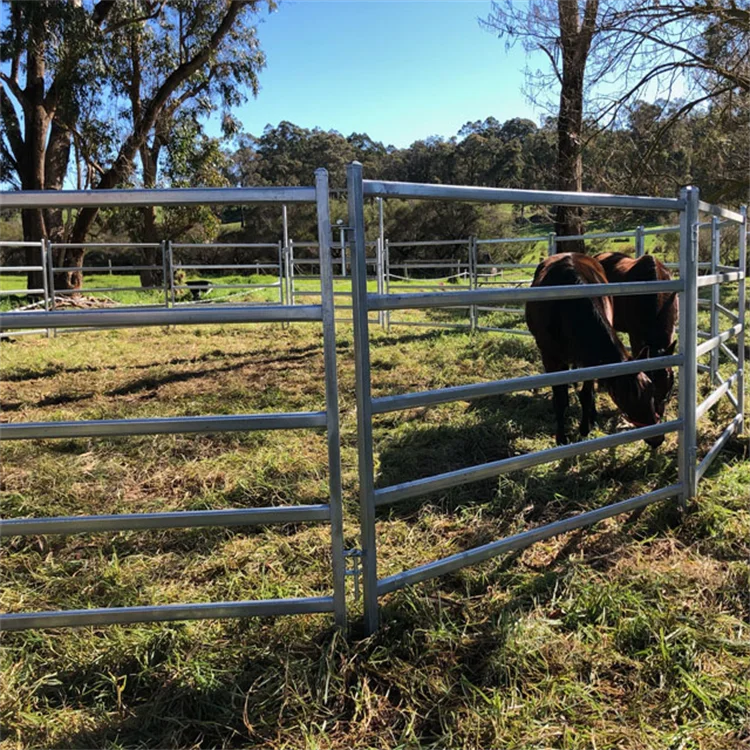

Horse/Cattle Corral Panels are made from heavy duty galvanized steel tubes, which are welded together by vertical posts and horizontal rails to form a sturdy structure. A horse arena or pen can be formed with pieces of panels jointed with accessories. Horse panels are easy to install and dismantle. They are widely used to enclose and protect horses in farmland, paddocks, arenas, rodeo, stables, etc.
Type | Light-Duty | Medium-Duty | Heavy-Duty | ||||||||
Rail Number ( Height) | 5 rails 1600 mm 6 rails 1700 mm 6 rails 1800 mm | 5 rails 1600 mm 6 rails 1700 mm 6 rails 1800 mm | 5 rails 1600 mm 6 rails 1700 mm 6 rails 1800 mm | ||||||||
Post Size | 40*40 mm RHS | 40*40 mm RHS | 50*50 mm RHS | 50*50 mm RHS | 89 mm O.D. | 60*60 mm RHS | |||||
Rail Size | 40*40 mm | 60*30 mm | 50*50 mm | 80*40 mm | 97*42 mm | 115*42 mm | |||||
Length | 2.1 m 2.2 m 2.5 m 3.2 m 3.6 m 4.0 m etc. | ||||||||||
Surface Treatment | 1. Fully hot dipped galvanized 2. Pre-galvanized pipe then anti-rust spraying | ||||||||||
Kits | 1. 2 lugs and pins 2. Cattle Panel Gate ( Cattle Gate in Frame, Double Gate, Man Gate, Side Gate) | ||||||||||
Accessories
The Lugs
The Caps
The Foot Plate
The Chain
The Lock
The Pins
Quality Testing
Square Tube Diameter 50 mm
Oval Tube Diameter 40 mm
Cattle Panel Size
Oval Tube Diameter 80 mm

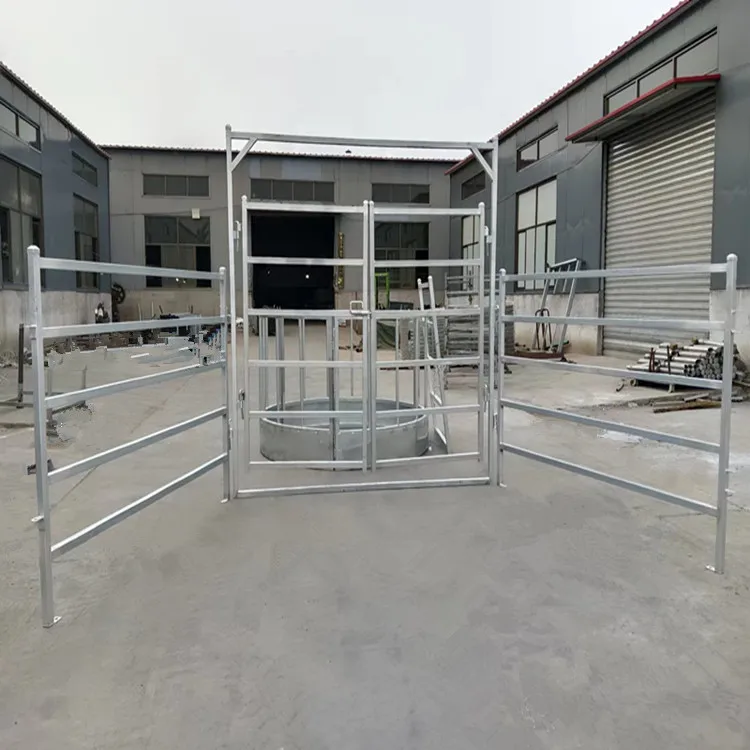

Cattle Gate
The Lugs

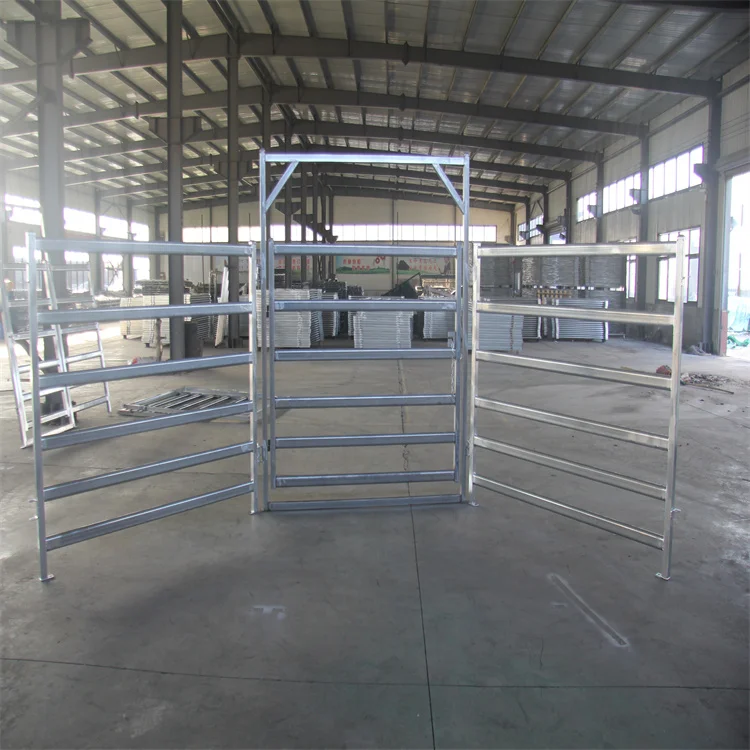

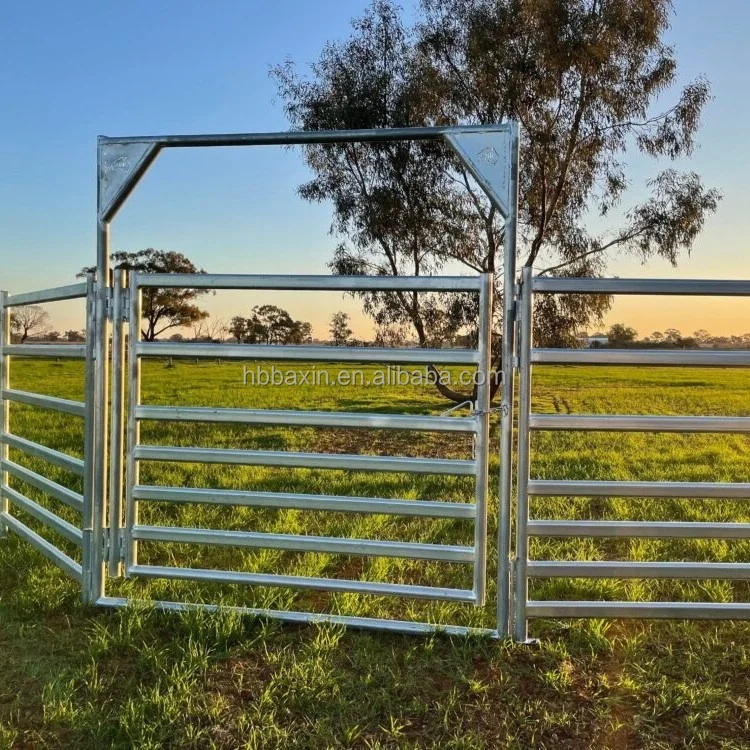

Gate in frame
Intermediate Yard Use ( Low Volume Use)
Frame: 2 m High *2.4 m Wide 40*40*1.6 mm
Gate: 1.5 m High * 2.15 m Wide 40*40*1.6 mm*6 Rails
Intermediate Yard Gate
Frame: 2.4 m High* 2.4 m Wide
50*50*1.6 mm
Gate: 1.5 m High*2.15 m Wide
40*40*1.6 mm*6 Rails
Entry Yard Gate
2.4 m High *3.3 m Wide 50*50*1.6 mm
Gate: 1.5 m High * 3 m Wide 50*50*1.6 mm*6 Rails
Entry Double Gate
Frame: 2.4 m High *4.6 m Wide
50*50*2 mm Thickness
Gates: 1.8 m High* 2.15 m Wide *2 mm Thickness
The Rails: 40*40*1.6 mm
Manway Gate: Personnel Access Gate
Frame: 2.4 m High*0.75 m Wide
Gate: 1.8 m High *0.6 m Width
40*40*1.6 mm*6 Rails
Sliding Gate: Controls Movement in Race
The Rail: 50*50*1.6 mm rails
Gates: 700 mm or 770 mm Wide Clear Inside Width
Manway gate in panel : Personnel access gate with the same dimensions as a standard panel
Overall Height: 2.4 m
Panel Height: 1.8 m
Gate Height: 1.8 m
Overall Width: 2.2 m
Gate Width: 0.6 m
40*40*1.6 mm*6 Rails

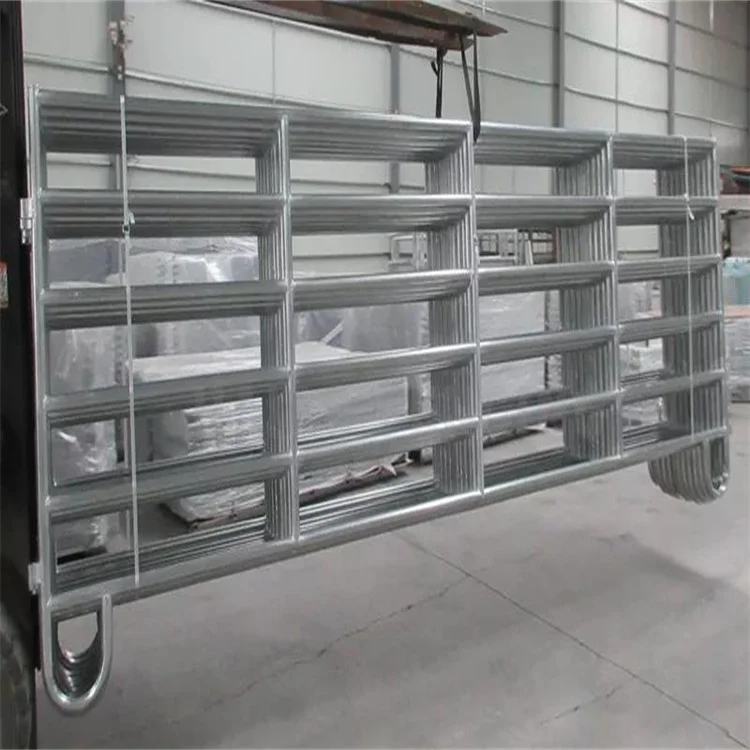

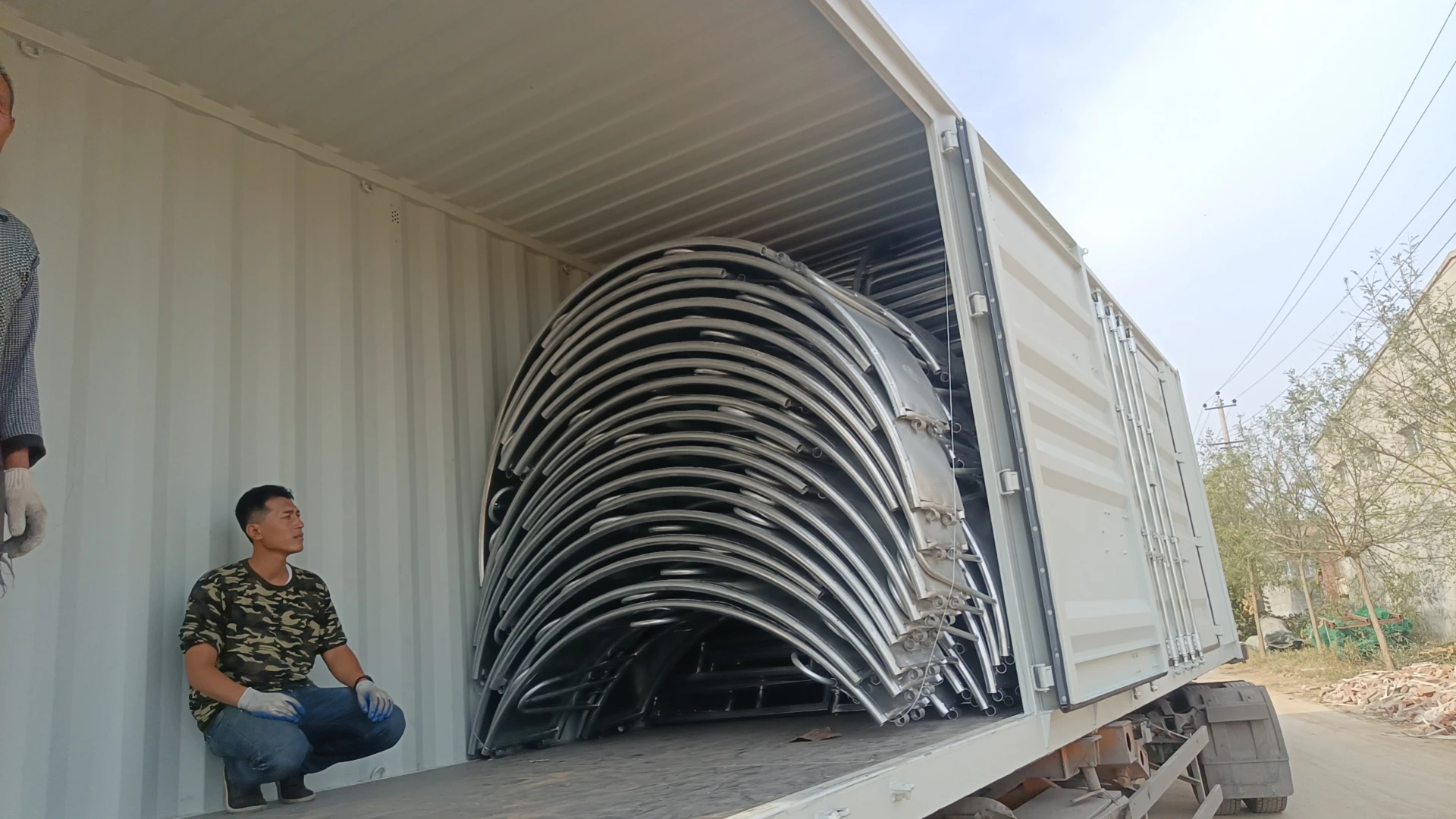

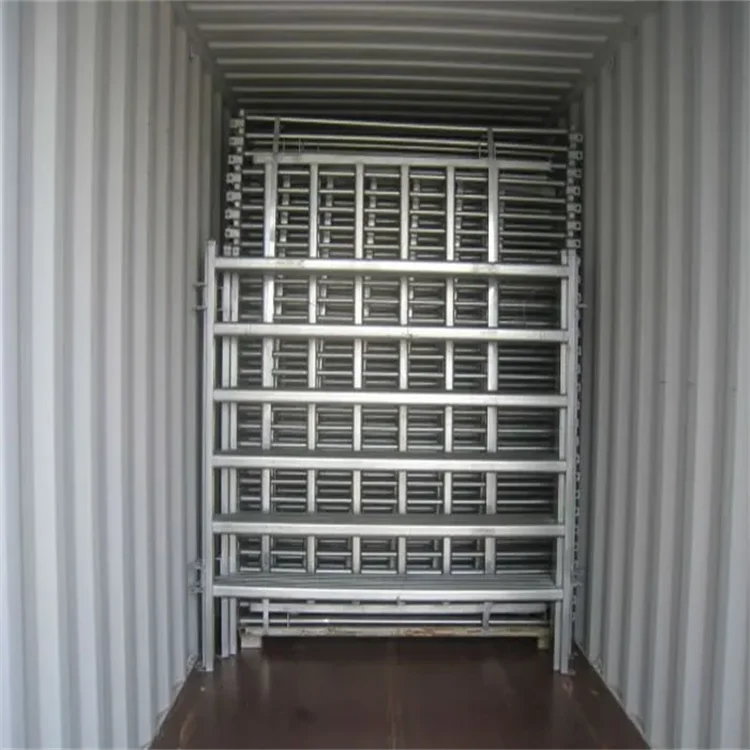

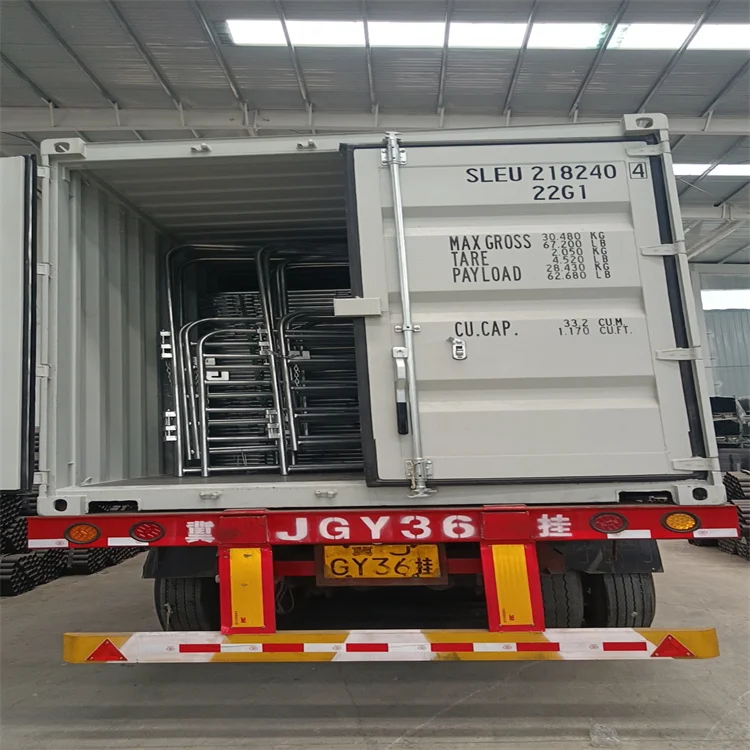

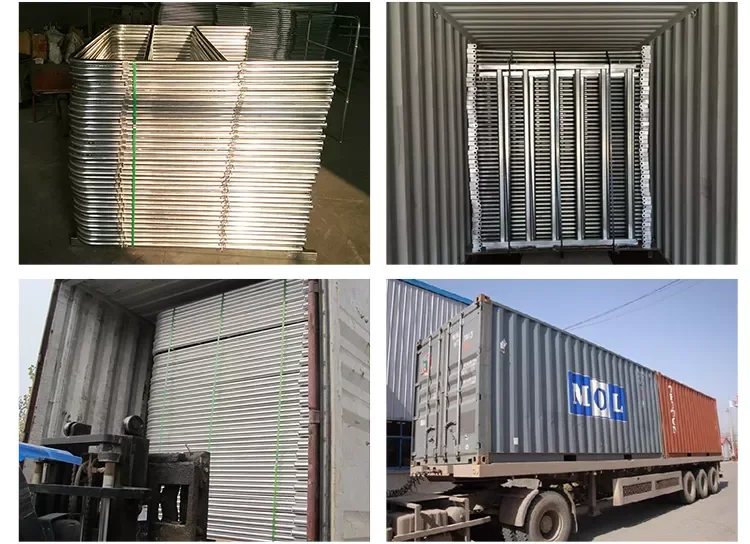

Package And Shipping
1. Fence Panels: Wrapped with plastic film and placed in wood or metal pallet.
2. Small Hardware: Plastic bags and carton box.
Other custom package methods are also available upon your request.
2. Small Hardware: Plastic bags and carton box.
Other custom package methods are also available upon your request.

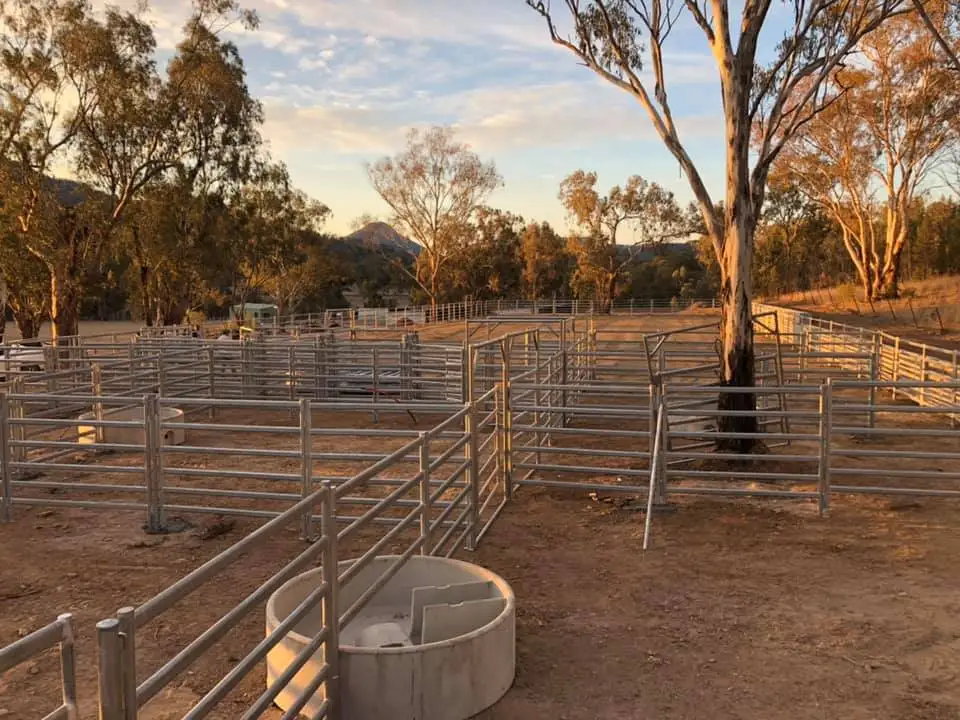

Application
Widely used in raising the animals, specially the cattle, the cow, the horse, the sheep etc.
