Grade A Rept Lithium Battery NMC Batteries 3.7V 102Ah 100Ah Prismatic Energy Storage NMC Battery Prismatic
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1601112248447):
Product Overview
Description
Products Description
NCM102Ah Parameter | ||||
Item | Specification | Note | ||
Rated Capacity | 102Ah | @1C | ||
Nominal Voltage | 3.7V | @1/3C | ||
Actual Voltage Range | 2.8-4.3V | |||
Constant Discharge Current | ≤100A | Typical Value=33.3A | ||
Peak Discharge Current | ≤400A | @10s | ||
Constant Charge Current | ≤100A | Typical Value=33.3A | ||
Peak Charge Current | ≤300A | @10s | ||
Operating Temperature | Charge: -20℃~55℃ Discharge: -30℃~55℃ | |||
Storage Temperature | ﹣20℃~55℃ | |||
Cell Dimensions | Thickness:52.20±0.3mm Length:148.90±0.3mm Height: 95.80±0.5mm | |||
Cathode Material | NCM 523 | |||
Weight | 1.70±0.3kg | |||
Energy density | 218Wh/kg 506Wh/L | |||
Cycle life | ≥2000 times | @0.33C/1C 100%DOD,80%EOL | ||

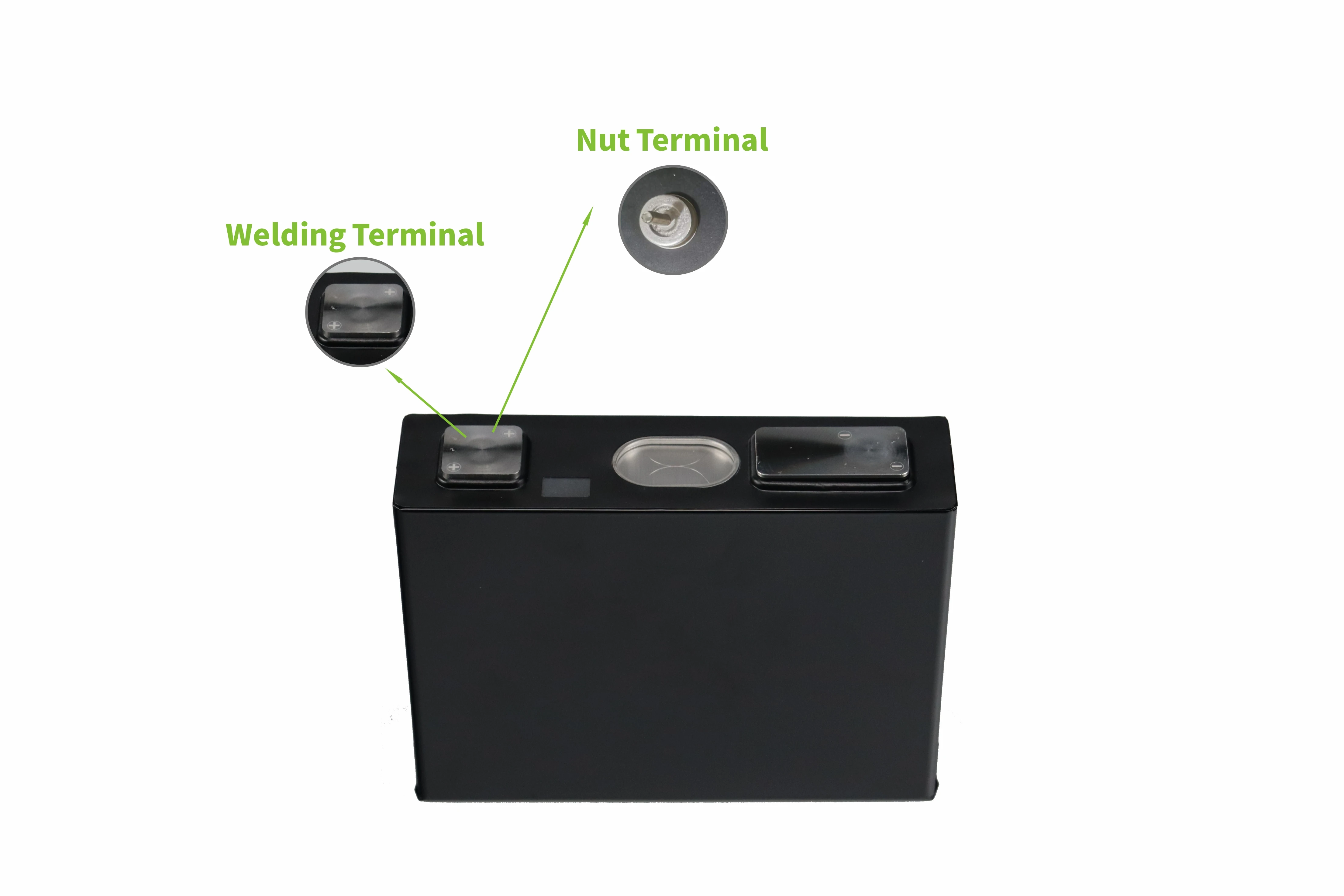

Terminal | Welding/Nut Terminal | |||

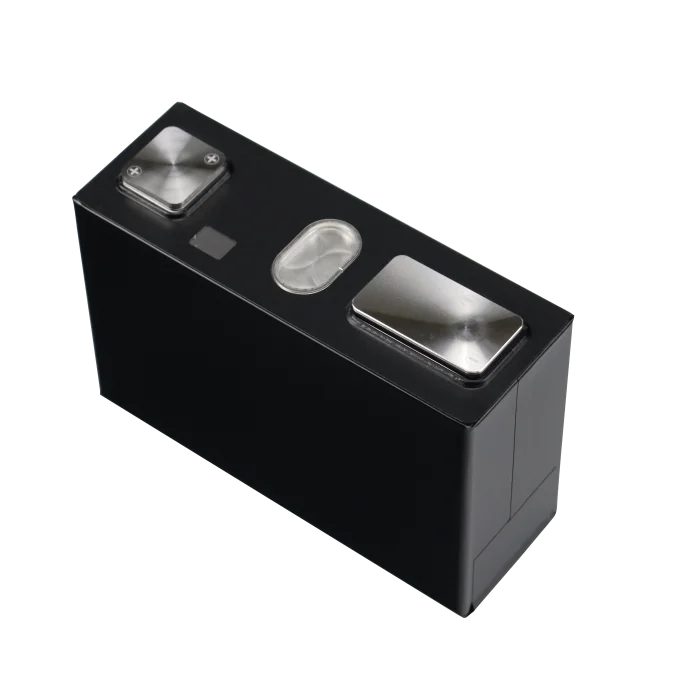

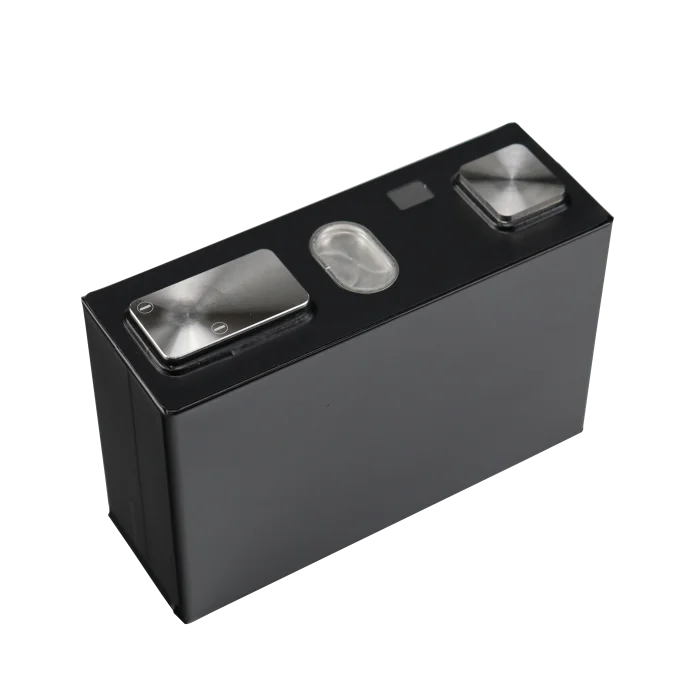

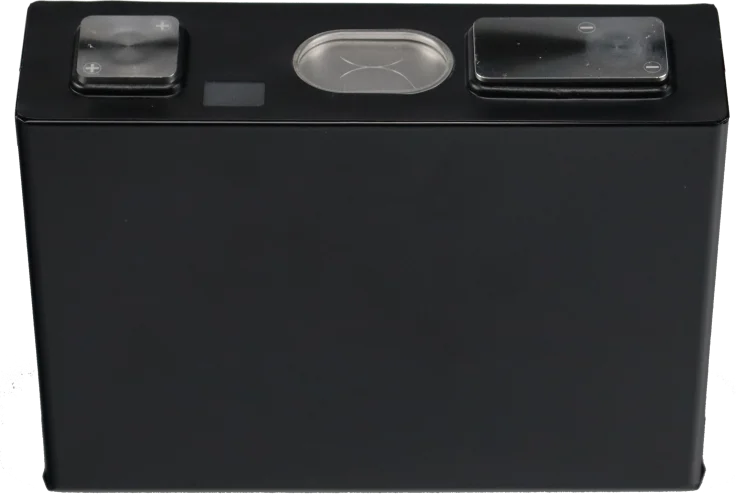

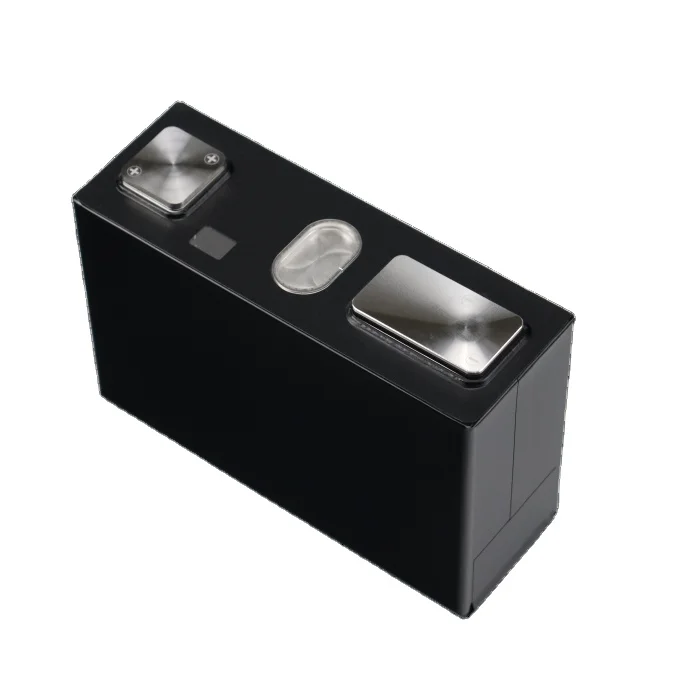

Physical Picture
Cell Dimension
Grade A+ | Grade A-/B |
Complete QR code | No QR code or QR code is destroyed or B marked |
With original testing report from manufacturer and sorting standard | Without testing report or non-official testing data |
Conform manufacturer’s quality-control standard before delivery | Appearance issues or higher K value problem or quality-control index problem and potential safety risk |
5-year warranty from manufacturers | No warranty from manufacturers and potential risk for after-sale service |
A variety of capacities to choose from | ||||||||
1
2
3
Product Accessories
Product Application
Company Profile
Certifications
Exhibition
Product packaging
Shipping option | Delivery period | Transportation period |
Air shipment | 5-10 working days | 7-10 days |
Sea shipment | 5-10 working days | 30-35 days |
