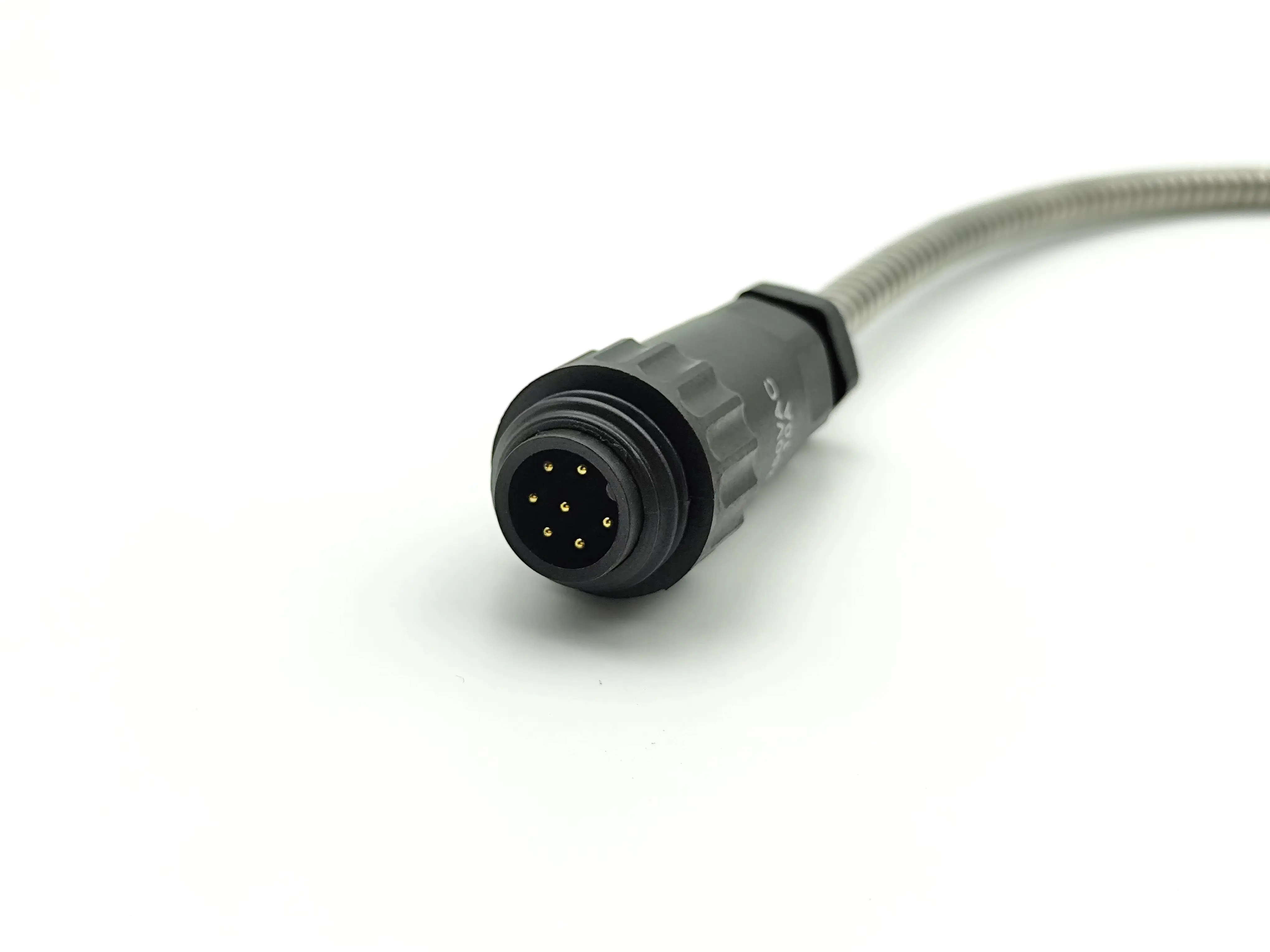

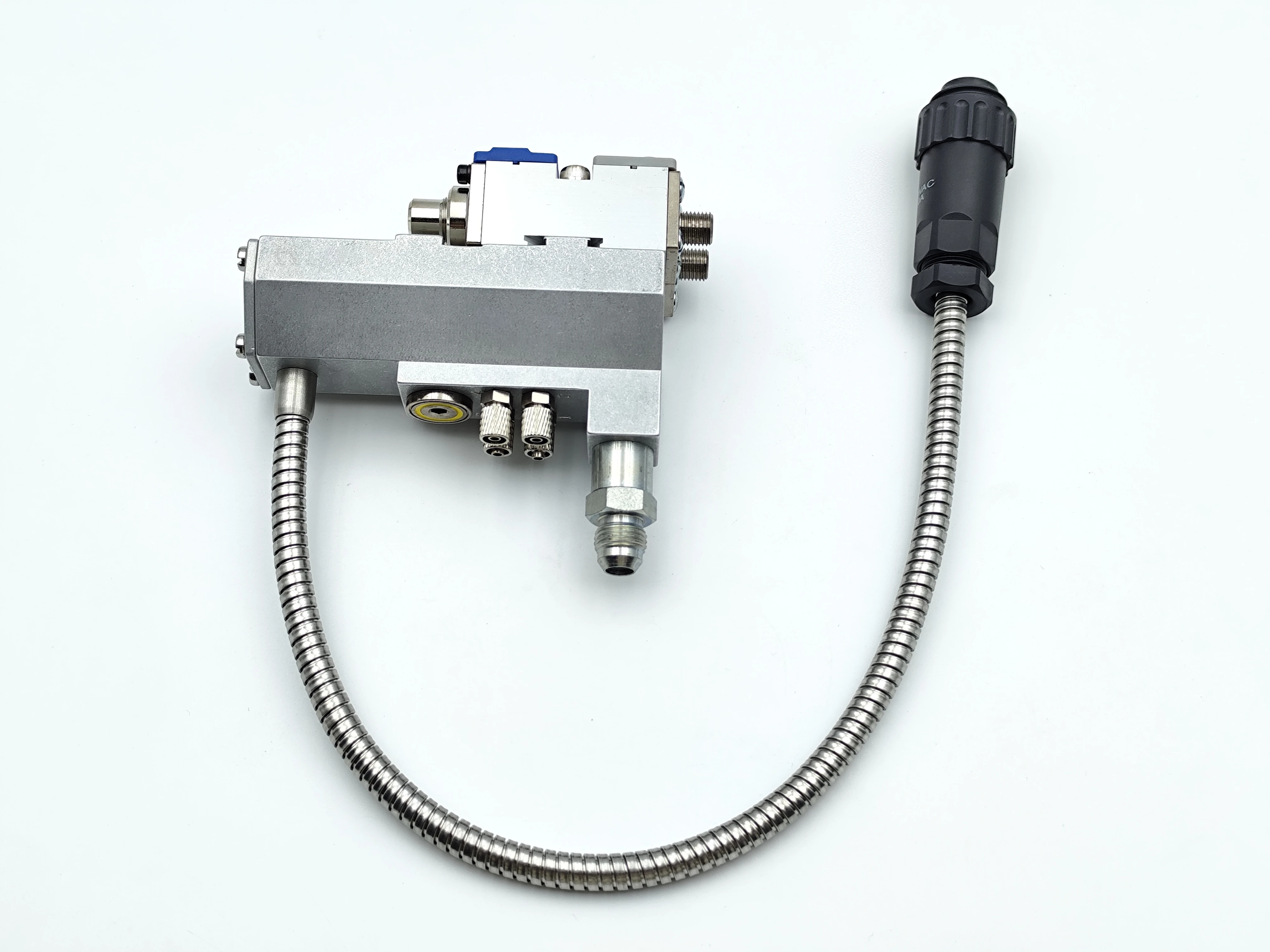

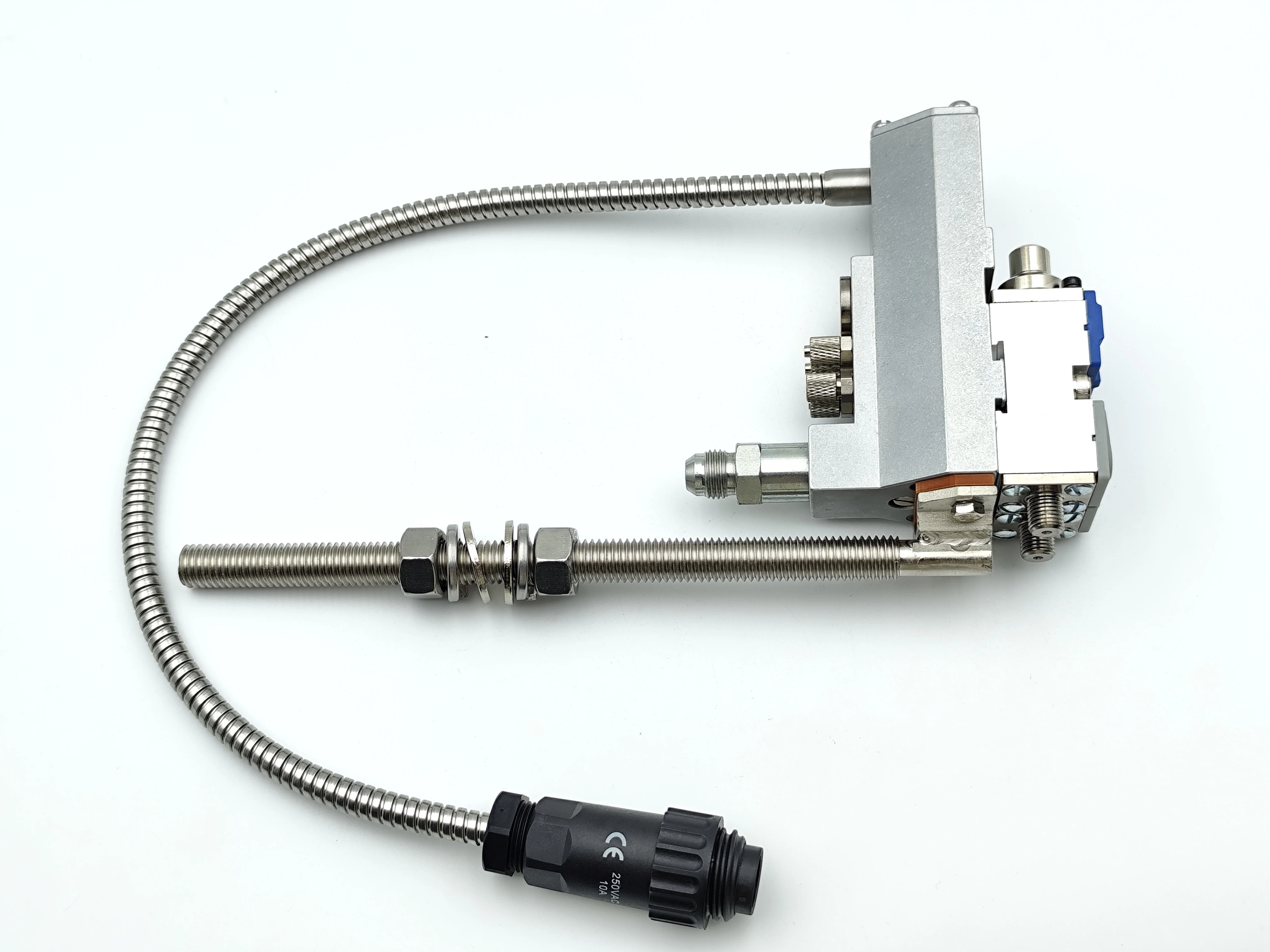

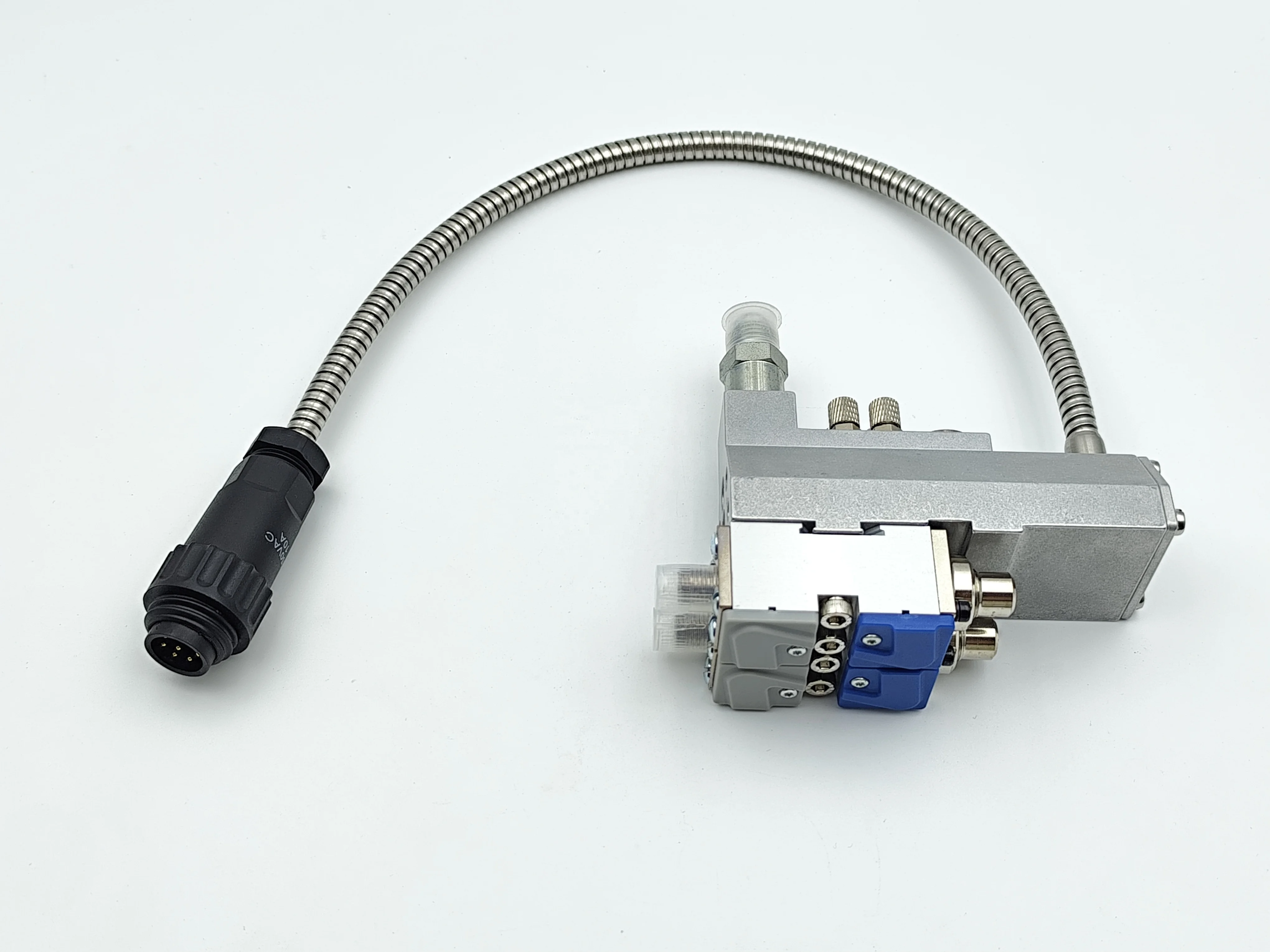

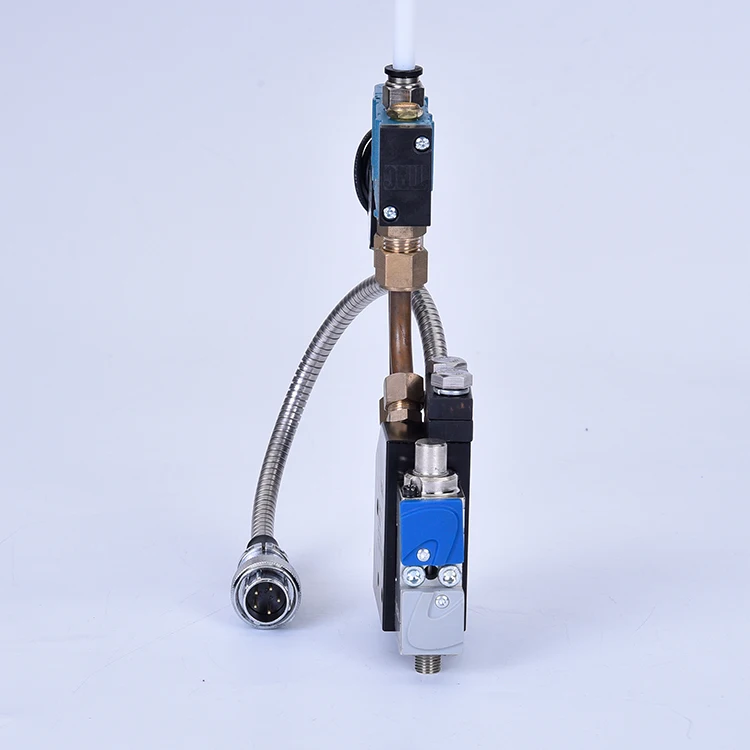

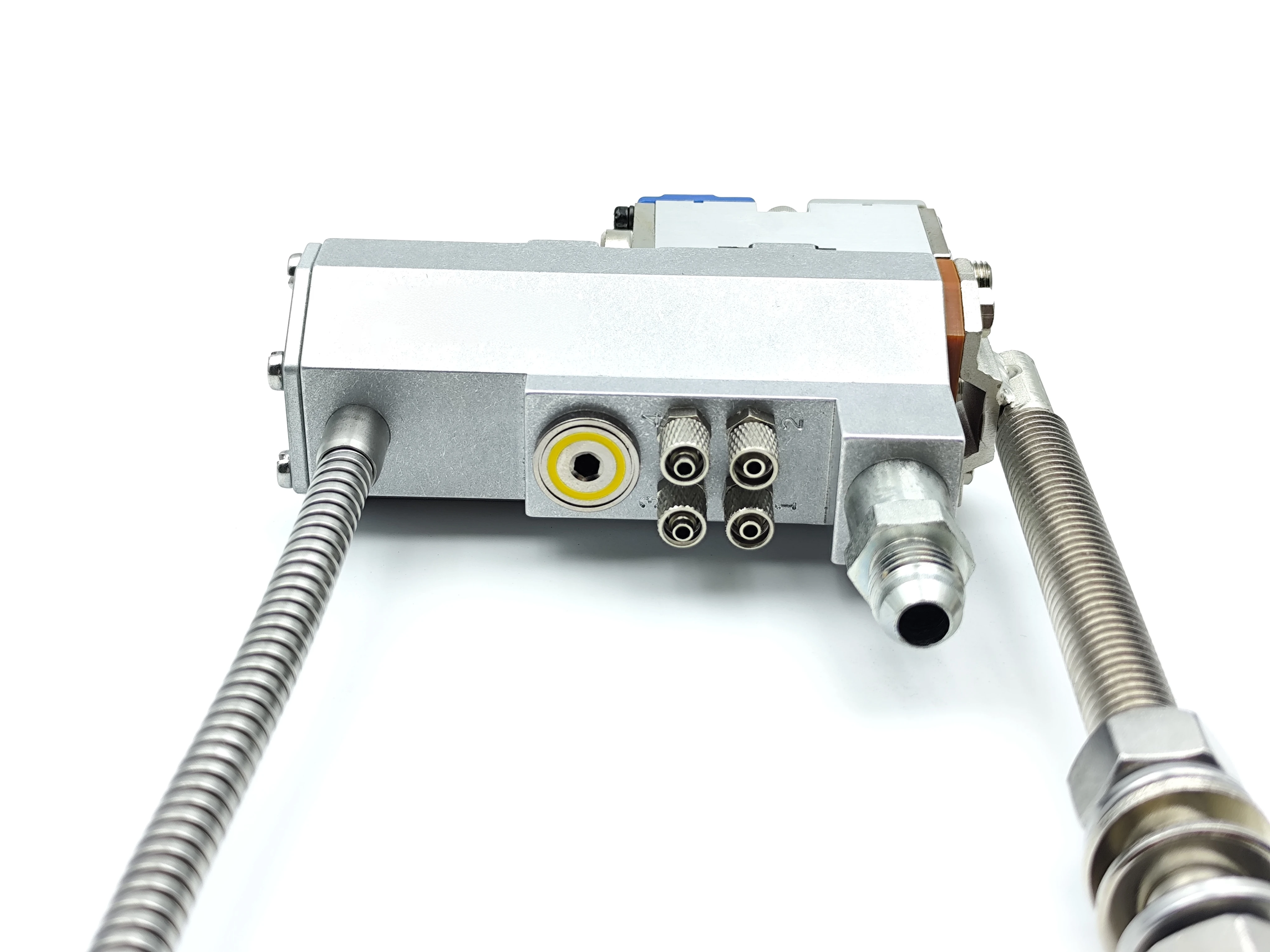

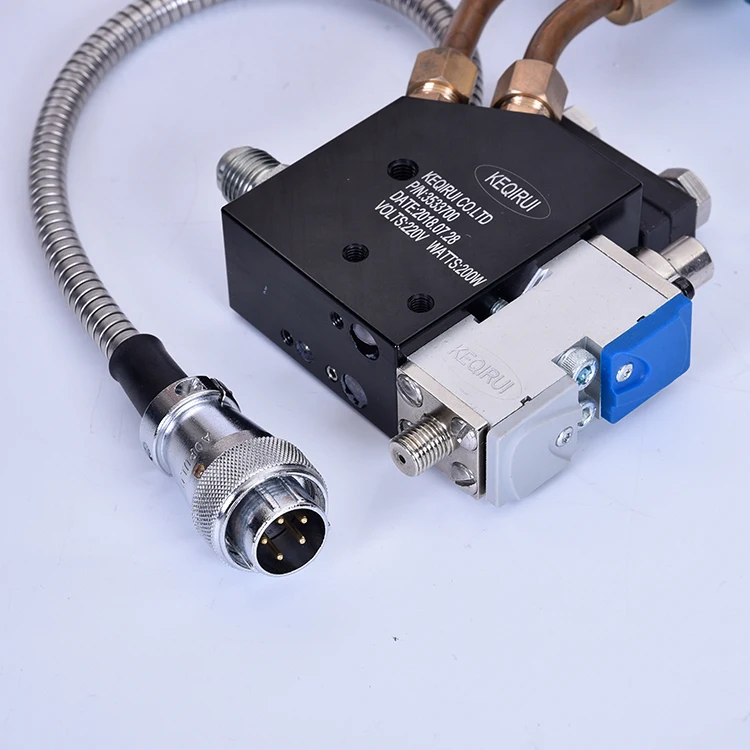

1060939 Big commercial Spray strip pneumatic hot glue gun with best price
- Category: >>>
- Supplier: Guangzhou Keqirui Machinery Equipment Co. Ltd.
Share on (1601112290997):
Product Overview
Description
Product Description
BSD-8503925 Big commercial Spray strip pneumatic hot glue gun with best price
Application:
It is commonly used in the carton sealing and filtration industry to spray the product on the product, the glue is fast, and the whole process is controlled by automatic glue gun.
1. Packaging industry: honeycomb paperboard products, boxes, beverage tubes, etc.; packaging materials: adhesive tapes, tapes, etc.;
2. Filter industry: Paste without separator air filter.
3, the most commonly used is the carton packaging, intermittently spray 2 strips of glue before the carton is closed, covering the paper with a strong pressure for a few minutes.
The thimble and the rubber outlet of the hot melt adhesive dispensing gun of Kozirui are mechanically sealed, and the contact part is made of high-precision grinding and is sensitive, completely eliminating the leakage phenomenon of the glue. And to ensure the use of high strength and long life.
Features:
1. Automatic glue gun can be equipped with nozzles such as 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.6mm, 0.7mm, 1.0mm and other various specifications according to production needs;
2. When disassembling the rubber valve body or replacing the nozzle, it is necessary to disassemble the rubber gun in the case of preheating;
3. It is recommended to install a pressure regulating valve on the air inlet of the solenoid valve to adjust the gas to ensure the gas pressure of the glue gun is stable to ensure uniformity of the glue;
4. The double-nozzle glue gun only needs to be fixed at the station during the installation process. The electric eye of the product is tested to give a signal to the solenoid valve to control the glue gun.
Product name | Hot melt glue spray gun |
Spraying speed | 3-5 times / sec |
Working mode | automatic glue spraying |
Rated voltage | 220V, 200w |
Air pressure | 2~5kg |
Dimension | 110*35 * 210mm |
Glue gun control mode | air open spring off |
Temperature control | sensing intelligent control |
Sensing method | PT100/K Type /NI120 |
Valve nozzle selection | Double or triple hole angle nozzle, 45° side single hole double nozzle |
Gluing method | Spray strip, spray point |
Warm-up time | 10 minutes |
Operating temperature range | 10-280 ° C |
Solenoid valve voltage | with 2 MAC solenoid valves 24v/220v (optional) |
The distance between the two glue guns can be customized according to the actual needs. The minimum of the two glue gun centers can not be | |
Glue Gun using instructions
Components | Note | Valve nozzle selection |
The complete set includes a valve,socket screw, O-ring, and replacement with these accessories | The melter should be turned off during replacement installation and gloves should be worn in accordance with safety regulations to avoid burns. | single hole down straight nozzle, down double or triple hole angle nozzle, 45° side single hole double hole nozzle, 90° side single hole double hole nozzle, etc. |
