Price:$15,600.00 - $16,200.00

Quantity:


Product Overview

Description

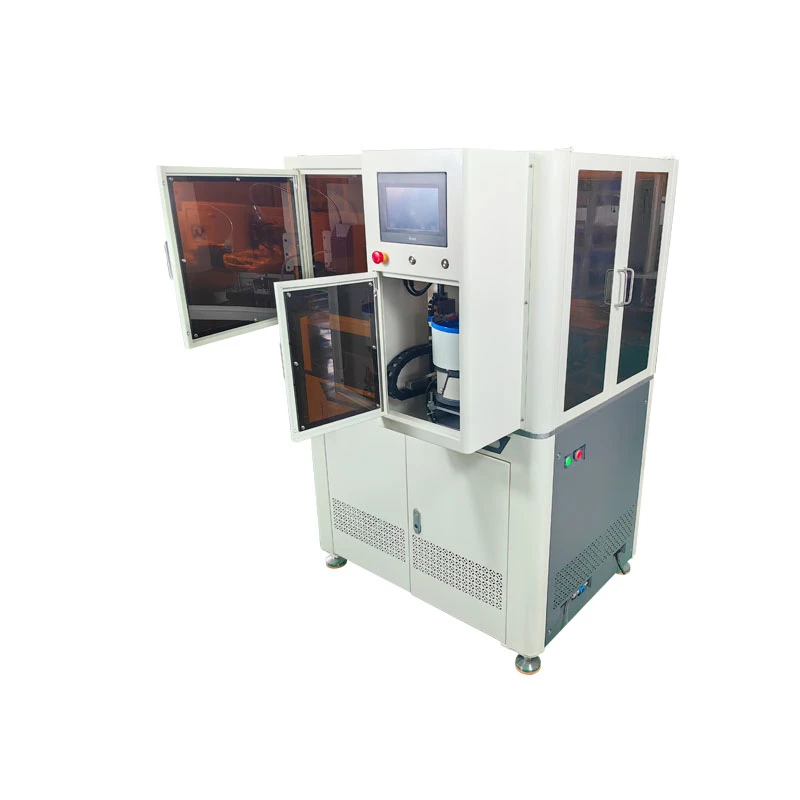

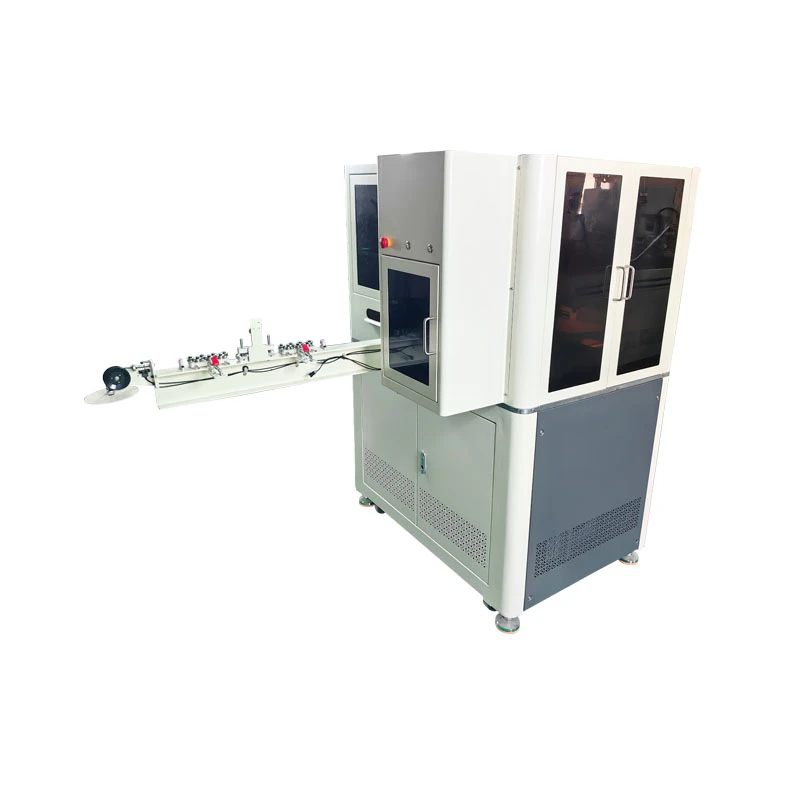

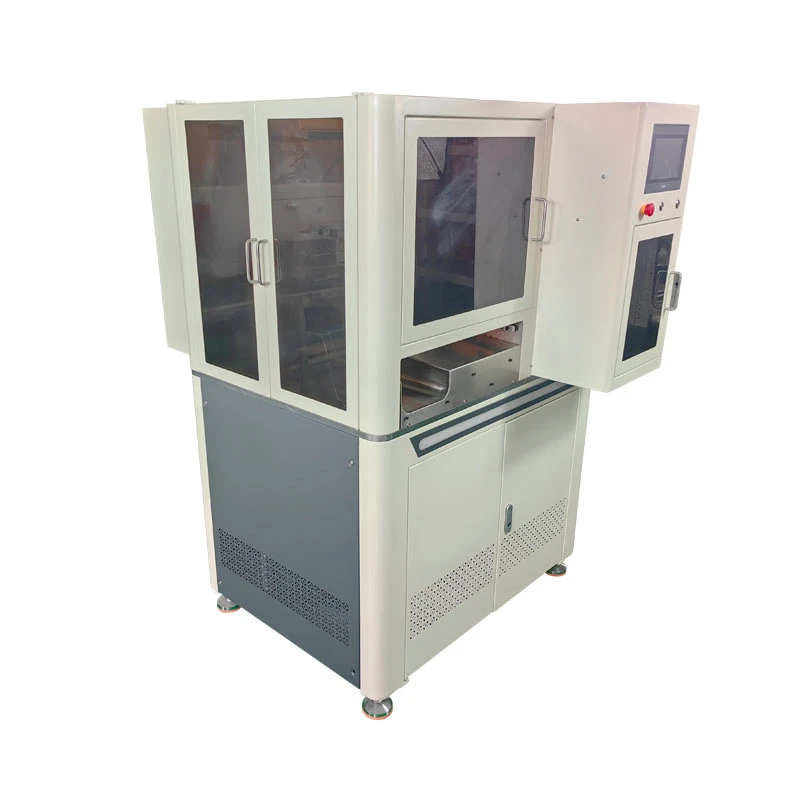

Automated Insulated Terminal Crimping Machine
Important member of CST02 family
Servo motor controlled crimping presses

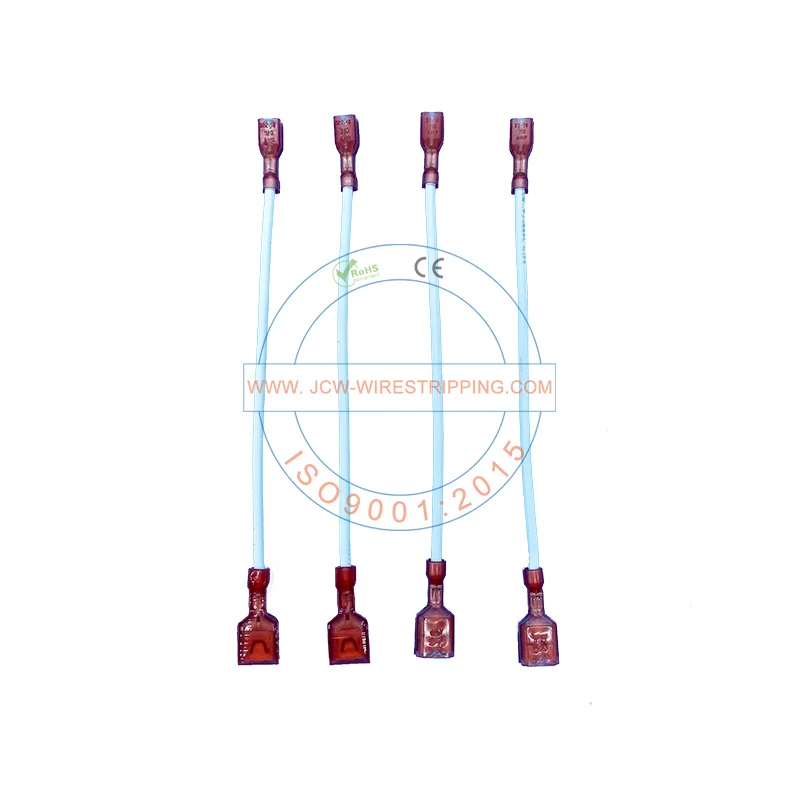

Apply to both insulated and non-insulated terminals
Twist conductor before crimping








Model
CST02 INSU

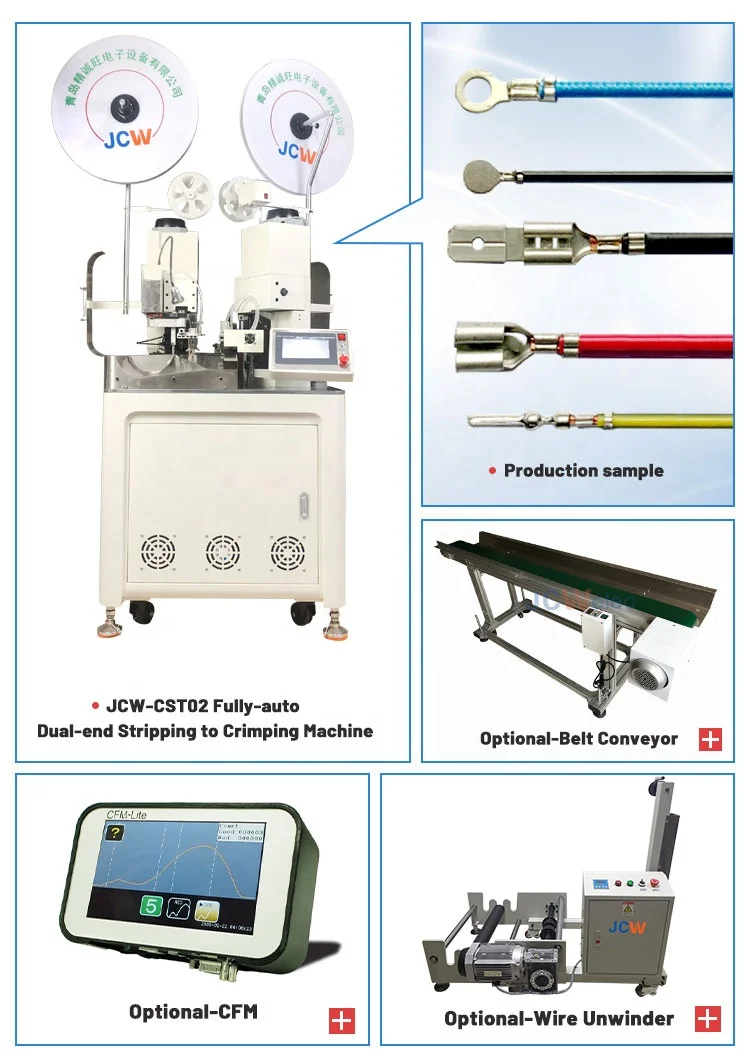

CST02
CST02B
CST05
Function
Wire cutting, Single / Dual-end strip and twist, Single / Dual-end crimp, Cut depth, Pull-off length, Insulated terminal,
non-insulated terminal, etc
Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc
Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length
Wire pre-feeder, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Crimp position
Wire cross-section
0.1 - 2 mm² ( AWG 28 -14 )
AWG 32 -18
0.03-2mm²(AWG32-14 )
Strip length
1.5 - 10 mm
0.1 - 15 mm
Front Side:0.2-8mm Rear Side:0.1-10mm
Cut length ( L )
45 - 99999 mm
10 - 9999 mm
22 - 99999 mm
Crimp force
20KN(2.0tons)[40 KN on request][Servo model ]
18 KN [ 1.8 tons ]
20 KN ( 2.0 tons )
Detector
Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate
900 - 10000 pcs/h by 100 mm wire length, insulated terminal
4000 pcs/h by 100 mm wire length
4500 pcs/h by 100 mm wire length
3600 pcs/h [ cutting length 50mm, crimp one side ]
Power supply
AC 110 - 220V ± 10%, 50 / 60 Hz
Air supply
0.4 - 0.6 MPa [ Clean and dry air ]
0.5 - 0.7 MPa [ Clean and dry air ]
Weight
388KG
358KG
290 KG
460KG
Dimensions
L 1000 x W 800 x H 1500mm
Straightener: 800 mm
L 800 x W 700 x H 1500mm
L 780 x W 650 x H 1380mm
L 1400 x W 1000 x H 1800mm












Q1: Are you a factory or a trading company?
A: We started trading 14 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
Q3: Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’ leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big orders.
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
