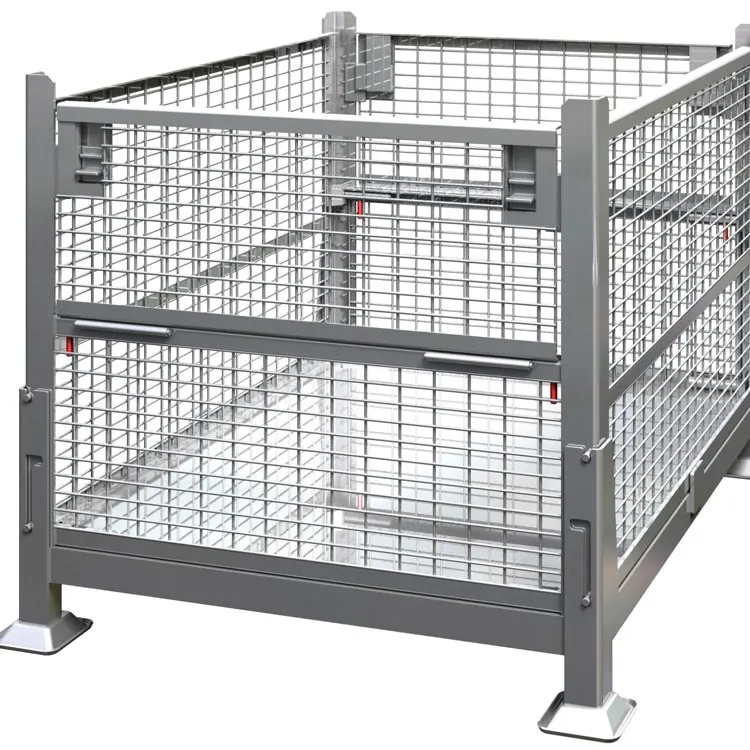

Half Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers
Half-Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers

Half Open Door Heavy Duty Folding Galvanized Steel Stacking Wire Mesh Containers

Share on (1601112407723):


Price:$10.00 - $12.00

Quantity:


Product Overview

Description

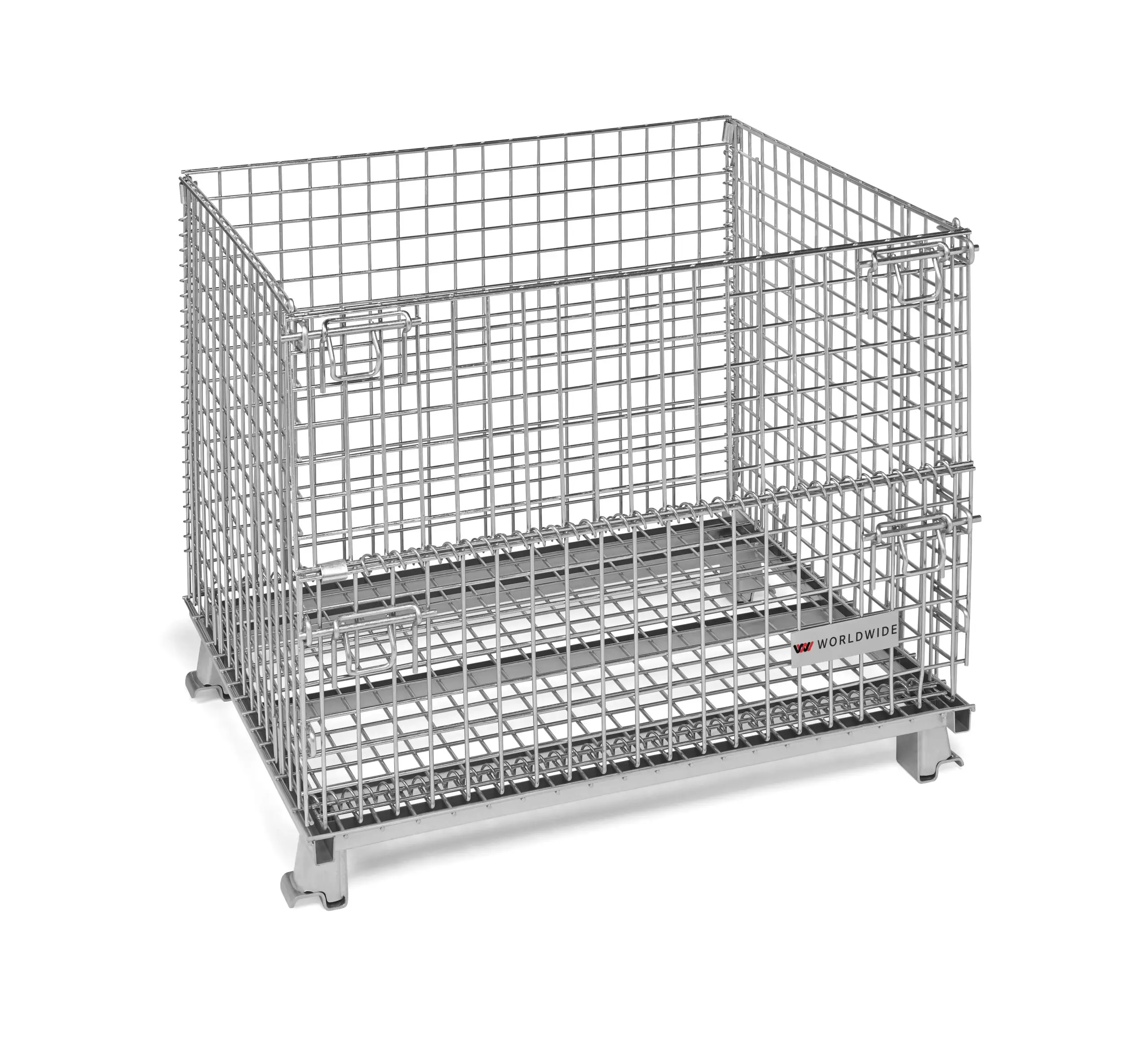

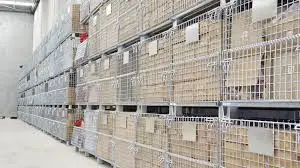

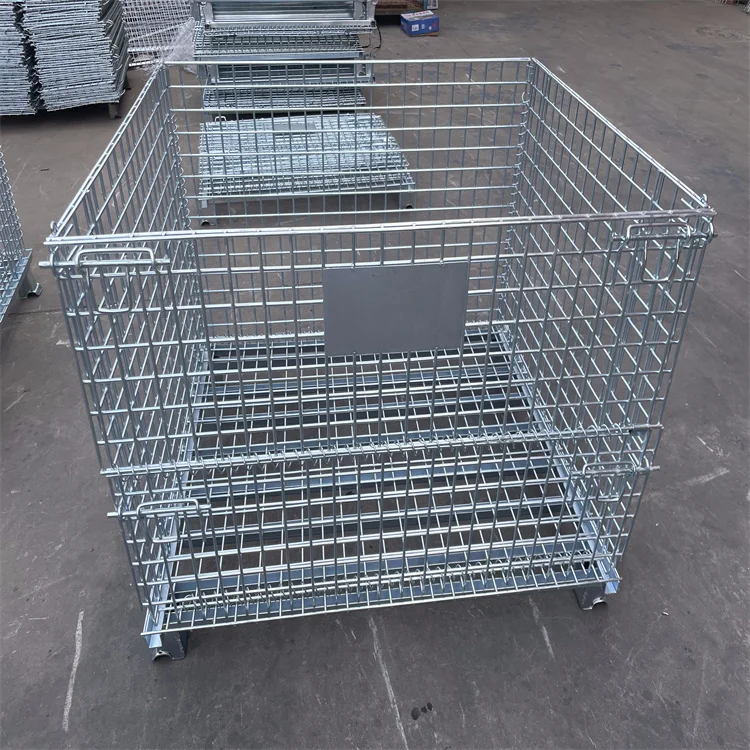

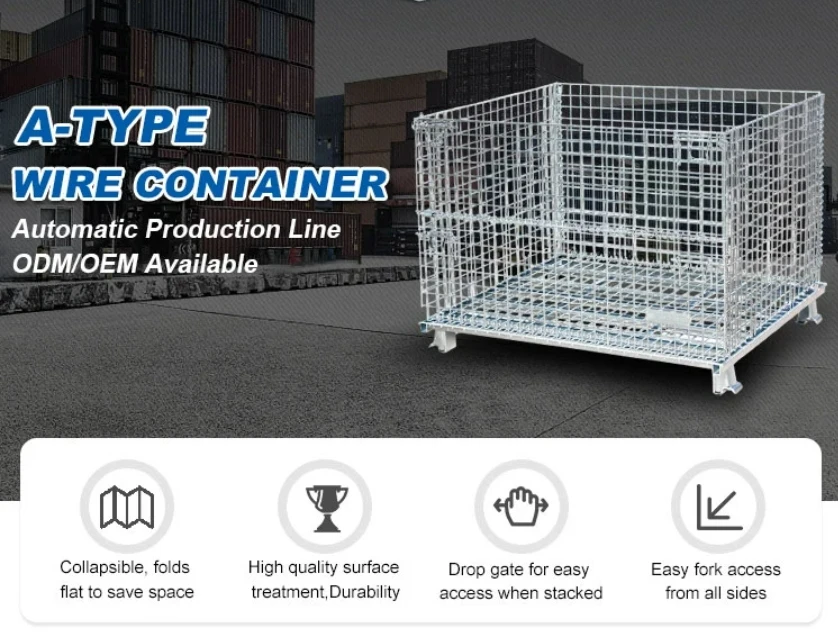

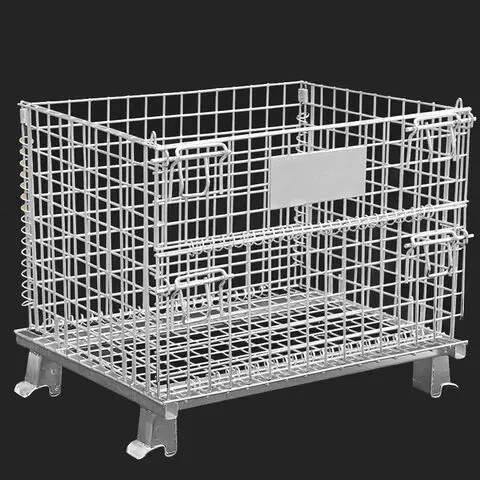

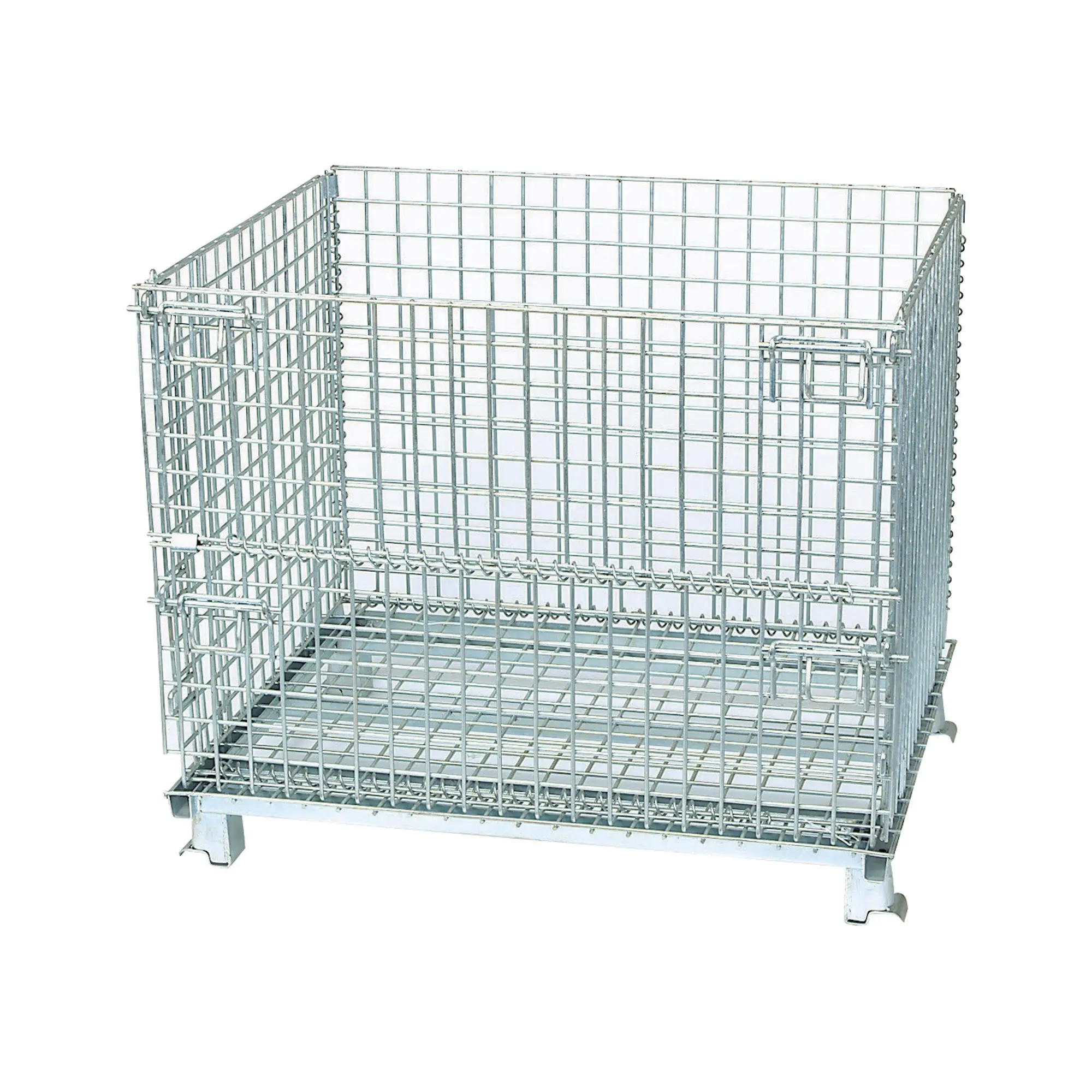

Wire container is also called as wire cage or wire basket, which is durable and stronger, at the same time, it is easy to folding down and stacking high.Because wire container has special strong feet and heavy-duty understructure which help to stake 4 high when loaded heavy weight. Good visibility and same loading space by using wire container make the warehouse management unitized and standard. When unused, the wire container can be folded down to save space.

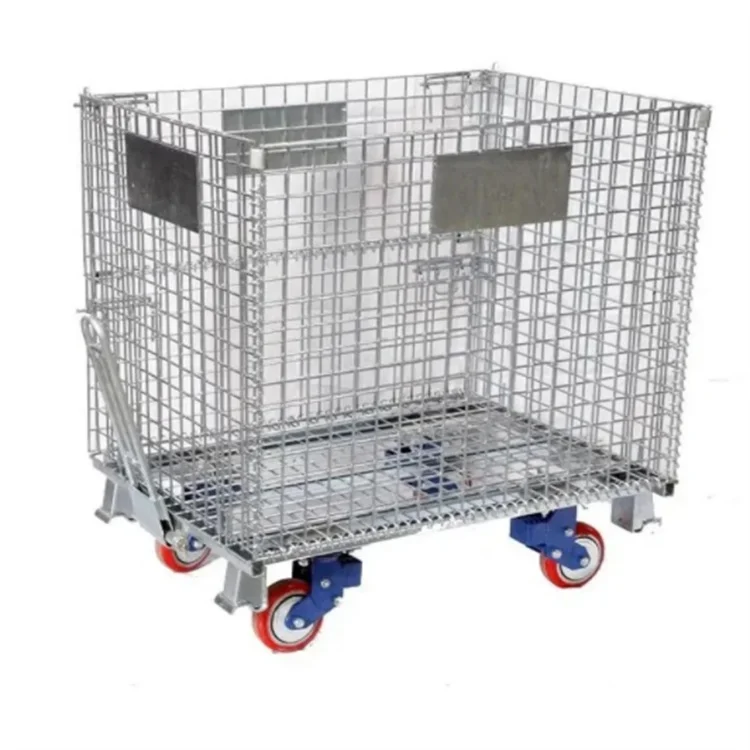

It is easy for forklift accesses from four side. Options accessories include dividers, shelves, card holders, name plates, casters, locking security lid, fork pockets ,bar runners for storage on rack beams.

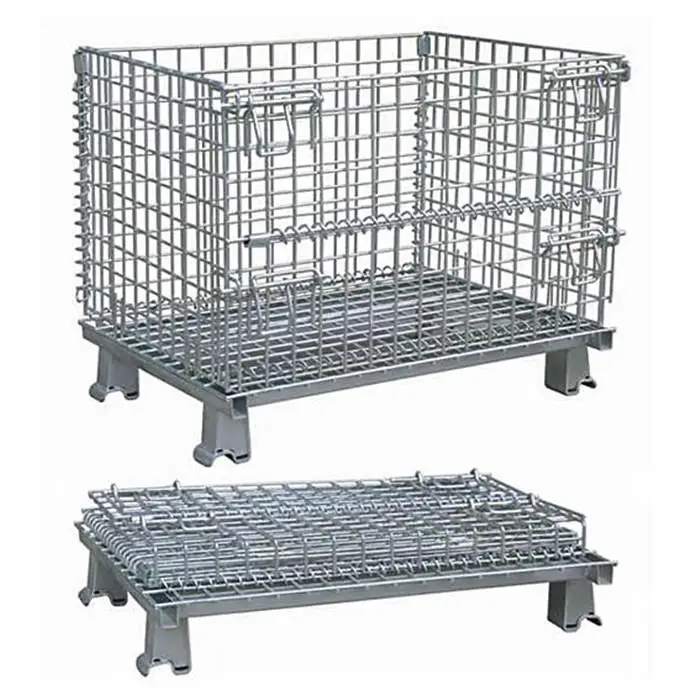

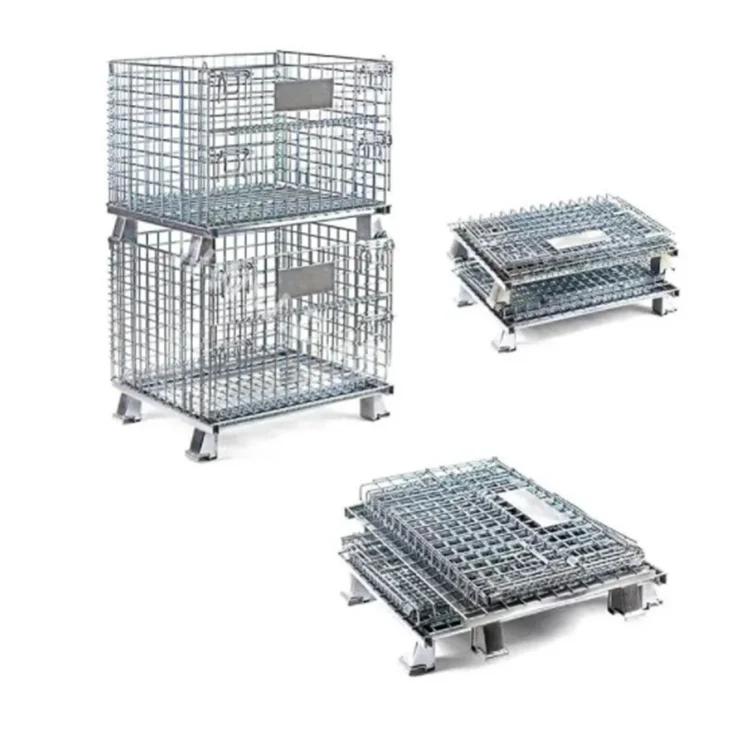

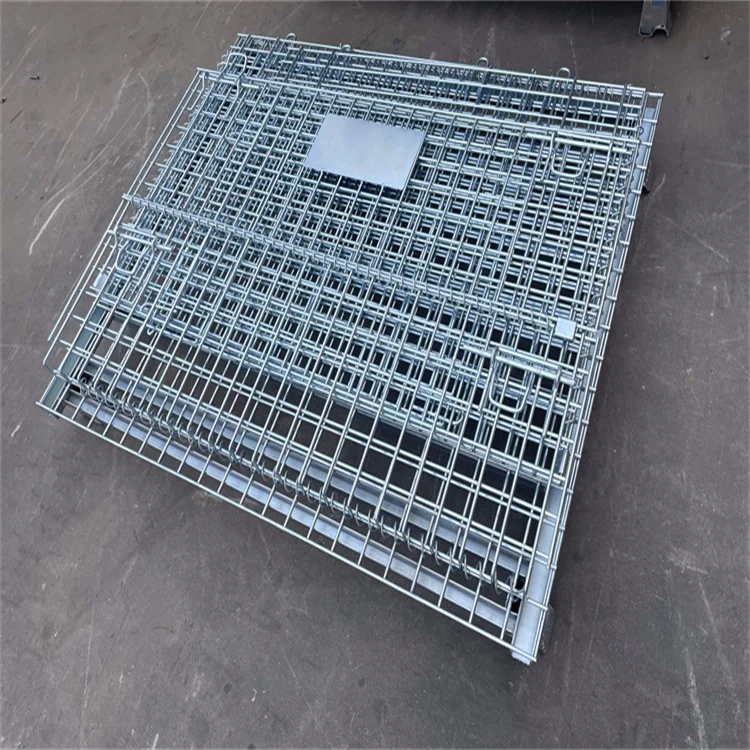

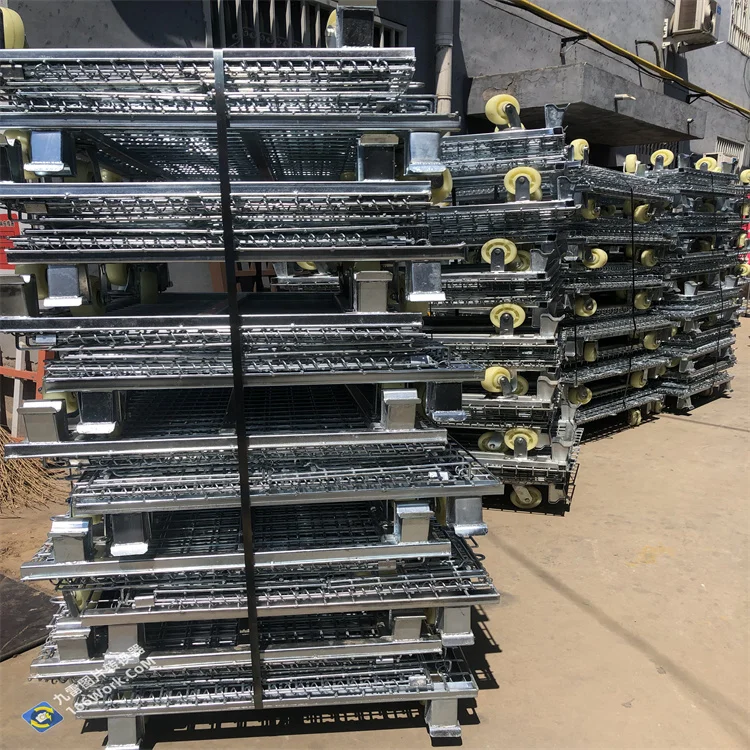

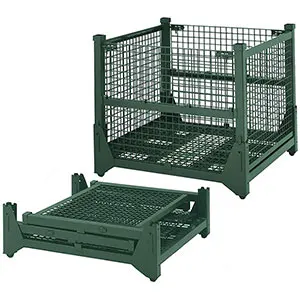

The storage cage can be folded freely, and can be folded and stored when not in use, saving space in the warehouse.In addition, the product is durable, easy to transport, and can be reused, which can effectively reduce the manpower consumption and packaging

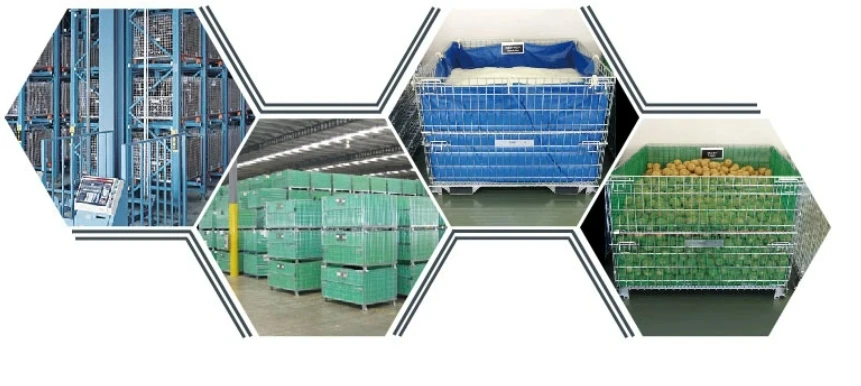

costs of warehousing companies. This product can not only be used in factory production workshops, but also can be used in supermarkets as display promotion and warehousing, and can be used outdoors.

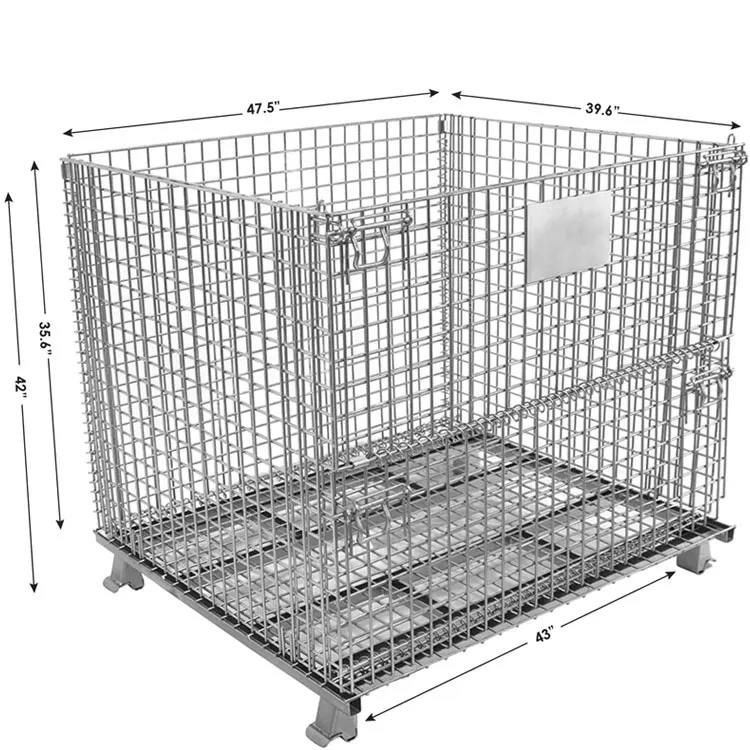

Type
Layers
External Size(mm)
Diameter (mm)
Wire Mesh (mm)
Capacity (kg)
Volume (m3)
Foot Height (mm)
L
W
H
A-5
4
1000
800
840
6.0
50x50
1200
0.52
100
B-5
4
1000
800
840
6.4
50x50
1500
0.52
100
B-5 1/2
4
1000
800
500
6.4
50x50
1000
0.26
100
C-5
4
1000
800
840
4.8
50x50
600
0.52
100
S-5
4
1000
800
840
6.4
50x100
1000
0.52
100
F-5
4
1000
800
840
6.0
50x100
1000
0.52
100
A-7
4
1200
1000
890
6.0
50x50
1500
0.84
100
B-7
4
1200
1000
890
6.4
50x50
2000
0.84
100
S-7
4
1200
1000
890
6.4
50x100
1000
0.84
100
F-7
4
1200
1000
890
6.0
50x100
1000
0.84
100
C-7
4
1200
1000
890
4.8
50x50
500
0.84
100
A-9
4
1200
800
840
6.0
50x50
1200
0.65
100
B-9
4
1200
800
840
6.0
50x50
1500
0.65
100
A-3
4
800
600
640
6.0
50x50
800
0.22
100
C-2
4
800
500
540
4.8
25x50
500
0.19
100
Other specifications can be customized.

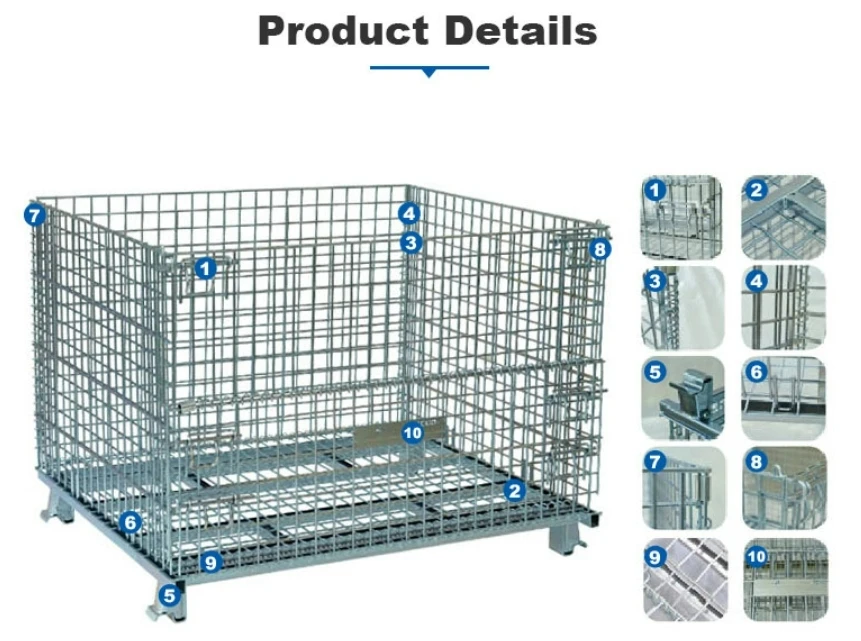

Features：

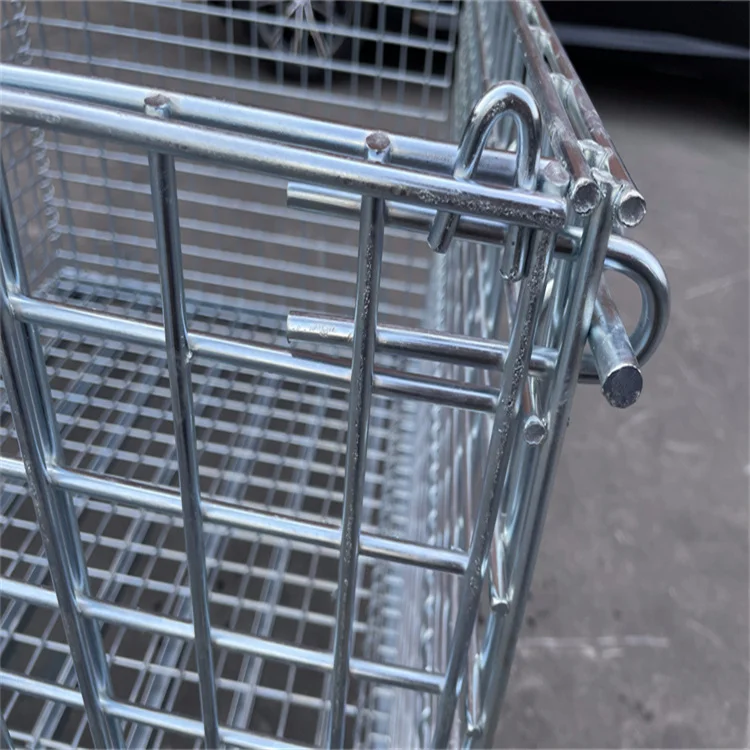

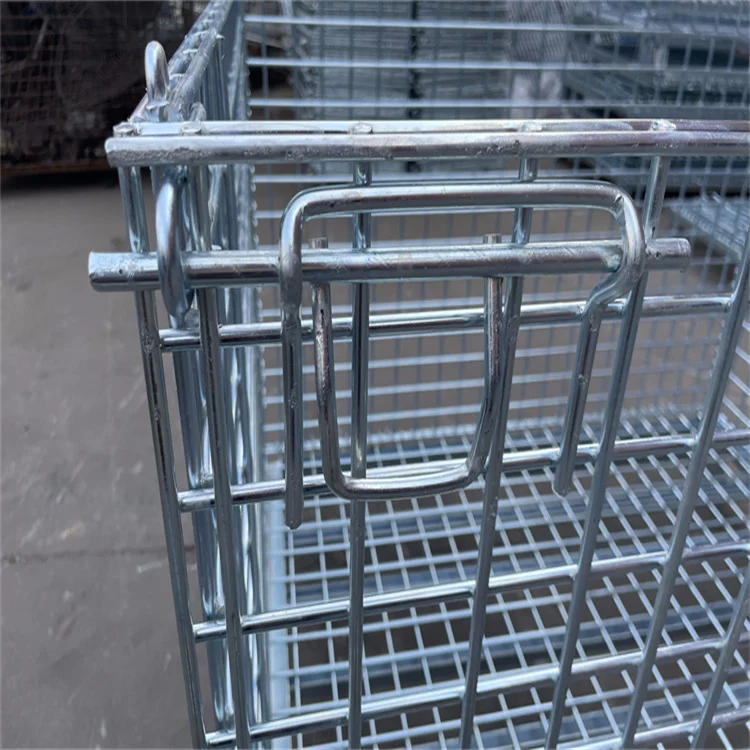

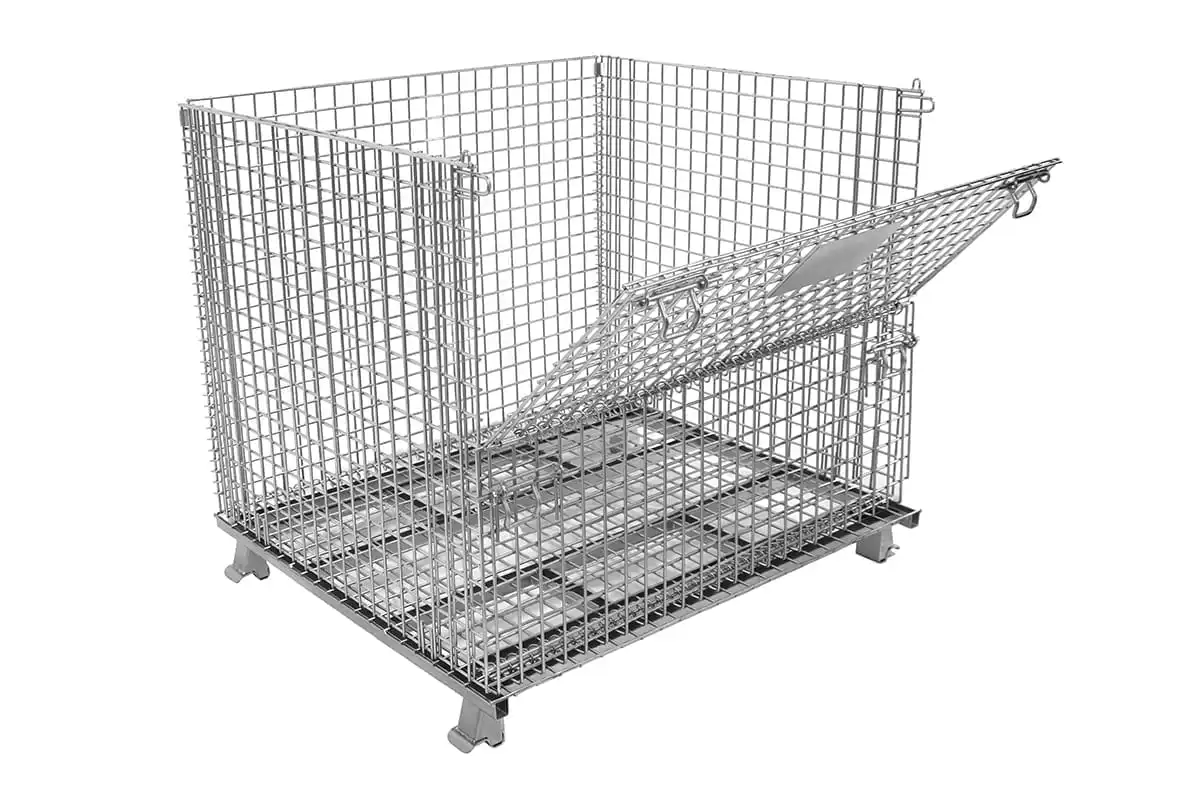

I. Sliding locking handles hold drop side securely.2. The "U" formed base channels welded by welding robots, ensuring welding
quality and strong capacity.
3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.
4. Double welded wire construction to reinforce side panel for stack safety.
5. Arched steel legs design increase strength and aid stack high and steady.
6. "U" formed construction is welded underneath the side panel to avoid sliding.
7. Fasteners are used to joint side panels together, ensuring durability.
8. "U" formed loops work with handles to fix up the side panel and drop gates.

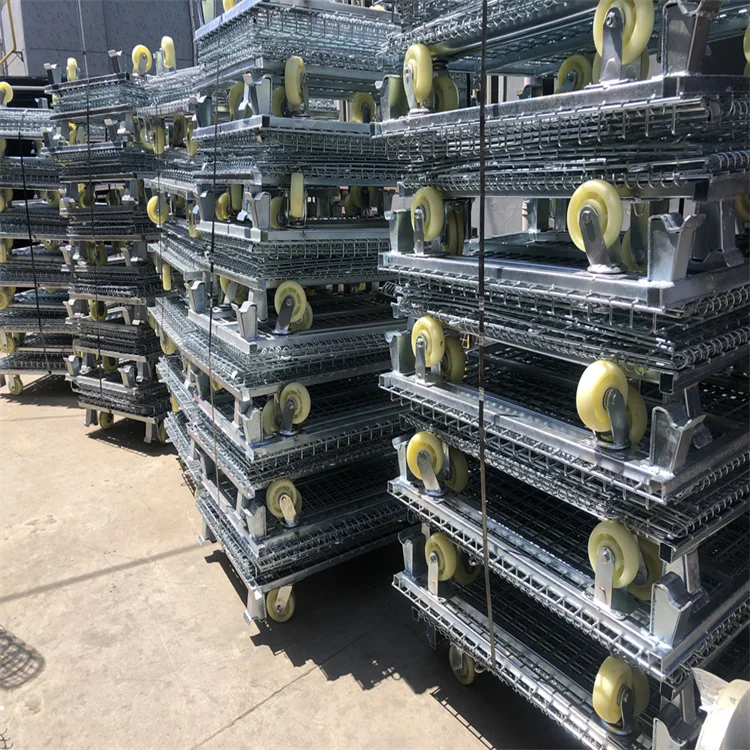

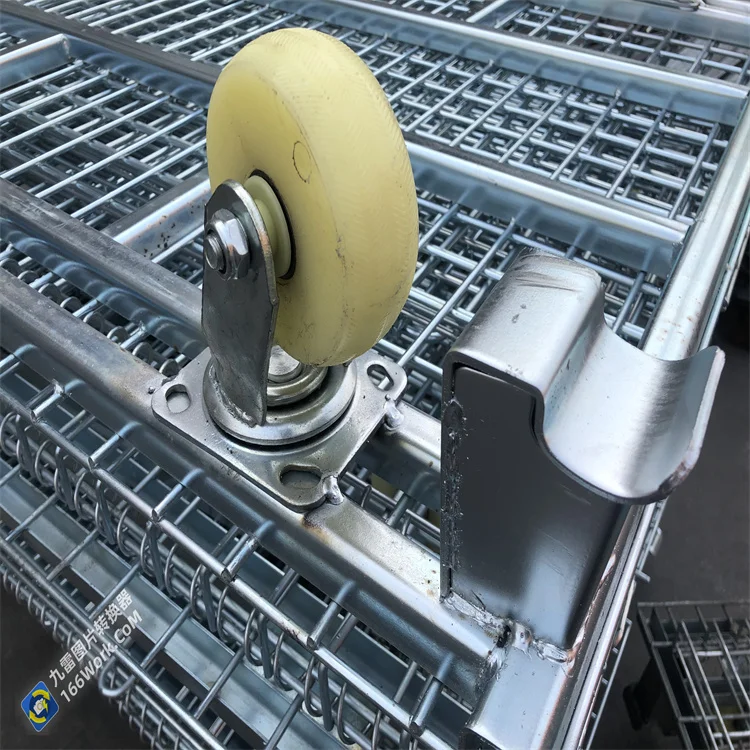

9. Holes punched on the U formed base channels for fixing the casters.
10. Steel name plate.




Item No.
Nominal Size
Wire Diameter
Mesh Pitch
Capacity
Leg Height
Stackable
IWM8060A
800*600*640
3
14*14
500kg
100
4pcs
IWM1080C
1000*800*500
5
50*50
500kg
100
4pcs
IWM1080B
1000*800*840
6
50*50
1500kg
100
4pcs
IWM1080A
1000*800*840
6
50*100
1000kg
100
4pcs
IWM1280B
1200*800*840
6
50*50
1500kg
100
4pcs
IWM1280A
1200*800*840
6
50*100
1000kg
100
4pcs
IWM1210B1
1200*1000*890
6
50*50
1500kg
100
4pcs
IWM1210B2
1200*1000*890
6
50*100
1000kg
100
4pcs
IWM1210A1
1200*1000*1050
6
50*50
1500kg
100
4pcs
IWM1210A2
1200*1000*1050
6
50*100
1000kg
100
4pcs




specifications：
(1). Collapsible and stackable design;
(2). Heavy duty locking handle design;
(3). Robotically welded feet and understructure;
(4).Fully welded inside and outside;
(5). Customized designs and finishes;

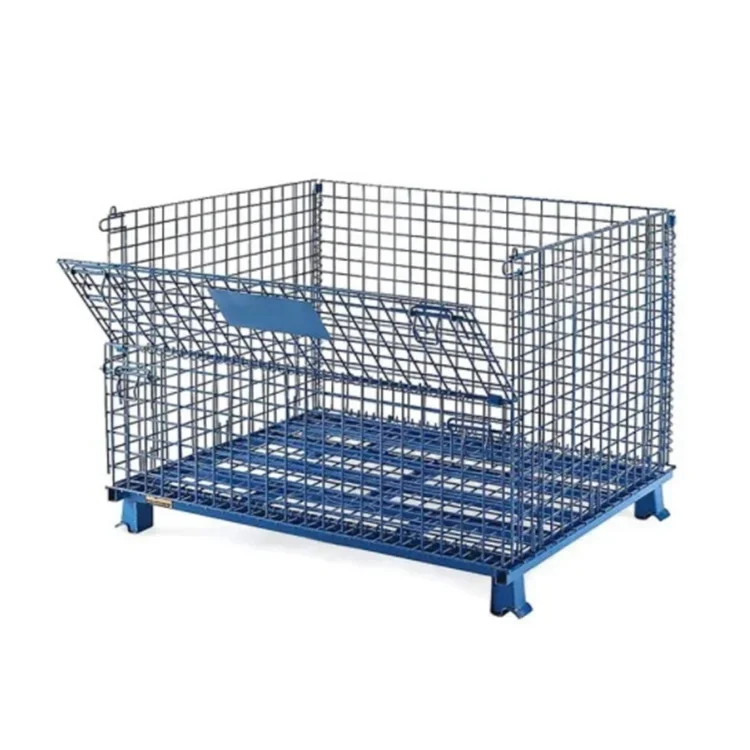

We will paint each bin you order in your company colours, enhancing your company image with great looking bins.
Two times of primer + two times of top coat
Primer : zinc-based epoxy (Grey)
Top coat : Urethane (Any color)
