ASA Upvc Pvc Roof Tile New Building Materials Colored Plastic Roofing Sheets Double Roman Roof Tiles Prices In Philippin
- Category: >>>
- Supplier: PINGYUN INTERNATIONAL
Share on (1601112485005):
Product Overview
Description
Anti-corrosive Good sound-proof ASA-PVC Longtime warranty

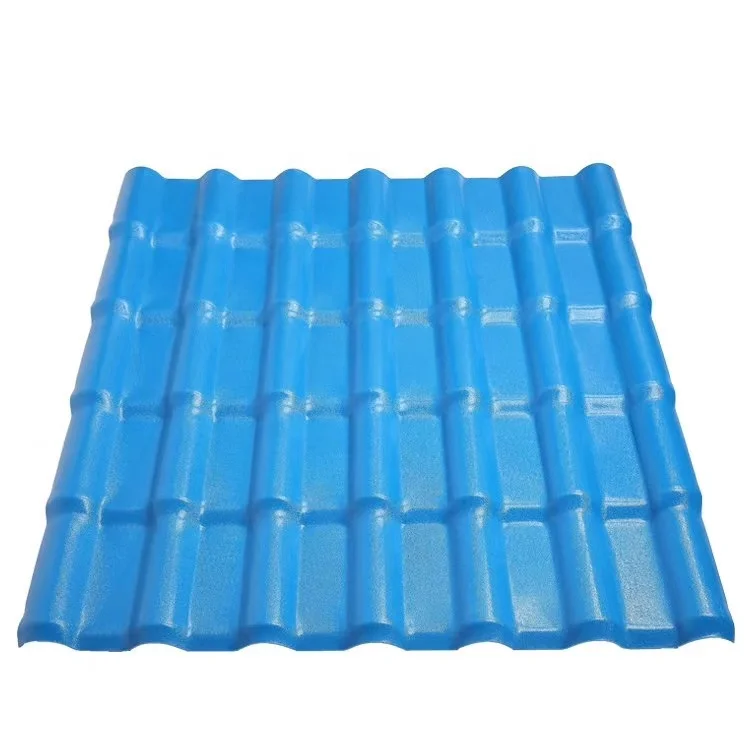

Product Description
PingYun R1050 use high weather-resistant ASA material to protect color stable for more than 30 years,it has widely used tovilla,residential house ,prefabricated house and pavilion.

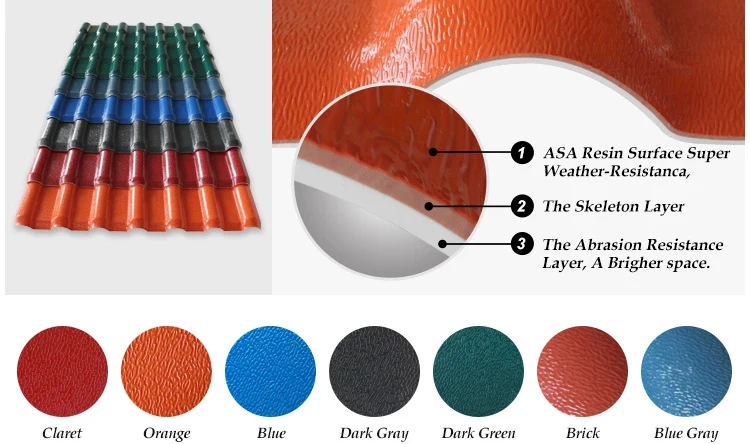

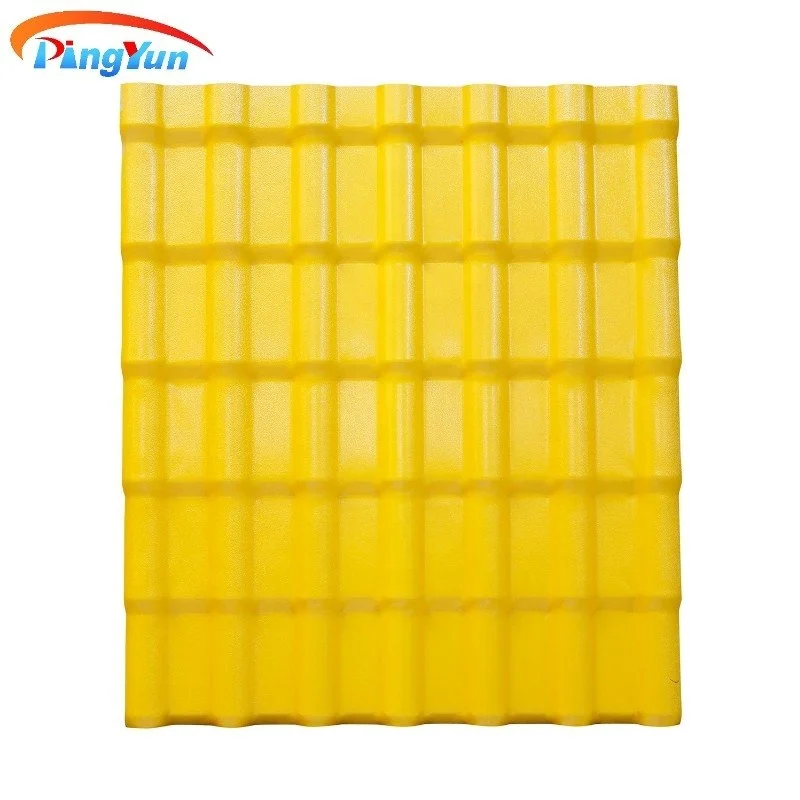

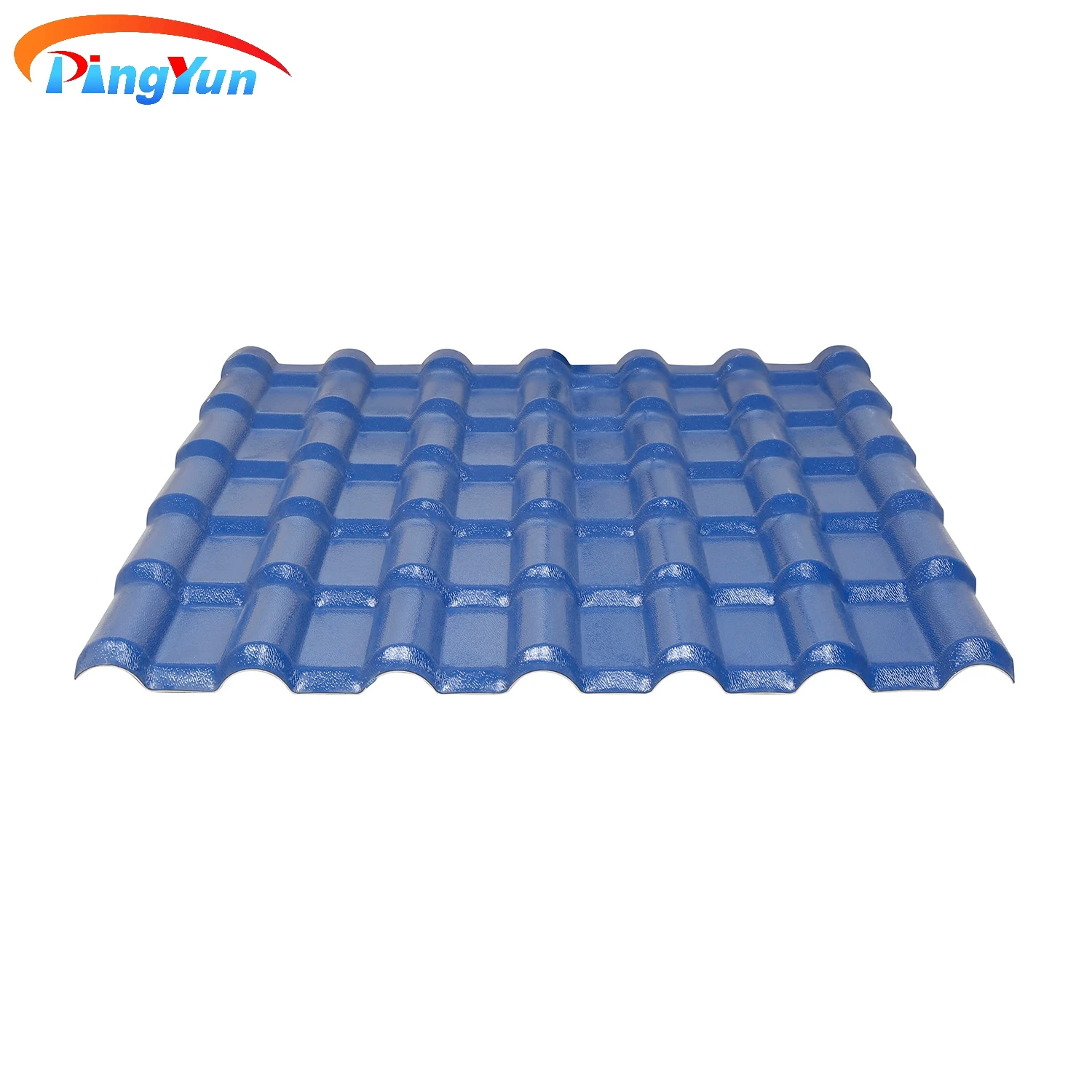

Common Color

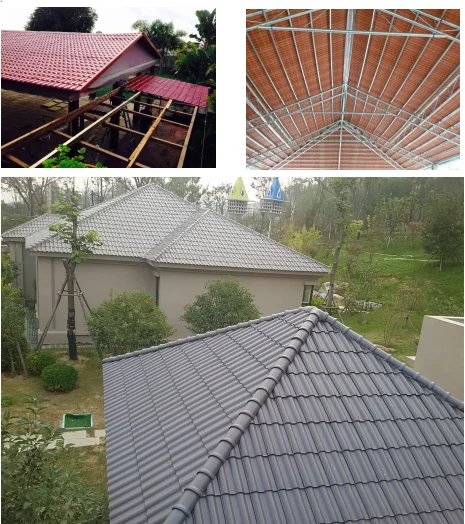

Real Picture
Other Products

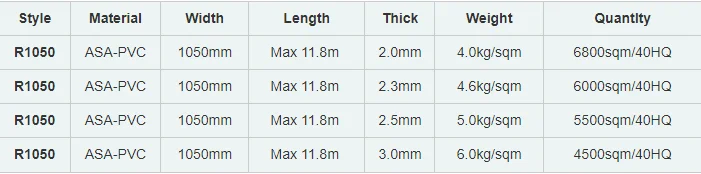

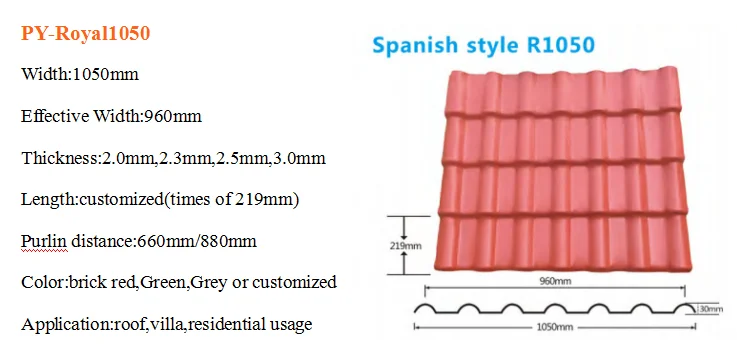

Specification
Product name | ASA spanish plastic roofing sheet |
Warranty | More than 25 years |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
Application | wall,roof,warhouse,villa |
Design Style | spanish |
Place of Origin | Guangdong,China |
Brand Name | Pingyun |
Model Number | R1050 |
Material | PVC+UPVC+ASA Synthetic resin |
Length | 2.0mm,2.3mm,2.5mm,3.0mm |
Thickness | Max length in 40ft container 11.8m Max length in 20ft container 5.8m |
Width | 1050mm |
Certificate | ISO,CE,TEST REPORT |
Delivery Time | within 3 days |
Feature | Anti-corrrosion,Heat insulation,Good sound-proof,Light weight,Fire proof |
Color | Color can be customized |
Installation Instructions

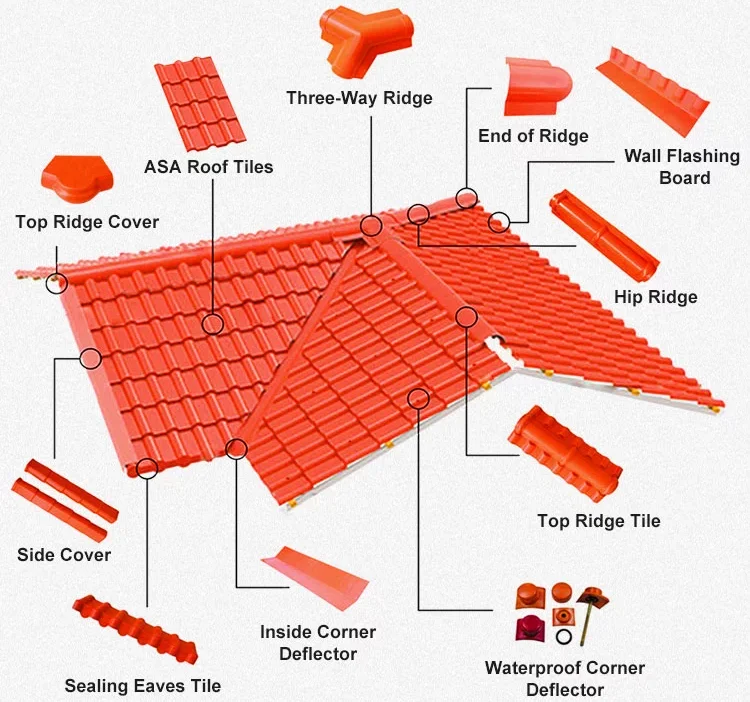

Main accessories description:
(1)3-way ridge:it is used as the joining element between the linear ridge and the side ridge for a four-slope roof.
(2)Top ridge tile:Install top ridge from one side and cut the first tile in half to avoid the crossover of four sheets on the
overlap.
(3)roof tile:Overlap by one wave and every sheet should be assembled as close as possible to the one overlapped.Cut the first
sheet of second row in half to avoid the crossover of four sheets in the overlap.
(4)Side ridge:install side ridge tile from bottom to top with a overlap of 50mm .Align the side ridge in a straight line.
(5)Purlin:The purlin space is 800mm for 2.5mm thicness and 1000 mm for thickness 3.0mm.
(2)Top ridge tile:Install top ridge from one side and cut the first tile in half to avoid the crossover of four sheets on the
overlap.
(3)roof tile:Overlap by one wave and every sheet should be assembled as close as possible to the one overlapped.Cut the first
sheet of second row in half to avoid the crossover of four sheets in the overlap.
(4)Side ridge:install side ridge tile from bottom to top with a overlap of 50mm .Align the side ridge in a straight line.
(5)Purlin:The purlin space is 800mm for 2.5mm thicness and 1000 mm for thickness 3.0mm.

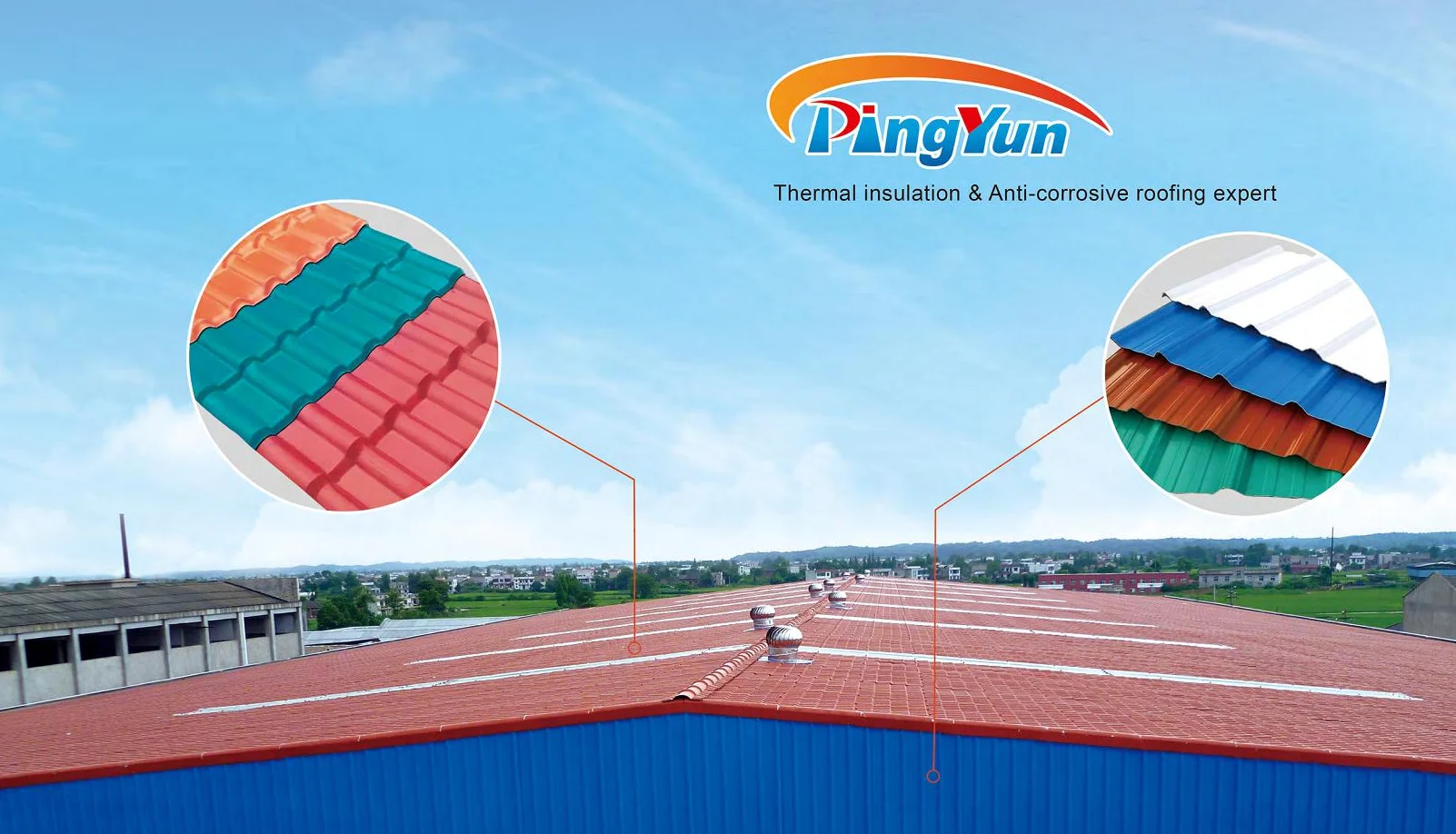

Application
Application:
1.Roofing for workshop, warehouse farmhouse,villa and market etc;
2.Garden, greenhouse, and indoor fish farming sheds;
3.Shed for cars, corridor, passageway and balcony etc;
4.Waiting room of modern railway station, bus station, docks of ferries, airports etc.
1.Roofing for workshop, warehouse farmhouse,villa and market etc;
2.Garden, greenhouse, and indoor fish farming sheds;
3.Shed for cars, corridor, passageway and balcony etc;
4.Waiting room of modern railway station, bus station, docks of ferries, airports etc.
Our Advantages
1. Long-lasting Color (at least 10 years)
The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.
3. Good Waterproofing Performance
Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration
problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.
4. Strong Fire Resistance
Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to
GBB8624-2006 standard.
5. Excellent Heat Insulating Property
The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel
tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.
6. Good sound insulation
Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.
The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.
2. Excllent Anti-corrosion performance
Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.
Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.
3. Good Waterproofing Performance
Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration
problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.
4. Strong Fire Resistance
Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to
GBB8624-2006 standard.
5. Excellent Heat Insulating Property
The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel
tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.
6. Good sound insulation
Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.

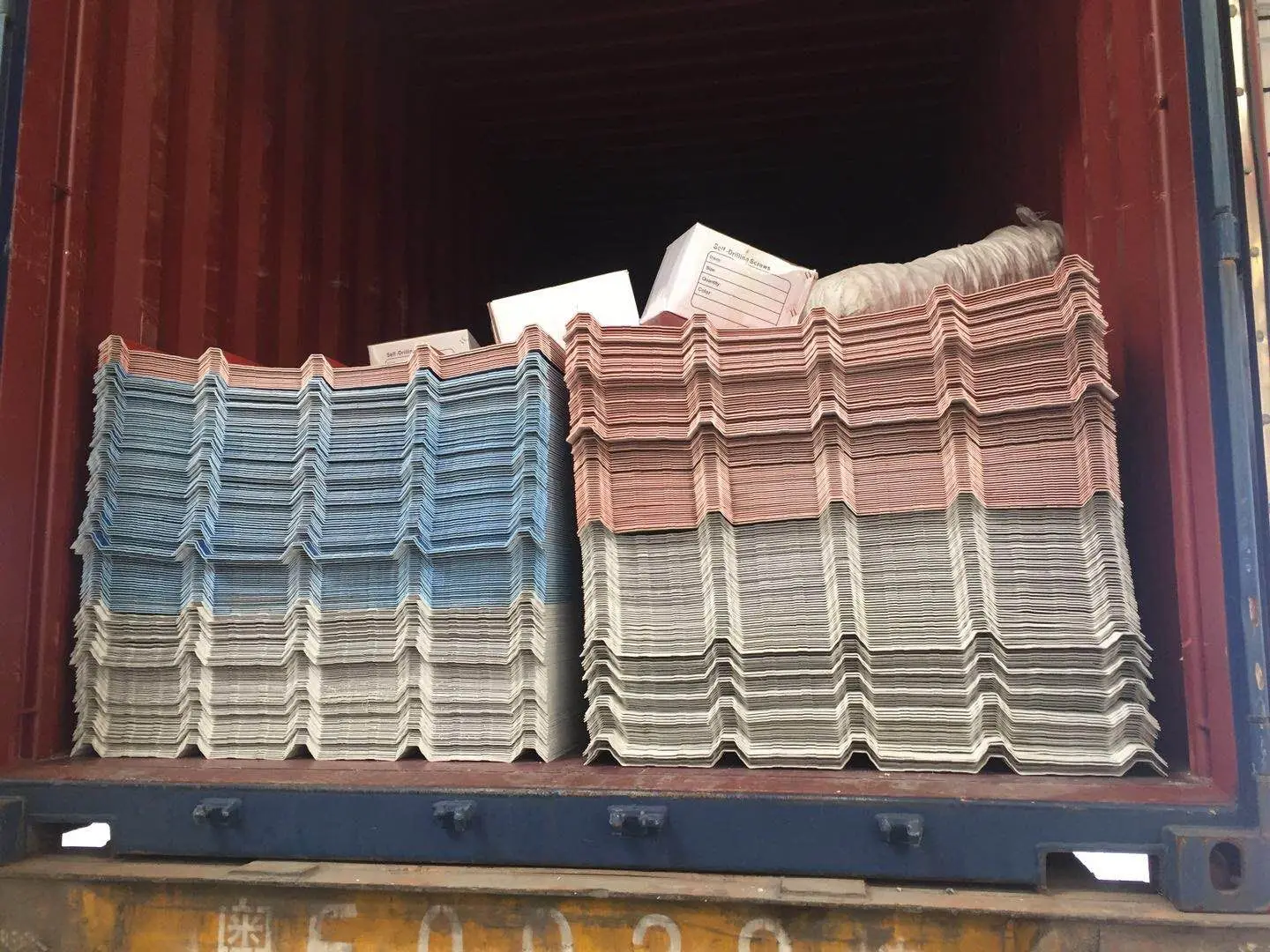

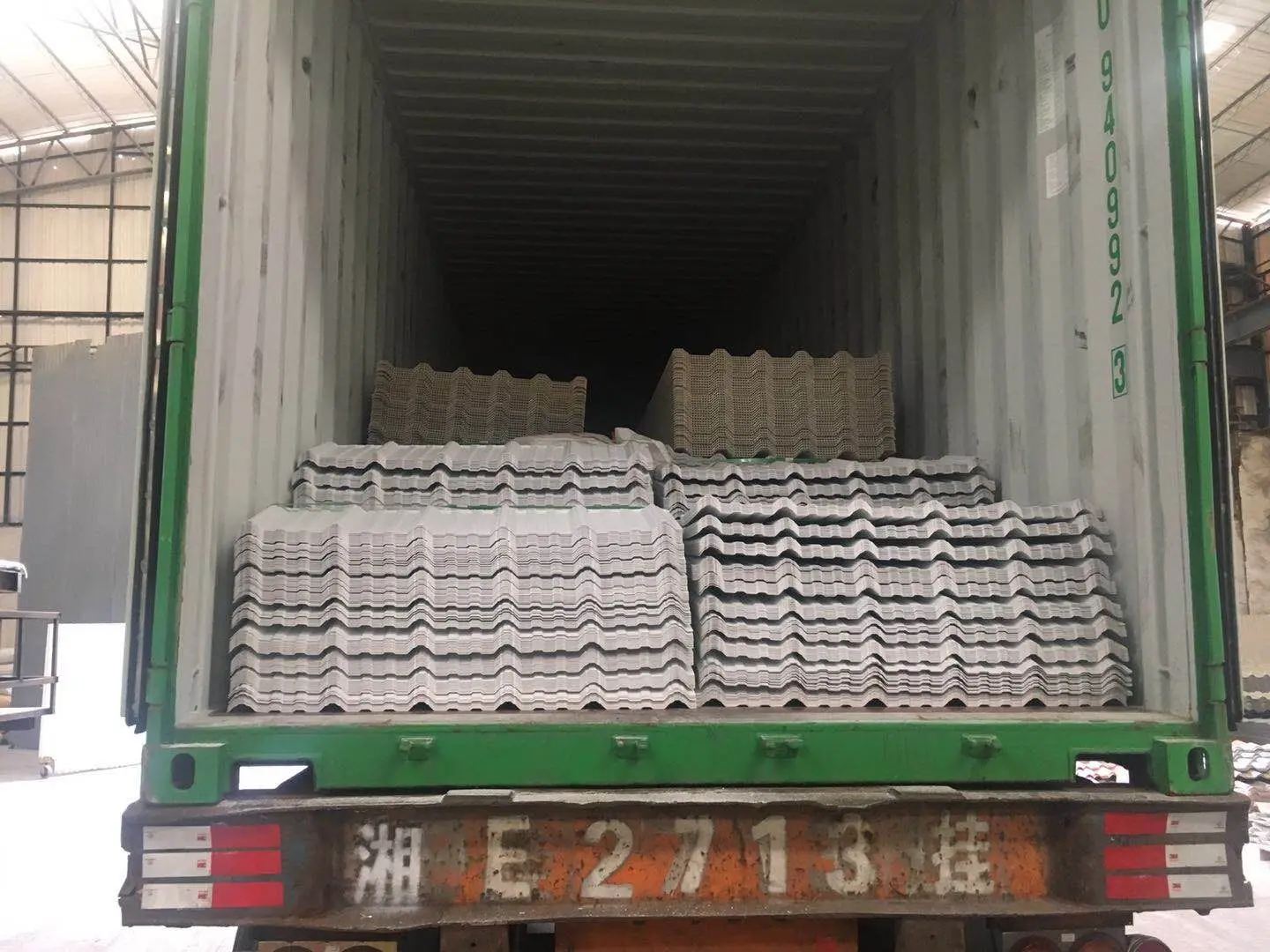

Packing & Delivery
We are manufacturer and have totally 22 production lines to meet customer demand for large orders and different styles. Our production capacity per month is 100 containers., mainly manufacture synthetic resin tiles, hollow wall board, hollow corrugated tiles, out door decorative board and more than 10 kinds of products. Our products are widely used in the workhouse, chemical workhouse, residential building, rural house, outdoor and indoor decoration, fitting-out works and roof change projects. Test show that our products are better than color steel sheet in every aspect.
Company Profile
Established in 2 0 0 1, PINGYUN INTERNATIONAL is a leading manufacturer for plastic roofing sheet in china. After 17 years ' stable development, we can provide a wide range of products such as Synthetic resin roof tile, UPVC roof sheet, Transparent FRP roof sheet, Polycarbonate sheet, which can be widely used in residential house, industrial warehouse, agricultural house, sunhouse, greenhouse, and so on , and our annual output has reached 5 million square meters.
As a professional roofing solutions provider, we believe the power of quality product can trans form lives to a better one. With hardworking of our team , our products have been exported to India, Indonesia, Thailand, Cambodia, Libya, Dubai, France, Colombia, Mexico, south Africa, Kenya and other many countries.Sincerely welcome customers from all over the world to our company for business cooperation!
Why choosing us
1. Perfect products
We have years of production and export experience. We have been improving our technology and using excellent raw materials, so our products are of high quality.
2.22 Production lines
We are manufacturer and have totally 22 production lines to meet customer demand for large orders and different styles. Our production capacity per month is 100 containers.
3.Production diversification
We could produce different color, width, thickness,length and waveform for various application and climate.
8.Strict quality control system
We have several links to ensure quality in the process of production and loading.
9.OEM service
If you want to produce unique waveform, we can provide help in mold and production.
We have years of production and export experience. We have been improving our technology and using excellent raw materials, so our products are of high quality.
2.22 Production lines
We are manufacturer and have totally 22 production lines to meet customer demand for large orders and different styles. Our production capacity per month is 100 containers.
3.Production diversification
We could produce different color, width, thickness,length and waveform for various application and climate.
4.Government cooperator
We are supplier of many government projects like 2008 Olympic Game project, Guangzhou Asian Games and South market.
We are supplier of many government projects like 2008 Olympic Game project, Guangzhou Asian Games and South market.
5.10 days lead time
Generally, we could finish the production of goods in 10 days.
Generally, we could finish the production of goods in 10 days.
6.Guarantee and Quick feedback for after-sales
The warranty period of our product is 10 years.
Please contact us in time when you have any questions.
The warranty period of our product is 10 years.
Please contact us in time when you have any questions.
7.Free training for installation
We have detailed installation guide to help you.
We have detailed installation guide to help you.
8.Strict quality control system
We have several links to ensure quality in the process of production and loading.
9.OEM service
If you want to produce unique waveform, we can provide help in mold and production.
FAQ
Q1:I like your product, could you send me the samples?
A1:Of course, we can send you the samples for free, just need your courier number.
Q2:I want to buy this product urgently, how about your delivery time for one container?
A2:We have 22 production lines, we can produce one container about 2 days, once get your advance payment,
we will arrange the loading within 7 days.
Q3:What's the guarantee time of this product?
A3:For plastic ASA PVC roof tiles, our guarantee time is 10 years, but its life time is about 20 years, even more
longer without man-made disdruction.
Q4:Can you give me the beat price?
A4:Yes we can. we are the manufacturer directly supplier of roof tile.
Q6. What length can you produce?
A: We could customize length for you. Max length of 5.8 meters for 20 feet container and 11.8 meters for 40 feet container.
Q7. What category do you have?
A: We mainly have Spanish and Roma styles for residential house, PVC trapezoidal and wave styles for factory and warehouse, PVC hollow roof&wall sheet for kinds of buildings, PVC translucent roof sheet for day lighting and so on.
Q8. What are the applications of PVC roof sheet?
A: PVC roof sheet can be used in farm construction, paper mill construction, site construction, warehouse construction, factory construction, garage construction, winery, brick factory, chemical factory and other almost all kinds of environmental projects.
A1:Of course, we can send you the samples for free, just need your courier number.
Q2:I want to buy this product urgently, how about your delivery time for one container?
A2:We have 22 production lines, we can produce one container about 2 days, once get your advance payment,
we will arrange the loading within 7 days.
Q3:What's the guarantee time of this product?
A3:For plastic ASA PVC roof tiles, our guarantee time is 10 years, but its life time is about 20 years, even more
longer without man-made disdruction.
Q4:Can you give me the beat price?
A4:Yes we can. we are the manufacturer directly supplier of roof tile.
Q5. What colors can you produce?
A: We have many common colors like white, blue, brick red, green, grey, etc and also could customize special colors for you.
A: We have many common colors like white, blue, brick red, green, grey, etc and also could customize special colors for you.
Q6. What length can you produce?
A: We could customize length for you. Max length of 5.8 meters for 20 feet container and 11.8 meters for 40 feet container.
Q7. What category do you have?
A: We mainly have Spanish and Roma styles for residential house, PVC trapezoidal and wave styles for factory and warehouse, PVC hollow roof&wall sheet for kinds of buildings, PVC translucent roof sheet for day lighting and so on.
Q8. What are the applications of PVC roof sheet?
A: PVC roof sheet can be used in farm construction, paper mill construction, site construction, warehouse construction, factory construction, garage construction, winery, brick factory, chemical factory and other almost all kinds of environmental projects.
